Hydraulic Tube Expander, Condenser Expander to Meet the Needs of All Types of Tubes and Tube Plate Expansion

Hydraulic Tube Expander for Condenser and Tube Plate Expansion

The Hydraulic Tube Expander is designed for controlled expansion of metal tubes into tube plates,tube sheets,and related heat-transfer equipment components. It is particularly suitable for applications involving condensers,heat exchangers,boilers,and other industrial equipment where tubes need to be securely expanded into prepared tube plate holes.

Tube expansion is an important assembly process in heat exchanger and condenser manufacturing. By expanding the tube inside the tube plate hole,the outside diameter of the tube can be increased to create a mechanical connection between the tube and tube plate.

Compared with manual mechanical expansion methods,a hydraulic tube expander can provide controlled expansion force and a repeatable operating process. The actual expansion method,capacity,and suitable tube specifications depend on the selected hydraulic system,expander head,mandrel,roller configuration,and tube material.

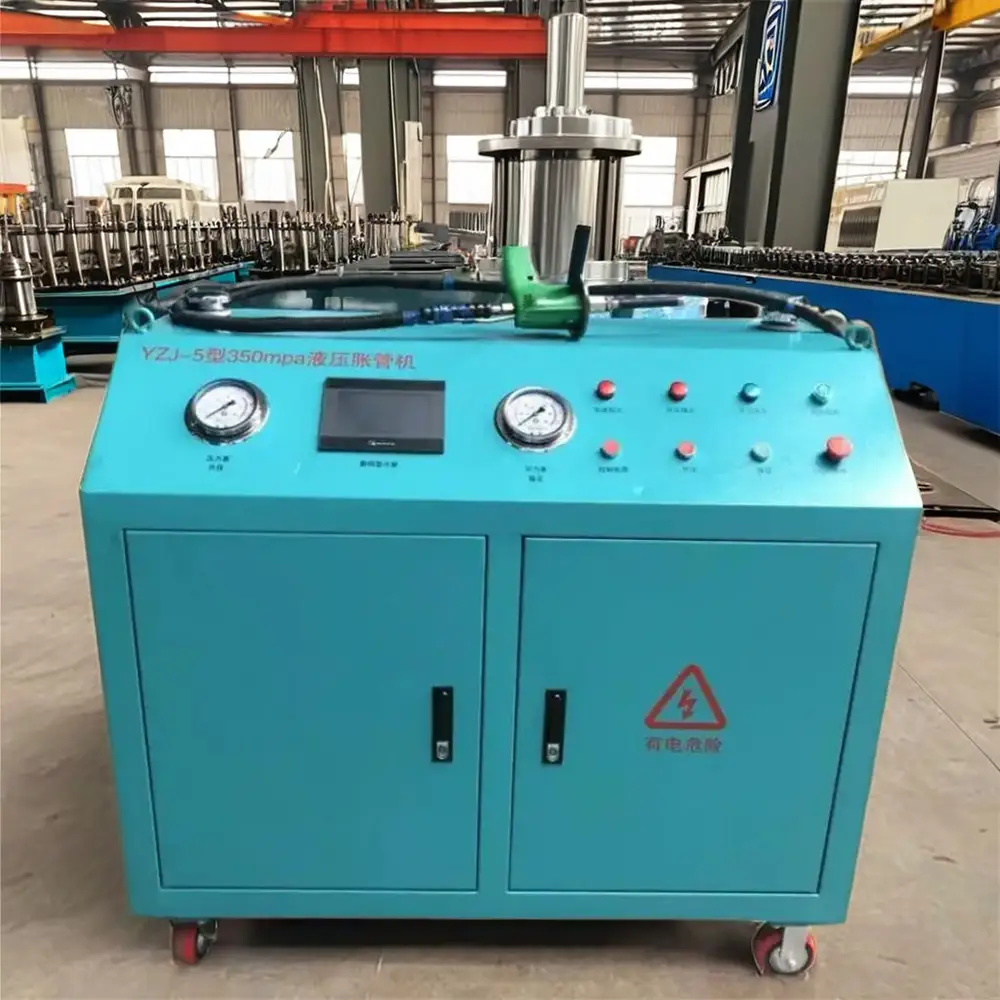

Hydraulic Tube Expansion Technology

Hydraulic tube expansion uses hydraulic pressure to drive the expansion mechanism inside the tube. The expansion tool applies controlled radial force to enlarge the tube against the surrounding tube plate hole.

The objective is to achieve the required tube-to-tube plate connection without unnecessarily damaging the tube or tube plate.

Proper expansion requires the correct relationship between tube outside diameter,tube wall thickness,tube plate hole diameter,tube material,and expansion amount.

Over-expansion may deform the tube excessively or affect the tube plate,while insufficient expansion may result in an inadequate mechanical connection. Therefore,the expansion parameters should be established according to the equipment manufacturer's recommendations and the heat exchanger design requirements.

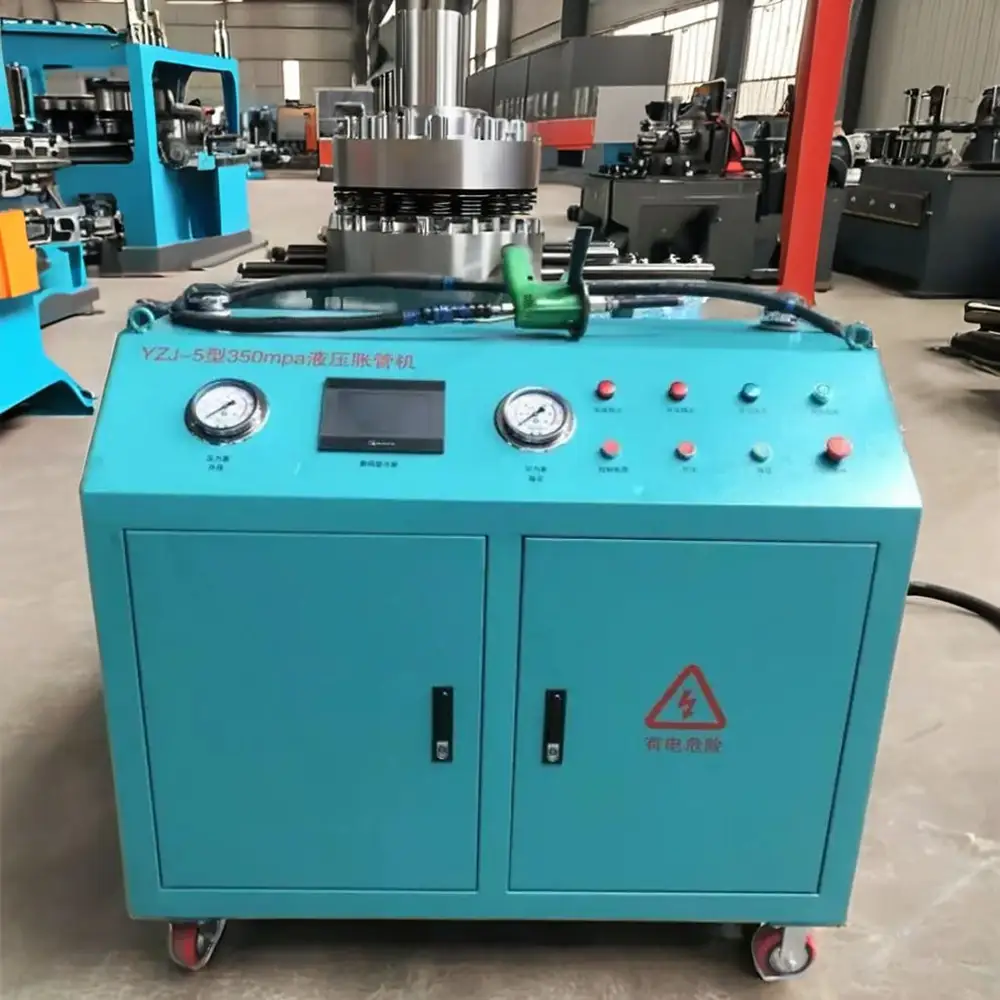

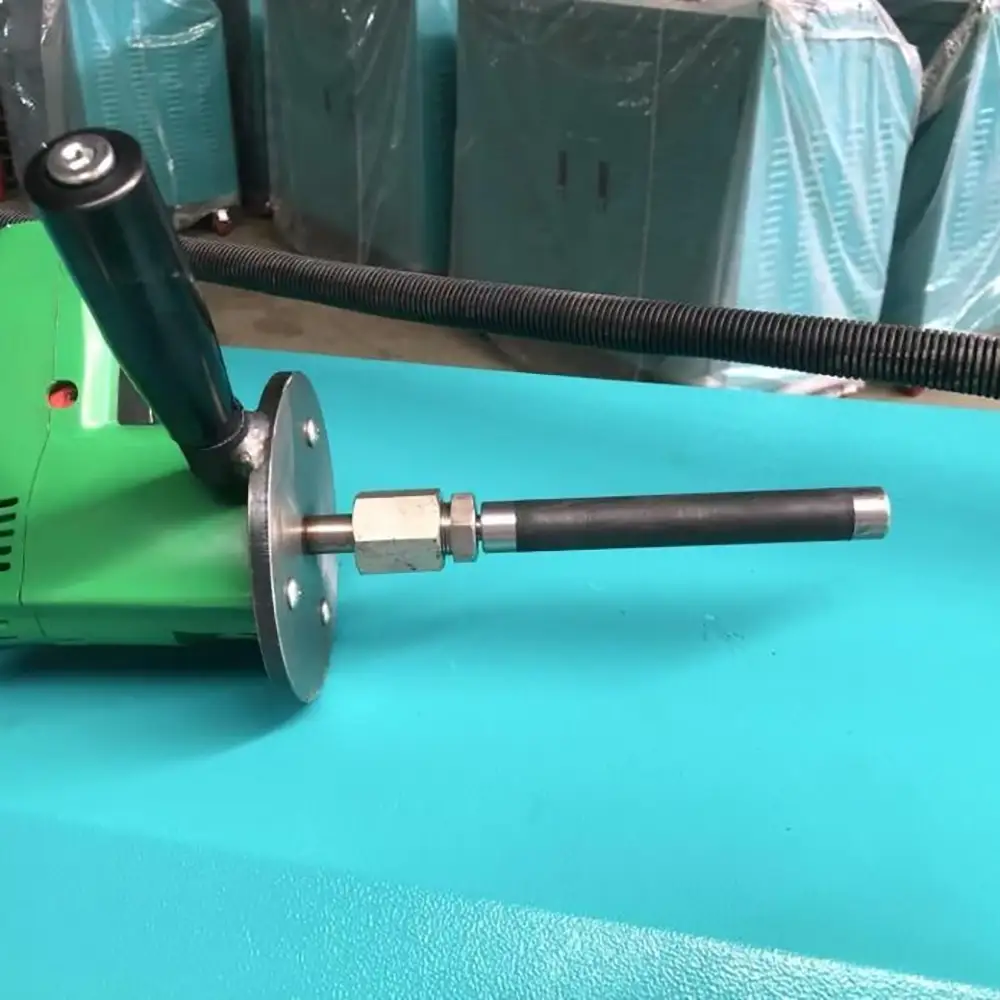

Condenser Tube Expander

A Condenser Tube Expander is commonly used for expanding tubes installed in condenser tube sheets.

Condensers can contain a large number of tubes,so consistent tube expansion is important during manufacturing,maintenance,and repair operations.

The hydraulic tube expander can be configured with suitable expansion heads and tooling for the required tube diameter and material.

Typical condenser tube materials may include carbon steel,stainless steel,copper alloys,and other heat-transfer tube materials. Each material has different mechanical properties and requires suitable expansion parameters.

For maintenance applications,the tube condition should also be checked before expansion because corrosion,wear,or deformation can affect the final connection.

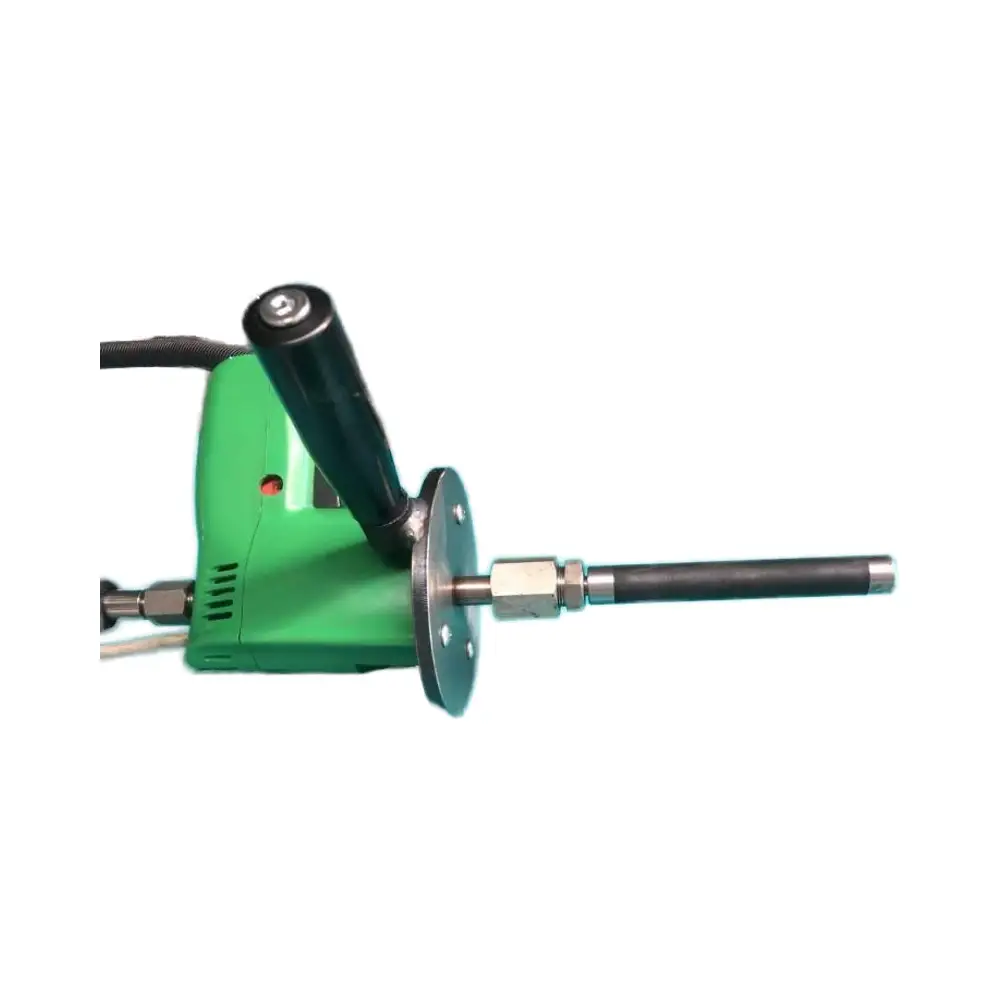

Tube Plate Expansion

Tube plate expansion creates a mechanical connection between the tube and tube plate. The tube is inserted into the prepared hole in the tube sheet before the expansion tool is positioned inside the tube.

During expansion,the tool increases the tube diameter until the tube contacts and engages with the tube plate.

The required expansion amount is normally determined according to the tube and tube plate design. Factors such as tube material,wall thickness,tube plate thickness,hole tolerance,and joint requirements should be considered.

In some applications,tube expansion may be combined with other joining methods such as welding. The appropriate process depends on the equipment design and applicable engineering requirements.

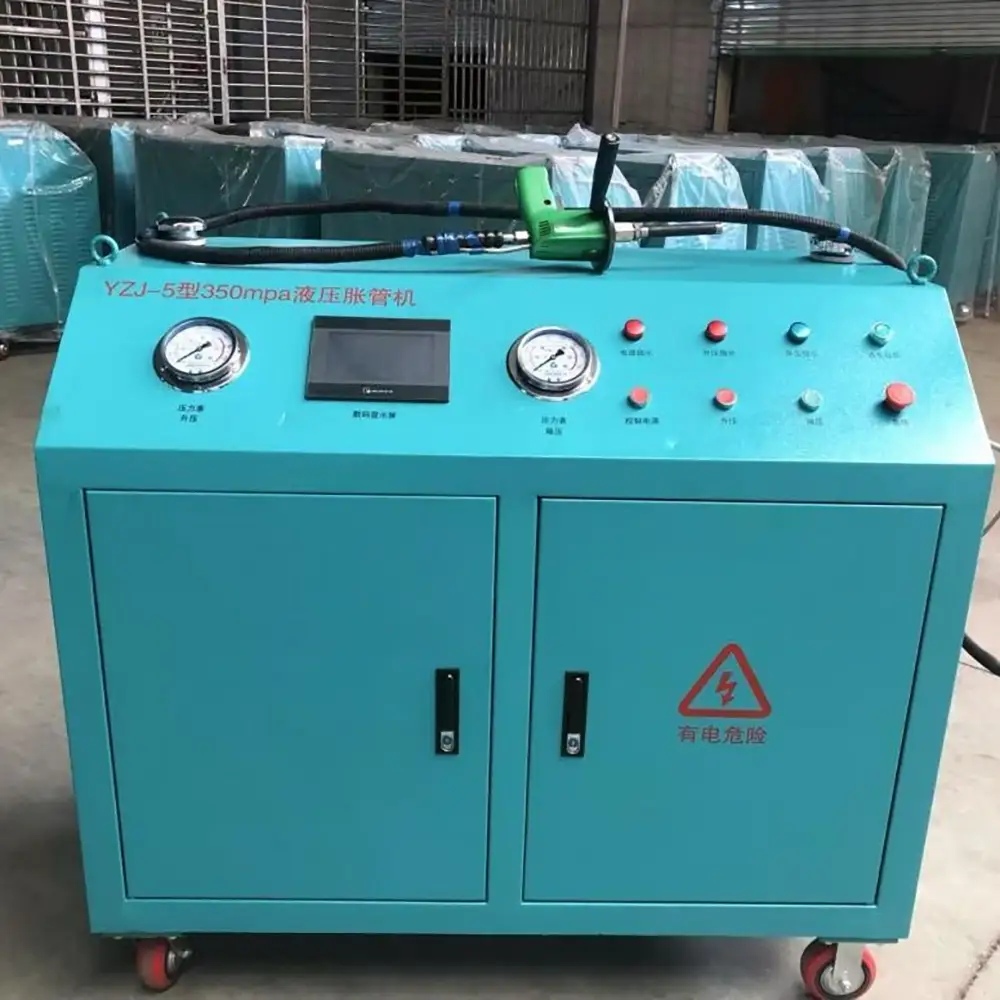

Heat Exchanger Tube Expansion

Heat exchangers are one of the major applications for tube expanding equipment.

A heat exchanger may contain dozens,hundreds,or thousands of tubes depending on its design. Each tube must be installed and connected correctly to maintain the intended mechanical and thermal performance.

Hydraulic expansion equipment can be used during heat exchanger manufacturing and maintenance to process suitable tube-to-tube plate joints.

Common applications include:

Shell And Tube Heat Exchangers

Condensers

Boilers

Evaporators

Feedwater Heaters

Industrial Heat Exchangers

Cooling Equipment

Process Equipment

The actual tube size and expansion method should be selected according to the specific heat exchanger design.

Suitable Tube Materials

The machine can be configured for different metal tube materials when the appropriate expansion tooling is selected.

Potential materials include:

Carbon Steel

Stainless Steel

Copper

Copper Alloys

Brass

Nickel Alloys

Other Compatible Heat-Transfer Tubes

Material hardness,ductility,and wall thickness affect the required expansion force.

Copper and copper-alloy tubes generally behave differently from stainless steel or carbon steel tubes during expansion. Therefore,the hydraulic pressure and tooling should be adjusted according to the material.

For special alloys or critical applications,testing with actual tubes is recommended before establishing production parameters.

Different Tube Sizes and Expansion Heads

Tube expansion equipment may use interchangeable expansion heads,mandrels,rollers,or other tooling components.

This allows one hydraulic drive system to be adapted to different tube specifications when the machine design supports interchangeable tooling.

The required tooling is determined by tube outside diameter,inside diameter,wall thickness,and tube plate hole dimensions.

For customers processing multiple tube sizes,the availability of different expansion heads can improve equipment flexibility.

However,the phrase “all types of tubes” should be understood within the machine's rated tooling and expansion range. The actual compatible tube specifications should always be confirmed before purchase.

Controlled Expansion Force

Hydraulic operation provides a controlled source of expansion force.

Compared with purely manual expansion tools,the hydraulic system can help standardize the expansion process for repetitive production or maintenance work.

The hydraulic pressure should be selected according to the tube material,wall thickness,expansion requirement,and tooling.

Excessive pressure can cause unwanted deformation,while insufficient pressure may result in incomplete expansion.

For critical heat exchanger applications,operators should follow established expansion procedures and inspect the finished joint.

Manufacturing and Maintenance Applications

Hydraulic tube expanders can be used in both new equipment manufacturing and maintenance operations.

Manufacturing applications include:

Heat Exchanger Assembly

Condenser Manufacturing

Boiler Manufacturing

Industrial Cooling Equipment

Process Equipment Fabrication

Pressure Equipment Production

Maintenance applications may include tube replacement,tube re-expansion,and repair of suitable heat exchanger or condenser tube joints.

Portable or compact hydraulic expansion systems can be especially useful for field maintenance where large heat exchangers cannot easily be transported to a production workshop.

Tube Joint Quality Control

The quality of a tube-to-tube plate joint depends on accurate preparation and controlled expansion.

Important factors include tube hole condition,tube dimensions,tube cleanliness,expansion amount,hydraulic pressure,tool alignment,and tooling condition.

After expansion,the joint can be inspected according to the applicable manufacturing or maintenance procedure.

Depending on the equipment and engineering requirements,inspection may include visual examination,dimensional checks,leak testing,or other appropriate quality-control methods.

Operators should establish expansion parameters before processing large batches of tubes.

Tooling Maintenance

Expansion rollers,mandrels,and other contact components are wear parts and should be inspected regularly.

Worn tooling can influence the expansion profile and may increase the risk of inconsistent tube joints.

The hydraulic system should also be maintained according to the manufacturer's recommendations. Hydraulic oil,hoses,fittings,seals,and pressure components should be inspected at appropriate intervals.

Keeping the expansion tooling clean and correctly lubricated where required can also help maintain stable operation.

Safety and Operation

Hydraulic tube expansion involves mechanical force and high-pressure hydraulic equipment. Operators should receive appropriate training and follow the manufacturer's operating procedures.

Before starting an expansion operation,the tube,tooling,and tube plate should be correctly aligned.

Operators should keep hands away from moving components and hydraulic pressure points. Hydraulic hoses and fittings should be inspected regularly for signs of leakage or damage.

Emergency stops,pressure protection,and other safety features depend on the equipment configuration and applicable local requirements.

Custom and OEM Tube Expansion Solutions

Different heat exchangers and condensers require different tube specifications. For this reason,the hydraulic tube expander can be configured with application-specific tooling.

Customers can provide:

Tube Outside Diameter

Tube Wall Thickness

Tube Material

Tube Plate Thickness

Tube Plate Hole Diameter

Required Expansion Type

Production Quantity

Manufacturing Or Maintenance Application

Based on these details,the appropriate hydraulic system and expansion tooling can be evaluated.

OEM and ODM solutions can include customized expansion heads,mandrels,rollers,hydraulic systems,controls,and carrying arrangements.

This makes the equipment suitable for heat exchanger manufacturers,condenser manufacturers,boiler manufacturers,industrial maintenance contractors,and B2B equipment distributors.

Why Choose Us

Hydraulic Tube Expansion – Provides controlled hydraulic force for suitable tube-to-tube plate expansion applications.

Condenser Tube Expansion – Designed for condenser and heat exchanger tube installation and maintenance requirements.

Tube Plate Compatibility – Suitable tooling can be configured for tube-to-tube sheet expansion according to the required specifications.

Multiple Tube Materials – Can be configured for suitable steel,copper,stainless steel,and other compatible heat-transfer tubes.

Interchangeable Tooling – Expansion heads and related tooling can be selected for different tube specifications where supported.

Manufacturing & Maintenance Use – Suitable for both new heat exchanger production and tube repair or replacement applications.

Controlled Processing – Hydraulic operation supports repeatable expansion procedures when appropriate parameters are established.

OEM & ODM Support – Custom tooling and machine configurations can be developed according to customer tube and tube plate specifications.

FAQs

1. What is a hydraulic tube expander?

A hydraulic tube expander is a tool or machine that uses hydraulic force to expand a metal tube inside a tube plate or tube sheet hole.

2. What is a condenser tube expander used for?

It is used to expand suitable condenser tubes into condenser tube sheets to create a mechanical tube-to-tube plate connection.

3. Can it be used for heat exchangers?

Yes. Hydraulic tube expansion is commonly used for suitable shell-and-tube heat exchanger manufacturing and maintenance applications.

4. What materials can be expanded?

Depending on the tooling and machine configuration,suitable carbon steel,stainless steel,copper,brass,copper alloys,and other compatible metal tubes may be processed.

5. Can one machine process different tube sizes?

Potentially. Machines that support interchangeable expansion heads or tooling can be adapted to different tube sizes within their rated range.

6. What determines the required expansion pressure?

Tube material,wall thickness,tube diameter,tube plate hole dimensions,expansion amount,and tooling design all influence the required expansion parameters.

7. Can the expander work with stainless steel tubes?

Yes,when suitable expansion tooling and parameters are selected for the stainless steel grade and tube dimensions.

8. Can it expand copper condenser tubes?

Yes. Copper and copper-alloy tubes can be processed when the expansion head and hydraulic parameters are correctly matched to the tube specifications.

9. Does tube expansion make the joint leak-proof?

Proper tube expansion can create a strong mechanical connection and may contribute to sealing performance,but the final joint performance depends on tube dimensions,expansion parameters,tube plate condition,and the overall equipment design. Required leak testing should follow the applicable engineering procedure.

10. Can the machine be used for tube replacement?

Yes. Suitable hydraulic tube expanders can be used for certain heat exchanger and condenser maintenance or tube replacement operations.

11. What tooling is required?

Tooling may include expansion heads,mandrels,rollers,and other components selected according to the tube diameter,inside diameter,wall thickness,and tube plate dimensions.

12. What information is needed for a quotation?

Provide tube material,outside diameter,inside diameter or wall thickness,tube plate thickness,hole diameter,required expansion method,application,and production or maintenance requirements.
