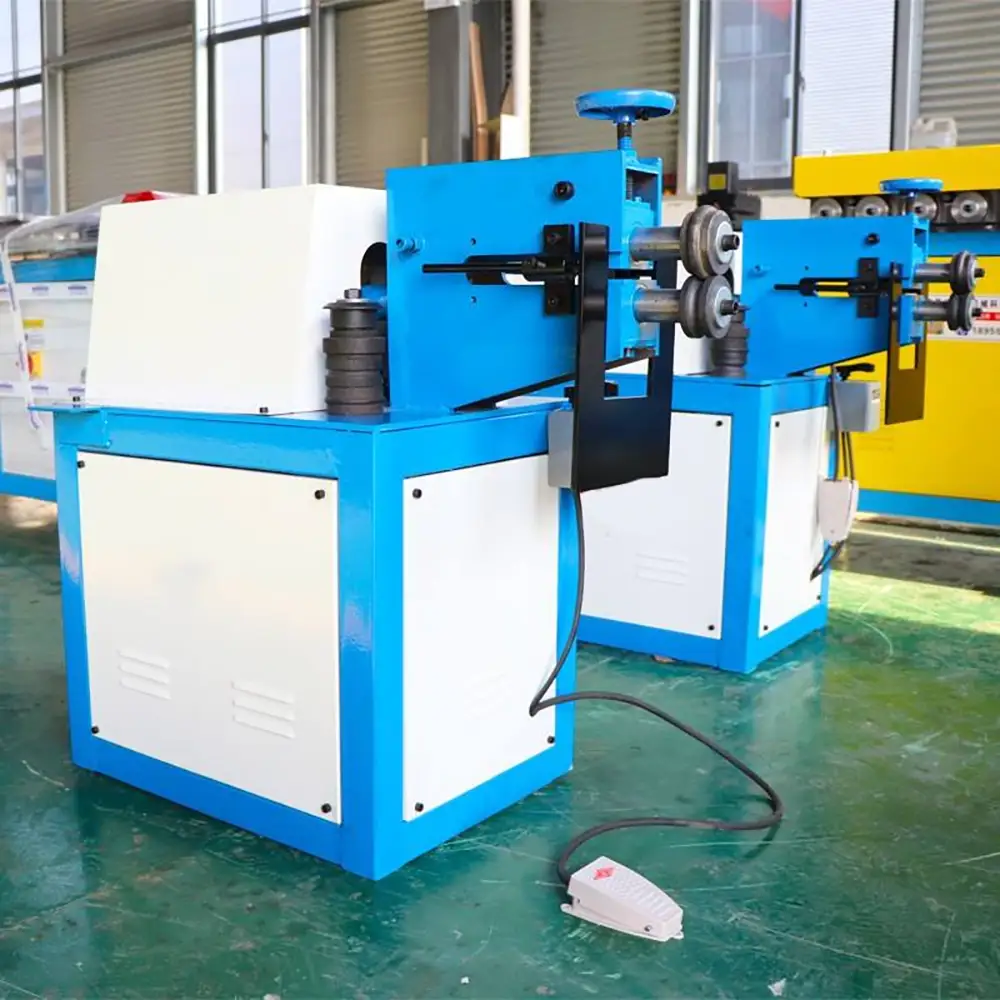

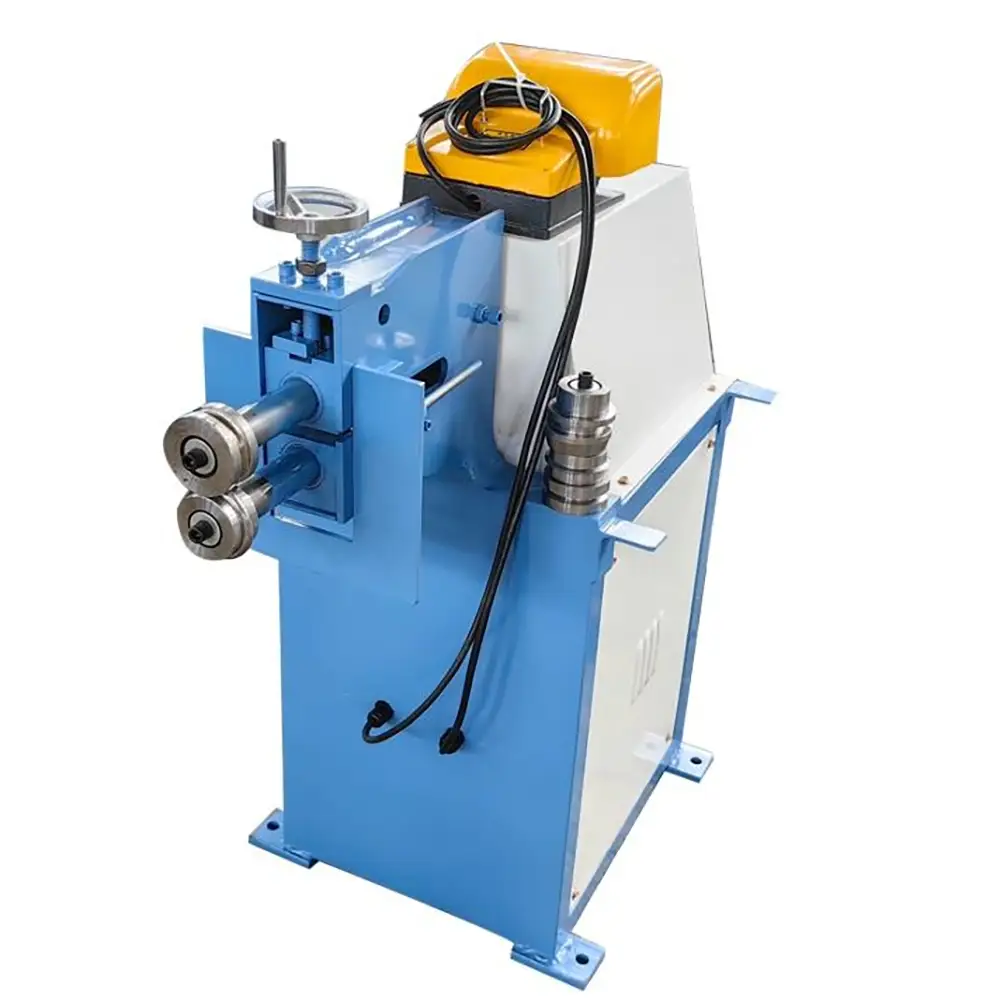

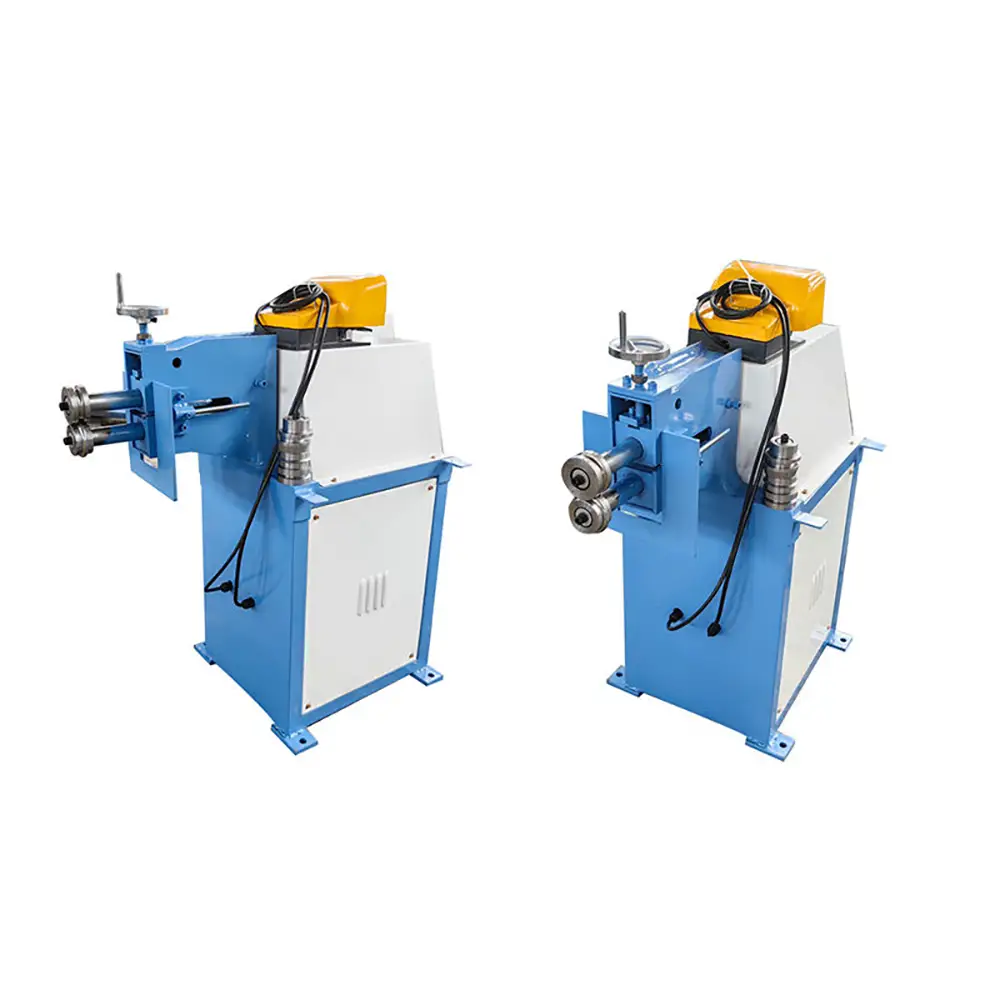

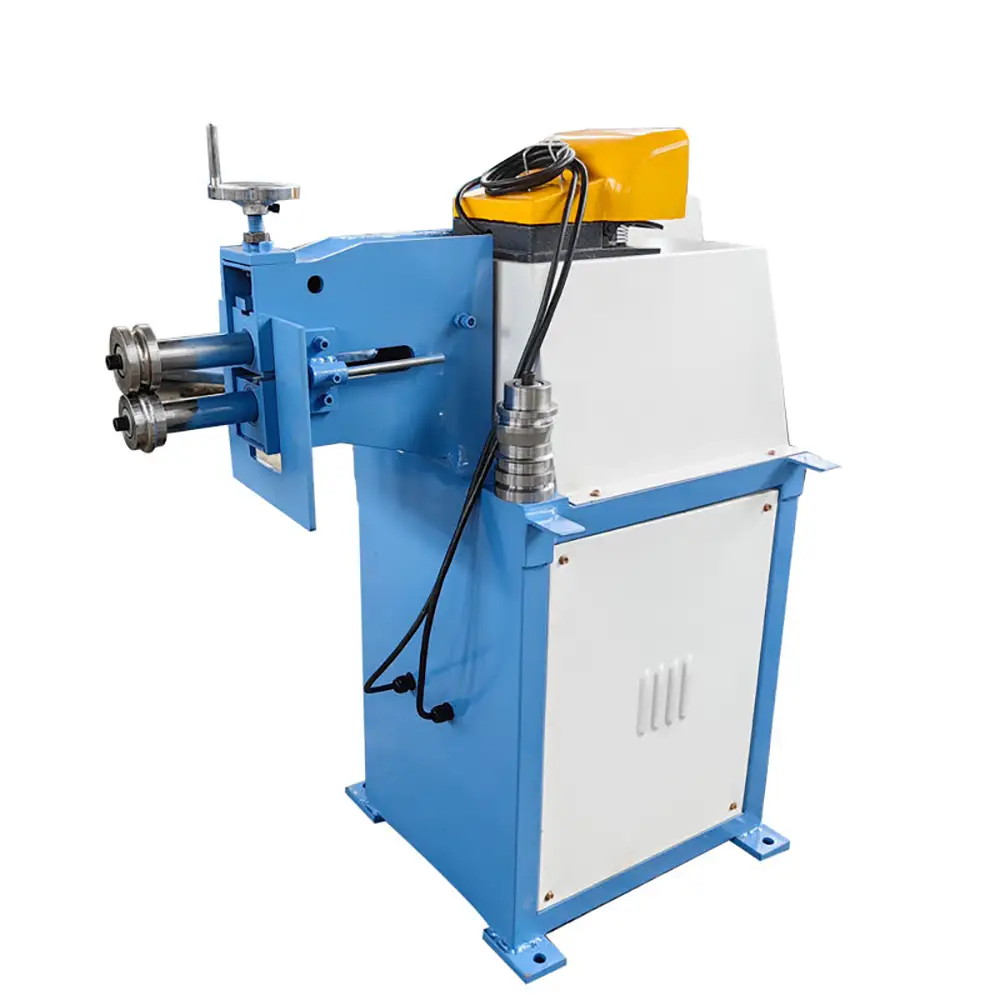

Round Duct Sheet Metal Bead Roller Swag Rotary Machine for Galvanized Sheet Beading

Model	LX15
Power	0.75KW
Processing thickness	1.2mm
Weight	120KG
Overall Dimension	860*520*1050

Round Duct Sheet Metal Bead Roller Swag Rotary Machine for Galvanized Sheet Beading

The Round Duct Sheet Metal Bead Roller Swag Rotary Machine is designed for forming beads,swages,and reinforcing profiles in sheet metal used for round ducts,HVAC components,ventilation systems,and general metal fabrication. By using matched forming rollers,the machine creates a controlled raised or recessed profile along the surface of a metal sheet or cylindrical duct component.

Sheet metal beading is commonly used to increase rigidity,improve structural stability,and provide a finished formed appearance. For round duct fabrication,beaded sections can help reinforce the duct wall and reduce deformation during handling,transportation,and installation.

The machine is particularly suitable for processing galvanized steel sheet,carbon steel,stainless steel,aluminum,and other compatible sheet materials when the appropriate rollers and operating parameters are selected.

Sheet Metal Bead Roller Technology

A bead roller machine uses rotating forming rolls to shape sheet metal progressively. The workpiece is positioned between the upper and lower rollers,and the rollers apply controlled forming pressure while rotating.

Unlike cutting operations,the bead roller does not remove material. Instead,it plastically deforms the sheet to create a bead,groove,flange,or other formed profile.

The final shape depends on roller geometry,material thickness,forming pressure,feed speed,and machine configuration. Different roller profiles can be selected for different duct and fabrication requirements.

For production environments,the controlled rotary forming process can provide more consistent results than completely manual forming methods.

Round Duct Beading Applications

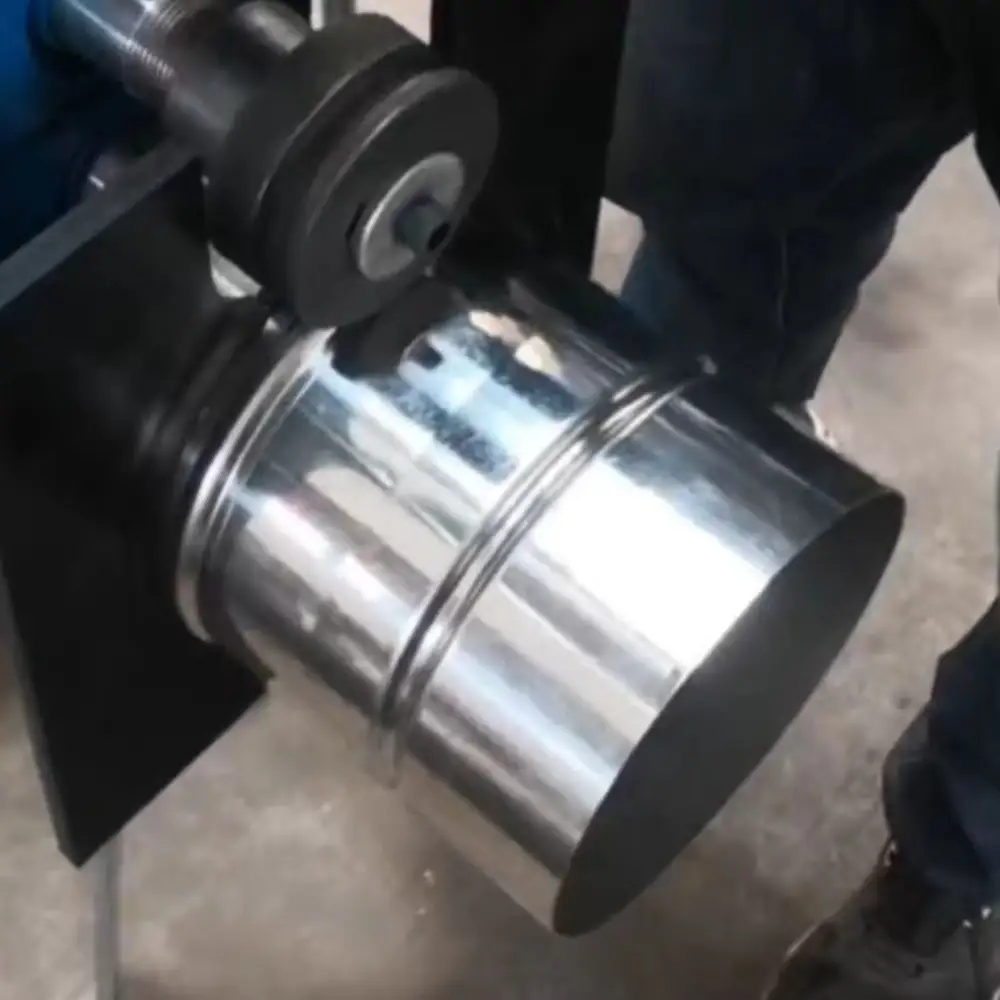

Round duct beading is a common operation in HVAC and ventilation duct manufacturing. A formed bead can reinforce a cylindrical duct and provide additional rigidity.

The machine can be used for suitable round duct components and sheet metal parts in applications such as:

HVAC round ducts

Ventilation ducts

Air-conditioning ductwork

Industrial exhaust ducts

Dust collection ducting

Workshop ventilation systems

Galvanized steel duct components

Metal air distribution systems

Custom sheet metal ductwork

General cylindrical metal components

The actual duct diameter and material thickness that can be processed depend on the machine design,roller configuration,and workpiece dimensions.

Galvanized Sheet Beading

Galvanized steel is widely used in duct fabrication because of its corrosion-resistant zinc coating and practical forming characteristics.

When forming galvanized sheet,the roller pressure should be properly adjusted to avoid unnecessary surface damage or excessive deformation. Suitable roller geometry can help produce a clean and consistent bead while maintaining the overall shape of the sheet.

The machine can also be evaluated for other materials. Stainless steel and aluminum have different forming characteristics and may require different roller profiles,pressure settings,and processing methods.

Customers should provide the material grade,thickness,and required bead profile when selecting a machine.

Swagging and Reinforcing Functions

The term swagging can refer to forming or reducing a section of metal through controlled mechanical deformation. In sheet metal fabrication,the concept is often associated with creating formed profiles that improve rigidity or provide a functional shape.

A bead roller can create raised beads,recessed grooves,and reinforcing lines depending on the selected tooling.

For duct manufacturing,this can help increase sheet stiffness without significantly increasing material thickness. Reinforcing beads can be positioned according to the duct design and required structural performance.

The exact forming capability depends on the available roller dies and machine configuration.

Rotary Forming Process

The rotary design allows the workpiece to pass through continuously as the forming rollers rotate.

A typical operation involves placing the sheet or duct component between the rollers,adjusting the roller position to establish suitable forming pressure,and feeding the workpiece through the machine.

For curved or cylindrical components,operator technique and workpiece positioning are important. Consistent feeding can help maintain a uniform bead along the required path.

For repeat production,the machine can be integrated into a broader sheet metal fabrication workflow.

Bead Roller Tooling

Roller tooling is one of the most important factors affecting bead quality. Different roller profiles produce different shapes and dimensions.

Depending on the machine design,tooling may include:

Beading rollers

Grooving rollers

Swaging rollers

Flanging rollers

Rib-forming rollers

Reinforcing bead rollers

Custom profile rollers

Custom tooling can be developed when a customer requires a specific bead width,depth,shape,or position.

For OEM projects,providing a sample duct or drawing can help determine the appropriate roller configuration.

Materials and Thickness Range

The machine can be configured for various sheet metal materials,including galvanized steel,mild steel,stainless steel,and aluminum.

Material thickness has a direct influence on forming force and roller selection. Thicker or higher-strength materials may require a stronger machine structure and different tooling compared with thin sheet.

For this reason,the machine's general appearance or model name should not be used as a substitute for its actual technical specifications.

Before purchasing,customers should provide the material type,sheet thickness,duct diameter,and desired bead dimensions so the appropriate configuration can be evaluated.

HVAC and Duct Fabrication

HVAC manufacturers and sheet metal contractors commonly require forming operations when producing ventilation and air-distribution components.

The bead roller can be used as part of a duct fabrication process alongside equipment such as:

Sheet metal cutting machines

Lock forming machines

Pittsburgh lock machines

Seam closing machines

Duct forming equipment

Plasma or laser cutting machines

Sheet metal bending machines

Roll forming equipment

The bead roller performs a specific forming function and can therefore complement other duct fabrication equipment.

Production Efficiency

A rotary bead forming machine can help reduce manual forming work and provide a more repeatable process for recurring production tasks.

For small workshops,the machine can serve as a flexible sheet metal forming tool. For larger manufacturers,it can be incorporated into a dedicated duct fabrication line.

Actual production speed depends on material thickness,bead length,bead geometry,operator feeding,roller adjustment,and machine configuration.

Consistent setup procedures can help reduce variation between workpieces.

Bead Quality and Process Control

The quality of a formed bead depends on several factors. Roller alignment,forming pressure,material condition,feed speed,and tooling condition all influence the final result.

Excessive roller pressure may distort thin sheet or damage the galvanized coating,while insufficient pressure may produce an incomplete bead.

Operators should begin with suitable settings and verify the first workpiece before continuing a production batch.

For critical applications,customers should define dimensional tolerances and bead geometry before machine selection.

Custom and OEM Solutions

Different duct manufacturers may require different bead profiles,duct sizes,materials,and forming patterns.

The machine can therefore be customized around specific production requirements. Potential customization may include roller tooling,working width,drive configuration,workpiece support,adjustment mechanisms,and electrical configuration.

For OEM and ODM projects,customers can provide drawings,samples,material specifications,duct dimensions,and expected production volume.

This information allows the manufacturer to evaluate the appropriate machine and tooling arrangement.

Maintenance and Safety

Regular maintenance helps maintain stable forming performance. Operators should inspect the rollers,shafts,bearings,drive components,adjustment mechanisms,and electrical system according to the manufacturer's recommendations.

The rollers should be kept clean and free from excessive metal debris. Worn or damaged tooling should be replaced when necessary.

During operation,operators should keep hands away from the rotating rollers and use appropriate protective equipment. Guards and emergency-stop arrangements depend on the specific machine configuration and should be verified before operation.

Why Choose Us

Round Duct Beading Capability – Designed for suitable round duct and cylindrical sheet metal forming applications.

Galvanized Sheet Processing – Suitable for galvanized steel sheet when matched with appropriate roller tooling and forming parameters.

Rotary Bead Forming – Continuous roller movement provides a practical method for creating reinforcing beads and grooves.

Flexible Roller Tooling – Different roller profiles can be selected for beading,grooving,swaging,and reinforcing applications.

HVAC Duct Fabrication – Suitable for ventilation,air-conditioning,and industrial duct manufacturing workflows.

Multiple Material Options – Can be configured for compatible galvanized steel,mild steel,stainless steel,and aluminum sheets.

Custom OEM Tooling – Roller profiles and machine configurations can be developed around customer drawings,samples,and production requirements.

B2B Manufacturing Support – Suitable for manufacturers,fabricators,distributors,wholesalers,and overseas industrial equipment buyers.

FAQs

1. What is a sheet metal bead roller machine?

A sheet metal bead roller is a forming machine that uses rotating rollers to create beads,grooves,swages,or reinforcing profiles in metal sheet.

2. Can this machine process galvanized sheet?

Yes. It can be configured for suitable galvanized steel sheet with appropriate roller tooling and forming pressure.

3. What is the purpose of beading round ducts?

Beading can increase duct rigidity,reduce deformation,and provide a formed reinforcing profile along the duct wall.

4. What materials can be processed?

Depending on the configuration,the machine can process galvanized steel,mild steel,stainless steel,aluminum,and other compatible sheet metals.

5. Can it form stainless steel?

Potentially yes. Stainless steel requires suitable tooling and forming parameters because its strength and work-hardening characteristics differ from galvanized steel.

6. What does a swagging machine do?

Swagging generally involves controlled metal deformation to form or modify a section of the workpiece. The exact operation depends on the machine and tooling.

7. Can different bead profiles be produced?

Yes. Different roller dies can be used to create different bead,g​​roove,rib,and reinforcing profiles,depending on the machine design.

8. Is this machine suitable for HVAC duct manufacturing?

Yes. It can be used as part of an HVAC and ventilation duct fabrication workflow for suitable sheet metal components.

9. Does it work with round ducts?

Yes. The machine can be used for suitable round duct and cylindrical sheet metal components when the dimensions are within its configured operating range.

10. What affects bead quality?

Roller profile,roller alignment,forming pressure,material thickness,material properties,feed speed,and tooling condition all affect the finished bead.

11. Can the rollers be customized?

Yes. Custom roller tooling can be developed for specific bead dimensions,profiles,and production requirements.

12. What information should I provide for a quotation?

Provide the sheet material,thickness,round duct diameter,required bead profile,bead dimensions,production volume,and any drawings or samples available.
