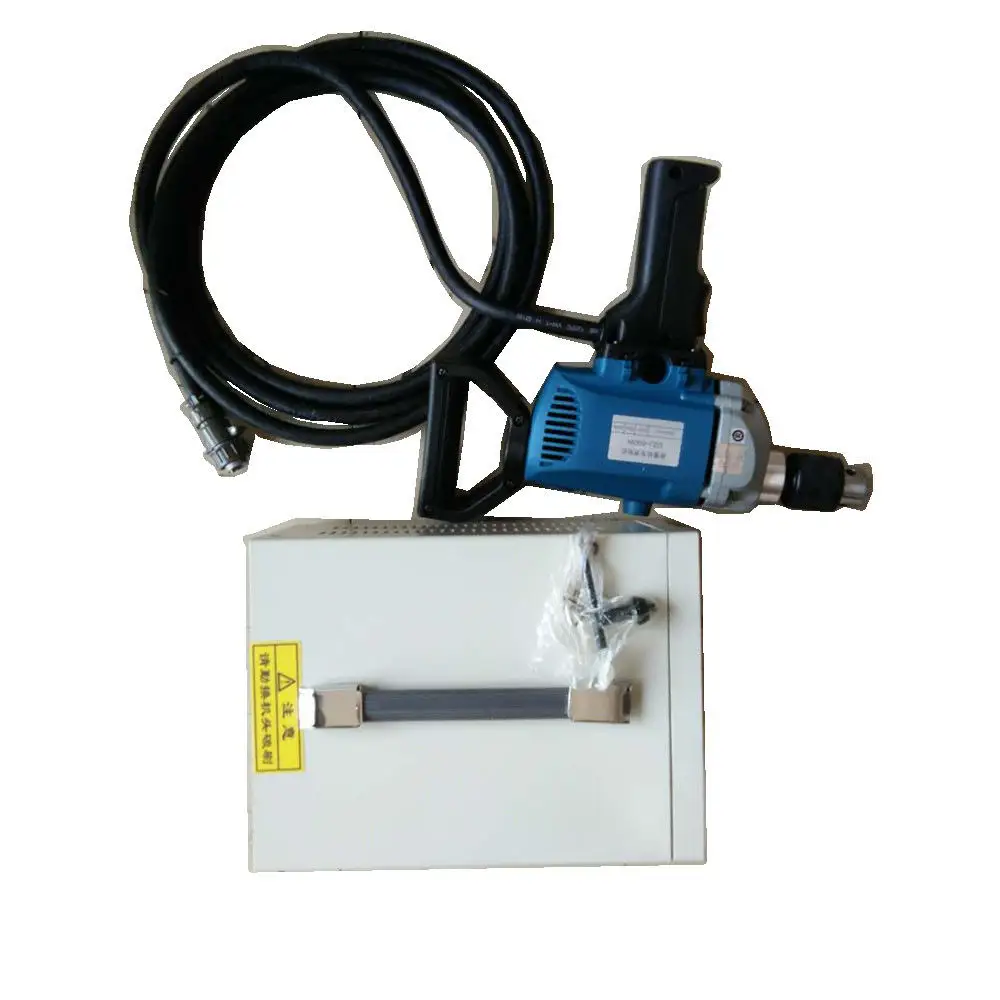

Electric Pipe Expander Portable Tube Expanding Machine for Condenser Heater

 Electric Pipe Expander Portable Tube Expanding Machine for Condenser Heater

The Electric Pipe Expander Portable Tube Expanding Machine is designed for expanding metal tubes used in condensers,heaters,heat exchangers,and other tubular heat-transfer equipment. The machine applies controlled mechanical expansion to the tube so that it can fit securely into a tube sheet or achieve the required tube-to-tube-sheet connection.

Tube expansion is an important process in the manufacture,installation,and maintenance of heat exchangers,condensers,boilers,and industrial heating equipment. A properly expanded tube can establish a secure mechanical connection and help reduce the possibility of leakage when the process is correctly selected and controlled.

The portable electric design provides flexibility for workshop production,field installation,and maintenance applications where operators need to work directly at the equipment rather than using a large stationary tube expansion system.

Electric Tube Expanding Technology

An electric tube expander uses a powered drive system to rotate an expansion tool inside the tube. The expanding mechanism applies controlled radial force to enlarge the tube section to the required dimensions.

Depending on the tool configuration,the expansion process may involve an expanding mandrel,rollers,or other mechanical components designed for tube expansion.

The exact expansion method depends on the machine and tooling design. The required expansion amount should be determined according to tube material,tube dimensions,tube-sheet configuration,and the manufacturer's recommended process parameters.

Unlike uncontrolled manual expansion,an electric drive can provide a more consistent operating process and reduce the physical effort required from the operator.

Condenser Tube Expansion

Condensers commonly contain multiple tubes installed through tube sheets. These tubes provide the heat-transfer surface required for condensation and cooling processes.

During condenser manufacturing or repair,tube expansion can be used to secure tubes within the tube sheet. The portable electric tube expander can be useful when processing multiple tube connections where repeatability and convenient operation are important.

Suitable condenser tubes may be made from materials such as copper,copper alloys,carbon steel,stainless steel,or other compatible metals. However,the correct tooling and expansion parameters must be selected according to the actual tube material.

For maintenance applications,the machine can also be used when replacing damaged tubes or restoring tube-to-tube-sheet connections,subject to the equipment design and repair procedure.

Heater and Heat Exchanger Applications

The machine is also suitable for selected heater and heat exchanger tube expansion applications.

Heat exchangers use tubes to transfer heat between fluids. Depending on the equipment design,tubes may be mechanically expanded into tube sheets to establish a secure connection.

Typical equipment may include:

Shell-and-tube heat exchangers

Condensers

Industrial heaters

Boiler components

Water heaters

Oil coolers

Steam condensers

Refrigeration equipment

Process heat exchangers

Chemical processing equipment

The actual application depends on the tube dimensions,material,wall thickness,tube-sheet design,and required expansion method.

Portable Tube Expander Design

Portability is one of the main advantages of this type of tube expansion machine.

Instead of moving an entire condenser or heat exchanger to a stationary production machine,the operator can bring the electric expander directly to the equipment.

This can be particularly useful for large heat exchangers that are difficult to reposition. The portable format can also support maintenance contractors and service teams working at industrial facilities.

A compact tool can be used in confined working areas where a large tube expansion machine would be difficult to install.

The actual weight,dimensions,power supply,and operating range should be confirmed according to the selected model.

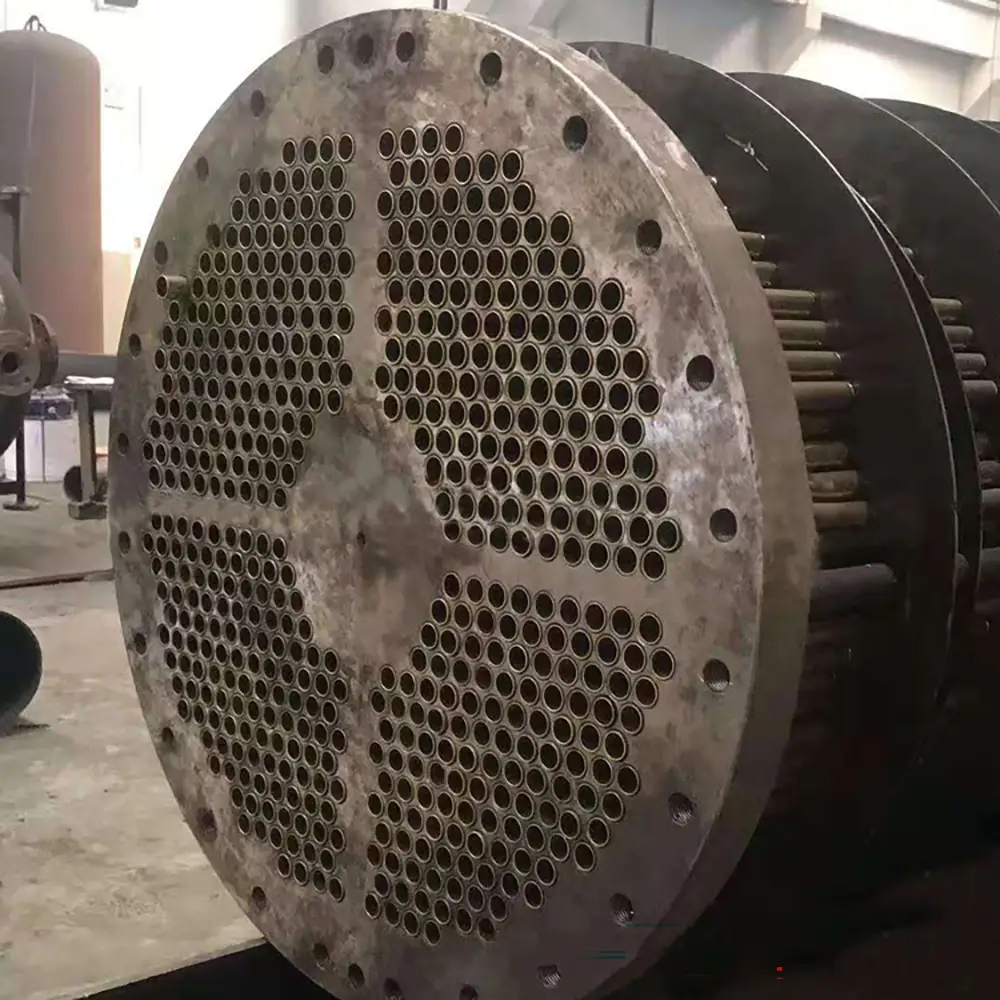

Tube-to-Tube-Sheet Connection

Tube expansion is often used to create a mechanical connection between a tube and tube sheet.

During the process,the tube is inserted through a prepared tube-sheet hole and expanded against the inside surface of the hole. The resulting mechanical contact can help secure the tube and establish the required connection.

The amount of expansion must be carefully controlled. Excessive expansion may damage the tube or tube sheet,while insufficient expansion may result in inadequate contact.

For critical heat-transfer equipment,the recommended expansion percentage,wall reduction,or dimensional requirements should be established according to the equipment manufacturer's engineering specifications.

Tube Materials

The electric tube expander may be suitable for various metal tubes when matched with the appropriate expansion tooling.

Potential materials include:

Copper

Copper alloys

Carbon steel

Stainless steel

Low-alloy steel

Aluminum

Other compatible heat-exchanger tube materials

Different metals have different hardness,ductility,and work-hardening characteristics. Therefore,the same expansion setting should not automatically be applied to every material.

Customers should provide the tube material,outer diameter,wall thickness,and tube-sheet information when selecting the appropriate tooling.

Tube Diameter and Wall Thickness

Tube dimensions are critical when choosing a tube expander.

Important parameters include tube outside diameter,inside diameter,wall thickness,free tube length,tube-sheet thickness,and tube-hole diameter.

The expander must be correctly matched to the tube size and required expansion range. Different mandrels,rollers,or expansion heads may be required for different tube diameters.

For OEM or specialized applications,customers can provide detailed tube drawings or samples so that the appropriate expansion tooling can be evaluated.

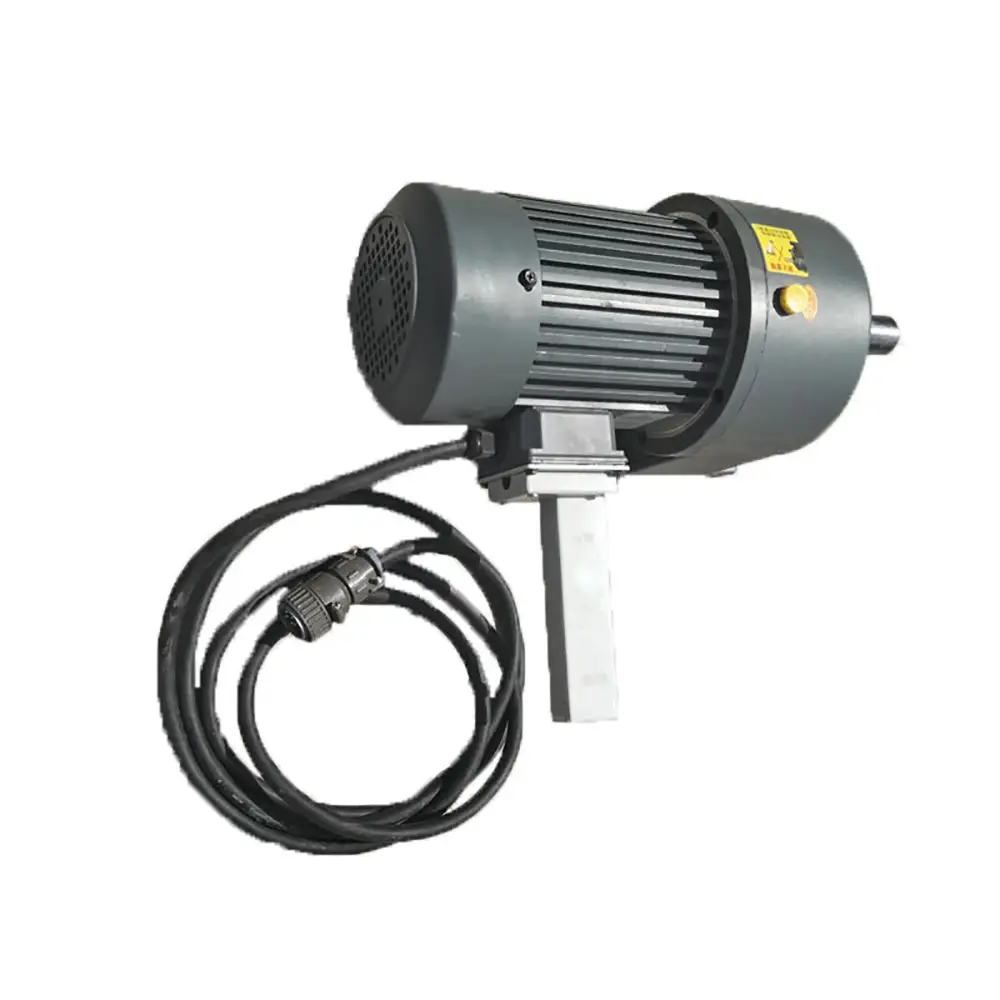

Electric Drive for Efficient Operation

The electric drive provides mechanical power for the expansion process and can reduce the physical effort required compared with purely manual tube expansion tools.

For repetitive production or maintenance work,the powered drive can help operators process multiple tubes more efficiently.

Actual expansion speed depends on tube material,diameter,wall thickness,tooling,expansion amount,and machine configuration.

The machine should be operated according to the recommended process settings to avoid excessive deformation or tooling wear.

Manufacturing and Maintenance Applications

The portable tube expander can serve both manufacturing and maintenance requirements.

In manufacturing,it can be used during heat exchanger and condenser assembly. In maintenance,it can be useful for tube replacement,repair,and restoration operations when the equipment design permits mechanical tube expansion.

Potential users include:

Heat exchanger manufacturers

Condenser manufacturers

Boiler maintenance companies

HVAC service companies

Power plant maintenance contractors

Industrial equipment manufacturers

Chemical processing facilities

Petrochemical maintenance teams

Mechanical service companies

Industrial repair workshops

The machine can therefore function as a flexible tube expansion tool across different industrial environments.

Expansion Quality and Process Control

Consistent tube expansion is important for reliable heat exchanger performance.

Expansion quality can be affected by tube material,tube dimensions,tube-sheet hole condition,tool alignment,roller condition,expansion depth,and expansion amount.

Before production or repair work,operators should inspect the tube and tube-sheet surfaces and ensure that the expansion tool is correctly aligned.

For critical applications,sample testing and dimensional inspection can help establish suitable process parameters.

The tube should not be expanded beyond the recommended range because excessive deformation can affect tube integrity or tube-sheet performance.

Tooling and Maintenance

Expansion tooling is a wear component and should be inspected regularly.

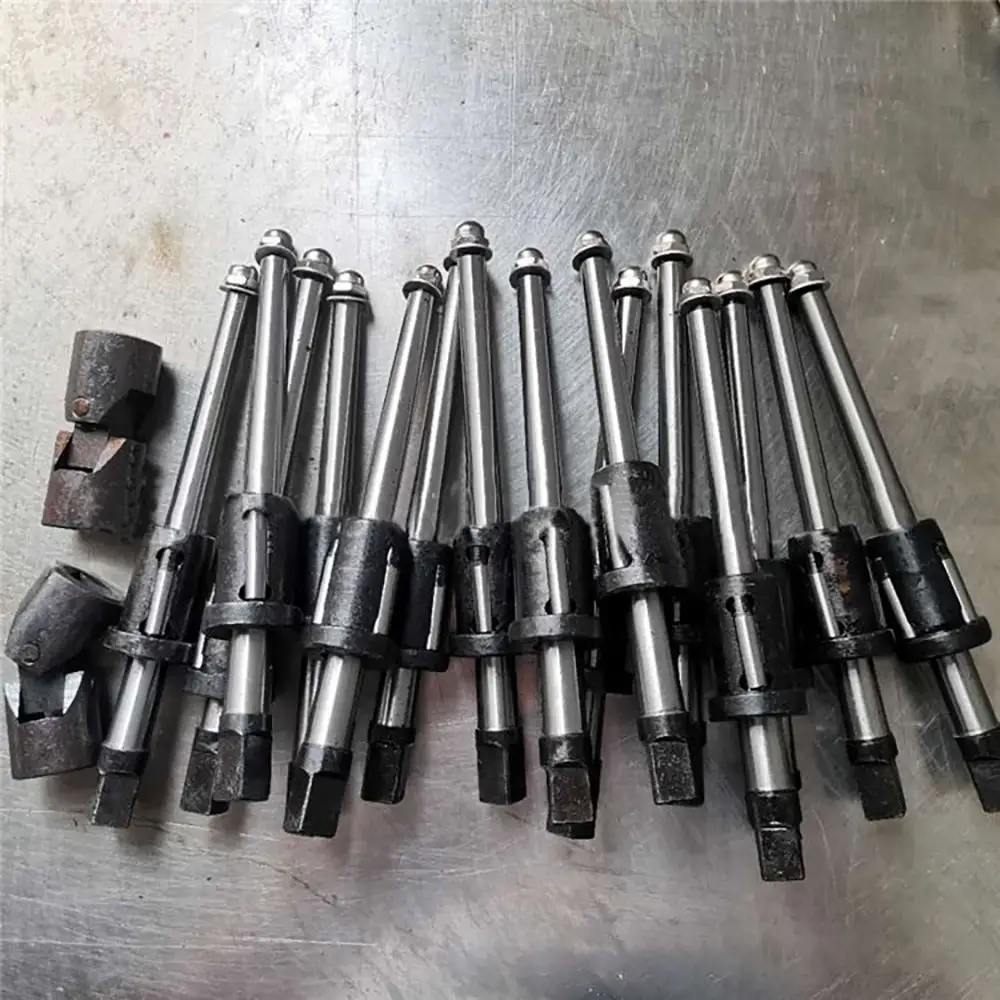

Mandrels,rollers,expansion heads,and other contact components should be kept clean and properly maintained. Worn tooling can affect expansion consistency and increase the risk of poor tube connections.

Lubrication requirements depend on the specific expansion system and tube material. Operators should follow the manufacturer's recommendations regarding tool lubrication,cleaning,inspection,and replacement.

Custom and OEM Solutions

Different heat exchangers and condensers require different tube dimensions and expansion methods. The machine can therefore be supplied with application-specific tooling where appropriate.

Customers can provide tube diameter,wall thickness,tube material,tube-sheet thickness,tube-hole dimensions,and required expansion specifications.

OEM and ODM solutions may include customized expansion heads,mandrels,rollers,power configurations,and accessories.

For B2B buyers,providing complete technical information before ordering helps ensure that the selected electric tube expander is compatible with the intended application.

Safety and Operation

Tube expansion machines contain rotating mechanical components and should be operated by trained personnel.

Operators should use suitable protective equipment and keep hands,clothing,and loose objects away from moving components.

The electrical system,power cable,tooling,and mechanical components should be inspected before use. Emergency-stop and protective functions depend on the machine configuration.

For maintenance work inside large heat exchangers or condensers,additional site-specific safety procedures may be required.

Why Choose Us

Portable Electric Design – Allows the tube expansion tool to be taken directly to condensers,heaters,and heat exchangers.

Efficient Tube Expansion – Powered operation can reduce manual effort during repetitive tube expansion work.

Condenser Applications – Designed for suitable condenser tube-to-tube-sheet expansion operations.

Heat Exchanger Compatibility – Suitable for selected shell-and-tube heat exchanger and industrial heater applications.

Flexible Tube Materials – Tooling can be selected for compatible copper,steel,stainless steel,and other metal tubes.

Application-Specific Tooling – Expansion heads,mandrels,and rollers can be selected according to tube dimensions and requirements.

Manufacturing & Maintenance Use – Suitable for heat exchanger production,tube replacement,and industrial maintenance applications.

OEM & B2B Support – Customized tube expansion solutions can be developed according to drawings,samples,and technical specifications.

FAQs

1. What is an electric tube expander?

An electric tube expander is a powered tool that mechanically expands a metal tube to create a controlled connection,commonly between a tube and tube sheet.

2. Can it be used for condenser tubes?

Yes. The machine is designed for suitable condenser tube expansion applications when the tube size and material match the available tooling.

3. Can it expand heat exchanger tubes?

Yes. It can be used for selected shell-and-tube heat exchanger tube expansion applications.

4. Can it be used for heater tubes?

Yes. Suitable industrial heater and tubular heat-transfer equipment can be processed when the tube dimensions and expansion requirements are compatible.

5. What materials can be expanded?

Depending on the tooling,the machine may be used with copper,copper alloys,carbon steel,stainless steel,aluminum,and other compatible tube materials.

6. What tube sizes can it process?

The applicable tube diameter and wall thickness depend on the machine model and expansion tooling. Tube dimensions should be provided before selecting the equipment.

7. What is tube-to-tube-sheet expansion?

It is a mechanical process in which a tube is expanded against the wall of a tube-sheet hole to create a secure mechanical connection.

8. Is the machine portable?

Yes. The portable design allows the expander to be used directly at large condensers,heat exchangers,and other equipment that may be difficult to move.

9. Does it require special tooling?

Yes. Expansion heads,rollers,mandrels,or other tooling must be matched to the tube diameter,material,and required expansion process.

10. What affects expansion quality?

Tube material,diameter,wall thickness,tube-sheet hole condition,tool alignment,tooling condition,and expansion parameters all affect the final connection.

11. Can it be customized?

Depending on the configuration,custom expansion tooling,power options,and accessories can be supplied for specific tube dimensions and applications.

12. What information should I provide for a quotation?

Provide tube material,outside diameter,wall thickness,tube-sheet thickness,hole diameter,required expansion method,application,and expected quantity. Drawings or samples are also helpful.
