Exhaust Pipe Silencer Muffler Making Machine

Exhaust Pipe Silencer Muffler Making Machine

The Exhaust Pipe Silencer Muffler Making Machine is designed for manufacturers producing exhaust pipes,silencers,mufflers,and related automotive or motorcycle exhaust components. The equipment can be configured for different metalworking processes,including tube cutting,bending,expanding,reducing,flaring,beading,flanging,welding,and end forming.

Exhaust systems contain multiple components that must be manufactured to consistent dimensions so they can be assembled correctly. A dedicated exhaust pipe and muffler making machine can help manufacturers standardize repetitive operations,reduce manual processing,and improve production workflow.

The actual machine configuration depends on the exhaust product,tube diameter,wall thickness,material,component geometry,production volume,and required manufacturing processes. Manufacturers can use individual machines for specific operations or combine several machines into a complete exhaust production line.

Exhaust Pipe Manufacturing Process

Exhaust pipe production typically starts with metal tubes or sheets that are cut and prepared according to the required component dimensions.

Depending on the exhaust design,the tube may then undergo bending,expanding,reducing,flaring,beading,swaging,or other forming operations. Additional components such as brackets,flanges,muffler shells,and internal tubes may be manufactured separately before welding and final assembly.

The making machine can therefore refer to a complete production solution or a specific piece of equipment used for one stage of exhaust manufacturing.

For industrial production,individual processes can be arranged into a coordinated workflow to reduce unnecessary material handling and improve production consistency.

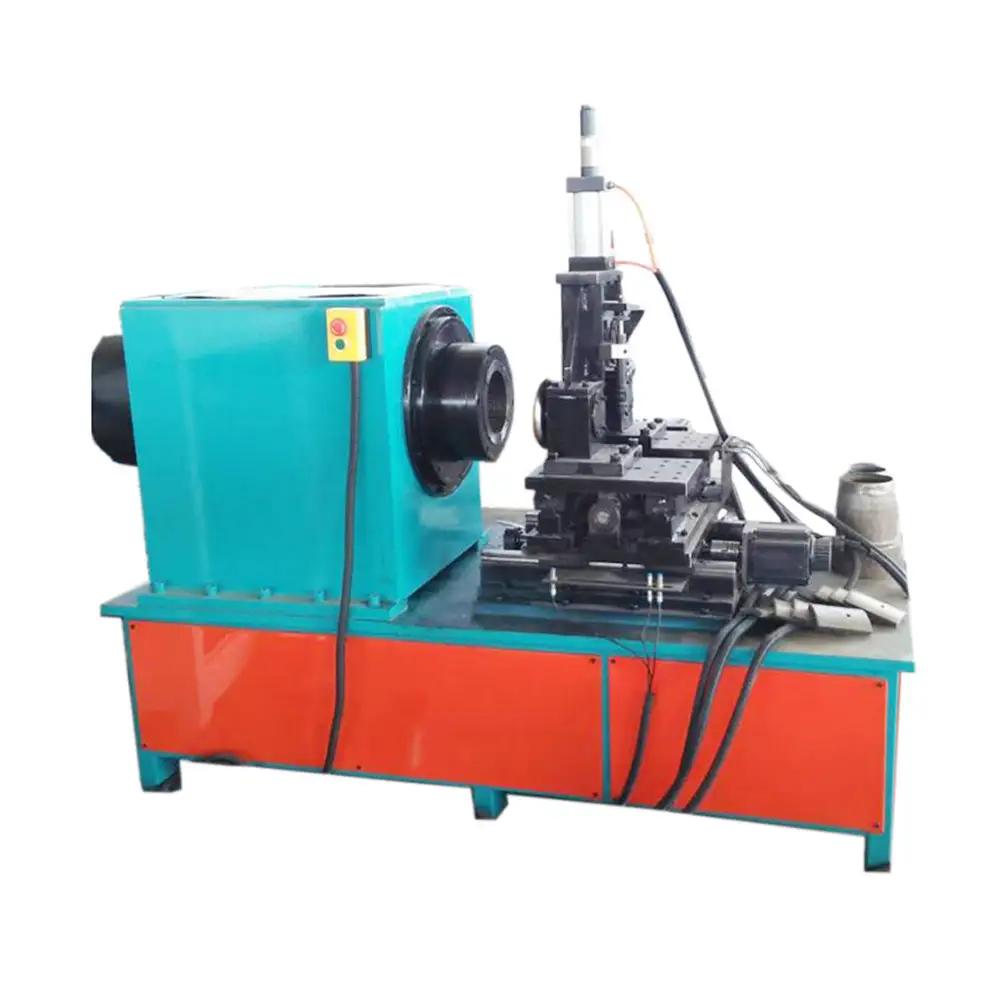

Exhaust Pipe Forming

Tube forming is an important part of exhaust manufacturing because different sections may require different diameters,connection shapes,and end geometries.

Exhaust pipe forming machines can be used for operations such as:

Tube Expansion

Tube Reduction

End Flaring

End Beading

Tube Swaging

End Flanging

Pipe Closing

Tube End Shaping

The forming method depends on the required geometry and material properties. Hydraulic,pneumatic,mechanical,or servo-assisted equipment may be selected according to production requirements.

Custom forming dies can be manufactured for specific exhaust pipe designs. The die determines the final shape of the formed section and should be selected according to tube dimensions and material characteristics.

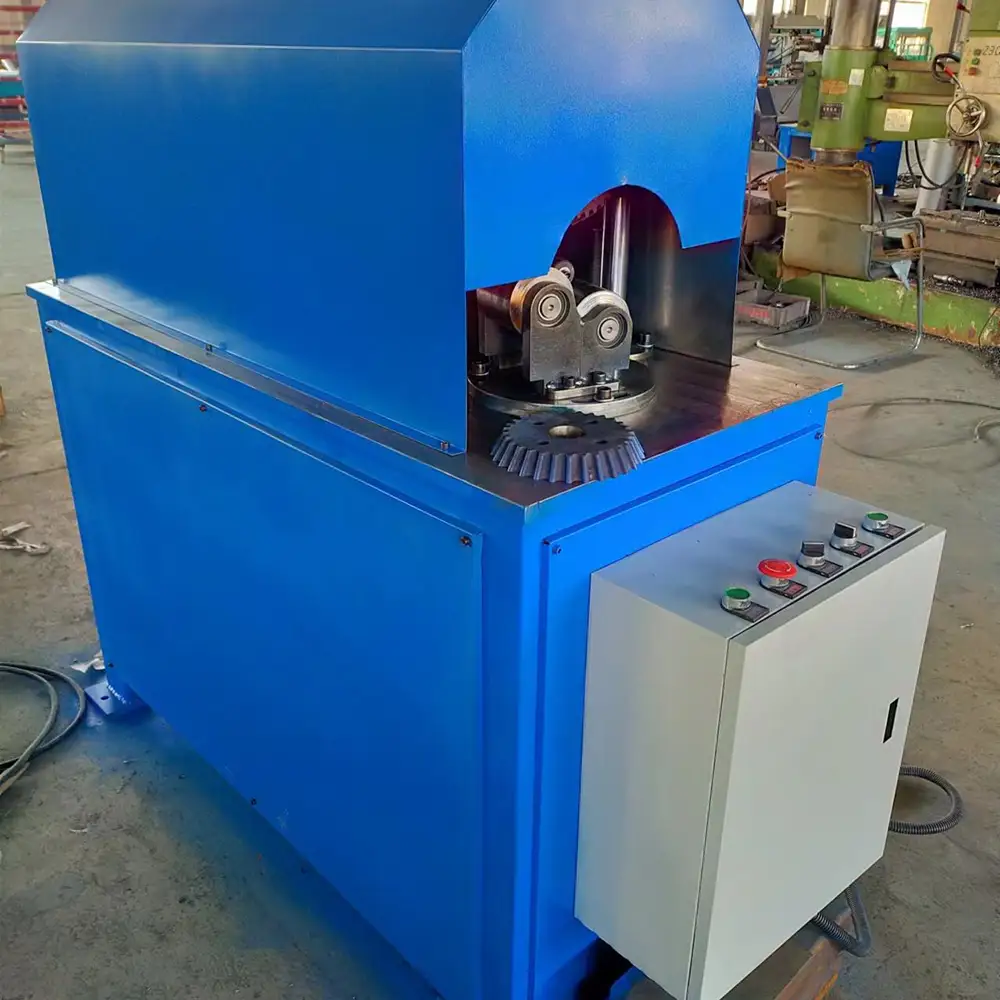

Muffler Making Machine

A muffler consists of multiple components that may include an outer shell,end caps,internal tubes,baffles,and connection pipes.

Muffler production can therefore involve several manufacturing operations. Depending on the design,manufacturers may need shell forming,end-cap forming,tube preparation,welding,assembly,and finishing equipment.

A dedicated Muffler Making Machine can be configured around the required production process. For higher-volume manufacturing,individual machines can be combined to create a more organized production line.

The actual machine selection should be based on the muffler dimensions,material,production volume,and required joining and forming operations.

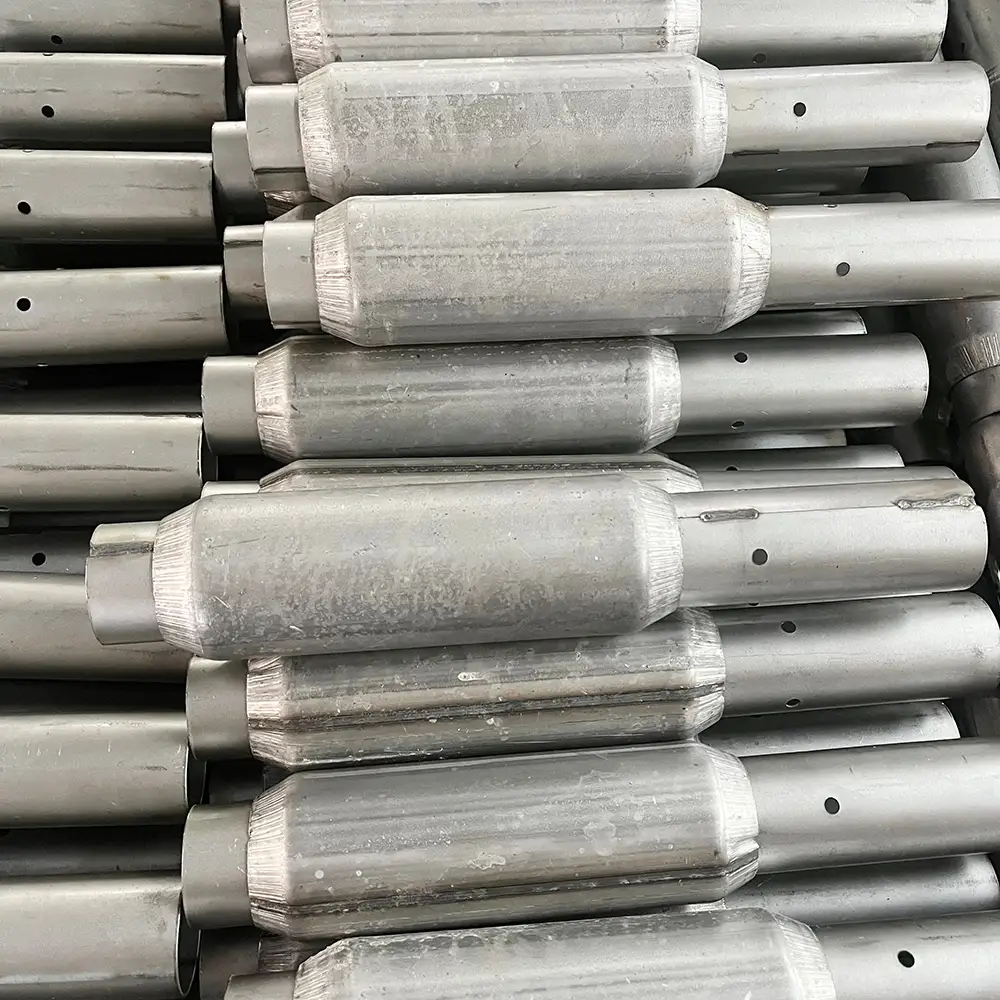

Silencer Manufacturing Equipment

The terms muffler and silencer are commonly used for exhaust components designed to reduce engine exhaust noise. Different markets and vehicle manufacturers may use different terminology.

Silencer manufacturing equipment can process suitable metal tubes,shells,and related components according to the product design.

Typical operations may include:

Silencer Shell Forming

Tube End Forming

Pipe Expansion

Pipe Reduction

End Flanging

Welding

Component Assembly

Final Inspection

The required process sequence depends on the construction of the silencer and the manufacturer's production method.

Automotive Exhaust Manufacturing

Automotive exhaust systems can contain exhaust pipes,mufflers,resonators,connectors,flanges,and tailpipe components.

The manufacturing equipment can be configured for different automotive exhaust components. Tube forming equipment prepares the required connection geometry,while welding and assembly equipment joins individual components into completed exhaust sections.

For automotive suppliers producing multiple vehicle models,custom tooling and fixtures can be useful because different exhaust designs may require different dimensions and forming shapes.

CNC-assisted or semi-automatic equipment can also help improve repeatability for frequently produced components.

Motorcycle Exhaust Production

Motorcycle exhaust systems often use smaller tubes and compact muffler structures compared with many automotive exhaust systems.

The same general manufacturing processes can be adapted to motorcycle exhaust components,including cutting,bending,expanding,reducing,flaring,beading,and welding.

Machine configuration should be selected according to the motorcycle exhaust pipe diameter,wall thickness,muffler dimensions,and required production volume.

For aftermarket motorcycle exhaust manufacturers,flexible tooling can be particularly useful when producing different exhaust designs or custom components.

Materials for Exhaust Pipe and Muffler Production

Exhaust manufacturing machines can be configured for compatible metal materials such as:

Stainless Steel

Carbon Steel

Mild Steel

Aluminum Alloys

Other Suitable Metal Materials

Stainless steel is widely used in exhaust applications where corrosion resistance and appearance are important. Carbon steel may be selected for applications where cost and general durability are priorities.

Material strength,ductility,and wall thickness affect the required forming force and tooling design. The appropriate process parameters should therefore be established for each material.

Exhaust Pipe Welding and Assembly

Welding is an important process in muffler and exhaust system manufacturing. Pipes,shells,end caps,brackets,and internal components may need to be joined together.

Depending on the material and product requirements,MIG,TIG,laser,or other suitable welding processes may be used.

Proper fixtures can help maintain component alignment during welding. For repetitive production,semi-automatic or automated welding equipment can help reduce manual positioning and improve process consistency.

Welding parameters should be matched to the material,wall thickness,joint design,and required weld appearance.

Production Efficiency

Dedicated exhaust manufacturing machinery can reduce repetitive manual operations and improve production organization.

For high-volume production,manufacturers can use dedicated forming dies and fixtures for commonly produced components. This can reduce setup time and improve consistency between batches.

Actual productivity depends on the number of operations,workpiece size,material thickness,machine cycle time,tool changes,loading method,and operator workflow.

For larger production requirements,multiple machines can be integrated with material handling and inspection procedures to create a more complete manufacturing system.

Quality Control

Dimensional consistency is important when manufacturing exhaust components because individual parts must fit together during assembly.

Quality checks may include:

Tube Diameter

Wall Thickness

End Form Dimensions

Flange Dimensions

Bend Position

Component Length

Weld Quality

Overall Assembly Dimensions

First-piece inspection can be performed when introducing new tooling or products. Periodic inspections can help identify tooling wear,material variation,or changes in machine settings.

For critical components,customers should provide drawings and dimensional tolerances before equipment selection.

Custom Tooling and OEM Solutions

Exhaust pipe and muffler products are often designed for specific vehicle models or applications. Standard tooling may therefore not meet every production requirement.

Custom dies,punches,fixtures,clamps,and positioning systems can be developed according to customer drawings or samples.

OEM and ODM solutions can be provided for automotive exhaust manufacturers,motorcycle exhaust factories,aftermarket exhaust companies,automotive component suppliers,and machinery distributors.

Customers should provide tube diameter,wall thickness,material type,product drawings,samples,required operations,and production volume when requesting a customized machine solution.

Applications

The Exhaust Pipe Silencer Muffler Making Machine can be used for:

Automotive Exhaust Pipes

Car Mufflers

Automotive Silencers

Motorcycle Exhaust Systems

Motorcycle Mufflers

Exhaust Tailpipes

Resonators

Exhaust Connectors

Muffler Shells

Exhaust Brackets

Performance Exhaust Components

Custom Exhaust Systems

The exact application range depends on the machine configuration and tooling.

Maintenance and Safety

Regular maintenance helps keep exhaust manufacturing equipment operating consistently. Operators should inspect hydraulic systems,pneumatic components,motors,forming dies,fixtures,electrical components,and other wear parts according to the manufacturer's maintenance recommendations.

Metal forming and welding operations can involve high forces,heat,sparks,sharp edges,and fumes. Appropriate operator training,protective equipment,and ventilation should be provided.

Emergency stops,guards,electrical protection,and other safety features depend on the specific machine configuration and applicable local requirements.

Why Choose Us

Complete Exhaust Manufacturing Solution — Supports different processes for producing exhaust pipes,mufflers,silencers,and related components.

Multiple Forming Processes — Equipment can be configured for expanding,reducing,flaring,beading,flanging,swaging,and other tube end-forming operations.

Automotive & Motorcycle Applications — Suitable for exhaust components used in cars,motorcycles,and aftermarket exhaust systems.

Flexible Material Processing — Can be configured for suitable stainless steel,carbon steel,mild steel,and other compatible metals.

Custom Dies & Fixtures — Dedicated tooling and workholding can be developed for specific exhaust designs.

Production-Oriented Equipment — Suitable for small-batch manufacturing as well as higher-volume industrial production when properly configured.

OEM & ODM Support — Machine configuration,tooling,and production solutions can be customized according to drawings and samples.

B2B Industrial Supply — Suitable for exhaust manufacturers,automotive suppliers,distributors,wholesalers,and international machinery buyers.

FAQs

1. What is an exhaust pipe silencer muffler making machine?

It is manufacturing equipment used to produce exhaust pipes,mufflers,silencers,and related exhaust system components through cutting,forming,welding,and assembly processes.

2. What processes can the machine perform?

Depending on the configuration,it may perform tube cutting,bending,expanding,reducing,flaring,beading,swaging,flanging,welding,and other exhaust component processing operations.

3. Can it manufacture car mufflers?

Yes. The equipment can be configured for automotive mufflers,silencers,exhaust pipes,resonators,and related components.

4. Can it be used for motorcycle exhaust systems?

Yes. Suitable configurations can process motorcycle exhaust pipes,mufflers,and other exhaust components according to their dimensions and material.

5. What materials can be processed?

Common materials include stainless steel,carbon steel,mild steel,and other compatible metal materials.

6. Can the machine expand exhaust pipe ends?

Yes. Suitable exhaust tube expanding machines and forming dies can expand tube ends according to the required geometry.

7. Can it reduce pipe diameter?

Yes. Tube reducing or swaging equipment can be used when the exhaust design requires a smaller tube end or tapered section.

8. Can custom dies be supplied?

Yes. Custom forming dies,punches,fixtures,and clamps can be developed according to customer drawings or samples.

9. Can the equipment be used for stainless steel exhaust pipes?

Yes,provided the machine and tooling are properly matched to the stainless steel grade,wall thickness,and required forming process.

10. Can the machines be integrated into a production line?

Yes. Individual forming,welding,and assembly machines can be combined into a production workflow according to production volume and process requirements.

11. What information is needed for a quotation?

Provide tube diameter,wall thickness,material type,component drawings,required forming processes,production quantity,and desired automation level.

12. Do you provide OEM and ODM exhaust manufacturing solutions?

Yes. Customized machine configurations,forming dies,fixtures,welding systems,and production solutions can be developed according to customer requirements.
