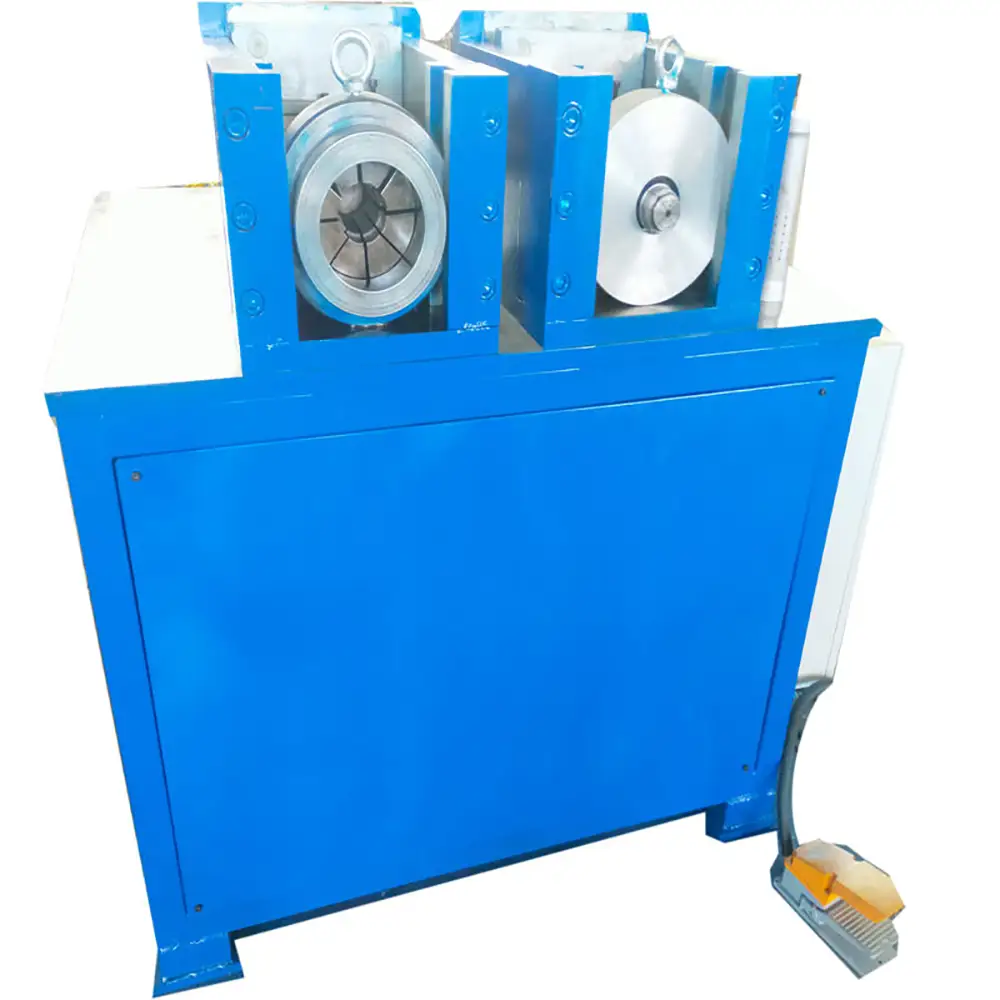

Iron Tube Expander Pipe Tube End Forming Machine

 Tube Expanding Process

Tube expansion changes the diameter of a selected section of a metal tube by applying controlled forming force.

The process can be used to create a larger tube end,prepare a connection section,or produce a specific transition between different diameters.

Depending on the machine design,the tube may be positioned against a forming die while an expansion tool enters the tube end and applies controlled forming pressure.

The final dimensions depend on the original tube diameter,wall thickness,material ductility,expansion amount,tool geometry,and forming sequence.

For applications requiring precise dimensions,production samples should be tested before large-scale manufacturing.

Pipe and Tube End Forming

End forming is a broad category of metal tube processing that includes expansion,reduction,flaring,beading,swaging,necking,and other tube-end operations.

The machine can be configured for a particular forming requirement based on the desired finished shape.

Typical applications may include:

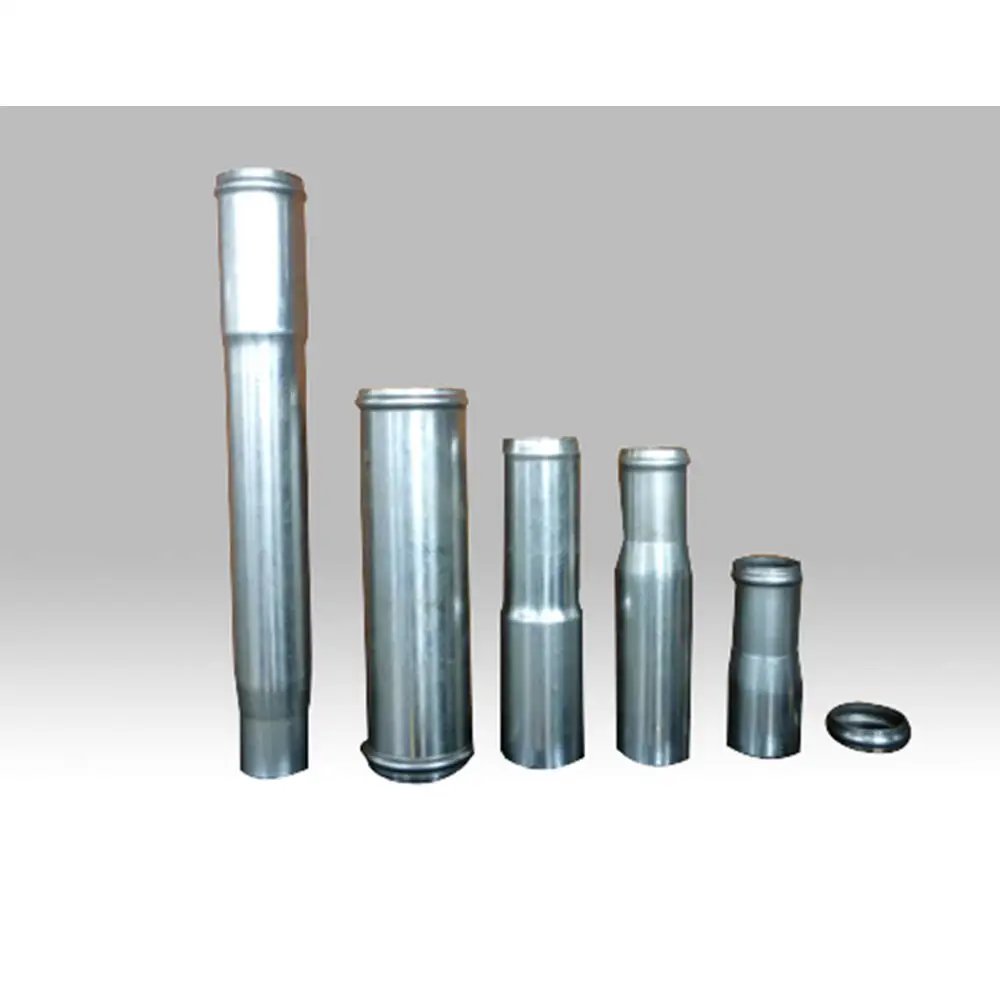

Tube End Expansion

Pipe End Forming

Tube Diameter Enlargement

Pipe Flaring

Tube Swaging

Tube Necking

Tube Beading

Pipe Connection Preparation

Tubular Component Forming

Custom Tube End Processing

Not every machine configuration performs every operation. The required forming process and tooling should be confirmed according to the specific application.

Iron and Steel Tube Applications

The term Iron Tube Expander can refer to equipment used for expanding suitable iron or steel tubular products. In modern industrial applications, mild steel and carbon steel tubes are commonly processed using tube forming equipment.

Suitable workpieces may include:

Iron Tubes

Mild Steel Tubes

Carbon Steel Pipes

Stainless Steel Tubes

Structural Tubes

Furniture Tubes

Automotive Pipes

Industrial Tubes

Metal Tubular Components

Material strength and ductility affect the amount of expansion that can be achieved without cracking or excessive deformation.

For high-strength or hardened materials,specific tooling and forming parameters may be required.

Furniture Tube End Forming

Furniture manufacturing is an important application for tube end forming machines.

Metal chair legs,table legs,stool frames,and other tubular furniture components may require expanded,reduced,or shaped tube ends for assembly.

A controlled tube forming process can help create repeatable end dimensions for components that need to fit into another tube,connector,frame,or joint.

Applications may include:

Chair Legs

Table Legs

Stool Frames

Bed Frames

Office Furniture

Metal Shelving

Display Stands

Furniture Frames

Decorative Tubular Components

The final tube profile depends on the furniture design and required connection method.

Automotive and Exhaust Applications

Tube expansion and end forming are also widely used for automotive tubular components.

Suitable applications may include exhaust pipes,muffler components,intake tubes,and other tubular parts that require a controlled diameter transition or connection section.

For exhaust manufacturing,tube ends may need to be expanded or reduced so that two components can be joined during assembly or welding.

The appropriate forming process depends on tube material,diameter,wall thickness,and required connection geometry.

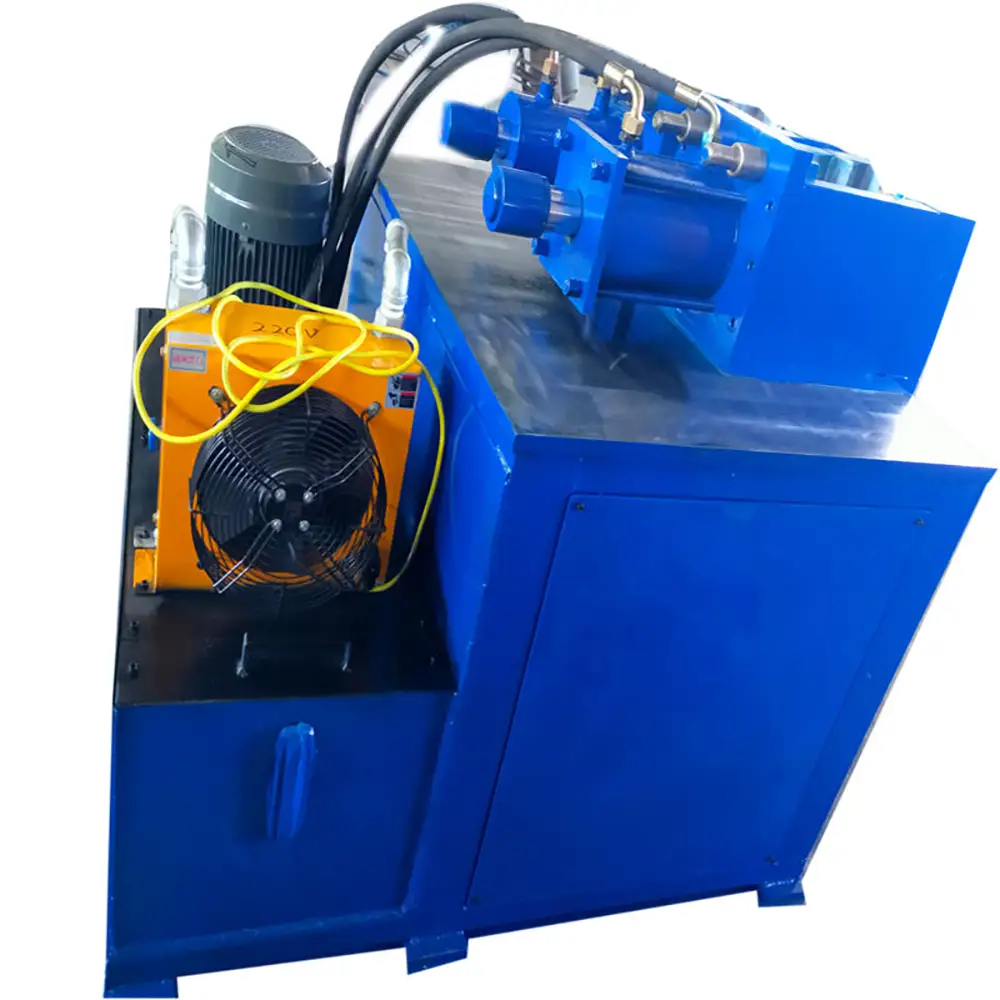

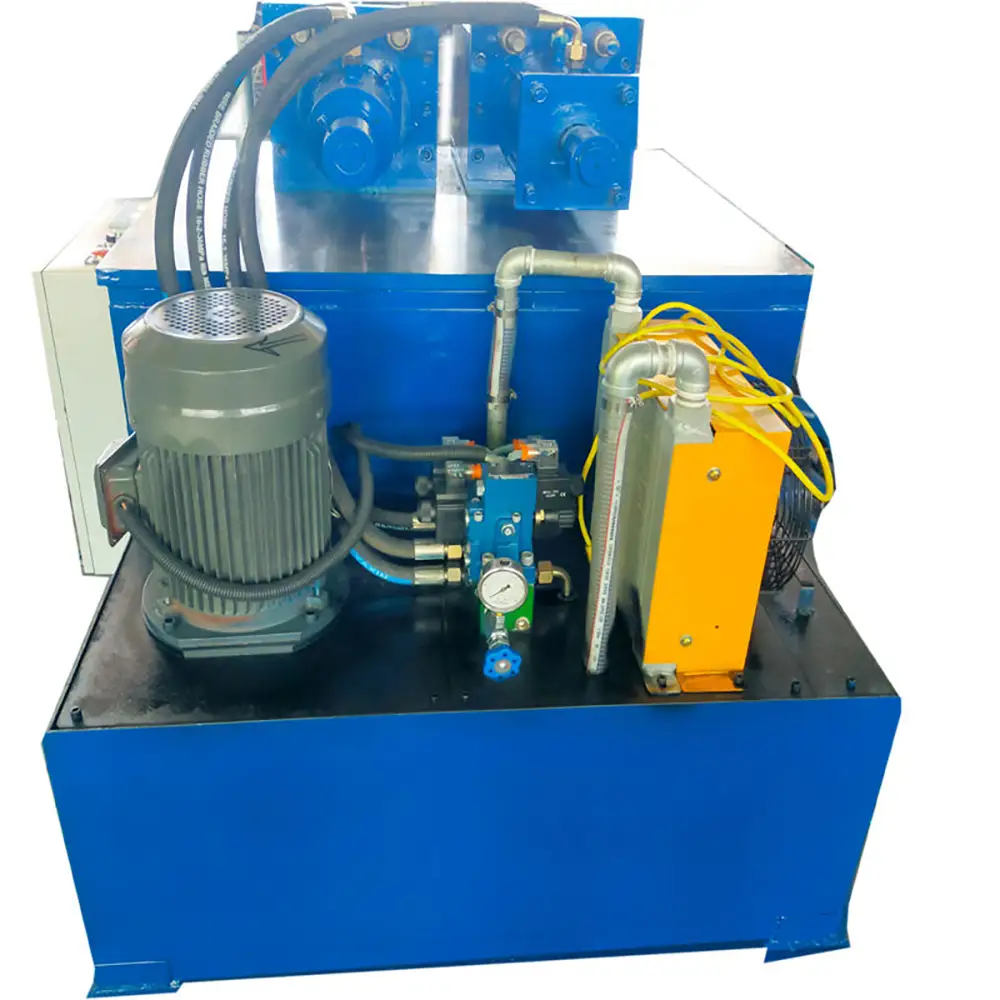

Hydraulic Tube Expanding

Hydraulic tube forming systems can provide controlled forming force for metal tube expansion and end processing.

A hydraulic cylinder can apply force to the forming tool according to the machine configuration. This can be useful when processing tubes that require controlled and repeatable forming pressure.

Hydraulic systems should be selected according to the material,wall thickness,and required expansion amount.

Actual hydraulic pressure and forming force vary by machine model and should be confirmed from the manufacturer's technical specifications.

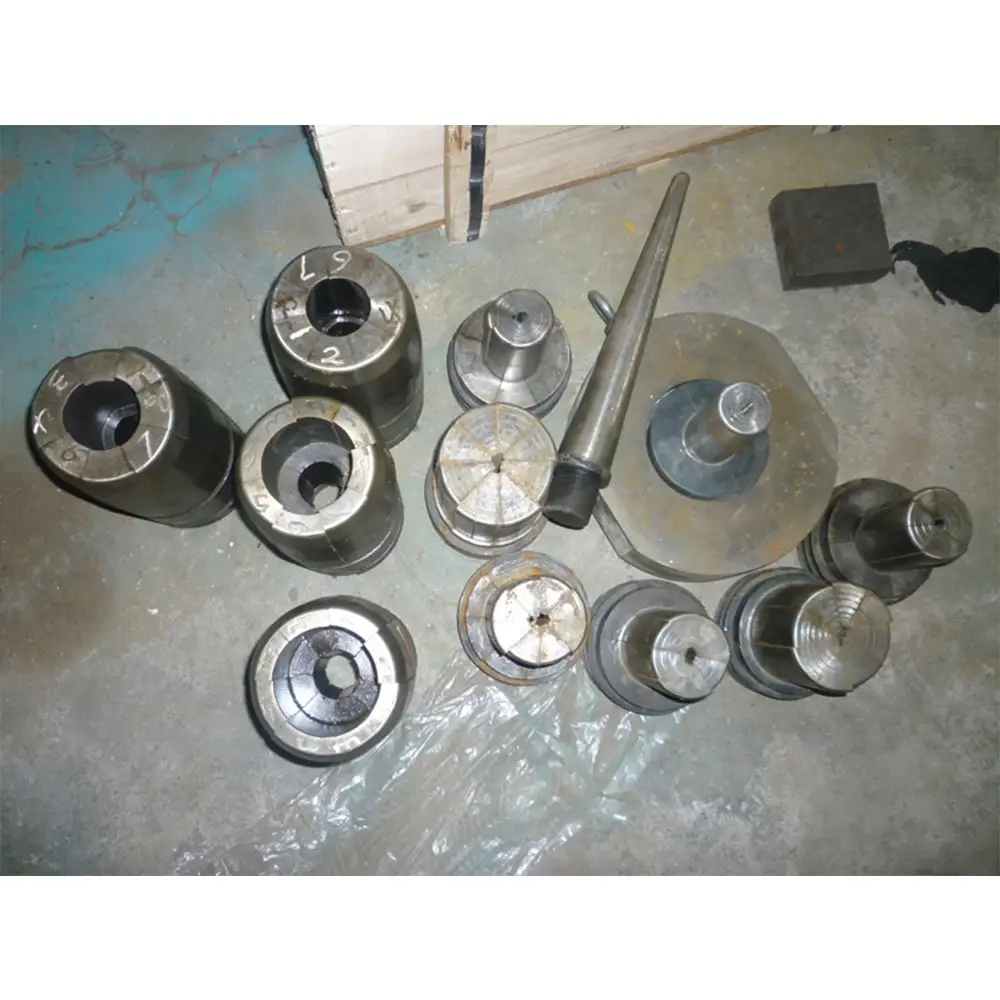

Tube Forming Tooling

Tooling is one of the most important components of a tube expansion machine.

The forming tool determines the final tube diameter,shape,and transition profile. Different tube sizes and end geometries normally require corresponding tooling.

Custom dies can be developed for specialized applications. Customers can provide tube drawings,original dimensions,finished dimensions,and required forming length.

For manufacturers processing multiple tube sizes,interchangeable tooling can provide greater production flexibility when supported by the machine design.

Production Efficiency

A dedicated tube expander can reduce repetitive manual tube-end forming work and provide a more consistent production process.

For batch manufacturing,operators can establish suitable forming parameters and repeat the process across similar workpieces.

Actual production capacity depends on tube dimensions,expansion amount,material,tooling,loading method,and machine cycle.

Automatic or semi-automatic feeding functions may be available depending on the selected configuration.

For high-volume production,the complete cycle should be evaluated,including loading,forming,inspection,and unloading.

Dimensional Accuracy and Quality Control

Quality inspection is important for tube end forming.

Manufacturers may check:

Finished Diameter

Original Diameter

Expansion Amount

Forming Length

Wall Deformation

Roundness

Surface Condition

Connection Fit

Incorrect tooling or excessive forming force can cause cracks,waves,wrinkles,or unwanted deformation.

For visible furniture components,surface quality is particularly important because the formed tube may later receive powder coating,painting,plating,or other finishing treatments.

First-piece inspection and periodic production checks can help maintain consistent results.

Material and Process Selection

Different materials respond differently to tube expansion.

Mild steel may be relatively suitable for conventional forming applications,while stainless steel can require carefully selected tooling and forming parameters. Aluminum and copper tubes may also require specific process conditions because of their different mechanical properties.

The correct forming process should therefore be selected based on material grade,wall thickness,diameter,and required expansion.

Customers should provide complete material information when requesting a machine recommendation.

Maintenance and Safety

Routine maintenance should include inspection of forming tools,hydraulic components,fixtures,fasteners,and electrical systems.

Forming dies should be checked regularly for wear or damage. Worn tools may affect finished dimensions and surface quality.

During operation,the forming area should remain clear. Operators should keep hands away from moving components and use appropriate personal protective equipment.

Hydraulic hoses,fittings,and other pressure-related components should be inspected according to the manufacturer's maintenance recommendations.

Emergency stops,guards,and other safety features depend on the actual machine configuration and applicable local requirements.

OEM and Custom Tube Forming Solutions

Different manufacturers may require different expansion diameters,forming lengths,materials,and production volumes. The machine can therefore be configured around specific application requirements.

For OEM and ODM projects,customers can provide:

Tube Material

Tube Diameter

Wall Thickness

Finished Diameter

Expansion Length

End Shape

Production Volume

Tube Drawings

Sample Components

These details help determine the appropriate forming method,tooling,and machine configuration.

The equipment can be supplied to furniture manufacturers,automotive suppliers,metal fabrication companies,distributors,wholesalers,and industrial purchasing departments.

Why Choose Us

Tube Expansion Processing — Designed for controlled expansion of suitable metal tube and pipe ends.

Flexible End Forming — Supports suitable tube-end expansion and other application-specific forming processes.

Steel and Iron Tube Applications — Suitable configurations can be evaluated for mild steel,carbon steel,iron,and other compatible tubes.

Hydraulic Forming Option — Hydraulic forming systems can provide controlled force for demanding tube-forming applications.

Custom Tooling — Forming dies can be developed according to tube dimensions and finished-end geometry.

Furniture and Automotive Applications — Suitable for furniture legs,frames,exhaust components,and other tubular products.

Repeatable Production — Controlled forming can help improve consistency in repeated production.

OEM & ODM Support — Machine configuration and tooling can be developed around customer drawings,samples,materials,and production requirements.

FAQs

1. What is an iron tube expander?

An iron tube expander is a forming machine used to enlarge or reshape the end or selected section of a suitable iron or steel tube.

2. What is tube end forming?

Tube end forming refers to processes that change the geometry of a tube end,such as expansion,reduction,flaring,beading,swaging,and necking.

3. Can this machine expand steel tubes?

Yes. Suitable steel and iron tubes can be processed when their material properties and dimensions are within the machine's forming range.

4. Can stainless steel tubes be expanded?

Yes,provided the machine and tooling are correctly matched to the stainless steel grade,diameter,wall thickness,and required expansion.

5. Can the machine process furniture tubes?

Yes. Tube end expansion and forming can be used for suitable chair legs,table legs,stool frames,and other tubular furniture components.

6. Can it be used for exhaust pipes?

Yes. Suitable automotive exhaust tubes can be expanded or formed for connection and assembly applications.

7. Is the machine hydraulic?

The machine can be configured with a hydraulic forming system depending on the model. The actual hydraulic specifications should be confirmed before purchase.

8. Can custom forming dies be supplied?

Yes. Custom dies can be developed according to the required tube diameter,finished diameter,forming length,and end profile.

9. What materials can be processed?

Depending on the configuration,the machine may process mild steel,carbon steel,stainless steel,iron,aluminum,copper,and other suitable metal tubes.

10. What affects tube expansion quality?

Material properties,wall thickness,original diameter,expansion amount,tool geometry,forming force,and machine setup all affect the finished result.

11. Is the machine fully automatic?

The operating method depends on the model. Manual,semi-automatic,and automated feeding or positioning systems may be available.

12. What information should I provide for a quotation?

Provide tube material,outer diameter,wall thickness,required finished diameter,forming length,end shape,production volume,and drawings or samples if available.
