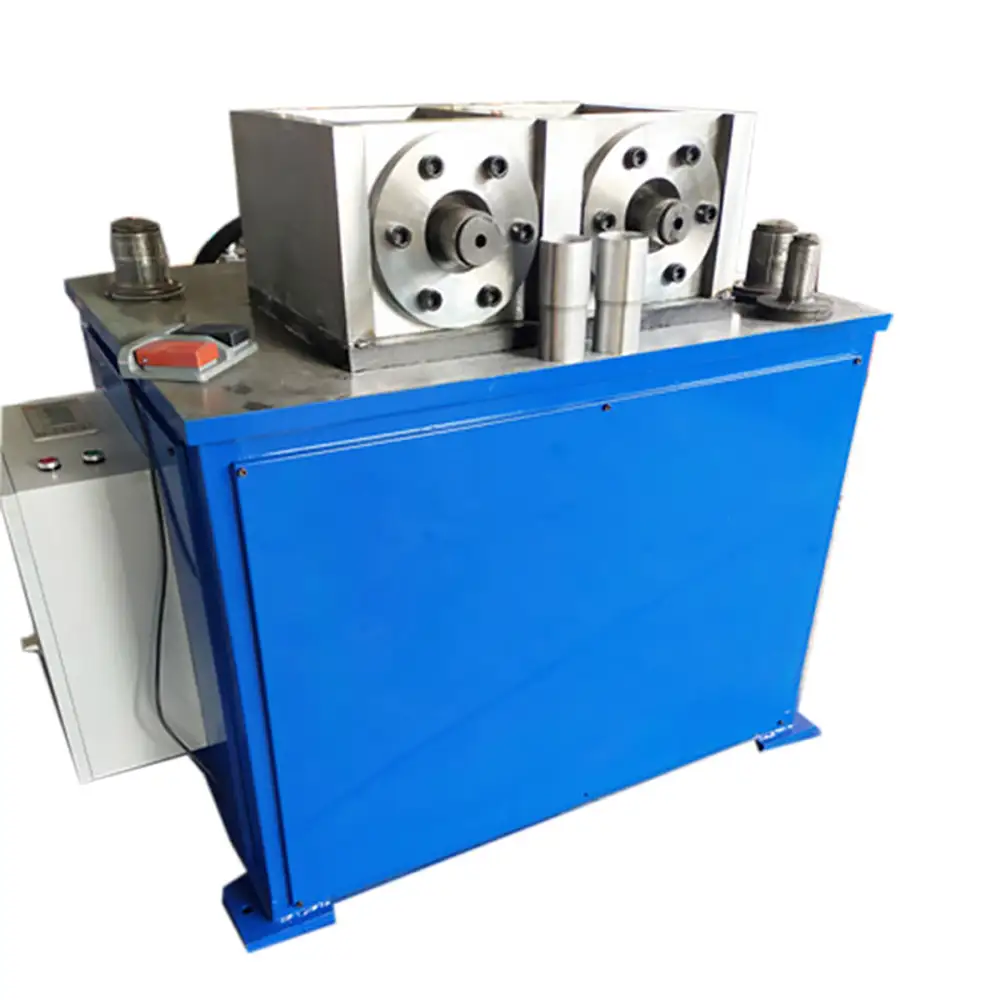

Pipe Extender and Reducer Machine Copper Pipe Expanding Machine

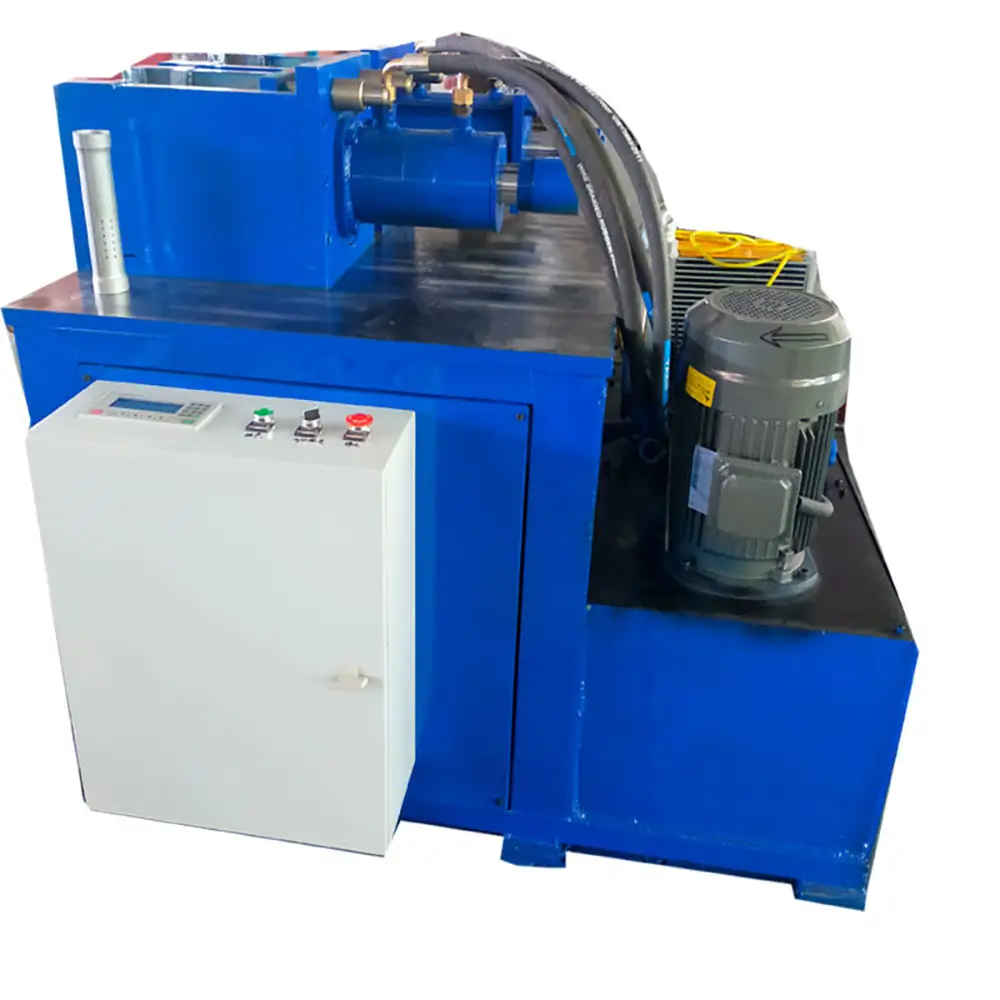

Pipe Expanding and Reducing Machine for Copper Pipes

The Pipe Extender and Reducer Machine Copper Pipe Expanding Machine is designed for controlled expansion,reduction,and end forming of suitable copper pipes and metal tubes. The equipment can help manufacturers modify tube-end dimensions to create connection sections,prepare pipes for assembly,or achieve a specific finished profile.

Copper tube expansion is widely used in refrigeration,air conditioning,heat exchanger,plumbing,automotive,and general metal fabrication applications. By expanding or reducing selected sections of a tube,manufacturers can prepare components for joining,connection,flaring,or other downstream operations.

The term “pipe extender” can refer to equipment used to extend or enlarge a pipe end. In practical tube-processing applications,this is commonly associated with pipe expanding,tube expanding,or tube end forming.

Actual expansion and reduction capacity depends on the machine configuration,tooling,tube diameter,wall thickness,copper grade,and required finished dimensions.

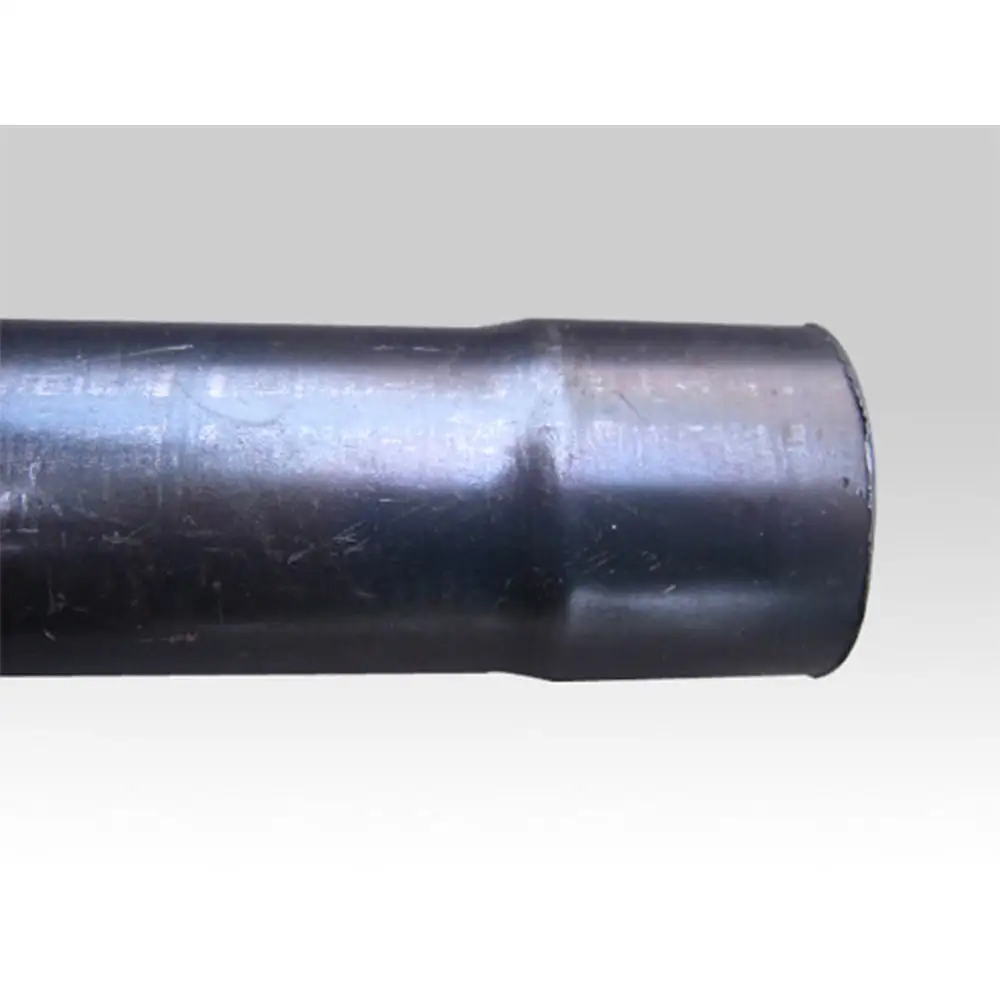

Copper Pipe Expanding Process

Copper pipe expansion changes the diameter of a selected section of a tube by applying controlled forming force.

The process can create an enlarged tube end that allows another pipe or component to fit into the formed section.

This type of connection preparation is commonly used in HVAC and refrigeration tube assembly,where copper tubing may need to be joined to another tube or component.

A typical process includes:

Cutting the copper tube to the required length.

Positioning the tube in the forming fixture.

Selecting the appropriate expansion tool.

Applying controlled forming force.

Removing the expanded tube.

Inspecting the finished diameter and connection fit.

The exact process depends on the machine and tooling configuration.

Pipe Reducing and Diameter Adjustment

In addition to expanding tube ends,the machine can be configured for suitable pipe reducing or diameter adjustment applications.

Pipe reducing decreases the diameter of a selected tube section to create a smaller connection profile.

This can be useful when two components have different diameters and a controlled transition is required.

Tube reducing may be used for:

Copper Tubing

Refrigeration Tubes

HVAC Components

Heat Exchanger Tubes

Automotive Tubes

Metal Connectors

Tubular Fittings

Custom Metal Components

The reduction amount should be matched to the material's forming characteristics. Excessive reduction may cause wrinkling,cracking,or unwanted deformation.

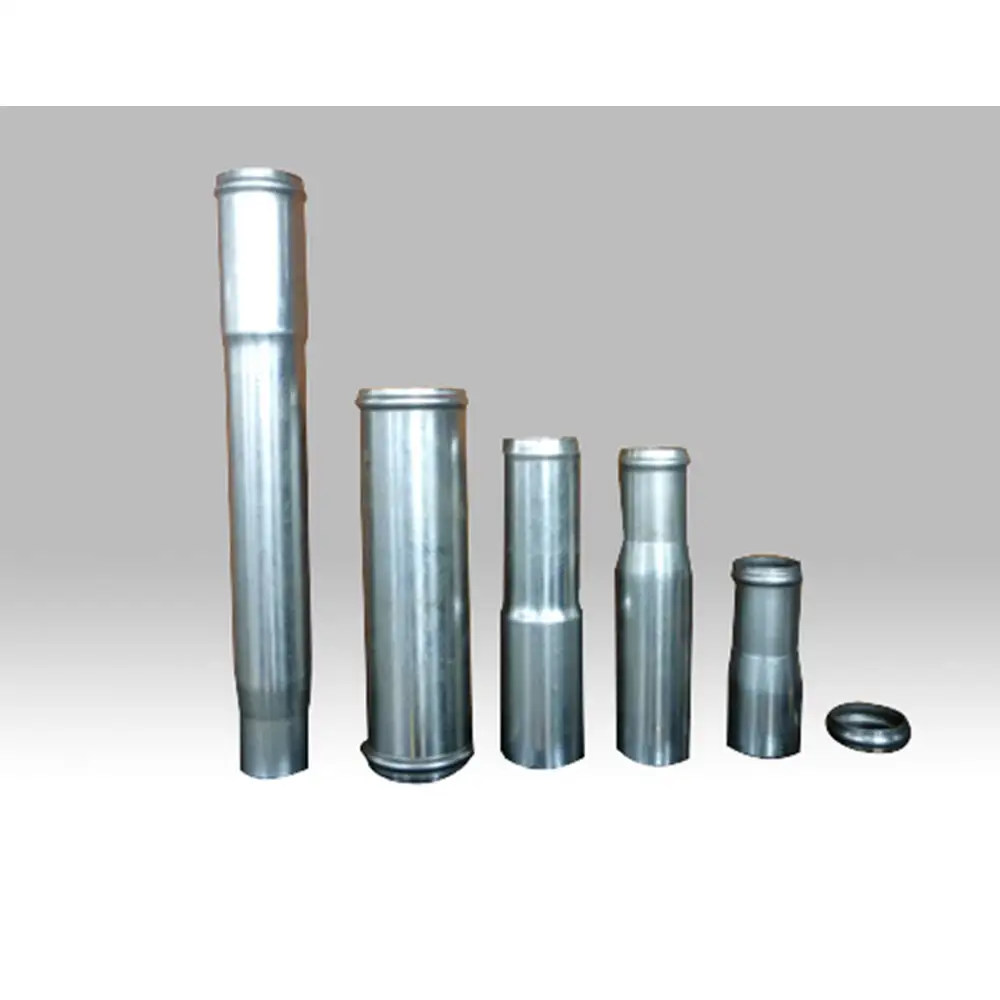

Copper Tube End Forming

Copper is widely used for tube processing because it is relatively ductile and can be formed using suitable equipment.

Tube end forming can include expansion,reduction,flaring,beading,swaging,and other controlled shaping operations.

The machine can be configured around the required process and finished geometry.

For HVAC and refrigeration applications,the formed tube end may be used to create a connection with another tube or component.

For other industries,the same forming principle can be applied to suitable copper or non-ferrous metal tubes.

HVAC and Refrigeration Applications

Copper tube expansion is particularly relevant to air conditioning and refrigeration manufacturing.

HVAC systems use copper tubing for refrigerant circuits,and tube ends may require controlled forming before joining.

Potential applications include:

Air Conditioner Tubes

Refrigeration Tubes

Heat Pump Tubing

Refrigerant Lines

Copper Connecting Pipes

Condenser Tubes

Evaporator Tubes

HVAC Components

The correct forming process depends on tube diameter,wall thickness,copper grade,and required connection design.

For refrigeration applications,finished tubes may also require subsequent brazing or other joining processes.

Heat Exchanger Tube Processing

Copper and other metal tubes are widely used in heat exchanger manufacturing.

Tube expansion and end forming can be used to prepare selected tube sections for assembly or connection.

For heat exchanger production,the tube dimensions and forming requirements should be carefully controlled because the finished tube must meet the requirements of the overall assembly.

Other tube materials,including stainless steel and aluminum,may also be processed with suitable tooling and machine configurations.

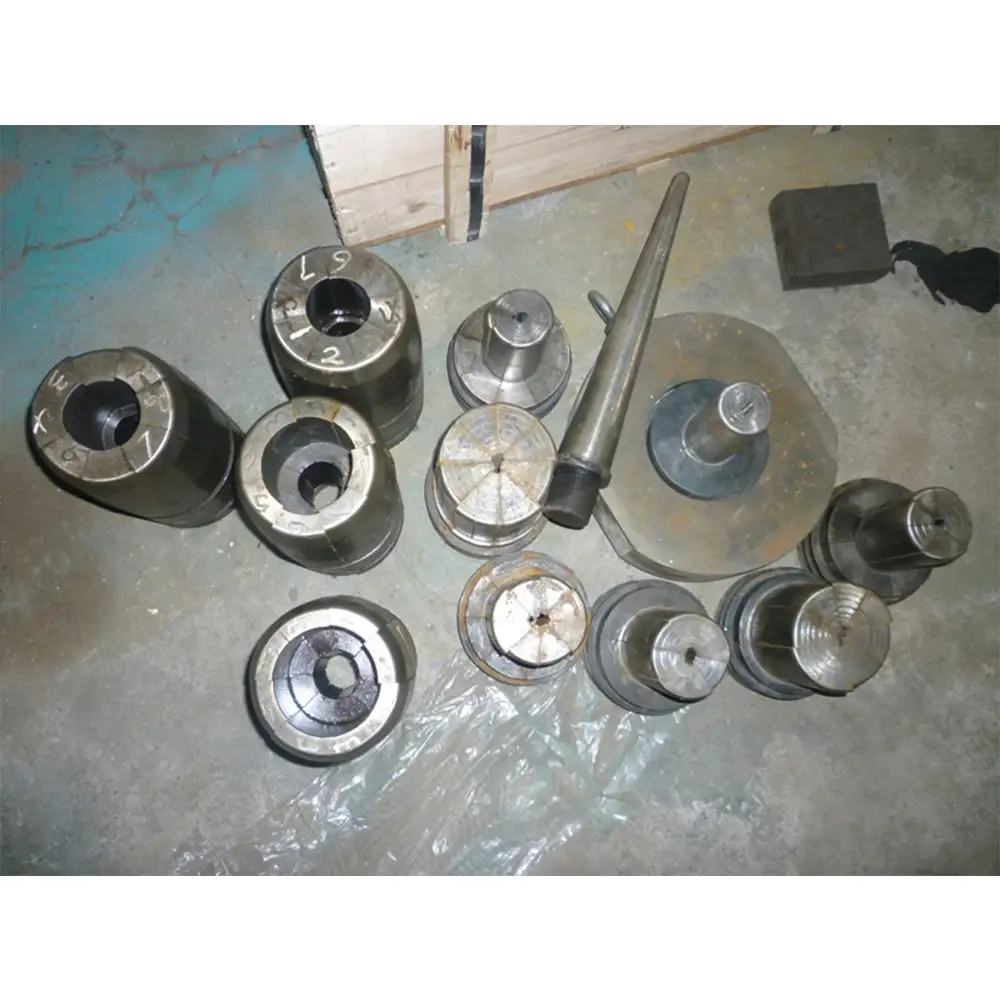

Tube Expanding Tooling

Tooling determines the finished tube diameter and forming profile.

Different copper tube sizes require appropriately sized expansion tools. Tool geometry should correspond to the required expansion amount and finished dimensions.

For production involving multiple tube sizes,interchangeable tooling can provide flexibility when supported by the machine design.

Custom tools can also be developed for special tube profiles.

Customers should provide:

Original Tube Diameter

Wall Thickness

Finished Diameter

Expansion Length

Tube Material

Required Connection

Production Volume

This information helps determine the appropriate forming tooling.

Pipe Reducing Tooling

Reducing dies are designed to decrease the diameter of a selected tube section.

The die profile should match the desired finished diameter and transition geometry.

For copper tubing,careful control of forming force can help reduce the possibility of surface damage or excessive deformation.

For applications involving both expansion and reduction,the machine may use interchangeable forming tools or multiple forming stations depending on the configuration.

Production Efficiency

A dedicated copper pipe expanding machine can improve production consistency compared with completely manual tube-end forming.

For repeated production,operators can establish suitable forming parameters and use dedicated tooling for similar components.

Production output depends on tube dimensions,forming amount,material,tool changes,loading method,and machine cycle.

Semi-automatic or automatic feeding functions may be available depending on the machine model.

For high-volume production,the complete cycle should be evaluated rather than relying only on the machine's nominal forming speed.

Quality Control

Quality inspection is important for copper tube expansion and reduction.

Manufacturers may check:

Finished Diameter

Original Diameter

Expansion Amount

Reduction Amount

Forming Length

Roundness

Surface Condition

Connection Fit

For HVAC and refrigeration components,the formed tube should also be checked against the requirements of the subsequent joining process.

First-piece inspection and periodic sampling can help maintain consistent dimensions throughout production.

Material Compatibility

Although copper is a major application,the machine may also be configured for other suitable metal tubes.

Potential materials include:

Copper

Brass

Aluminum

Stainless Steel

Mild Steel

Carbon Steel

Different materials have different forming characteristics.

Copper and aluminum are relatively ductile,but their mechanical properties differ. Stainless steel and steel tubes may require different forming forces and tooling.

The actual material range should be confirmed according to the machine configuration and application.

Maintenance and Safety

Routine maintenance should include checking forming tools,fixtures,mechanical components,hydraulic or pneumatic systems where applicable,and electrical connections.

Expansion tools should be inspected for wear or damage because tooling condition can affect the finished tube dimensions.

The forming area should remain clear during operation. Operators should keep hands away from moving components and use suitable protective equipment.

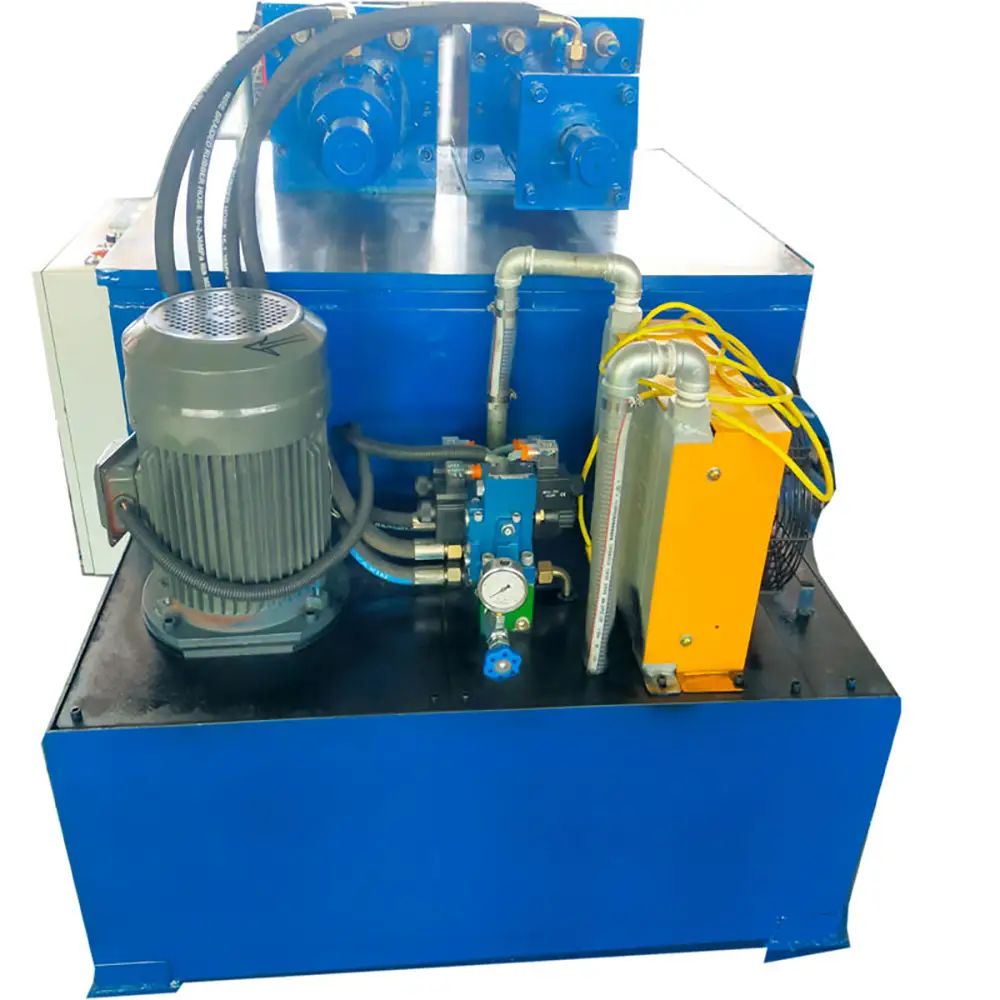

If the machine uses hydraulic or pneumatic pressure,hoses,fittings,and pressure-related components should be inspected according to the manufacturer's maintenance recommendations.

Emergency stops,guards,and other safety features depend on the machine configuration and applicable local requirements.

OEM and Custom Copper Tube Solutions

Different manufacturers may require different copper tube diameters,expansion amounts,reduction dimensions,and forming lengths.

For OEM and ODM projects,customers can provide:

Copper Tube Diameter

Wall Thickness

Material Grade

Finished Diameter

Expansion Length

Reduction Diameter

Required End Shape

Production Volume

Drawings or Samples

Based on these details,the appropriate forming method,tooling,and machine configuration can be evaluated.

The equipment is suitable for copper tube manufacturers,HVAC suppliers,refrigeration companies,heat exchanger manufacturers,automotive suppliers,metal fabrication companies,and industrial distributors.

Why Choose Us

Copper Pipe Expansion — Designed for controlled expansion of suitable copper pipe and tube ends.

Pipe Reducing Function — Supports suitable diameter reduction and tube-end forming applications.

Flexible Tube Processing — Suitable configurations can be evaluated for copper,brass,aluminum,stainless steel,and other metal tubes.

HVAC Applications — Suitable for refrigeration,air conditioning,heat pump,and copper connecting tube production.

Custom Tooling — Expansion and reduction tools can be developed according to tube dimensions and finished profiles.

Repeatable Forming — Controlled processing can help improve dimensional consistency across production batches.

Production Flexibility — Suitable for manual,semi-automatic,or automated production configurations depending on the machine model.

OEM & ODM Support — Machine configuration and tooling can be developed around customer drawings,samples,materials,and production requirements.

FAQs

1. What is a pipe expanding machine?

A pipe expanding machine increases the diameter of a selected tube section or tube end through controlled forming.

2. What does a pipe reducer machine do?

A pipe reducing machine decreases the diameter of a selected tube section to create a smaller connection profile or transition.

3. Can this machine expand copper pipes?

Yes. Copper pipe and tube expansion is one of the main applications when the machine and tooling are correctly matched to the tube dimensions.

4. What is a pipe extender machine?

In tube-processing terminology,a pipe extender may refer to equipment that enlarges or extends a tube end. Pipe expanding or tube end forming are more common technical descriptions.

5. Can the machine reduce copper tube diameter?

Yes,when suitable reducing tooling and machine configuration are provided.

6. Is it suitable for HVAC copper pipes?

Yes. Suitable copper tube expansion and end forming can be used for air conditioning,refrigeration,and heat pump tube applications.

7. Can it be used for heat exchanger tubes?

Yes,depending on tube material,diameter,wall thickness,and the required expansion or end-forming process.

8. What materials can be processed?

Depending on the configuration,the machine may process copper,brass,aluminum,stainless steel,mild steel,and other compatible metal tubes.

9. Can custom expansion tools be supplied?

Yes. Custom tooling can be developed according to the original tube diameter,finished diameter,forming length,and application requirements.

10. What affects the expansion result?

Tube material,wall thickness,original diameter,expansion amount,tool geometry,forming force,and machine setup all affect the finished result.

11. Is the machine fully automatic?

The operating method depends on the selected model. Manual,semi-automatic,and automatic configurations may be available.
