Semi-Automatic Exhaust Hydraulic Pipe and Tube Bending Machine Bend Expand and Reduce Molds

Hydraulic Exhaust Pipe Bending

Hydraulic power is commonly used when significant forming force is required for metal pipe and tube processing.

During bending,the exhaust tube is positioned in the appropriate tooling and securely supported. The hydraulic mechanism then applies controlled force to form the tube around the required bending geometry.

The final bend depends on the tube diameter,wall thickness,material properties,bend radius,and tooling design.

For stainless steel and other harder materials,appropriate forming force and tooling are important to reduce unwanted deformation.

The hydraulic system can provide consistent force during the forming cycle,but operators should still select suitable process parameters according to the actual workpiece.

Semi-Automatic Operation

The semi-automatic configuration provides a balance between operator flexibility and mechanical forming assistance.

In a typical workflow,the operator loads the exhaust tube,positions it according to the required dimensions,selects the appropriate mold,and starts the forming operation. The hydraulic system performs the programmed or controlled forming action according to the machine design.

Semi-automatic operation can be particularly useful for small and medium production batches where different exhaust pipe dimensions may need to be processed.

Compared with fully manual forming,the machine-assisted process can improve repeatability and reduce physical effort. However,the operator remains involved in material handling and setup.

Exhaust Pipe Bend,Expand and Reduce Functions

The machine is designed around three important exhaust tube forming processes: bending,expanding,and reducing.

Bending changes the direction of the tube and allows exhaust pipes to follow the required routing.

Expanding increases the diameter or forms a larger end section when required for pipe-to-pipe or component connections.

Reducing decreases the diameter of a selected tube section or end to create a suitable transition or connection.

Combining these operations can simplify the production of custom exhaust components and reduce the need to transfer workpieces between multiple machines.

The exact forming sequence depends on the machine configuration and selected molds.

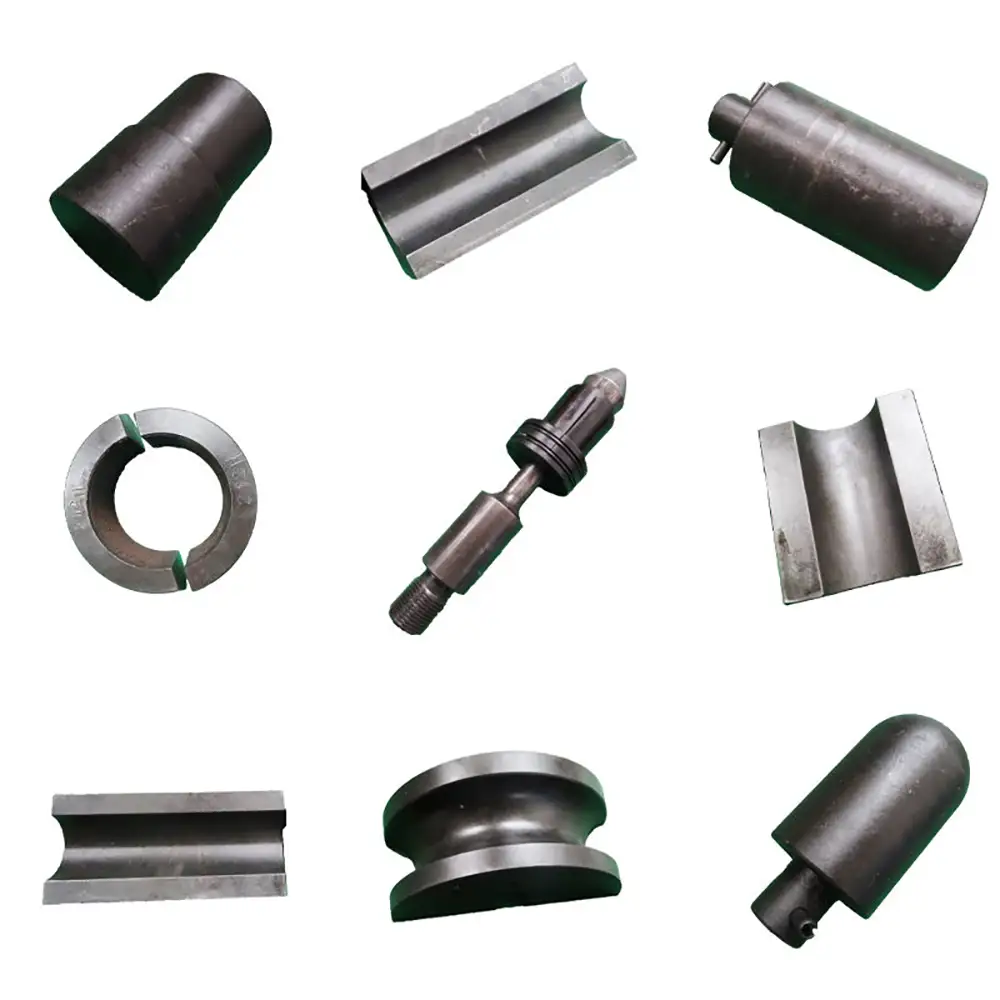

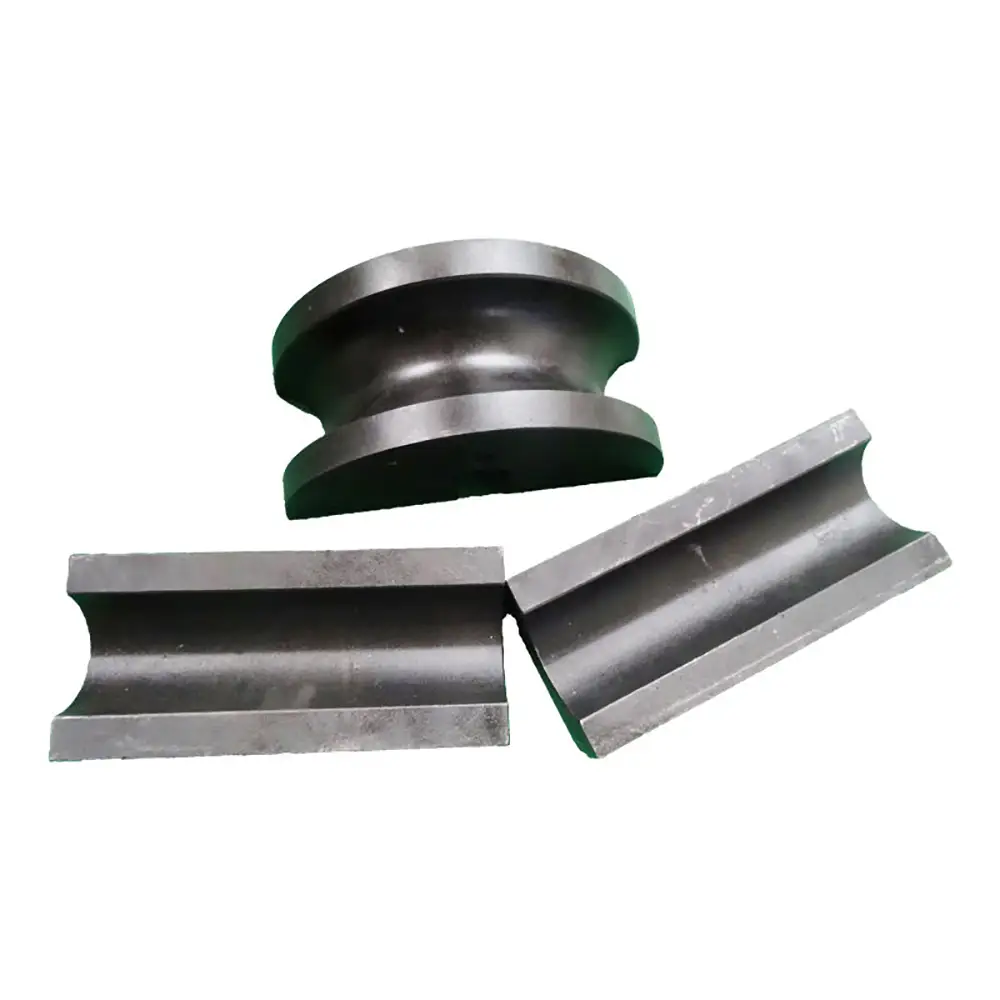

Exhaust Pipe Bending Molds

Bending molds are critical components because they determine the basic geometry of the finished tube.

Different tube diameters,bend radii,and material specifications normally require different tooling.

A suitable bending mold supports the tube while the hydraulic mechanism applies forming force. Proper tooling can help reduce excessive flattening,wrinkling,and surface deformation.

For custom exhaust manufacturing,customers should provide tube drawings or samples so the required bend radius,bend angle,and tooling configuration can be evaluated.

The available mold range depends on the machine model and manufacturer.

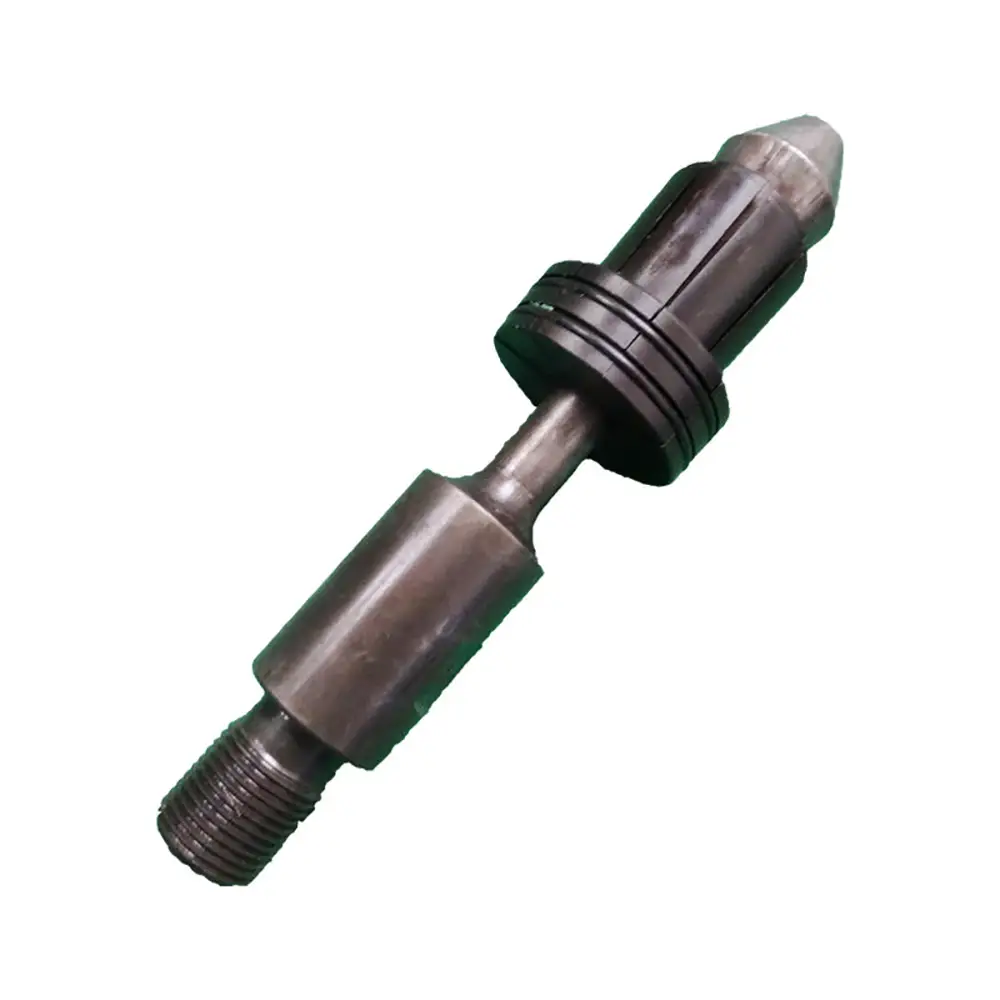

Exhaust Pipe Expanding Molds

Expanding molds are used when the end or selected section of an exhaust tube needs to be increased in diameter.

This operation can be useful for creating connection sections between exhaust tubes,mufflers,resonators,catalytic converter components,and other exhaust system parts.

The expansion amount depends on the original tube diameter,material,wall thickness,and mold geometry.

Controlled forming is important because excessive expansion can cause cracking,wrinkling,or dimensional variation.

Different tube sizes may require dedicated expanding molds.

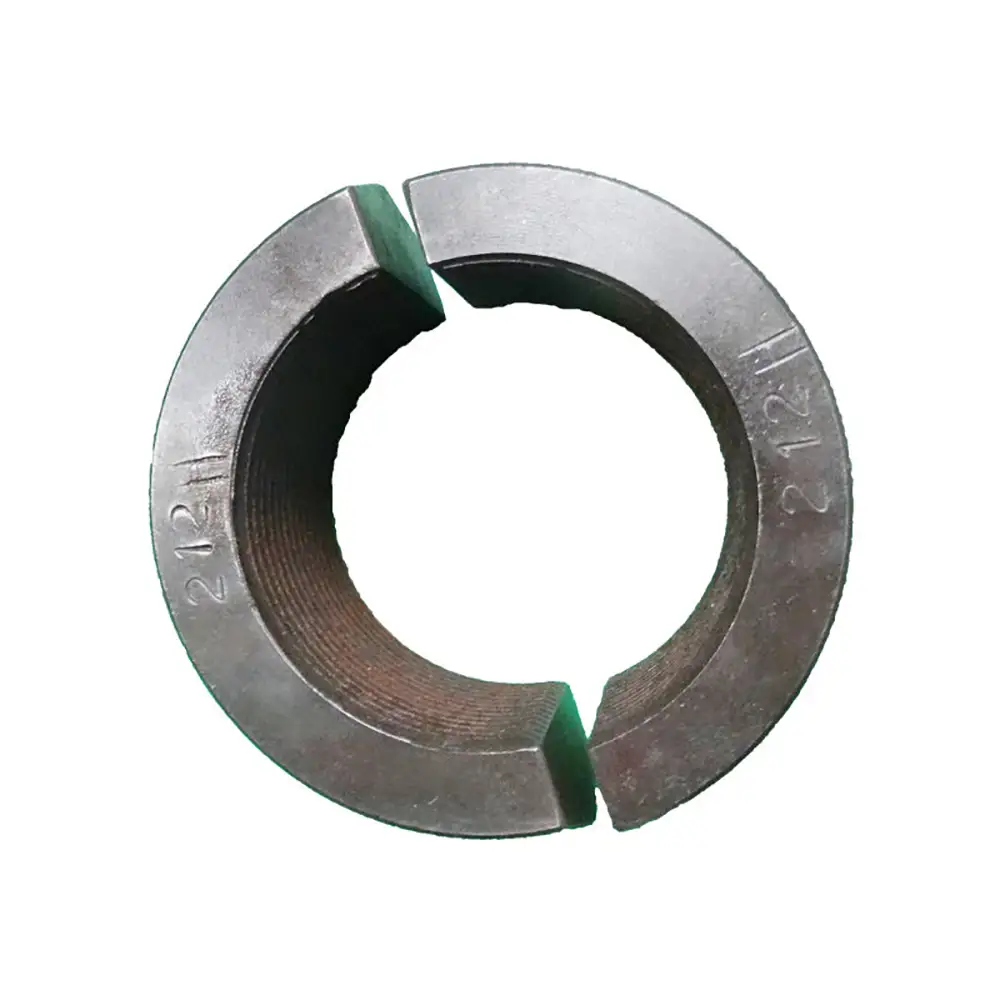

Exhaust Pipe Reducing Molds

Reducing molds are used to decrease the diameter of a tube section or end.

This is useful when producing transition pieces or connecting tubes of different diameters.

The reducing operation should be matched to the tube material and wall thickness. Excessive reduction in one forming step can produce unwanted deformation,so the appropriate mold and forming sequence should be selected.

Custom reducing molds can be developed for specific exhaust pipe dimensions and connection requirements,depending on the manufacturer.

Stainless Steel Exhaust Tube Processing

Stainless steel is widely used in exhaust systems because of its corrosion resistance and durability.

However,stainless steel may have different forming characteristics from mild steel or other materials. Springback,material hardness,wall thickness,and tube diameter can influence bending and end-forming results.

The hydraulic exhaust tube bending machine can be configured for suitable stainless steel tubes when the workpiece falls within the machine's rated range.

Suitable tooling should be selected to match the tube dimensions and required forming geometry.

For visible stainless steel exhaust components,protecting the tube surface during bending and tooling contact can also be important.

Mild Steel and Other Metal Tubes

In addition to stainless steel,the machine may be suitable for mild steel,carbon steel,and other compatible metal tubes.

Mild steel exhaust tubing is commonly used in general exhaust fabrication and replacement components.

The machine's actual material compatibility depends on forming force,tooling,and tube specifications.

Customers should provide material grade,diameter,and wall thickness before selecting the machine configuration.

Automotive Exhaust Applications

The machine can support many exhaust manufacturing and repair applications,including:

Exhaust Pipes

Exhaust Tailpipes

Muffler Tubes

Resonator Tubes

Exhaust Adapters

Transition Pipes

Custom Exhaust Systems

Replacement Exhaust Components

Performance Exhaust Components

Automotive Repair Components

The ability to bend,expand,and reduce tubes can be particularly useful when manufacturing customized exhaust systems for different vehicle models.

Muffler Shop and Custom Exhaust Fabrication

Muffler shops often need to process tubes in different diameters and configurations.

A hydraulic semi-automatic machine can provide a flexible solution for custom exhaust fabrication because the operator can select different molds according to the required tube geometry.

The equipment may be used for repair work,aftermarket exhaust production,custom performance exhausts,and replacement components.

For businesses handling relatively low or medium production volumes,the flexibility of interchangeable tooling can be more valuable than a highly specialized automated production line.

Production Efficiency

Combining bending,expanding,and reducing functions can help simplify the production workflow.

Instead of moving a tube between several separate machines,operators may be able to complete multiple forming operations using one machine,depending on the configuration.

This can reduce material handling and make custom exhaust production easier to organize.

Actual productivity depends on tube dimensions,forming sequence,mold changes,operator experience,cycle time,and the number of operations required for each workpiece.

Tube Quality and Forming Control

Finished exhaust tubes should be inspected for bend angle,bend radius,diameter,and end geometry.

Important process variables include hydraulic force,tooling alignment,tube positioning,forming speed,and material characteristics.

Springback should be considered during bending because the tube may partially return toward its original shape after forming.

For production requiring consistent dimensions,manufacturers should establish suitable forming parameters and inspect initial pieces before continuing a production batch.

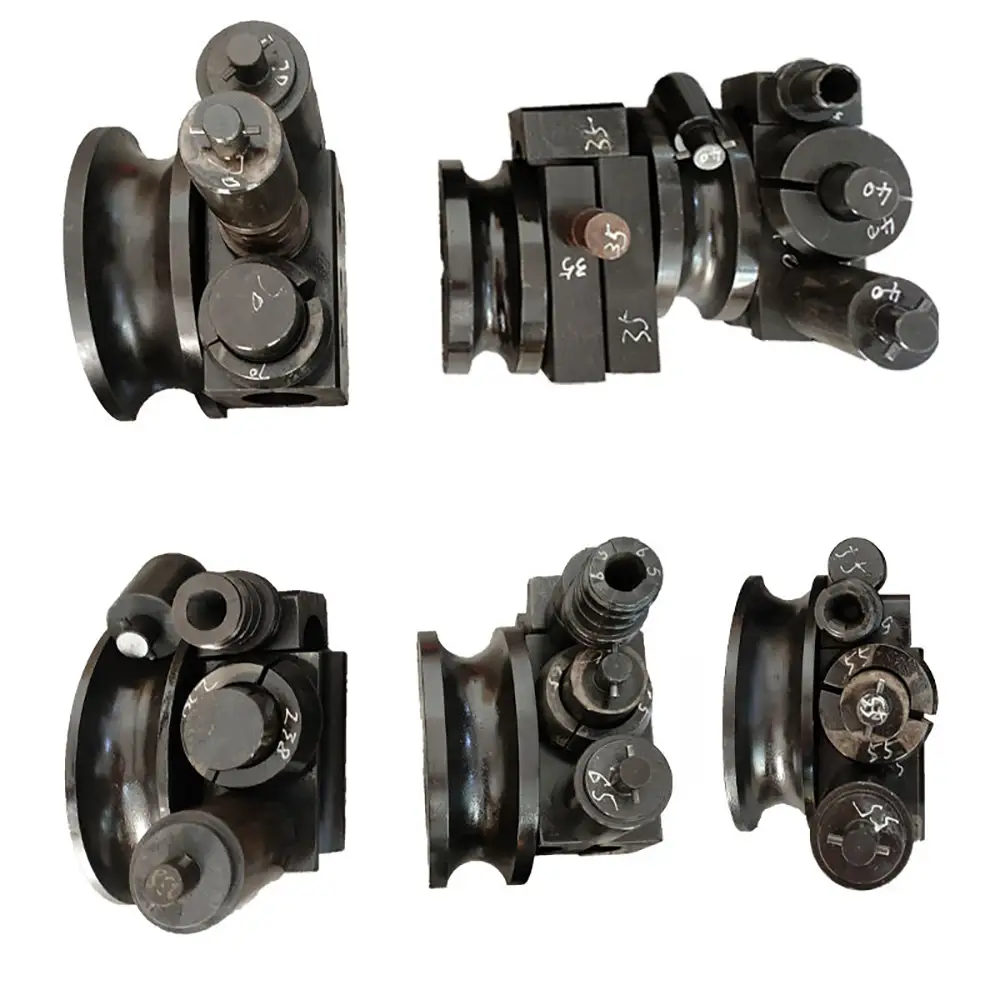

Tooling and Custom Mold Solutions

Molds are an important part of the machine because bending,expanding,and reducing require different forming geometries.

Depending on the manufacturer,custom molds can be produced for specific tube diameters,bend radii,end diameters,and connection profiles.

OEM and ODM solutions may include custom bending molds,expanding dies,reducing dies,clamping fixtures,and other workholding components.

Customers should provide drawings,samples,tube dimensions,and forming requirements when requesting custom tooling.

Maintenance and Safety

Hydraulic pipe bending and forming equipment contains moving molds,clamping components,and high-force forming mechanisms.

Operators should keep hands away from the mold and clamping area during operation and use appropriate personal protective equipment.

Routine maintenance may include checking hydraulic hoses and connections,inspecting molds,cleaning metal debris,checking fasteners,and maintaining moving components according to the manufacturer's recommendations.

Hydraulic oil condition and system pressure should be monitored according to the machine maintenance schedule.

Emergency stops,guards,and other protective systems depend on the specific machine configuration. Operators should follow the manufacturer's operating instructions and applicable workplace safety requirements.

OEM and B2B Exhaust Tube Forming Solutions

The machine is suitable for automotive exhaust manufacturers,muffler shops,metal fabrication companies,repair businesses,and machinery distributors.

For OEM and ODM projects,customers can provide tube diameter,wall thickness,material,bend angle,bend radius,expansion diameter,reduction diameter,and production volume.

Based on these requirements,the appropriate hydraulic capacity,molds,fixtures,and control configuration can be evaluated.

Customized machines can be developed around specific exhaust tube products and production workflows.

Why Choose Us

Bend,Expand And Reduce Functions
Supports multiple exhaust tube forming operations within one flexible machine configuration.

Hydraulic Forming System
Provides controlled forming force for suitable metal pipe and tube applications.

Semi-Automatic Operation
Combines operator-controlled loading and setup with mechanical forming assistance.

Interchangeable Forming Molds
Suitable molds can be selected for different bending,expanding,and reducing requirements.

Automotive Exhaust Applications
Designed for exhaust pipes,muffler tubes,tailpipes,adapters,and custom exhaust components.

Stainless Steel Tube Compatibility
Can be configured for suitable stainless steel and other compatible metal tubes.

Flexible Production Use
Suitable for muffler shops,custom exhaust fabrication,repair operations,and small or medium production.

OEM And ODM Support
Custom molds,fixtures,controls,and machine configurations can be developed for specific exhaust tube requirements.

FAQs

1. What is a semi-automatic exhaust pipe bending machine?

It is a tube forming machine designed for exhaust pipes that uses mechanical or hydraulic forming assistance while the operator handles workpiece loading,positioning,and setup.

2. Can the machine bend exhaust pipes?

Yes. Suitable exhaust pipes and tubes can be bent when their dimensions and material properties are within the machine's rated capacity.

3. Can it expand exhaust pipe ends?

Yes. With suitable expanding molds,the machine can enlarge a tube end or selected tube section according to the required geometry.

4. Can it reduce exhaust pipe diameter?

Yes. Reducing molds can be used to decrease the diameter of suitable tube ends or sections.

5. What are bend,expand,and reduce molds?

These are dedicated forming tools designed for different tube-processing operations. Bending molds create curved sections,expanding molds increase diameter,and reducing molds decrease diameter.

6. Can it process stainless steel exhaust tubes?

Yes,when the stainless steel tube dimensions and material properties are within the machine's capacity and appropriate molds are used.

7. Can it process mild steel exhaust pipes?

Yes. Suitable mild steel and carbon steel tubes can be processed depending on the machine configuration.

8. Is the machine fully automatic?

No. The described machine is semi-automatic. The operator generally participates in loading,positioning,tooling selection,and other setup operations.

9. Can custom molds be supplied?

Depending on the manufacturer,custom bending,expanding,and reducing molds can be produced for specific tube sizes and forming requirements.

10. What determines the bending capacity?

Tube diameter,wall thickness,material strength,bend radius,hydraulic force,tooling,and machine configuration all affect the actual bending capacity.

11. Is it suitable for muffler shops?

Yes. Its combination of bending and end-forming functions makes it suitable for custom exhaust fabrication,muffler repair,and replacement exhaust component production.

12. What information should I provide for a quotation?

Provide tube material,outside diameter,wall thickness,bend radius,bend angle,expansion diameter,reduction diameter,required molds,production quantity,and drawings or samples if available.
