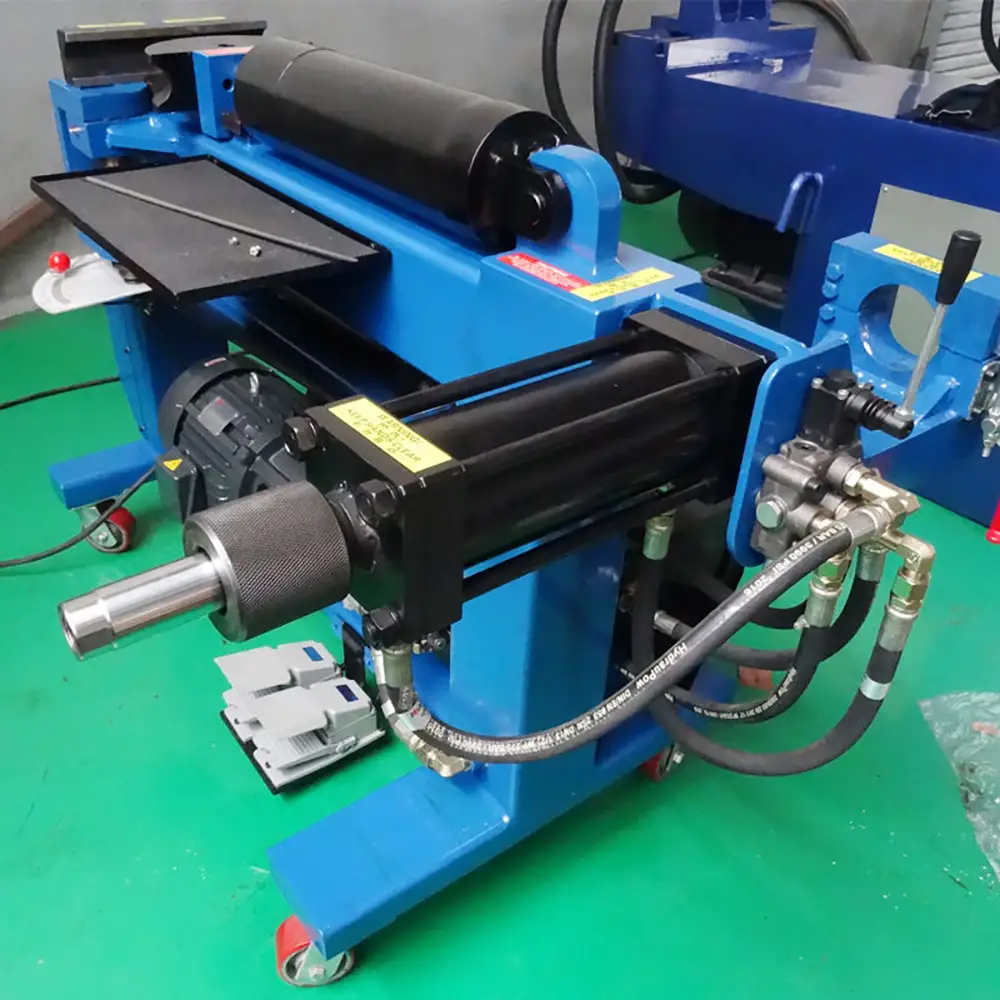

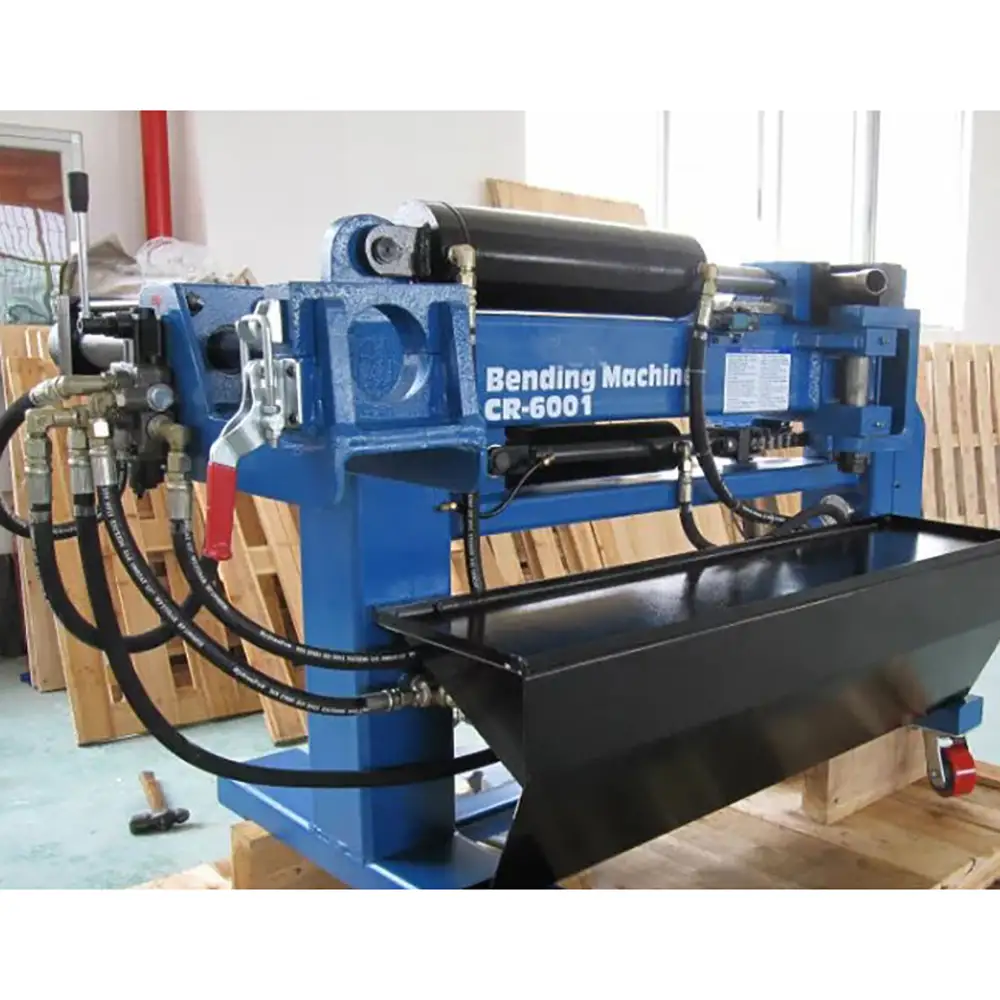

Metal Pipe Expanding Shrinking Bending Machine for Bicycle Frame Faucet Handrail Chair Legs Bender

Metal Pipe Expanding Shrinking Bending Machine

The Metal Pipe Expanding Shrinking Bending Machine is a versatile tube forming solution designed for bending,expanding,and shrinking suitable metal pipes and tubes. It can be used for manufacturing and processing tubular components for bicycle frames,faucets,handrails,chair legs,furniture,automotive parts,and general metal fabrication.

By combining several forming operations in one machine,the equipment can help manufacturers reduce repeated material handling and simplify production workflows. Depending on the machine configuration,different forming molds and fixtures can be selected for specific tube diameters,bend radii,end profiles,and production requirements.

The machine is suitable for businesses that need flexible metal tube processing rather than a single-purpose bending operation. Actual forming capacity depends on material,tube diameter,wall thickness,material strength,required bend radius,forming geometry,tooling,and machine configuration.

item	value
machine type	Tube Bender
material / metal processed	Aluminum, Alloy, Carbon steel, Stainless Steel
max. bending angle (deg)	180
bending precision (deg)	0.5mm
power (kw)	5.5
weight (kg)	700
warranty	1 Year
Application	Round Pipe Bending
Raw Material	Metal Stainless Steel Carbon Steel
Voltage	220V/380V/415V/440V/customized
After-sales Service Provided	1 Year
Power	5.5kw
Model	6001

Pipe Bending Function

Pipe bending is one of the primary applications of the machine. Suitable round pipes and tubes can be formed into curved shapes for frames,rails,handles,chair legs,and other tubular components.

During bending,the workpiece is positioned in the appropriate tooling and supported according to the machine design. Controlled forming force is then applied to create the required bend.

The finished geometry depends on tube diameter,wall thickness,material characteristics,bend angle,bend radius,and tooling.

For thin-wall tubing,proper tooling and support are particularly important because excessive forming force can cause flattening,wrinkling,or other deformation.

Different tube sizes may require different bending dies.

Pipe Expanding Function

Pipe expanding changes the diameter of a tube section or end by forming the material outward.

This operation can be useful when a tubular component needs a larger connection section or when two components with different diameters need to be joined.

Expanding is commonly used in tube fabrication for furniture,automotive components,plumbing-related parts,heat-transfer components,and other metal products.

The amount of expansion depends on the original tube dimensions,material properties,wall thickness,and expanding mold.

Controlled forming is important because excessive expansion can cause cracking,wrinkling,or dimensional inconsistency.

Pipe Shrinking Function

Pipe shrinking is the opposite type of forming operation,where a tube section or end is reduced in diameter.

Shrinking can be used to create tapered transitions,smaller connection ends,and customized tube profiles.

For products such as furniture legs,handrails,and tubular frames,a reduced tube section can provide a suitable connection between different components.

The actual reduction capability depends on the forming tooling and machine capacity.

Different tube diameters and reduction dimensions may require dedicated shrinking molds.

Bicycle Frame Tube Bending

Bicycle manufacturing is one potential application for metal tube bending equipment.

Bicycle frames commonly use carefully shaped tubes that must meet specific geometry requirements. Depending on the frame design and tube material,the machine can be used for suitable bending and forming operations during frame component production.

Bending quality is important because excessive flattening or deformation can affect the appearance and dimensional characteristics of the finished tube.

Customers should provide tube dimensions,bend angles,and required radii when selecting equipment for bicycle frame production.

The machine may also be suitable for other bicycle components made from compatible tubular materials.

Faucet Tube Forming

Metal faucets and related plumbing products often contain curved tubular sections.

Tube bending equipment can help produce controlled curves for suitable faucet tubes,spouts,and other tubular components.

Depending on the product design,expanding or shrinking may also be required to create connection ends or transitions.

For visible faucet components,surface protection is important because scratches or tooling marks can affect the final appearance.

Stainless steel,copper,and other suitable metal tubes may be processed depending on the machine configuration and tooling.

Handrail Pipe Bending

Handrails frequently require curved or angled tubular sections for stairs,ramps,balconies,and architectural structures.

A metal pipe bending machine can be used to form suitable handrail tubes into the required geometry.

Long tubes may require additional material support during bending to reduce movement and help maintain consistent positioning.

For stainless steel handrails,the tooling should be selected carefully to reduce surface damage.

The required bend radius and tube diameter should be provided when specifying the machine.

Chair Leg Tube Bending

Chair legs and furniture frames are another common application for tube forming.

Metal chair legs can be produced from round or other compatible tubing and formed into curved or angled shapes.

The machine can support production of furniture frames,chair legs,table legs,stool structures,and other tubular components.

For furniture manufacturers,the ability to change tooling can be useful because different product designs may require different bend shapes and tube sizes.

Metal Tube Materials

The machine may be configured for various metal tubes depending on the forming force and tooling.

Potential materials include:

Carbon Steel

Mild Steel

Stainless Steel

Aluminum

Copper

Alloy Steel

Other Compatible Metal Tubes

Each material has different forming characteristics.

Stainless steel may require different parameters from mild steel,while aluminum and copper can require special attention to surface protection and deformation control.

Customers should provide the material grade,tube diameter,and wall thickness before selecting the machine configuration.

Tube Diameter and Wall Thickness

Tube dimensions strongly influence machine selection.

Important parameters include:

Outside Diameter

Wall Thickness

Material Strength

Bend Radius

Bend Angle

Expansion Diameter

Reduction Diameter

Forming Length

A machine suitable for thin-wall tubing should not automatically be assumed to handle heavy-wall structural pipe.

The machine's rated specifications and tooling should be checked against the actual workpiece requirements.

For custom projects,drawings or samples can help determine the appropriate forming configuration.

Flexible Industrial Applications

The machine can be used across a wide range of tubular fabrication industries.

Potential applications include:

Bicycle Frame Manufacturing

Faucet Production

Handrail Fabrication

Chair Leg Production

Furniture Manufacturing

Table Frame Manufacturing

Automotive Components

Motorcycle Components

Fitness Equipment

Agricultural Machinery

Construction Components

Metal Display Structures

General Tube Fabrication

This flexibility makes the equipment useful for manufacturers producing different tubular products.

Production Efficiency

Combining bending,expanding,and shrinking functions can reduce the need to transfer workpieces between multiple machines.

A typical workflow may involve loading a tube,performing the required bend,and then carrying out expanding or shrinking operations using suitable tooling.

The actual production rate depends on tube dimensions,number of forming operations,tool changes,operator handling,and machine cycle time.

For small and medium production runs,multi-function tube forming equipment can provide useful flexibility.

For high-volume production with standardized products,a dedicated automated CNC tube bending line may provide different production characteristics.

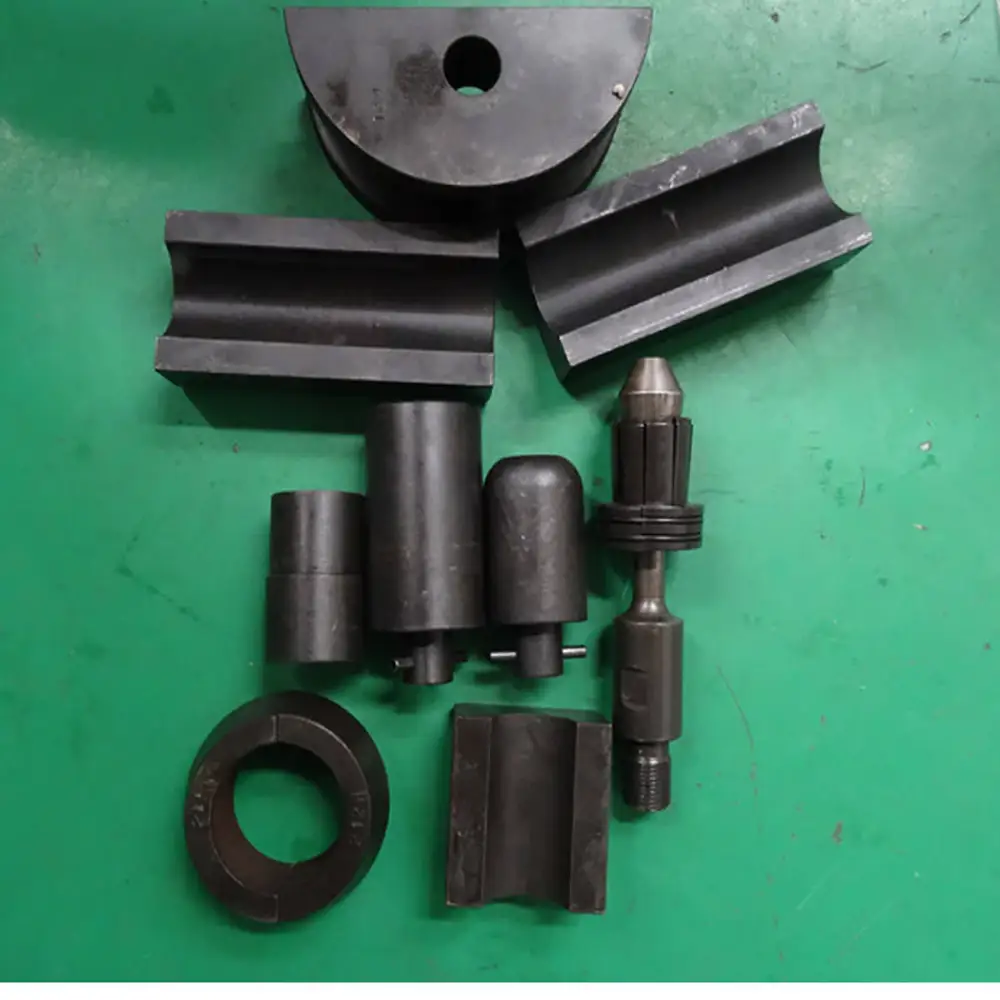

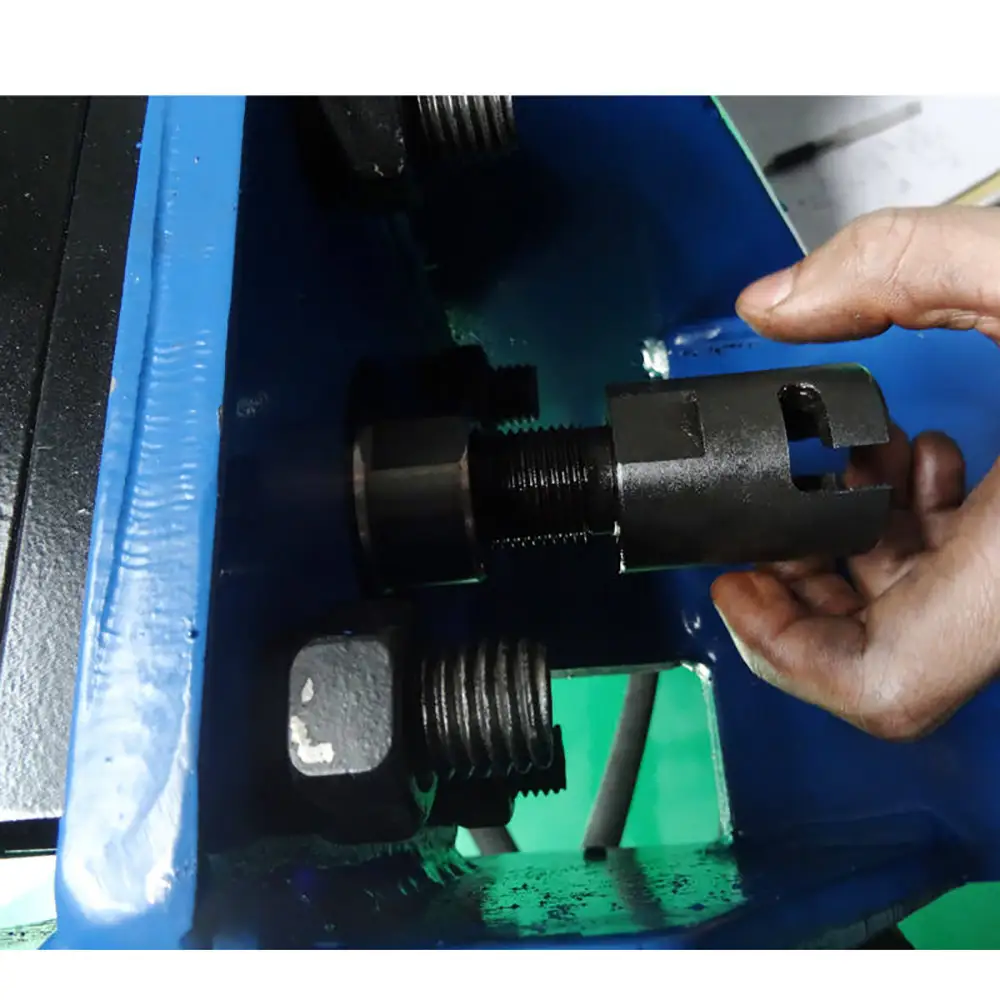

Tooling and Custom Molds

Tooling is one of the most important parts of pipe forming equipment.

Different tube diameters and forming geometries normally require corresponding dies,clamps,and molds.

Custom tooling may be developed for specific bicycle frame bends,faucet curves,handrail radii,chair leg shapes,and other application-specific requirements.

OEM and ODM projects may include customized bending dies,expanding molds,shrinking molds,fixtures,clamping systems,and other workholding components.

Customers should provide drawings,samples,tube specifications,and required production quantities when requesting customized tooling.

Quality and Dimensional Control

Finished tubes should be checked for bend angle,bend radius,overall dimensions,and end geometry.

For expanding and shrinking operations,the finished diameter should also be verified.

Material springback can affect final dimensions,particularly during bending. Different materials and tube thicknesses may require different forming parameters.

Tooling condition,machine rigidity,workpiece positioning,and forming force can also influence the finished result.

For production requiring tight tolerances,customers should provide the required dimensional specifications before selecting the machine.

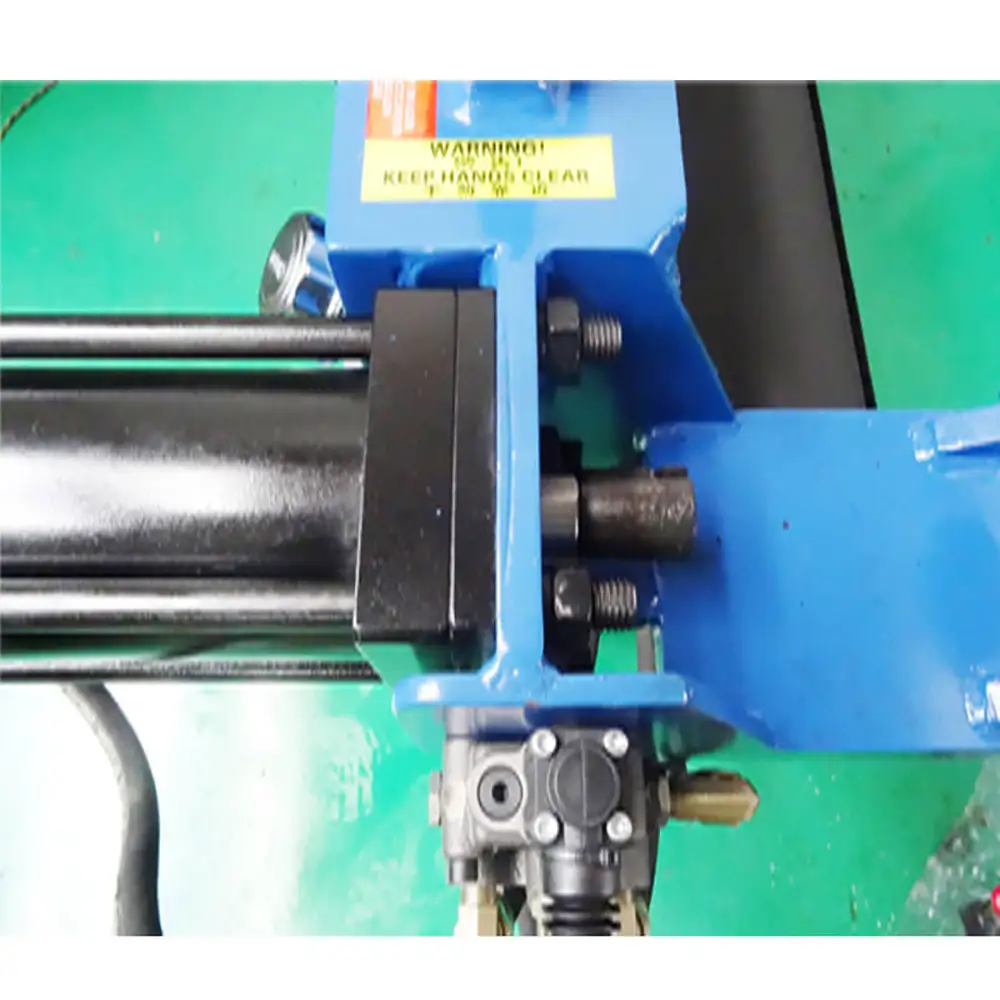

Maintenance and Safety

Pipe bending and forming equipment contains moving tooling,clamps,and mechanical or hydraulic components.

Operators should keep hands away from forming areas and follow the manufacturer's operating procedures.

Routine maintenance may include cleaning the machine,checking dies and clamps,inspecting moving components,and lubricating parts where required.

Hydraulic systems,electrical components,motors,and other drive components should be maintained according to the machine manufacturer's recommendations.

Long tubes should be adequately supported to reduce uncontrolled movement during forming.

Emergency stops,guards,and other safety features depend on the specific machine configuration and applicable local requirements.

OEM and Custom Tube Forming Solutions

The Metal Pipe Expanding Shrinking Bending Machine can be supplied to bicycle manufacturers,furniture factories,faucet manufacturers,architectural metal fabricators,automotive suppliers,and general metalworking companies.

For OEM and ODM projects,customers can provide material type,tube diameter,wall thickness,bend angle,bend radius,expansion dimensions,reduction dimensions,and production volume.

Based on these details,the appropriate machine capacity,tooling,and forming configuration can be evaluated.

Custom machines can be developed around specific products and production requirements.

Why Choose Us

Multi-Function Tube Forming
Combines suitable pipe bending,expanding,and shrinking operations in one flexible production solution.

Wide Application Range
Suitable for bicycle frames,faucets,handrails,chair legs,furniture,and other tubular products.

Multiple Metal Options
Can be configured for suitable carbon steel,mild steel,stainless steel,aluminum,copper,and other compatible tubing.

Custom Forming Tooling
Bending dies,expanding molds,and shrinking molds can be selected according to the required tube geometry.

Flexible Production
Suitable for prototypes,custom fabrication,small batches,and general industrial tube processing.

Improved Process Efficiency
Multiple forming operations can reduce unnecessary workpiece transfers between separate machines.

Application-Specific Configuration
Machine capacity and tooling can be selected according to tube diameter,wall thickness,and forming requirements.

OEM And ODM Support
Custom machines,fixtures,molds,and tooling can be developed for specific manufacturing applications.

FAQs

1. What is a metal pipe expanding,shrinking,and bending machine?

It is a multi-function tube forming machine designed to bend suitable metal pipes and perform expanding or shrinking operations on selected tube sections or ends.

2. Can it be used for bicycle frame production?

Yes. Suitable metal tubes used for bicycle frame components can be bent when their dimensions,material,and required geometry are within the machine's capacity.

3. Can it bend faucet tubes?

Yes. Suitable stainless steel,copper,and other compatible faucet tubes can be processed with appropriate tooling.

4. Can it make chair legs?

Yes. The machine can be used for suitable metal tube bending applications in chair legs,table legs,and furniture frames.

5. What does pipe expanding mean?

Pipe expanding increases the diameter of a selected tube section or end to create a larger connection or customized tube profile.

6. What does pipe shrinking mean?

Pipe shrinking reduces the diameter of a selected tube section or end to create a smaller connection or tapered transition.

7. What materials can the machine process?

Depending on the configuration,it may process mild steel,carbon steel,stainless steel,aluminum,copper,and other suitable metal tubes.

8. What determines the maximum tube size?

Tube diameter,wall thickness,material strength,machine force,tooling,bend radius,and forming requirements determine the practical processing range.

9. Can different bending radii be produced?

Different bending radii may be possible with suitable tooling. The available range depends on the machine design and selected molds.

10. Does each tube size need different tooling?

Different tube diameters and forming geometries generally require appropriately sized bending dies,clamps,expanding molds,or shrinking molds.

11. Can custom molds be supplied?

Depending on the manufacturer,custom molds and dies can be developed for bicycle frames,faucets,handrails,chair legs,and other specialized products.

12. What information should I provide for a quotation?

Provide the tube material,outside diameter,wall thickness,bend radius,bend angle,expansion diameter,reduction diameter,production quantity,and drawings or samples if available.
