Portable Memory Tube Bender for Pipe and Tube Bending Machines

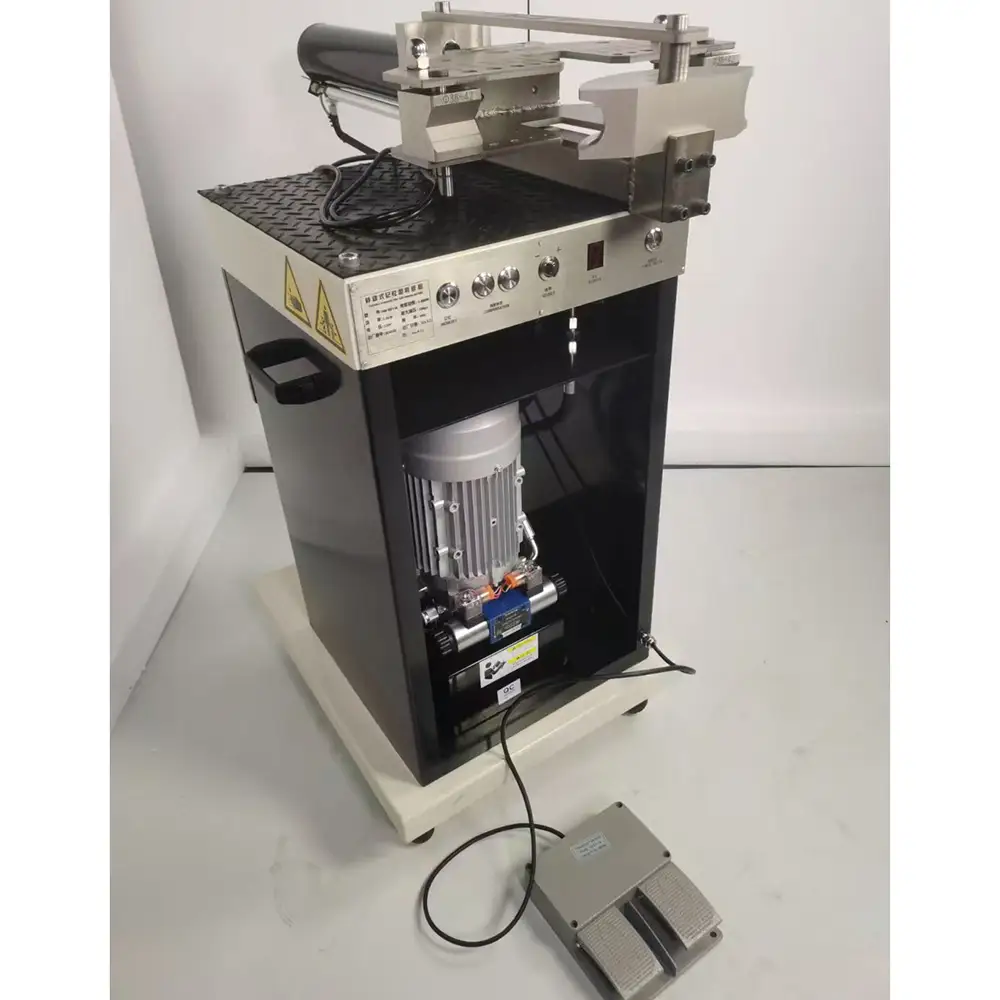

Portable Memory Tube Bending Machine
It is a high-precision, mobile tube bender designed for bending pipes with outer diameters ranging from 6mm to 42mm (1/4 inch to 1-1/2 inch), ideal for industrial applications requiring precise angle control and easy portability.

Applications
Perfect for bending pipes in industries such as plumbing, automotive, aerospace, and machinery manufacturing, especially for applications requiring aesthetically pleasing bends and high-precision results.

item	value
max. bending angle (deg)	180
bending precision (deg)	0.1mm
automation	Semi-automatic
power (kw)	1.5
weight (kg)	100
core components	motor, PLC, Engine
place of origin	Shandong,China
brand name	SOAR
key selling points	Easy to Operate
Model	SOAR-42Y
Machine Size	850*600*1200mm
Color	Premium Black and Ivory
Voltage	220V 50hz
Rated pressure	250bar
Bend radius	2.5D~3D
Maximum thickness	4mm
Advantage	PLC Intelligent Angle Storage

Portable Memory Tube Bender for Pipe and Tube Bending

The Portable Memory Tube Bender for Pipe and Tube Bending Machines is a compact metal forming solution designed for bending suitable pipes and tubes in workshops,maintenance departments,field service operations,and general metal fabrication environments. Its portable structure makes it practical for applications where operators need a flexible bending machine without installing a large stationary production system.

The machine is designed around the concept of convenient tube bending with repeatable operating settings. Depending on the specific configuration,the memory function can help operators retain or recall selected bending parameters,which can be useful when producing multiple workpieces with similar dimensions and bend requirements.

Portable tube bending equipment can be used for a variety of metal materials and applications. The actual bending capacity depends on the machine model,material type,tube diameter,wall thickness,bend radius,tooling,and drive configuration.

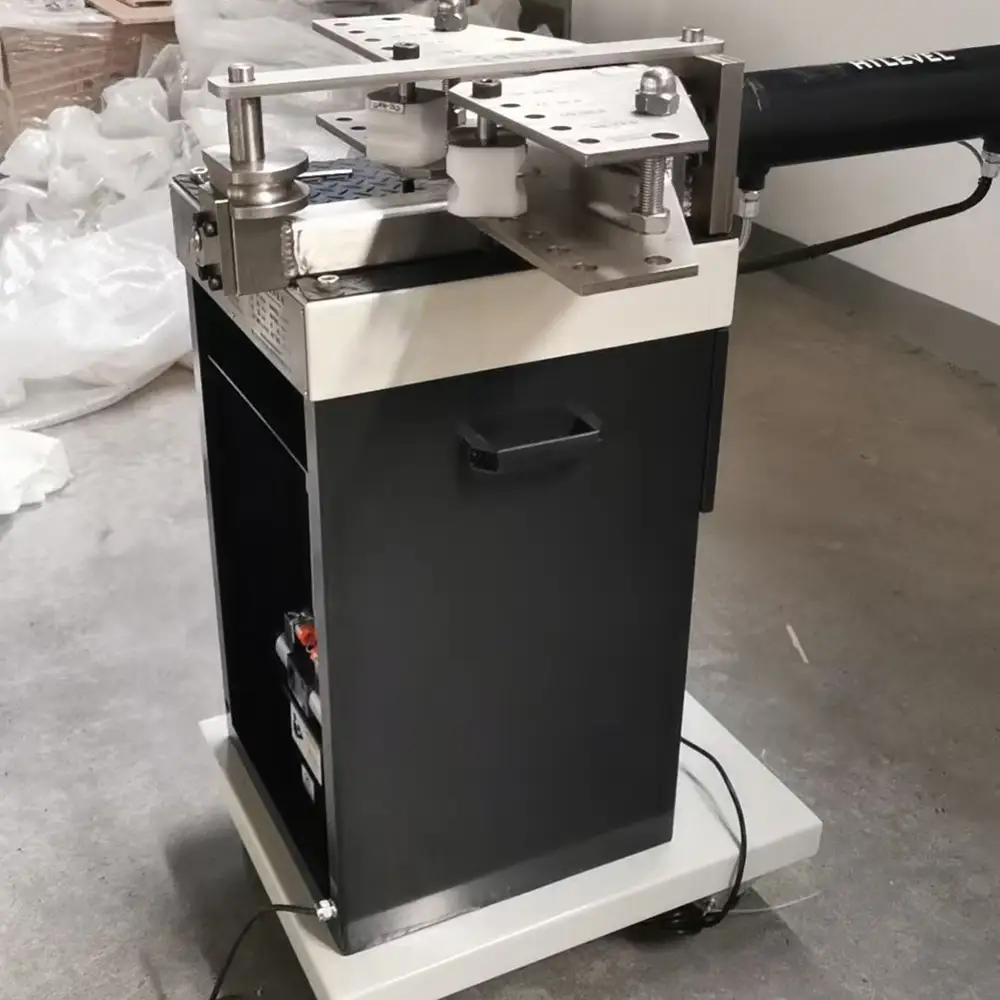

Portable Tube Bending Machine Design

A portable tube bender is designed to provide greater flexibility than a conventional large floor-mounted bending machine. Its compact structure can make it easier to install in smaller workshops,production areas,and maintenance locations.

The portable format is particularly useful for businesses that process different tube sizes or perform bending work at different locations. Instead of moving long pipes to a large centralized machine,operators may be able to position the equipment closer to the work area,depending on the machine configuration.

Although the machine is compact,proper support and workholding remain important. Long tubes may require external supports to prevent excessive movement or deformation during bending.

Memory Function for Repeatable Bending

The memory function is one of the useful features associated with this type of tube bender. For repeated production,the operator may be able to store or recall selected bending settings according to the control system and machine configuration.

This can help reduce repeated manual parameter entry when producing multiple parts with similar bending requirements.

For example,a workshop producing a batch of tubular frames,handrails,brackets,or equipment components may need to repeat the same bend sequence several times. A memory-based control function can support a more consistent workflow.

The exact number of stored programs,available parameters,and control functions depend on the specific machine model and should be confirmed before purchase.

Pipe and Tube Bending Applications

The machine can be used for suitable round pipes,tubes,and other compatible tubular materials. Common applications include:

Metal Pipes

Steel Tubes

Stainless Steel Tubes

Carbon Steel Pipes

Aluminum Tubes

Copper Tubes

Round Tubing

Fabrication Tubes

Structural Tubes

Machinery Tubes

The actual material range depends on the machine's bending force,tooling,and rated specifications.

Tube bending is commonly used to produce curved components without cutting and welding multiple straight sections. This can reduce the number of joints in certain fabricated products and create a cleaner finished appearance.

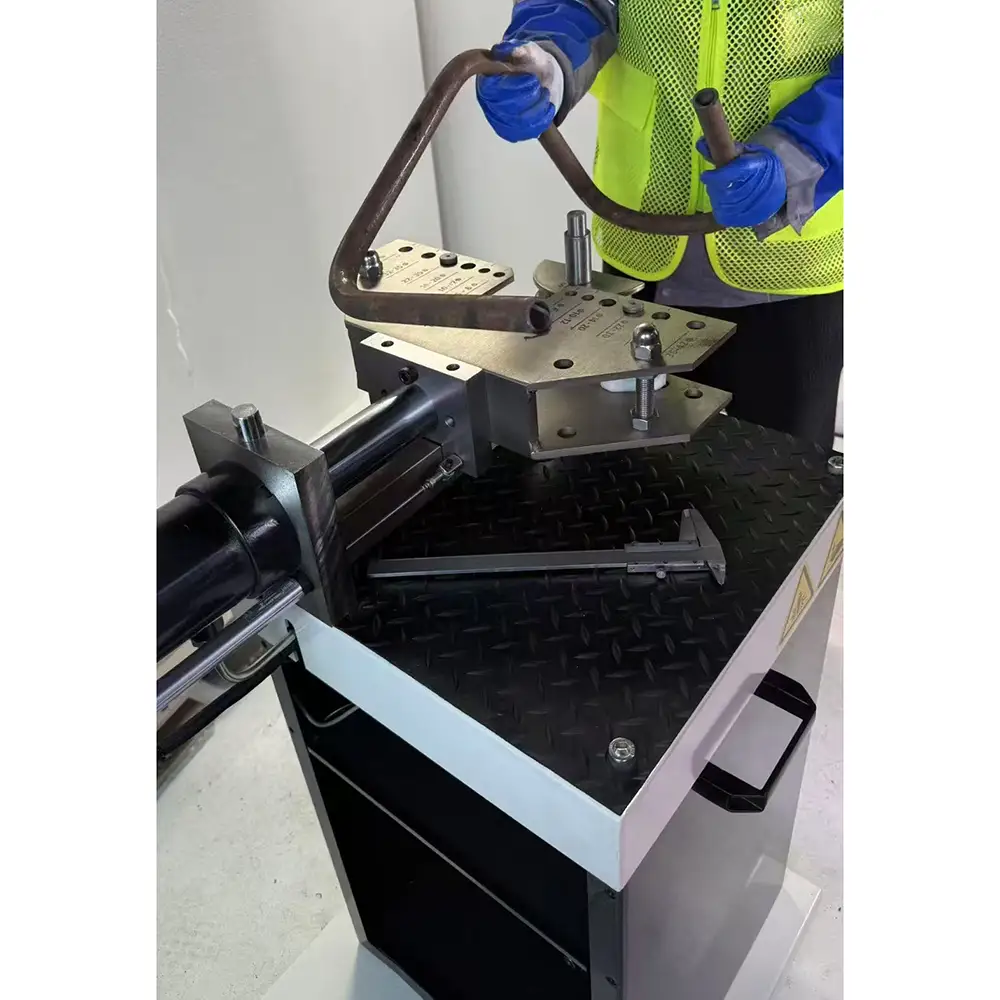

Metal Pipe Bending Process

During bending,the tube is positioned within the appropriate tooling and secured according to the machine design. The bending mechanism then applies controlled force to form the tube around the selected bending geometry.

The quality of the finished bend depends on several factors,including material properties,tube diameter,wall thickness,bend radius,tooling design,bending speed,and workpiece positioning.

Different materials react differently during bending. Stainless steel may require different forming parameters from aluminum or mild steel. Thin-wall tubing may also require additional support or specialized tooling to reduce flattening and deformation.

Operators should select tooling and bending parameters according to the actual tube specification.

Tube Diameter and Wall Thickness

Tube dimensions are among the most important factors when selecting a portable tube bender.

The machine's actual capacity should be evaluated based on:

Outside Tube Diameter

Tube Wall Thickness

Material Type

Material Strength

Required Bend Radius

Bend Angle

Number of Bends

Tooling Configuration

A machine suitable for small-diameter tubing should not automatically be assumed to handle larger structural pipe. Customers should provide detailed tube dimensions before selecting the machine.

For applications involving thin-wall tubes,the relationship between tube diameter,wall thickness,and bend radius is especially important because excessive deformation can affect the finished product.

Portable Bender for Workshop and Field Applications

The compact nature of the machine makes it suitable for a wide range of professional environments.

Potential applications include:

Metal Fabrication Workshops

Machinery Maintenance

Automotive Repair

Agricultural Equipment Repair

Construction Equipment

Handrail Fabrication

Furniture Manufacturing

Gate And Fence Production

HVAC Tube Fabrication

Plumbing Applications

Custom Metalworking

Prototype Production

For maintenance teams,the portable design may provide a convenient solution for occasional bending work without requiring a dedicated large-scale production line.

Applications in Metal Fabrication

Pipe and tube bending is widely used in the production of frames,rails,guards,brackets,and tubular structures.

In furniture manufacturing,bent tubes can be used for chairs,tables,frames,and display structures. In automotive and equipment manufacturing,bent tubes may be used for exhaust-related components,protective structures,frames,and supports.

Construction and architectural applications may include handrails,guardrails,fences,gates,and other tubular structures.

The machine can therefore serve as a general-purpose tube forming solution for businesses handling different types of fabrication projects.

Bending Accuracy and Repeatability

Bending accuracy depends on both the machine and the production process. Important factors include tooling precision,machine rigidity,material consistency,tube positioning,bending parameters,and operator technique.

For repeat production,the memory function can help operators use consistent settings when the same or similar workpieces are processed repeatedly.

However,memory storage does not by itself guarantee identical results for every material. Variations in tube hardness,wall thickness,dimensions,and surface condition can influence springback and final bend geometry.

For demanding applications,customers should provide required bend tolerances and sample workpieces so the machine configuration can be evaluated.

Tooling and Custom Bending Requirements

Different tube diameters and bending radii normally require corresponding tooling. Tooling selection is therefore an important part of the complete tube bending solution.

Depending on the machine design,custom tooling may be available for specific tube dimensions,bend radii,and production requirements.

OEM and ODM configurations may include customized dies,clamps,mandrels,positioning systems,control functions,and other components.

Customers should provide tube drawings,material specifications,diameter,wall thickness,bend angle,and required radius when requesting a customized solution.

Production Efficiency

For small and medium production batches,a portable memory tube bender can help simplify repeated bending operations.

Instead of manually setting every bending parameter from the beginning,operators may use stored settings where supported by the control system. This can reduce setup time for recurring jobs and make production procedures easier to standardize.

Actual production efficiency depends on the number of bends per workpiece,the material,the tube dimensions,tooling,the operator's workflow,and the machine's bending method.

For high-volume manufacturing,a fully automated CNC tube bending system may be more appropriate. For flexible workshops and maintenance operations,a portable machine can provide a practical balance between mobility and bending capability.

Maintenance and Safety

Tube bending machines contain moving mechanical components and should be operated according to the manufacturer's instructions.

Operators should ensure that the tube is properly positioned and supported before starting the bending cycle. Hands should remain away from moving tooling and pinch points.

Routine maintenance may include cleaning the machine,checking tooling,inspecting fasteners,lubricating moving parts where required,and checking electrical or hydraulic components according to the machine configuration.

The machine should be installed or positioned on a stable surface,and long workpieces should be adequately supported.

Emergency-stop systems,protective covers,and other safety features depend on the specific configuration. Operators should follow applicable workplace safety requirements and manufacturer recommendations.

OEM and Custom Tube Bending Solutions

For manufacturers,distributors,and industrial equipment buyers,the machine can be configured according to different tube bending requirements.

Customers can provide information about the material,tube diameter,wall thickness,bend radius,bend angle,production quantity,and required bending sequence.

Based on these requirements,the appropriate machine capacity,tooling,and control configuration can be evaluated.

OEM and ODM support may include customized bending dies,fixtures,control functions,machine dimensions,and other application-specific components.

Why Choose Us

Portable Machine Design
Compact construction provides flexibility for workshops,maintenance departments,and mobile fabrication applications.

Memory Bending Function
Suitable control configurations can store or recall bending parameters for repeated production jobs.

Pipe And Tube Compatibility
Designed for suitable metal pipes and tubes according to the machine's rated capacity and tooling.

Flexible Fabrication Applications
Suitable for frames,handrails,fences,furniture,machinery components,and general metal fabrication.

Repeatable Production Workflow
Stored bending settings can help simplify setup for recurring workpieces.

Custom Tooling Options
Tooling and fixtures can be selected according to tube diameter,bend radius,material,and application.

Workshop And Maintenance Use
Portable construction can be useful for smaller workshops,repair operations,and field-oriented applications.

OEM And ODM Support
Machine configuration,tooling,controls,and other components can be adapted to specific customer requirements.

FAQs

1. What is a portable memory tube bender?

A portable memory tube bender is a compact tube bending machine designed for suitable pipes and tubes,with a control function that can store or recall selected bending parameters depending on the machine configuration.

2. What materials can it bend?

Depending on the machine and tooling,it may process suitable carbon steel,stainless steel,aluminum,copper,and other metal tubes.

3. Can it bend round pipes?

Yes. Suitable round pipes and tubes can be bent when their dimensions are within the machine's rated capacity.

4. What does the memory function do?

The memory function can allow selected bending parameters or programs to be stored and recalled,helping simplify repeated bending operations.

5. Can the machine bend stainless steel tubes?

Yes,provided the tube dimensions,material properties,and required bending radius are within the machine's capabilities and suitable tooling is used.

6. Is it suitable for small workshops?

Yes. Its portable and compact design can make it suitable for small fabrication shops,maintenance departments,and workshops with limited floor space.

7. What determines the maximum tube size?

Maximum tube size depends on the machine's bending force,drive system,tooling,material strength,tube diameter,wall thickness,and required bend radius.

8. Can different bending radii be produced?

Different bending radii may be possible by using suitable tooling. The available range depends on the machine design and tooling configuration.

9. Does the machine require special tooling?

Tooling should be selected according to the tube diameter,material,wall thickness,and required bending geometry. Different tube sizes may require different dies.

10. Can it be used for repeated production?

Yes. The memory function can help repeat selected bending settings for similar workpieces,subject to the capabilities of the specific control system.

11. Can the machine be customized?

Yes. Depending on the manufacturer,custom tooling,fixtures,controls,machine configurations,and other options may be available.

12. What information should I provide for a quotation?

Provide the tube material,outside diameter,wall thickness,bend radius,bend angle,number of bends,required quantity,and any available drawings or samples.
