Auto Repair Shop Exhaust Tube Shrinking Expanding Machine End Forming Machine for Tube and Pipe Expanding Shrinking Bead

Auto Repair Shop Exhaust Tube Shrinking Expanding Machine End Forming Machine for Tube and Pipe Expanding Shrinking Beading

Length	900mm
Width	520mm
Height	1020mm
Cylinder stroke	190mm
Horse power	2HP single phase three phase

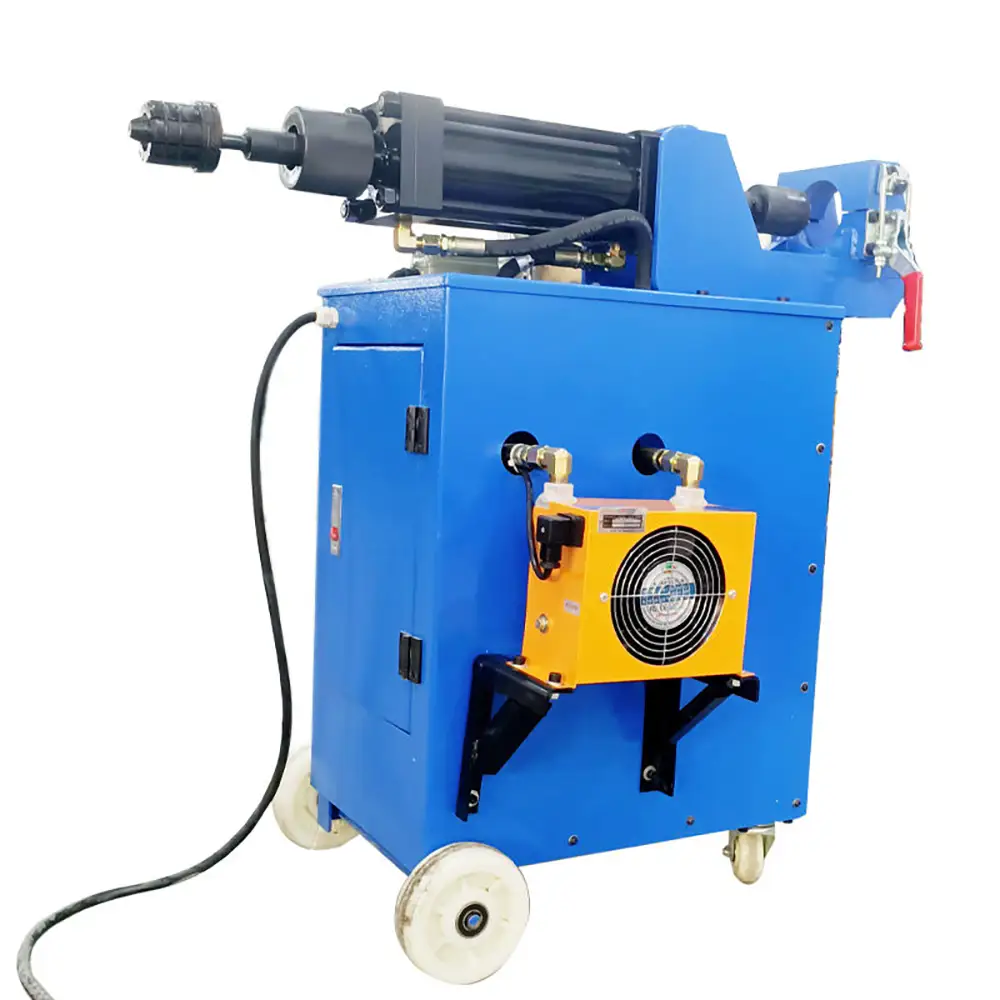

Exhaust Tube Expanding and Shrinking Machine for Auto Repair Shops

The Auto Repair Shop Exhaust Tube Shrinking Expanding Machine is a practical exhaust pipe end forming solution designed for automotive repair shops,muffler shops,exhaust fabrication businesses,and general metalworking applications. The machine is used to modify the ends of suitable metal tubes and pipes through processes such as expanding,shrinking,reducing,and forming.

Exhaust systems often require pipes with different end diameters so that individual components can be connected,inserted,or joined during fabrication and repair. Instead of relying entirely on manual fabrication methods,a dedicated exhaust tube end forming machine provides controlled mechanical assistance for shaping the tube end.

Depending on the machine configuration and tooling,the equipment may perform tube expansion,pipe reduction,shrinking,beading,or other end-forming operations. The exact forming process depends on the selected dies,machine structure,and tube specifications.

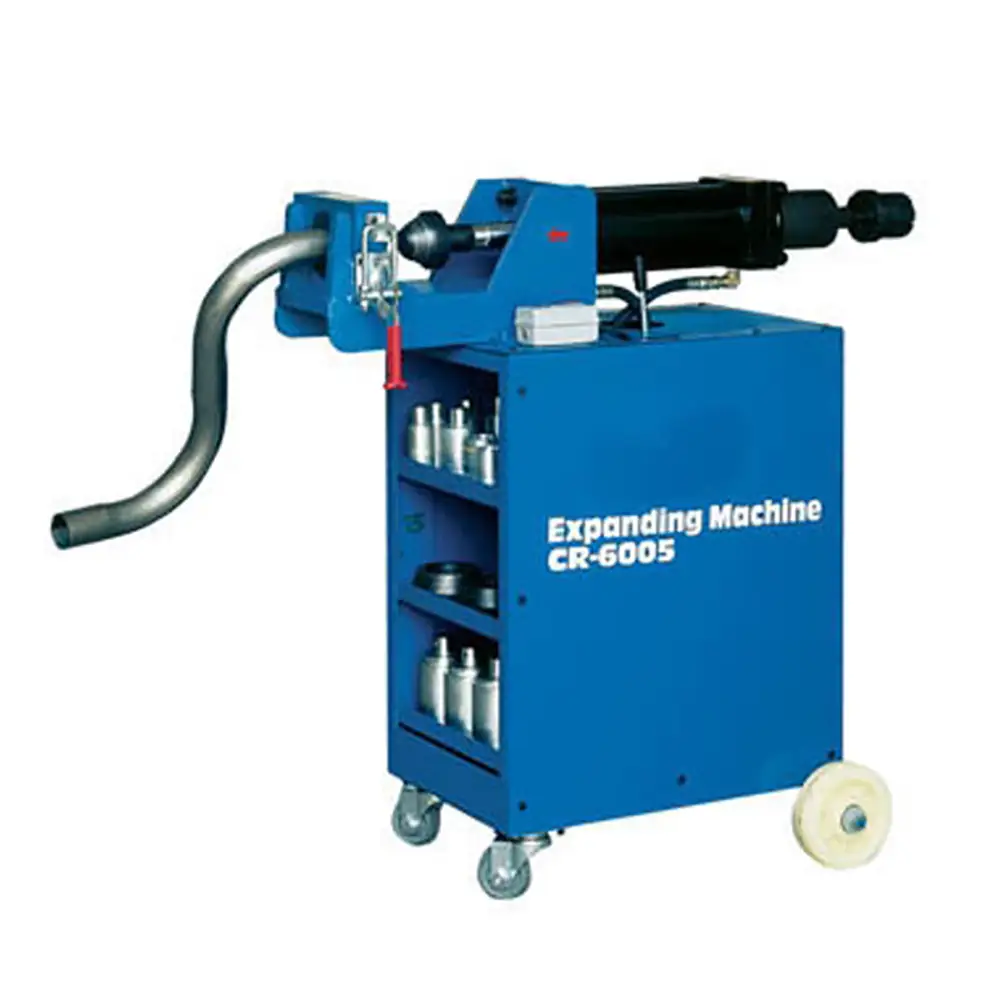

Exhaust Tube Expanding Machine

Tube expansion is a common operation in exhaust fabrication. An exhaust tube expander increases the diameter of a selected section of the tube end so that another component can be inserted or connected.

The expansion process must be controlled carefully because excessive forming force can cause cracking,wrinkling,or unwanted deformation. Proper tooling and suitable forming parameters help maintain the required tube geometry.

For automotive exhaust applications,the actual expansion range depends on tube material,outer diameter,wall thickness,tooling,and machine configuration. Customers should provide these details when selecting an appropriate machine.

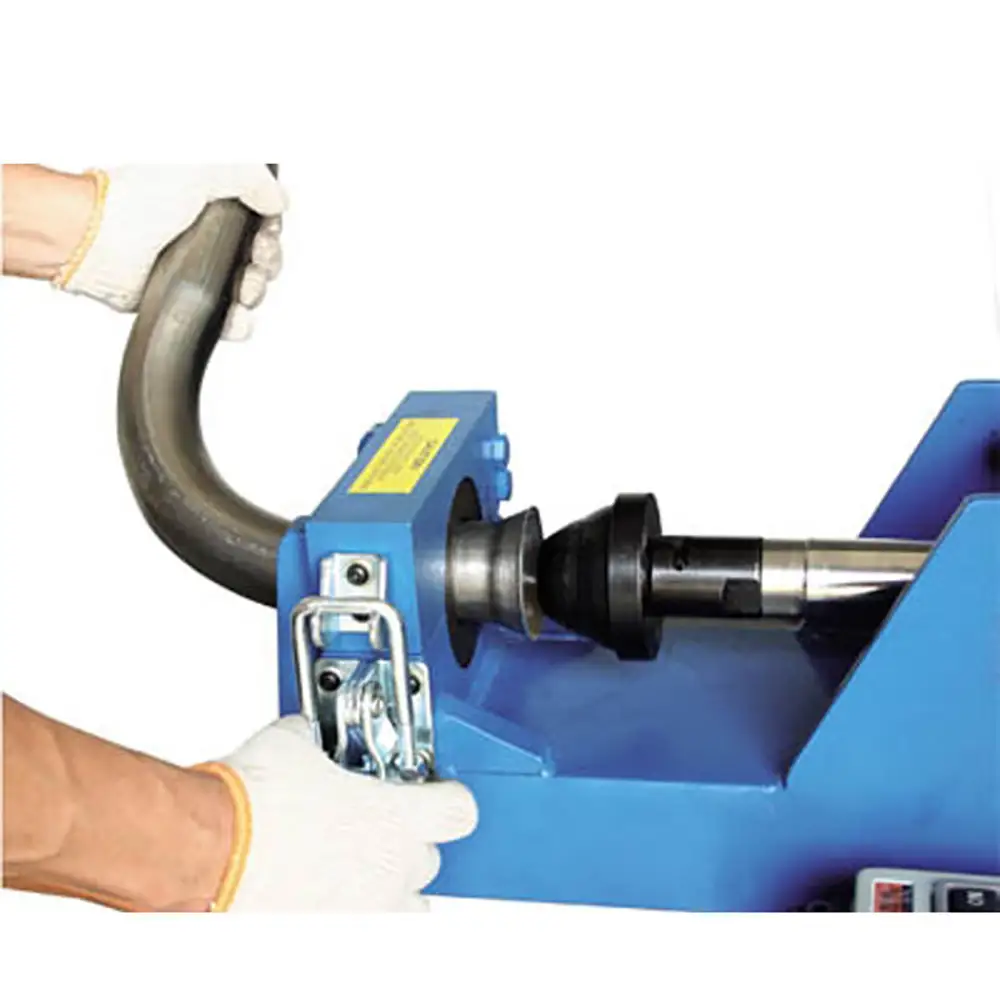

Exhaust Tube Shrinking and Reducing

Tube shrinking is used to reduce the outside diameter of a pipe or tube end. This can be useful when creating stepped exhaust components or preparing a pipe for connection with another section.

A shrinking or reducing operation can help produce a controlled transition between different tube diameters. The finished geometry depends on the forming die and the material characteristics.

Suitable exhaust tubes may include carbon steel,stainless steel,and other commonly used metal tubing,provided the material and dimensions are within the machine's rated forming range.

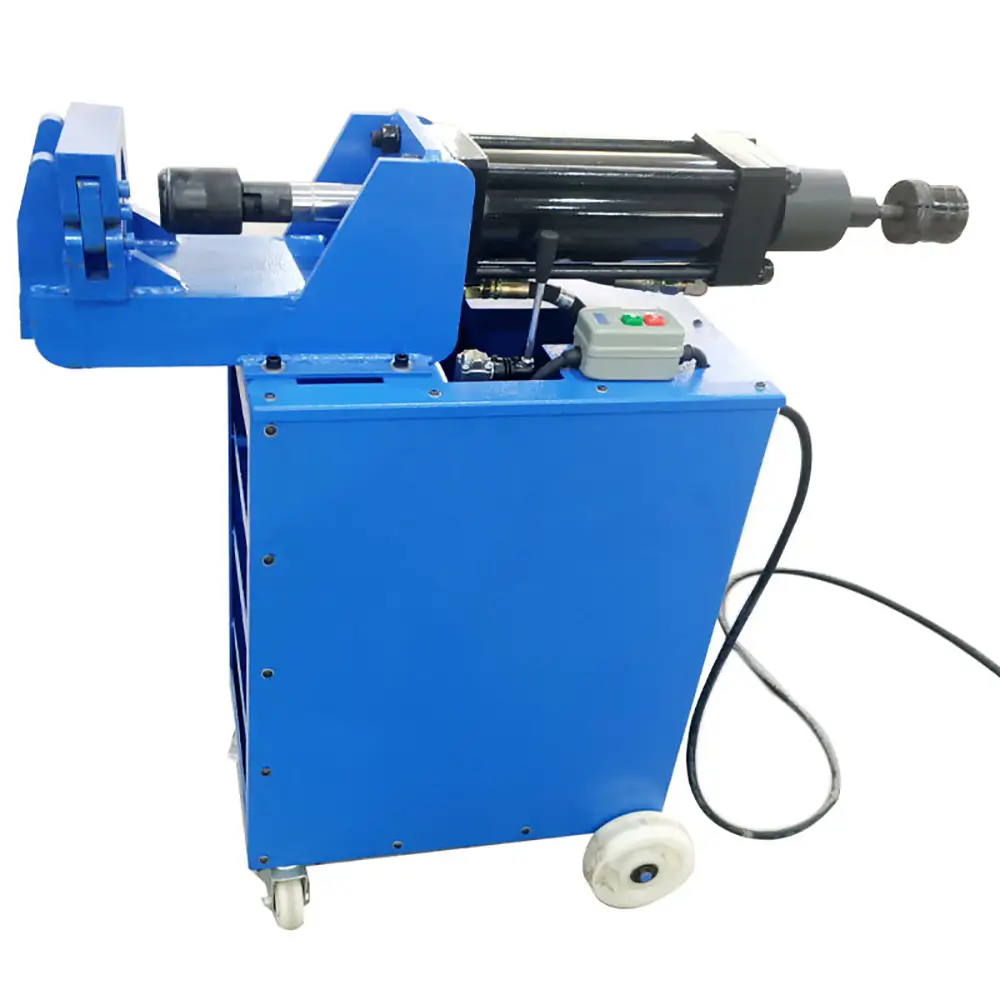

Pipe End Forming Machine

A pipe end forming machine is designed to modify the geometry of the end section of a tube or pipe. Unlike simple tube cutting,bending,or drilling,end forming changes the cross-sectional shape or diameter of a selected tube section.

Typical end-forming operations can include:

Tube Expanding

Tube Shrinking

Pipe Reducing

End Beading

End Flaring

Diameter Forming

Step Forming

Connection Preparation

The available functions depend on the machine design and tooling set. Different operations may require different dies or forming tools.

Exhaust Pipe Beading

Beading is another useful end-forming operation for exhaust tubing and other fabricated pipe components. A bead or raised section can provide a defined feature near the tube end.

Beading applications vary depending on the product design and joining method. The required bead profile should be considered when selecting tooling.

For automotive repair shops,interchangeable forming tools can be useful when different exhaust pipe sizes and configurations need to be processed.

Application in Auto Repair Shops

The machine is particularly suitable for automotive repair shops and muffler fabrication businesses that regularly modify exhaust pipes.

Typical applications include:

Exhaust Pipe Expansion

Exhaust Pipe Reduction

Muffler Tube Forming

Exhaust Tube End Forming

Custom Exhaust Fabrication

Exhaust Repair

Pipe Connection Preparation

Tube Diameter Adjustment

Exhaust Component Manufacturing

Custom Muffler Production

The machine can help repair technicians produce replacement or customized exhaust components according to the dimensions required for a particular vehicle or installation.

Exhaust Fabrication and Muffler Manufacturing

Exhaust fabrication often requires different tube diameters,connection methods,and component shapes. A dedicated tube end forming machine can become part of a broader workflow that includes pipe cutting,bending,welding,expanding,reducing,and assembly.

For muffler manufacturers and custom exhaust shops,the ability to modify tube ends can reduce the need for manually fabricated adapters.

The actual production workflow depends on the shop's products and the available equipment. The machine can be used as an individual forming station or integrated into a larger exhaust manufacturing process.

Suitable Tube Materials

The machine can be configured for suitable metal tubes used in exhaust and general fabrication applications.

Common materials may include:

Stainless Steel Tube

Carbon Steel Tube

Mild Steel Pipe

Galvanized Steel Tube

Other Suitable Metal Tubes

Material properties influence forming behavior. Stainless steel may require different forming conditions from mild steel,and thin-wall tubing may require careful control to prevent deformation.

Customers should provide the exact material grade,outer diameter,and wall thickness when requesting machine recommendations.

End Forming Tooling and Dies

Tooling is one of the most important factors in tube end forming. The die determines the shape and dimensions produced during expansion,shrinking,or beading.

Different tube diameters and forming profiles generally require corresponding tooling. A shop processing multiple exhaust tube sizes may benefit from a tooling package containing several forming dies.

Custom dies can also be considered when a specific end profile is required. Customers should provide drawings,samples,or dimensional requirements so the tooling can be evaluated correctly.

Forming Quality and Repeatability

Consistent end forming depends on machine rigidity,tooling accuracy,material properties,clamping,forming force,and operator setup.

A controlled machine process can help improve repeatability compared with completely manual tube forming. However,the final dimensional result still depends on the tube material,wall thickness,tool condition,and forming parameters.

For applications requiring specific connection dimensions,the first formed components should be measured and verified before continuing production.

Flexible Workshop Operation

Auto repair shops often process different vehicle models and exhaust components. A flexible tube end forming machine can therefore be useful when pipe dimensions and required end shapes vary.

The operator can select the appropriate tooling and adjust the forming setup according to the tube specification.

This flexibility makes the machine suitable not only for standard exhaust repairs but also for custom exhaust fabrication,prototype work,and small-batch production.

Maintenance and Safety

Tube end forming machines contain moving tooling and mechanical or hydraulic components. Operators should keep hands away from the forming area while the machine is operating.

Depending on the configuration,the equipment may include guards,emergency-stop controls,and other protective features. Safety functions should be confirmed according to the selected model and applicable local requirements.

Routine maintenance should include inspecting forming dies,checking fasteners,cleaning the work area,and inspecting hydraulic,electrical,or mechanical components where applicable.

Worn or damaged tooling should be replaced or serviced because poor tooling condition can affect tube dimensions and surface quality.

OEM and Custom Exhaust Forming Solutions

Different exhaust manufacturers and repair shops may require different forming diameters,bead profiles,tooling sets,and operating methods.

The machine can therefore be evaluated for customized requirements. Customers should provide:

Tube Outside Diameter

Tube Wall Thickness

Tube Material

Required Expansion Diameter

Required Reduction Diameter

Bead Shape

End Forming Length

Production Volume

Exhaust Component Drawings

These details help determine the suitable machine structure and tooling configuration.

For distributors and B2B machinery buyers,the equipment can also be customized for specific market requirements through OEM and ODM production.

Why Choose Us

Exhaust Tube End Forming – Designed for expanding,shrinking,reducing,and other suitable tube-end forming applications.

Auto Repair Shop Application – Suitable for muffler shops,automotive repair facilities,and custom exhaust fabrication businesses.

Multiple Forming Functions – Can support different end-forming processes according to the machine configuration and tooling.

Flexible Tube Processing – Suitable configurations can process different exhaust tube sizes and metal materials.

Custom Dies and Tooling – Forming dies can be selected or developed according to required tube dimensions and profiles.

Improved Repeatability – Controlled forming movement can help produce more consistent tube ends during repeated operations.

Workshop-Friendly Equipment – Suitable for repair,custom fabrication,prototype,and small-batch exhaust production.

OEM & ODM Support – Machine configurations and tooling solutions can be evaluated according to customer drawings,samples,and production requirements.

FAQs

1. What is an exhaust tube expanding machine?

An exhaust tube expanding machine is equipment used to increase the diameter of a selected tube end for connection,assembly,or exhaust fabrication.

2. Can the machine shrink exhaust pipe ends?

Yes. When equipped with suitable reducing or shrinking tooling,the machine can reduce the diameter of an exhaust tube end.

3. What is pipe end forming?

Pipe end forming is a metalworking process that changes the geometry of a tube or pipe end through operations such as expanding,reducing,beading,or flaring.

4. Can it be used in an auto repair shop?

Yes. The machine is suitable for automotive repair shops,muffler shops,and custom exhaust fabrication businesses when its capacity matches the required tube dimensions.

5. What materials can be processed?

Suitable configurations may process stainless steel,carbon steel,mild steel,and other metal tubes. Actual material compatibility depends on the machine and tooling.

6. Can it process stainless steel exhaust tubes?

Yes. Stainless steel tubes can be processed when the machine and forming dies are suitable for the specific material and dimensions.

7. What is exhaust pipe beading?

Exhaust pipe beading creates a defined raised or formed section near the tube end. The exact bead profile depends on the selected tooling.

8. Does each pipe size require a different die?

Different tube diameters and forming profiles may require different dies. The required tooling should be determined according to the tube specifications.

9. Can custom exhaust pipe dies be made?

Depending on the machine and manufacturer,custom tooling can be developed for specific tube diameters,end shapes,and forming profiles.

10. Is this machine suitable for muffler manufacturing?

Yes. It can be used as part of a muffler or exhaust fabrication workflow involving tube cutting,bending,welding,expanding,reducing,and assembly.

11. What affects the forming quality?

Tube material,wall thickness,diameter,forming force,tooling geometry,clamping,and machine setup can all affect the final end-forming quality.

12. What information should I provide for a quotation?

Provide the tube material,outside diameter,wall thickness,required expansion or reduction size,bead profile,forming length,production volume,and drawings or samples if available.
