1.5 Inch 2 Inch 2.5 Inch Pipe End Forming Machine SS MS Galvanized Steel 3 Inch Tube Bending Machine

item	value
machine type	Tube Bender
material / metal processed	Aluminum, Alloy, Carbon steel, Stainless Steel
max. bending angle (deg)	180
bending precision (deg)	0.5mm
power (kw)	5.5
weight (kg)	700
warranty	1 Year
Application	Round Pipe Bending
Raw Material	Metal Stainless Steel Carbon Steel
Voltage	220V/380V/415V/440V/customized
After-sales Service Provided	1 Year
Power	5.5kw
Model	6001

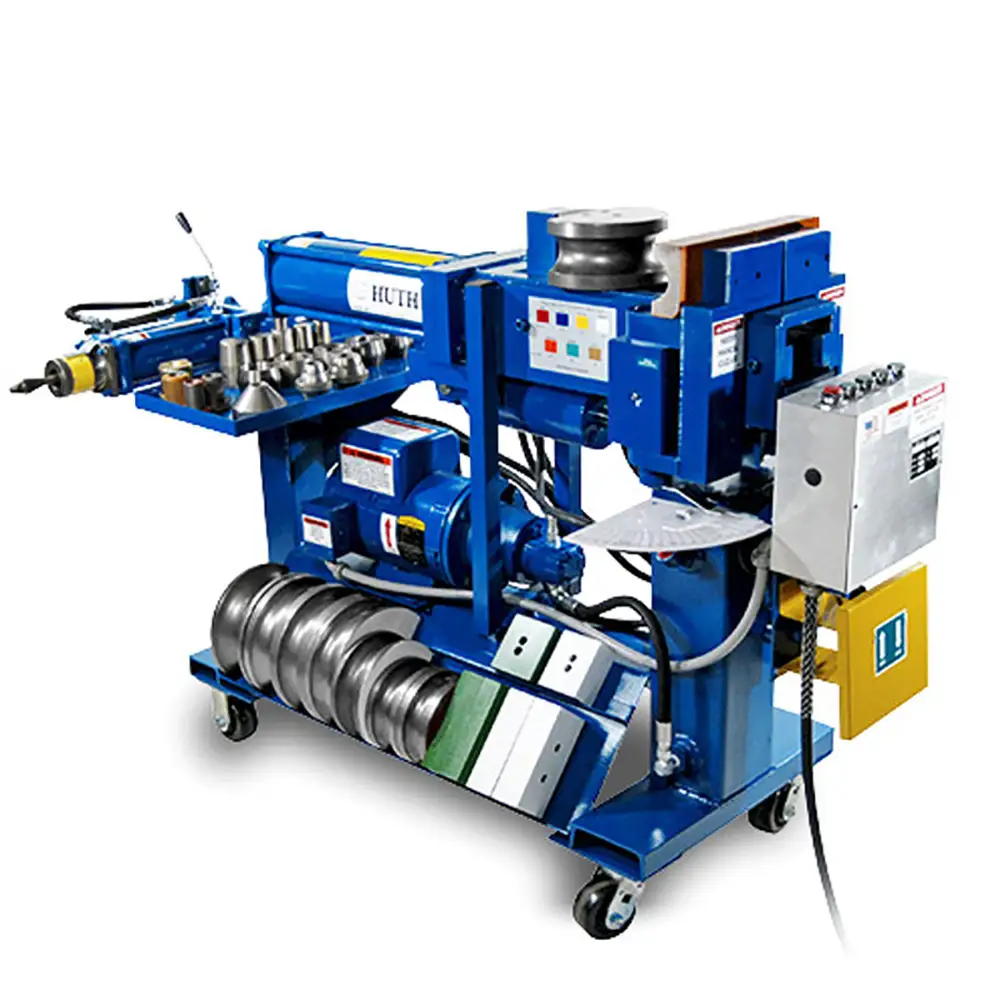

Pipe End Forming Machine for 3 Inch SS,MS and Galvanized Steel Tubes

The Pipe End Forming Machine is a versatile metal tube processing solution designed for bending and end forming suitable pipes and tubes made from stainless steel,mild steel,and galvanized steel. With a stated 3-inch tube bending application,the machine is suitable for workshops,fabrication companies,automotive component manufacturers,construction suppliers,and other businesses processing metal tubular components.

The machine combines tube bending and pipe end forming functions to help manufacturers produce shaped tubular components with controlled geometry. Depending on the machine configuration,end forming may include reducing,expanding,beading,flaring,or other customized tube-end operations.

The actual bending and forming capacity depends on tube outside diameter,wall thickness,material strength,bend radius,tooling,machine force,and the specific machine configuration. Customers should provide complete tube specifications when selecting the appropriate model.

3 Inch Tube Bending Machine

The 3 Inch Tube Bending Machine is designed around applications involving tubes or pipes up to a specified 3-inch size,subject to the actual machine specification and tooling.

Three-inch pipe is commonly used in industrial piping,structural fabrication,mechanical equipment,automotive components,construction systems,and various metalworking applications.

Bending a larger tube requires appropriate forming force and tooling. Tube diameter alone does not determine machine capacity. Wall thickness,material strength,bend radius,and required bending angle also have a major influence on the bending process.

For this reason,the 3-inch specification should be considered together with the material and tube dimensions when evaluating the machine.

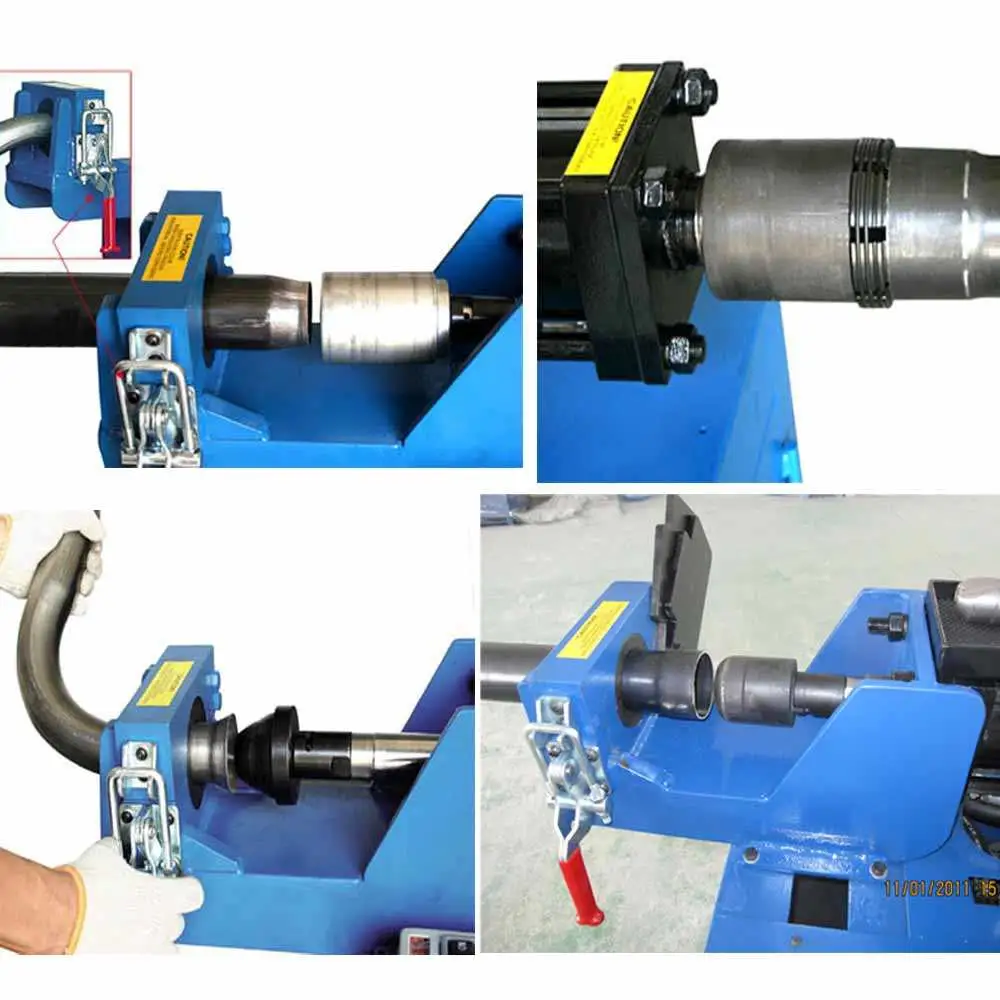

Pipe End Forming Function

Pipe end forming changes the geometry of a tube end to prepare it for connection,assembly,or further fabrication.

Depending on the tooling,the machine may be configured for operations such as:

Tube End Reducing

Tube End Expanding

Pipe Beading

Tube Flaring

End Shrinking

End Enlargement

Customized End Profiles

End forming can eliminate the need for separate machining or manual shaping operations in certain applications.

The required end profile should be clearly defined before selecting the tooling. Different connection systems require different tube-end geometries,and one standard die cannot necessarily produce every type of end shape.

Stainless Steel Tube Bending

Stainless steel tubes are widely used in applications requiring corrosion resistance,durability,and a clean surface appearance.

The machine can be configured for suitable stainless steel tubing when the tube dimensions and material characteristics are within the rated operating range.

Stainless steel can have different forming characteristics from mild steel. Springback,material hardness,wall thickness,and surface condition can influence the final bending result.

Suitable tooling and controlled bending parameters are therefore important for maintaining the desired tube shape and minimizing deformation.

For decorative or visible stainless steel tubing,surface protection and appropriate tooling should also be considered.

MS Pipe Bending

MS,or mild steel,is commonly used for general fabrication and structural tube applications. Mild steel tubes are frequently processed into frames,rails,supports,brackets,and industrial structures.

Compared with some higher-strength materials,mild steel can provide favorable forming characteristics. However,the actual bending force still depends on tube diameter,wall thickness,bend radius,and machine configuration.

The machine can be used for suitable MS pipes and tubes when the workpiece falls within its rated capacity.

Galvanized Steel Tube Processing

Galvanized steel tubes contain a protective zinc coating designed to improve corrosion resistance.

Bending and end forming galvanized tubing requires appropriate tooling and process control to reduce unnecessary damage to the galvanized surface.

The finished workpiece should be inspected after forming. If the coating is damaged in the forming area,the appropriate repair or corrosion-protection procedure should be considered according to the application.

Customers should provide information about galvanized coating condition,pipe dimensions,and forming requirements when evaluating a machine for galvanized steel applications.

Metal Tube Bending Process

During a typical bending operation,the tube is positioned in a suitable die and secured with the appropriate clamping system.

The bending mechanism applies controlled force to form the tube around the required radius. Depending on the machine design,the bending process may be hydraulic,mechanical,electric,or a combination of different drive technologies.

After bending,the tube may be transferred to the end-forming station or processed using the same machine if the configuration supports integrated operations.

Correct positioning is important for achieving consistent bend angles and dimensional results.

Bend Radius and Tube Deformation

Bend radius is one of the most important factors in tube bending.

A smaller bend radius generally requires more demanding tooling and forming conditions. Thin-wall tubes may also be more susceptible to flattening,wrinkling,or other deformation during bending.

The relationship between outside diameter,wall thickness,material strength,and bend radius should therefore be evaluated before production.

For applications requiring tight bend geometry,customers should provide technical drawings or samples so appropriate tooling can be selected.

Applications for 3 Inch Pipes and Tubes

The machine can support a wide range of tubular fabrication applications,including:

Industrial Pipe Components

Structural Steel Tubes

Stainless Steel Tubing

Mild Steel Pipes

Galvanized Steel Tubes

Automotive Tubular Components

Machinery Frames

Handrails

Guardrails

Gates And Fences

Agricultural Machinery

Construction Components

Custom Metal Structures

Different applications may require different bend angles,end profiles,and tooling combinations.

Automotive and Exhaust Applications

Pipe bending and end forming are widely used in automotive component manufacturing.

Suitable tubes can be formed into exhaust-related components,frames,supports,connectors,and other tubular parts.

For exhaust manufacturing,end forming may be used to create expanded or reduced tube ends for connections between pipes,mufflers,and other exhaust components.

The exact application depends on tube dimensions,material,and tooling. For automotive production,customers should provide drawings or sample components to verify the required geometry.

Industrial Fabrication Applications

Beyond automotive applications,the machine can be used in general industrial fabrication.

Structural tubes can be bent into protective rails,frames,guards,and supports. Stainless steel tubes can be used in architectural,food-processing,commercial,and equipment-related applications where corrosion resistance and appearance are important.

Galvanized steel tubes may be used for outdoor structures,fences,guardrails,and other applications where corrosion protection is required.

This flexibility makes the machine suitable for manufacturers handling multiple types of tubular products.

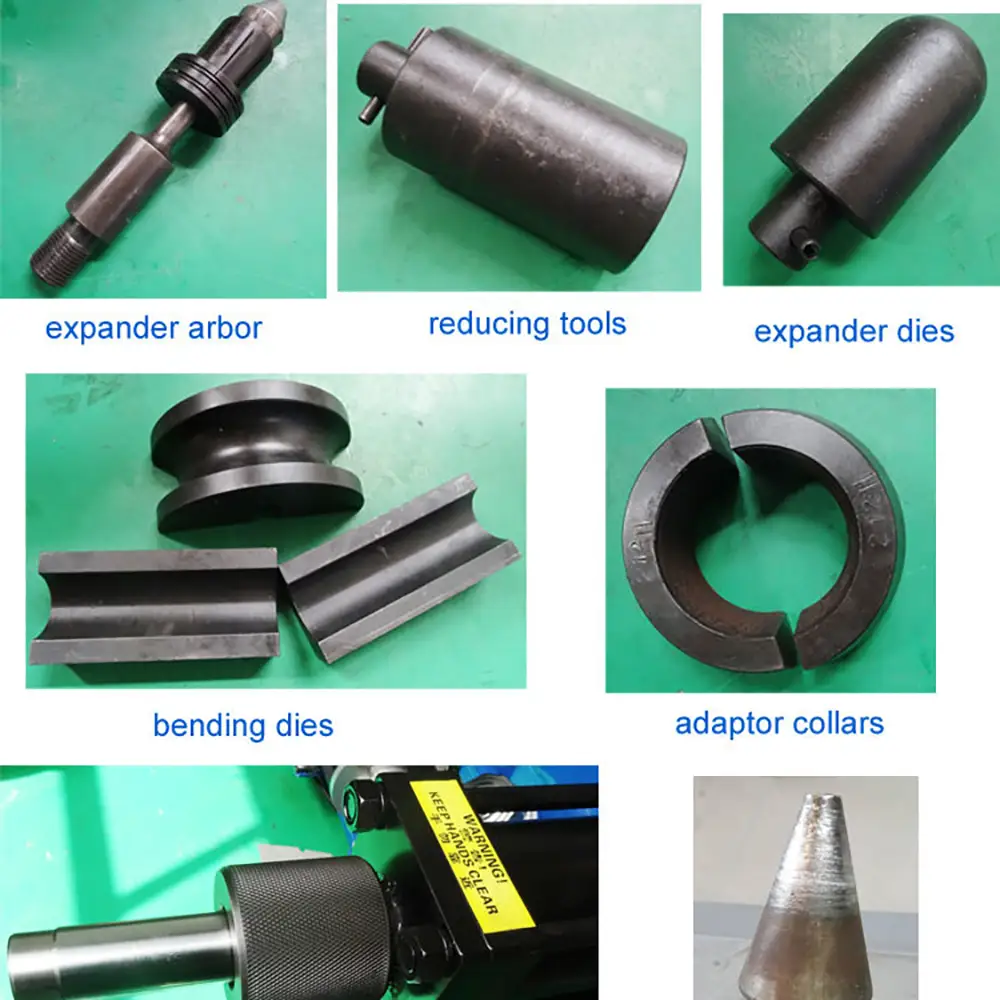

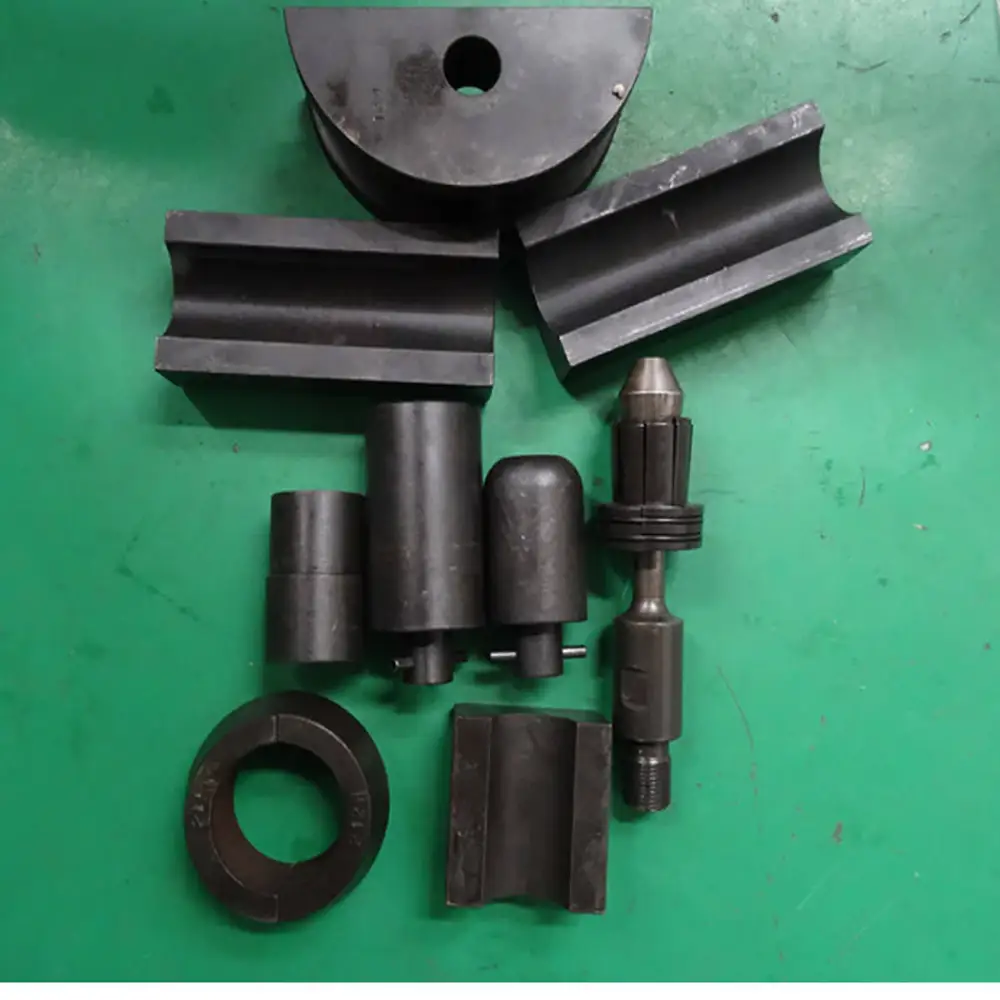

Tooling and Customization

Tooling determines much of the final bending and end-forming geometry.

Different tube diameters require appropriately sized bending dies and clamps. End forming also requires dies designed for the desired final profile.

Depending on the manufacturer,custom tooling can be developed for specific tube sizes,bend radii,and end-forming shapes.

OEM and ODM configurations may include customized dies,fixtures,clamping systems,forming stations,controls,and other machine components.

Customers should provide tube drawings,material information,diameter,wall thickness,bend radius,bend angle,and end-forming dimensions for a more accurate machine recommendation.

Production Efficiency and Repeatability

A dedicated pipe bending and end forming machine can help reduce repetitive manual fabrication steps.

For repeated production,the same tooling and machine settings can be used across multiple workpieces,helping improve process consistency.

Actual production efficiency depends on tube size,number of bends,end-forming operations,tooling changes,operator workflow,and machine cycle time.

For small and medium production runs,the machine can provide a flexible solution for manufacturers that need to process multiple tube specifications without investing in a large automated production line.

Quality Control and Maintenance

Finished tubes should be checked for bend angle,bend radius,overall dimensions,and end-forming geometry.

Important process variables include material consistency,tooling condition,clamping,forming force,bending speed,and workpiece positioning.

Routine maintenance should include cleaning the machine,checking dies and clamps,inspecting moving components,and lubricating components where required.

Hydraulic,electrical,mechanical,and drive components should be maintained according to the manufacturer's recommendations.

Operators should also inspect tooling regularly because worn dies can affect dimensional consistency and surface quality.

Safety and Operation

Tube bending and end forming involve moving dies,clamps,and mechanical or hydraulic forces.

Operators should keep hands away from forming and clamping areas while the machine is operating. Suitable protective equipment should be used according to the workplace risk assessment.

Long tubes should be properly supported to prevent unexpected movement during bending.

Emergency stops,guards,and other safety systems depend on the machine configuration. Operators should follow the manufacturer's operating instructions and applicable local safety requirements.

OEM and B2B Tube Processing Solutions

The Pipe End Forming Machine can be supplied to tube manufacturers,metal fabrication companies,automotive component suppliers,construction equipment manufacturers,and machinery distributors.

For OEM and ODM projects,customers can specify the tube material,diameter,wall thickness,bending angle,bend radius,end profile,and production quantity.

The machine configuration and tooling can then be evaluated according to the actual application.

Custom solutions may include dedicated bending dies,end-forming tooling,fixtures,clamping systems,and other production accessories.

Why Choose Us

3 Inch Tube Bending Capability
Designed for suitable pipe and tube bending applications around the specified 3-inch size,subject to machine configuration.

Integrated End Forming
Supports suitable tube-end operations such as reducing,expanding,beading,and customized forming.

Multiple Metal Materials
Suitable configurations can be developed for stainless steel,mild steel,and galvanized steel tubes.

Flexible Industrial Applications
Suitable for automotive,construction,structural,fabrication,and general metalworking applications.

Custom Tooling Support
Bending dies and end-forming tooling can be selected according to tube dimensions and required geometry.

Production Repeatability
Dedicated tooling and controlled machine operation can help maintain consistency across repeated workpieces.

Workshop-Friendly Solution
Suitable for manufacturers and fabrication workshops processing different types of metal tubing.

OEM and ODM Support
Machine configuration,tooling,fixtures,and forming functions can be customized according to customer requirements.

FAQs

1. What is a pipe end forming machine?

A pipe end forming machine is equipment designed to change the shape of a tube or pipe end for connection,assembly,or further fabrication.

2. Can this machine bend 3-inch pipes?

The machine is designed for 3-inch tube bending applications,subject to the actual model,material,wall thickness,bend radius,and tooling specifications.

3. Can it process stainless steel tubes?

Yes. Suitable stainless steel tubes can be bent and end formed when their dimensions and material properties are within the machine's rated capacity.

4. Can it process mild steel pipes?

Yes. Mild steel is a common material for pipe and tube bending,provided the workpiece is within the machine's capacity.

5. Can galvanized steel tubes be processed?

Yes. Suitable galvanized steel tubes can be processed with appropriate tooling and forming parameters. The galvanized coating should be inspected after forming.

6. What types of end forming can it perform?

Depending on the tooling,the machine may perform reducing,expanding,beading,flaring,shrinking,or other customized end-forming operations.

7. What determines the bending capacity?

Tube diameter,wall thickness,material strength,bend radius,bend angle,tooling,and machine force all influence bending capacity.

8. Can the machine be used for exhaust pipes?

Yes. Suitable configurations can be used for exhaust pipe bending and end forming,including stainless steel and mild steel exhaust tubes.

9. Does different tube size require different tooling?

Usually,different tube diameters and end profiles require corresponding dies,clamps,or forming tools.

10. Can custom bending dies be supplied?

Depending on the manufacturer,custom bending and end-forming dies can be designed for specific tube dimensions and forming requirements.

11. Is this machine fully automatic?

The exact operating method depends on the model. Customers should confirm whether the selected machine is manual,semi-automatic,or automatic.

12. What information is needed for a quotation?

Provide tube material,outside diameter,wall thickness,bend radius,bend angle,end-forming profile,production quantity,and drawings or samples if available.
