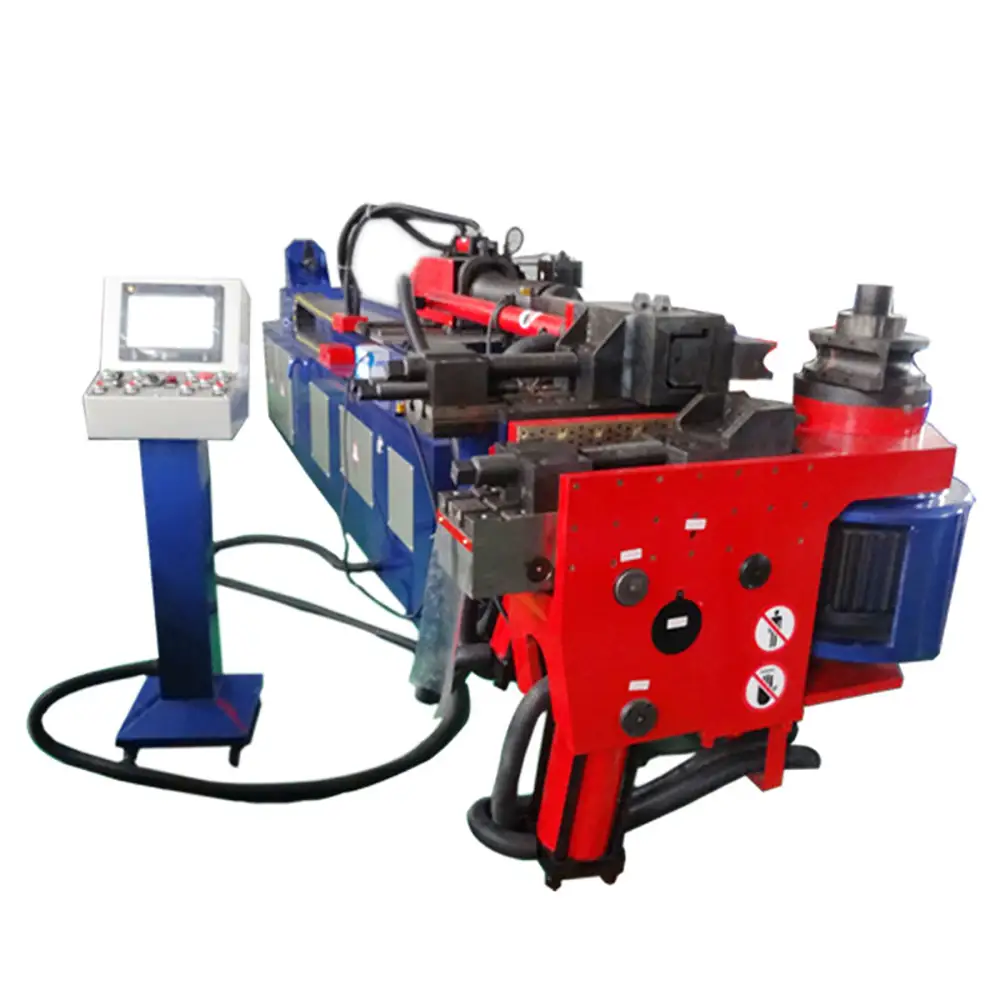

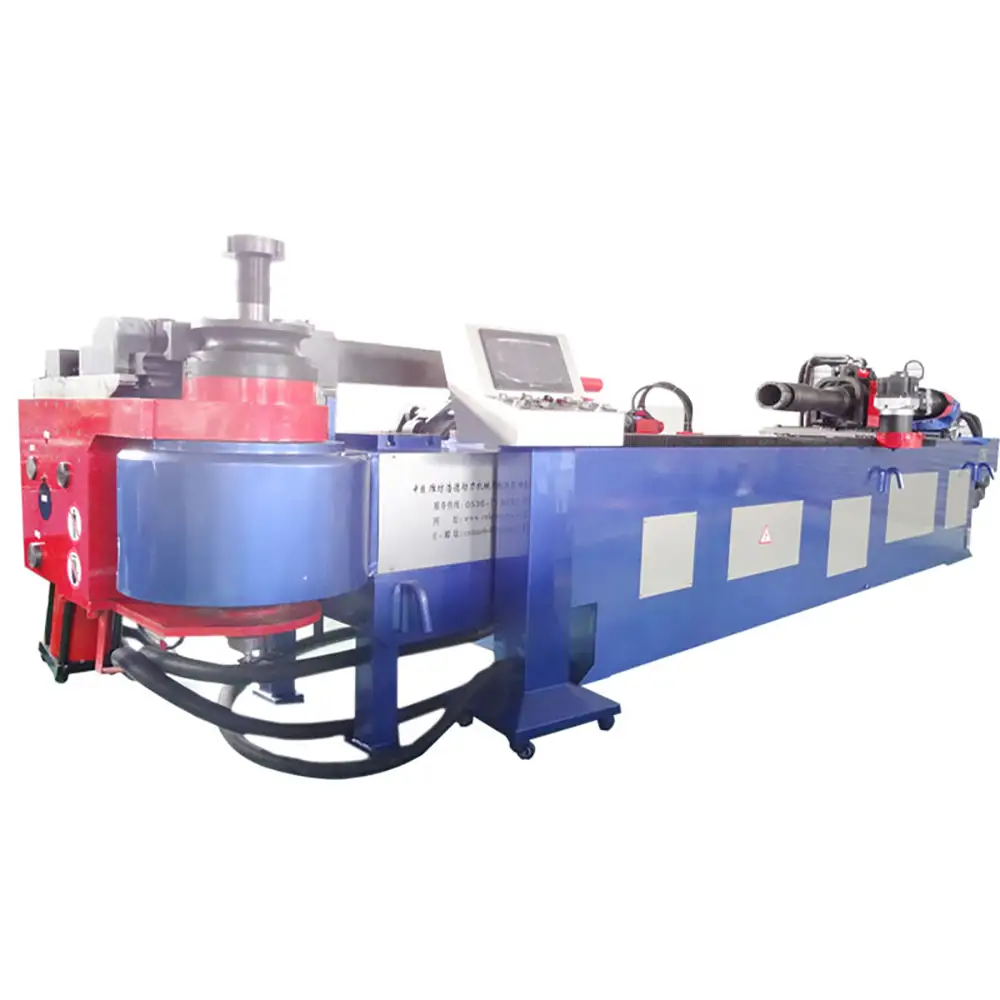

CNC Pipe Bending Machine Hydraulic Tube Bender

Name	Manufacturer
vane pump	Taiwan KOMPASS
magnetic exchange valve	Taiwan KOMPAS,beijing huade
electromagnetic relief valve	Taiwan KOMPAS,beijing huade
Stacked pressure reducing valve	Taiwan KOMPAS,beijing huade
Stacked check valve	Taiwan KOMPAS,beijing huade
oil cylinder body	Shanghai Baoshan
Cylinder seals	walka



2 Electrical control system



Name	Manufacturer
Touch screen	Taiwan
Central Control Unit	Mitsubishi
Screen connection wire	Mitsubishi
Ac contactor	zhengtai,Delixi
key switch	zhengtai,Delixi
air switch	zhengtai
air switch	zhengtai
proximity switch	Omron

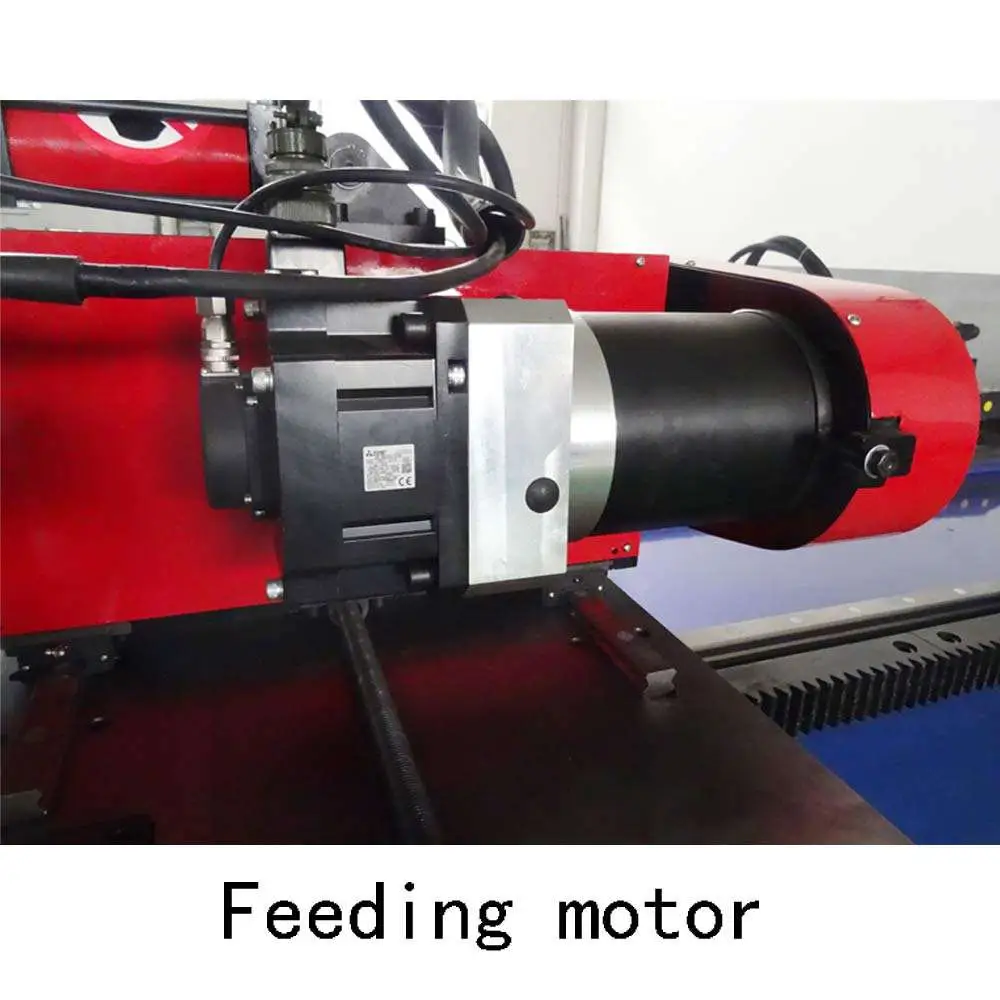

Feeding Serve motor	Mitsubishi
Rotate serve motor	Mitsubishi
Reducer(feeding)	Addis
Reducer(rotate)	Addis
Power amplification	Covo
Power switch	taiwan
transformer	Huatong
thermorelay	zhengtai,Delixi
Monolithic air switch	zhengtai,Delixi
Three-phase air switch	zhengtai,Delixi
encoder	Covo
panel button	zhengtai,Delixi

CNC Pipe Bending Machine with Hydraulic Tube Bender

The CNC Pipe Bending Machine with Hydraulic Tube Bender is an industrial metal forming solution designed for controlled and repeatable bending of pipes and tubes. Combining CNC positioning and process control with hydraulic bending force,the machine can help manufacturers produce tubular components with consistent bend angles,positions,and radii.

Pipe bending is widely used in industries such as automotive manufacturing,metal furniture,fitness equipment,construction,agricultural machinery,HVAC,and general fabrication. A CNC hydraulic tube bender can reduce repetitive manual operations and provide a more structured production process for components requiring multiple bends.

The actual machine configuration depends on the required tube dimensions,material,bending radius,number of bends,and production volume. Customers should provide product drawings or tube samples when selecting a suitable machine.

CNC Pipe Bending Technology

CNC control allows the operator to establish programmed bending positions and process sequences. For products with multiple bends,this can simplify repeat production because bending parameters can be stored and reused for subsequent workpieces.

Depending on the machine design,CNC control may coordinate functions such as:

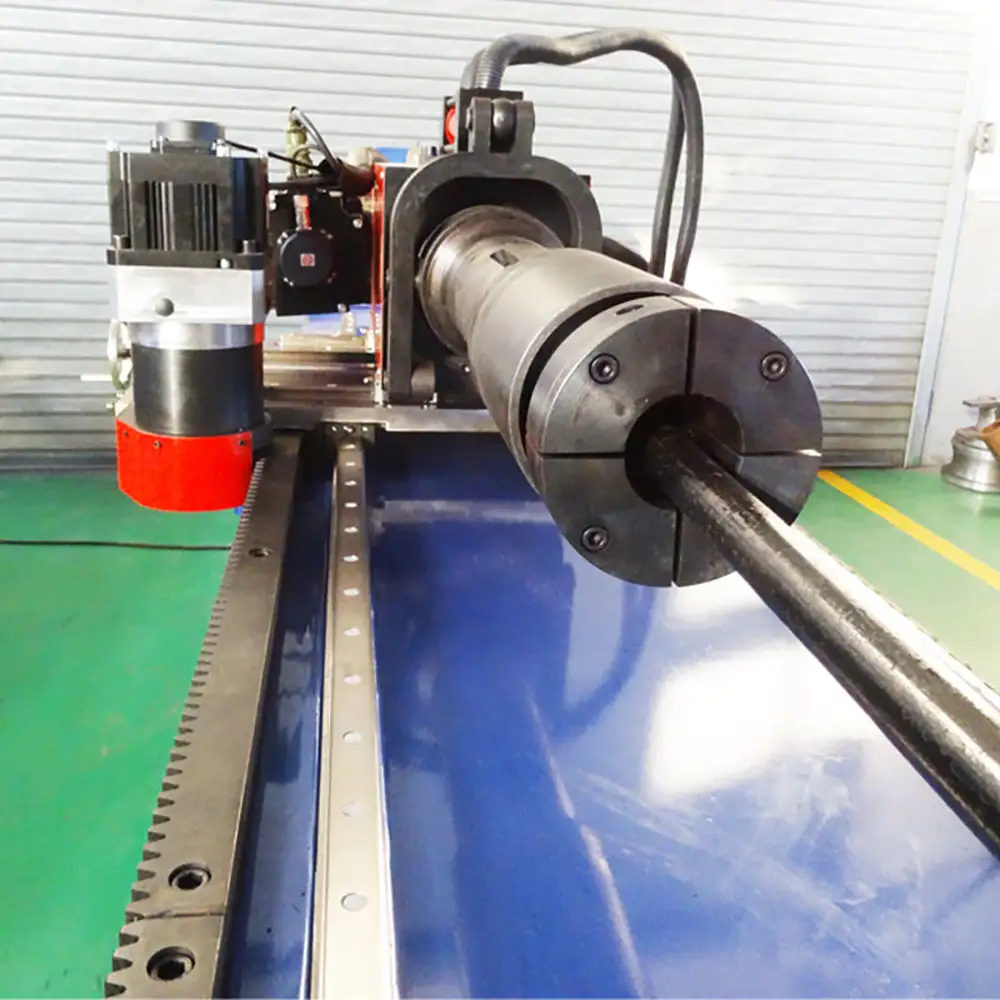

Tube Feeding

Tube Positioning

Clamping

Bending

Rotation

Workpiece Release

Program Storage

The exact functions vary by machine model.

CNC control can help reduce manual measurement and positioning during repetitive production. However,actual dimensional accuracy depends on machine rigidity,drive components,tooling,material properties,calibration,and process setup.

Hydraulic Tube Bender

The hydraulic tube bending system provides the force required to form suitable metal tubes around the bending tooling.

Hydraulic systems can be useful for applications requiring substantial forming force,particularly when processing steel tubing or larger-diameter workpieces.

The required hydraulic capacity depends on tube diameter,wall thickness,material strength,bending radius,and bending method.

A machine should therefore be selected based on the customer's actual tube specifications rather than simply choosing a machine by its general category.

Round Pipe and Tube Bending

The machine is primarily designed for suitable round pipes and tubes. During the bending process,the tube is secured by clamping tooling while the bending die creates the required curvature.

Important tube specifications include:

Outside Diameter

Wall Thickness

Material

Bending Radius

Bend Angle

Tube Length

Number Of Bends

Bend Position

Different combinations of these parameters require different tooling and machine configurations.

For example,thin-wall tubing may require additional support to control flattening,while heavier-wall steel tubing requires sufficient bending force.

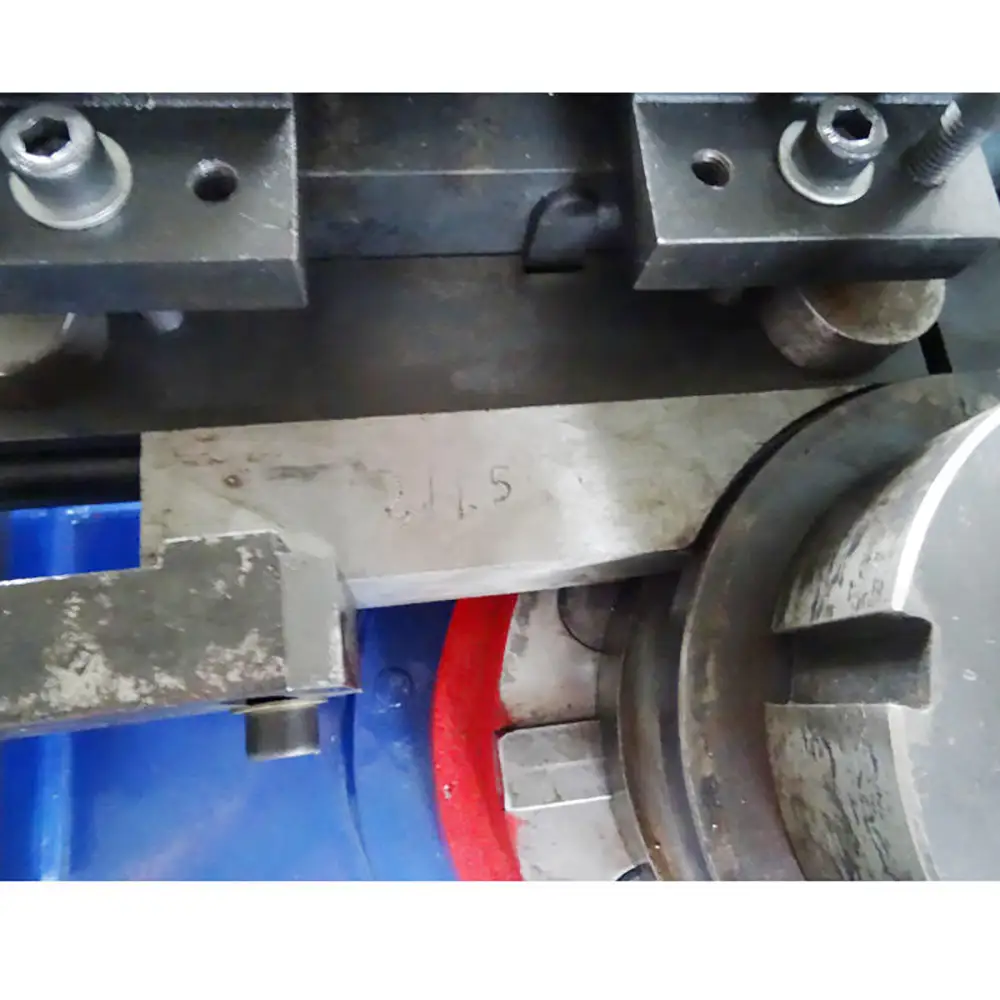

Tube Bending Dies and Tooling

Bending tooling directly determines the shape of the finished tube. The main bending die establishes the required radius,while other tooling components can help hold and support the workpiece.

Depending on the application,tooling may include:

Bending Dies

Clamping Dies

Pressure Dies

Wiper Dies

Mandrels

Follower Dies

Tube Supports

Positioning Fixtures

A mandrel may be useful when bending tubes to relatively tight radii or when maintaining the internal tube shape is important.

Not every application requires a mandrel. Tooling should be selected according to the material,tube dimensions,bending radius,and required finished quality.

Multiple Bend Production

Many industrial tube components require more than one bend. The CNC system can support programmed bending sequences for suitable products.

A typical production sequence may involve:

Loading The Tube

Positioning The Tube

Clamping The Workpiece

Creating The First Bend

Rotating Or Repositioning The Tube

Creating Additional Bends

Releasing The Finished Component

The exact sequence depends on the machine structure and control system.

For repeated production,the ability to store and reproduce process settings can help improve consistency between batches.

Springback and Bending Accuracy

Metal tubes naturally tend to recover slightly toward their original shape after bending. This phenomenon is known as springback.

The amount of springback depends on material type,strength,wall thickness,bending radius,and forming conditions.

CNC pipe bending systems can compensate for springback through process parameter adjustment or controlled overbending where supported by the machine.

Actual accuracy should be verified through sample production and dimensional inspection,especially when the customer requires tight tolerances.

Surface Quality and Tube Deformation

Maintaining tube surface quality is important for components that will later be painted,powder coated,polished,or assembled.

Improper bending conditions may cause:

Tube Flattening

Wrinkling

Surface Marks

Cracking

Excessive Ovality

Dimensional Variation

Correct die selection,clamping,support,lubrication where applicable,and bending parameters can help control these issues.

For stainless steel and aluminum tubes,visible surface marks may be particularly important because the finished surface is often part of the product appearance.

Materials That Can Be Bent

Depending on the machine configuration and tooling,the CNC hydraulic tube bender can be evaluated for different metal materials.

Potential materials include:

Carbon Steel

Stainless Steel

Aluminum

Copper

Alloy Steel

Other Suitable Metal Tubes

Each material has different forming characteristics.

Carbon steel may require substantial bending force depending on its dimensions. Stainless steel can have higher strength and springback than some mild steel grades. Aluminum is generally lighter but may require careful control of surface contact.

The machine and tooling should therefore be matched to the actual material grade and tube dimensions.

Industrial Applications

CNC hydraulic pipe bending machines are widely applicable to tubular component manufacturing.

Potential applications include:

Automotive

Suitable components may include exhaust tubes,vehicle structural tubes,and other formed tubular parts.

Metal Furniture

The machine can process suitable tubes for chairs,table frames,bed frames,handrails,and display structures.

Fitness Equipment

Tubular frames for exercise equipment,gym machines,and sports products can require repeatable multi-bend forming.

Agricultural Machinery

Suitable tubing may be used for machinery frames,guards,handles,and structural components.

Construction and Architectural Metalwork

Applications can include railings,handrails,frames,and other curved metal structures.

HVAC and Industrial Equipment

Depending on material and dimensions,bent tubes may be used in equipment frames,ducting-related components,and industrial assemblies.

Production Efficiency

CNC hydraulic bending can help manufacturers reduce repetitive manual forming and measurement.

For medium- and high-volume production,the machine can be integrated with tube cutting,end forming,punching,drilling,welding,and assembly processes.

Production efficiency depends on:

Number Of Bends

Tube Dimensions

Bending Radius

Loading Method

Machine Cycle

Tool Changes

Operator Workflow

A CNC machine can improve process repeatability,but actual production output should be evaluated using the customer's specific workpiece and production requirements.

Automatic and Semi-Automatic Configurations

CNC pipe bending machines can be supplied with different levels of automation.

A semi-automatic configuration may require the operator to load and unload tubes while the machine controls the bending cycle.

A more automated system may include automatic feeding,positioning,and unloading functions.

The term “automatic” should therefore be understood according to the specific machine configuration. Not every CNC hydraulic tube bender is a fully unmanned production system.

OEM and Custom Pipe Bending Solutions

Tube bending requirements vary widely between industries. OEM and ODM customers can request customized configurations based on their products.

Useful information includes:

Tube Material

Tube Outside Diameter

Wall Thickness

Tube Length

Bend Angle

Bending Radius

Number Of Bends

Bend Positions

Production Volume

Required Tolerance

Product Drawing Or Sample

Based on these details,the appropriate bending heads,hydraulic system,CNC controls,tooling,and fixtures can be evaluated.

Custom tooling can also be developed for specialized tube shapes or repeated production requirements.

Safety and Maintenance

CNC hydraulic tube bending machines contain moving components and hydraulic systems. Operators should be trained and follow the manufacturer's operating instructions.

Depending on the configuration,safety-oriented features may include emergency stops,protective guards,control interlocks,and electrical protection.

Routine maintenance should include checking hydraulic components,inspecting hoses and connections,cleaning the machine,checking tooling condition,and lubricating moving parts according to manufacturer recommendations.

Regular inspection can help identify worn tooling or hydraulic issues before they affect production quality.

Why Choose Us

CNC Controlled Pipe Bending
Programmable control supports repeatable bending positions and process sequences.

Hydraulic Bending Force
Hydraulic forming provides controlled force for suitable steel and metal tube applications.

Flexible Tube Applications
Suitable configurations can process carbon steel,stainless steel,aluminum,copper,and other compatible tubing.

Multiple Bend Capability
CNC control can support programmed multi-bend production for suitable tubular components.

Professional Tooling Options
Bending dies,clamping dies,mandrels,and other tooling can be selected according to the application.

Industrial Production Use
Suitable for automotive,furniture,fitness equipment,agricultural machinery,construction,and general fabrication.

Custom Machine Solutions
Machine configuration can be evaluated according to tube dimensions,product geometry,and production volume.

OEM And ODM Support
We support manufacturers,distributors,and industrial buyers with customized tube bending equipment and tooling solutions.

FAQs

1. What is a CNC pipe bending machine?

A CNC pipe bending machine uses computerized control to manage tube positioning and bending operations for repeatable production of suitable metal pipes and tubes.

2. What is a hydraulic tube bender?

A hydraulic tube bender uses hydraulic power to generate the force required to bend compatible metal tubes around dedicated tooling.

3. Can the machine bend round pipes?

Yes. The machine is designed primarily for suitable round pipes and tubes within its configured bending capacity.

4. What materials can it bend?

Depending on the machine configuration,it can process suitable carbon steel,stainless steel,aluminum,copper,and other metal tubing.

5. Can it perform multiple bends?

Yes. CNC-controlled configurations can support programmed multi-bend sequences when the machine is designed for multiple bending operations.

6. Does CNC control improve bending accuracy?

CNC control can improve repeatability by controlling positioning and process sequences. Actual accuracy also depends on tooling,machine rigidity,material,and calibration.

7. Is a mandrel required for tube bending?

Not always. A mandrel may be used for tighter bends or applications where controlling tube deformation is important.

8. Can it bend stainless steel tubes?

Yes,when the machine has suitable bending force and tooling for the selected stainless steel tube dimensions and material grade.

9. Can it bend aluminum tubes?

Suitable aluminum tubes can be processed with appropriate tooling and bending parameters. Surface protection may also be important.

10. How can tube flattening be reduced?

Correct bending dies,clamping,support,mandrel selection,and process parameters can help control flattening and other deformation.

11. Can the machine be customized?

Yes. Tooling,fixtures,controls,hydraulic configuration,and automation functions can be evaluated according to customer requirements.

12. What information is needed for a quotation?

Provide tube material,outside diameter,wall thickness,length,bending radius,bend angles,number of bends,bend positions,production volume,and drawings or samples.
