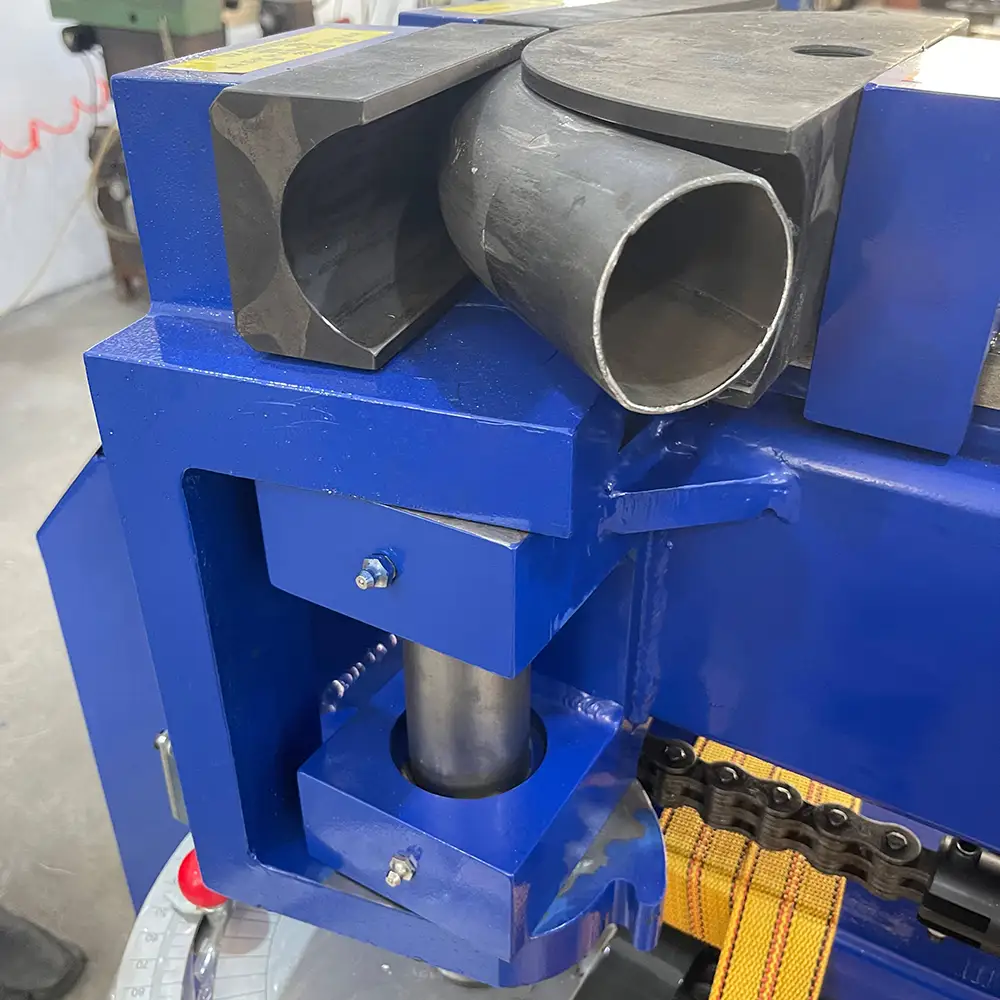

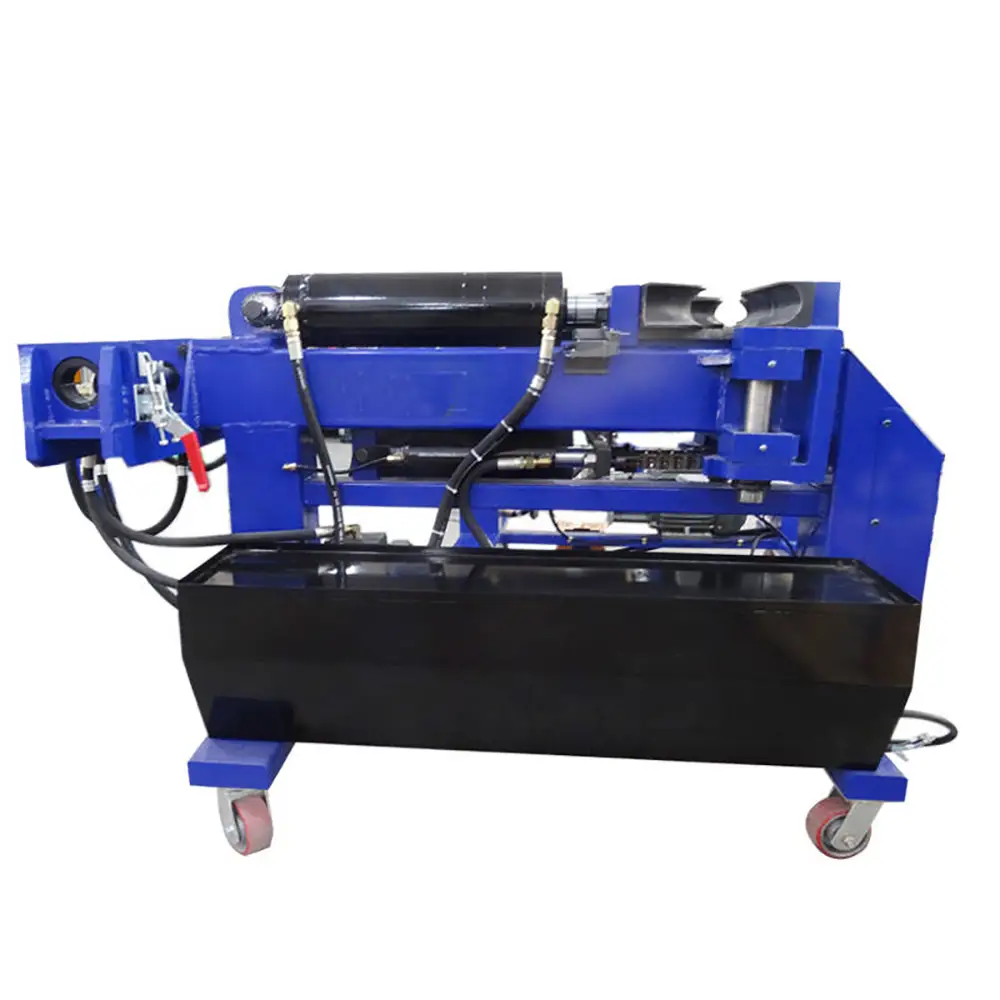

Max Diameter 76 mm Semi-automatic Pipe Bending Machine Tube Bender

The main uses of the pipe expander include but are not limited to the following aspects:
The main uses of the pipe expander include but are not limited to the following aspects: 1. Pipe installation: During pipe installation, the pipe expander can be used to expand the diameter of the pipe to meet specific connection requirements. 2. Pipeline repair: When the pipe is damaged or parts need to be replaced, the pipe expander can be used to restore the normal diameter of the pipe and reconnect it. 3. Pipeline transformation: In some engineering projects, it is necessary to transform the original pipes into pipes of different diameters to meet new requirements, and the pipe expander can be used for this transformation process. In a word, the pipe expander is a very useful equipment in pipeline installation, repair and transformation, which can improve work efficiency and accuracy

Bending Capacity	1/2’’ OD 2 1/2 /(max 3”Customized)
Standard Size Tools	1-1/2,1-5/8,1-3/4，2,2-1/2 (inch) 38.1, 41.3, 44.5，50.8, 63.5, (mm) The other size can be customized
Maximum Bending Diameter	2-1/2 /(3”)
Expanding Capacity	11/2 to 3 inch
Shrinking /reducing Capacity	11/2 to 2 1/2 inch
Motor/power Supply	7.5 HP/ 5.5KW,220/380,RPM 1420/1710,HZ 50/60,The other voltage can be customized
Hydraulic Pump Output	3A-8R(4200PS)
Operation Mode	Dutton and Foot operated Controls
Hydraulic Filter	Canister Type
Maximum Bending Force	3,500PSI
Depth-of-bend Plate	Preset to Stop Any Desired Bend Depth
Machine Size	1800×800×1080mm
Package Measurement	1950×1300×950mm
Weight	750GK
	Special Radius Dies and Power Supplier are Available

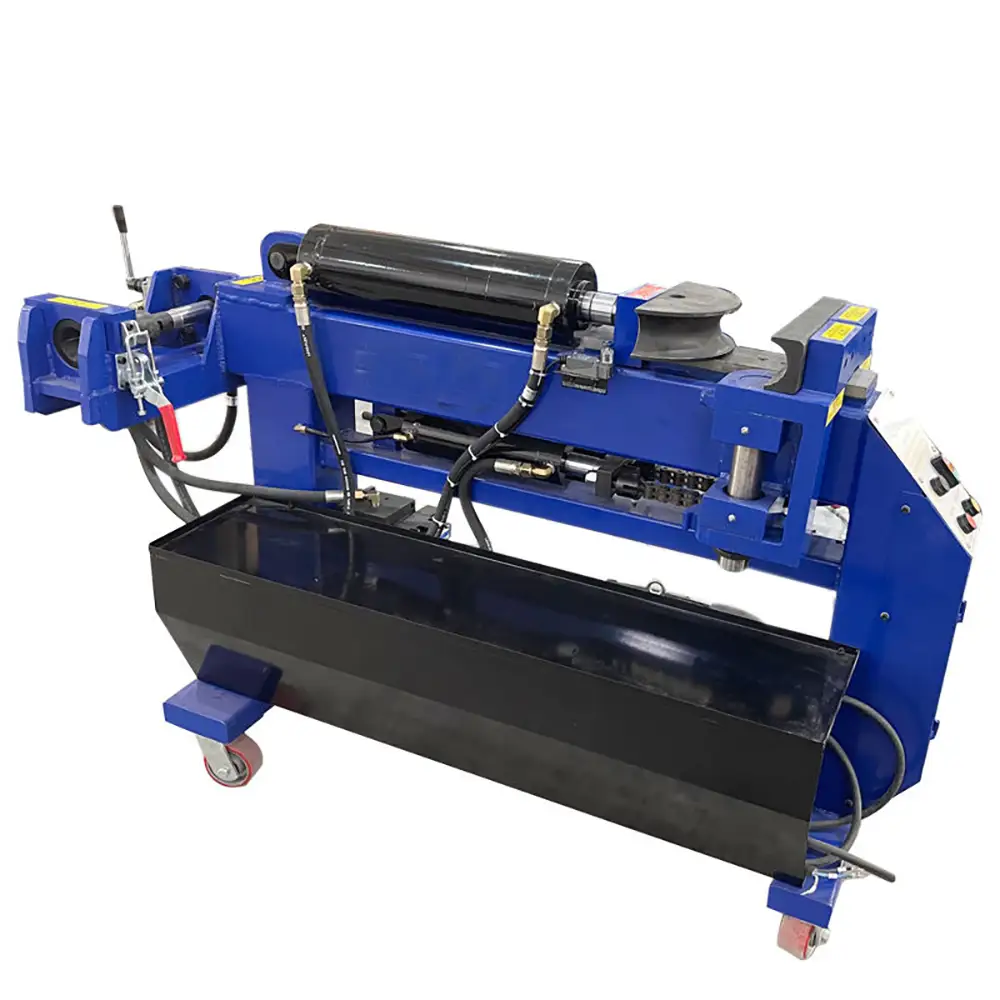

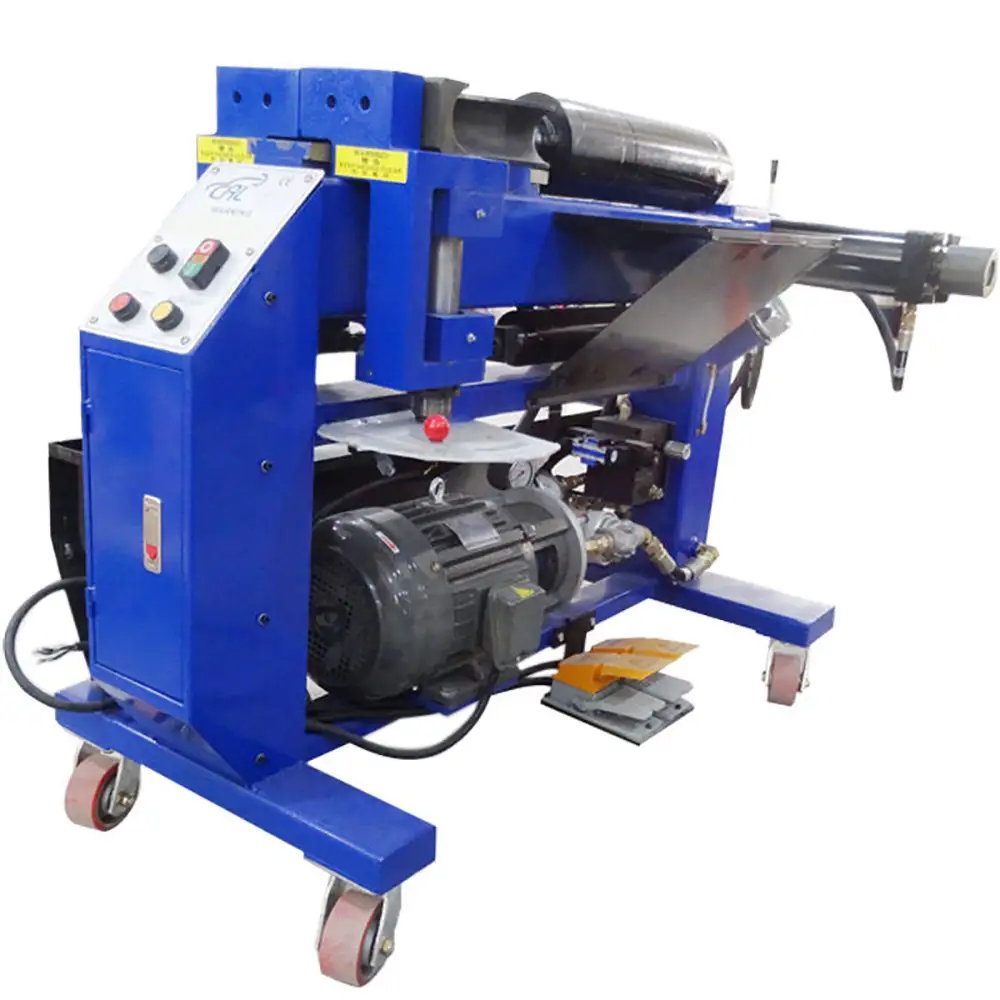

Semi-Automatic Pipe Bending Machine Tube Bender

The Semi-Automatic Pipe Bending Machine Tube Bender is a practical metal forming solution designed for bending pipes,tubes,and other suitable tubular materials into consistent angles and curved shapes. Combining controlled machine operation with operator-assisted workpiece loading and positioning,this type of tube bender is suitable for workshops,fabrication companies,construction suppliers,metal furniture manufacturers,automotive component producers,and general industrial applications.

Unlike fully manual pipe bending tools,a semi-automatic pipe bending machine provides mechanical assistance during the bending cycle while still allowing the operator to control important steps such as loading,positioning,clamping,and unloading. This balance can make the equipment suitable for businesses that need improved repeatability without requiring a fully automated production line.

The exact bending method can vary according to machine configuration. Depending on the model,the equipment may use hydraulic,electric,or mechanical drive systems together with dedicated dies,clamps,and tooling.

Semi-Automatic Tube Bending Operation

The semi-automatic operating concept is designed to reduce repetitive manual effort during pipe forming. The operator places the workpiece into the bending area,positions it according to the required dimensions,and activates the bending cycle through the machine control system.

After the bending operation,the formed tube can be removed and the next workpiece prepared. This workflow can help improve consistency when producing multiple parts with similar bending requirements.

Actual operating procedures depend on the machine configuration. Some models may include adjustable bending parameters,positioning systems,angle controls,or other operator-assistance functions. Customers should confirm the specific control method and automation level before ordering.

Metal Pipe and Tube Bending

The machine can be used for suitable metal pipes and tubes according to its rated capacity and tooling configuration.

Common applications may include:

Carbon steel pipes

Mild steel tubes

Stainless steel tubes

Galvanized steel pipes

Aluminum tubes

Copper tubes

Round metal pipes

Square tubes

Rectangular tubes

Structural tubing

The material,wall thickness,outer diameter,cross-sectional shape,and required bend radius all affect the bending process.

For thin-wall tubing,proper support and tooling can help reduce deformation. For thicker or higher-strength materials,the machine must provide suitable bending force and tooling.

Steel Pipe Bending Machine

Steel pipe bending is one of the common applications for industrial tube bending equipment. Steel tubes are widely used in structural fabrication,construction,agricultural machinery,furniture,transportation equipment,and general engineering.

A semi-automatic steel pipe bending machine can help operators produce repeatable bends for components that would otherwise require extensive manual forming.

The actual bending capacity depends on the machine design and tooling. Customers should provide the pipe diameter,wall thickness,material grade,and required bending radius when selecting a suitable configuration.

Tube Bender for Stainless Steel and Aluminum

The machine may also be configured for stainless steel and aluminum tube bending when appropriate tooling and bending parameters are used.

Stainless steel generally requires different forming conditions from mild steel because of its material characteristics and springback behavior. Aluminum is softer but can also be sensitive to surface marking and deformation.

For these materials,die design,clamping pressure,bending speed,lubrication,and tooling surface condition can influence the finished result.

Testing with the actual tube material is recommended when the application requires tight dimensional tolerances or a specific surface finish.

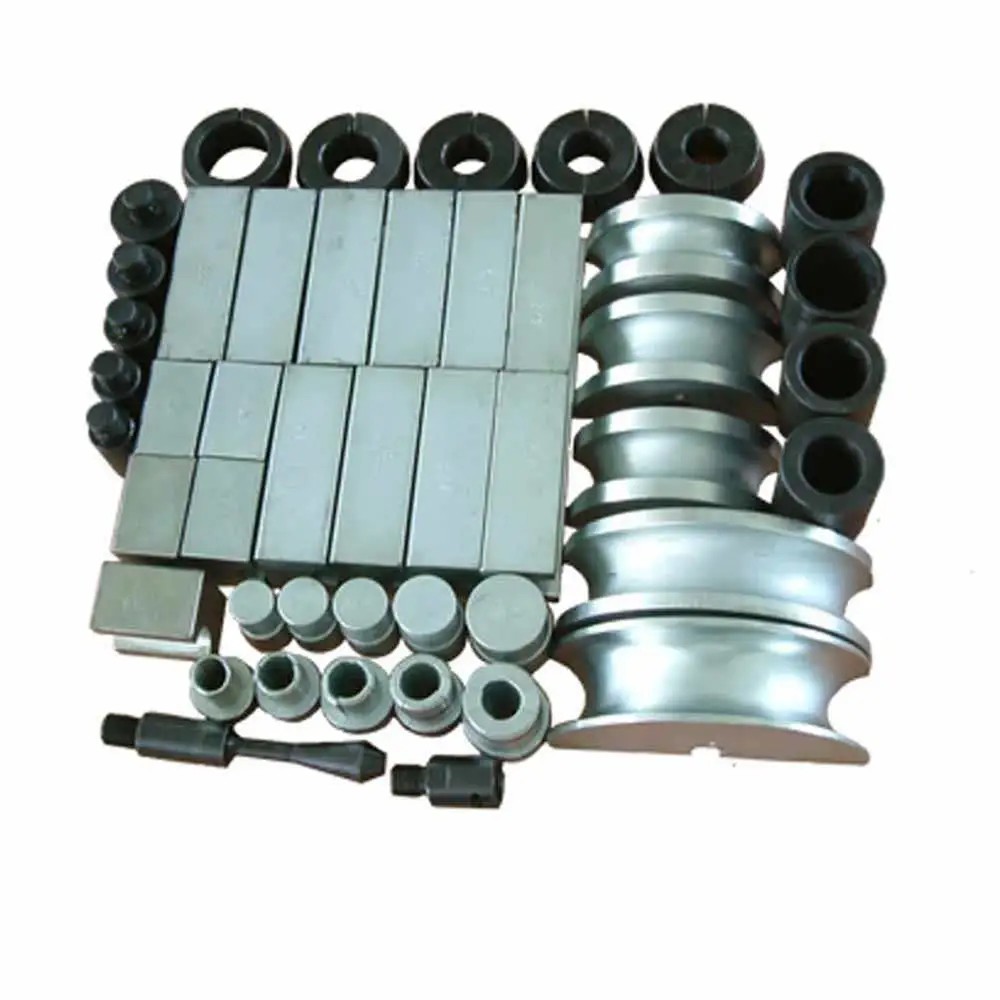

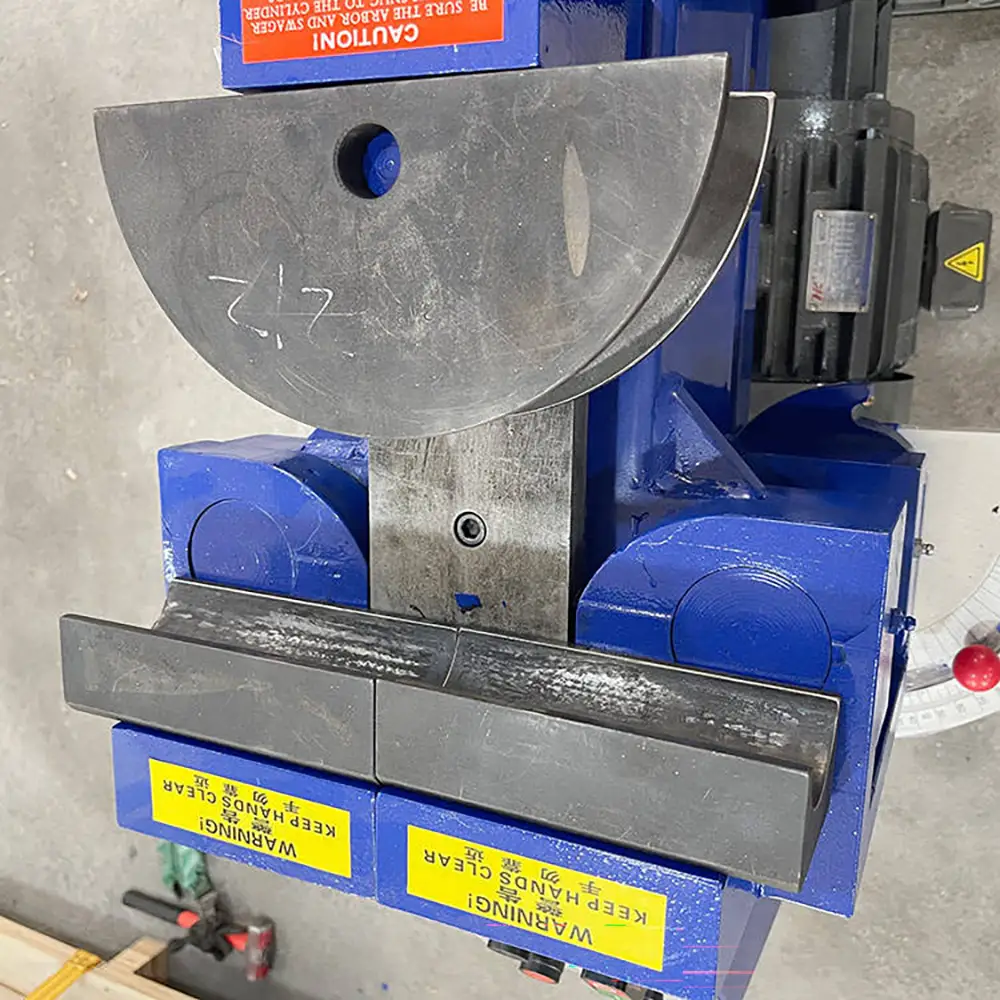

Bending Dies and Tooling

Bending dies are critical components of a pipe bending machine. The die geometry determines how the tube is supported and formed during the bending process.

Different tube diameters,shapes,and bend radii may require different tooling. Customers should therefore provide complete workpiece information when requesting a quotation.

Depending on the machine design,tooling may include bending dies,clamping dies,pressure dies,guide components,mandrels,or other supporting devices.

For production involving several tube sizes,additional tooling sets can allow the same machine to handle multiple workpiece specifications.

Bending Accuracy and Repeatability

Bending quality depends on several factors,including machine rigidity,tooling condition,material properties,clamping stability,bending force,operator positioning,and springback.

A semi-automatic system can improve repeatability by controlling the mechanical bending movement more consistently than completely manual bending.

However,the actual dimensional accuracy should always be evaluated according to the machine configuration and application requirements. Customers requiring specific bend angles,centerline dimensions,radii,or tolerances should provide drawings or samples before machine selection.

Applications of Semi-Automatic Pipe Bending Equipment

This tube bender can be used in many metal fabrication industries.

Typical applications include:

Metal furniture production

Automotive component manufacturing

Motorcycle frame fabrication

Bicycle frame production

Agricultural machinery

Construction equipment

Handrail manufacturing

Guardrail production

Fence fabrication

Greenhouse structures

Steel frames

HVAC components

Plumbing components

Industrial equipment

Custom metal fabrication

The machine can be used for both individual components and small-to-medium production batches depending on the workpiece and production requirements.

Workshop and Production Flexibility

Semi-automatic tube bending equipment provides a balance between manual operation and automated production. This can be useful for manufacturers whose products change frequently or who process different tube specifications.

Compared with a fully automatic production line,the semi-automatic approach can provide greater operator involvement during loading and positioning. This may be practical for custom fabrication and smaller production runs where complete automation is not necessary.

For higher production volumes,the machine can also be evaluated as part of a larger workflow involving material preparation,cutting,bending,welding,and assembly.

Surface Quality and Tube Deformation

Maintaining the appearance and dimensional stability of the tube is important in many applications. Excessive deformation,wrinkling,flattening,or surface marks can reduce the quality of the finished component.

Suitable tooling and controlled bending parameters can help manage these issues. Tube material,wall thickness,bend radius,and bending method all influence the final shape.

For applications where internal deformation must be minimized,a suitable mandrel or additional tube support may be required. Whether mandrel bending is available depends on the machine model.

Maintenance and Safety

Pipe bending machines contain moving mechanical components and should be operated according to appropriate safety procedures.

Operators should keep hands clear of the bending area during machine operation and use suitable personal protective equipment. Emergency-stop functions,guards,and other safety features may be included depending on the machine configuration and applicable requirements.

Routine maintenance should include inspection of dies,clamping components,hydraulic or electrical systems where applicable,fasteners,and moving parts. Keeping the bending area clean can also help maintain stable operation.

Tooling should be inspected regularly for wear or damage because worn dies can affect tube positioning and finished bend quality.

OEM and Custom Pipe Bending Solutions

Different customers require different tube sizes,bending angles,radii,and production methods. The machine can therefore be evaluated or configured according to specific application requirements.

For OEM and ODM projects,customers can provide:

Tube material

Outside diameter

Wall thickness

Tube shape

Required bending angle

Bend radius

Number of bends

Production volume

Required tolerances

Available power supply

Drawings,samples,and photographs can also help determine the appropriate machine and tooling configuration.

For distributors and machinery buyers,a customized configuration can be developed according to the requirements of the target market.

Why Choose Us

Semi-Automatic Operation – Provides mechanical bending assistance while maintaining practical operator control over loading and positioning.

Flexible Tube Bending – Suitable for various metal pipes and tubes when matched with appropriate tooling.

Wide Application Range – Can be used for furniture,automotive,construction,agricultural,and general fabrication applications.

Multiple Material Options – Suitable configurations can be considered for carbon steel,stainless steel,aluminum,copper,and other metal tubing.

Custom Tooling Support – Bending dies and related tooling can be selected according to tube size and required bend geometry.

Production Repeatability – Controlled bending movement can help improve consistency across repeated workpieces.

Workshop-Friendly Design – Suitable for custom fabrication,small-batch production,and industrial workshops.

OEM & ODM Support – Machine configuration and tooling can be evaluated according to customer drawings,materials,dimensions,and production requirements.

FAQs

1. What is a semi-automatic pipe bending machine?

A semi-automatic pipe bending machine is equipment that mechanically performs the bending operation while the operator handles tasks such as loading,positioning,and unloading the tube.

2. What materials can it bend?

Depending on the machine and tooling,it can be used for suitable carbon steel,stainless steel,aluminum,copper,galvanized steel,and other metal tubes.

3. Can it bend stainless steel tubes?

Yes. Stainless steel tubes can be bent when the machine,die,and bending parameters are suitable for the material.

4. Can it bend aluminum tubes?

Yes. Aluminum tubing can be processed with appropriate tooling and controlled bending parameters.

5. Can it bend square and rectangular tubes?

Some tube bending machines can process square or rectangular tubing. The capability depends on the machine design and tooling configuration.

6. What determines the maximum pipe size?

The maximum pipe size depends on machine bending force,drive system,tooling,material strength,pipe diameter,and wall thickness.

7. What determines the bend radius?

The bend radius is affected by the machine design,die geometry,pipe dimensions,material properties,and bending method.

8. Does the machine use hydraulic power?

Some models use hydraulic systems,while others may use electric or mechanical drives. The actual configuration should be confirmed for the selected model.

9. Is a mandrel required for tube bending?

Not always. A mandrel may be useful for applications requiring better control of internal deformation,especially with thin-wall tubes or tighter bend radii.

10. Can it be used for automotive exhaust pipes?

Suitable configurations can be used for exhaust tubing and other automotive pipe components. Tooling and machine capacity should be selected according to the tube specifications.

11. Is the machine suitable for small-batch production?

Yes. Semi-automatic operation can be practical for custom fabrication and small-to-medium production batches where complete automation is not required.

12. What information should I provide for a quotation?

Provide the tube material,outer diameter,wall thickness,cross-sectional shape,bending angle,bend radius,number of bends,production volume,and any required dimensional tolerances.
