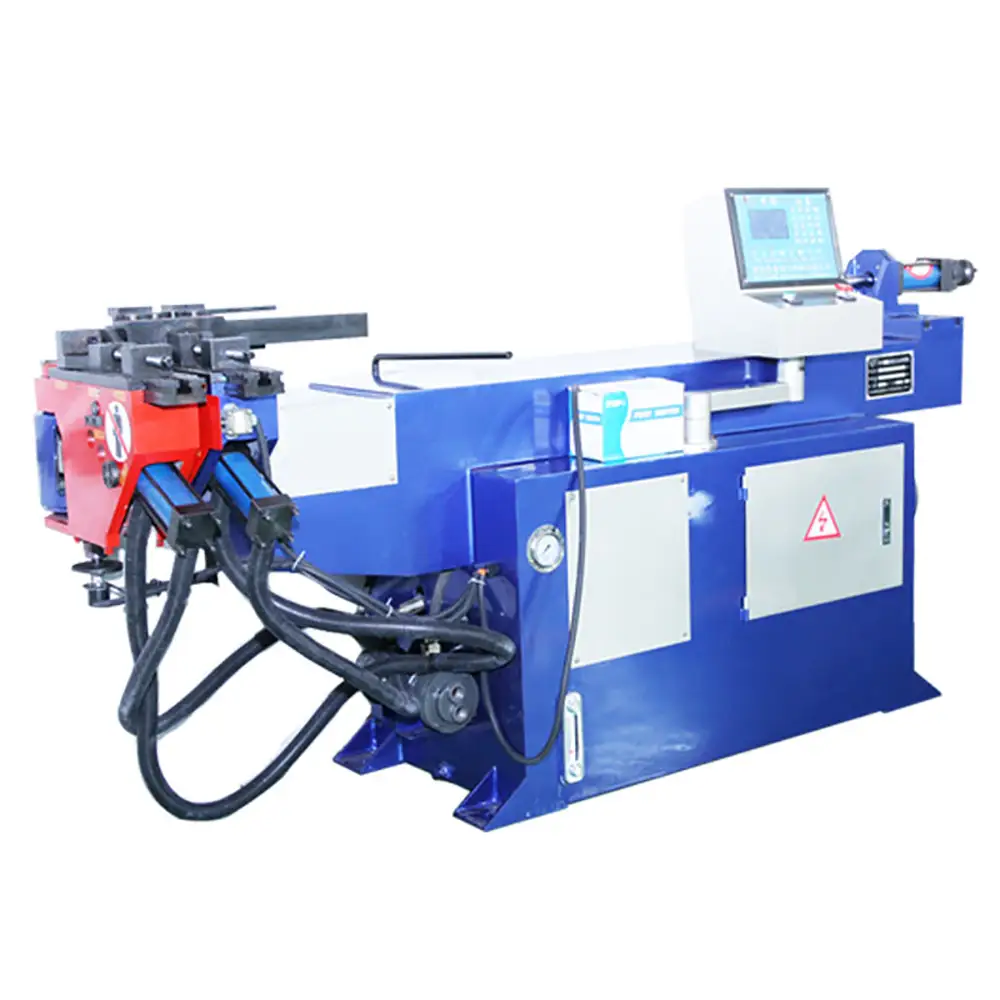

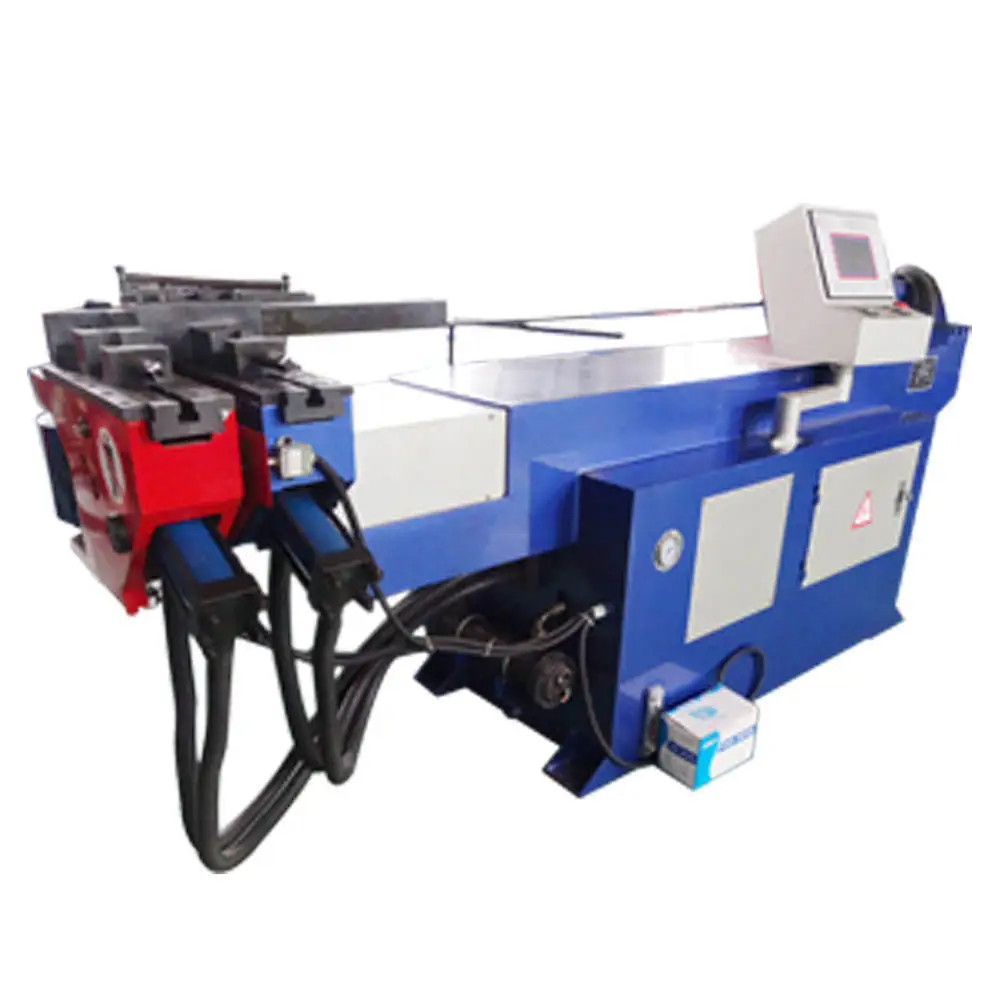

Wheelbarrow Frame Bending Machine DW38NC

Features of Hydraulic Bender machine NC 38 1  1/2 INCH
1. Controlled by microcomputer, driven hydraulically
2.Touch screen offers easy access to auto and manual operating modes
3. Foot switches with functions of automatic start, emergency stop and resuming
4 .Cooling system control working temperature effectively
5 .Change mould simply and quickly
6. 100 sets of program storage, 32 bends for each program
7 .Electric: As required (3 phase 220V or 380V or 415V...)
8. Mandrel Rod devices
We provide Customized Service for Everyone's needs,tell us what your requirement on pipe processing,bending,punching, cutting, chamfering and so on,

Adapted material	steel pipe, stainless steel, copper pipe, aluminum pipe,wire,metal bar, profile,metal strips and  multiple-unit tube
Shapes	Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc
Standard accessories	One pair of standard mould (wheel mould, clamping mould and sliding plate mould) , One set of common tools
Application industry	automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares

Model		DW38nc(semi auto)
Max. Bending Capacity	round	MS:φ38×3mm;SS: φ32×3mm
	Square	30×30×2.5mm
	angle steel	30 mm
	rectangle	20×40mm
	rod	φ20mm
	Square rod	20×20mm
Bending method		Hydraulic
Operate mode		Manual, semi auto,
Feeding, rotate and adjust angle		manual
Fit to Shapes		Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc
Adapted material		steel pipe, stainless steel, copper pipe, aluminum pipe,and multiple-unit tube
System language		Chinese, English, Spanish, Russian, or as requirement
range of bending radius		R25-R200mm
Max bending angle		220°
Bending precession		±0.1°
Bending speed		70°/sec
voltage		380/415 or as requirement
Total power		4 KW
Oil Tank Capacity		100 KG
Hydraulic oil		antiwear hydraulic oil
Standard Oil pressure		16 MPA
Max oil temperature		60°
cooling method		Air-cooled or Water-cooled
operating mode		button , touch screen, footswitch
Maximum number of stored bending programs		200 set
Max number of elbow pipe each program		20 set
Oversize		2.6×0.85×1.2m
weight		1000 kg

Wheelbarrow Frame Bending Machine for Metal Tube Forming

The Wheelbarrow Frame Bending Machine is a specialized metal tube forming solution designed for manufacturing wheelbarrow frames,handles,and other tubular components. By bending steel or other suitable metal tubes into controlled shapes,the machine helps manufacturers produce consistent frame components for wheelbarrows and related material-handling products.

Wheelbarrow frames typically require strong tubular structures that combine load-bearing capability with practical ergonomics. The bending process must therefore provide repeatable geometry while minimizing excessive deformation,flattening,or surface damage. A properly configured tube bending machine can help manufacturers produce frame components with consistent bending radii and dimensions.

Depending on the machine configuration,the equipment may use hydraulic,electric,or CNC-assisted bending technology. The appropriate machine design depends on tube material,outer diameter,wall thickness,bending radius,number of bends,and required production volume.

Designed for Wheelbarrow Frame Manufacturing

A wheelbarrow frame generally consists of tubular or formed metal components supporting the tray,wheel,and handles. The frame geometry can vary according to wheelbarrow design,load capacity,handle configuration,and manufacturing requirements.

The Wheelbarrow Frame Bending Machine can be used to form suitable steel tubes into the required frame shape before welding,assembly,and finishing.

Typical applications include:

Wheelbarrow Main Frames

Wheelbarrow Handle Frames

Wheelbarrow Support Tubes

Wheelbarrow Chassis Components

Garden Cart Frames

Utility Cart Frames

Hand Truck Components

Material Handling Frames

Small Agricultural Equipment Frames

Custom Tubular Structures

For manufacturers producing several wheelbarrow models,the machine can be configured around different bending tools or fixtures to accommodate multiple tube sizes and frame designs.

Metal Tube and Pipe Bending Process

Tube bending is a controlled forming process in which a metal tube is gradually shaped around a bending die or tooling system. The objective is to achieve the required angle and radius while maintaining acceptable tube geometry.

During wheelbarrow frame production,the tube may require one or several bends along its length. The exact bending sequence depends on the frame design.

Important factors include:

Tube material

Tube outside diameter

Wall thickness

Bending radius

Bend angle

Distance between bends

Number of bends

Required dimensional tolerance

Production volume

Correct tooling selection is essential. The bending die should match the tube dimensions and required radius,while the machine's clamping and positioning system should hold the workpiece securely during forming.

Steel Tube Bending for Strong Frames

Steel tubing is commonly used for wheelbarrow frames because it provides a combination of strength,rigidity,and manufacturability. The bending machine can be configured for suitable carbon steel or other metal tubes according to the intended application.

When bending thin-wall tubing,proper tooling and process parameters are particularly important. Excessive force or unsuitable bending conditions may result in tube flattening,waviness,wrinkles,or surface marks.

For heavier-wall tubes,the machine must provide sufficient forming capability for the selected material and dimensions.

The actual bending capacity should always be confirmed according to the specific machine model and tooling configuration rather than assuming that every model can process every tube size.

Consistent Bending Geometry

One of the main benefits of using a dedicated frame bending machine is repeatability. Manual tube bending can require significant operator skill and may produce variations between individual frame components.

A mechanical,hydraulic,or CNC-assisted bending system can provide more controlled movement and positioning. This can help manufacturers maintain consistent bend angles and overall frame geometry across production batches.

Repeatability is especially important during welding. If two frame tubes have different dimensions or bend positions,the assembly fixture may require additional adjustment. Consistent bent components can make downstream welding and assembly more efficient.

Actual dimensional accuracy depends on machine rigidity,tooling,material properties,positioning method,process parameters,and operator setup.

Hydraulic and Automatic Bending Options

Wheelbarrow frame bending machines can be supplied in different configurations according to production requirements.

A hydraulic tube bending machine uses hydraulic power to generate the force required for tube forming. This type of system can be suitable for applications requiring substantial bending force.

An automatic tube bending machine may incorporate controlled feeding,positioning,and bending functions to reduce repetitive manual operations.

CNC or servo-controlled configurations can provide additional control over bend sequences and positioning for more complex tubular components.

The machine type should be selected based on production volume,frame complexity,required repeatability,and budget.

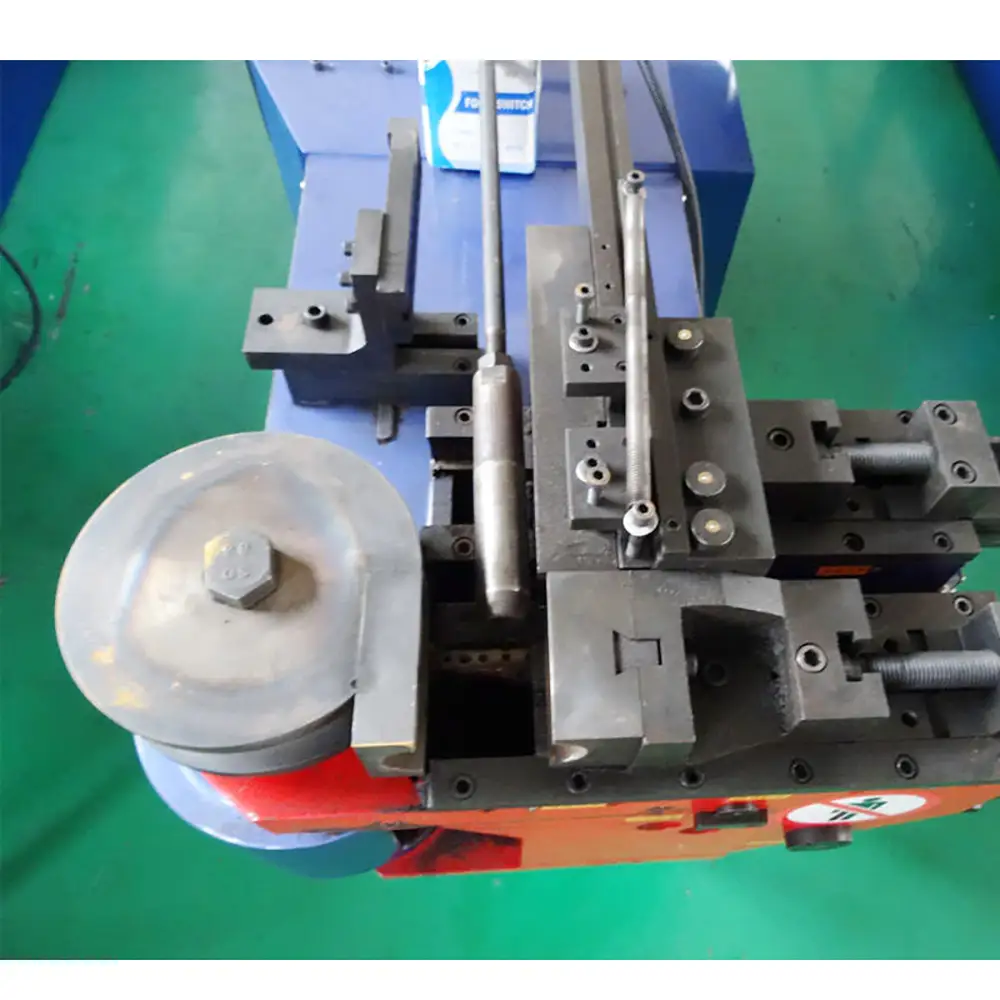

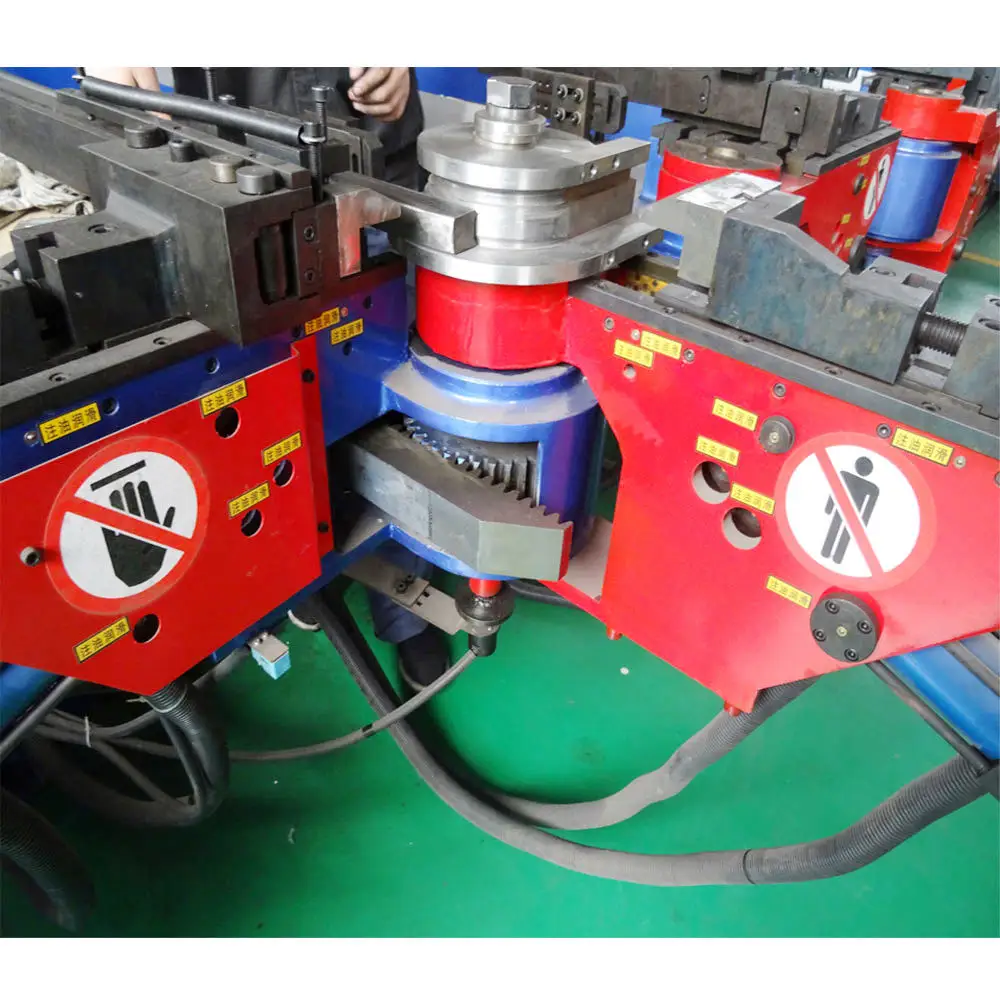

Tooling for Wheelbarrow Frame Bending

Bending dies and related tooling are critical components of the production process. The tooling determines the bending radius and must be compatible with the tube diameter and material.

Depending on the machine design,tooling may include:

Bending Dies

Clamping Dies

Pressure Dies

Mandrels

Tube Supports

Positioning Fixtures

Custom Forming Tools

For simple wheelbarrow frames,a conventional rotary bending arrangement may be sufficient. For tighter bending radii or more demanding tube geometries,a suitable mandrel or additional support system may be required.

Customers should provide tube drawings or samples when requesting custom tooling so the manufacturer can evaluate the required bending process.

Applications Beyond Wheelbarrows

Although specifically designed for wheelbarrow frame production,the machine can also be used for other tubular metal products.

Potential applications include garden carts,hand trucks,utility carts,agricultural equipment,small machinery frames,metal furniture,fitness equipment,and general fabrication.

This flexibility can make the machine useful for manufacturers that produce several types of tubular products rather than a single wheelbarrow model.

The actual application range depends on the available tooling and machine capacity.

Production Efficiency

A dedicated tube bending machine can reduce repetitive manual forming operations and improve the consistency of production.

For larger wheelbarrow manufacturers,the bending machine can become part of a broader production line that includes tube cutting,forming,punching,welding,grinding,painting,and final assembly.

Bending parameters can be established for frequently produced frame designs,allowing operators to reproduce similar components with less manual measurement.

Production output depends on the number of bends,tube size,material,loading method,machine cycle time,tool changes,and operator workflow. A fully automatic system may provide higher production efficiency than a manual configuration,but the appropriate setup depends on the customer's actual requirements.

Surface Quality and Tube Deformation

Maintaining tube surface quality is important for wheelbarrow frame manufacturing because the finished frame may be painted,powder coated,or otherwise treated.

Poor bending conditions can create scratches,flattening,wrinkles,or other deformation that may become more visible after finishing.

Proper die selection,clamping force,bending speed,and lubrication where applicable can help improve forming results.

For demanding applications,the manufacturer may recommend sample testing before finalizing the machine and tooling configuration.

OEM and Custom Wheelbarrow Frame Solutions

Wheelbarrow designs vary significantly between markets and manufacturers. Different frame dimensions,handle shapes,tube diameters,and bending radii may therefore require customized tooling or machine settings.

For OEM and ODM projects,customers can provide:

Wheelbarrow Frame Drawings

Tube Dimensions

Tube Material

Wall Thickness

Required Bending Radius

Bend Angles

Number of Bends

Production Quantity

Finished Frame Samples

Based on this information,the machine configuration and tooling can be evaluated for the intended production process.

Custom solutions may include dedicated bending dies,fixtures,positioning systems,hydraulic configurations,and automatic controls.

Safety and Maintenance

Tube bending machines contain moving mechanical components and may use hydraulic pressure or electrical power. Operators should receive appropriate training and follow the manufacturer's operating instructions.

Depending on the configuration,safety-oriented features may include emergency stops,protective guards,control interlocks,and electrical protection.

Routine maintenance should include inspection of hydraulic systems where applicable,checking tooling condition,cleaning the machine,inspecting electrical connections,and lubricating moving components according to manufacturer recommendations.

Tooling should also be checked regularly for wear or damage because worn dies can affect bending quality.

Why Choose Us

Dedicated Wheelbarrow Frame Application
Designed for bending suitable metal tubes used in wheelbarrow frames,handles,and support structures.

Flexible Tube Bending Capability
Suitable configurations can be selected according to tube diameter,wall thickness,bending radius,and frame geometry.

Consistent Frame Production
Controlled bending helps improve repeatability between individual wheelbarrow frame components.

Hydraulic and Automatic Options
Machine configurations can be selected according to production volume and required bending force.

Custom Bending Tooling
Bending dies,fixtures,and related tooling can be designed around specific wheelbarrow frame drawings or samples.

Multiple Tubular Applications
The machine can also be used for garden carts,utility carts,hand trucks,agricultural equipment,and other metal tube products.

OEM and ODM Support
Machine configuration and tooling can be evaluated for customized wheelbarrow frame production requirements.

B2B Manufacturing Support
Suitable for wheelbarrow manufacturers,metal fabrication companies,distributors,and overseas industrial equipment buyers.

FAQs

1. What is a Wheelbarrow Frame Bending Machine?

It is a metal tube bending machine designed to form suitable steel or metal tubes into the shapes required for wheelbarrow frames,handles,and related tubular components.

2. What materials can it bend?

Depending on the machine and tooling,it can process suitable carbon steel,stainless steel,aluminum,and other metal tubes.

3. Can it bend wheelbarrow handle tubes?

Yes. With suitable tooling,the machine can form tubular handle and frame components according to the required design.

4. Can it bend square tubes?

Some configurations can process square or rectangular tubing. The machine and tooling must be selected specifically for the tube profile.

5. Is it a hydraulic tube bending machine?

It can be configured as a hydraulic tube bender when hydraulic forming force is required. Other mechanical,electric,or CNC configurations may also be available.

6. Can the machine perform multiple bends?

Yes,depending on the machine configuration and control system. Multiple bends can be produced according to the programmed or manually controlled bending sequence.

7. Does the machine require custom dies?

The required dies depend on the tube diameter,profile,bending radius,and frame design. Custom tooling is often useful for dedicated wheelbarrow frame production.

8. Can it bend thin-wall steel tubing?

Suitable thin-wall tubing can be bent when the machine and tooling are correctly selected. Process parameters must be adjusted to reduce excessive deformation.

9. Can the machine be used for other products?

Yes. Suitable configurations may be used for garden carts,utility carts,hand trucks,agricultural equipment,metal furniture,and other tubular products.

10. How can tube deformation be minimized?

Appropriate bending dies,clamping,process parameters,and,when required,a suitable mandrel or support system can help control tube deformation.

11. Can the machine be customized?

Yes. Custom bending tooling,fixtures,positioning systems,controls,and other machine configurations can be evaluated according to the customer's requirements.

12. What information should I provide for a quotation?

Provide the tube material,outside diameter or profile,wall thickness,bending radius,bend angles,number of bends,frame drawing or sample,and expected production volume.
