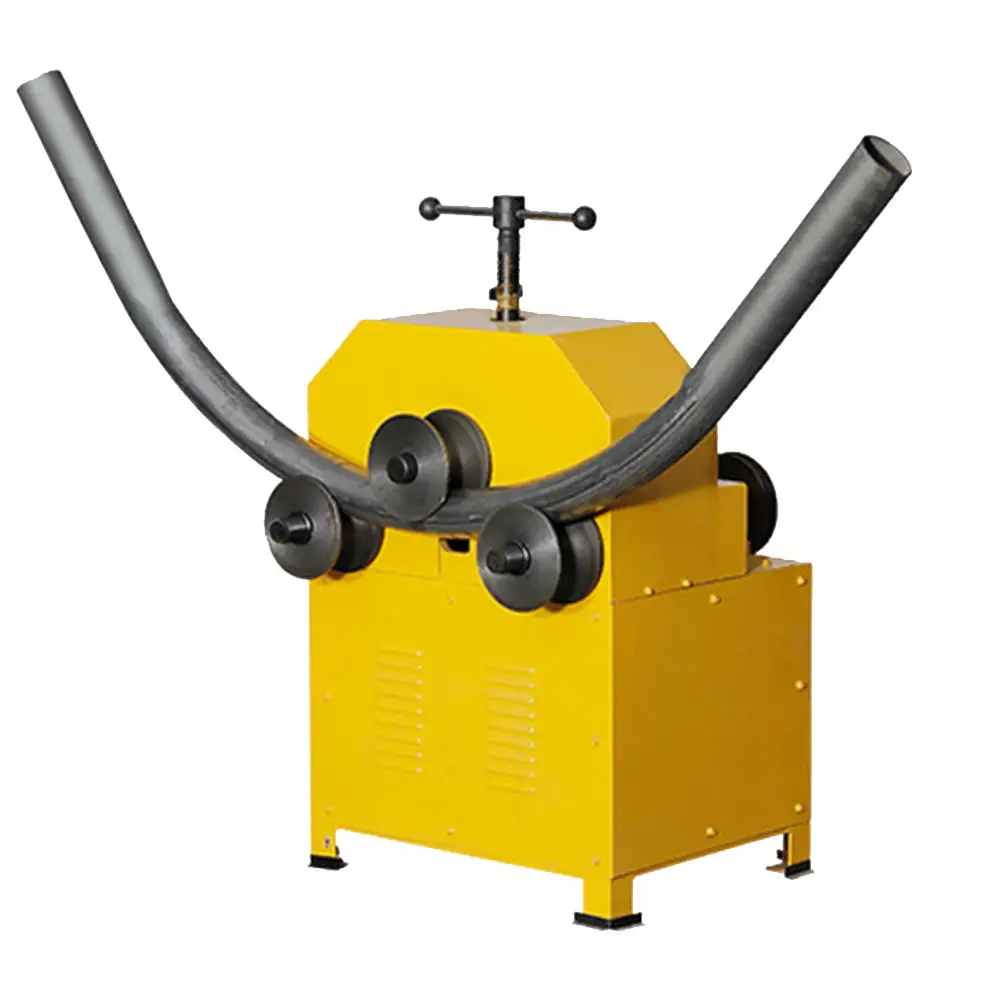

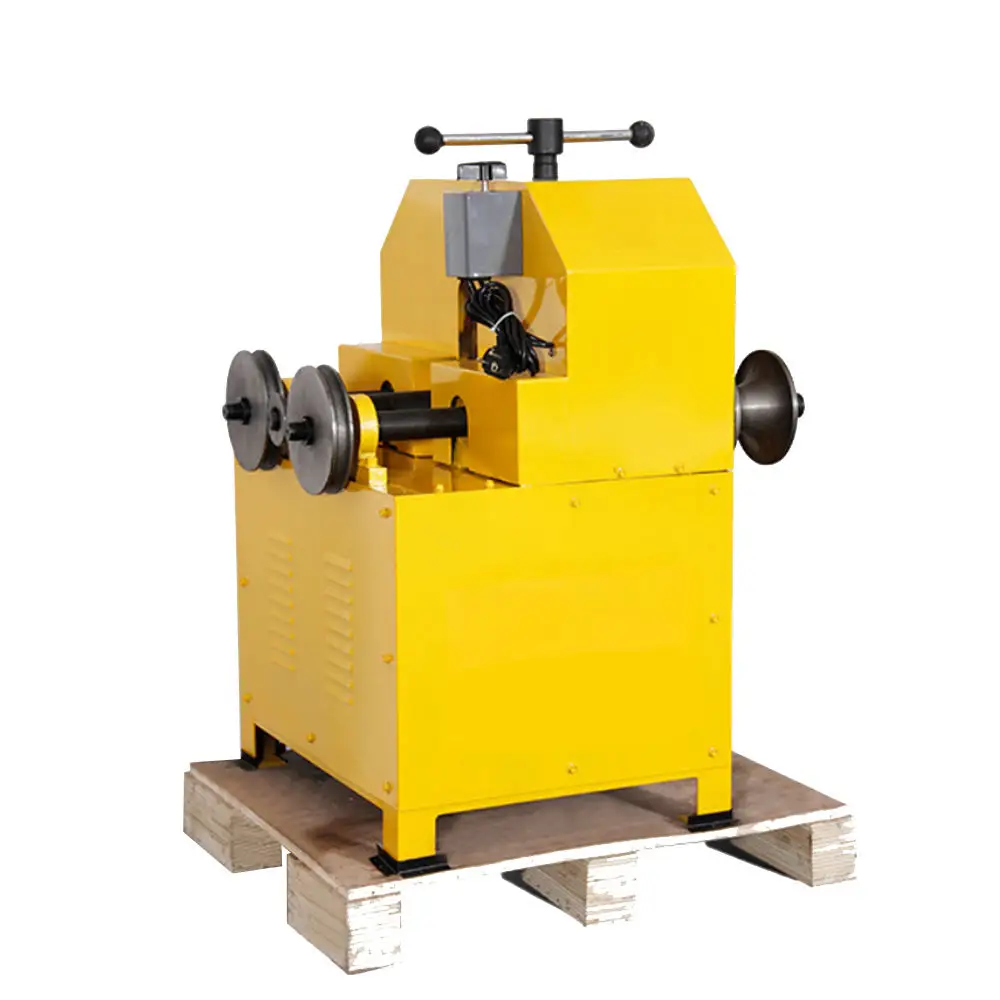

Square Tube and Round Pipe Arc Bending Machine Electric Tube Bending Machine

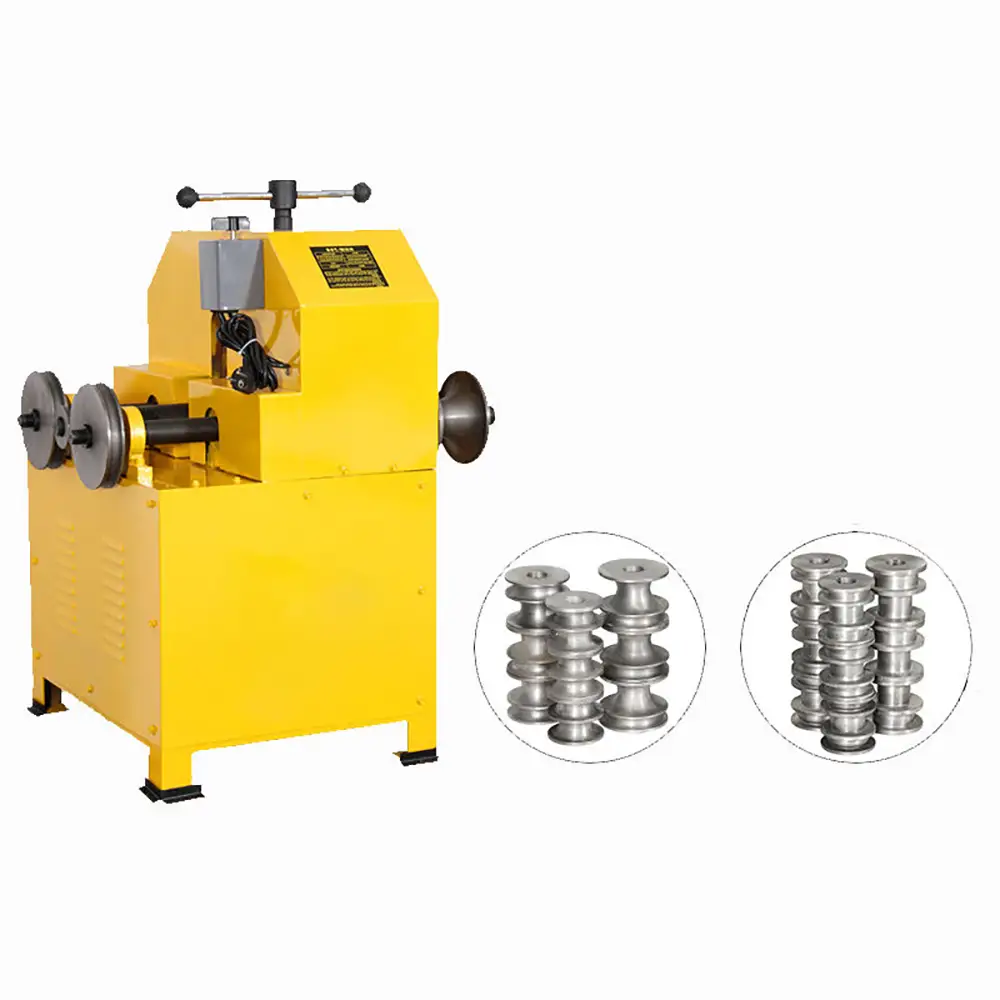

Square Tube Arc Bending

Square tube bending requires careful control because the cross-sectional shape must be maintained while the tube is being formed.

Square tubes are commonly used for structural frames,furniture,greenhouses,railings,gates,and architectural metalwork. When curved square tubing is required,the forming process should minimize excessive twisting,flattening,or distortion.

Proper roller or die geometry is important. The tooling should match the outside dimensions of the square tube.

Typical applications include:

Curved furniture frames

Greenhouse structures

Metal gates

Decorative arches

Architectural frames

Railings

Display structures

Machine frames

Custom steel structures

For precision applications,the first formed tube should be checked against the required dimensions before continuing production.

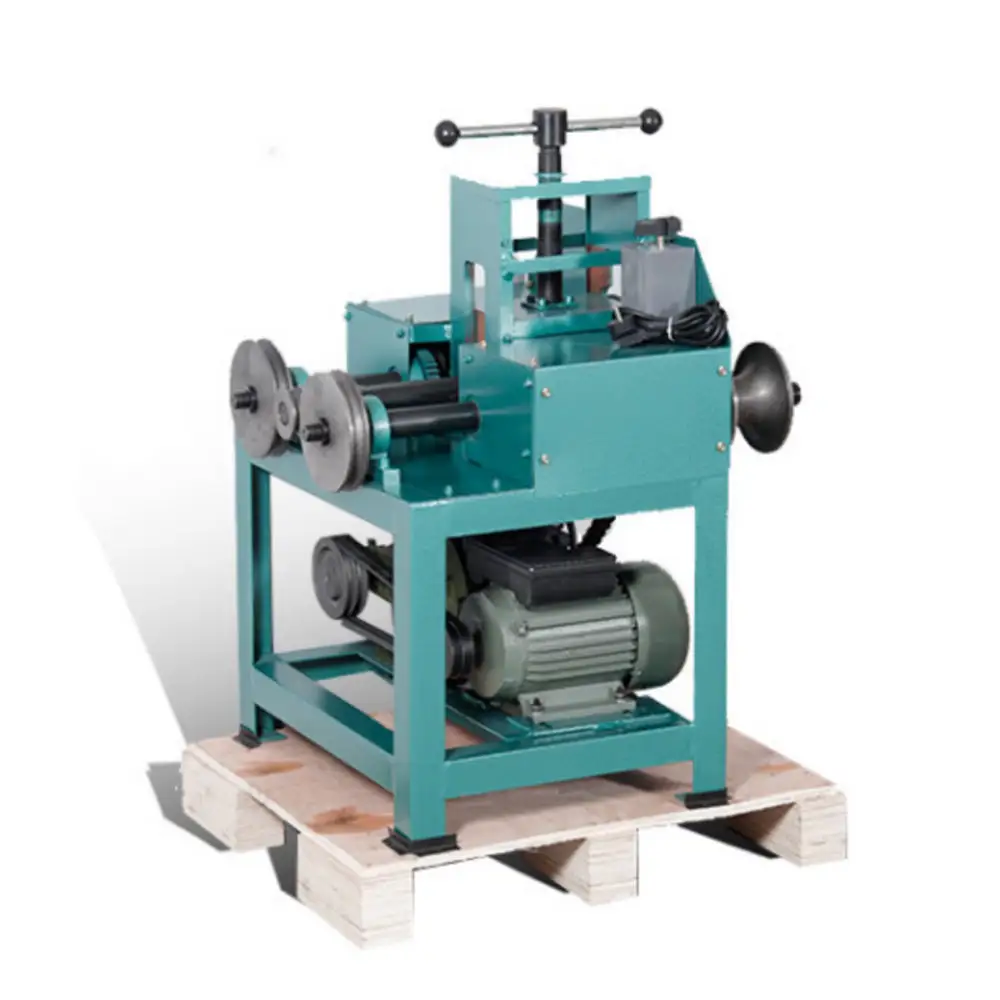

Round Pipe Arc Bending

Round pipe and tube bending is another common application for electric arc bending equipment.

Round pipes can be formed into circular arcs,semi-circular sections,and other curved shapes depending on the machine configuration and tooling.

Round tube bending is widely used for:

Handrails

Guardrails

Greenhouse arches

Fence structures

Furniture frames

Automotive components

Agricultural equipment

Decorative metalwork

Equipment frames

Custom tubular structures

Round tubes can behave differently depending on their diameter,wall thickness,and material. Thin-wall tubes may be more susceptible to flattening or wrinkling,while thicker sections generally require greater forming force.

Smooth Arc and Radius Forming

The required arc radius is an important consideration when selecting a bending machine.

A larger radius generally requires a different forming setup from a tight-radius bend. The machine tooling must be matched to the desired finished geometry.

For greenhouse arches or large architectural curves,the required radius may be relatively large. For furniture components or decorative metalwork,a smaller radius may be required.

Customers should provide the desired finished radius,arc length,or product drawing when requesting machine selection or custom tooling.

Steel and Metal Tube Applications

The machine can be used for suitable steel and other metal tubes depending on its configuration.

Carbon steel and mild steel tubing are commonly used for structural applications. Stainless steel tubing can be suitable for decorative and corrosion-resistant applications when appropriate tooling is used.

Depending on the machine design,the equipment may also be configured for aluminum or other compatible metal tubing.

Different materials have different forming characteristics. Aluminum may require careful control to reduce surface marking,while stainless steel may require suitable tooling and force because of its strength and springback.

The actual material range should always be confirmed according to the selected model.

Greenhouse and Agricultural Applications

Curved square or round tubes are commonly used in greenhouse and agricultural structures.

The machine can form suitable pipes into greenhouse arches,tunnel frames,support structures,and other curved components.

For repeated greenhouse production,the ability to produce similar arc shapes can simplify assembly and help maintain consistent frame dimensions.

Agricultural applications may include:

Vegetable greenhouses

Flower greenhouses

Nursery structures

Tunnel greenhouses

Crop protection frames

Garden greenhouse structures

Agricultural shelters

The required tube size and bending radius depend on the greenhouse design.

Furniture and Architectural Metalwork

Curved square tubes are widely used in modern furniture and architectural metal fabrication.

The machine can be evaluated for producing curved chair frames,table frames,display stands,handrails,partition frames,and decorative structures.

For architectural projects,the finished curve often needs to match a specific design. A suitable forming process can help manufacturers reproduce similar components across multiple pieces.

For decorative work,the surface condition of the tube is also important. Proper tooling and handling can help reduce unwanted marks during bending.

Production Efficiency

Electric bending can improve production efficiency by reducing the manual effort required for repeated forming.

For small and medium production batches,the machine can process multiple tubes using consistent bending procedures. Operators can establish a suitable setup and repeat the process for similar workpieces.

Actual production speed depends on tube dimensions,bending radius,material,number of forming passes,loading method,and machine configuration.

The machine can be used as a standalone bending station or integrated into a larger metal fabrication workflow.

Bending Accuracy and Quality

Bending accuracy depends on the machine,tooling,material,and operating parameters.

Important factors include:

Tube dimensions

Wall thickness

Material strength

Bend radius

Roller or die geometry

Machine rigidity

Bending force

Feed speed

Springback

Tool alignment

Springback occurs when the metal partially returns toward its original shape after bending. Operators may need to compensate for this effect when a specific final radius or angle is required.

For production requiring close dimensional control,customers should provide technical drawings and tolerances before selecting the equipment.

Tooling and Customization

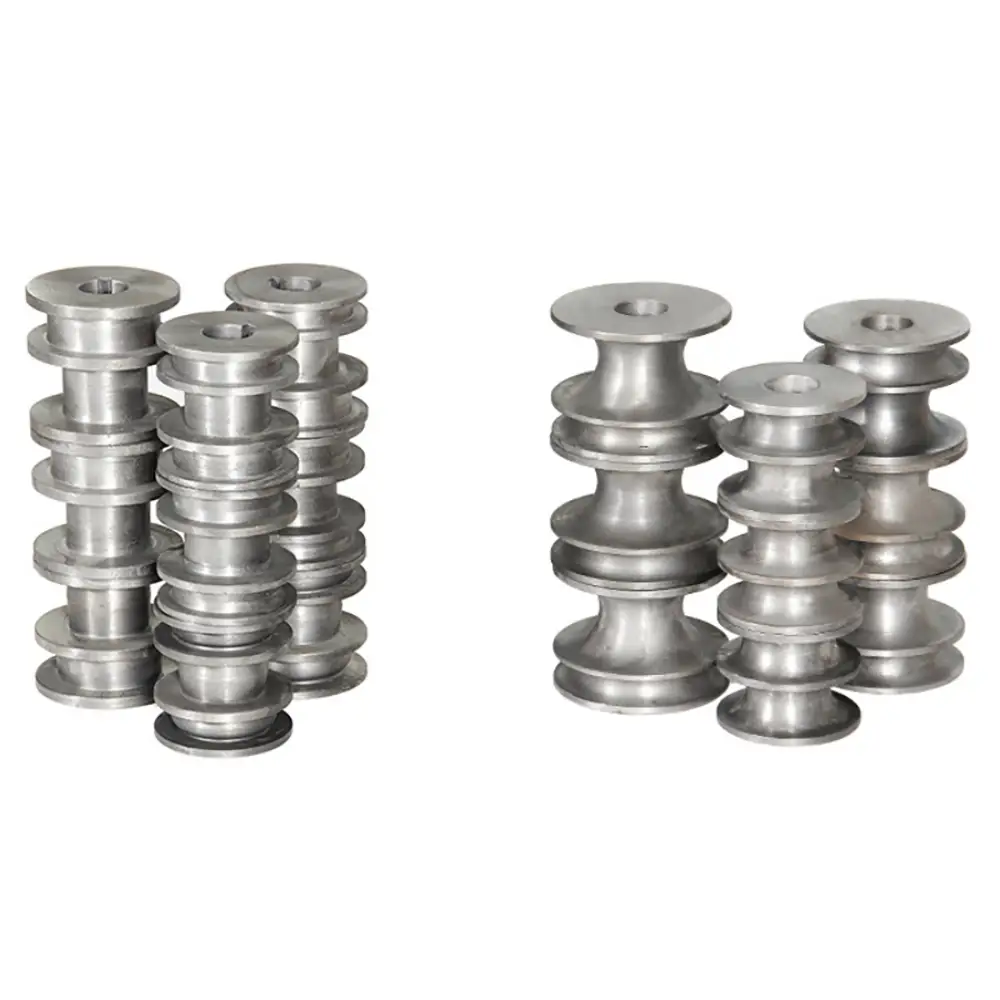

Different square and round tube sizes generally require corresponding tooling.

Tooling may include forming rollers,bending dies,guides,clamping components,and other supporting fixtures depending on the machine design.

Custom tooling can be developed for special tube dimensions or product geometries.

Customers can provide:

Tube outside dimensions

Wall thickness

Material

Required radius

Arc length

Bend angle

Product drawings

Expected production volume

This information helps determine a suitable bending configuration.

Maintenance and Safety

Routine maintenance helps maintain stable machine operation and bending consistency.

Operators should inspect rollers,dies,shafts,bearings,drive components,and electrical connections regularly. Moving components should be lubricated or maintained according to the manufacturer's instructions.

The forming area should remain clear during operation. Operators should keep hands away from moving rollers and tooling and use appropriate protective equipment.

Depending on the machine configuration,safety features may include emergency-stop functions,protective covers,and electrical protection.

The machine should be installed on a stable working surface and operated according to the manufacturer's safety procedures.

OEM and ODM Tube Bending Solutions

Manufacturers may require different bending capacities,tooling arrangements,and electric drive configurations. OEM and ODM solutions can therefore be evaluated according to the intended application.

Custom options may include forming rollers,bending dies,fixtures,control components,and other machine configurations.

For customized projects,customers should provide tube specifications,finished-product drawings,sample parts,and production requirements.

This information allows the manufacturer to evaluate the appropriate machine and tooling arrangement before production.

Why Choose Us

Electric Tube Bending – Powered bending reduces manual effort and supports consistent tube forming.

Square and Round Tube Applications – Designed for suitable square tubes,round pipes,and compatible metal sections.

Arc Forming Capability – Suitable for producing curved structural and decorative tube components.

Flexible Industrial Applications – Useful for greenhouse frames,furniture,railings,gates,and general fabrication.

Multiple Material Options – Configurations can be evaluated for steel,stainless steel,aluminum,and other compatible metals.

Custom Tooling Support – Rollers,dies,and fixtures can be selected according to tube dimensions and required radius.

Production-Oriented Design – Suitable for small and medium production batches as well as general workshop use.

OEM & ODM Support – Machine and tooling configurations can be developed according to drawings,samples,and production requirements.

FAQs

1. What is a square tube and round pipe arc bending machine?

It is a powered tube forming machine designed to bend suitable square tubes,round pipes,and other metal sections into curved arcs.

2. Can it bend both square and round tubes?

Yes,when suitable tooling is available and the tube dimensions are within the machine's rated bending range.

3. What materials can be bent?

Depending on the machine configuration,it can process suitable carbon steel,mild steel,stainless steel,aluminum,and other compatible metals.

4. Can it be used for greenhouse arches?

Yes. Suitable round or square tubes can be formed into curved greenhouse arches and structural frame components.

5. Can it bend square steel tubes?

Yes,provided the square tube dimensions,wall thickness,and material are within the machine's capacity.

6. Can it bend round steel pipes?

Yes. Round steel pipes and tubes are common applications for electric tube bending equipment.

7. Does the machine require different tooling for different tube sizes?

Usually,different tube dimensions require corresponding rollers or dies to achieve proper forming results.

8. What determines the bending radius?

Tube dimensions,material properties,tooling,machine configuration,and forming method all influence the achievable bending radius.

9. Can it produce repeated arcs?

Yes. Once the appropriate tooling and operating parameters are established,the machine can be used for repeated bending of similar workpieces.

10. Is it fully automatic?

Not necessarily. The electric drive provides powered bending,but the actual automation level depends on the specific model and control configuration.

11. Can custom tooling be supplied?

Yes. Custom rollers,dies,and fixtures can be evaluated according to tube dimensions and finished-product requirements.

12. What information should I provide for a quotation?

Provide tube shape,outer dimensions,wall thickness,material,required bending radius,arc length,production volume,and product drawings or samples if available.
