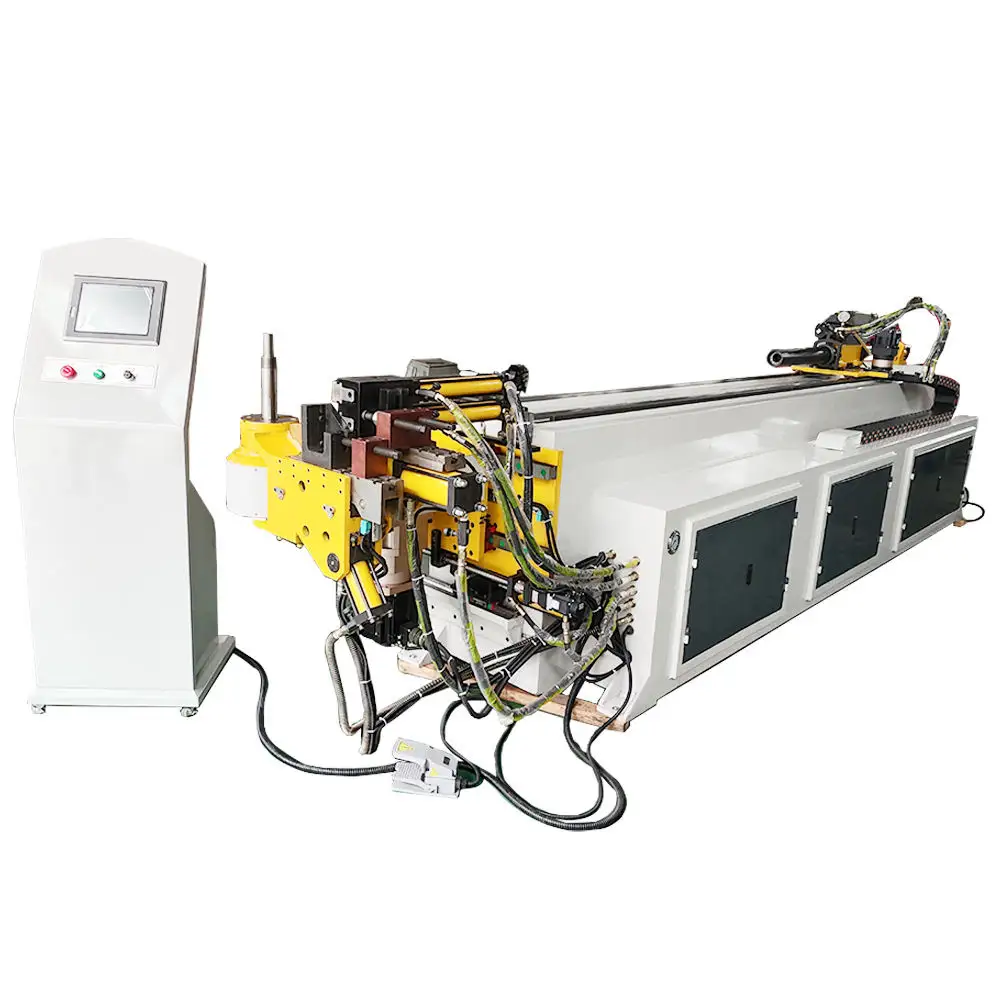

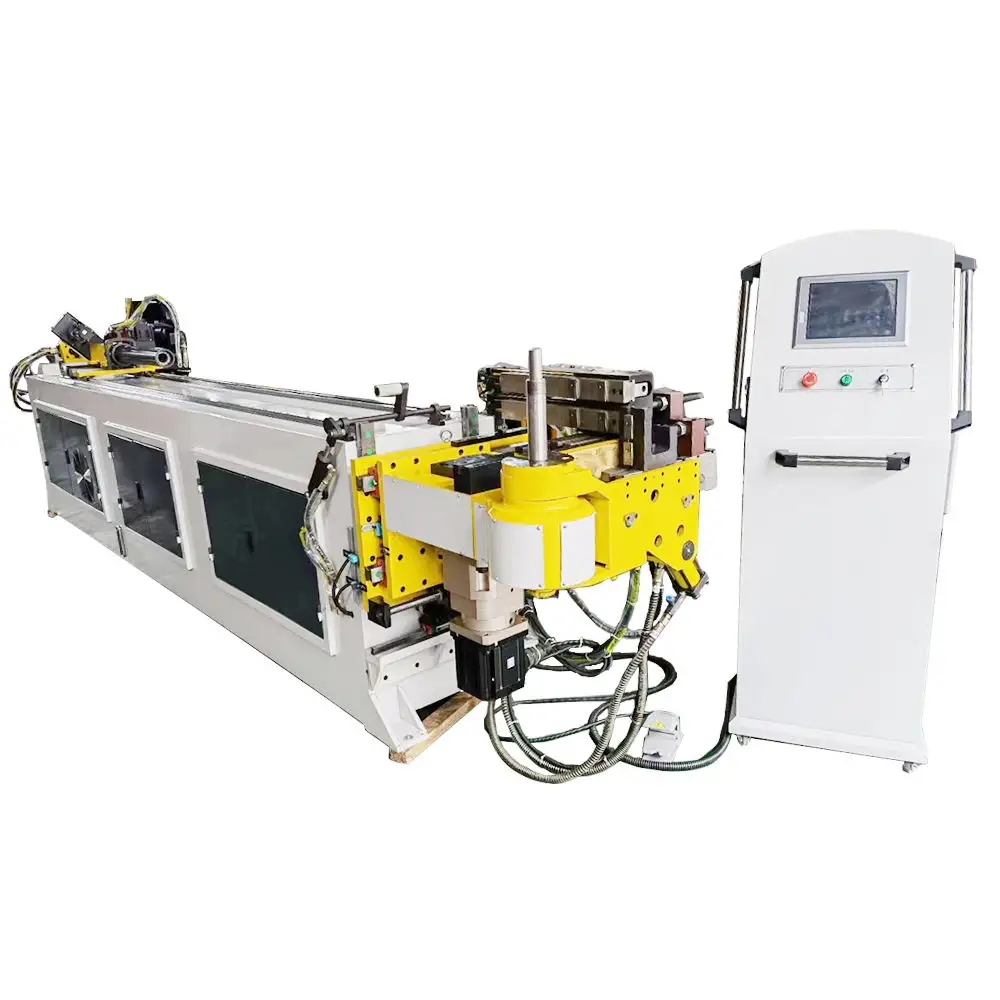

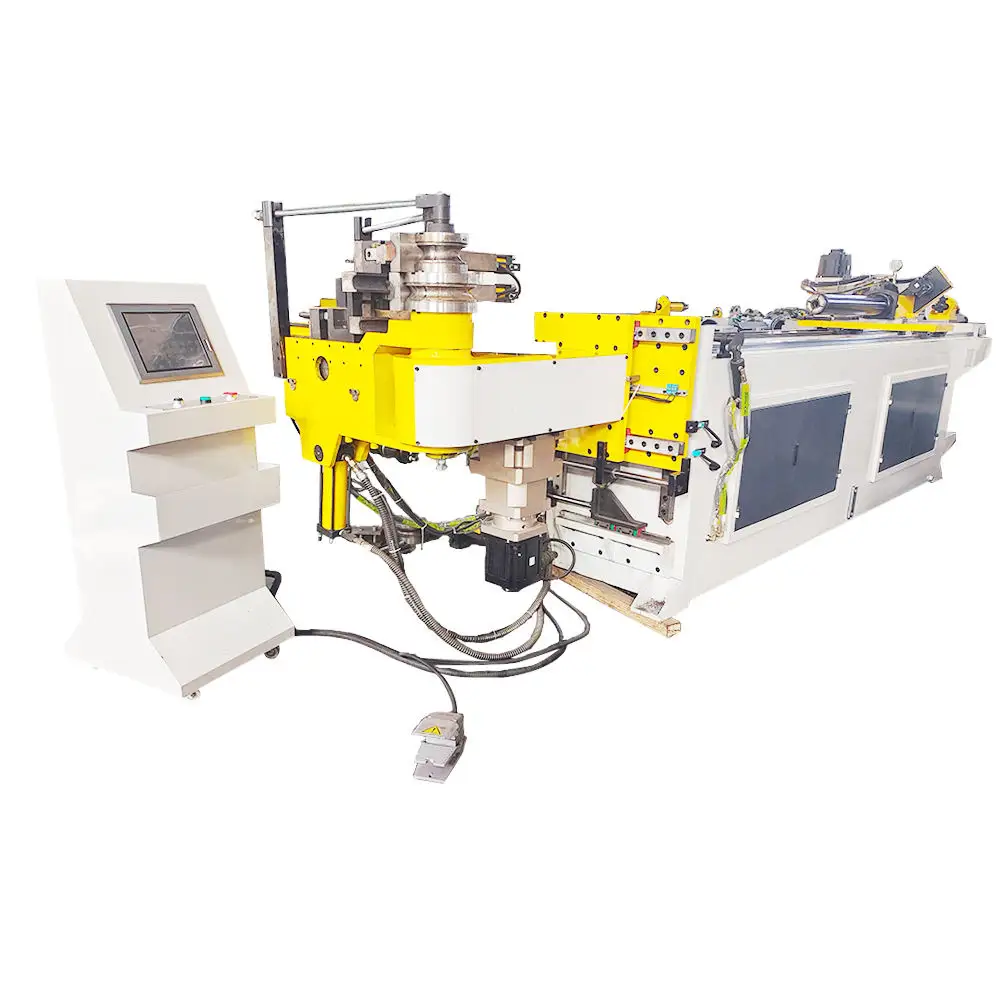

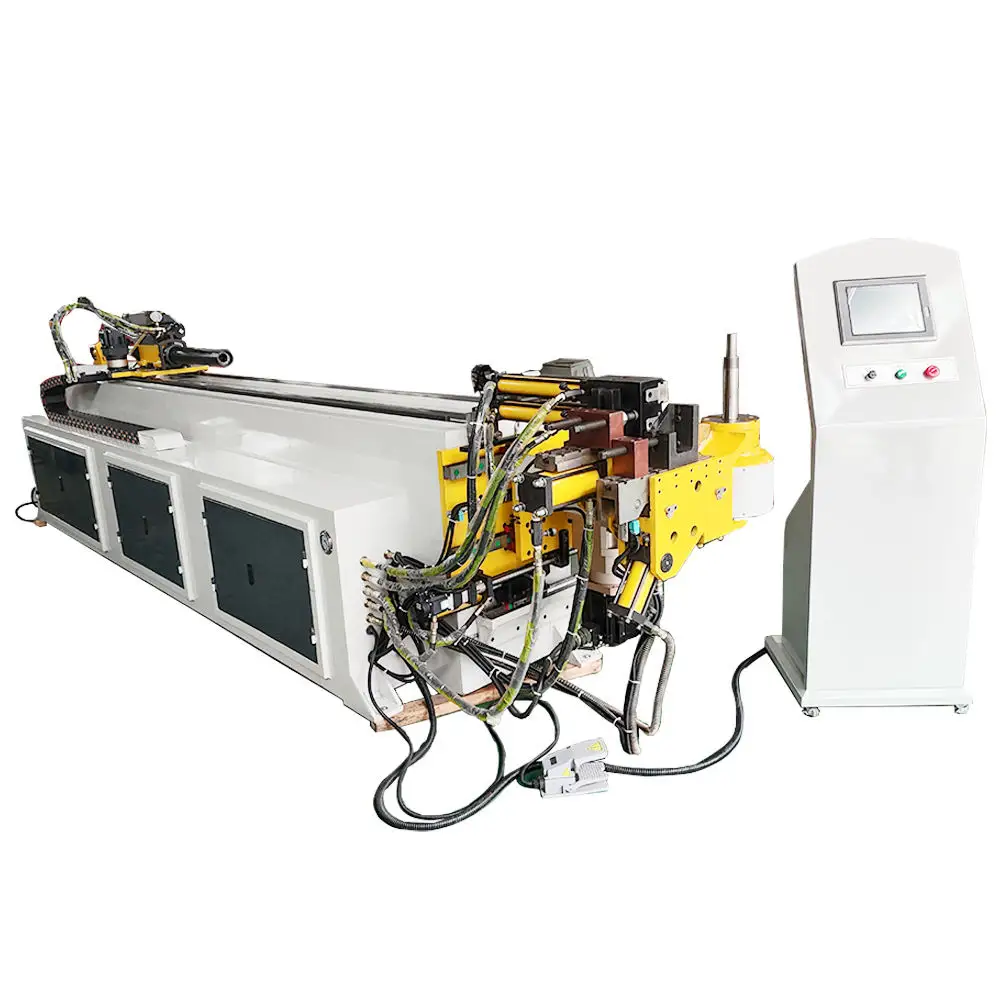

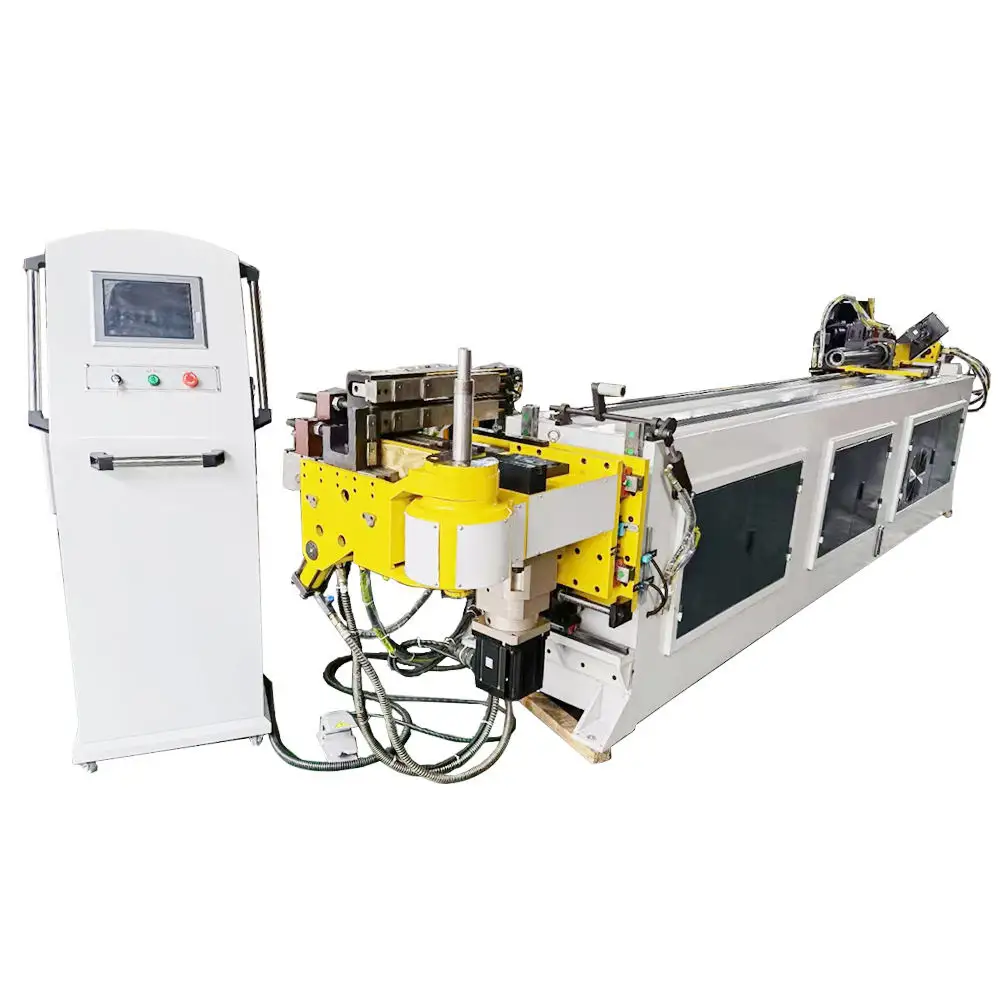

Automatic Hydraulic Pipe Bending Machine with Mandrel for Pipe Forming

Automatic Hydraulic Pipe Bending Machine with Mandrel for Pipe Forming

The Automatic Hydraulic Pipe Bending Machine with Mandrel is designed for controlled bending and forming of metal pipes and tubes in industrial fabrication applications. By combining hydraulic bending power with a mandrel-assisted forming system,the machine can help produce consistent bends while reducing deformation in suitable tube materials.

This type of pipe bending equipment is commonly used for steel tubes,stainless steel pipes,carbon steel tubing,and other compatible metal tube materials. It can be applied in automotive components,exhaust systems,furniture frames,construction equipment,industrial machinery,handrails,structural fabrication,and general metalworking.

The automatic operating system can help simplify repetitive bending operations. Depending on the machine configuration,it may control bending sequences,feeding,rotation,positioning,or other forming operations. The actual level of automation should be confirmed according to the selected model and control system.

Hydraulic Pipe Bending System

Hydraulic power provides the force required to bend metal pipes and tubes through dedicated tooling. Compared with manual tube bending methods,a hydraulic system can provide controlled forming force for repeatable production.

The bending process depends on several factors,including tube diameter,wall thickness,material strength,bend radius,tooling configuration,and required production speed. Proper hydraulic pressure and tooling selection are important for achieving stable bending results.

The machine can be configured for different pipe sizes and applications. Customers should provide tube dimensions and material information before ordering so the appropriate hydraulic system and tooling can be selected.

Mandrel Tube Bending Technology

The mandrel is an important component when bending tubes where internal support is required. During the bending process,the mandrel is positioned inside the tube near the bending area to help support the tube wall.

Mandrel bending can help reduce common forming problems such as excessive flattening,wrinkling,and undesirable deformation,especially when processing relatively thin-wall tubes or tighter bend radii.

Different mandrel designs may be used according to the application. Common configurations can include plug mandrels,ball mandrels,and other specialized internal support systems. The appropriate mandrel design depends on the tube material,diameter,wall thickness,and required bend geometry.

Actual bending quality depends on the complete tooling system rather than the mandrel alone.

Automatic Pipe Bending Operation

Automatic operation can improve production consistency when the same or similar pipe shapes need to be manufactured repeatedly.

Depending on the machine configuration,the operator may input bending parameters such as bend angle,sequence,position,or other process information. The machine can then execute the programmed bending cycle according to its control system.

Automation can reduce repetitive manual positioning and help standardize production procedures. However,operators still need to load the workpiece correctly,verify tooling,and monitor the bending process.

For high-volume production,the machine can be integrated into a broader tube processing workflow that may include cutting,end forming,drilling,flaring,welding,and other operations.

Pipe Forming Applications

The machine is suitable for various pipe and tube forming applications. Typical products may include:

Automotive exhaust pipes

Motorcycle exhaust tubes

Hydraulic tubing

Stainless steel handrails

Metal furniture frames

Chair and table frames

Steel equipment frames

Construction tubing

Agricultural machinery components

Industrial machine tubing

Guardrails and safety rails

Custom metal structures

The final application depends on the machine's rated bending capacity and available tooling.

Steel and Stainless Steel Tube Bending

The hydraulic pipe bending machine can be configured for suitable carbon steel,mild steel,stainless steel,and other metal tubes.

Stainless steel often requires careful control of tooling alignment,bending speed,and lubrication because of its material characteristics. Carbon steel tubing may allow different process parameters depending on grade and wall thickness.

For thin-wall tubing,the mandrel and other internal support components can become particularly important because uncontrolled bending may cause flattening or wrinkling.

Customers should provide the material grade,outer diameter,wall thickness,and desired bend radius when selecting the machine.

Bend Radius and Tooling Selection

Tooling has a major influence on the final geometry of a bent pipe. The bending die determines the primary bend radius,while the clamp die,wiper die,pressure die,and mandrel can support the tube during forming.

For tight-radius bending,the tooling must be selected carefully to match the tube dimensions and material characteristics.

Different pipe sizes generally require corresponding tooling sets. Custom dies can also be considered when a customer needs special tube shapes or production-specific bending geometry.

Before production,the required tube drawing or sample is useful for determining the appropriate tooling arrangement.

Production Efficiency

Automatic hydraulic tube bending can help reduce repetitive manual work and improve production workflow.

For repeated components,the machine can provide a consistent bending sequence once the correct parameters and tooling have been established. This can be useful for manufacturers producing batches of similar pipes.

Actual production capacity depends on tube size,bend angle,number of bends per workpiece,loading method,material characteristics,and machine configuration.

A machine designed for one specific tube size and high-volume production may have a different configuration from a flexible machine intended to process multiple tube dimensions.

Bending Quality and Accuracy

Tube bending quality depends on the relationship between the machine,tooling,material,and process parameters.

Important factors include:

Tube outer diameter

Tube wall thickness

Material strength

Bend radius

Mandrel position

Bending speed

Clamping force

Lubrication

Tool alignment

Springback characteristics

Springback is a natural characteristic of metal tube bending. The machine may need suitable parameter adjustment or compensation to achieve the required final angle.

For precision applications,customers should provide drawings with dimensional tolerances so the machine configuration and tooling can be evaluated accordingly.

Applications in Automotive and Industrial Manufacturing

Mandrel tube bending is widely applicable to industries where formed tubes need controlled geometry.

In automotive manufacturing,the machine can be used for exhaust tubing,structural tubes,fluid lines,and other tubular components when the required dimensions fall within the machine's capacity.

In furniture manufacturing,it can process suitable steel or stainless steel tubes for chairs,tables,frames,and display structures.

Construction and industrial manufacturers may use bent tubing for handrails,guardrails,machine frames,and equipment structures.

Maintenance and Safety

Hydraulic pipe bending equipment should be operated by trained personnel and maintained according to the manufacturer's instructions.

Routine maintenance may include checking hydraulic oil,hoses,fittings,and cylinders,as well as inspecting bending dies,mandrels,clamps,and other tooling components.

Operators should keep hands away from moving tooling and the bending area during operation. Appropriate guards,emergency-stop devices,and other protective systems may be included depending on the machine configuration.

The correct workpiece support and loading procedure should also be followed to reduce the risk of unexpected movement during bending.

OEM and Custom Pipe Bending Solutions

Different customers have different tube dimensions,bend radii,and production requirements. Therefore,the machine can be configured around specific applications.

Customization may include bending tooling,mandrel assemblies,hydraulic components,control systems,workpiece supports,feeding arrangements,and other machine options.

For OEM and ODM projects,customers should provide tube drawings,material information,outer diameter,wall thickness,bend radius,bend angles,and expected production volume.

Samples or CAD drawings can help engineers evaluate the required bending process and tooling configuration.

Why Choose Us

Automatic Hydraulic Bending – Provides controlled hydraulic forming for repetitive pipe and tube bending applications.

Mandrel-Assisted Forming – Internal mandrel support can help reduce tube deformation during suitable bending operations.

Flexible Tube Applications – Suitable for compatible steel,stainless steel,carbon steel,and other metal tubing.

Industrial Pipe Forming – Designed for automotive,furniture,construction,machinery,and general metal fabrication.

Custom Tooling Options – Bending dies,mandrels,and supporting tooling can be selected according to tube dimensions and bend geometry.

Consistent Production – Automatic control can help standardize repeated bending sequences and reduce repetitive manual positioning.

B2B Manufacturing Support – Suitable for manufacturers,fabricators,distributors,and industrial machinery buyers.

OEM & ODM Solutions – Machine configuration and tooling can be evaluated according to customer drawings,samples,and production requirements.

FAQs

1. What is an automatic hydraulic pipe bending machine with mandrel?

It is a hydraulic tube bending machine that uses an internal mandrel to support the tube during bending while providing automated or controlled forming operations.

2. What is the purpose of the mandrel?

The mandrel supports the inside of the tube during bending and can help reduce flattening,wrinkling,and other deformation when properly selected and positioned.

3. What materials can the machine bend?

Depending on the machine configuration,it can process suitable carbon steel,mild steel,stainless steel,and other compatible metal tubes.

4. Can it bend stainless steel tubes?

Yes. Stainless steel tubing can be bent when the machine,tooling,mandrel,and process parameters are properly selected for the material.

5. Is it suitable for automotive exhaust pipes?

Yes. Mandrel tube bending is commonly applicable to suitable exhaust tubing and other automotive tubular components.

6. Does every pipe size use the same mandrel?

No. Mandrel dimensions and configuration should correspond to the tube diameter,wall thickness,material,and bending requirements.

7. Can the machine perform multiple bends on one tube?

Depending on the control system and machine configuration,it can perform programmed multi-bend sequences on suitable workpieces.

8. What affects tube bending accuracy?

Tube material,diameter,wall thickness,bend radius,tooling,mandrel position,clamping force,bending speed,and springback can all affect accuracy.

9. Can the machine handle thin-wall tubes?

Yes,when the machine and mandrel tooling are properly configured. Internal support can be particularly useful for suitable thin-wall tube applications.

10. Can custom bending dies be supplied?

Yes. Custom tooling can be evaluated according to tube dimensions,bend radius,shape,and production requirements.

11. Is the machine fully automatic?

The automation level depends on the specific machine model. Some systems can control bending sequences and positioning,while loading and unloading may still require operator involvement.

12. What information is needed for a quotation?

Provide the tube material,outer diameter,wall thickness,bend radius,bend angles,number of bends,required production volume,and tube drawings or samples if available.
