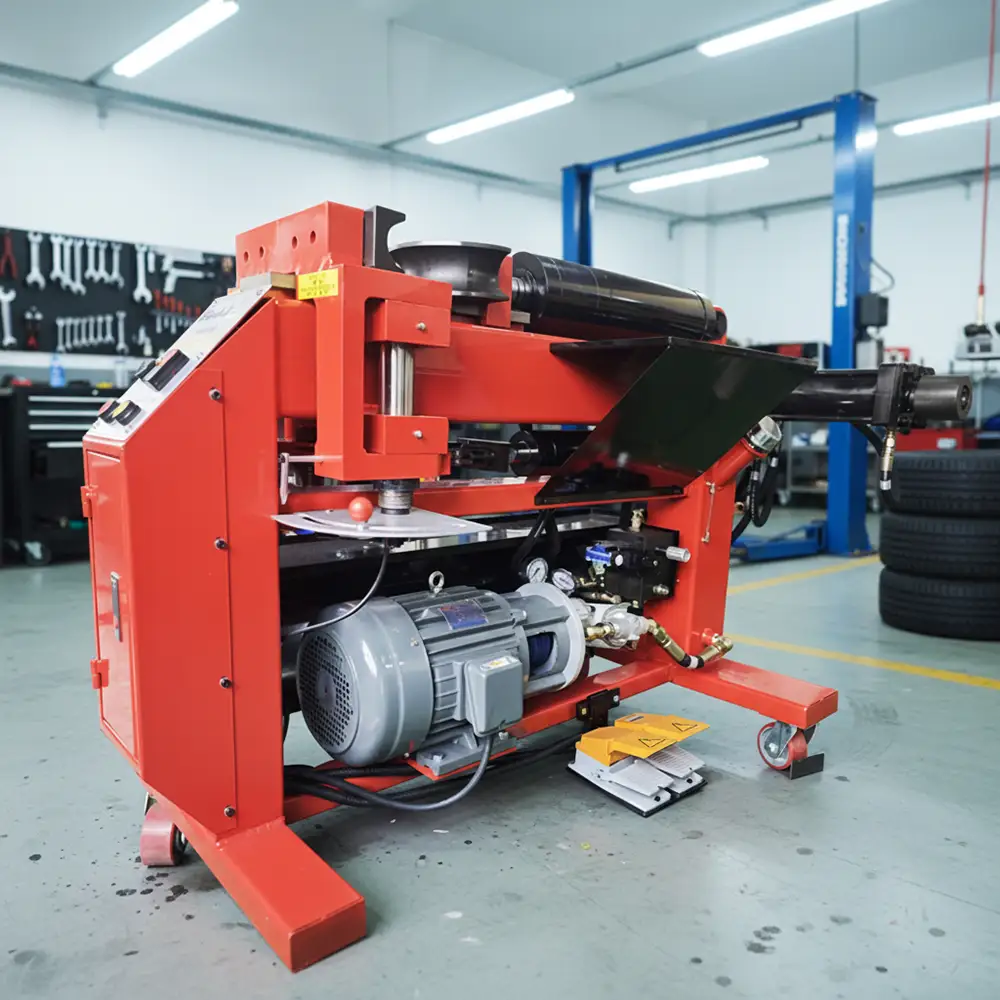

Exhaust Fabrication Machine 1/2＂ - 3＂ Hydraulic Pipe Bender with Tube Reducer and Expander for Muffler Shops Huth

The Exhaust Fabrication Machine 1/2"–3" Hydraulic Pipe Bender With Tube Reducer and Expander is a versatile tube-processing solution designed for muffler shops,automotive exhaust repair facilities,custom exhaust fabricators,and metalworking businesses. Combining hydraulic pipe bending with tube reducing and expanding functions,the machine can support a wide range of exhaust fabrication and repair operations in one practical workstation.

With a stated tube size range of approximately 1/2 inch to 3 inches,the machine is designed for processing suitable small- and medium-diameter exhaust tubes. The actual working range and forming capability should always be confirmed according to the specific machine configuration,tooling,tube material,and wall thickness.

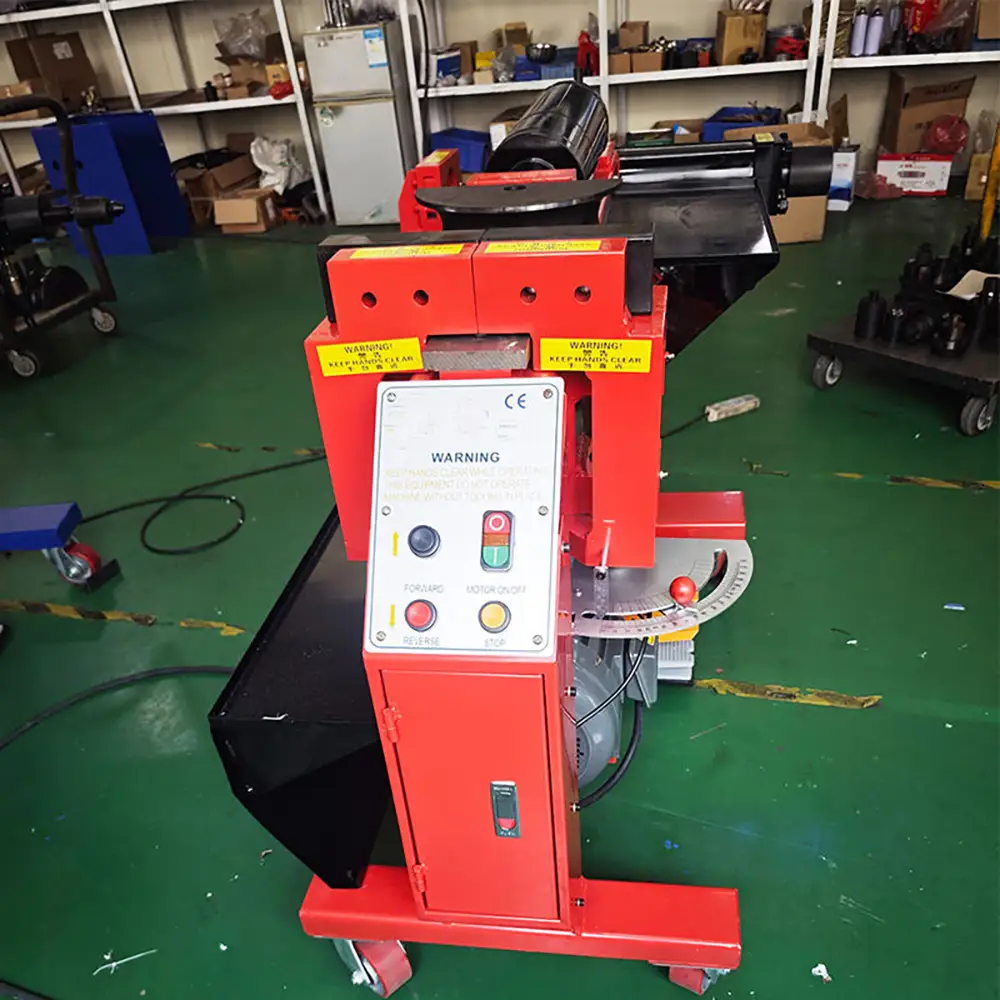

Hydraulic Exhaust Pipe Bending

The hydraulic pipe bending function provides controlled forming force for suitable exhaust tubes. Hydraulic forming can be useful for producing repeatable bends in steel,stainless steel,and other compatible metal tubing.

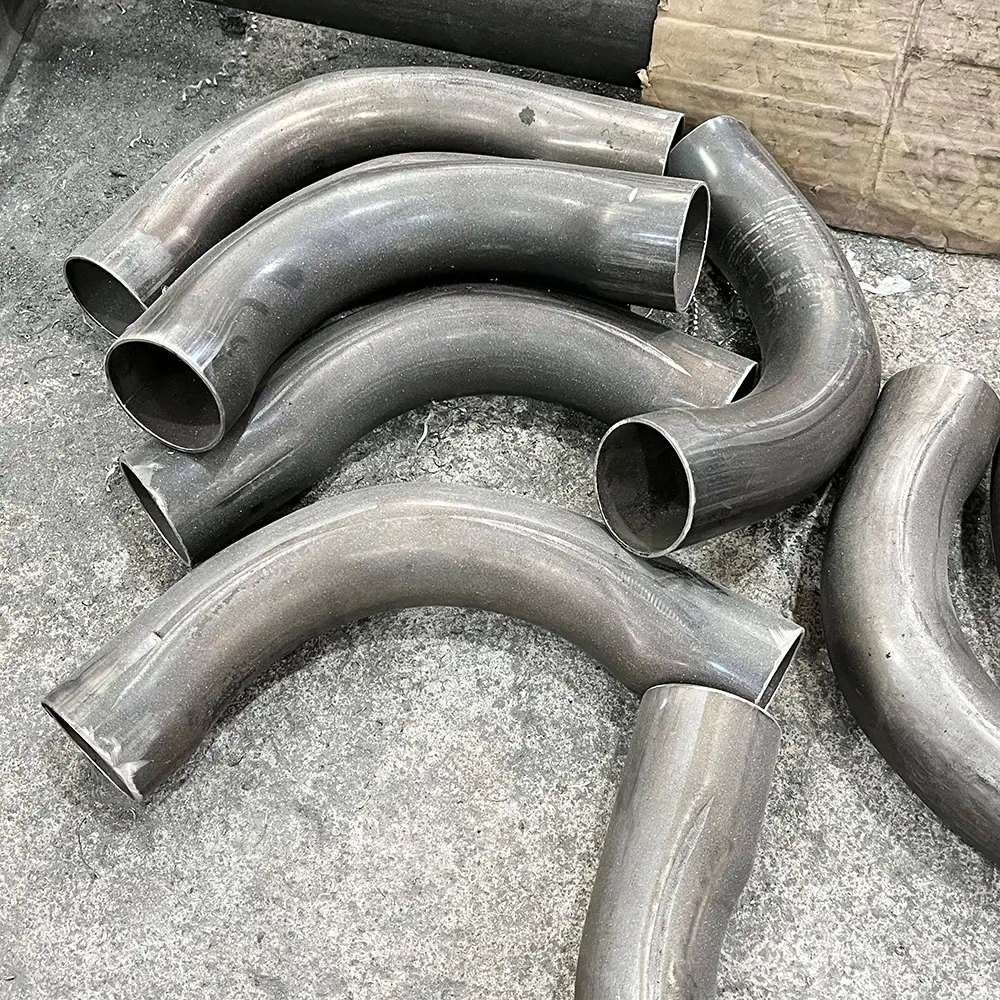

Exhaust pipes frequently require multiple bends to follow the routing requirements of a vehicle. The tube may need to pass around the chassis,engine components,suspension parts,and other vehicle structures. A dedicated exhaust pipe bender allows fabricators to form these tubes according to the required geometry.

Bending results depend on tube diameter,wall thickness,material properties,bending radius,die design,and forming parameters. Proper tooling selection is therefore important when processing different exhaust tube sizes.

1/2"–3" Tube Processing

The 1/2"–3" size range makes this type of exhaust fabrication equipment suitable for many common tube-processing applications. Smaller tubing may be used for specific automotive or specialty components,while larger tubing is frequently used for exhaust pipes and custom performance exhaust systems.

Different tube diameters normally require appropriately matched bending dies,reducers,expanders,and fixtures. Operators should select tooling according to the actual tube dimensions rather than assuming that one tool can process the complete size range.

For production involving multiple tube sizes,an interchangeable tooling system can provide greater flexibility.

Tube Reducing Function

The tube reducer function is designed to reduce the diameter of a selected tube section. This can be useful when fabricating stepped exhaust pipes,transition sections,or connection ends that need to match components of different diameters.

In muffler shop applications,reducing a tube can help create a suitable connection between different exhaust components. The forming process must be controlled to avoid excessive deformation,wrinkling,or cracking.

The final reduced diameter depends on the tooling,tube material,wall thickness,and machine configuration. Sample testing is recommended when establishing a new reducing application.

Tube Expanding Function

The tube expander is used to increase the diameter of a selected tube section or pipe end. Expanded ends are commonly used to create connection areas between exhaust tubes and other exhaust-system components.

For exhaust repair shops,the expansion function can be useful when adapting replacement tubing to an existing vehicle exhaust system. It can also support custom exhaust fabrication where two components require a formed overlap connection.

The amount of expansion that can be achieved depends on the tube material,wall thickness,starting diameter,and expansion tooling. Excessive forming should be avoided because it may damage the tube.

Muffler Shop Applications

Muffler shops and exhaust repair businesses often need equipment that can handle different tube diameters and custom repair requirements. Unlike standardized mass-production environments,repair facilities may process different vehicle models and exhaust designs throughout the day.

A multifunction exhaust fabrication machine can provide bending,reducing,and expanding capabilities from one workstation. This can reduce the need to transfer tubes between separate forming machines.

Typical shop applications include replacement exhaust pipes,custom exhaust systems,muffler connections,tailpipes,transition tubes,performance exhaust components,and exhaust repair parts.

Custom Exhaust Fabrication

Custom exhaust fabrication often requires tubes to be shaped according to a specific vehicle or installation environment. Bend location,bending radius,pipe orientation,and connection diameter can all vary between projects.

The hydraulic bender can support suitable custom exhaust work when the required tube dimensions and geometry fall within the machine's capabilities. Fabricators can use measurements,templates,vehicle components,or drawings to establish the required geometry.

For frequently repeated exhaust designs,dedicated fixtures and tooling can help improve production consistency.

Stainless Steel and Steel Tube Processing

Exhaust systems may use stainless steel,mild steel,carbon steel,and other suitable tubing materials. Stainless steel is commonly selected for applications where corrosion resistance is important,while carbon and mild steel may be used for other exhaust and fabrication requirements.

Different materials respond differently to bending,reducing,and expanding. Stainless steel can require carefully controlled forming parameters because of its strength and work-hardening characteristics.

Before processing a new material or tube specification,operators should verify tooling compatibility and conduct sample testing when necessary.

Tooling and Dies

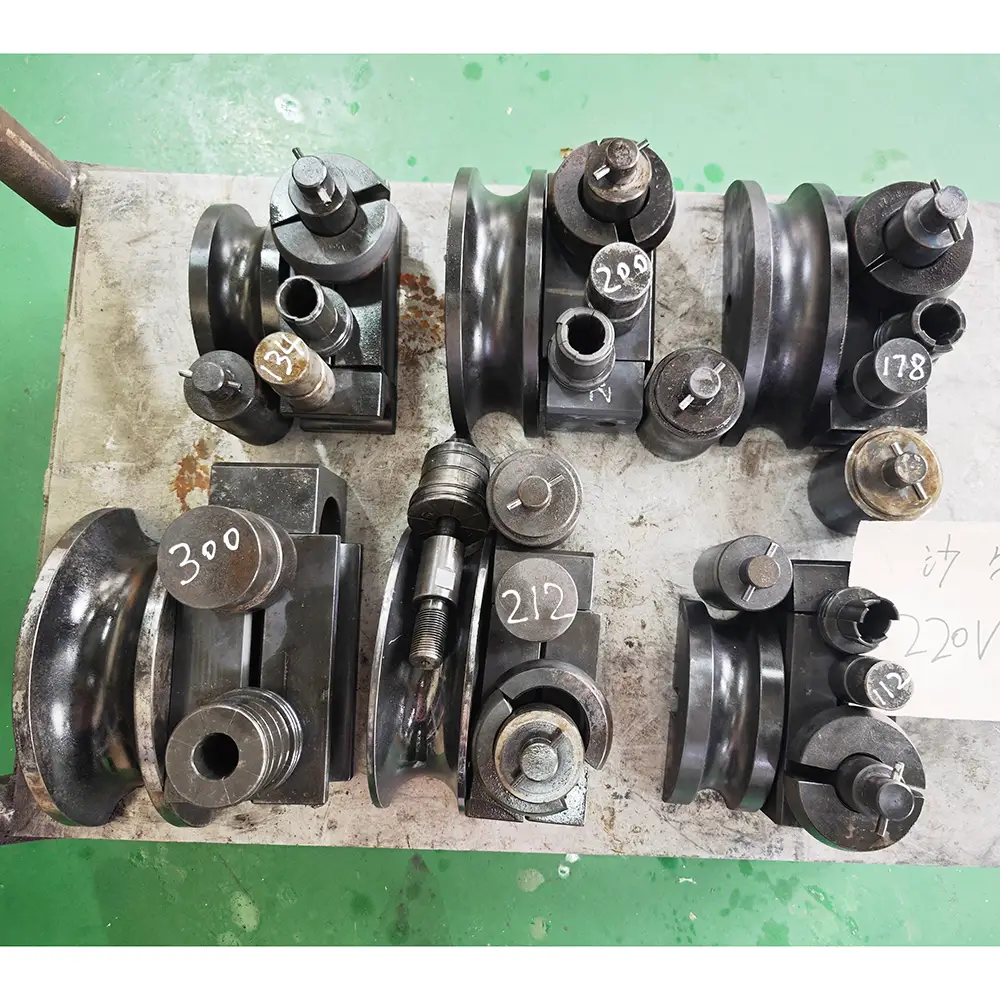

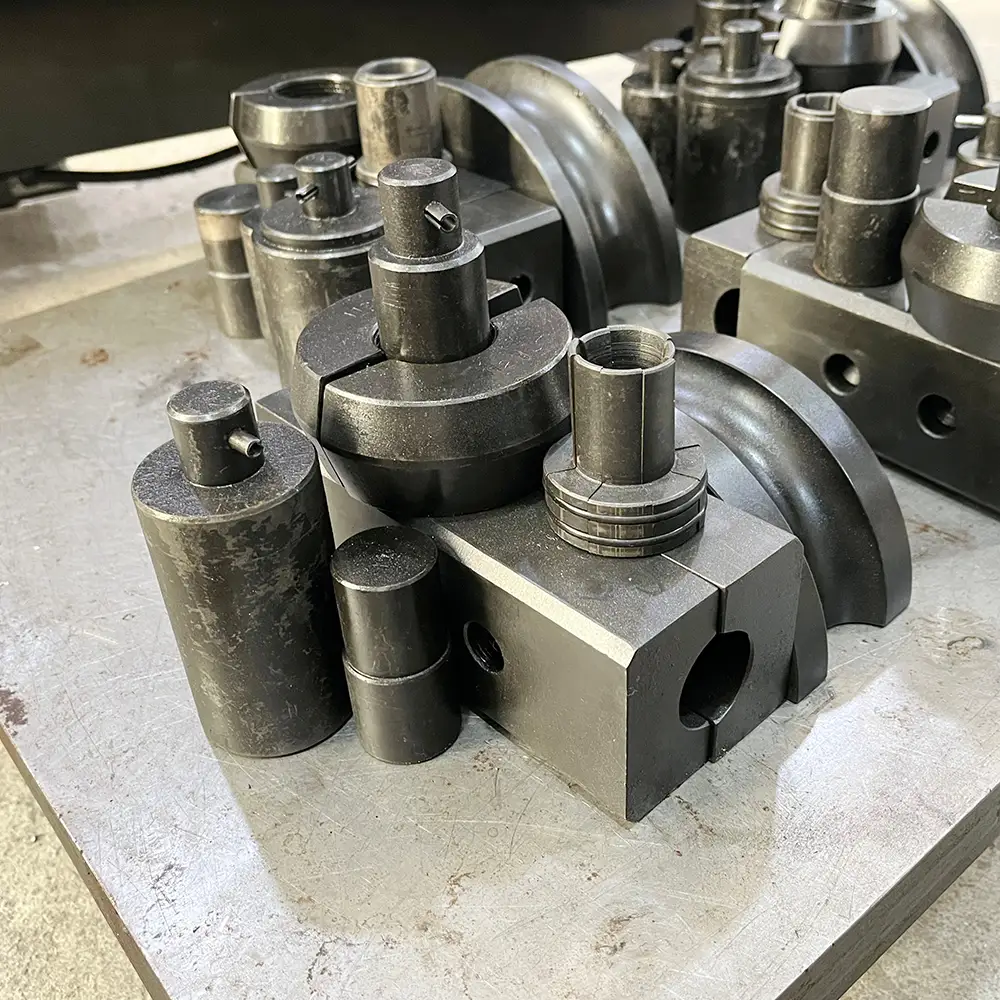

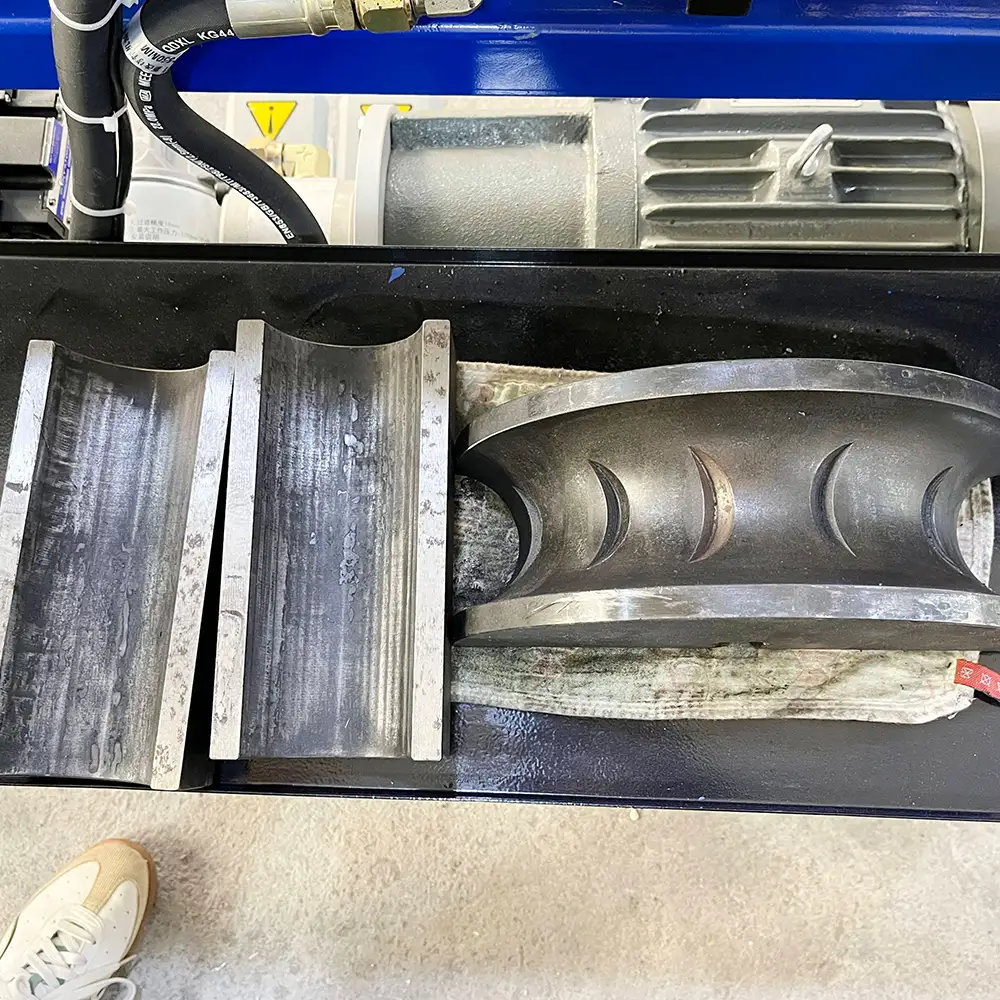

Tooling is one of the most important factors affecting exhaust tube forming quality. Bending dies must match the tube diameter and desired bending radius. Reducer and expander tools must also match the required final dimensions.

For shops processing several tube sizes,a selection of interchangeable tools can increase machine versatility. Custom tooling may also be developed for specific exhaust components or production requirements.

Tool wear should be monitored regularly. Damaged or excessively worn tooling can affect tube dimensions,surface condition,and repeatability.

Production Efficiency

Combining bending,reducing,and expanding functions in one machine can simplify the exhaust fabrication process. Operators can perform multiple forming operations at a single workstation rather than transferring the tube between several machines.

This can be particularly useful for muffler shops and custom exhaust businesses where job requirements change frequently.

Actual production speed depends on tube size,number of bends,forming operations,tool changes,loading and unloading,and operator experience. The machine should therefore be evaluated according to the actual production workflow.

Quality Control

Finished exhaust tubes should be checked for bend angle,bend location,bending radius,overall length,reduced diameter,and expanded diameter. For multi-bend components,the rotational orientation between bends is also important.

Visual inspection should check for excessive flattening,wrinkling,cracking,or surface damage. Calipers,gauges,templates,and custom inspection fixtures can be used when tighter dimensional control is required.

Maintenance and Safety

Regular maintenance helps maintain reliable hydraulic forming performance. Operators should inspect hydraulic hoses,fittings,forming tools,fixtures,and moving components according to the manufacturer's recommendations.

Tooling should be kept clean and inspected for wear. Hydraulic fluid and lubrication should be maintained according to the machine's service requirements.

Operators should be trained before using the machine and keep hands clear of moving and forming areas. Guards,emergency stops,and other protective devices should be used where provided. The machine should be installed and operated according to applicable workplace safety requirements.

Custom & OEM Solutions

Different muffler shops and exhaust manufacturers may require different tube sizes,forming geometries,and tooling configurations. OEM and ODM solutions can be developed according to customer requirements.

Customers can provide tube material,diameter,wall thickness,bending radius,bending angle,reduced diameter,expanded diameter,and sample drawings or parts. These details help determine the appropriate tooling and machine configuration.

Why Choose Us

Three-in-One Exhaust Processing – Combines hydraulic pipe bending,tube reducing,and tube expanding functions.

1/2"–3" Tube Range – Designed around a versatile tube size range for many automotive exhaust and fabrication applications.

Muffler Shop Friendly – Suitable for exhaust repair shops,custom exhaust fabricators,and automotive service businesses.

Hydraulic Forming – Provides controlled forming force for suitable metal tube applications.

Flexible Tooling – Bending dies,reducers,and expanders can be selected according to tube dimensions.

Custom Exhaust Support – Suitable for replacement pipes,custom exhaust systems,muffler connections,and repair components.

OEM & ODM Capability – Machine configuration and tooling can be adapted to specific production requirements.

B2B Industrial Solution – Suitable for exhaust manufacturers,automotive suppliers,repair equipment distributors,and metalworking businesses.

FAQs

1. What is an exhaust fabrication machine?

An exhaust fabrication machine is equipment designed to process metal tubes used for exhaust systems through operations such as bending,reducing,expanding,and other forming processes.

2. What tube sizes can this machine process?

The stated working range is approximately 1/2 inch to 3 inches. The actual capacity should be confirmed according to the specific machine model,tooling,and tube specifications.

3. Can it bend exhaust pipes?

Yes. The hydraulic pipe bending function is designed for suitable exhaust tubes and other compatible metal pipes.

4. Can it reduce tube diameter?

Yes. The tube reducer function can reduce selected tube sections or pipe ends for transition and connection applications.

5. Can it expand exhaust pipe ends?

Yes. The tube expander can enlarge suitable tube sections or ends to create connection areas for exhaust components.

6. Is it suitable for muffler shops?

Yes. The combination of bending,reducing,and expanding functions makes it suitable for many muffler repair and custom exhaust fabrication applications.

7. Can it process stainless steel tubing?

Yes,when the stainless steel tube dimensions and material properties are compatible with the machine and appropriate tooling is selected.

8. Can it process different tube diameters?

Yes,within the applicable machine range. Different tube sizes generally require properly matched bending,reducing,and expanding tooling.

9. Can it be used for custom exhaust systems?

Yes. It can support suitable custom exhaust fabrication when the required tube dimensions,bending geometry,and forming requirements are within the machine's capabilities.

10. What affects the bending result?

Tube material,diameter,wall thickness,bending radius,tooling,forming force,and workpiece positioning all affect the final bending result.

11. Can custom tooling be supplied?

Yes. Custom bending dies,reducing tools,expanding tools,fixtures,and other workholding components can be considered for specialized applications.

12. What information is needed for a quotation?

Provide tube material,diameter,wall thickness,bending angles,bending radius,reduced diameter,expanded diameter,part drawings,and expected production volume.
