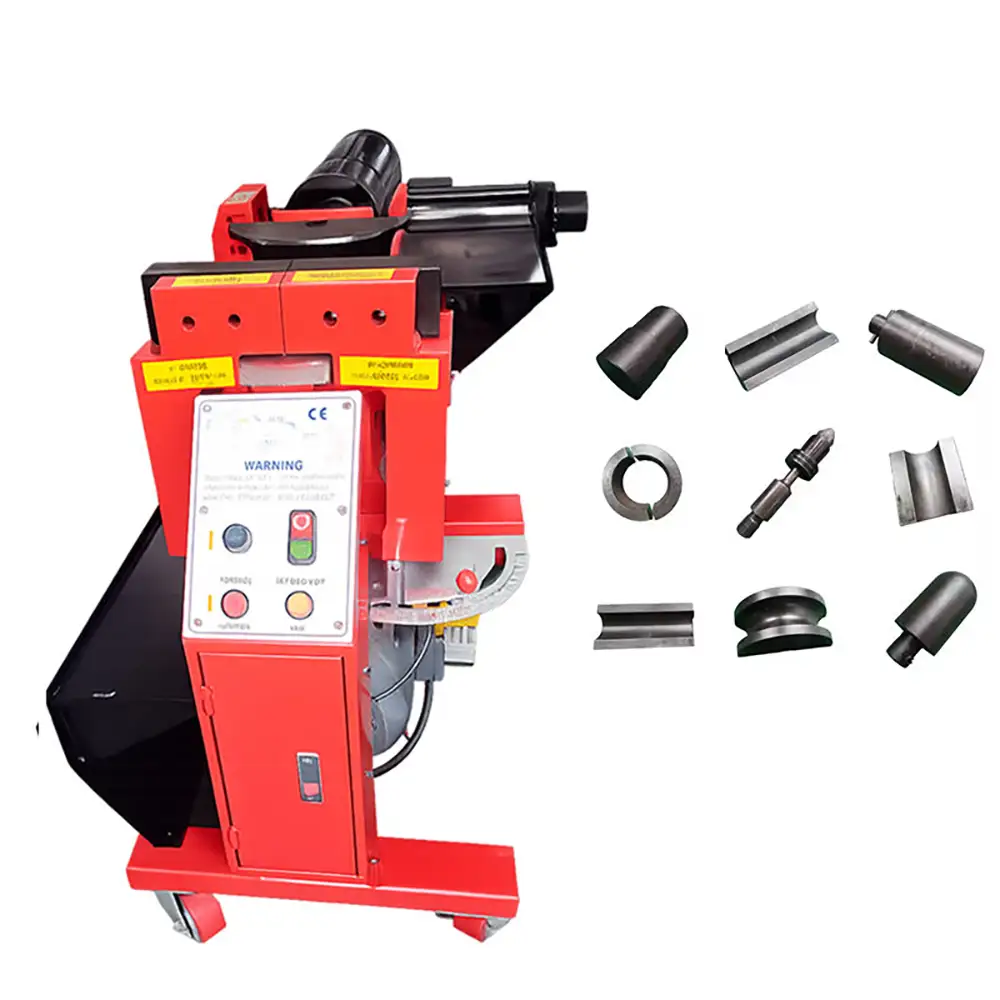

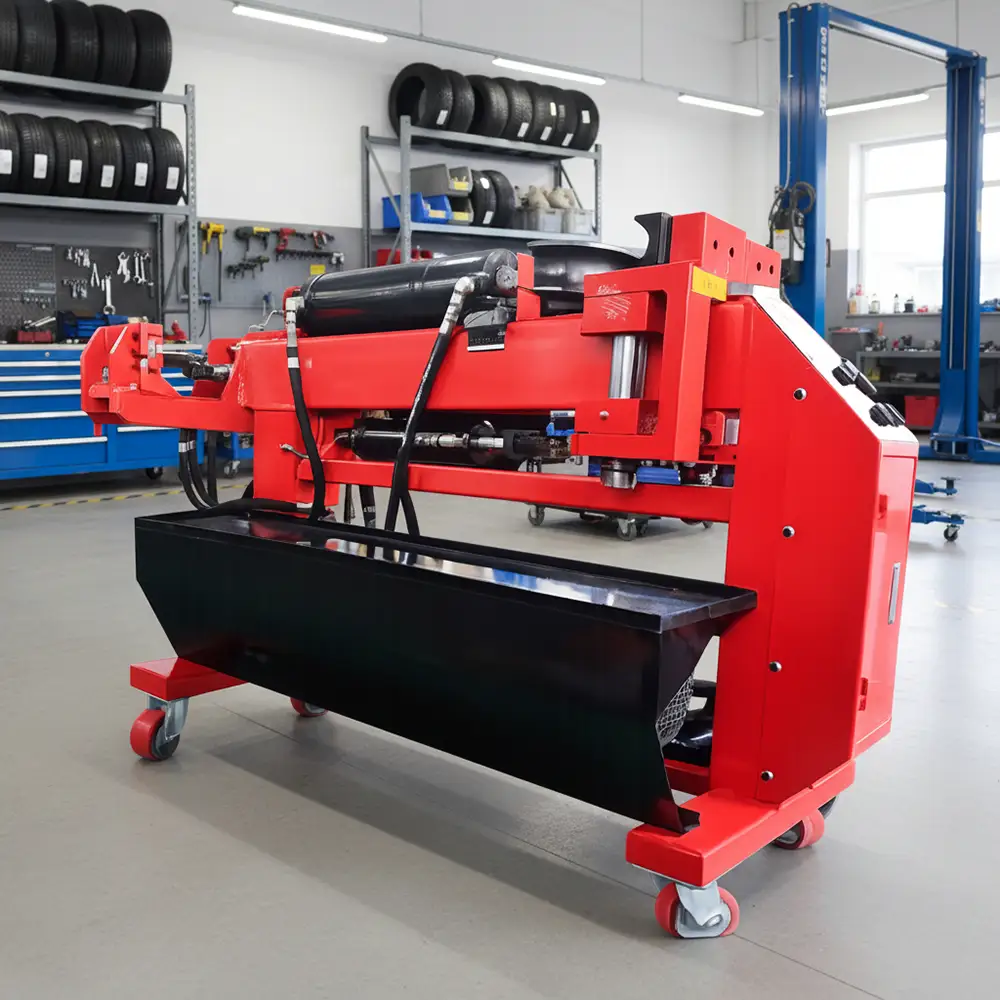

Hydraulic Exhaust Pipe Bending Expanding Shrinking Machine for Automotive Garage and Repair Service Tube Bender

The Hydraulic Exhaust Pipe Bending Expanding Shrinking Machine is a versatile tube-processing solution designed for automotive garages,exhaust repair shops,custom exhaust fabricators,and metalworking businesses. Combining hydraulic pipe bending with expanding and shrinking functions,the machine can support a variety of exhaust tube forming and repair applications in one practical workstation.

Automotive exhaust pipes often require different forming operations depending on the vehicle,pipe diameter,and repair or fabrication requirement. A replacement exhaust tube may need to be bent to match the original routing,expanded for a connection,or reduced at one end to fit another component. Integrating these functions into one machine can reduce the need for multiple pieces of specialized equipment.

Hydraulic Exhaust Pipe Bending

The hydraulic bending system provides controlled forming force for suitable metal exhaust tubes. Hydraulic operation can be useful when processing tubes that require stable and repeatable bending force.

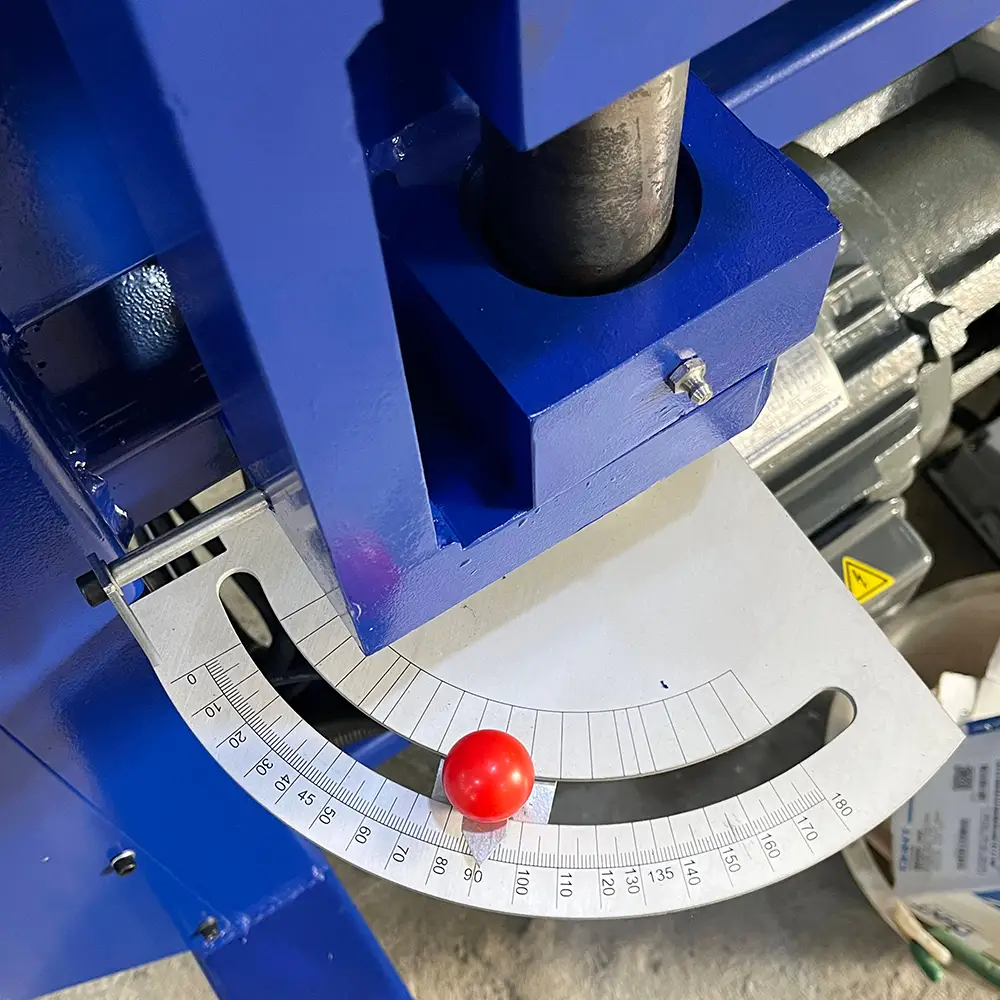

The bending process typically involves positioning the tube in a suitable die or fixture and applying controlled force to form the tube to the required angle or radius. The actual bending method depends on the machine configuration and tooling.

Tube diameter,wall thickness,material strength,bending radius,and required angle all influence the bending process. Customers should provide tube specifications and,when available,exhaust component drawings before selecting the appropriate machine.

Exhaust Pipe Expanding

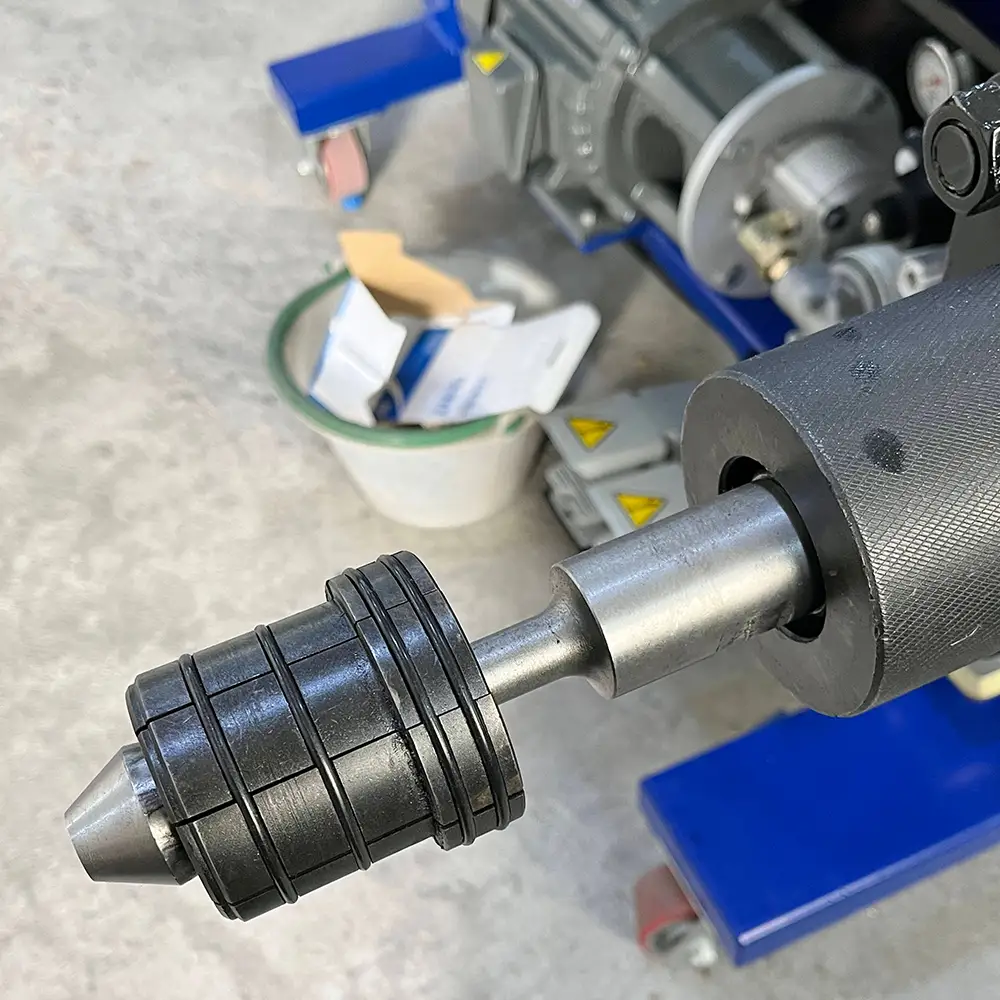

The expanding function is designed to increase the diameter of a selected section of an exhaust tube. Expanded pipe ends are commonly used when one exhaust component needs to fit over another tube or when a larger connection area is required.

This function can be particularly useful in automotive repair shops where replacement or custom exhaust pipes may need to be adapted to existing components.

The expansion range depends on the tooling,tube diameter,wall thickness,and material properties. Controlled forming is important because excessive expansion may cause cracking,wrinkling,or dimensional variation.

Exhaust Pipe Shrinking

The shrinking function reduces the diameter of a selected tube section. This can be useful for creating stepped exhaust pipes,transition sections,or smaller connection ends.

In a repair environment,the ability to reduce a tube diameter can help technicians adapt replacement components to different exhaust system dimensions. For fabrication businesses,it can support the production of custom exhaust parts.

Actual shrinking capability depends on the machine configuration and available tooling. Different tube sizes may require different dies or forming tools.

Automotive Garage and Repair Applications

The machine is particularly suitable for automotive garages and exhaust repair shops that need flexible tube-processing capabilities without installing a large industrial production line.

Common applications include repairing damaged exhaust pipes,producing replacement tubes,modifying exhaust routing,forming custom exhaust components,and preparing pipe ends for assembly.

For repair shops,flexibility is often important because vehicles may use different tube diameters,wall thicknesses,and exhaust configurations. Appropriate interchangeable tooling can help accommodate a wider range of repair jobs.

Custom Exhaust Fabrication

Custom exhaust fabrication requires accurate control of tube geometry. Performance vehicles,modified vehicles,off-road equipment,and specialty applications may require exhaust pipes with non-standard routing or connection dimensions.

The hydraulic exhaust tube bender can support custom fabrication when the required tube dimensions and bending geometry fall within the machine's working range.

Operators can use measurements,templates,or sample components to determine the required bend locations and angles. Custom dies can also be considered for frequently produced exhaust designs.

Stainless Steel and Steel Exhaust Tubes

Exhaust systems may use stainless steel,mild steel,carbon steel,and other suitable metal tubing. Stainless steel is common in many replacement and performance exhaust applications because of its corrosion resistance.

Different materials behave differently during bending,expanding,and shrinking. Stainless steel may require different tooling and forming parameters from mild steel. Material grade,wall thickness,and tube diameter should therefore be considered when setting up the machine.

Testing sample tubes is recommended when introducing a new material or tube specification.

Tube Bending Tooling

Tooling has a major influence on the final shape of a bent exhaust tube. Bending dies should match the tube diameter and required bending radius,while expanding and shrinking tools should match the desired final dimensions.

For automotive repair shops,interchangeable tooling can provide greater flexibility for different tube sizes. For manufacturers producing a specific exhaust model,custom tooling can help improve repeatability.

Tool condition should be checked regularly because worn or damaged tooling can affect surface quality,bend accuracy,and dimensional consistency.

Production and Repair Efficiency

Combining bending,expanding,and shrinking operations into one machine can simplify the exhaust fabrication workflow. Instead of transferring a tube between several separate machines,the operator can perform multiple forming operations at one workstation.

This can be useful for both repair work and small-batch custom exhaust production. Actual processing time depends on tube dimensions,the number of bends,forming operations,tool changes,and operator workflow.

The machine should be selected according to the actual application rather than assuming that all exhaust tubes can be processed using the same tooling.

Workpiece Positioning

Correct positioning is essential for producing the desired exhaust geometry. Before bending,the operator should confirm tube orientation,bend location,and required angle.

For repeated production,jigs,fixtures,stops,or templates can help maintain consistent positioning. In repair applications,a sample component or vehicle-specific measurements may be used as a reference.

Proper positioning also helps reduce errors when a tube contains multiple bends or requires subsequent expanding or shrinking.

Quality Control

Finished exhaust tubes should be checked for bend angle,bend location,bending radius,tube diameter,and overall length. Expanded and reduced sections should also be inspected to confirm that they meet the required connection dimensions.

Visual inspection can help identify excessive wrinkling,cracking,flattening,or surface damage. For precision applications,calipers,gauges,templates,or dedicated inspection fixtures can be used.

Maintenance and Safety

Regular maintenance helps maintain reliable hydraulic operation. Operators should inspect hydraulic hoses,fittings,forming tools,fixtures,and moving components according to the manufacturer's recommendations.

The machine should be kept clean,and forming tools should be inspected for wear. Hydraulic oil and other service items should be maintained according to the specified maintenance schedule.

Operators should be trained before using the machine and keep hands clear of moving and forming areas. Guards,emergency stops,and other protective devices should be used where provided. Installation and operation should follow applicable workplace safety requirements.

Custom & OEM Solutions

Different garages,fabricators,and automotive manufacturers may have different tube sizes and forming requirements. We can support customized configurations involving bending dies,expanding tools,shrinking tools,fixtures,and positioning systems.

Customers can provide tube material,outer diameter,wall thickness,bending angle,bending radius,expansion diameter,shrinking diameter,and sample drawings or parts. These details help determine suitable machine and tooling configurations.

Why Choose Us

Three-in-One Tube Processing – Combines bending,expanding,and shrinking functions for versatile exhaust tube fabrication.

Hydraulic Forming Power – Controlled hydraulic force supports suitable automotive exhaust tube processing.

Garage-Friendly Design – Suitable for automotive garages,repair shops,and custom exhaust businesses.

Wide Exhaust Applications – Designed for suitable exhaust pipes,muffler tubes,connecting pipes,and custom exhaust components.

Flexible Tooling – Interchangeable and customized tooling can support different tube diameters and forming requirements.

Repair and Fabrication Support – Suitable for both exhaust repair work and custom tube production.

OEM & ODM Capability – Machine configuration and tooling can be adapted to specific customer requirements.

B2B Technical Support – Suitable for automotive suppliers,repair equipment distributors,exhaust manufacturers,and metal fabrication businesses.

FAQs

1. What is a hydraulic exhaust pipe bender?

It is a hydraulic tube-forming machine designed to bend suitable metal exhaust pipes and tubes to required angles and radii.

2. Can this machine expand exhaust pipes?

Yes. The machine includes an expanding function for suitable tube ends or sections. The actual expansion range depends on tooling and tube specifications.

3. Can it shrink exhaust pipes?

Yes. The shrinking function can reduce the diameter of suitable tube sections for connection or transition applications.

4. Is it suitable for automotive repair shops?

Yes. Its combination of bending,expanding,and shrinking functions makes it suitable for many exhaust repair and custom fabrication applications.

5. Can it bend stainless steel exhaust pipes?

Yes,when the stainless steel tube specifications are within the machine's capacity and suitable bending tooling is used.

6. What tube materials can be processed?

Depending on the configuration,the machine can process suitable stainless steel,mild steel,carbon steel,and other metal tubes.

7. Can different pipe diameters be processed?

Yes,within the applicable machine range. Different diameters may require different bending,expanding,or shrinking tools.

8. Can the bending radius be customized?

The available bending radius depends on the machine and tooling. Custom bending dies can be considered for specific exhaust designs.

9. Is it suitable for custom exhaust fabrication?

Yes. It can support suitable custom exhaust pipes when the required tube dimensions and forming geometry fall within the machine's capabilities.

10. What affects bending quality?

Tube material,diameter,wall thickness,bending radius,tooling,forming force,and positioning all affect the final bending result.

11. Can custom tooling be supplied?

Yes. Custom bending dies,expanding tools,shrinking tools,fixtures,and other workholding components can be developed according to requirements.

12. What information should I provide for machine selection?

Provide tube material,outer diameter,wall thickness,bending angle,bending radius,expansion size,shrinking size,part drawings,and expected production volume.
