Self-Cleaning Stainless Steel Auto Oil Water Separator, SUS304 Automatic Oil Water Separator Easy Installation

Self-Cleaning Stainless Steel Automatic Oil Water Separator

The Self-Cleaning Stainless Steel Oil Water Separator is designed for separating free oil, grease and other floating hydrocarbons from wastewater. Manufactured with SUS304 stainless steel, this automatic oil water separator combines corrosion resistance, compact construction and simplified operation for industrial and commercial wastewater treatment applications.

Oil-water separators are commonly used as pretreatment equipment because free oil and water have different densities. Under suitable hydraulic conditions, oil droplets rise toward the surface while heavier solids can settle. Enhanced systems may also use coalescing components to improve the separation of smaller oil droplets.

The self-cleaning design helps reduce the need for frequent manual removal of accumulated separated oil. Depending on the specific configuration, automatic oil collection or discharge components can be integrated into the separator to support continuous or controlled operation.

What Is a Stainless Steel Oil Water Separator?

A stainless steel oil water separator is wastewater treatment equipment designed to separate oil from water before the wastewater enters downstream treatment processes or a discharge system.

The SUS304 oil water separator uses stainless steel as the main structural material. SUS304 is widely used for equipment where corrosion resistance, cleanability and mechanical durability are important considerations.

The separator can be configured with internal baffles, oil collection zones, settling areas, coalescing media, automatic oil skimming components and water outlet structures.

The exact configuration depends on the wastewater flow rate, oil concentration, solids loading, temperature and required effluent quality.

Parameter type	Common range	illustrate
Processing volume	0.5-100m³/h (customizable upon request)	Select the appropriate model based on the actual wastewater discharge volume, with a 20% margin.
Oil content in influent	≤5000mg/L (food service) / ≤10000mg/L (industrial)	Exceeding the limit requires preprocessing.
Oil content in effluent	≤10mg/L (National Standard Grade 1) / ≤20mg/L (Grade 2)	Complies with GB 8978-1996 Integrated Wastewater Discharge Standard
Work pressure	0.1-0.6MPa	Adapt to pipeline pressure requirements
Operating temperature	5-60℃	Heating devices can be installed at low temperatures to prevent grease from solidifying.
Separation efficiency	≥95% (floating oil) / ≥85% (dispersed oil)	Depends on equipment structure and processing technology
Control method	Fully automatic (PLC + sensor)	Supports automatic oil and water drainage, alarm functions, and some models can be networked for monitoring.

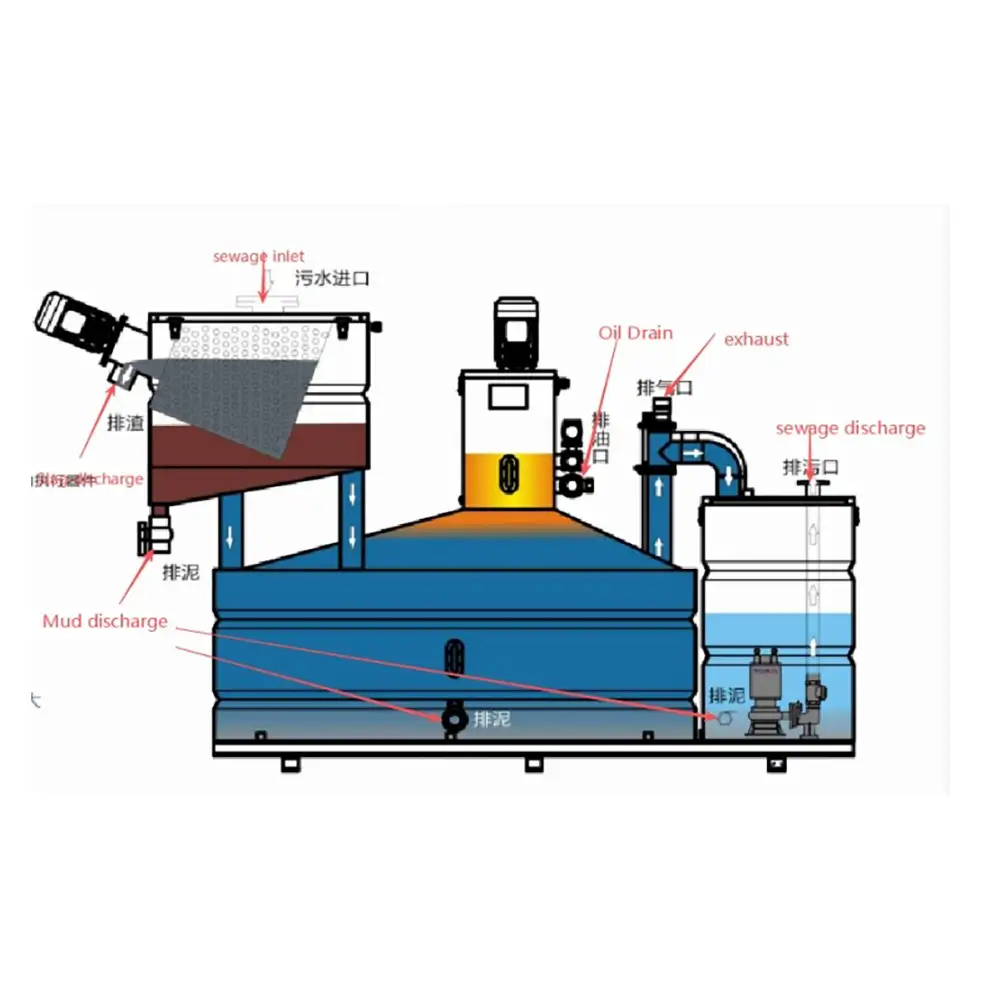

How Does an Automatic Oil Water Separator Work?

The basic separation process relies on the difference in density between oil and water.

Oily wastewater enters the separator through the inlet. Internal flow-distribution structures can reduce turbulence and help create appropriate conditions for oil droplets to rise. Free oil accumulates near the upper section while treated water is discharged through an outlet positioned below the oil layer.

EPA guidance describes this basic principle for gravity oil-water separators: sufficient hydraulic retention allows oil droplets to rise, while the water outlet is positioned below the accumulated oil layer. Diffusion baffles can also help reduce turbulence and resuspension.

For smaller oil droplets, enhanced gravity separators may use coalescing media. These structures promote contact between oil droplets so that they combine into larger droplets that can rise more readily.

The automatic version can incorporate oil-level detection, skimming or automatic oil discharge mechanisms to reduce manual intervention.

Equipment type	Structural features	Applicable Scenarios
Catering-specific type (buried/above ground)	Compact size, with residue filter, and odor-proof design	Hotels, restaurants, canteens, food streets and other catering establishments
Industrial-grade	Large throughput, resistant to high pressure and high temperature, and able to withstand impact loads	Food processing plants, slaughterhouses, machine shops, oilfield wastewater, etc.
Vehicle-mounted/Mobile	Integrated design, portable	Temporary food stalls, construction site canteens, and emergency sewage treatment.
Centrifugal high-efficiency	Using centrifugal separation technology, the separation speed is fast.	High-oil-content wastewater (such as machining fluid and waste oil recovery)

Self-Cleaning Oil Water Separation

One of the key advantages of this equipment is its self-cleaning concept.

During operation, separated oil can accumulate in the collection area. An automatic skimming or discharge mechanism can periodically remove accumulated oil according to the equipment configuration.

Self-cleaning operation can reduce the frequency of manual cleaning and help maintain a more consistent separation environment.

However, self-cleaning does not mean that the complete separator requires no maintenance. Accumulated sediment, internal components, sensors and discharge lines should still be inspected periodically. EPA operation and maintenance guidance for oil-water separation equipment includes checking accumulated oil and sludge and inspecting components such as coalescing packs.

SUS304 Stainless Steel Construction

SUS304 stainless steel provides an attractive construction option for oily wastewater treatment equipment where corrosion resistance and easy cleaning are important.

The stainless steel body can provide a smooth and durable surface that is suitable for industrial environments. Compared with conventional carbon steel construction, stainless steel can offer better resistance to many common water-treatment environments, although the appropriate material should always be selected according to the actual wastewater chemistry.

For applications involving aggressive chemicals, high chloride concentrations or specialized process liquids, a material evaluation should be performed before selecting SUS304.

Easy Installation

The compact structure of an automatic oil water separator can simplify installation in existing wastewater treatment systems.

Depending on the model and process configuration, the equipment can be installed as a standalone pretreatment unit or integrated upstream of biological treatment, filtration, dissolved air flotation, membrane treatment or other downstream processes.

Installation normally requires:

Wastewater inlet piping
Treated water outlet piping
Oil collection or discharge connection
Drain or sludge connection
Electrical connection for automatic components
Level or oil detection system when included
Access space for inspection and maintenance

The actual installation layout should be determined according to the equipment dimensions, hydraulic conditions, available space and required flow rate.

Oil Water Separator for Industrial Wastewater

Industrial wastewater can contain free oil, grease, lubricants and other hydrocarbon-based contaminants.

Potential applications include:

Automotive Workshops:
Vehicle maintenance facilities can generate oily wastewater from vehicle washing, floor cleaning and equipment maintenance.

Machinery Manufacturing:
Metalworking and machinery facilities may generate wastewater containing lubricating oils, cutting fluids and suspended solids.

Oil and Gas Applications:
Oily water generated during industrial operations may require oil-water separation as part of a larger wastewater treatment process.

Food Processing:
Grease and fats can be present in wastewater from food processing operations. Depending on the characteristics of the wastewater, oil and grease separation may be combined with screening, equalization, flotation or biological treatment.

Vehicle Washing:
Car wash and fleet maintenance wastewater can contain oil, grease, dirt and suspended solids. EPA guidance specifically identifies oil-water separators as treatment equipment used for vehicle and floor wash water.

Oil Removal and Downstream Treatment Protection

Oil-water separation is often used as a pretreatment stage.

Removing free oil before biological treatment, membrane filtration or other downstream processes can help reduce the contaminant load entering subsequent equipment.

For example, a treatment train may be configured as:

Screening → Oil Water Separator → Equalization → DAF → Biological Treatment → Filtration

Another application may use:

Oil Water Separator → Coalescing Treatment → Activated Carbon → Final Filtration

The appropriate configuration depends on wastewater characteristics and treatment objectives.

It is important to distinguish free oil from stable emulsified or dissolved oil. Conventional gravity separation and many coalescing systems are primarily intended for free or separable oil. Chemically stabilized emulsified oils may require additional treatment. EPA technical documentation notes that coalescing is generally not effective for soluble or chemically stabilized emulsified oils.

Automatic Oil Skimming

An automatic oil skimmer can continuously or intermittently remove oil accumulated at the water surface.

Depending on the design, the system may use a rotary skimmer, floating skimmer, slotted pipe, scraper or other oil collection mechanism.

Automatic oil removal can help reduce the accumulation of oil inside the separator and minimize manual cleaning requirements.

The recovered oil can be collected in a separate container or storage tank for appropriate handling, recycling or disposal.

Maintenance Requirements

Although automatic operation reduces manual intervention, routine inspection remains important.

Operators should check:

Oil accumulation
Sludge accumulation
Inlet and outlet conditions
Oil skimmer operation
Level sensors
Valves and discharge lines
Internal baffles or coalescing components
Electrical control system
Leakage and corrosion
Sediment buildup

Regular maintenance helps prevent accumulated solids from interfering with hydraulic performance. EPA guidance emphasizes routine removal of accumulated oil, grease and sediment from oil-water separation systems.

The maintenance interval should be determined according to actual wastewater loading rather than a universal schedule.

Why Choose Us

We focus on practical wastewater separation equipment designed for industrial and commercial treatment applications.

The SUS304 automatic oil water separator combines stainless steel construction, automatic oil separation and a compact configuration for customers who need reliable pretreatment equipment with reduced manual intervention.

Key advantages include:

SUS304 stainless steel construction
Automatic oil separation
Self-cleaning operation concept
Compact equipment configuration
Easy installation
Easy access for inspection
Suitable for industrial oily wastewater
Can be integrated with complete WWTP systems
Suitable for pretreatment applications
Flexible configuration according to flow and wastewater characteristics

We can evaluate separator configuration according to wastewater flow, oil concentration, suspended solids, temperature, installation conditions and downstream treatment requirements.

For applications involving significant emulsified oil, high suspended solids or complex industrial contaminants, additional pretreatment or combined treatment technologies may be required.

Frequently Asked Questions
1. What Is a Self-Cleaning Oil Water Separator?

It is an oil-water separation system equipped with automatic or semi-automatic mechanisms for collecting and removing separated oil, reducing the need for frequent manual cleaning.

2. What Does SUS304 Mean?

SUS304 refers to a commonly used stainless steel grade. It is selected for its corrosion resistance, durability and suitability for many industrial equipment applications.

3. How Does an Oil Water Separator Work?

It primarily uses the density difference between oil and water. Oil rises toward the surface while heavier solids may settle at the bottom. Coalescing components can assist in separating smaller oil droplets.

4. Can This Equipment Remove All Types of Oil?

No. Conventional gravity and coalescing separators are primarily intended for free or separable oil. Stable emulsified and dissolved oils may require additional chemical, flotation, biological or other treatment processes.

5. Is the Oil Water Separator Suitable for Industrial Wastewater?

Yes. It can be used for selected industrial wastewater streams containing free oil and grease, including wastewater from machinery, automotive, vehicle washing and similar applications.

6. Does the Separator Need Regular Maintenance?

Yes. Automatic cleaning reduces manual work but does not eliminate maintenance. Oil, sludge, sensors, skimmers, valves and internal components should be inspected periodically.

7. Can the Separator Be Installed Outdoors?

It may be installed outdoors when the equipment design, enclosure, weather protection, temperature and site conditions are suitable. The installation environment should be considered during equipment selection.

8. Can It Be Connected to a DAF System?

Yes. An oil-water separator can be used as pretreatment before dissolved air flotation when the overall wastewater process requires additional removal of suspended solids, emulsified oil or other flotation-friendly contaminants.

9. Can It Be Used for Vehicle Wash Water?

Yes. Oil-water separators are commonly associated with vehicle and floor wash water applications where free oil and grease need to be separated before further treatment or discharge.

10. What Determines the Required Separator Size?

Important factors include wastewater flow rate, peak flow, oil concentration, oil droplet size, suspended solids, temperature, required separation performance and available hydraulic retention time.

11. Can SUS304 Be Used for All Wastewater?

Not necessarily. Material selection should consider wastewater chemistry, chloride concentration, pH, temperature and chemical exposure. More aggressive environments may require an alternative stainless steel grade or other construction material.

12. Is This an Oil Separator or Complete Wastewater Treatment Plant?

It is primarily oil-water separation equipment. It can serve as a pretreatment or separation stage within a complete wastewater treatment system, but additional treatment may be required for suspended solids, dissolved pollutants, emulsified contaminants and other wastewater constituents.
