Compact Prefabricated Pumping Unit Water Purifier

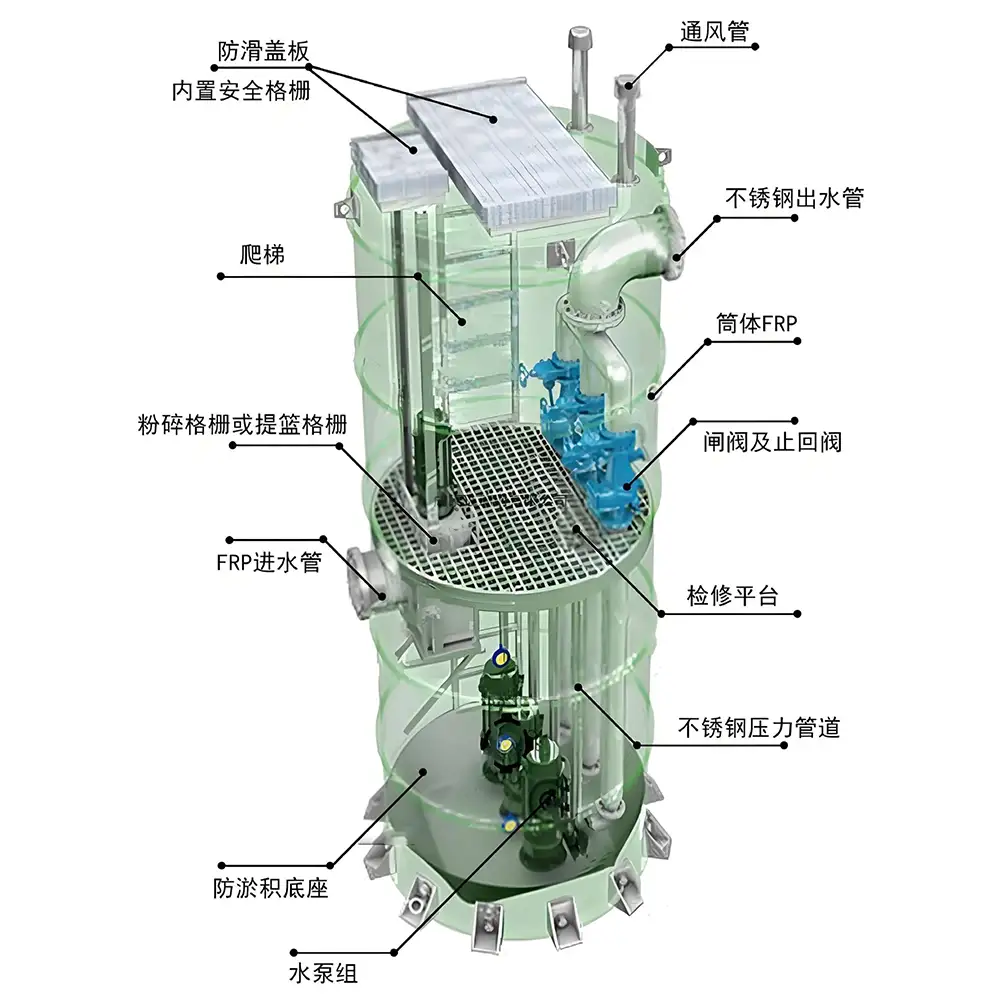

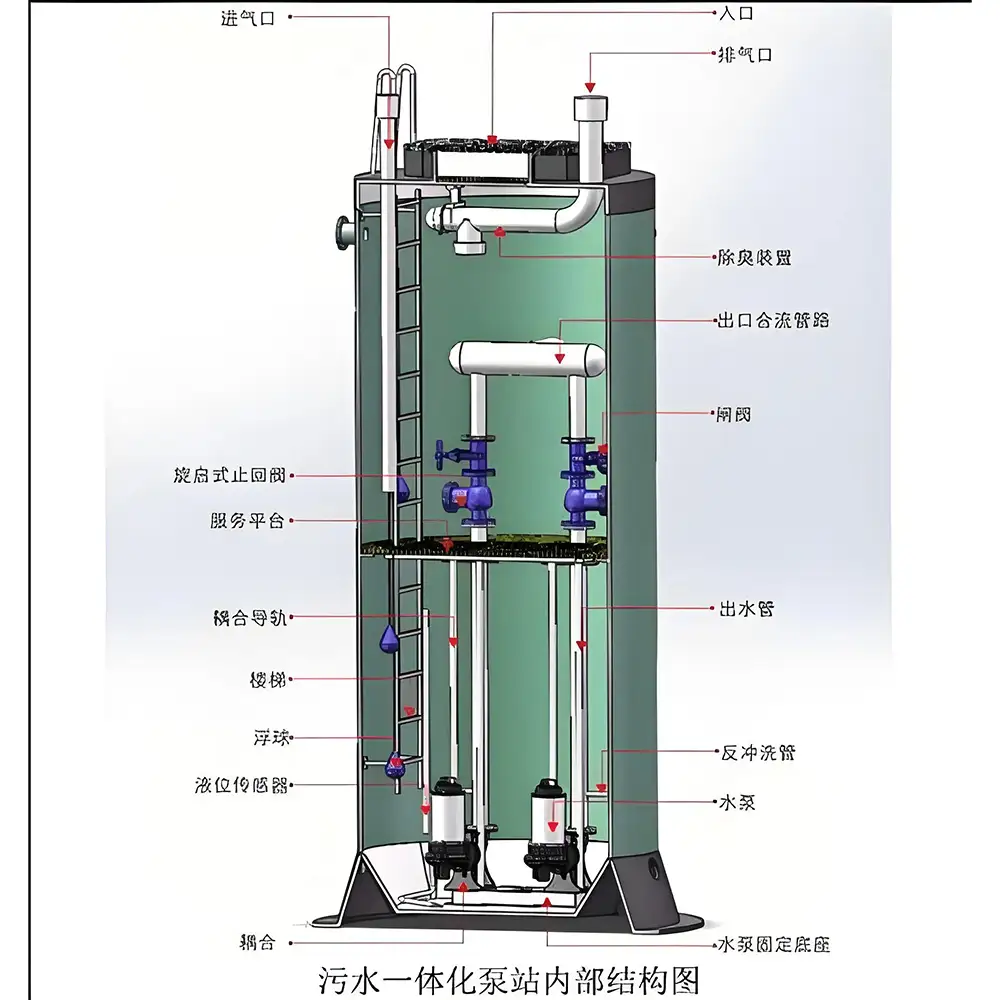

The integrated pumping station is a new type of environmentally friendly pumping station that is designed, manufactured, assembled, transported and installed on-site by the factory to enhance the drainage of sewage, rainwater, drinking water, wastewater, etc. The integrated pump station product has modern product characteristics such as short construction period, convenient installation, small size, high efficiency, and intelligent networking. Compared with traditional pumping stations, the civil engineering quantity is less, and the investment can be reduced by more than half. The product quality is reliable and it is a substitute for the traditional coagulation sewage lifting pump station.

1.0n demand customization: Each set of pump stations is designed based on the parameters provided by the customer, to meet the operational requirements of the pump station.
2.Design: Adopting new flow field calculations to minimize the discharge of solid particles such as sludge from the equipment.
3.Industrial control design: Adopting high-quality electrical appliances, touch screen design, including communication RS485 interface. The pump station should have manual control, automatic control, and distance detection functions, and different control methods should be able to switch freely.
Compact Prefabricated Pumping Unit Water Purifier
Compact Prefabricated Pumping Unit Water Purifier

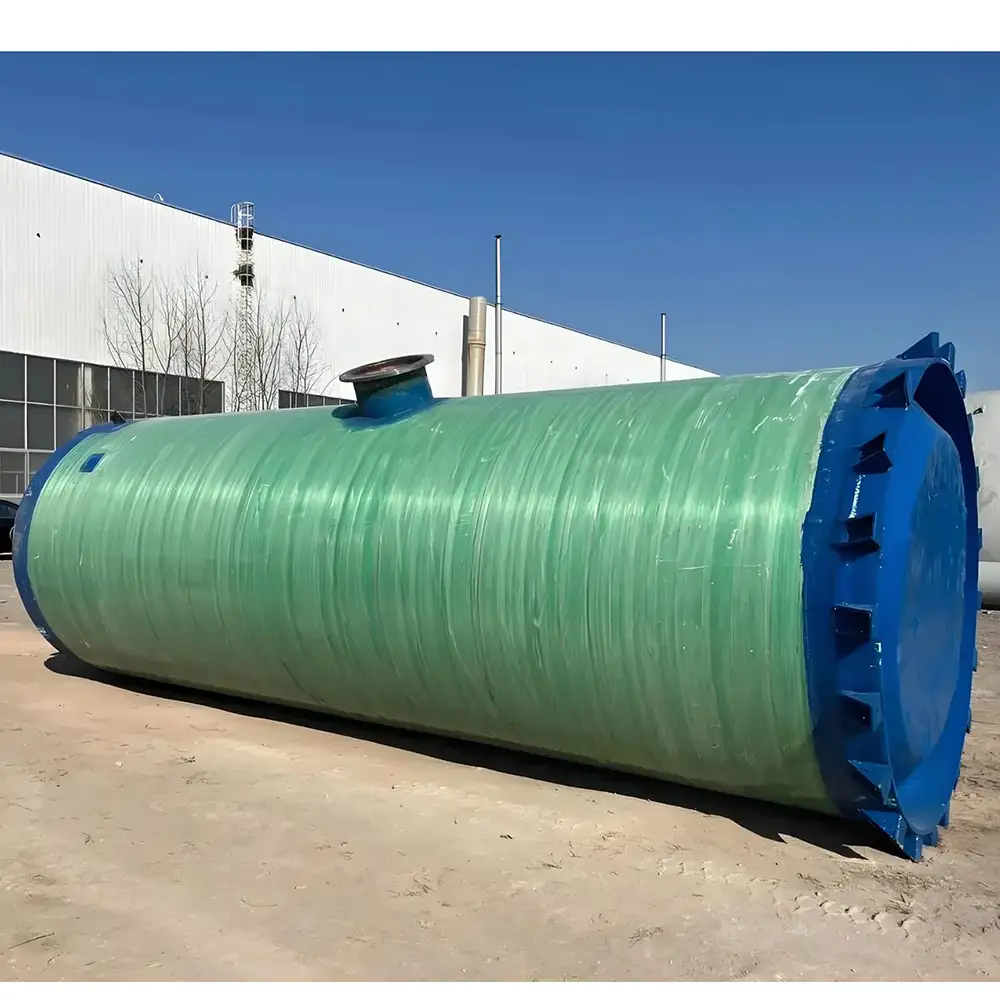

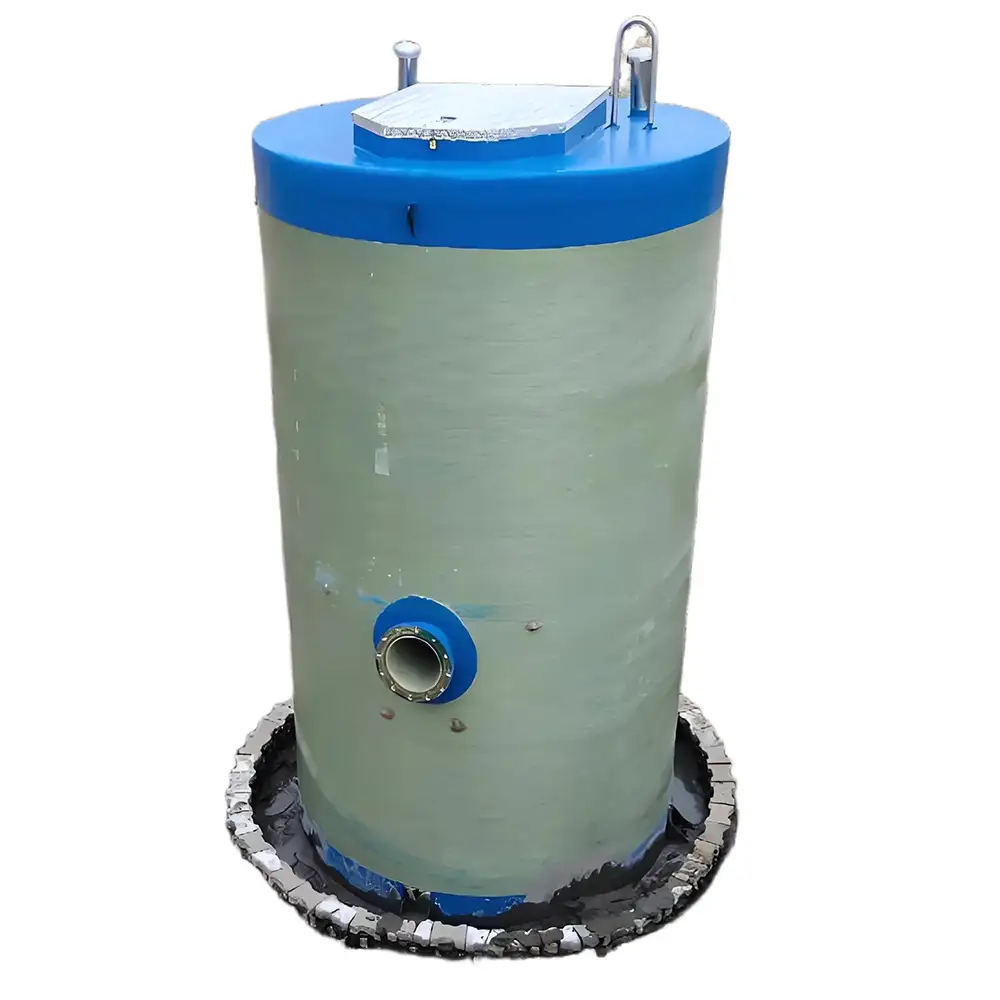

4.New material: The pump station cylinder structure is made of fiberglass reinforced plastic (GRP), which is fully automated and continuously wound to ensure uniform thickness and achieve the designed stiffness, with stable and excellent quality. 5.Accessories standard: All accessories are designed and manufactured in the factory, including pressure pipelines, maintenance platforms, inlet and outlet pipes, etc., and the reliability of the pump station is strictly debugged before leaving the factory. 6.Highly integrated: As an integrated equipment, the pump station provides a complete set of components such as cylinder, pressure pipeline, maintenance platform, maintenance ladder, grid filtration device, coupling system, pump lifting system, ventilation device, anti-skid manhole cover, etc.
7.Cost savings: The pump station is supplied as a complete set, and only the entire pump station needs to be installed on site, reducing the civil construction cycle and engineering costs, and reducing the overall investment of the owner.
8.Service life: The pump station cylinder is made of fiberglass material, and the internal accessories are made of anti-corrosion materials such as SS304 and hot-dip galvanizing, which do not require maintenance and have a long service life.

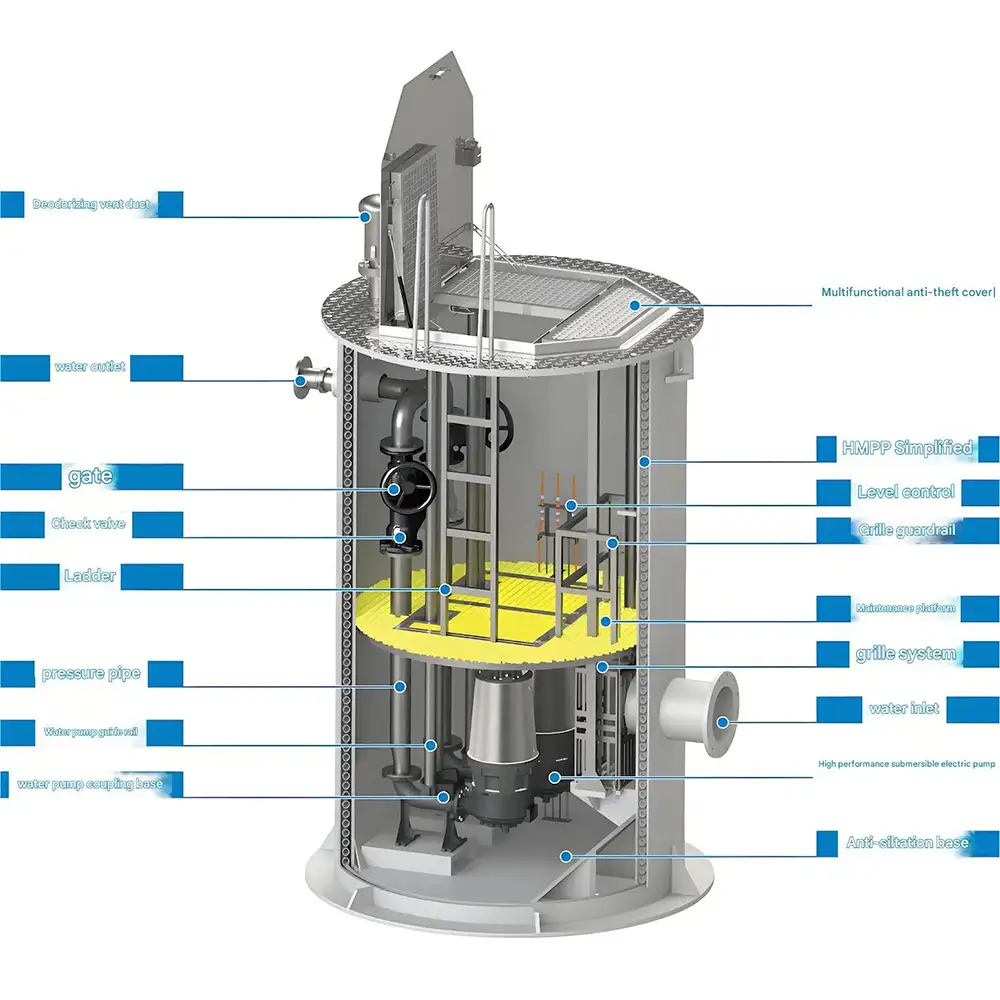

9.Convenient maintenance: Both the water pump and grille are equipped with lifting rails, which can be quickly removed and installed during maintenance.

Compact Prefabricated Pumping Unit Water Purifier for Packaged Water Treatment

The Compact Prefabricated Pumping Unit Water Purifier is a modular water treatment solution designed to combine water pumping, filtration, purification, and optional disinfection equipment into a compact factory-assembled system. It is suitable for projects where installation space is limited, rapid deployment is important, or a conventional water treatment plant would require excessive onsite construction.

Packaged water treatment systems are commonly designed as factory-built or prefabricated units, allowing major process components to be integrated before delivery. This approach can reduce onsite assembly work and simplify installation. EPA documentation on small drinking water systems specifically discusses packaged filtration and disinfection technologies for smaller water treatment applications.

Depending on the source water and required treated-water quality, the system can incorporate pretreatment, pumping, multimedia filtration, activated carbon filtration, softening, ultrafiltration, reverse osmosis, UV disinfection, chlorination, or other treatment technologies.

Compact Prefabricated Water Treatment Design

The main advantage of a prefabricated water purifier is the integration of multiple treatment components into a coordinated unit. Instead of constructing each process separately onsite, pumps, tanks, filters, valves, pipelines, instruments, electrical components, and control systems can be assembled into a skid-mounted, cabinet-type, containerized, or other compact configuration.

This design is especially useful for remote facilities, temporary projects, small communities, commercial buildings, industrial plants, rural water systems, construction sites, resorts, agricultural facilities, and other locations where available space or onsite infrastructure is limited.

Modular packaged systems can also be designed for future expansion by adding treatment modules or increasing pumping and filtration capacity when water demand increases.

Integrated Pumping Unit

The pumping unit is an important part of the complete water purification system. Raw water may need to be transferred from a well, storage tank, surface-water intake, process-water tank, or other source into the treatment equipment.

Depending on the project, the pumping section may include:

Raw Water Pump
Booster Pump
High-Pressure Pump
Transfer Pump
Circulation Pump
Pressure Vessel
Flow Meter
Pressure Gauge
Check Valve
Automatic Valve
Control Panel
Variable Frequency Drive

The pump selection should be based on required flow rate, total dynamic head, source-water conditions, pipe arrangement, treatment pressure, and operating requirements.

For reverse osmosis systems, for example, the high-pressure pump must be selected according to membrane operating pressure and feed-water characteristics rather than simply using a conventional transfer pump.

Water Purification Process

The exact treatment process depends on source-water quality and the required application. A typical compact water purification system may include several stages.

1. Pretreatment

Pretreatment can remove larger particles, suspended solids, turbidity, and other contaminants that could interfere with downstream equipment.

Common pretreatment equipment includes cartridge filters, multimedia filters, quartz sand filters, activated carbon filters, water softeners, and other specialized media systems.

2. Fine Filtration

Fine filtration provides additional removal of suspended particles before membrane treatment or final disinfection. Cartridge filtration can be used as a polishing stage or as membrane pretreatment.

3. Membrane Purification

Where dissolved salts or specific contaminants need to be reduced, membrane technologies such as ultrafiltration, nanofiltration, or reverse osmosis can be incorporated.

EPA identifies reverse osmosis and nanofiltration among established drinking-water treatment technologies.

4. Disinfection

Depending on the application, UV, chlorine, sodium hypochlorite, chlorine dioxide, or another suitable disinfection method can be incorporated.

For drinking-water applications, the treatment process and disinfectant strategy must be selected according to source-water characteristics and applicable regulatory requirements. EPA notes that filtration and disinfection are important components of drinking-water treatment systems.

Compact Water Purifier for Limited Space

Space-saving design is one of the major benefits of a prefabricated water purification unit. The system can be arranged vertically or horizontally according to the available footprint.

A compact configuration can be installed inside a mechanical room, equipment room, container, utility building, or dedicated outdoor enclosure. Weather-protected housings can also be considered for projects where equipment must operate outdoors.

The compact design can simplify piping and electrical connections because many components are preassembled before shipment.

Factory-Assembled and Pretested Equipment

Prefabrication moves much of the equipment integration process from the installation site to a controlled manufacturing environment. Pipes, valves, pumps, filtration vessels, instruments, control cabinets, and other components can be assembled and checked before shipment.

Packaged water treatment systems are commonly promoted for factory assembly, reduced onsite installation work, smaller footprints, and simplified project delivery.

This approach can be particularly useful for projects with limited construction resources or short installation schedules.

Automatic Control System

The Compact Prefabricated Pumping Unit Water Purifier can be equipped with an automatic control system for monitoring and managing the treatment process.

Depending on the configuration, the PLC control panel can monitor:

Raw Water Pressure
Treated Water Pressure
Flow Rate
Tank Level
Filter Pressure
Pump Status
Conductivity
TDS
pH
Disinfection Parameters
Membrane Operating Conditions

Automatic valves and sensors can be used to control filtration cycles, pump operation, backwashing, membrane flushing, chemical dosing, and other processes.

Remote monitoring can also be incorporated for facilities that require centralized operation or reduced onsite staffing.

Industrial and Commercial Applications

The system can be configured for a wide range of applications, including:

Small Municipal Water Systems
Rural Water Treatment
Residential Communities
Commercial Buildings
Hotels And Resorts
Schools And Institutions
Hospitals And Clinics
Food Processing Plants
Industrial Process Water
Boiler Feedwater Pretreatment
Cooling Water Treatment
Construction Sites
Remote Worksites
Agricultural Water Treatment
Emergency Water Supply
Temporary Water Treatment
Drinking Water Treatment
Groundwater Purification
Surface Water Treatment

The appropriate treatment train should always be selected according to the source-water analysis and the intended treated-water use.

Modular Water Purification System

A modular design allows different treatment technologies to be combined according to project requirements. For example, a system may use multimedia filtration and activated carbon for general water purification, followed by RO for dissolved-solids reduction and UV or chlorination for final disinfection.

For industrial applications, the system may instead focus on process-water polishing, hardness reduction, demineralization, or membrane pretreatment.

Packaged systems can also be configured as skid-mounted or enclosed units and can be designed around site-specific water quality, capacity, and footprint requirements.

Why Choose Us
Compact prefabricated water treatment design
Integrated pumping and purification equipment
Factory-assembled modular construction
Reduced onsite installation requirements
Small footprint for space-constrained projects
Flexible filtration and purification configurations
Optional RO, UF, activated carbon, softening, and disinfection stages
Automatic PLC control options
Suitable for commercial and industrial applications
Suitable for remote and decentralized water treatment
Modular capacity expansion options
Project-specific equipment configuration based on water quality and flow requirements
FAQ
1. What Is a Compact Prefabricated Water Purifier?

It is a factory-assembled water treatment unit that integrates pumping, filtration, purification, controls, and optional disinfection into a compact modular system.

2. Is This a Drinking Water Purification System?

It can be configured for drinking-water applications, but the actual treatment process must be selected according to source-water quality and applicable drinking-water requirements.

3. What Does the Pumping Unit Do?

The pumping unit transfers water through the treatment system and provides the pressure required by the selected filtration or membrane processes.

4. Can the System Include Reverse Osmosis?

Yes. RO can be incorporated when dissolved salts, TDS, or other contaminants require membrane-based treatment.

5. Can Activated Carbon Filtration Be Added?

Yes. Activated carbon can be incorporated for adsorption-based treatment of selected organic compounds, taste, and odor-related contaminants, depending on the source water.

6. Can This System Be Used for Groundwater?

Yes. Groundwater treatment can be configured according to the actual water analysis. Depending on the contaminants, the system may include filtration, softening, activated carbon, iron and manganese treatment, UF, RO, or disinfection.

7. Is the Equipment Suitable for Remote Locations?

Yes. Prefabricated and modular systems can be useful for remote or space-constrained sites because much of the equipment can be integrated before transportation and installation.

8. Can the Water Purifier Be Installed in a Container?

Yes. The treatment system can be designed as a containerized package when weather protection, mobility, or additional equipment-room space is required.

9. Can the System Operate Automatically?

Yes. PLC controls, automatic valves, sensors, pumps, alarms, and variable frequency drives can be integrated according to the required automation level.

10. How Is the Treatment Process Selected?

Treatment selection depends on raw-water quality, flow rate, required treated-water quality, intended use, local requirements, available space, and operating conditions.

11. Can the Capacity Be Expanded Later?

A modular configuration can be designed to allow additional treatment capacity or parallel modules when future water demand is expected to increase.

12. What Information Is Needed for Equipment Selection?

Important information includes raw-water analysis, required capacity, operating hours, water source, target water quality, installation location, available power supply, and intended use of the treated water.
