Durable Automatic Oil Water Separator for Factory Wastewater,Commercial Kitchen Automatic Grease

Fully automatic grease traps are intelligent upgrades from traditional grease traps. Through an automated system, they automate processes such as oil-water separation, oil discharge, and sludge removal, significantly reducing manual intervention. They are widely used in catering, commercial complexes, and other similar settings.

Durable Automatic Oil Water Separator for Factory Wastewater and Commercial Kitchen Grease

The Durable Automatic Oil Water Separator is designed for facilities that need reliable separation of oil, grease, fats, and floating contaminants from wastewater. Combining automatic operation with a durable separation structure, this equipment can be used for factory wastewater, commercial kitchens, restaurants, food processing facilities, workshops, vehicle washing areas, and other applications where oily or grease-laden wastewater requires pretreatment.

Oil and grease in wastewater can create problems for downstream biological treatment, sewer systems, pumps, pipes, and other treatment equipment. An appropriately designed separator provides a dedicated stage for capturing free-floating oil and grease before wastewater enters subsequent treatment processes. EPA guidance describes standard oil/water separators as flow-through systems that provide sufficient retention time for oil droplets to rise, while enhanced designs can use coalescing media to improve separation of smaller droplets.

Parameter type	Common range	illustrate
Processing volume	0.5-100m³/h (customizable upon request)	Select the appropriate model based on the actual wastewater discharge volume, with a 20% margin.
Oil content in influent	≤5000mg/L (food service) / ≤10000mg/L (industrial)	Exceeding the limit requires preprocessing.
Oil content in effluent	≤10mg/L (National Standard Grade 1) / ≤20mg/L (Grade 2)	Complies with GB 8978-1996 Integrated Wastewater Discharge Standard
Work pressure	0.1-0.6MPa	Adapt to pipeline pressure requirements
Operating temperature	5-60℃	Heating devices can be installed at low temperatures to prevent grease from solidifying.
Separation efficiency	≥95% (floating oil) / ≥85% (dispersed oil)	Depends on equipment structure and processing technology
Control method	Fully automatic (PLC + sensor)	Supports automatic oil and water drainage, alarm functions, and some models can be networked for monitoring.

Automatic Oil Water Separation

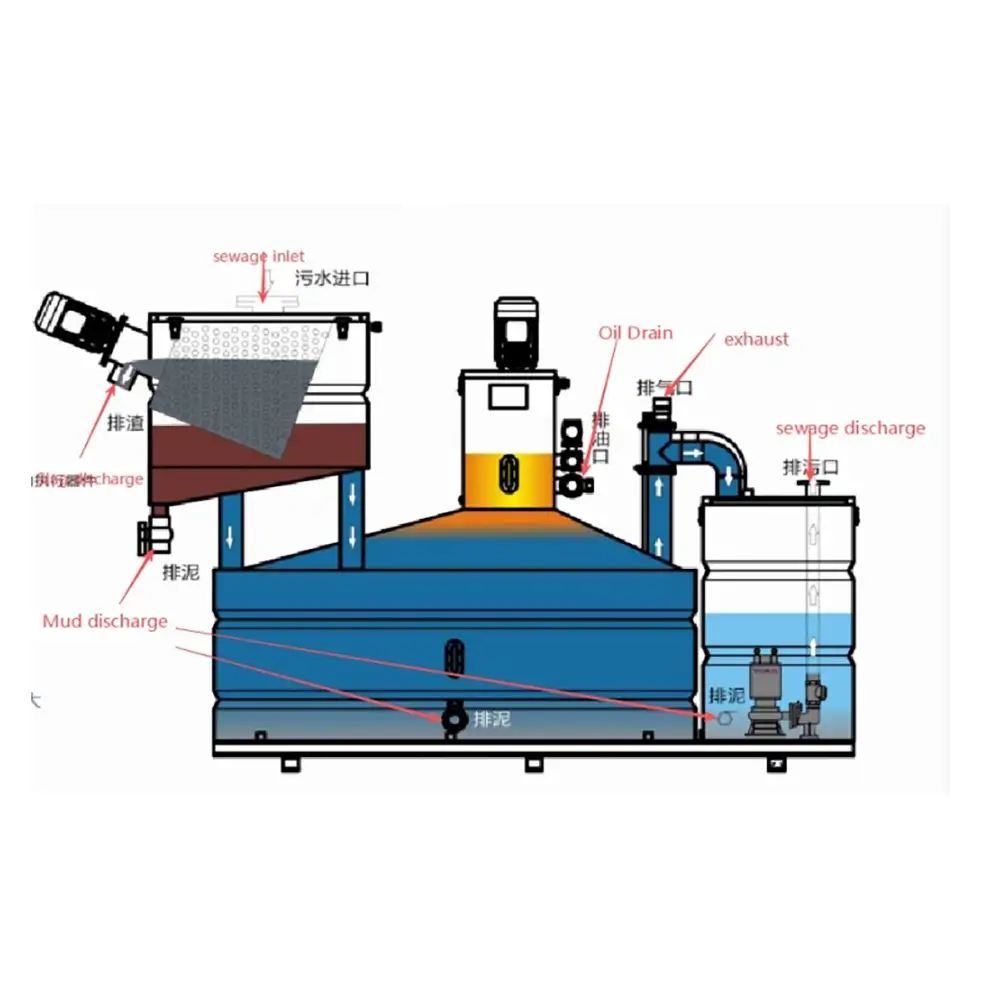

The separator receives wastewater through an inlet designed to reduce excessive turbulence and distribute flow through the separation chamber. During controlled flow, oil and grease with a lower density than water tend to rise toward the surface. The separated oil or grease can then be collected and discharged through an automatic collection mechanism, depending on the equipment configuration.

The treated water flows toward the outlet after passing through the separation zone. Baffles, chambers, skimming devices, coalescing components, or other internal structures can be incorporated according to wastewater characteristics and required treatment performance.

Proper hydraulic loading is important. EPA guidance notes that oil/water separators should be appropriately sized for both wastewater flow and oil storage capacity, because flow above the separator's design rate can reduce separation performance and potentially carry accumulated oil or untreated wastewater into the outlet.

Equipment type	Structural features	Applicable Scenarios
Catering-specific type (buried/above ground)	Compact size, with residue filter, and odor-proof design	Hotels, restaurants, canteens, food streets and other catering establishments
Industrial-grade	Large throughput, resistant to high pressure and high temperature, and able to withstand impact loads	Food processing plants, slaughterhouses, machine shops, oilfield wastewater, etc.
Vehicle-mounted/Mobile	Integrated design, portable	Temporary food stalls, construction site canteens, and emergency sewage treatment.
Centrifugal high-efficiency	Using centrifugal separation technology, the separation speed is fast.	High-oil-content wastewater (such as machining fluid and waste oil recovery)

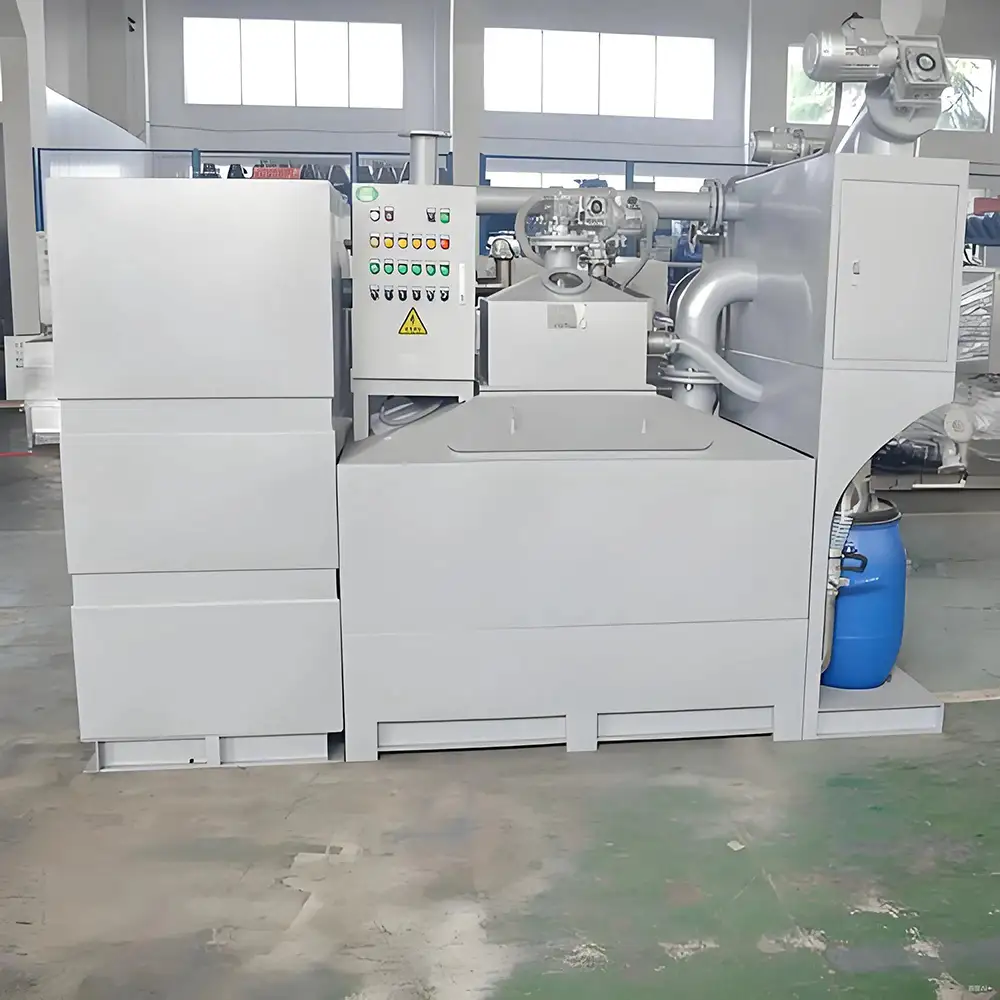

Factory Wastewater Oil Water Separator

Factories can generate wastewater containing lubricating oil, hydraulic oil, cutting fluids, grease, hydrocarbons, and other oily contaminants. Typical sources include machining areas, equipment cleaning, maintenance workshops, metalworking operations, vehicle maintenance, industrial washing, and process drainage.

The automatic oil water separator can serve as a pretreatment unit before additional processes such as dissolved air flotation, biological treatment, filtration, chemical treatment, or activated carbon adsorption.

For industrial wastewater, the separator should be selected according to actual flow rate, oil concentration, temperature, suspended solids, oil droplet size, chemical additives, detergents, and discharge requirements. EPA notes that conventional gravity separation is primarily suitable for free or dispersed oil, while soluble or chemically stabilized emulsified oil may require additional treatment technologies.

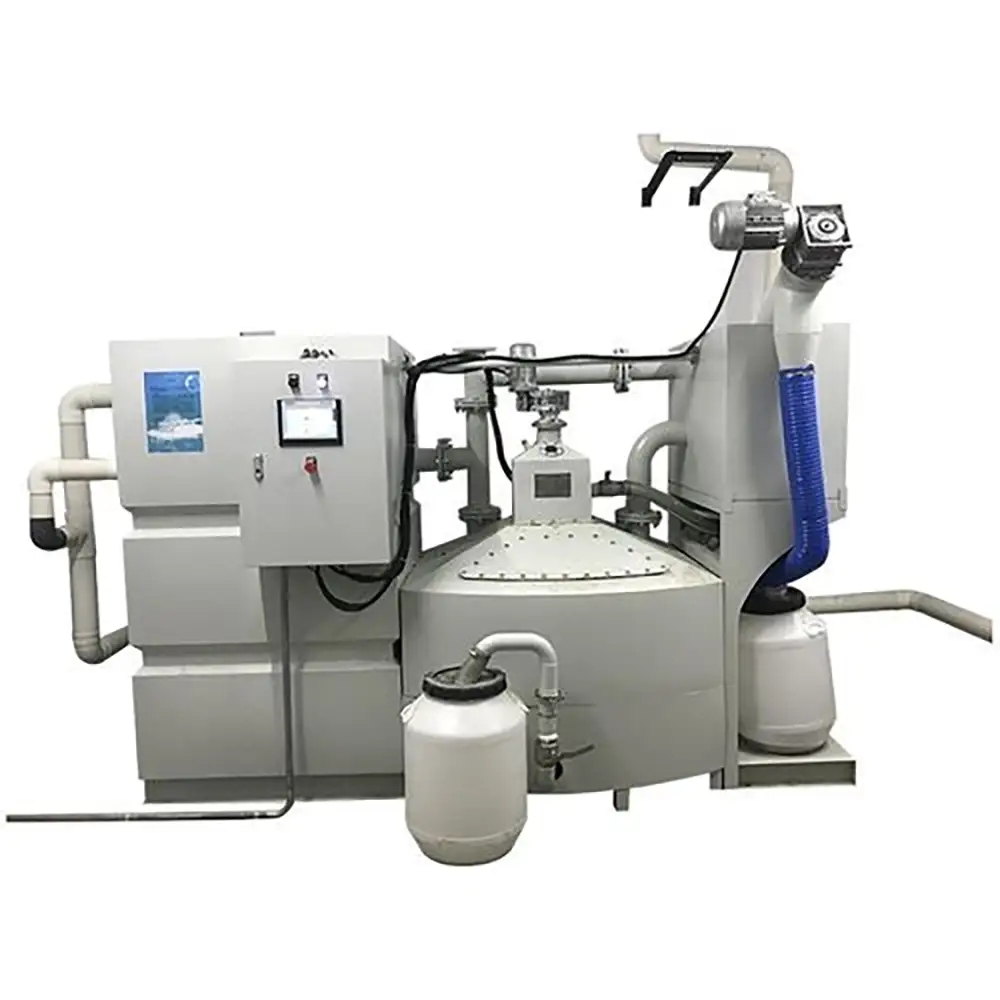

Commercial Kitchen Automatic Grease Separator

Commercial kitchens produce wastewater containing fats, oils, grease, food residues, detergents, and suspended solids. Restaurants, hotels, cafeterias, hospitals, schools, food courts, catering facilities, and central kitchens may require dedicated grease control equipment before wastewater enters the sanitary sewer or downstream treatment system.

This automatic separator can be configured for commercial kitchen grease removal and FOG pretreatment. Wastewater enters the separation chamber, where the flow is controlled to promote grease flotation and separation. Accumulated grease can be removed through an automatic skimming or collection mechanism, depending on the selected design.

EPA guidance recommends appropriately designed and sized grease interceptors for food-service wastewater and emphasizes proper installation and maintenance for effective FOG capture.

Kitchen wastewater can also contain food particles and other solids. For this reason, a solids screening or settling stage may be recommended upstream of the grease separator when the wastewater contains a significant solids load. Excessive solids can interfere with grease separation and increase cleaning requirements.

Durable Construction for Industrial Applications

Durability is important when an oil water separator operates continuously in demanding wastewater environments. Depending on the application, construction materials and internal components can be selected to provide suitable resistance to water, oil, grease, cleaning chemicals, temperature variations, and mechanical loading.

The system can be supplied with inspection openings, inlet and outlet connections, oil collection components, access covers, level controls, control panels, pumps, alarms, and other accessories according to project requirements.

For commercial kitchens, the equipment can be integrated with grease interceptors, solid separators, collection tanks, or wastewater equalization systems. For factories, it can be incorporated into an industrial wastewater treatment line as an oil and grease pretreatment stage.

Automatic Grease Collection

One of the important advantages of an automatic configuration is reduced dependence on manual surface skimming. When separated grease or oil accumulates in the collection area, an automatic skimmer, scraper, pump, or discharge mechanism can transfer the collected material to a suitable container or collection tank.

Automatic collection can help maintain the available separation volume and make routine operation more convenient. The exact automation method should be selected according to oil characteristics, viscosity, temperature, accumulation rate, and the required operating schedule.

The collected oil or grease should be handled and disposed of according to applicable local requirements. In food-service applications, recovered FOG may also be collected separately for appropriate recycling or disposal. EPA notes that food-service establishments can use interceptor or collector devices to capture FOG and prevent it from entering the public collection system.

Compact Design and Easy Integration

The automatic oil water separator can be designed as part of a compact wastewater pretreatment system. It can be installed upstream of biological treatment, DAF, filtration, chemical treatment, or other processes that benefit from reduced oil and grease loading.

For small factories and commercial kitchens, compact configurations can help reduce equipment footprint while maintaining a dedicated oil and grease separation stage. Larger industrial facilities can use multiple chambers or parallel units when higher flow rates require additional hydraulic capacity.

The separator can also be integrated with pumps, level sensors, automatic valves, control cabinets, alarms, and remote monitoring systems for more convenient operation.

Applications

Typical applications include:

Factory Wastewater Treatment
Industrial Oily Wastewater
Commercial Kitchen Wastewater
Restaurant Grease Removal
Hotel Kitchen Wastewater
Food Processing Wastewater
Meat and Poultry Processing
Dairy Processing
Catering Wastewater
Vehicle Washing Wastewater
Automotive Workshops
Machine Shops
Metalworking Wastewater
Equipment Cleaning Wastewater
Industrial Maintenance Areas
Commercial Food-Service Facilities
Why Choose Us
Durable equipment design for demanding wastewater applications
Suitable for both factory wastewater and commercial kitchen grease
Automatic oil and grease collection options
Flexible gravity and enhanced separation configurations
Compact designs available for limited installation spaces
Easy integration with complete wastewater treatment systems
Configurable inlet, outlet, skimming, pumping, and control components
Suitable for continuous-flow wastewater pretreatment
Practical maintenance and inspection design
Project-based selection according to flow and wastewater characteristics
Support for industrial, commercial, municipal, and food-service applications
Custom treatment configurations based on actual wastewater conditions
FAQ
1. What Is an Automatic Oil Water Separator?

An automatic oil water separator is wastewater pretreatment equipment designed to separate free oil, grease, and other floating contaminants from water. Automatic systems can include mechanical or pumping devices for collecting the separated oil or grease.

2. Can This Separator Be Used for Factory Wastewater?

Yes. It can be used as a pretreatment unit for factory wastewater containing free oil, grease, hydraulic oil, lubricants, and similar floating contaminants.

3. Can It Be Used for Commercial Kitchens?

Yes. The system can be configured for commercial kitchen wastewater containing fats, oils, and grease. Proper sizing and installation should follow local sewer and plumbing requirements.

4. What Is the Difference Between an Oil Separator and a Grease Separator?

An oil separator is commonly used for petroleum-based or industrial oils, while a grease separator or interceptor is generally associated with fats, oils, and grease from food-service wastewater. The actual design should be selected according to the wastewater source and contaminant characteristics.

5. Does It Remove Dissolved Oil?

Conventional gravity and coalescing separators are primarily intended for free or dispersed oil. Dissolved or chemically stabilized emulsified oil may require additional treatment such as chemical emulsion breaking, flotation, adsorption, or other advanced processes.

6. Can It Remove Kitchen Grease?

Yes. It is suitable for capturing separated fats, oils, and grease when properly sized for the kitchen wastewater flow and loading.

7. Is Automatic Oil Skimming Available?

Yes. Automatic skimming or oil collection can be incorporated depending on the separator configuration and the characteristics of the collected material.

8. Does Kitchen Wastewater Need Pretreatment?

Depending on the wastewater, a solids screen, strainer, settling chamber, or other pretreatment may be recommended before grease separation. High solids concentrations can increase maintenance requirements and interfere with grease separation.

9. How Is the Separator Sized?

Sizing normally considers wastewater flow rate, peak flow, oil or grease loading, temperature, contaminant characteristics, required retention time, storage capacity, and applicable discharge requirements.

10. Can the Separator Be Connected to a Wastewater Treatment Plant?

Yes. It can be installed as a pretreatment stage before DAF, biological treatment, filtration, chemical treatment, or other wastewater treatment processes.

11. How Often Does the Separator Need Cleaning?

Cleaning frequency depends on oil and grease loading, solids concentration, wastewater temperature, flow rate, and operating conditions. Regular inspection and removal of accumulated material are important for maintaining separation performance.

12. Can the Equipment Be Customized?

Yes. Configuration can be selected according to wastewater flow, installation conditions, contaminant type, required separation process, automation level, and downstream treatment requirements.
