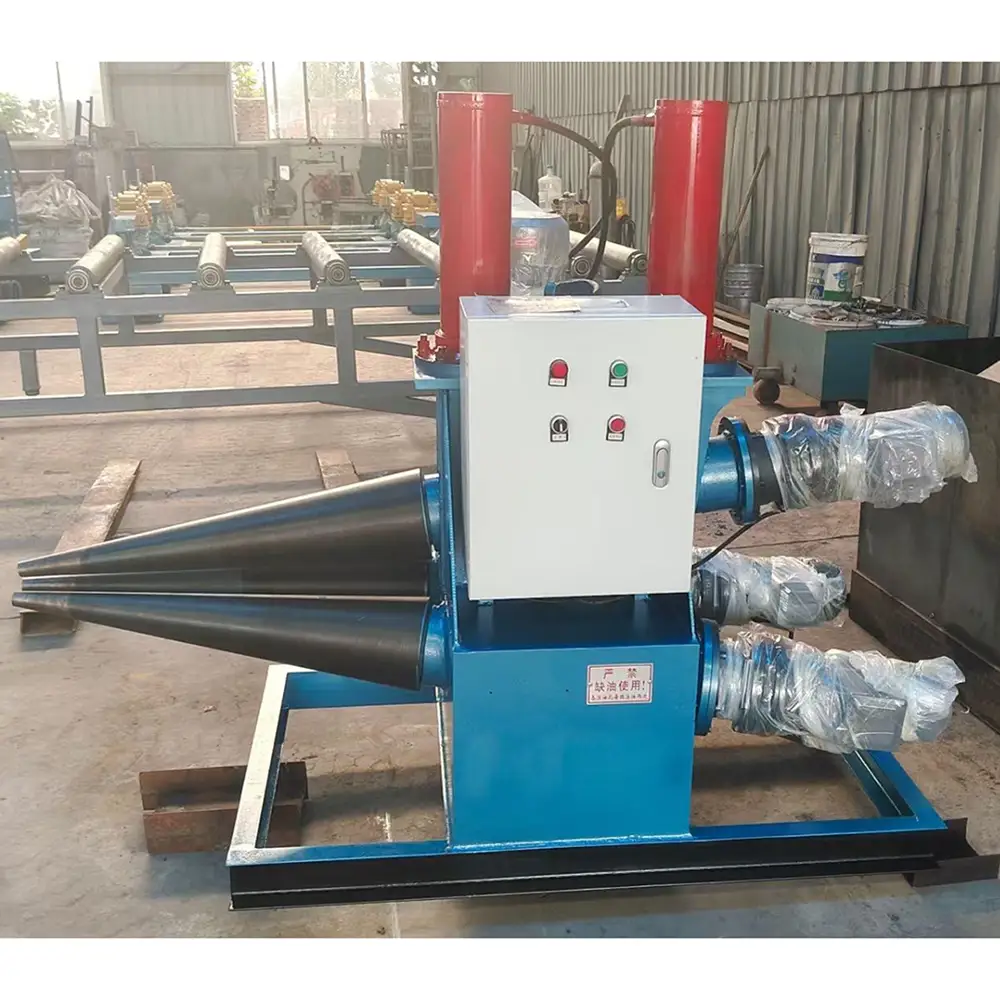

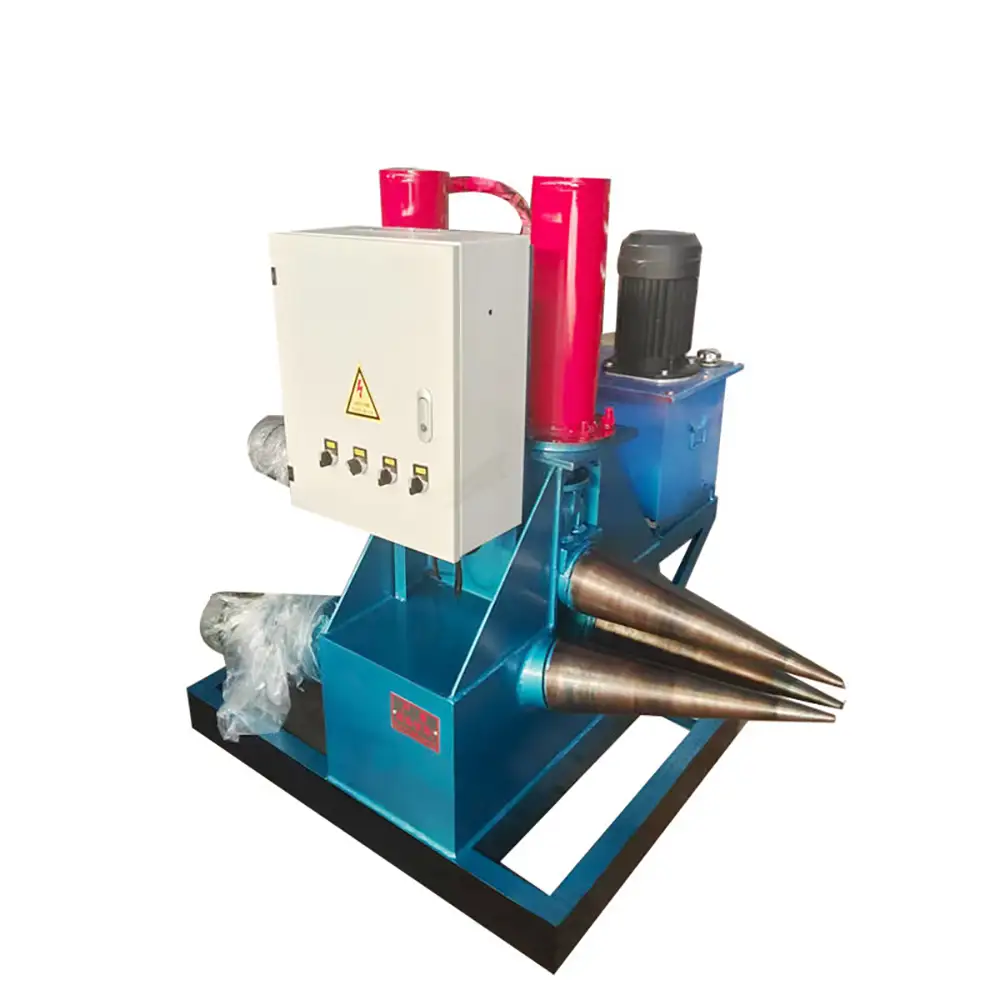

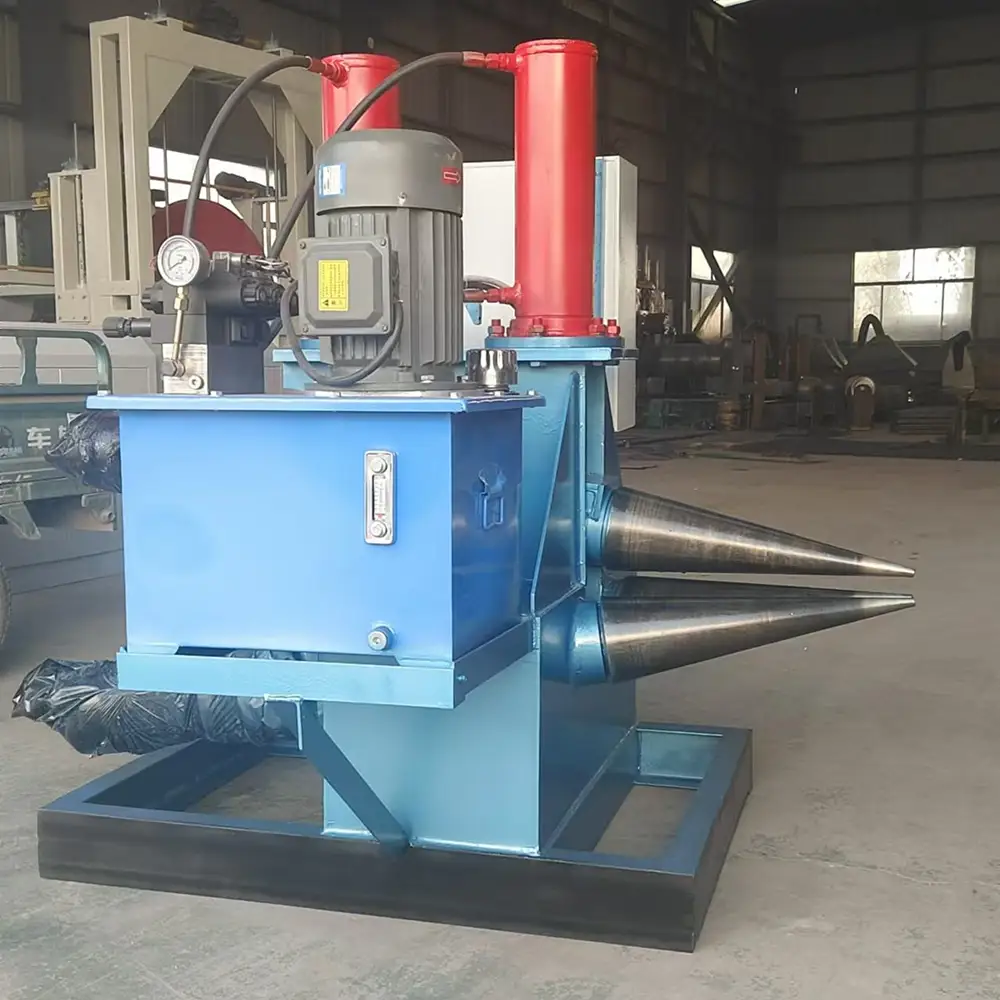

Multifunction Mini Cone Roller Cone Rolling Machine for Pre Taper Rolled Cone Machine

 The Multifunction Mini Cone Roller is a compact metal-forming machine designed for cone rolling, pre-tapered cone production, and conical plate bending. Also known as a mini cone rolling machine or small cone roller, this equipment provides a practical solution for workshops, fabrication businesses, maintenance departments, prototyping operations, and manufacturers that need to produce small and medium-sized conical components.

Unlike a conventional plate roller that is primarily designed for cylindrical forming, a cone rolling machine is configured to accommodate the different forming requirements of tapered workpieces. The multifunction design allows operators to process suitable metal sheets or plates into conical shapes while maintaining a relatively compact machine footprint.

This type of equipment can be particularly useful when production requires frequent changes between different cone sizes, tapered sections, funnels, transition pieces, hoppers, and other conical components. Actual forming capacity depends on the machine configuration, material, plate thickness, plate width, cone dimensions, and required cone angle.

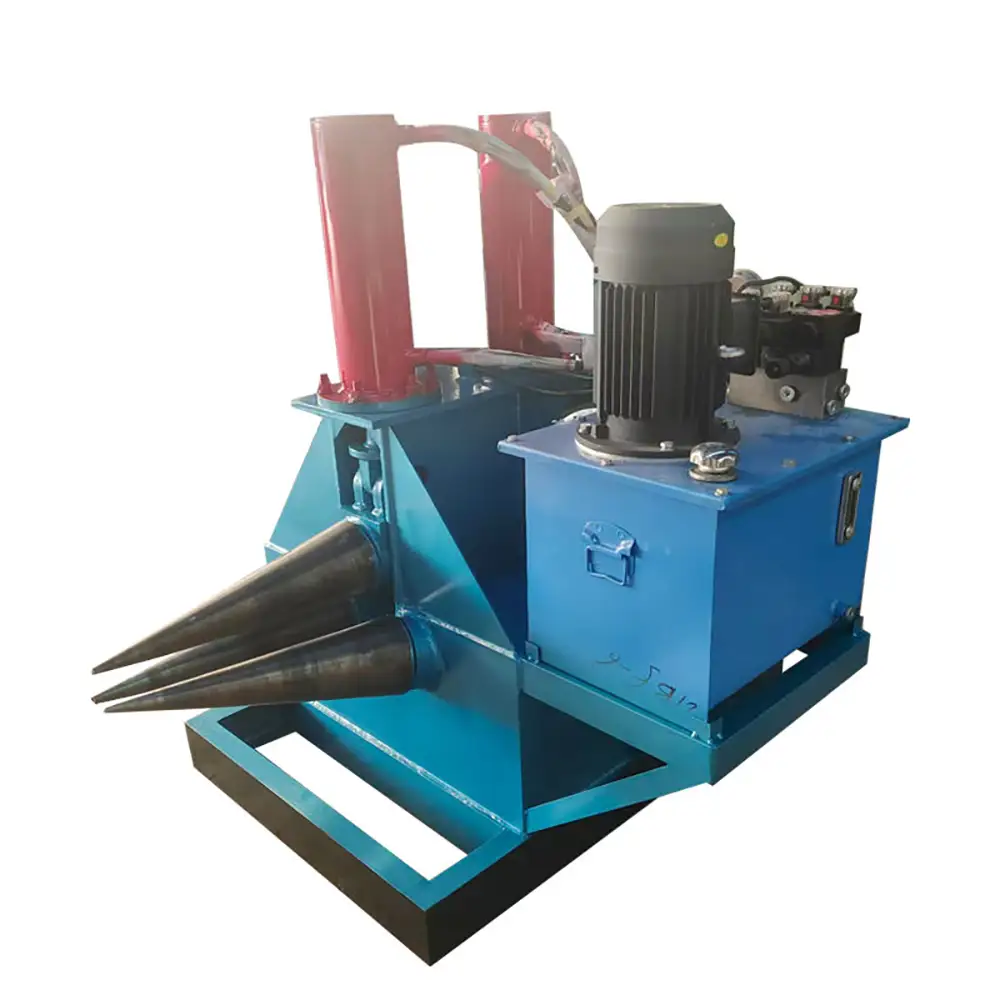

Compact Mini Cone Rolling Design

The compact structure of a mini cone roller makes it suitable for workshops where floor space is limited. It can provide controlled metal-forming capability without requiring the footprint of a large industrial plate rolling machine.

The machine uses forming rolls to gradually bend the workpiece. During cone rolling, the plate must be formed differently across its width because the larger end of the cone travels a greater distance than the smaller end. Correct roller adjustment and workpiece positioning are therefore important for achieving a consistent tapered shape.

Depending on the machine design, the rolling process can be manually controlled, mechanically driven, or supported by hydraulic or other powered systems. Customers should select the configuration based on the material, workpiece dimensions, production frequency, and desired level of automation.

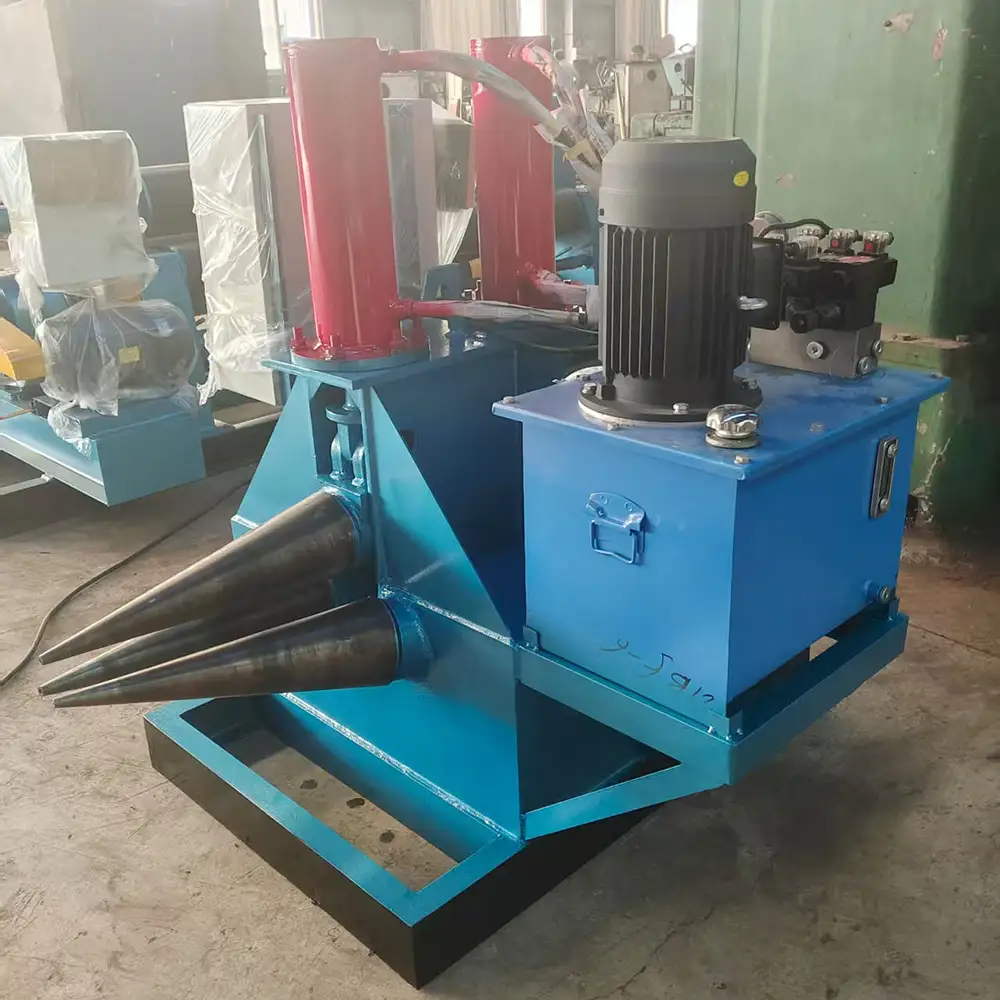

Designed for Pre-Taper Rolled Cone Production

The Pre-Taper Rolled Cone Machine can be used for producing pre-rolled or pre-tapered cone sections before subsequent fabrication operations. Pre-taper forming can help prepare the metal blank for welding, assembly, trimming, or final shaping.

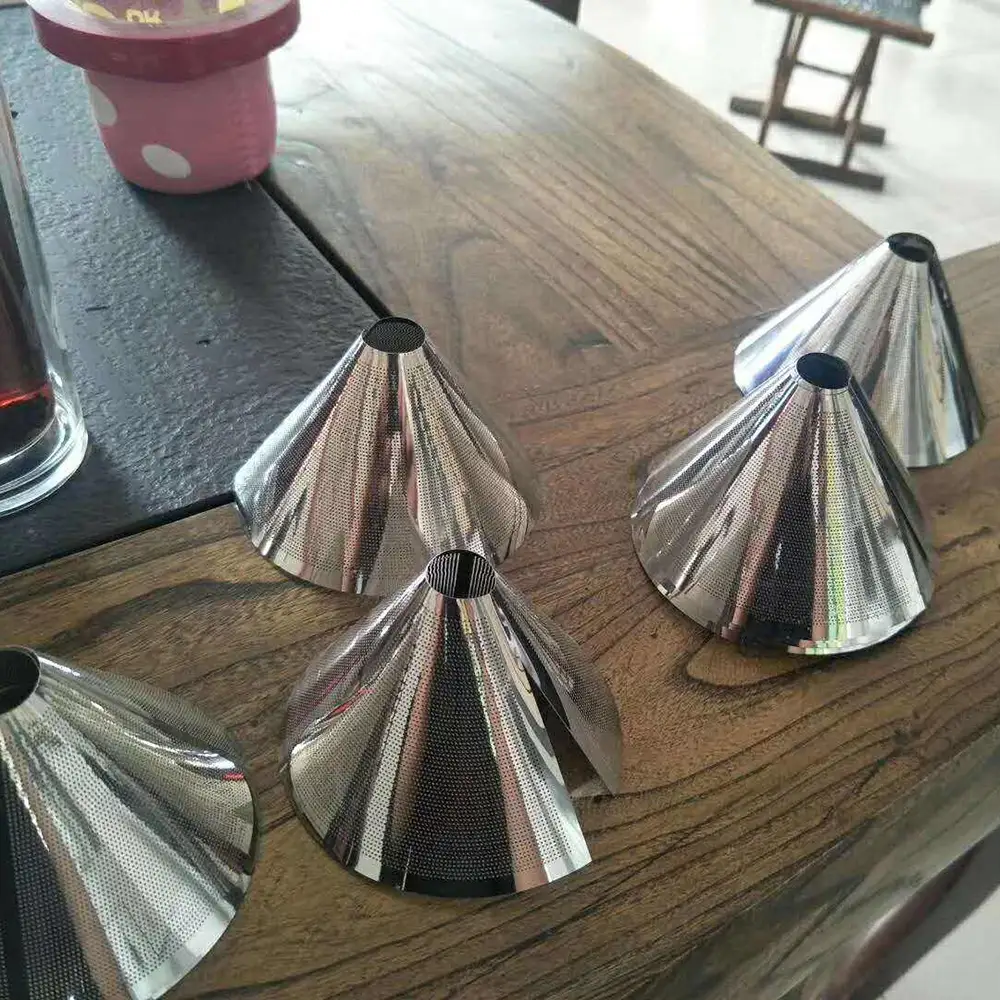

Typical workpieces include small conical shells, funnels, transition sections, reducers, hoppers, ducts, chutes, and custom tapered components.

For manufacturers producing components with welded seams, the rolled cone can be transferred to the next stage for tack welding and final welding. Depending on the product design, additional edge preparation, trimming, grinding, calibration, and inspection may also be required.

Multifunction Metal Forming Capability

A multifunction mini cone roller can provide more flexibility than equipment dedicated to one specific cone size. Depending on the machine configuration, it can be used for different workpiece dimensions and forming applications within its rated capacity.

Suitable materials may include carbon steel, stainless steel, aluminum, and other compatible sheet or plate materials. Material selection is important because different metals have different yield strengths, ductility, springback, and forming behavior.

Stainless steel, for example, may require greater forming force and careful control of roller adjustment. Aluminum can generally be easier to form but may require attention to roller surfaces and workpiece handling to reduce surface marking.

Conical Plate Rolling Process

The basic cone rolling process begins with preparing a properly sized metal blank. The blank is positioned between the forming rolls, and the machine applies controlled pressure to begin bending the material.

The workpiece is then progressively rolled while the operator adjusts the forming conditions as required. For tapered components, differential forming across the plate width is essential because the two sides of the blank follow different circumferential paths.

Several passes may be required depending on material thickness, cone diameter, cone angle, and machine capacity. Operators can inspect the developing shape and make adjustments during the forming process.

The final result depends not only on the machine but also on blank development, material properties, roller setup, forming sequence, and operator experience.

Applications of a Mini Cone Roller

Mini cone rolling machines are suitable for a wide range of fabrication applications.

Common uses include:

Small steel cone manufacturing

Stainless steel cone fabrication

Funnel production

Hopper manufacturing

Metal reducer forming

Duct transition fabrication

Exhaust component forming

Sheet metal prototyping

Custom tapered parts

Laboratory equipment components

Agricultural machinery parts

Food-processing equipment components

HVAC transition sections

General metal fabrication

Because the machine is compact and flexible, it can be useful for businesses that produce custom parts in relatively small batches rather than continuously manufacturing one standardized cone.

Suitable for Prototyping and Small-Batch Production

The mini format is particularly useful for prototype development and custom fabrication. Engineers and fabricators can use a compact cone roller to test different cone geometries before moving to larger-scale production equipment.

Small-batch manufacturers can also benefit from the flexibility of producing different cone dimensions without installing a large production line.

For custom work, customers should provide drawings or sample dimensions whenever possible. Important information includes the larger diameter, smaller diameter, cone height, material, thickness, blank dimensions, and required quantity.

Production Efficiency and Repeatability

Although a mini cone roller is compact, it can provide efficient forming for suitable workpieces. Controlled roller adjustment helps operators establish repeatable forming conditions between batches.

For higher production requirements, powered roller rotation or additional control features can reduce manual effort. However, actual cycle time depends on the workpiece, material, number of forming passes, operator skill, and machine configuration.

When consistent production is required, standardizing blank preparation and forming procedures can help improve repeatability. Finished components should be checked against the required dimensions before proceeding to welding or other downstream operations.

Quality Control

Quality control begins with accurate material preparation and continues through forming and final inspection. Plate thickness, material grade, blank geometry, cone angle, diameter, and forming direction should be verified before production.

During rolling, operators should monitor the workpiece for excessive deformation, surface damage, uneven curvature, and incorrect taper. After rolling, dimensional inspection can verify the larger and smaller diameters and overall cone geometry.

For demanding applications, additional inspection tools or measurement procedures can be incorporated into the production workflow.

Maintenance and Safe Operation

Regular maintenance helps keep a mini cone rolling machine operating consistently. Roll surfaces, bearings, drive components, hydraulic components if equipped, fasteners, and electrical systems should be inspected according to the manufacturer's maintenance recommendations.

Operators should keep hands, clothing, and tools away from rotating rolls and moving components. Appropriate personal protective equipment should be used, and the machine should never be operated beyond its rated capacity.

Emergency-stop systems, guards, electrical protection, and other safety features may be included depending on the specific machine configuration and applicable local requirements.

OEM and Custom Cone Rolling Solutions

Different applications require different machine capacities and forming ranges. A professional manufacturer can configure a mini cone roller according to customer requirements.

Customization may include roller dimensions, working width, forming capacity, drive system, control method, electrical configuration, machine dimensions, and other production-related options.

For B2B buyers, technical drawings and workpiece information are useful for selecting the correct machine. Providing material type, thickness, cone dimensions, required production volume, and target cone angle can help determine an appropriate configuration.

Why Choose Us

Compact Cone Rolling Solution
Our mini cone rollers provide practical conical forming capability for workshops and small-batch manufacturing.

Multifunctional Forming
The machine can support different conical components and suitable metal-forming applications within its rated capacity.

Pre-Taper Cone Production
Designed for forming tapered blanks and cone sections before welding, assembly, trimming, or other downstream processes.

Flexible Material Applications
Suitable configurations can be selected for carbon steel, stainless steel, aluminum, and other compatible materials.

Space-Saving Equipment
The compact machine format is suitable for workshops and fabrication environments where floor space is limited.

Custom Machine Configuration
Working width, roller specifications, drive system, control method, and other options can be discussed according to production requirements.

B2B OEM Support
We support overseas buyers with technical communication, machine configuration, documentation, packaging, and export coordination.

Application-Based Recommendations
Customers can provide workpiece drawings and material information so the machine configuration can be matched to the intended cone-forming application.

FAQs

1. What is a mini cone roller?

A mini cone roller is a compact metal-forming machine designed to roll sheet or plate into conical and tapered shapes for small and medium-sized components.

2. What is a pre-taper rolled cone?

A pre-taper rolled cone is a conical metal section that has been formed before subsequent processes such as seam welding, trimming, calibration, or final assembly.

3. What materials can a mini cone rolling machine process?

Depending on its rated capacity, the machine may process carbon steel, stainless steel, aluminum, and other suitable metal sheets or plates.

4. Can it roll stainless steel cones?

Yes. Stainless steel can be rolled when the machine has adequate forming capacity. Material thickness and grade should be considered when selecting the equipment.

5. Can this machine make small funnels and hoppers?

Yes. Funnels, small hoppers, transition sections, reducers, and other tapered components are common applications for cone rolling equipment.

6. Is the machine suitable for prototype production?

Yes. Its compact format can be useful for prototyping, custom fabrication, product development, and small-batch production.

7. Can it produce different cone sizes?

The available cone dimensions depend on the machine's roller configuration, working width, forming capacity, and adjustment range. Specific dimensions should be confirmed before purchase.

8. How does cone rolling differ from normal plate rolling?

Normal plate rolling is commonly used to produce cylindrical or curved sections, while cone rolling requires differential forming across the plate width to create a tapered geometry.

9. Can the rolled cone be welded afterward?

Yes. Many rolled cones are transferred to welding operations after forming. Edge preparation, tack welding, final welding, trimming, and inspection may be required depending on the product.

10. What information is needed for a quotation?

Provide material type, material thickness, larger cone diameter, smaller cone diameter, cone height or angle, required working width, production quantity, and drawings if available.

11. Can the machine be customized?

Yes. Depending on the manufacturer and machine model, options may include working dimensions, roller specifications, drive configuration, controls, and other production requirements.

12. Is a mini cone roller suitable for mass production?

It can be suitable for repeated production of appropriately sized components, but the ideal machine depends on production volume, cycle time, workpiece dimensions, and required automation level.
