Mechanical Plate Rolling Machine W11 for Metal Sheet Roll Cones Bending Sections Rounding Machine

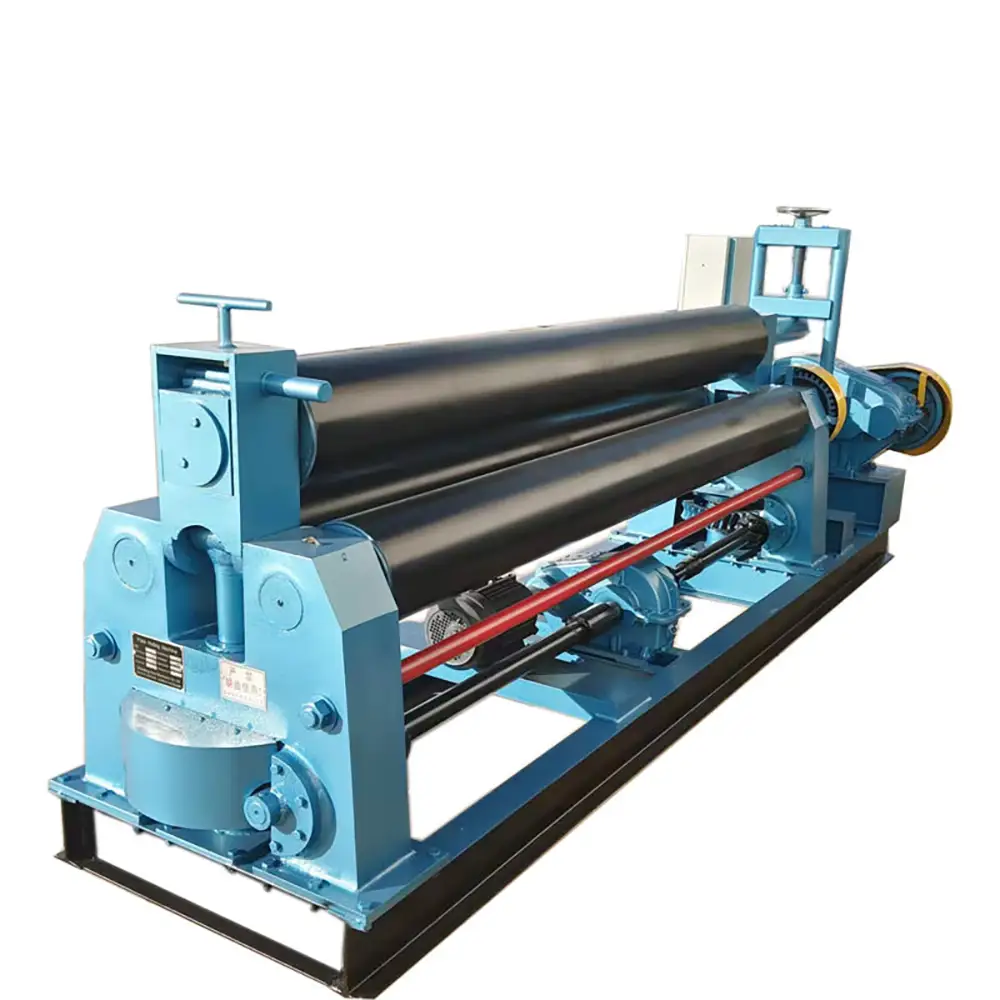

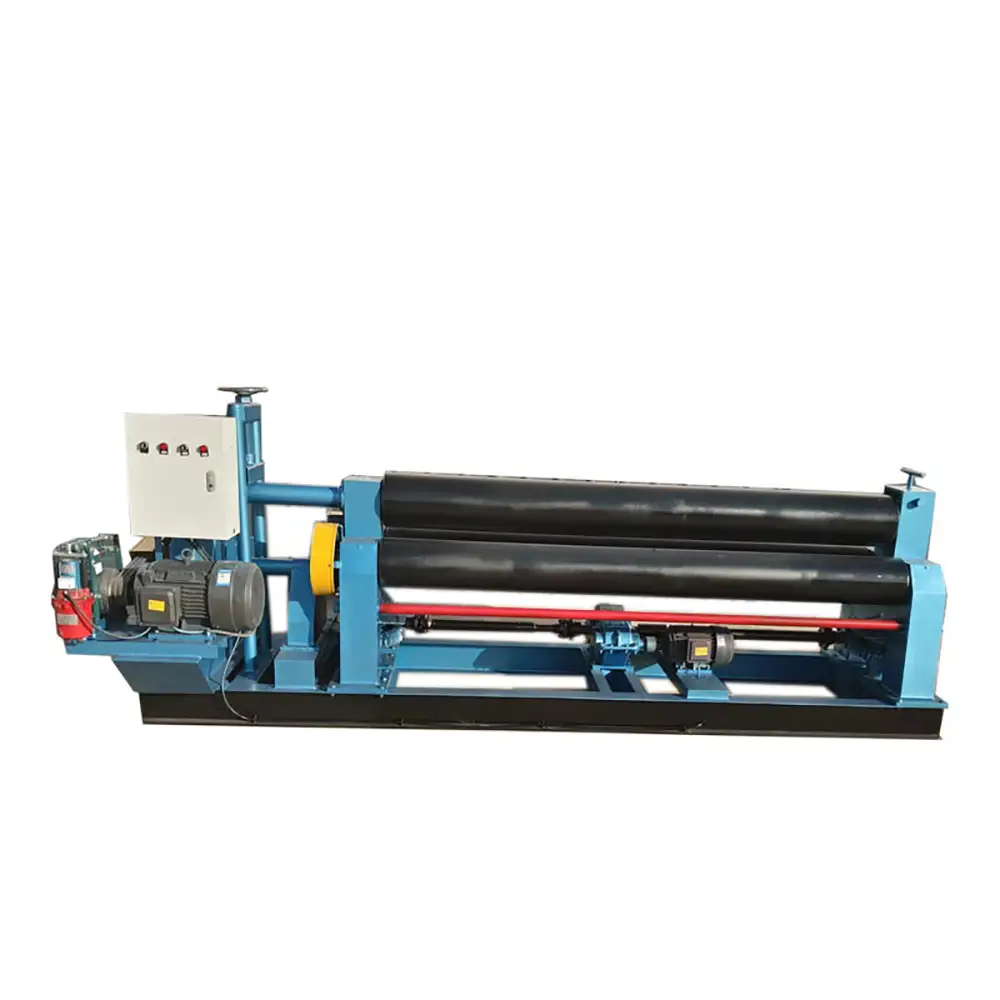

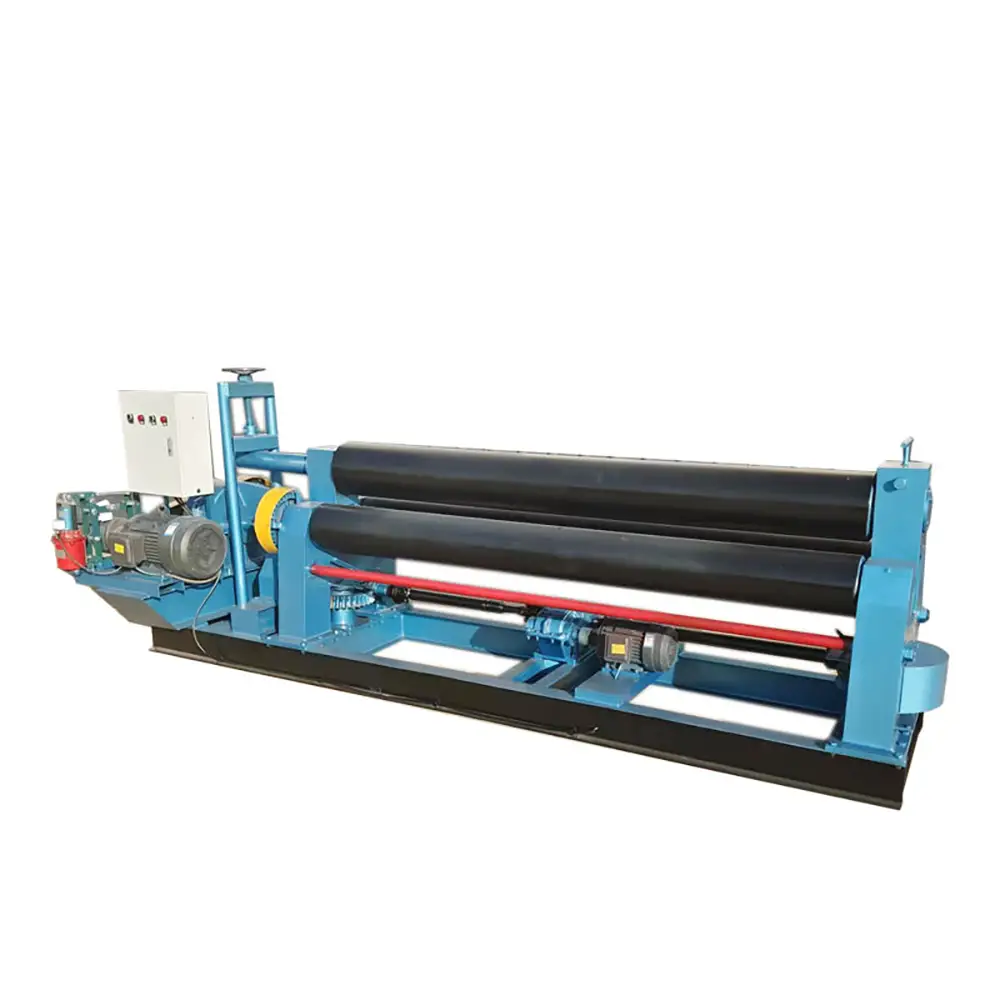

W11 Mechanical Plate Rolling Machine

The W11 mechanical plate rolling machine typically uses three rollers to progressively shape the workpiece. The roller arrangement allows the operator to adjust the forming geometry and control the bending process according to the required finished component.

The upper roller provides the primary forming contact while the lower rollers support and drive the workpiece. Depending on the machine design,the initial plate end may require pre-bending before the main rolling operation.

This three-roll configuration is suitable for many common fabrication tasks and provides a relatively straightforward operating principle. It can be used in workshops that require reliable plate rounding without the complexity of a highly automated CNC production line.

The machine can process suitable carbon steel,stainless steel,aluminum,and other formable metal sheets or plates,provided that the selected machine has sufficient capacity.

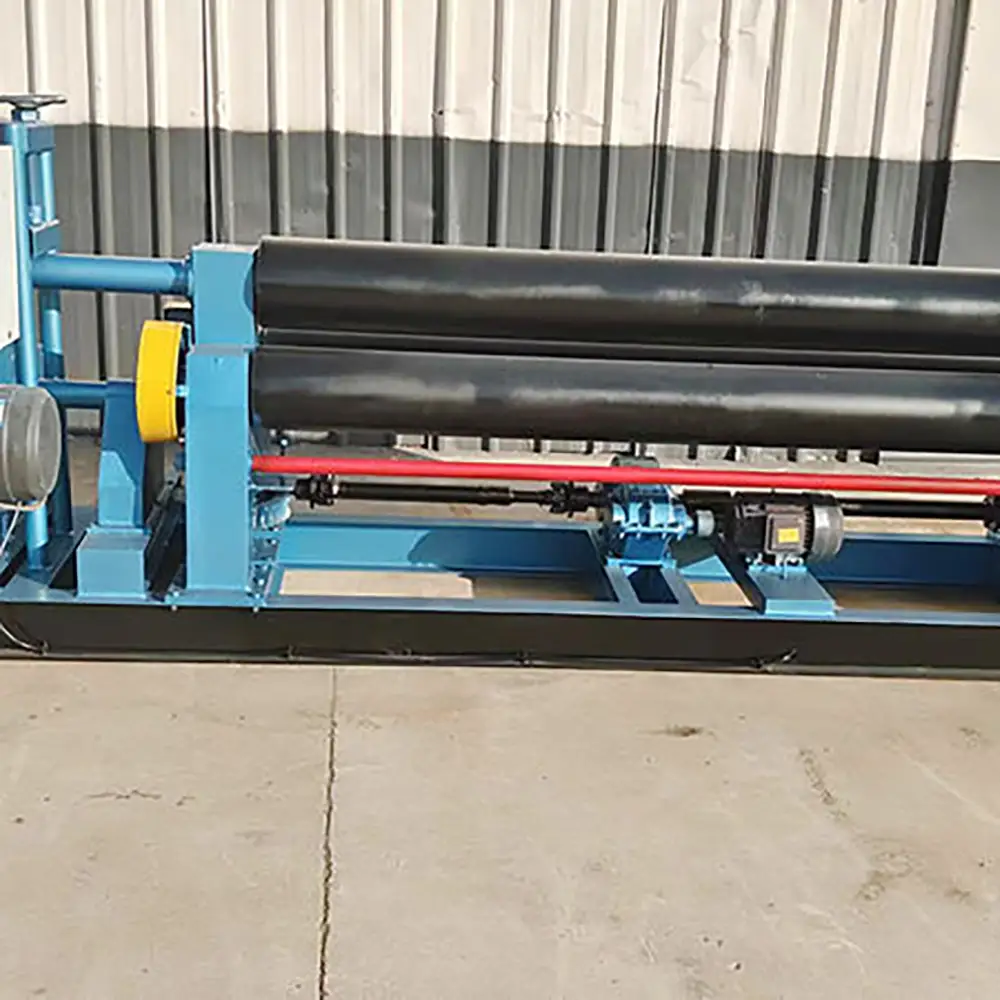

Metal Sheet Roll and Plate Rounding

The primary application of a Mechanical Plate Rolling Machine is converting flat sheet or plate into a curved shape.

Typical cylindrical components include:

Metal cylinders

Storage tank sections

Duct sections

Pipe shells

Rollers

Covers

Hoppers

Industrial housings

Structural curved sections

Custom fabricated shells

During rolling,the operator feeds the plate between the rollers while adjusting the roller position. Several passes may be required to achieve the required radius,especially when working with thicker material or smaller finished diameters.

Correct plate preparation is important. The plate should be cut to the appropriate dimensions and checked for excessive distortion before rolling. Proper alignment also helps maintain consistent geometry throughout the workpiece.

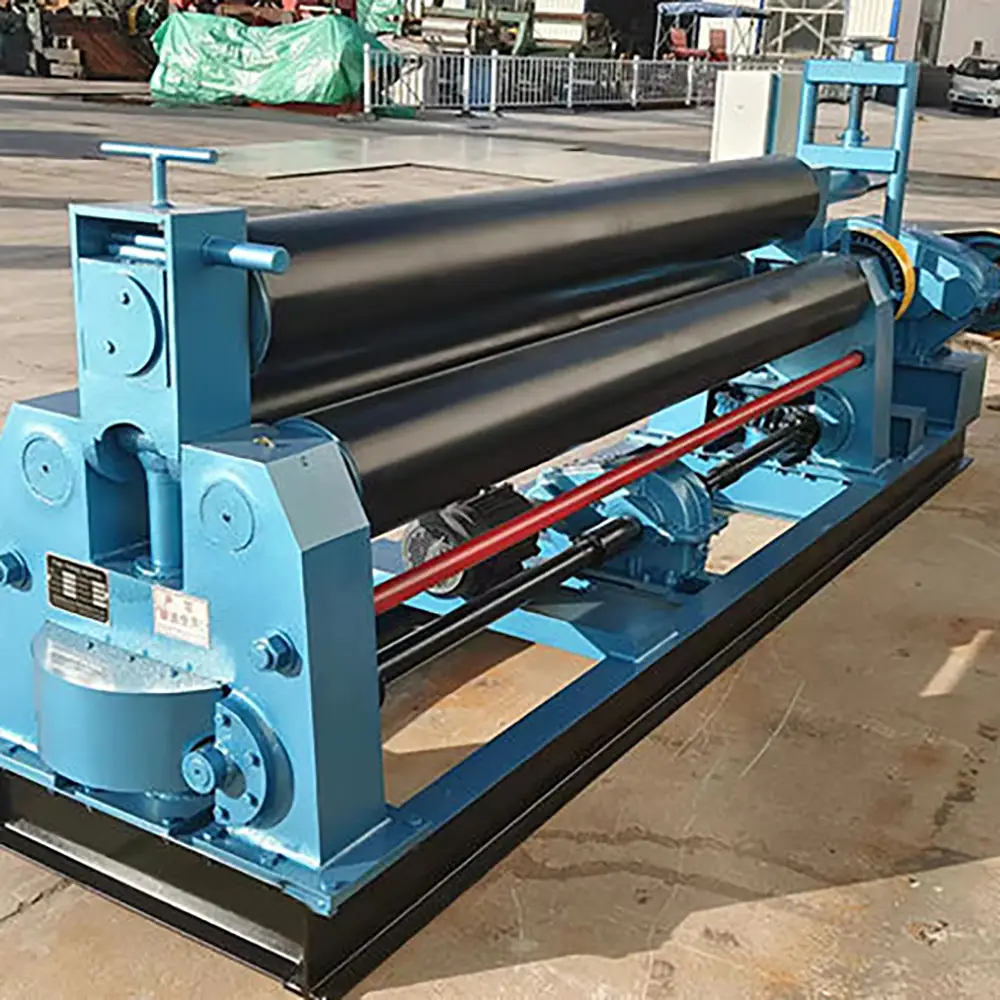

Cone Rolling and Cone Bending

In addition to cylindrical rolling,the W11 machine can be used for certain cone rolling and cone bending applications when properly configured.

Cone rolling requires differential forming across the width of the plate so that one side follows a different forming radius from the other. The resulting blank develops into a tapered or conical section.

Typical applications include:

Conical transition sections

Pipe reducers

Funnels

Hoppers

Tank cones

Duct transitions

Industrial cones

Tapered covers

Custom conical components

Cone rolling generally requires more careful setup than simple cylindrical rolling. The material,blank geometry,cone angle,plate thickness,and machine configuration all affect the final result.

For demanding cone applications,customers should provide drawings or samples so the required machine capacity and roller arrangement can be evaluated.

Section Rolling and Rounding Machine

The W11 Mechanical Plate Rolling Machine can also be used for forming curved sections and rounding metal components. Depending on the machine model and tooling,section-forming applications may include curved plates,arcs,and other fabricated shapes.

For example,a manufacturer may need to form a curved metal cover or a circular structural section. The workpiece can be progressively rolled to achieve the required radius.

Section rounding is particularly useful in general fabrication shops because the same machine can support different types of metal-forming work rather than being limited to one specific product.

However,actual section rolling capability depends on the roller dimensions,working width,material thickness,and profile of the workpiece. Specialized profiles may require dedicated tooling or a different type of section rolling machine.

Mechanical Rolling Process

A typical production process includes several stages.

Material Preparation

Select the correct metal grade and thickness according to the finished product requirements.

Plate Cutting

Cut the sheet or plate to the required dimensions. For conical components,the blank is normally developed according to the required cone geometry.

Initial Pre-Bending

The plate ends may need to be pre-bent so the finished cylinder does not have excessive straight sections at the beginning and end.

Progressive Rolling

The workpiece is passed through the rollers repeatedly while the forming position is adjusted progressively.

Diameter Inspection

The operator checks the finished radius or diameter using appropriate measuring methods or templates.

Seam Joining

For closed cylinders or cones,the formed edges may be welded after rolling.

Finishing

Additional operations such as trimming,grinding,deburring,polishing,painting,or inspection can be completed according to the final application.

Applications of W11 Plate Rolling Equipment

The W11 series is suitable for a wide range of metal fabrication industries.

Tank Manufacturing

The machine can form cylindrical and conical sections used in tanks and industrial vessels,subject to the required material and thickness capacity.

Boiler and Pressure Equipment Fabrication

Suitable plate rolling equipment can be used for forming cylindrical shells and related components. Final pressure equipment manufacturing must follow the applicable engineering,inspection,and regulatory requirements.

HVAC and Duct Manufacturing

Metal sheets can be rolled into cylindrical ducts and curved transition sections.

Pipeline Components

The machine can form plate into cylindrical shells and tapered sections used in fabrication processes.

Agricultural Equipment

Hoppers,storage components,and curved metal structures can be produced using appropriate rolling processes.

General Metal Fabrication

Fabrication shops can use the W11 machine for custom cylinders,cones,curved covers,and other formed metal components.

Structural Fabrication

Curved plates and sections can be produced for certain architectural and structural applications.

Advantages of a Mechanical W11 Plate Rolling Machine

Simple Mechanical Construction

The mechanical design provides a straightforward solution for conventional plate rolling applications.

Three-Roller Forming

Three rollers provide progressive forming for cylindrical and curved workpieces.

Flexible Applications

The same machine can support cylindrical rolling,cone forming,and selected section-rounding operations.

Workshop Friendly

Mechanical W11 machines are suitable for fabrication workshops that need practical plate-forming equipment.

Multiple Material Options

Depending on machine capacity,the equipment can process suitable carbon steel,stainless steel,aluminum,and other formable metals.

Reduced Manual Bending

Mechanical rolling reduces the physical effort required compared with manual sheet forming.

Repeatable Production

Consistent roller settings and operating procedures can help improve repeatability across production batches.

Custom Manufacturing

The machine can support custom fabrication,prototype development,small batches,and general industrial production.

Machine Capacity and Selection

Choosing the correct W11 Plate Rolling Machine requires consideration of several technical factors.

Important parameters include:

Maximum working width

Maximum rolling thickness

Minimum rolling diameter

Material type

Material yield strength

Upper roller diameter

Lower roller diameter

Cone-forming requirements

Production volume

Required finished geometry

A machine that can roll a certain thickness of mild steel may have a lower practical capacity when processing higher-strength stainless steel. Similarly,the minimum achievable diameter depends partly on roller diameter and machine configuration.

For this reason,machine capacity should be selected based on the actual material and workpiece rather than relying only on a nominal thickness number.

Quality Control and Operation

Proper setup is essential for producing consistent rolled sections. Before operation,the plate should be correctly aligned and the rollers should be adjusted according to the required forming sequence.

Operators should avoid excessive forming in a single pass when the application requires progressive rolling. Multiple passes can provide better control over the final radius and help reduce unwanted deformation.

After forming,the workpiece should be checked for diameter,roundness,cone angle,edge condition,and overall geometry. For welded components,the seam should be inspected according to the applicable production requirements.

Machine maintenance should include regular inspection of bearings,drive components,rollers,lubrication points,and other wear components according to the manufacturer's maintenance recommendations.

OEM and Custom W11 Rolling Machine Solutions

Different customers may require different working widths,forming capacities,and machine configurations. We can evaluate OEM and Custom Plate Rolling Machine requirements based on technical drawings,material specifications,and production applications.

For a quotation,customers should provide the material type,maximum thickness,working width,minimum diameter,cone dimensions,and expected production volume.

Where necessary,customers can also provide photographs or samples of existing workpieces. This information helps determine whether a standard W11 configuration is appropriate or whether a customized solution should be considered.

Why Choose Us

Professional Plate Rolling Equipment – We provide mechanical rolling solutions for general metal fabrication and industrial forming.

W11 Series Experience – Our product solutions are focused on practical three-roller plate rolling applications.

Multiple Forming Applications – The equipment can support cylindrical rolling,cone forming,and suitable curved-section applications.

Material Flexibility – Configurations can be selected for appropriate carbon steel,stainless steel,aluminum,and other sheet metals.

Custom Machine Solutions – Working width,capacity,and configuration can be evaluated according to customer requirements.

OEM & ODM Support – We can discuss customized equipment based on drawings,samples,and production needs.

B2B Export Service – We support international manufacturers,fabrication shops,distributors,and industrial buyers.

Technical Assistance – We provide machine specifications,application guidance,and technical communication throughout the purchasing process.

FAQs

1. What is a W11 plate rolling machine?
A W11 plate rolling machine is generally a mechanical three-roller machine used to roll sheet metal and plate into cylindrical,curved,and certain conical shapes.

2. What does the W11 machine roll?
It can roll suitable metal sheets and plates into cylinders,arcs,cones,and other curved sections within the machine's capacity.

3. Can the W11 roll stainless steel?
Yes,provided the selected model has sufficient forming capacity for the stainless steel grade and thickness being processed.

4. Can it roll aluminum sheet?
Yes. Aluminum can be processed when the machine configuration and roller surfaces are suitable for the material and thickness.

5. Can a W11 machine make cones?
Certain W11 configurations can perform cone rolling. The achievable cone dimensions depend on machine design,material,and workpiece geometry.

6. Can it make pipe reducers?
It can form tapered blanks used for reducer fabrication. Welding and finishing are normally performed as separate downstream processes.

7. Does the machine pre-bend the plate ends?
Depending on the specific W11 design and operating method,the plate ends may require pre-bending or an appropriate rolling sequence to reduce unformed straight sections.

8. What is the difference between plate rolling and plate bending?
Plate rolling progressively forms a continuous curved shape,while conventional plate bending usually creates a localized bend along a specific line.

9. What thickness can the W11 machine roll?
The capacity varies by model. Maximum thickness depends on working width,roller diameter,material strength,and other machine parameters.

10. Can this machine be used for tank fabrication?
Yes. Suitable models can form cylindrical and conical tank sections,subject to the required dimensions,material,and applicable fabrication standards.

11. Is W11 suitable for small workshops?
Yes. W11 mechanical machines are commonly considered for general fabrication workshops,with model selection based on available space and required rolling capacity.

12. What information is needed to select a W11 machine?
Provide material type,maximum thickness,working width,minimum diameter,required cone dimensions if applicable,and expected production volume. Drawings or samples are also helpful.
