Automatic Taper Cone Rolling Machine Cone Bending Roller Roll Forming Machines for Pre Rolled Cones

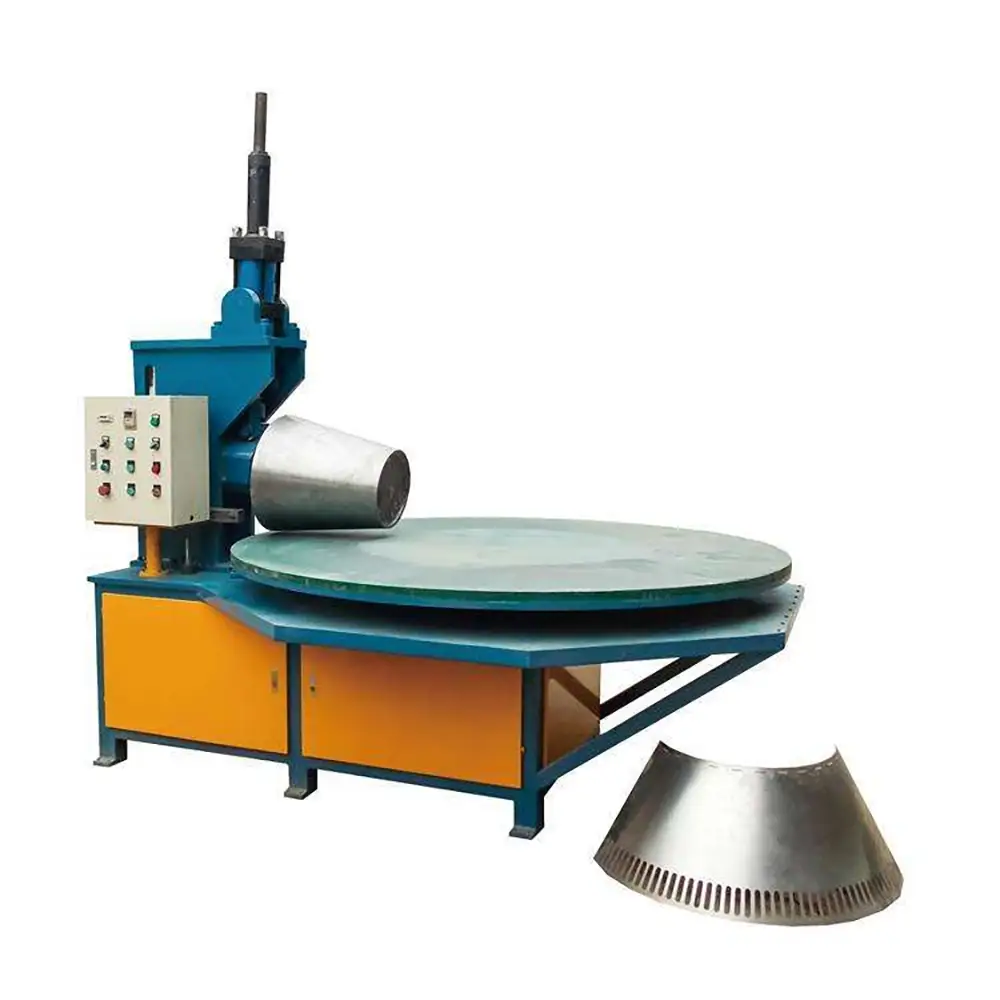

Automatic Cone Rolling Machine

The main purpose of an automatic or automated cone rolling machine is to simplify and standardize the forming sequence. Depending on the model,the machine may incorporate controlled roller movement,hydraulic adjustment,electrical controls,programmable parameters,or other automation functions.

Automation can help reduce repeated manual adjustments during production. Once an appropriate process has been established,the operator can follow a consistent setup and rolling procedure for similar workpieces.

The degree of automation varies by machine configuration. Some machines provide automated roller positioning and forming control,while others combine powered rolling with operator-controlled setup. Therefore,the exact automation functions should be confirmed according to the selected model.

The machine is particularly useful when a manufacturer needs to produce multiple tapered components with consistent dimensions.

Taper Cone Rolling Process

Cone rolling differs from standard cylindrical rolling because the forming radius is not identical across the entire width of the blank.

A typical cone rolling process includes:

1. Blank Preparation

The flat metal blank is cut according to the developed geometry of the required cone. Correct blank dimensions are important for achieving the desired finished shape.

2. Workpiece Positioning

The blank is positioned correctly in the rolling area. Accurate positioning helps maintain cone symmetry and reduces unwanted distortion.

3. Roller Adjustment

The forming rollers are adjusted according to the material,thickness,cone angle,and required dimensions.

4. Progressive Forming

The blank passes through the rollers progressively. Multiple passes may be required depending on material thickness and cone geometry.

5. Cone Inspection

The finished workpiece is checked for small diameter,large diameter,length,angle,roundness,and overall shape.

6. Seam Joining

If a closed cone is required,the longitudinal edges can be welded after rolling.

7. Finishing

The finished component may undergo trimming,grinding,deburring,polishing,or other finishing operations depending on the application.

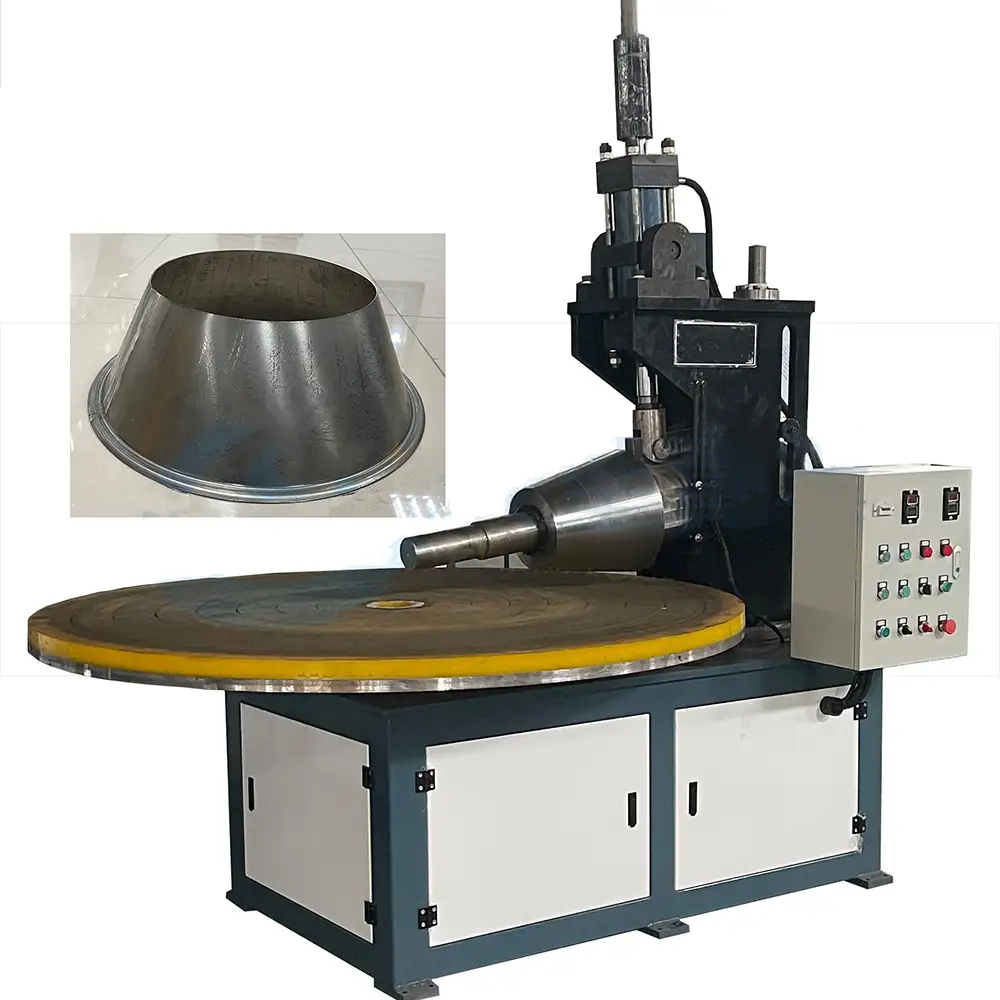

Pre-Rolled Cone Machine

A Pre-Rolled Cone Machine forms a flat blank into a conical shape before subsequent manufacturing operations.

Pre-rolled cones are widely used as intermediate components in industrial fabrication. Once rolled,the cone can be welded,trimmed,calibrated,or assembled with other components.

Typical pre-rolled cone applications include:

Pipe reducers

Conical tank sections

Hoppers

Funnels

Duct transitions

Exhaust components

Industrial covers

Discharge chutes

Tapered housings

Custom metal cones

The rolling stage is only one part of the complete manufacturing process. Additional operations depend on the final product requirements.

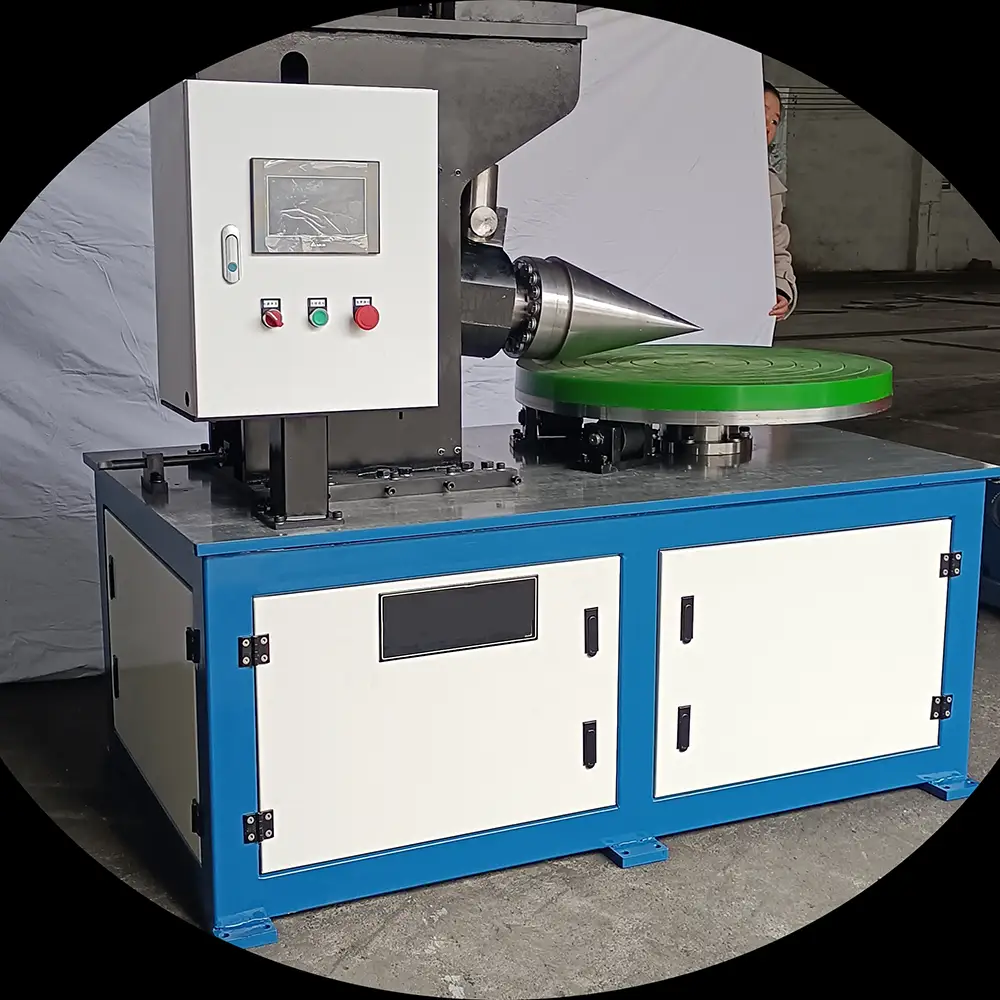

Cone Bending Roller

The Cone Bending Roller is the primary forming component responsible for progressively bending the metal blank into the required tapered profile.

Roller diameter,roller arrangement,working width,and adjustment range all affect the machine's cone-forming capability. For small-diameter cones,a suitable roller configuration is particularly important.

Different materials also require different forming conditions. Stainless steel may require greater forming force and springback compensation than aluminum. Carbon steel may have different requirements depending on its grade and thickness.

For this reason,customers should provide detailed workpiece specifications when selecting a cone bending roller.

Materials for Automatic Cone Rolling

The machine can be configured for different sheet metal materials.

Carbon Steel

Carbon steel is commonly used for reducers,hoppers,duct transitions,tanks,and general industrial components.

Stainless Steel

Stainless steel is suitable for applications requiring corrosion resistance,cleanability,or a specific surface appearance. Roller surfaces and forming parameters should be selected carefully when surface quality is important.

Aluminum

Aluminum is useful for lightweight tapered components. Its forming characteristics depend on alloy,temper,and thickness.

Other Sheet Metals

Other formable metals may also be processed when their mechanical properties fall within the machine's forming range.

Actual material compatibility should always be confirmed according to the machine's technical specifications.

Applications of Taper Cone Rolling Machines

Pipe Reducers

Conical blanks can be rolled before welding into concentric or other suitable reducer configurations.

Industrial Hoppers

Tapered hoppers and discharge sections can be produced from suitable sheet metal.

Funnels

Metal funnels can be manufactured by rolling developed blanks into conical shapes.

Tank and Vessel Components

Conical sections can be prepared for tanks and process equipment where the material and forming requirements are suitable.

HVAC Duct Transitions

The machine can form tapered transitions connecting different duct diameters.

Exhaust Components

Suitable metal blanks can be formed into tapered exhaust and transition sections.

Agricultural Equipment

Hoppers,feed components,and other tapered structures can be produced for agricultural machinery.

Custom Metal Fabrication

Fabrication companies can use the machine for prototypes,small batches,and customized conical components.

Benefits of an Automatic Taper Cone Rolling Machine

Repeatable Forming

Controlled roller movement can help improve consistency between similar workpieces.

Reduced Manual Adjustment

Automation can reduce repetitive roller-positioning tasks depending on the machine configuration.

Flexible Cone Dimensions

The machine can support different cone lengths,diameters,and angles within its working range.

Multiple Material Applications

Suitable configurations can process aluminum,stainless steel,carbon steel,and other formable metals.

Improved Production Efficiency

A controlled forming sequence can help reduce unnecessary manual operations during repeated production.

Consistent Process Setup

Production parameters can be established for repeat orders and similar workpieces.

Custom Production Capability

The equipment is suitable for specialized tapered components that may not be practical to form manually.

Integration With Downstream Processes

Rolled cones can be transferred to welding,trimming,grinding,polishing,and inspection operations.

Automation and Production Control

The exact automation level depends on the machine model. Depending on configuration,the equipment may include powered roller movement,hydraulic adjustment,electrical control panels,programmable settings,or other automated functions.

For repeat production,the operator can establish a suitable forming sequence based on material,blank geometry,and final cone dimensions. Once verified,the same process can be used as a reference for subsequent workpieces.

Automation does not eliminate the need for correct blank preparation,material inspection,setup,and quality control. Actual cycle time and forming accuracy depend on the workpiece and machine configuration.

Machine Selection

Selecting the correct Automatic Taper Cone Rolling Machine requires detailed information about the workpiece.

Important parameters include:

Material type

Material thickness

Maximum blank width

Cone length

Large cone diameter

Small cone diameter

Cone angle

Minimum rolling diameter

Production volume

Required automation level

Desired dimensional tolerance

The machine should be selected based on the actual material strength rather than nominal thickness alone.

For complex cones or demanding production requirements,technical drawings or physical samples can help determine the appropriate roller configuration.

Quality Control for Pre-Rolled Cones

Quality control begins with the developed blank. The blank must be cut accurately according to the required cone dimensions.

During rolling,the operator should monitor workpiece alignment and forming progression. Uneven positioning can result in an irregular cone or incorrect seam alignment.

After rolling,the cone can be inspected for:

Large diameter

Small diameter

Cone angle

Length

Roundness

Edge alignment

Surface condition

Seam position

For welded cones,the weld seam should be inspected according to the applicable manufacturing requirements.

If tight tolerances are required,additional calibration or finishing may be necessary after rolling.

OEM and Custom Cone Rolling Solutions

Different industries require different cone sizes,materials,and production volumes. We can evaluate OEM and Custom Cone Rolling Machine solutions based on customer drawings,samples,and production requirements.

For an accurate quotation,customers should provide material type,material thickness,cone dimensions,production volume,and required automation functions.

Depending on the application,custom options may include roller configuration,drive system,hydraulic components,control system,working width,and auxiliary equipment.

Why Choose Us

Professional Cone Rolling Solutions – We provide equipment for tapered and conical sheet metal forming applications.

Automation Options – Machine configurations can be selected according to the required level of roller control and production automation.

Multiple Material Compatibility – Suitable solutions are available for aluminum,stainless steel,carbon steel,and other formable metals.

Pre-Rolled Cone Expertise – We focus on practical forming solutions for cones,reducers,hoppers,and tapered sections.

Custom Engineering Support – Machine selection can be based on actual drawings,material specifications,and production requirements.

OEM & ODM Service – Customized machine configurations can be discussed for different production processes.

International B2B Support – We serve manufacturers,fabrication shops,distributors,and industrial buyers.

Technical Assistance – We provide machine specifications,application guidance,and technical communication before and after purchase.

FAQs

1. What is an Automatic Taper Cone Rolling Machine?
It is a rolling machine designed to form flat metal blanks into tapered or conical shapes using controlled roller movement and,depending on the model,automated functions.

2. What is a pre-rolled cone?
A pre-rolled cone is a conical metal component formed from a flat blank before subsequent operations such as seam welding,trimming,or finishing.

3. Can the machine make pipe reducers?
Yes. Suitable tapered blanks can be rolled for reducer fabrication before welding and finishing.

4. What materials can be processed?
Depending on the machine model,it may process carbon steel,stainless steel,aluminum,and other suitable sheet metals.

5. Can stainless steel be rolled into cones?
Yes. The machine must have sufficient forming capacity for the selected stainless steel grade,thickness,and cone dimensions.

6. Can aluminum sheet be used?
Yes. Aluminum can be formed when its grade,temper,and thickness are compatible with the machine configuration.

7. Is the machine fully automatic?
The automation level depends on the specific configuration. Some models provide automated roller positioning or programmed forming functions,while others require more operator involvement.

8. Does the machine weld the cone after rolling?
Normally,no. Cone rolling and seam welding are separate operations unless an integrated production system has been specifically configured.

9. Can different cone sizes be produced?
Yes,within the machine's working range. Cone diameter,length,and angle depend on roller adjustment,blank geometry,and machine capacity.

10. Can the machine make hoppers and funnels?
Yes. Suitable tapered blanks for hoppers,funnels,and discharge sections can be formed using the machine.

11. How do I select the correct cone rolling machine?
Provide material type,thickness,large and small diameters,cone length,cone angle,production volume,and required automation level.

12. Can you provide a custom automatic cone rolling machine?
Yes. OEM and custom configurations can be evaluated based on drawings,samples,material specifications,and production requirements.
