Hydraulic 3 Rollers Sheet Metal Cone Rolling Machine Cone Bending Rolls for Making Drum

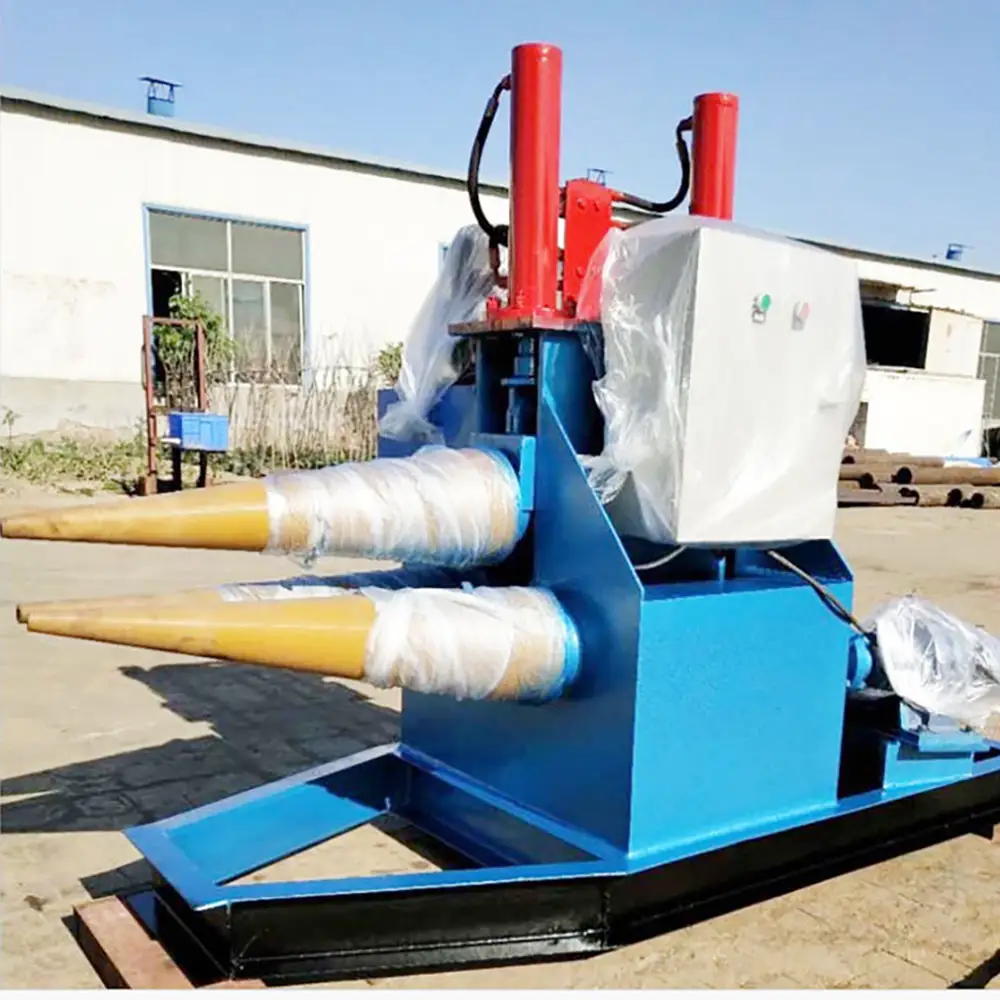

Hydraulic 3-Roller Cone Rolling Machine

The main advantage of a hydraulic three-roller configuration is the ability to apply controlled forming force while adjusting the roller position according to the workpiece requirements.

The workpiece is placed between the rollers and progressively formed through one or more passes. For cylindrical rolling,the material is shaped toward a consistent radius across its width. For cone rolling,the forming process must create different radii across the plate so that the finished blank develops into a tapered or conical shape.

The hydraulic system can support roller adjustment and machine operation according to the design of the particular machine. Hydraulic controls may be configured differently depending on the manufacturer and model.

This makes the machine suitable for fabrication shops that need more controlled plate forming for medium- and heavy-duty applications.

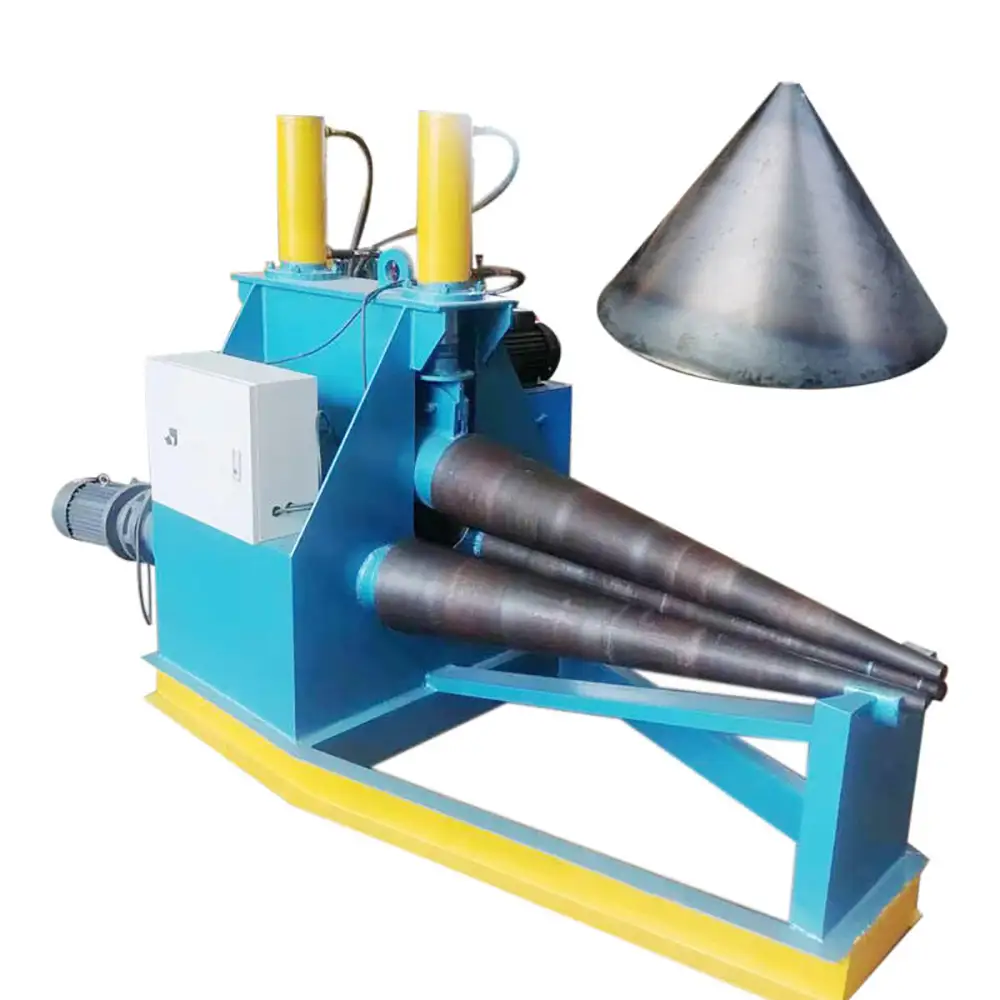

Sheet Metal Cone Rolling

Sheet Metal Cone Rolling is used to transform a flat metal blank into a tapered or conical component. The process begins with a correctly developed blank whose geometry corresponds to the required finished cone.

The blank is positioned in the rolling area,and the operator establishes the appropriate roller settings. The material is progressively formed until the two sides approach the desired conical profile.

Cone rolling requires more setup attention than standard cylindrical rolling because the forming radius changes across the width of the plate. Material thickness,cone angle,small and large diameters,blank dimensions,and material properties all influence the final result.

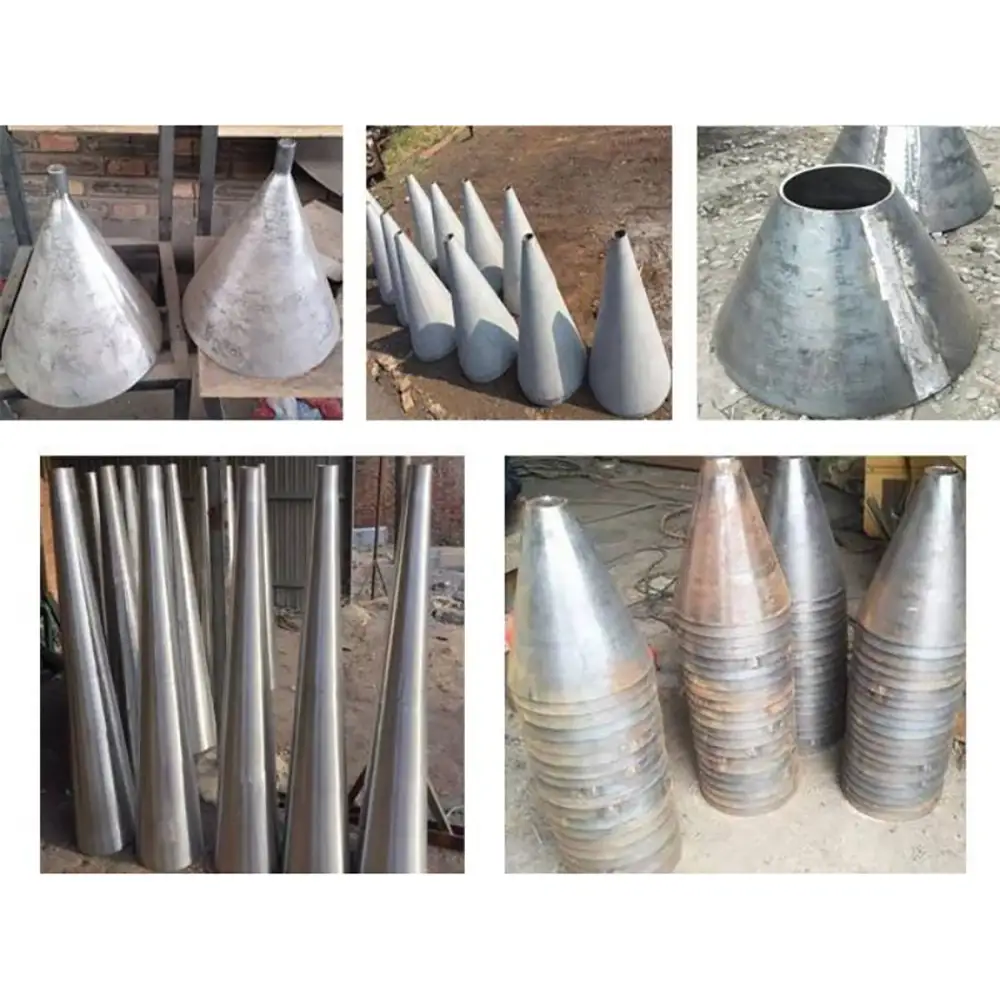

Typical cone products include:

Pipe reducers

Conical tank sections

Hoppers

Funnels

Duct transitions

Industrial cones

Tapered covers

Discharge sections

Custom transition components

Drum-related tapered sections

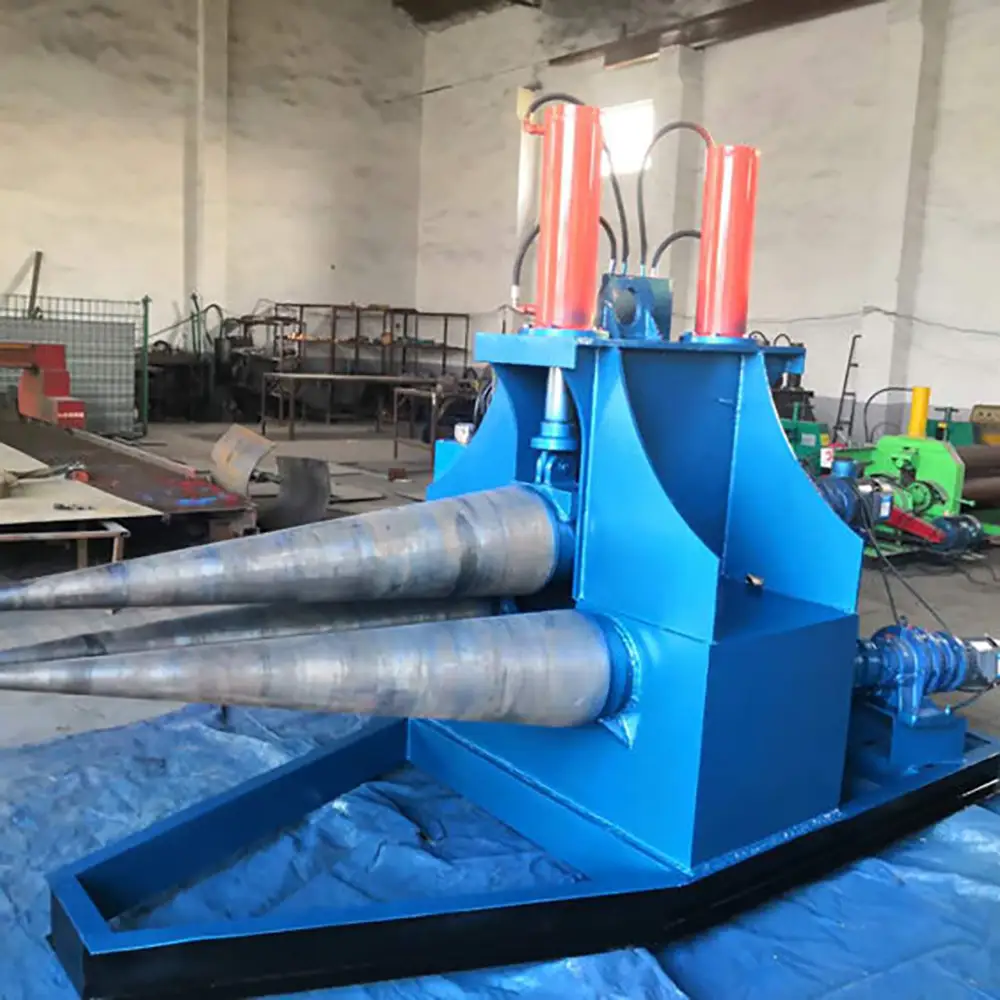

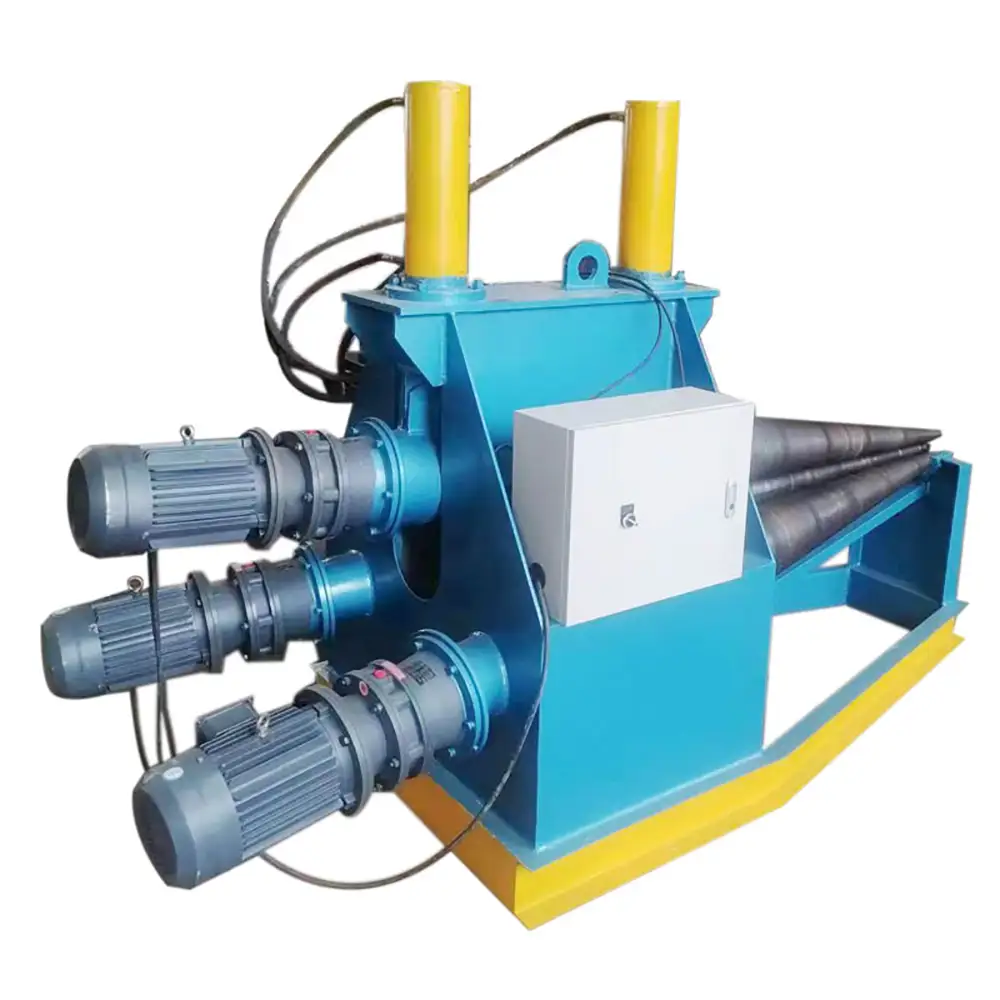

Cone Bending Rolls for Industrial Fabrication

Cone Bending Rolls are used for forming conical sheet metal components in industrial fabrication. Three-roller equipment can be configured for different forming requirements depending on the required cone dimensions and material capacity.

For a conical component,the workpiece does not simply follow the same radius across its entire width. Instead,the forming conditions vary across the plate. Correct machine setup and blank preparation are therefore important.

The finished cone may remain open or may be closed by welding the longitudinal seam. After rolling,welding,trimming,grinding,polishing,and inspection can be performed according to the final product requirements.

For demanding applications,customers should provide technical drawings or samples so the machine configuration can be evaluated.

Hydraulic Rolling Machine for Drum Making

The machine can also be used for Drum Making and cylindrical drum forming when the required dimensions fall within the machine's capacity.

Metal drums are commonly manufactured from sheet metal that is rolled into a cylindrical shell. After rolling,the longitudinal edges can be welded to create the main body. Additional processes may include end forming,flange installation,cover fitting,bead forming,painting,and surface finishing.

The hydraulic three-roller rolling machine is primarily responsible for the sheet metal rolling stage. It should not automatically be considered a complete drum production line unless additional drum-forming equipment has been integrated.

Potential drum-related applications include:

Industrial metal drums

Storage drum shells

Chemical containers

Oil and lubricant drums

Material storage containers

Cylindrical tanks

Process equipment shells

Custom fabricated drums

The suitability of the machine depends on the drum diameter,material thickness,working width,and required production volume.

Hydraulic Plate Rolling Process

A typical rolling process includes several stages.

1. Material Selection

The manufacturer selects carbon steel,stainless steel,aluminum,or another suitable material according to the final application.

2. Blank Preparation

The sheet or plate is cut according to the required cylindrical or conical development. Accurate dimensions are important for achieving the desired finished geometry.

3. Plate Alignment

The workpiece is positioned correctly between the rollers. Proper alignment helps prevent uneven rolling and unwanted tapering.

4. Initial Forming

The hydraulic roller system is adjusted to establish the initial forming position. Depending on the machine and application,the plate ends may require pre-bending.

5. Progressive Rolling

The plate is passed through the rollers while the forming position is gradually adjusted. Several passes may be used to achieve the final radius.

6. Shape Inspection

The operator checks the finished diameter,cone angle,roundness,length,and general geometry.

7. Welding and Finishing

If a closed drum,cylinder,or cone is required,the seam can be welded after rolling. Additional grinding,trimming,polishing,or other finishing operations can then be performed.

Materials Suitable for Hydraulic Cone Rolling

The machine can be used with different sheet metal materials when the machine capacity is properly matched.

Carbon Steel:
Commonly used for drums,tanks,ducts,and general industrial fabrication. Material grade and yield strength affect forming requirements.

Stainless Steel:
Suitable for applications requiring corrosion resistance and cleanable surfaces. Stainless steel may require greater forming force and careful control of springback.

Aluminum:
Useful for lightweight drums,containers,and custom components. Roller surfaces and operating parameters should be selected appropriately.

Other Formable Metals:
Additional sheet materials may be possible depending on their mechanical properties and the machine's forming capacity.

Applications of Hydraulic 3-Roller Cone Rolling Machines

Tank Fabrication

The machine can form cylindrical and conical sections for tanks and industrial vessels,subject to the applicable material and design requirements.

Drum Manufacturing

Cylindrical sheet metal can be rolled into drum shells before welding and subsequent assembly.

Pipeline Fabrication

The machine can produce cylindrical shells and tapered components used in fabricated piping systems.

Chemical Equipment

Suitable stainless steel or carbon steel components can be formed for industrial processing equipment.

HVAC and Ductwork

Conical transitions,cylindrical ducts,and curved sheet metal components can be produced.

Agricultural Machinery

Hoppers,discharge sections,and other tapered or cylindrical components can be fabricated.

General Metalworking

Fabrication shops can use the machine for custom cylinders,cones,drums,and curved metal sections.

Advantages of Hydraulic 3-Roller Rolling Equipment

Controlled Hydraulic Adjustment

Hydraulic systems can provide controlled roller movement according to the machine design.

Cone and Cylinder Forming

The same machine can support cylindrical rolling and selected conical forming applications.

Suitable for Larger Workpieces

Hydraulic configurations can be suitable for applications involving thicker or wider sheet metal,depending on the model.

Multiple Material Options

Carbon steel,stainless steel,aluminum,and other formable metals can be processed when within the machine's capacity.

Flexible Production

The equipment can support custom fabrication,prototype production,and industrial batch manufacturing.

Reduced Manual Forming

Mechanical and hydraulic forming reduces the physical effort required for manual bending.

Repeatable Process

Consistent machine settings and operating procedures can improve repeatability across production runs.

Integration With Welding

Rolled drums,cylinders,and cones can move directly into downstream welding and finishing processes.

How to Select the Correct Hydraulic Cone Rolling Machine

Selecting the correct machine requires consideration of the complete workpiece specification.

Important factors include:

Maximum plate thickness

Maximum working width

Minimum cylinder diameter

Minimum cone diameter

Maximum cone diameter

Cone angle

Material type

Material yield strength

Upper roller diameter

Production volume

Required forming accuracy

For example,a machine suitable for a specific thickness of mild steel may have a different practical capacity when processing stainless steel with higher yield strength.

The minimum achievable diameter is also influenced by roller diameter and machine configuration. Customers should provide drawings or samples when a specific cone geometry or drum dimension is required.

Quality Control

Quality control should begin before the rolling operation. Material thickness and blank dimensions should be verified before loading the machine.

During rolling,the operator should maintain correct alignment and follow an appropriate forming sequence. Excessive forming in a single pass can affect the workpiece shape and surface condition.

After rolling,the workpiece can be inspected for:

Diameter

Cone angle

Roundness

Length

Edge alignment

Surface condition

Seam alignment

For drums and closed cylinders,the longitudinal weld should be inspected according to the applicable manufacturing requirements.

Additional calibration or finishing may be required when the application has tight dimensional tolerances.

Maintenance and Safe Operation

Regular maintenance helps maintain stable machine performance. Depending on the specific configuration,maintenance may include inspection of hydraulic components,rollers,bearings,drive systems,lubrication points,fasteners,and electrical components.

Operators should follow the manufacturer's instructions and use appropriate personal protective equipment. Hands and clothing should be kept away from moving rollers. The machine should be stopped and isolated before maintenance or adjustment work.

Safety guards,emergency stops,and electrical protection may vary according to machine configuration and applicable local requirements.

OEM and Custom Hydraulic Rolling Solutions

Different manufacturers require different working widths,forming capacities,and roller configurations. We can evaluate OEM and Custom Hydraulic Cone Rolling Machine solutions according to customer drawings,samples,and production requirements.

For an accurate machine recommendation,customers should provide:

Material type

Material thickness

Maximum working width

Required drum or cylinder diameter

Cone dimensions

Cone angle

Production volume

Desired finished tolerance

This information helps determine the appropriate machine capacity and configuration.

Why Choose Us

Professional Rolling Equipment – We provide hydraulic and mechanical metal forming solutions for industrial sheet metal applications.

Three-Roller Forming Expertise – Our solutions cover cylindrical,conical,and curved plate forming requirements.

Hydraulic Configuration Options – Hydraulic roller adjustment can provide controlled forming operation for suitable applications.

Multiple Material Compatibility – Machine configurations can be selected for carbon steel,stainless steel,aluminum,and other suitable metals.

Drum and Cone Applications – The equipment can support drum shells,cylinders,cones,reducers,and other formed components.

OEM & ODM Support – Customized configurations can be evaluated based on drawings,samples,and production requirements.

International B2B Service – We support manufacturers,fabrication companies,distributors,and industrial equipment buyers.

Technical Support – We provide machine specifications,application guidance,and technical communication throughout the purchasing process.

FAQs

1. What is a hydraulic 3-roller cone rolling machine?
It is a three-roller metal forming machine using hydraulic adjustment or hydraulic operation to progressively form sheet metal into cylindrical,conical,and curved shapes.

2. Can this machine make metal drums?
Yes. It can be used to roll suitable sheet metal into cylindrical drum shells. Welding and additional drum assembly operations are normally performed separately.

3. Can it roll cones?
Yes. A suitable three-roller configuration can be used for cone rolling when the material and cone dimensions are within the machine's forming capacity.

4. What materials can the machine process?
Depending on the model,it may process carbon steel,stainless steel,aluminum,and other formable sheet metals.

5. Can it roll stainless steel?
Yes,provided the machine has sufficient capacity for the required stainless steel grade,thickness,and dimensions.

6. Can it be used for pipe reducers?
Yes. It can form tapered blanks used to manufacture reducers. Welding and finishing are normally completed after rolling.

7. Does the machine weld drums automatically?
Not normally. The rolling machine forms the drum shell. Seam welding is a separate operation unless an integrated production line has been specifically configured.

8. Can it perform cylinder and cone rolling on the same machine?
Yes,in many configurations. However,the exact cone-forming capability depends on roller design,material,thickness,and workpiece dimensions.

9. What is the difference between hydraulic and mechanical plate rolling?
Hydraulic machines use hydraulic systems for certain roller movements or adjustments,while mechanical machines rely primarily on mechanical drive and adjustment systems. The exact configuration varies by model.

10. What information is needed for machine selection?
Provide material type,material thickness,working width,minimum diameter,cone dimensions,cone angle,production volume,and drawings or samples when available.

11. Can the machine roll thick steel plate?
Suitable hydraulic models can be designed for heavier plate applications,but the actual capacity depends on the specific model,roller diameter,material strength,and working width.

12. Can you provide a customized cone rolling machine?
Yes. OEM and custom solutions can be evaluated according to the customer's material,dimensions,production requirements,and drawings.
