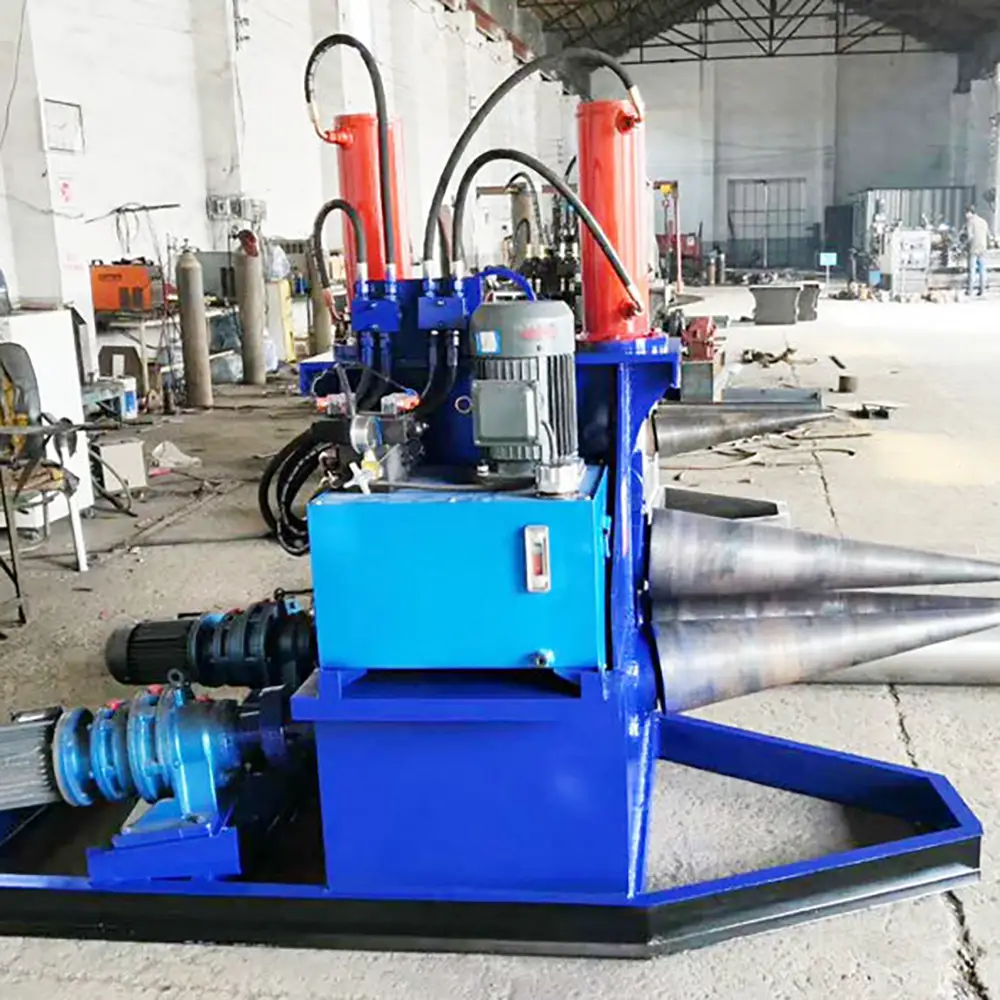

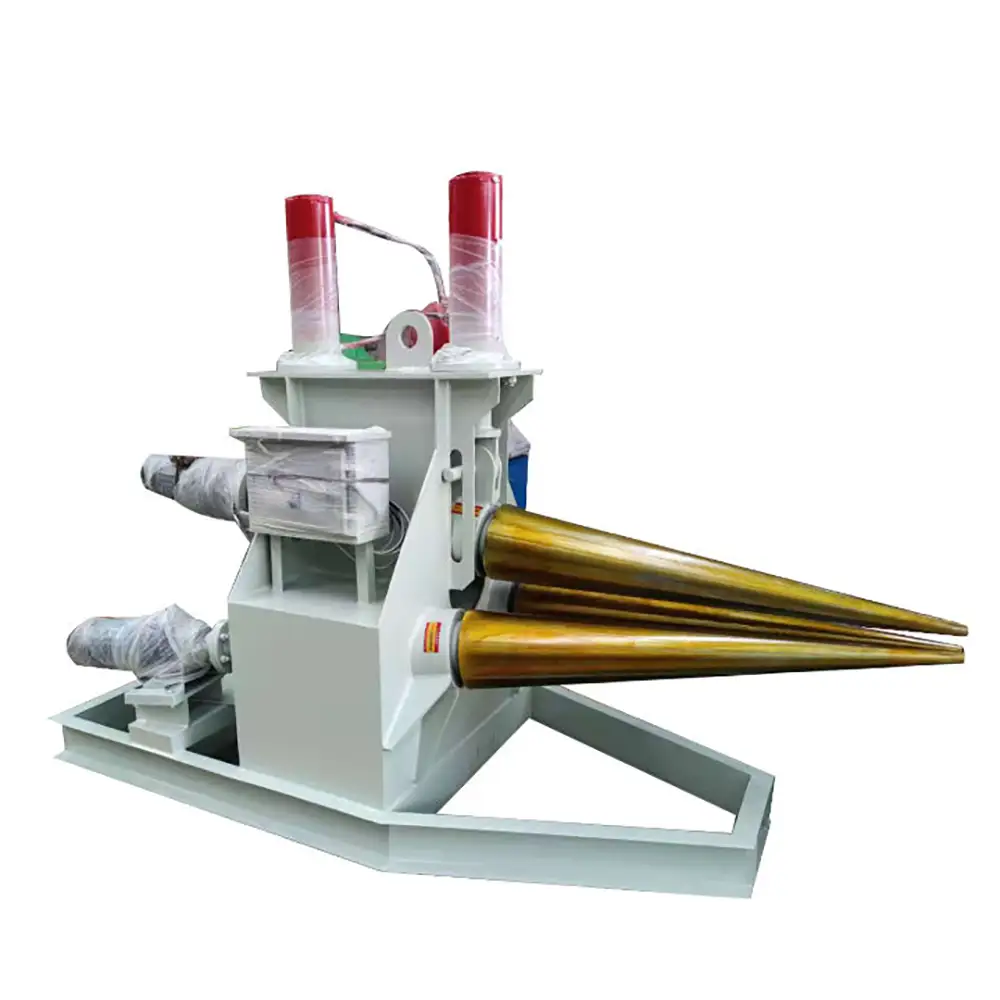

Steel Plate Bending Roller Cone Cnc Hydraulic Rolling Machine for Pre Rolled Cones Machine

  The Steel Plate Bending Roller Cone CNC Hydraulic Rolling Machine is a specialized metal forming solution designed for manufacturers that need to produce tapered,conical,and pre-rolled metal components with controlled and repeatable forming operations. Combining steel plate bending rollers,hydraulic roller adjustment,and CNC-assisted control,this machine can be used for a wide range of cone rolling and plate bending applications.

The equipment is designed to transform flat sheet metal or steel plate into conical sections before subsequent welding,trimming,grinding,assembly,or other fabrication processes. The term Pre Rolled Cones Machine refers to equipment that prepares a flat metal blank into a preliminary cone shape for downstream manufacturing.

Compared with conventional cylindrical plate rolling,cone rolling requires special attention to the different circumferential lengths at the large and small ends of the workpiece. The roller arrangement and control system must accommodate this changing geometry during forming.

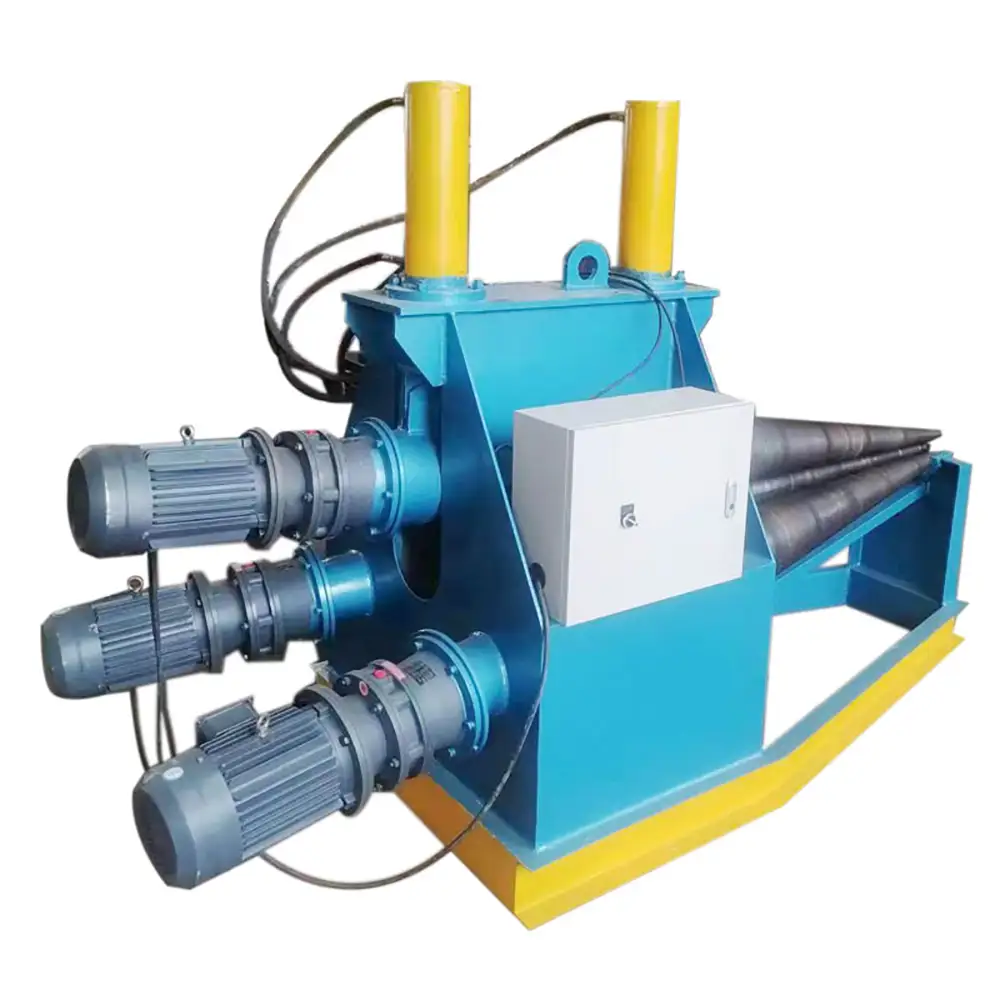

CNC Hydraulic Cone Rolling Machine

The CNC hydraulic configuration provides controlled roller positioning and programmable operating parameters. Depending on the machine design,the CNC system can assist with roller adjustment,positioning,and repeatable forming sequences.

CNC control can be especially useful for manufacturers producing multiple cone sizes or repeated batches. Instead of manually determining every roller position,the operator can use programmed settings as part of a standardized production procedure.

The actual level of automation depends on the selected machine configuration. CNC control should be understood as programmable process assistance rather than a guarantee of completely unmanned production.

The hydraulic system provides powered roller movement and is particularly useful when working with heavier steel plate. Proper hydraulic capacity must be selected according to material strength,plate thickness,working width,and cone geometry.

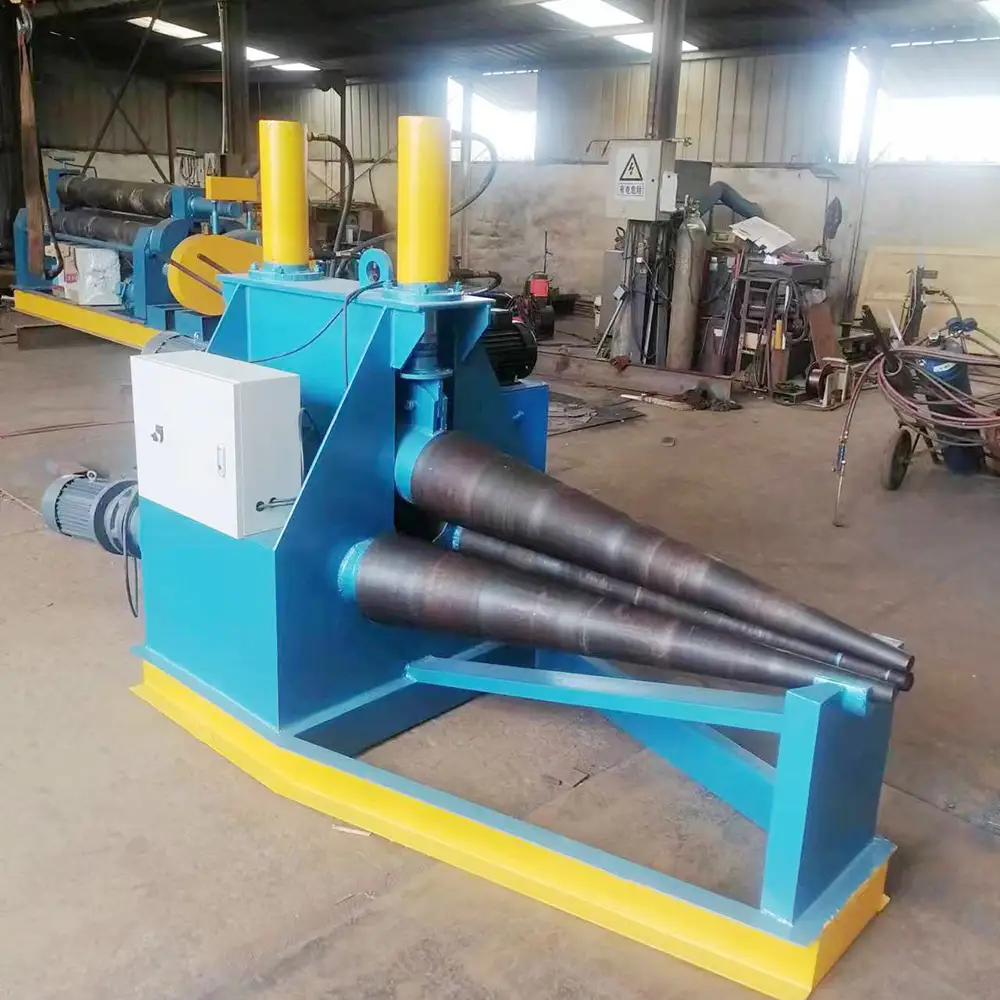

Steel Plate Bending Roller

The Steel Plate Bending Roller is the main forming component that applies controlled deformation to the metal blank. The rollers work together to gradually bend the flat plate into a cylindrical,conical,or tapered shape.

Commonly processed materials include:

Carbon steel

Mild steel

Stainless steel

Aluminum

Low-alloy steel

Other suitable formable metals

The actual forming capacity depends on material yield strength,plate thickness,plate width,roller diameter,and required bending radius.

A thicker stainless steel plate may require more forming force than mild steel with the same nominal thickness. For this reason,machine selection should always be based on actual material properties rather than thickness alone.

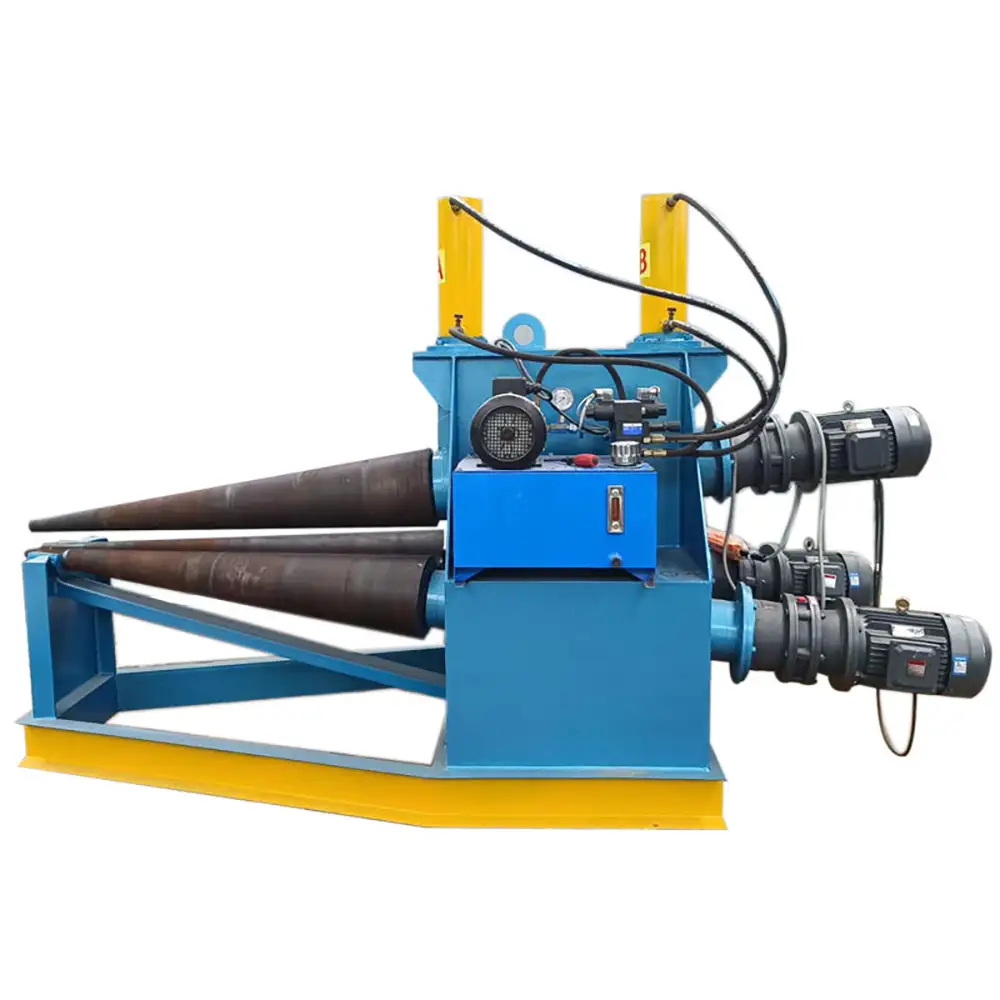

Pre-Rolled Cones Machine

The Pre Rolled Cones Machine is suitable for manufacturing cone sections that will undergo additional fabrication. A typical production process starts with a flat blank cut according to the developed cone dimensions.

The blank is positioned between the rollers,and the machine is adjusted according to the required cone geometry. Initial pre-bending may be performed where required.

The plate is then progressively rolled until the desired tapered shape is achieved. Depending on the material and thickness,several passes may be required.

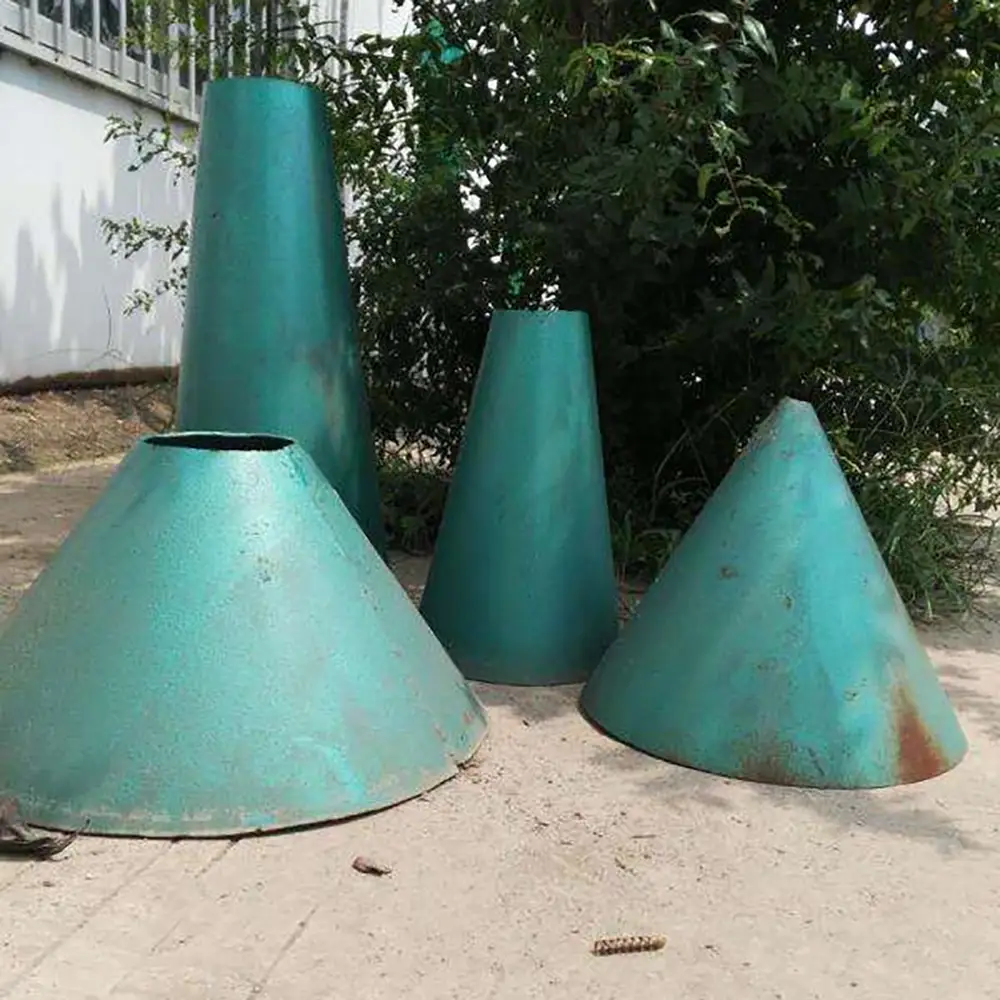

After rolling,the pre-rolled cone can be transferred to the next production stage for seam welding,trimming,edge preparation,grinding,flanging,or machining.

Cone Rolling Applications

This CNC hydraulic cone rolling machine can be used for many industrial components,including:

Pipe reducers

Conical hoppers

Funnels

Duct transitions

Exhaust cones

Dust collector components

Tank transitions

Vessel sections

Conical roofs

Industrial chutes

Agricultural equipment

Mining equipment

Custom fabricated cones

Pipe reducers are a particularly common application. A reducer connects two pipe sections with different diameters,and its tapered body can be formed from a developed flat blank.

After rolling,the longitudinal seam can be welded,and the ends can be trimmed or machined according to the final component requirements.

CNC Cone Forming Process

A controlled cone-forming process normally includes several stages.

First,the required cone dimensions are determined,including the large-end diameter,small-end diameter,height,and cone angle. A suitable flat blank is then developed and cut.

The blank is positioned in the machine,and the rollers are adjusted to establish the required forming condition. CNC-assisted positioning can help repeat previously established roller settings for similar workpieces.

The plate is progressively rolled through the machine. During the forming process,the operator can monitor the workpiece and make adjustments according to material behavior and actual cone geometry.

Springback should also be considered. Different metals can return slightly toward their original shape after forming,so forming parameters may need to account for material characteristics.

Hydraulic Plate Rolling for Heavy Applications

Hydraulic roller adjustment is useful for industrial plate bending because it provides powered movement of the forming rolls. This can simplify setup when handling heavier workpieces.

For heavy steel plate applications,the complete machine structure,roller diameter,drive system,and hydraulic system must be appropriately matched to the required forming load.

The machine can be configured according to the production requirement rather than using a single standard setup for every application.

Stainless Steel and Aluminum Cone Forming

Stainless steel is frequently used when corrosion resistance,cleanability,or surface durability is important. It can be rolled into tapered sections when the machine has sufficient forming capacity for the specified grade and thickness.

Aluminum is useful when lightweight components are required. Because aluminum has different mechanical properties from steel,the forming parameters and roller contact conditions may need to be adjusted.

For surface-sensitive materials,the roller condition should also be considered to minimize unwanted marks during production.

Custom CNC Cone Rolling Equipment

Different manufacturers require different cone dimensions and production volumes. For this reason,custom machine configurations can be developed around specific applications.

Possible customization options may include:

Working length

Roller diameter

Maximum plate thickness

Hydraulic capacity

CNC control system

Side supports

Roller configuration

Safety and electrical options

Auxiliary handling equipment

Customers should provide product drawings and material information so the machine configuration can be evaluated against actual production requirements.

Production Efficiency and Repeatability

For manufacturers producing repeated cone sizes,CNC-assisted positioning can help standardize machine setup. Saved or documented forming parameters can reduce repeated manual adjustment and support more consistent production procedures.

However,actual forming results still depend on material variation,blank accuracy,roller condition,operator setup,and other production factors.

For high-volume applications,the machine can be incorporated into a broader workflow that includes CNC cutting,welding,grinding,inspection,and final assembly.

Quality Control

Quality control should begin before the plate enters the rolling machine. The blank dimensions should be checked to ensure that the developed cone geometry is correct.

After forming,the following dimensions may be inspected:

Large-end diameter

Small-end diameter

Cone angle

Cone height

Roundness

Edge alignment

Surface condition

Seam fit-up

Additional welding and finishing operations can affect final dimensions,so inspection may be performed at multiple stages of production.

Why Choose Us

CNC Hydraulic Technology
Controlled roller positioning supports repeatable cone-forming operations.

Steel Plate Bending Capability
Configurations are available for different plate thicknesses and industrial forming requirements.

Pre-Rolled Cone Production
Suitable for preparing tapered components before welding and downstream fabrication.

Flexible Material Processing
Suitable configurations can process carbon steel,stainless steel,aluminum,and other formable metals.

Multiple Industrial Applications
Suitable for reducers,hoppers,funnels,duct transitions,tank components,and custom cones.

Custom OEM Solutions
Working dimensions,roller specifications,hydraulic systems,and CNC controls can be customized.

Factory-Direct B2B Supply
We support manufacturers,metal fabricators,distributors,and industrial equipment suppliers.

Technical Support
We assist with machine selection,configuration,application requirements,and production planning.

FAQs

1. What is a CNC Hydraulic Cone Rolling Machine?

It is a metal forming machine that uses hydraulic roller adjustment and CNC-assisted control to form sheet metal or steel plate into tapered and conical shapes.

2. What does Pre-Rolled Cones Machine mean?

It refers to equipment used to form flat metal blanks into preliminary cone shapes before welding,finishing,assembly,or other downstream operations.

3. Can this machine roll steel plate?

Yes. It can be configured for different steel plate thicknesses and material strengths according to the required forming capacity.

4. Can it make pipe reducers?

Yes. The machine can form tapered blanks for pipe reducer fabrication. Welding and finishing are normally performed after rolling.

5. Can it process stainless steel?

Yes,provided the machine capacity is suitable for the selected stainless steel grade,thickness,and cone dimensions.

6. What is the advantage of CNC control?

CNC-assisted positioning can help repeat roller settings and support consistent setup for repeated production.

7. Is CNC control fully automatic?

Not necessarily. The actual automation level depends on the machine configuration and production process. Operator involvement may still be required.

8. Can it form aluminum cones?

Yes,when the machine configuration and forming parameters are suitable for the aluminum material and thickness.

9. Can one machine produce different cone sizes?

Yes,within its specified operating range. Roller settings and forming parameters are adjusted according to each cone geometry.

10. Can the machine be customized?

Yes. Working width,roller diameter,hydraulic capacity,CNC control,and auxiliary equipment can be customized.

11. What information is needed for machine selection?

Provide material type,plate thickness,width,large and small cone diameters,cone height,cone angle,production volume,and preferably a technical drawing.

12. What happens after the cone is rolled?

The pre-rolled cone may require seam welding,trimming,grinding,flanging,calibration,machining,and final dimensional inspection depending on the application.
