Tapered Cone Plate Rolling Machine Pre Roll Machine Cone Filling Equipment

The Tapered Cone Plate Rolling Machine is specialized metal forming equipment designed to roll flat sheet metal and steel plate into tapered,conical,and pre-rolled shapes. It is suitable for manufacturers that need consistent cone sections for fabrication,assembly,packaging,and industrial processing applications.

A tapered cone has different diameters at its two ends,which makes it different from a conventional cylindrical shell. During forming,the rolling process must accommodate the changing circumference of the workpiece. A properly configured cone plate rolling machine allows the operator to progressively form the flat blank into the required tapered geometry.

The equipment can be used as a Pre Roll Machine for preparing cone-shaped components before subsequent welding,filling,assembly,or finishing processes. Depending on the configuration,it may process carbon steel,stainless steel,aluminum,and other formable sheet and plate materials.

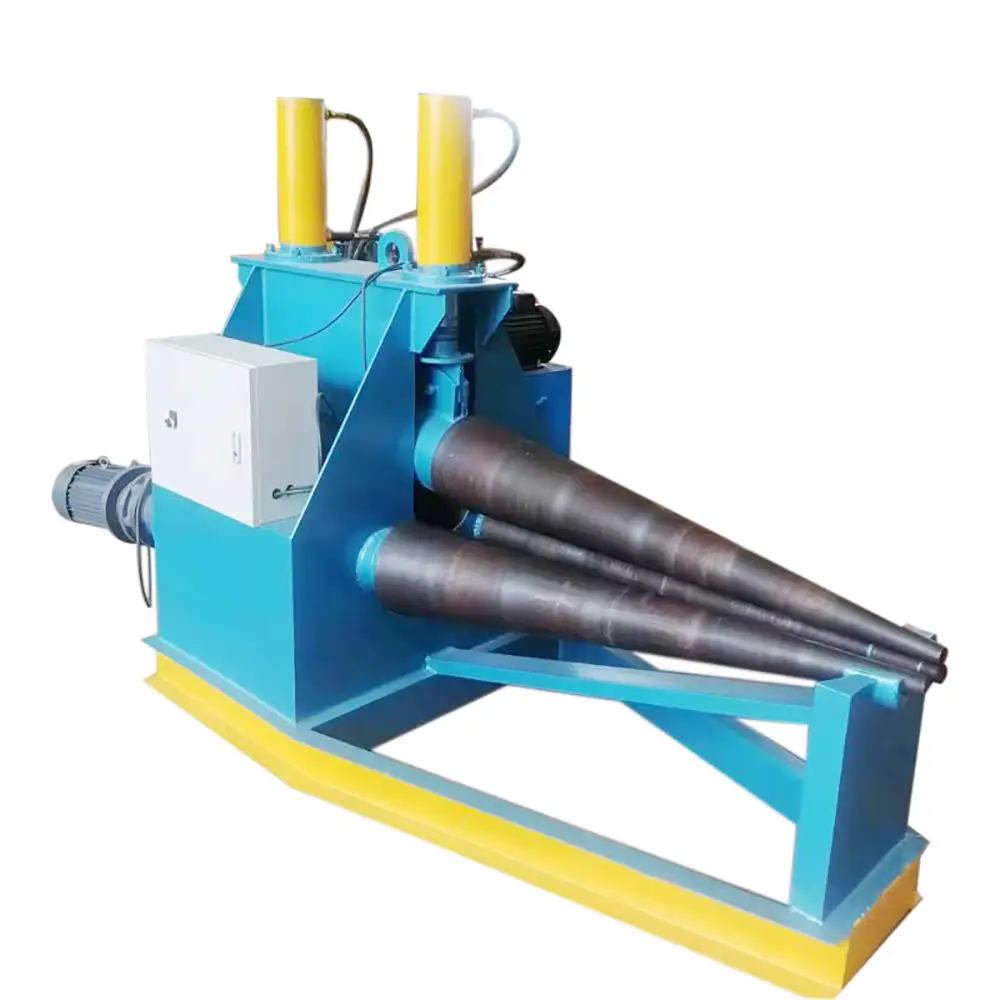

Tapered Cone Plate Rolling Machine

The main function of the machine is to form flat metal plate into tapered or conical sections. The workpiece is positioned between the forming rollers,and the roller arrangement is adjusted according to the required cone diameter,cone angle,and material properties.

The plate is normally formed progressively through several passes. This controlled process can help reduce excessive deformation and allows the operator to monitor the development of the cone shape.

Typical applications include:

Pipe reducers

Conical hoppers

Funnels

Duct transitions

Dust collector cones

Exhaust components

Tank transitions

Vessel sections

Conical roofs

Industrial chutes

Material handling components

Custom fabricated cones

The actual machine capacity depends on plate thickness,plate width,material strength,roller diameter,working length,and cone geometry.

Pre Roll Machine for Cone Forming

A Pre Roll Machine is used to prepare a tapered or conical metal component before the next manufacturing stage. The term pre-roll is particularly useful when the rolling operation is only one step in a complete production process.

For example,a flat blank may first be cut using a laser or plasma cutting machine. The blank is then transferred to the cone rolling machine and formed into the required tapered shape.

After rolling,the component may undergo:

Seam welding

Edge trimming

Grinding

Flanging

Calibration

Machining

Inspection

Final assembly

This makes the machine suitable for manufacturers that integrate cone rolling into a larger fabrication or production line.

Cone Filling Equipment Applications

The keyword Cone Filling Equipment is commonly associated with equipment used to fill cone-shaped products or containers. The cone rolling machine itself is primarily a metal forming machine rather than a filling machine. However,it can be used to manufacture or pre-form metal cone components that are later integrated into filling,processing,or packaging systems.

For industrial applications,the rolled cone may serve as a hopper,transition section,discharge cone,or other component within a material handling system.

Depending on the final application,the formed cone can be connected with feeding systems,valves,flanges,conveyors,or other equipment after welding and finishing.

This distinction is important when specifying the equipment: the Cone Plate Rolling Machine creates the metal cone geometry,while separate filling or processing equipment performs the filling operation.

Hydraulic Cone Rolling

A hydraulic configuration can provide powered roller adjustment for industrial cone forming. Hydraulic movement is useful when processing heavier plate or when the machine needs frequent roller repositioning.

The hydraulic system can help operators adjust the roller position according to the required forming condition. Depending on the machine design,the hydraulic system may control the upper roller,lateral rollers,or other forming mechanisms.

Hydraulic operation does not automatically mean the machine is fully automatic. Manual hydraulic control,programmable control,and CNC-assisted systems are all possible depending on the selected configuration.

For customers with high-volume production requirements,programmable positioning can be considered to improve setup consistency between repeated workpieces.

Sheet Metal and Steel Plate Cone Rolling

The machine can be configured for different thicknesses and materials. Common applications include:

Carbon steel

Mild steel

Stainless steel

Aluminum

Low-alloy steel

Other suitable formable metals

Carbon steel is commonly used for industrial structures,hoppers,ducts,and equipment components. Stainless steel is often selected for applications requiring corrosion resistance or easier cleaning.

Aluminum can be used when lower component weight is important. However,material properties and surface characteristics should be considered when determining roller settings.

The machine must be correctly sized for the actual material strength and plate thickness. High-strength materials may require greater forming force than standard mild steel.

Cone Rolling Process

A typical cone forming process starts with the development and cutting of the flat blank. Accurate blank dimensions are important because the blank geometry directly affects the final cone.

The prepared blank is positioned in the rolling machine. Pre-bending may be required depending on the machine design and component geometry.

The rollers are then adjusted to create the required tapered forming condition. The blank passes through the rollers progressively until the desired cone shape is achieved.

The operator can check the large-end diameter,small-end diameter,cone angle,and overall height during the process.

After forming,the cone can be removed for welding and subsequent fabrication.

Pipe Reducer and Transition Components

Pipe reducers are one of the most common products manufactured using cone rolling equipment. A reducer connects two pipe sections with different diameters.

The developed reducer blank is rolled into a tapered shell. The longitudinal seam can then be welded,and the ends may be trimmed or machined according to the final requirements.

Similar forming principles can be used for duct transitions in HVAC and ventilation systems. A tapered transition can connect components with different diameters or cross-sectional dimensions.

Hopper and Funnel Manufacturing

The machine is also useful for producing conical hoppers and funnels. These components are widely used in material handling,agricultural equipment,mining,food processing,and industrial production systems.

A typical hopper has a larger upper opening and a smaller discharge opening. The tapered shell can be formed using the cone rolling machine and then welded to other structural components.

For applications involving food,chemicals,or corrosive materials,stainless steel may be selected according to the specific process requirements.

Cone Filling System Integration

When used in a production system that includes filling or dispensing equipment,the rolled cone can serve as part of the equipment structure or material flow path.

For example,a formed stainless steel cone may be used as a hopper or transition component above a filling station. After rolling and welding,the cone can be fitted with flanges,discharge openings,inspection ports,or other accessories.

The final integration depends on the filling material,the required flow characteristics,and the complete equipment design.

Machine Selection

Selecting a tapered cone plate rolling machine requires detailed information about the actual component.

Customers should provide:

Material type

Material grade

Maximum plate thickness

Minimum plate thickness

Plate width

Large-end diameter

Small-end diameter

Cone height

Cone angle

Required production volume

Product drawings

These specifications help determine the appropriate working length,roller diameter,hydraulic capacity,and machine configuration.

Custom and OEM Cone Rolling Equipment

Custom requirements are common in industrial cone fabrication. A manufacturer may need a special working width,roller arrangement,control system,or auxiliary support system.

OEM and Custom solutions can be developed according to customer drawings and production requirements.

Possible configuration options include different working lengths,roller diameters,hydraulic systems,control panels,side supports,and programmable positioning systems.

For international B2B customers,the machine can also be supplied with technical documentation,spare parts,and application support according to the agreed project requirements.

Quality Control

The quality of the finished cone depends on several factors,including blank accuracy,material properties,roller setup,and forming sequence.

After rolling,the component should be inspected according to the final application. Typical inspection items include:

Large-end diameter

Small-end diameter

Cone angle

Overall height

Roundness

Edge alignment

Surface condition

Seam fit-up

Welding,grinding,trimming,and calibration may be required to achieve the final dimensional requirements.

Why Choose Us

Specialized Cone Rolling Equipment
We provide equipment designed for tapered and conical metal forming applications.

Pre-Rolling Applications
The machine is suitable for preparing metal cones before welding,assembly,or downstream production.

Hydraulic Configuration Options
Hydraulic roller adjustment can support convenient setup and industrial forming operations.

Multiple Material Compatibility
Suitable configurations can be provided for carbon steel,stainless steel,aluminum,and other formable metals.

Flexible Cone Applications
Suitable for reducers,hoppers,funnels,duct transitions,and custom tapered components.

OEM & Custom Manufacturing
Machine specifications can be customized according to product drawings and production requirements.

B2B Factory Supply
We serve metal fabricators,industrial manufacturers,distributors,and equipment suppliers.

Technical Support
We assist with machine selection,configuration,forming requirements,and application planning.

FAQs

1. What is a Tapered Cone Plate Rolling Machine?

It is a metal forming machine designed to roll flat sheet metal or steel plate into tapered and conical shapes.

2. What is a Pre Roll Machine?

A Pre Roll Machine forms a metal blank into a preliminary cylindrical or conical shape before welding,assembly,or further processing.

3. Is this a cone filling machine?

No. The cone rolling machine forms metal cone components. Separate filling equipment is required for filling or dispensing operations.

4. Can the machine make pipe reducers?

Yes. It can form tapered blanks used for pipe reducer manufacturing.

5. Can it form stainless steel cones?

Yes,provided the selected machine has sufficient capacity for the required stainless steel grade and thickness.

6. Can it roll carbon steel plate?

Yes. Carbon steel is commonly processed using cone and plate rolling equipment.

7. Can the machine produce hoppers?

Yes. It can form tapered shells used for hoppers and funnels.

8. Is hydraulic operation fully automatic?

Not necessarily. Hydraulic operation provides powered roller movement,but the overall automation level depends on the selected control configuration.

9. Can different cone sizes be produced?

Yes,within the machine's specified forming range. Different cone sizes require appropriate roller adjustment and forming procedures.

10. Can the machine be customized?

Yes. Working dimensions,roller configuration,hydraulic capacity,and control options can be customized according to production requirements.

11. What information is needed for a quotation?

Provide material type,plate thickness,width,large and small diameters,cone height,cone angle,production volume,and product drawings if available.

12. What happens after the cone is rolled?

The formed cone may require seam welding,trimming,grinding,flanging,calibration,and final inspection depending on the finished product.
