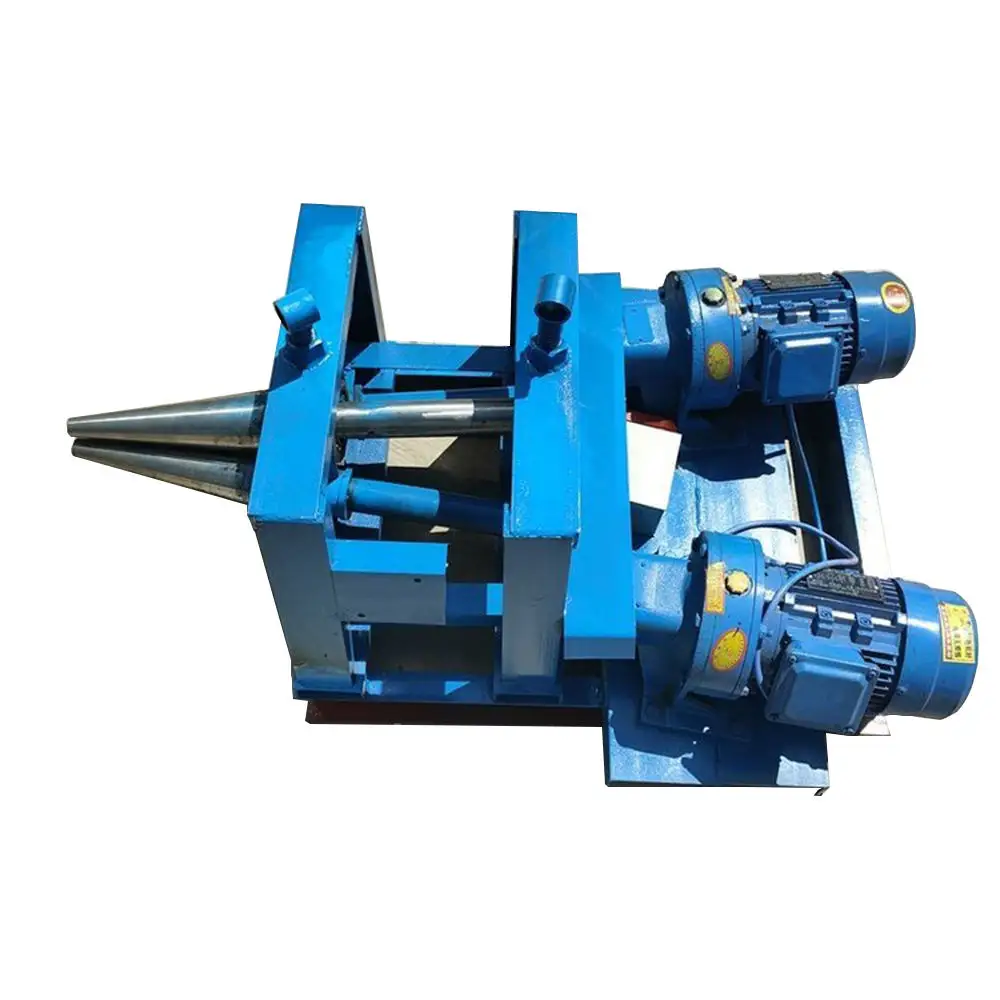

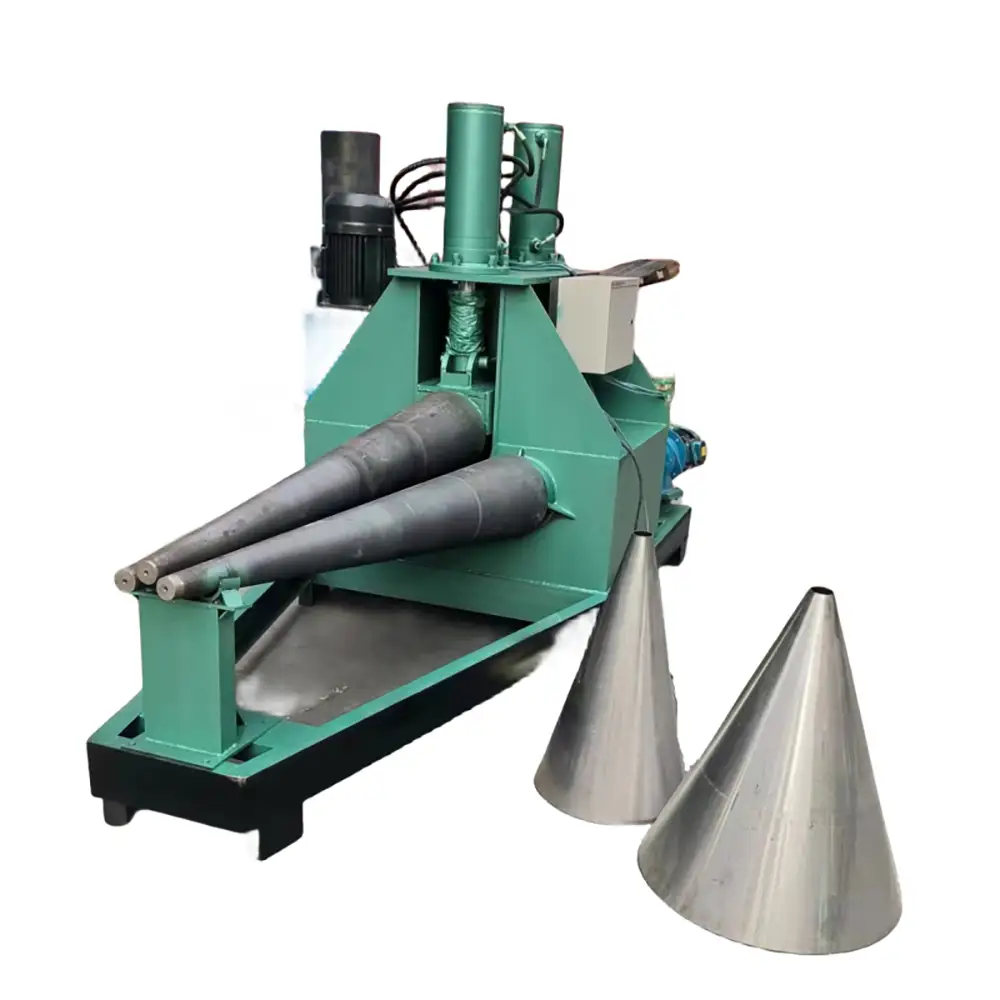

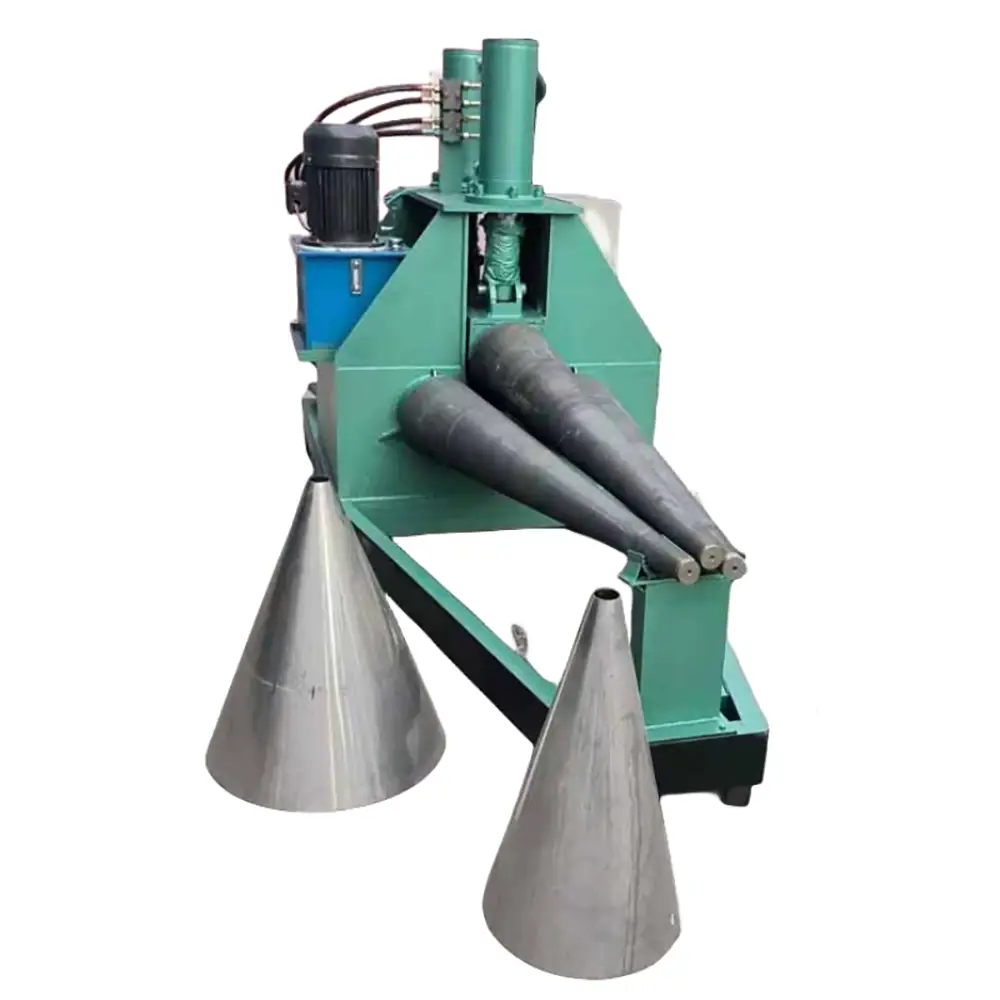

Small Cone Hydraulic Three Rollers Sheet Metal Cone Rolling Machine

The Small Cone Hydraulic Three Rollers Sheet Metal Cone Rolling Machine is a compact metal forming solution designed for producing small tapered and conical components from sheet metal and plate. Using a three-roller forming structure with hydraulic adjustment, this machine is suitable for manufacturers, metal fabrication workshops, OEM suppliers and custom fabrication businesses that need controlled cone forming in a relatively compact machine format.

Cone rolling is an important process when flat metal blanks need to be transformed into tapered, conical or gradually changing cylindrical sections. Compared with conventional plate rolling, cone rolling requires controlled adjustment across the workpiece so that one side can follow a different forming radius from the other. This allows manufacturers to produce components such as funnels, hoppers, reducers, transitions, conical covers, chutes and other tapered metal parts.

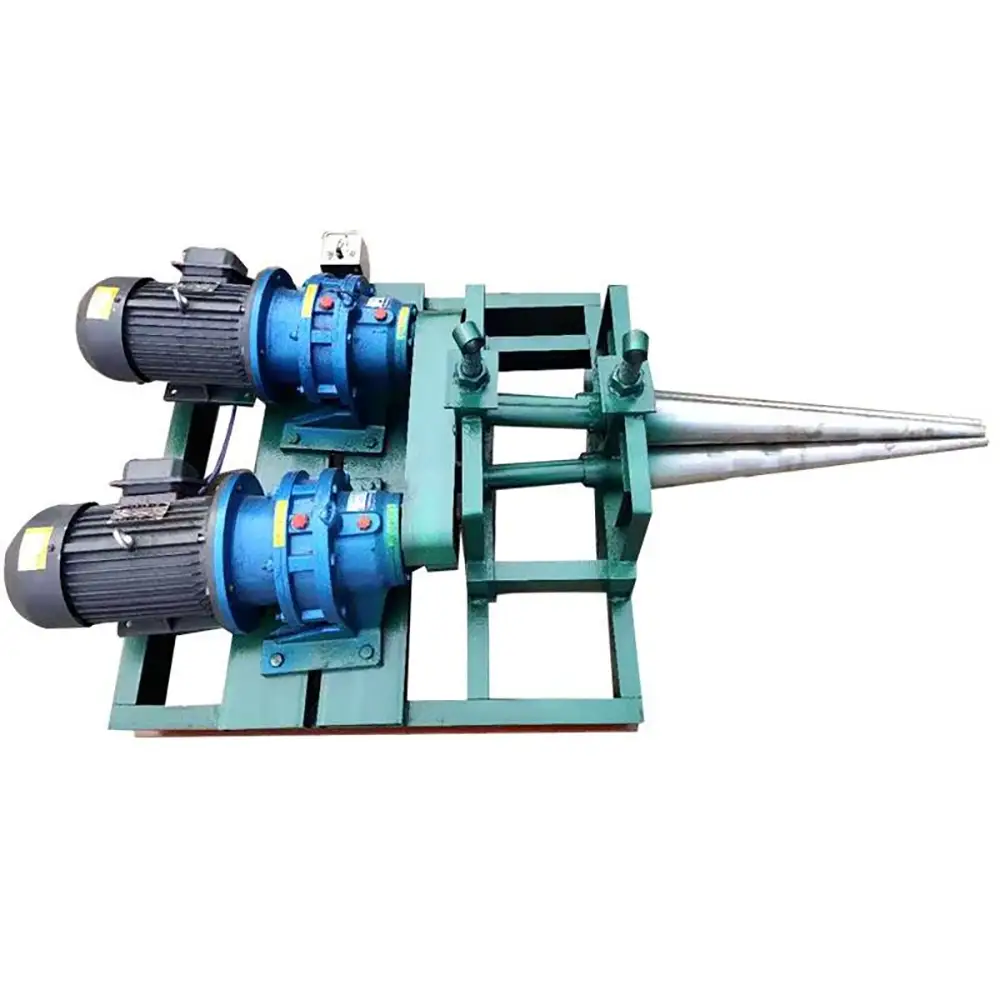

The small cone rolling machine is particularly suitable for applications involving relatively small workpieces. Its compact configuration can help save workshop floor space while providing the forming capability needed for small-batch production, prototyping and repeated manufacturing. The actual workpiece capacity depends on machine configuration, roller diameter, working length, material thickness, material strength and required cone geometry.

The hydraulic three-roller design provides controlled roller adjustment during the forming process. Hydraulic systems can provide strong and stable mechanical movement for positioning and forming operations. Depending on the selected configuration, hydraulic adjustment can be used to control relevant roller positions and support repeatable forming operations. The exact hydraulic arrangement and control method may vary according to machine model and customer requirements.

Three-roller construction is widely used for sheet metal and plate rolling because it provides a practical method for pre-bending and progressive forming. For cone production, the roller arrangement must be properly adjusted to accommodate the different radii required across the tapered blank. Operators can progressively form the workpiece until the desired cone angle, diameter and curvature are achieved.

The machine can process suitable carbon steel, mild steel, stainless steel, aluminum and other formable metals. Carbon steel is commonly used for industrial fabrication because of its strength and cost efficiency. Stainless steel is suitable for applications requiring corrosion resistance and a clean surface finish. Aluminum can be used where lightweight components are preferred. Because different materials have different yield strengths, elongation and springback characteristics, machine capacity should always be evaluated according to the actual material grade and thickness.

A typical cone rolling process starts with preparing a correctly developed flat blank. For tapered components, accurate blank development is especially important because the blank geometry determines the final cone dimensions. After cutting, the blank is positioned on the rollers and the forming operation begins. Depending on the material and machine configuration, pre-bending may be performed before progressive rolling. The operator then gradually forms the workpiece while monitoring the cone profile.

Hydraulic roller adjustment can make the setup process more convenient for operators. Instead of relying exclusively on manual mechanical adjustment, hydraulic movement can provide controlled positioning of machine components. This can be particularly useful when working with different material thicknesses or changing between different cone dimensions.

Small cone rolling machines are used in many industrial applications. Funnels and hoppers are common examples because they require a tapered transition from a larger opening to a smaller outlet. Pipe reducers and duct transitions also require controlled tapered geometry. Other applications may include exhaust components, industrial chutes, agricultural equipment parts, mining equipment components, tank transitions, ventilation components and custom fabricated cones.

The machine can also be used for prototype production. Product developers and fabrication companies often need to manufacture a limited number of custom tapered parts before moving into larger production. A compact cone rolling machine can provide a practical forming solution without requiring the floor space or capacity of a large industrial plate rolling machine.

For repeated production, standardized forming procedures can help improve consistency. Operators can establish suitable roller positions and forming sequences based on material type, thickness and workpiece geometry. However, actual forming accuracy depends on machine condition, material properties, blank accuracy, roller setup, cone dimensions and operator technique.

The machine is a forming machine rather than a complete cone manufacturing line. After rolling, the formed cone may need to be tack welded or seam welded to close the joint. Additional processes such as trimming, grinding, calibration, polishing, dimensional inspection or surface treatment may also be required depending on the final product.

When selecting a hydraulic three-roller cone rolling machine, buyers should consider several technical factors. These include maximum plate thickness, maximum working width, roller diameter, minimum forming diameter, material type, cone angle, finished cone diameter, hydraulic capacity and production volume. For stainless steel and high-strength materials, additional forming capacity may be required compared with mild steel.

For OEM and custom applications, machine configuration can be developed around actual drawings and samples. Customers can provide the required material, thickness, blank dimensions, small and large cone diameters and production requirements. Based on this information, the supplier can evaluate a suitable roller configuration and hydraulic system.

The Small Cone Hydraulic Three Rollers Sheet Metal Cone Rolling Machine offers a practical solution for controlled tapered metal forming. Its compact structure, hydraulic adjustment and three-roller forming principle make it suitable for small cone components, custom fabrication and industrial sheet metal applications. With proper machine selection and process setup, it can support repeatable production of tapered and conical metal parts.

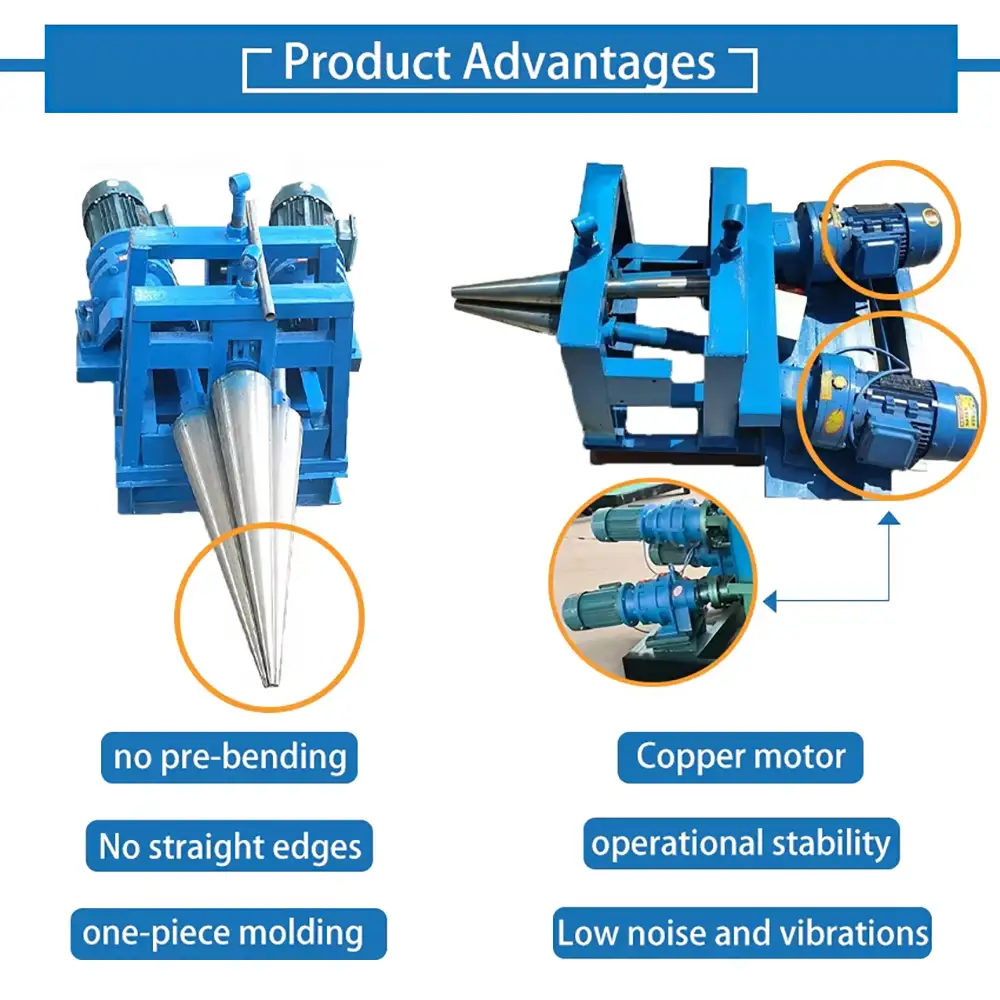

Why Choose Us:

Compact Cone Forming Solution
Designed for manufacturers that need small cone and tapered component production without a large machine footprint.

Hydraulic Roller Adjustment
Hydraulic movement provides controlled positioning and forming support for different workpiece requirements.

Three-Roller Forming Structure
The three-roller configuration supports pre-bending and progressive rolling of suitable sheet metal and plate.

Multi-Material Capability
Suitable configurations can be provided for carbon steel, stainless steel, aluminum and other formable metals.

Custom Machine Configuration
Working width, roller diameter, hydraulic capacity and other parameters can be customized according to application requirements.

OEM And Custom Manufacturing
We can evaluate drawings, samples and production requirements for customized cone rolling solutions.

B2B Export Support
We serve manufacturers, metal fabricators, distributors, wholesalers and industrial equipment buyers.

Complete Metal Forming Solutions
Related cutting, welding, finishing and inspection processes can be considered as part of a complete fabrication workflow.

FAQs:

What Is A Small Cone Rolling Machine?
It is a metal forming machine designed to roll suitable sheet metal or plate blanks into small tapered or conical sections.

Why Use Three Rollers For Cone Rolling?
Three rollers provide a practical forming arrangement for pre-bending and progressively rolling flat metal blanks into curved or tapered shapes.

Is This Machine Hydraulic?
Yes. This machine uses hydraulic adjustment or hydraulic forming functions according to the selected machine configuration.

What Materials Can Be Rolled?
Suitable materials may include carbon steel, mild steel, stainless steel, aluminum and other formable metals.

Can It Roll Stainless Steel?
Yes. Stainless steel can be rolled when the machine capacity is properly matched to the material grade, thickness and cone dimensions.

Can It Make Small Cones?
Yes. It is specifically designed for small cone and tapered component forming, subject to the minimum forming diameter and machine configuration.

What Products Can Be Made?
Typical applications include funnels, hoppers, reducers, duct transitions, exhaust components, chutes, covers and custom tapered metal parts.

Does Cone Rolling Require A Special Blank?
Yes. Cone components generally require a developed tapered blank designed according to the required final dimensions and cone angle.

Can The Machine Roll Aluminum?
Yes. Aluminum can be processed when the roller configuration and forming parameters are suitable for the selected alloy and thickness.

Is The Machine Fully Automatic?
The level of automation depends on the selected configuration. Hydraulic adjustment does not necessarily mean completely unmanned operation.

How Do I Choose The Correct Machine Size?
Important factors include material, thickness, working width, roller diameter, cone angle, large and small diameters and required production volume.

Can You Make A Custom Cone Rolling Machine?
Yes. OEM and custom configurations can be evaluated according to customer drawings, samples, materials and production requirements.
