Hydraulic Plate Bending Rolls Cone Sheet Conical Plate Rolling Machine Cone Roller

The Hydraulic Plate Bending Rolls are designed for efficient metal plate bending, conical plate rolling, and cone forming applications in industrial fabrication. Also known as a hydraulic conical plate rolling machine or cone roller, this equipment provides controlled forming force for producing tapered sections, conical shells, transition pieces, cylindrical components, and other curved metal parts.

Compared with basic manual rolling equipment, hydraulic plate bending rolls provide stronger forming capability and more controlled roller movement. Hydraulic adjustment allows operators to manage the position and pressure of the forming rolls according to material thickness, plate width, cone angle, and required geometry. This makes the machine suitable for workshops and production environments where repeatable conical forming is important.

Hydraulic Plate Bending and Cone Rolling Technology

The working principle is based on controlled movement of the machine's forming rolls. A metal plate or sheet is positioned between the rollers, and hydraulic mechanisms adjust the roller positions to generate the required bending force. As the plate passes through the rolls, it gradually develops a curved or conical shape.

For cone production, the rolling process requires differential forming across the plate width because the inner and outer edges travel different distances during rotation. Proper roller adjustment and machine configuration help compensate for this difference and create a controlled tapered shape.

The actual cone angle, minimum rolling diameter, maximum plate thickness, and production speed depend on the machine configuration, material characteristics, tooling, and workpiece dimensions. Users should select the machine according to their specific production requirements rather than relying on a single nominal capacity.

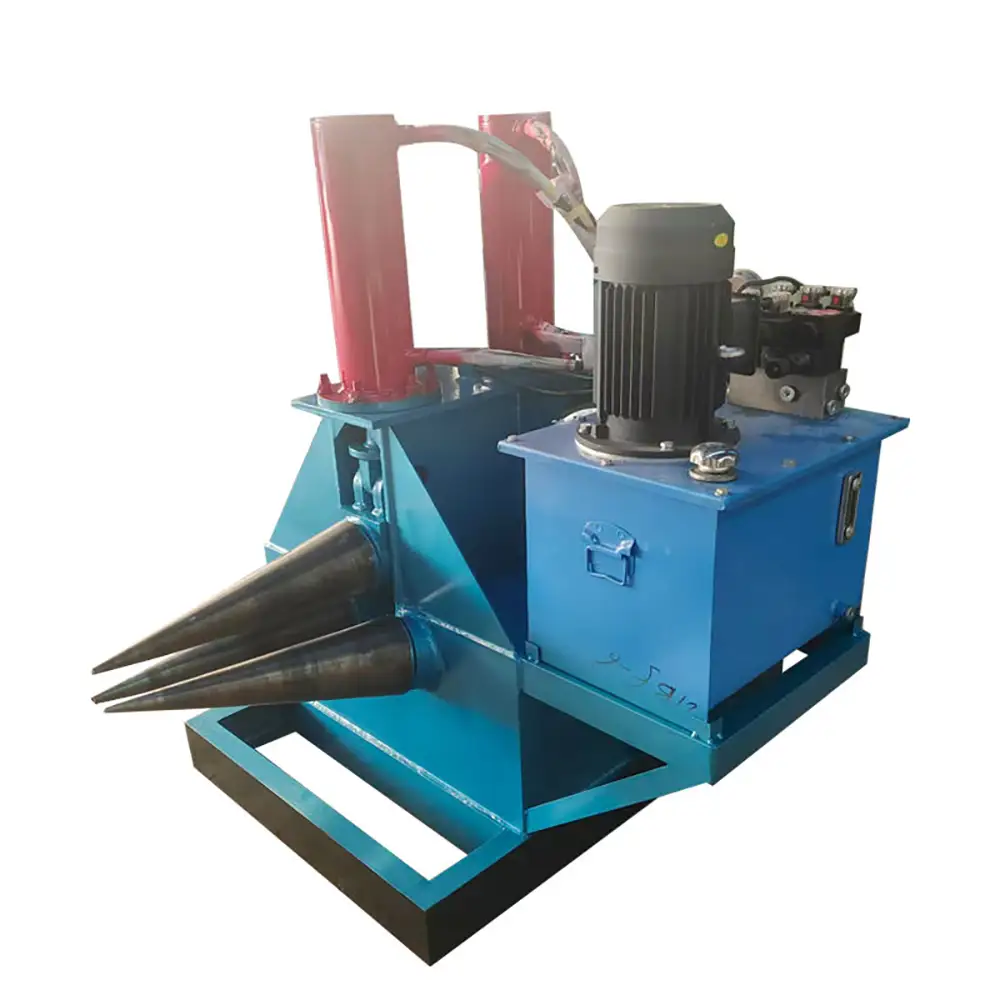

Designed for Conical Plate Rolling

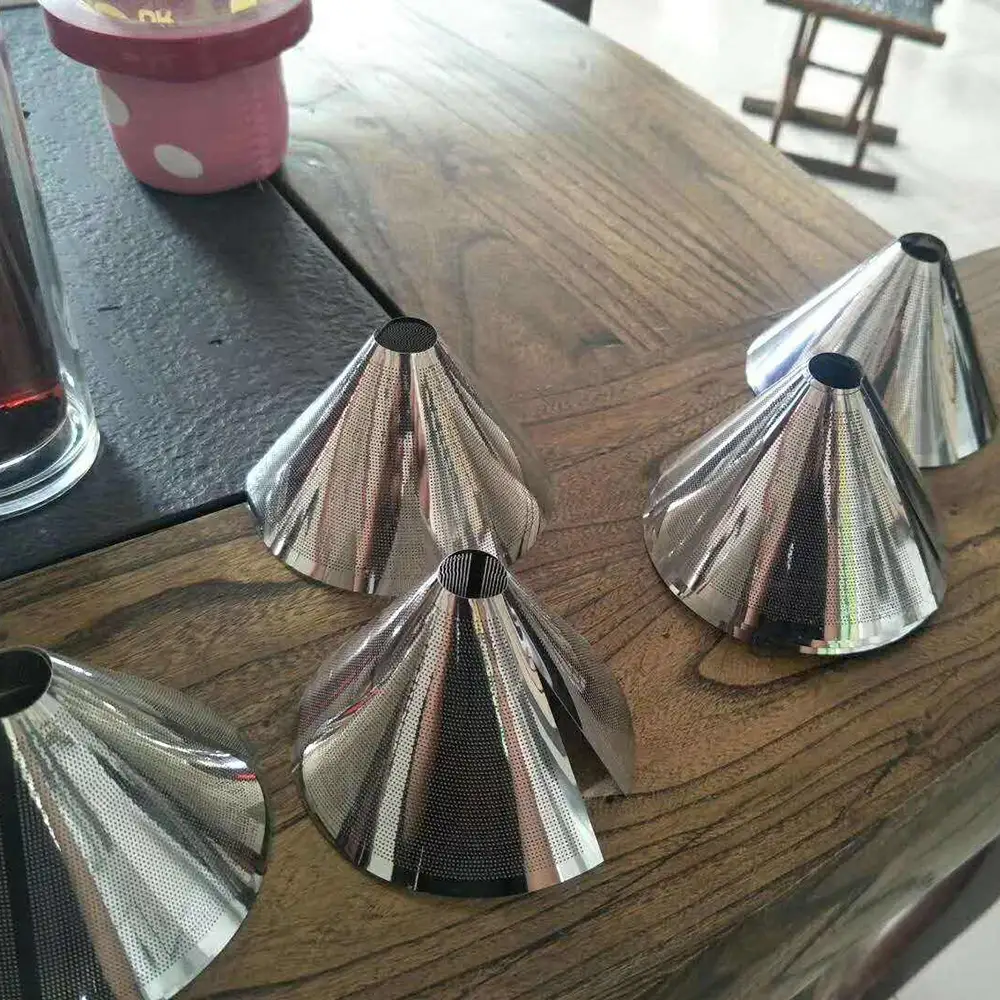

A major application of this cone roller is forming conical steel plates into tapered components. Conical parts are commonly used in industrial equipment, hoppers, tanks, ducts, pipelines, pressure-related equipment, exhaust systems, and material-handling systems.

The hydraulic system provides the forming force required for demanding metalworking applications. Depending on configuration, the machine can process carbon steel, stainless steel, aluminum, and other suitable metal materials.

Stainless steel may require different forming parameters from carbon steel because of its strength, work-hardening behavior, and springback characteristics. Aluminum generally requires careful roller adjustment to avoid surface marking or excessive deformation. Selecting appropriate machine capacity and forming procedures is therefore important for achieving consistent results.

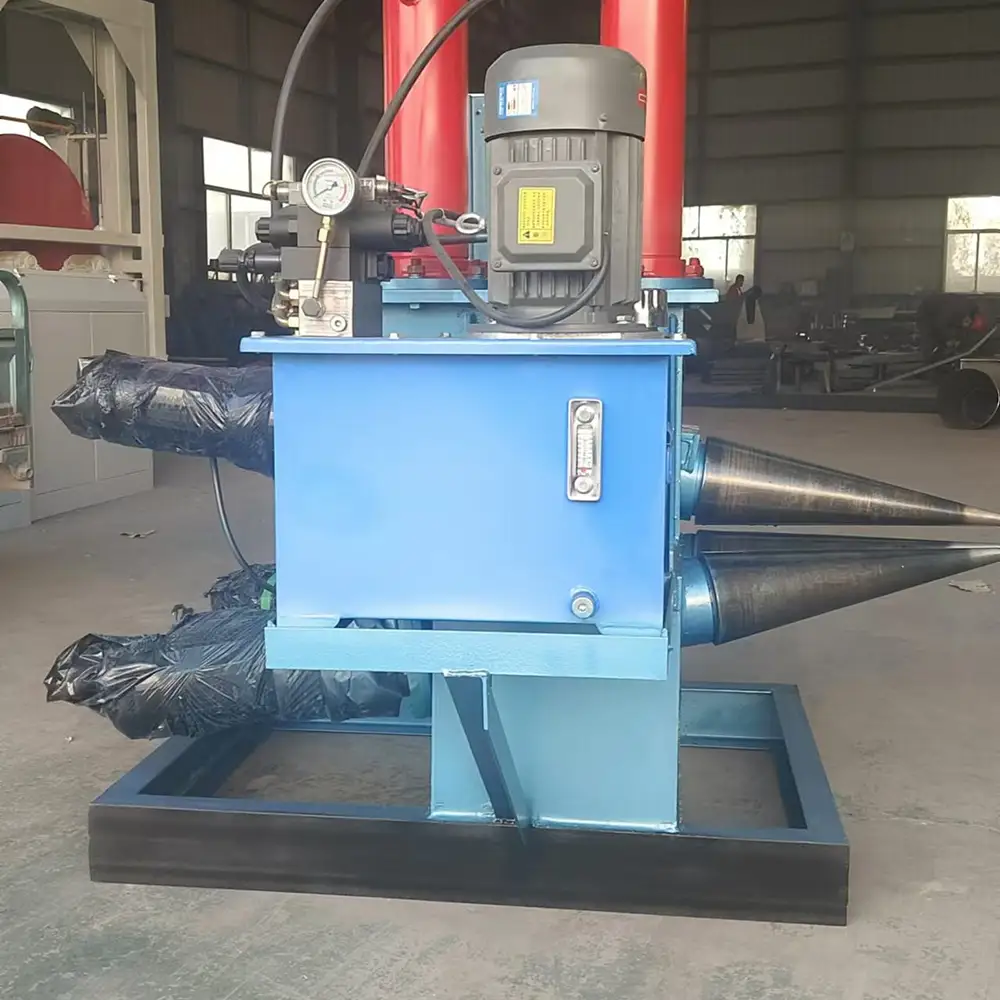

Strong Hydraulic Forming Capability

Hydraulic plate rolling machines are widely used when higher forming force and convenient adjustment are required. The hydraulic system can support controlled roller positioning and help reduce manual adjustment during production.

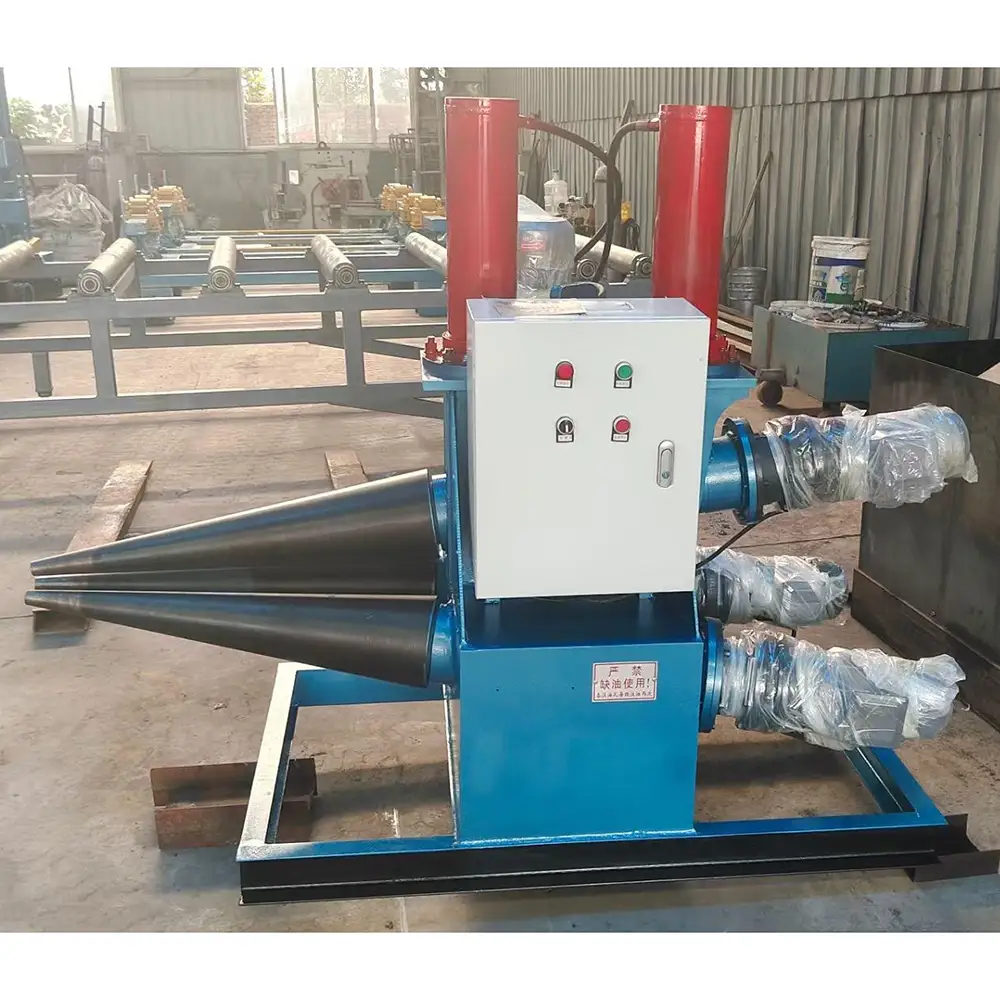

A hydraulic cone rolling machine can be configured for different plate widths, thickness ranges, roller diameters, and working lengths. Depending on the design, additional functions may include hydraulic side-roll adjustment, powered roller rotation, digital controls, or CNC-assisted operation.

These configurations allow the machine to serve different production requirements, from general metal fabrication to specialized cone and transition-piece manufacturing.

Applications in Industrial Fabrication

The Hydraulic Plate Bending Rolls can be used in many industries where curved and conical metal components are required.

Typical applications include:

Industrial tank and vessel fabrication

Steel cone and hopper manufacturing

Chemical equipment production

Dust collection and ventilation systems

Pipeline and ductwork fabrication

Exhaust and transition component production

Mining and material-handling equipment

Agricultural machinery components

Structural steel fabrication

Metal fabrication workshops

Heat exchanger and industrial equipment components

Custom cylindrical and conical parts

For manufacturers producing different cone sizes, the machine can provide a flexible forming solution compared with using dedicated tooling for every individual geometry.

Efficient Metal Plate Forming

Hydraulic plate bending rolls can improve workshop productivity by combining controlled roller adjustment with powered forming. Operators can gradually bend the plate while monitoring the workpiece shape and adjusting the forming process as needed.

For repeated production, consistent machine settings and standardized operating procedures can help reduce setup variation between workpieces. Actual production speed depends on material, plate dimensions, cone geometry, machine capacity, and operator experience.

For high-volume manufacturing, the hydraulic rolling machine can also be integrated with cutting, welding, edge preparation, inspection, and other fabrication processes to create a more complete production workflow.

Practical Machine Configuration

The configuration of a conical plate rolling machine should match the customer's workpiece requirements. Important selection factors include maximum plate width, maximum thickness, minimum rolling diameter, cone angle, material type, roller diameter, drive power, and forming method.

Customers producing heavy steel cones may require a larger machine with higher hydraulic forming capacity. For thinner sheet metal and smaller components, a more compact machine may provide sufficient performance while reducing equipment investment and workshop space.

For this reason, manufacturers and suppliers should evaluate actual workpiece drawings before confirming the final machine configuration.

Quality and Repeatability

Consistent roller alignment is important for producing accurate cylindrical and conical components. Machine construction, hydraulic stability, roller quality, drive system, and operator settings all influence final forming results.

During production, operators can inspect the workpiece after initial forming and make adjustments when necessary. For applications requiring tighter dimensional control, additional measuring equipment or CNC-assisted control can be incorporated depending on the machine model.

The finished conical component may also require additional welding, trimming, calibration, grinding, or inspection after rolling. Plate rolling is therefore best considered as an important forming stage within the complete fabrication process.

Maintenance and Safety

Regular maintenance helps keep hydraulic plate bending rolls operating reliably. Hydraulic oil, hoses, seals, bearings, roller surfaces, electrical connections, and drive components should be inspected according to the manufacturer's maintenance schedule.

Before operation, the work area should be kept clear, and operators should use appropriate personal protective equipment. Hands and clothing should remain away from rotating rollers and other moving components. Emergency-stop devices, guards, and other safety features may be included depending on machine configuration and applicable requirements.

Proper operator training is important because plate rolling involves significant mechanical force. The machine should always be operated within its rated capacity and according to the manufacturer's instructions.

OEM and Custom Manufacturing Support

Different customers have different requirements for plate width, thickness, cone angle, material, production volume, and automation level. A professional machinery manufacturer can provide customized configurations based on these requirements.

OEM and custom options may include machine dimensions, roller specifications, hydraulic systems, control systems, electrical standards, tooling, and other production-related features. Customers can provide drawings, material information, and target workpiece dimensions so the appropriate hydraulic plate rolling solution can be evaluated.

For international B2B buyers, technical documentation, machine testing, packaging, export support, spare parts, and after-sales service can also be important considerations when selecting a hydraulic cone rolling machine.

Why Choose Us

Professional Plate Rolling Solutions
We provide hydraulic plate bending and conical rolling equipment for a wide range of industrial metal-forming applications.

Conical Forming Capability
Our cone rollers are designed to support tapered plate forming and cone production according to the selected machine configuration.

Hydraulic Power
Hydraulic adjustment provides controlled forming force and practical roller positioning for demanding fabrication work.

Flexible Machine Configurations
Machine capacity, roller dimensions, controls, and other features can be configured according to production requirements.

Multiple Material Applications
The equipment can be selected for suitable carbon steel, stainless steel, aluminum, and other metal plate applications.

B2B OEM and Custom Support
We can discuss customized machine configurations based on drawings, workpiece dimensions, materials, and production requirements.

Quality-Focused Manufacturing
Machine components and systems are selected and assembled with attention to reliable operation, forming consistency, and long-term workshop use.

International Export Experience
We support overseas buyers with technical communication, machine configuration, documentation, packaging, shipping coordination, and after-sales assistance.

FAQs

1. What is a hydraulic plate bending roll?

A hydraulic plate bending roll is a metal-forming machine that uses rollers and hydraulic mechanisms to bend steel plates and other suitable materials into cylindrical, curved, or conical shapes.

2. Can this machine roll conical plates?

Yes. A properly configured hydraulic plate rolling machine can be used for conical plate rolling and cone forming. The suitable machine configuration depends on the plate dimensions and required cone geometry.

3. What materials can be processed?

Depending on the machine model and rated capacity, suitable materials may include carbon steel, stainless steel, aluminum, and other metal plates.

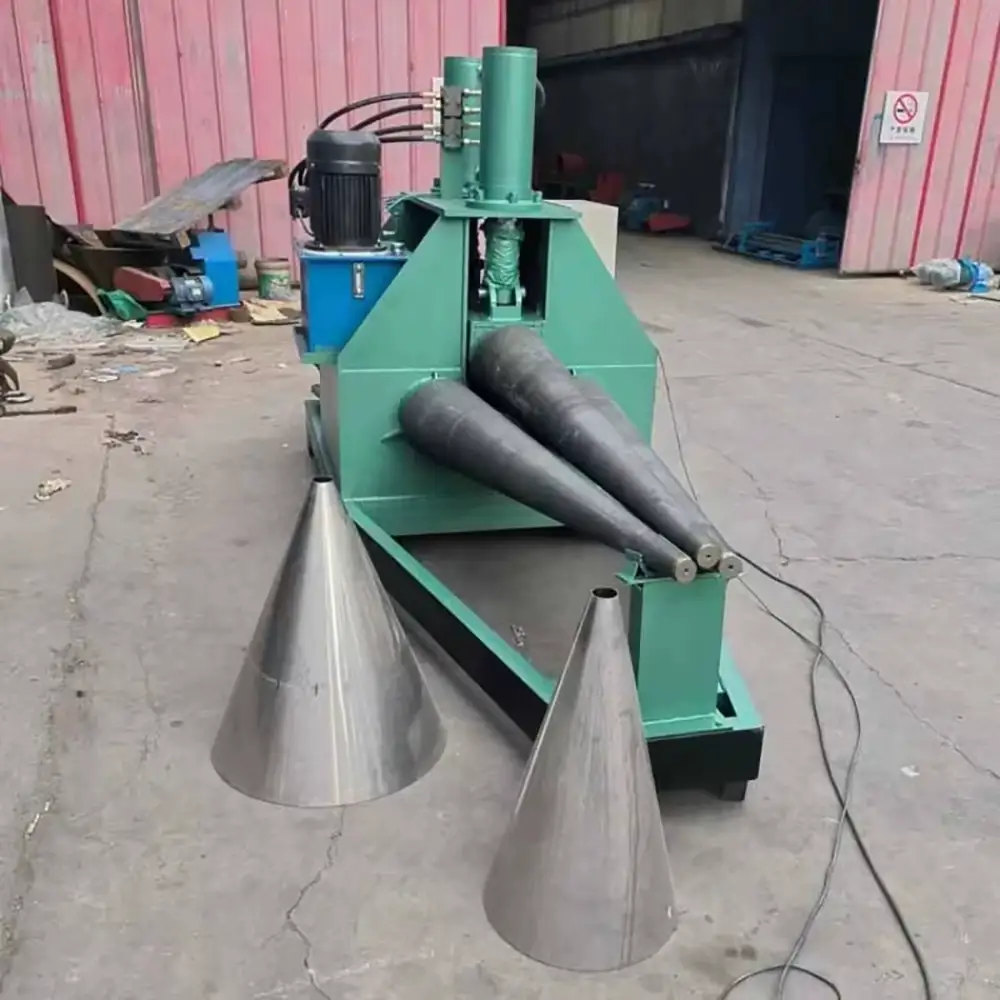

4. Can it make steel cones?

Yes. Steel cones, tapered sections, hoppers, transition pieces, and similar components can be produced when the machine is configured for the required cone dimensions and material thickness.

5. Is a hydraulic cone roller suitable for stainless steel?

Yes. Stainless steel can be processed when the machine has sufficient forming capacity. Because stainless steel has different strength and springback characteristics, appropriate forming parameters are important.

6. What determines the maximum plate thickness?

Maximum thickness depends on the machine's rated forming capacity, roller diameter, roller arrangement, material strength, plate width, and required rolling diameter.

7. Can the machine produce different cone angles?

The achievable cone angle depends on machine configuration, roller adjustment range, plate dimensions, and forming method. Specific cone requirements should be confirmed before selecting the machine.

8. Is CNC control available?

CNC or digital control can be available on selected configurations. The level of automation should be specified according to the customer's production requirements.

9. Can the machine roll cylindrical plates as well?

Many plate rolling machines can handle both cylindrical and conical forming when their configuration and adjustment range support these applications.

10. What information should I provide for a quotation?

Provide material type, maximum and minimum plate thickness, plate width, required cone diameter, cone angle, production quantity, and workpiece drawings if available.

11. Does the machine require additional welding?

Rolling creates the required curved or conical shape, but a finished cone may require welding, trimming, calibration, grinding, or inspection depending on the final product design.

12. Can you provide OEM or customized machines?

Yes. Machine configuration can be discussed based on workpiece drawings, material requirements, dimensions, production volume, automation level, and local electrical requirements.
