Industrial Suspended Solids Removal DAF Water Treatment System

Industrial Suspended Solids Removal DAF Water Treatment System

An Industrial Suspended Solids Removal DAF Water Treatment System is an efficient solid-liquid separation solution designed to remove suspended solids, colloidal particles, oil, grease, and other floatable contaminants from industrial wastewater. Using dissolved air flotation technology, the system generates fine air bubbles that attach to particles and carry them to the water surface, where the floated material is continuously skimmed away.

DAF wastewater treatment is widely used when conventional gravity sedimentation is not sufficient for separating lightweight, fine, or poorly settling particles. It is particularly useful for industrial wastewater streams containing suspended solids, emulsified oils, fats, grease, fibers, and other contaminants with densities close to water. EPA technical documents describe DAF as a clarification process for suspended solids and oil and grease removal and note that coagulation and flocculation can enhance treatment performance.

How Does the DAF Water Treatment System Work?

The DAF system generally operates through a combination of wastewater conditioning, dissolved air saturation, flotation, and sludge removal.

First, incoming wastewater can pass through screening or preliminary treatment to remove large debris. Depending on wastewater characteristics, pH adjustment, coagulant, and polymer dosing may then be applied. These chemicals help destabilize fine particles and form larger flocs that are easier to separate.

A portion of clarified DAF effluent can be recycled and pressurized with air. When the pressurized recycle stream enters the flotation chamber and pressure is released, dissolved air forms a large number of fine bubbles. These bubbles attach to suspended particles and flocs, reducing their effective density and causing them to rise toward the surface.

The floating solids form a concentrated layer at the top of the DAF tank. A mechanical scraper or skimmer continuously moves the floated sludge into a collection hopper. Heavier material that settles at the bottom can also be collected through a bottom sludge removal system.

Efficient Suspended Solids Removal

The primary purpose of this Industrial DAF Water Treatment System is efficient removal of suspended solids from wastewater. Fine particles that settle slowly or have densities close to water can be difficult to remove using conventional sedimentation.

DAF provides a flotation-based separation mechanism that can rapidly lift these particles to the surface. EPA documentation reports that DAF can be particularly useful for light or fine particles and for wastewater where gravity settling is less effective.

Depending on wastewater composition, chemical conditioning, hydraulic loading, air-to-solids ratio, recycle rate, and operating conditions, actual removal performance can vary significantly. Therefore, pilot testing or laboratory jar testing is recommended for applications requiring specific treatment guarantees.

DAF for Oil, Grease, and FOG Removal

In addition to suspended solids removal, DAF systems are commonly used for separating free and dispersed oil, fats, oils, and grease. These contaminants can be difficult to remove through gravity settling alone because many oil droplets and oil-coated solids have densities close to water.

Fine air bubbles increase the buoyancy of these particles and help transport them to the surface. This makes DAF particularly suitable for food processing, meat processing, dairy, chemical, petrochemical, metal finishing, and other industrial wastewater applications.

When emulsified oil or very fine particles are present, coagulation and flocculation may be incorporated into the treatment process to improve particle agglomeration and flotation.

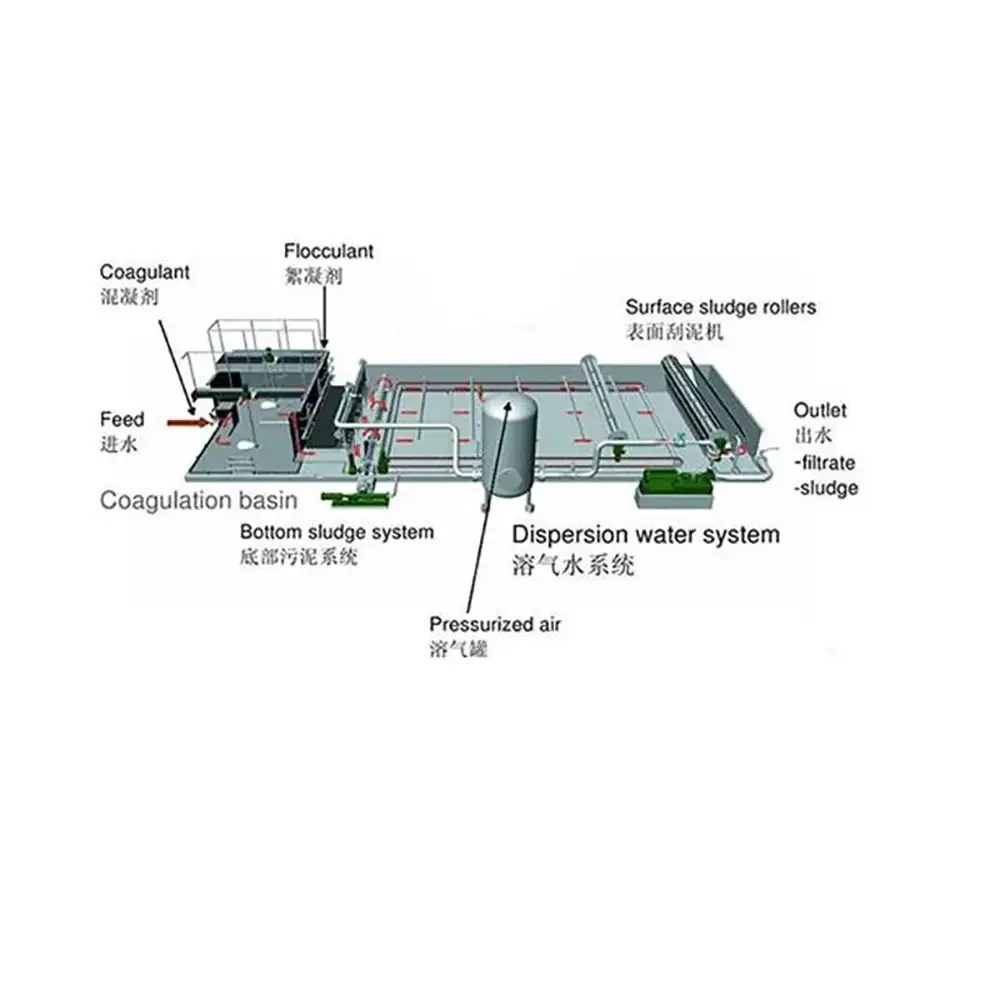

Typical Industrial DAF Treatment Process

A complete Industrial Suspended Solids Removal DAF Water Treatment System may be configured as:

Raw Wastewater → Screening → Equalization → pH Adjustment → Coagulation → Flocculation → DAF Flotation → Biological Treatment → Filtration → Disinfection → Reuse or Discharge

Not every application requires every treatment stage. The final configuration should be determined according to wastewater flow rate, suspended solids concentration, oil and grease content, COD, BOD, pH, temperature, chemical characteristics, discharge requirements, and intended water reuse.

For applications with high organic loading, the DAF unit can function as a pretreatment stage before biological processes such as MBBR, activated sludge, SBR, or MBR. Removing suspended solids and floatable contaminants upstream can help reduce the load entering downstream treatment equipment.

Main Components

A complete DAF Water Treatment System may include:

DAF flotation tank
Dissolved air recycle pump
Air dissolving system
Pressure release device
Air compressor where required
Coagulation and flocculation tanks
Chemical dosing pumps
Mechanical surface skimmer
Sludge collection hopper
Bottom sludge removal system
Control cabinet
Flow meter and pressure gauges
Automatic level control
Piping and valves

Equipment configuration can be customized according to the required wastewater flow and treatment process.

Compact Industrial Wastewater Treatment Solution

Compared with conventional settling systems, DAF can provide effective separation within a relatively compact footprint. This makes it attractive for industrial plants where available installation space is limited.

DAF technology can also be adapted to continuous wastewater treatment processes. Larger systems may use recycled clarified water for air saturation rather than pressurizing the complete influent stream. This configuration can improve process flexibility and reduce unnecessary pressurization of the entire wastewater flow.

Industrial Applications

The Industrial Suspended Solids Removal DAF Water Treatment System can be used for many wastewater applications, including:

Food processing wastewater
Meat and poultry processing wastewater
Dairy wastewater
Beverage factory wastewater
Slaughterhouse wastewater
Seafood processing wastewater
Textile wastewater
Printing and dyeing wastewater
Paper and pulp wastewater
Chemical industry wastewater
Petrochemical wastewater
Metal processing wastewater
Automotive wastewater
Industrial process wastewater
Municipal and commercial wastewater pretreatment

The system can also be integrated into wastewater recycling and water reuse projects as a pretreatment or clarification stage.

Advantages of the DAF Water Treatment System

The main advantages include efficient suspended solids separation, effective removal of floatable contaminants, compact equipment design, continuous sludge skimming, flexible chemical conditioning, and easy integration with downstream biological or membrane treatment.

For wastewater containing difficult-to-settle particles, DAF can provide a useful alternative or complement to conventional sedimentation. EPA technical information identifies flotation as particularly useful for suspended materials with densities close to water and for oil and grease separation.

Operation and Maintenance

Routine inspection is important for maintaining stable DAF performance. Operators should regularly check the recycle pump, air saturation system, pressure control components, skimmer mechanism, chemical dosing equipment, sludge discharge system, and control instruments.

Chemical dosing should be adjusted according to actual wastewater conditions rather than using a fixed dosage for every application. Excessive chemical addition can increase sludge production and operating costs, while insufficient dosing may result in weak floc formation.

Sludge should also be removed regularly to prevent excessive accumulation and solids carryover. Periodic cleaning of the flotation tank, piping, pumps, and sensors helps maintain reliable long-term operation.

Why Choose Us?

Our Industrial Suspended Solids Removal DAF Water Treatment System can be configured around the actual characteristics of your wastewater rather than relying on a one-size-fits-all design.

We can provide different DAF capacities, tank configurations, material options, chemical dosing arrangements, sludge discharge systems, automation levels, and auxiliary treatment equipment. The system can be integrated with screening, equalization, coagulation, biological treatment, MBR, filtration, disinfection, and water reuse systems.

For international industrial wastewater projects, we can also support process selection, equipment configuration, technical documentation, installation guidance, commissioning assistance, and customized treatment solutions.

FAQ
1. What Is a DAF Water Treatment System?

DAF stands for Dissolved Air Flotation. It uses fine air bubbles to attach to suspended particles and float them to the surface for mechanical removal.

2. What Does DAF Remove?

DAF can remove suspended solids, colloidal particles, oil, grease, fats, fibers, and other floatable contaminants. Treatment performance depends on wastewater characteristics and system design.

3. Can DAF Remove Suspended Solids?

Yes. Suspended solids removal is one of the primary applications of DAF technology.

4. Can DAF Remove Oil and Grease?

Yes. DAF is widely used to separate free and dispersed oil and grease from industrial wastewater.

5. Is Chemical Dosing Required?

Not always. Some wastewater can be treated without chemicals, while difficult-to-separate fine particles and emulsified contaminants may benefit from coagulation and flocculation.

6. Can DAF Replace a Sedimentation Tank?

In some applications, DAF can replace or supplement sedimentation. The correct choice depends on particle characteristics, wastewater chemistry, hydraulic loading, and treatment objectives.

7. What Industries Use DAF?

DAF is used in food processing, meat processing, dairy, textile, paper, chemical, petrochemical, metal processing, and many other industries.

8. Can DAF Be Used Before MBR?

Yes. DAF can serve as a pretreatment stage before MBR when suspended solids, oil, grease, or other contaminants need to be reduced before membrane treatment.

9. How Is DAF Sludge Removed?

Floating sludge is typically removed by a mechanical surface scraper or skimmer and transferred to a sludge collection system.

10. Can the DAF System Be Automated?

Yes. Automatic operation can include pumps, chemical dosing, sludge skimming, level control, pressure monitoring, alarms, and PLC-based control.

11. How Do I Select the Correct DAF Capacity?

The required capacity depends primarily on wastewater flow rate and wastewater characteristics. Flow variation, suspended solids concentration, oil and grease, temperature, pH, and required effluent quality should all be considered.

12. Can the DAF System Be Customized?

Yes. Tank dimensions, treatment capacity, materials, chemical dosing, sludge discharge, automation, and integration with other wastewater treatment equipment can be customized for a specific project.
