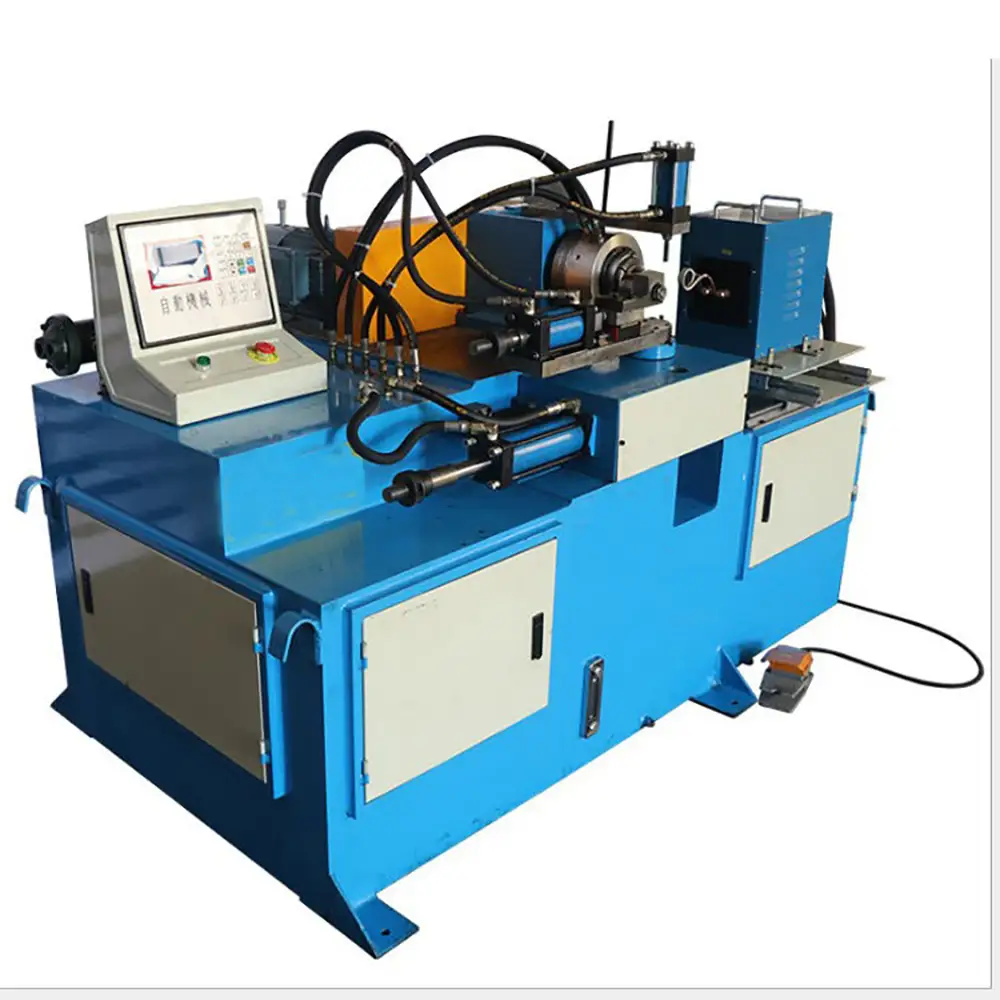

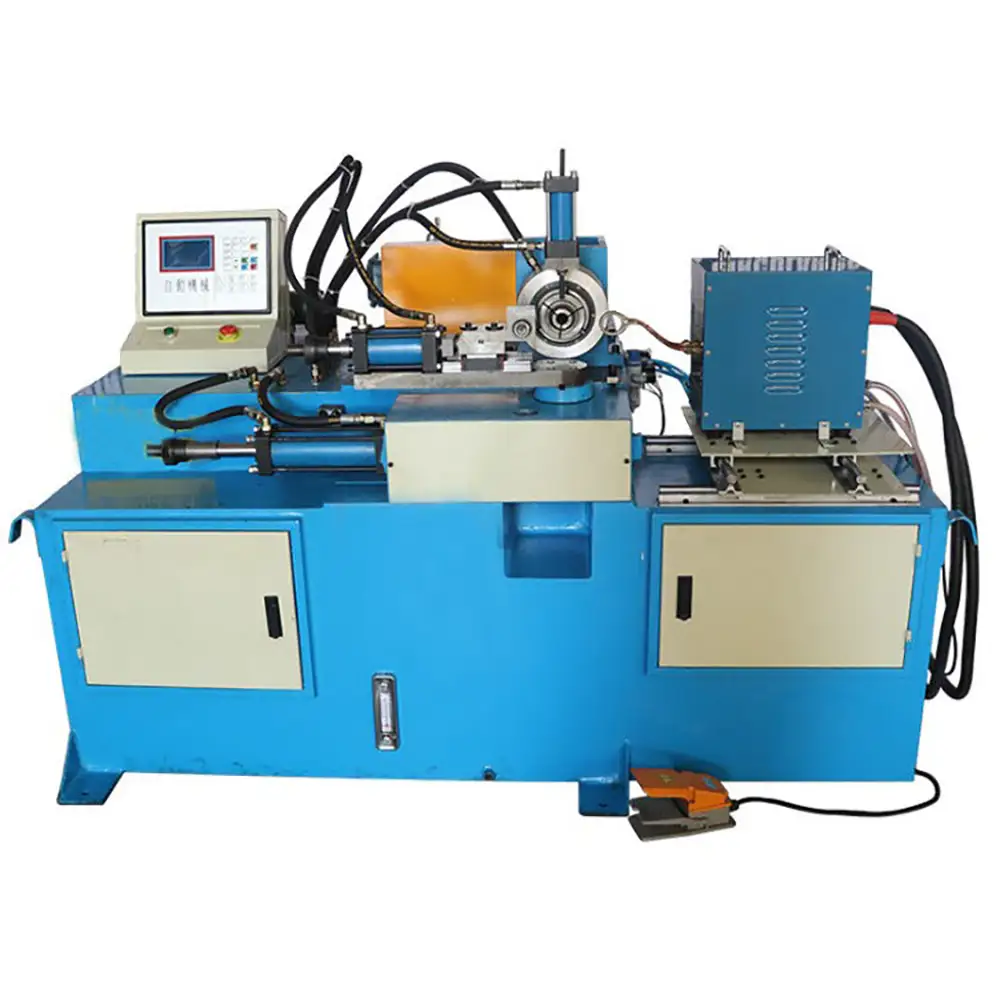

Carbon Steel Stainless Steel Copper Aluminum Pipe End Sealing Machine for 8mm to 40mm Round Pipe

 Carbon Steel Stainless Steel Copper Aluminum Pipe End Sealing Machine for 8mm–40mm Round Pipe

The Carbon Steel Stainless Steel Copper Aluminum Pipe End Sealing Machine is designed for end processing of round metal pipes and tubes with an applicable diameter range of approximately 8mm to 40mm,depending on the machine configuration and tooling. It can be used for suitable carbon steel,stainless steel,copper,and aluminum pipes in a variety of industrial manufacturing and fabrication applications.

Pipe end sealing and closing are common operations in tube manufacturing,heat exchangers,automotive components,refrigeration equipment,furniture,metal structures,fluid systems,and other products requiring controlled tube-end processing.

By using dedicated forming tooling,the machine can apply controlled force to the end of a round tube to produce a closed,sealed,or formed tube end according to the required product design. The actual end shape,degree of closure,and processing method depend on the tooling and machine configuration.

8mm–40mm Round Pipe Processing

The specified working range of 8mm to 40mm round pipe makes this equipment suitable for processing relatively small and medium-diameter tubes.

Different pipe diameters require appropriately sized tooling. Proper tooling selection helps maintain tube alignment and ensures that forming force is applied consistently around the workpiece.

The actual usable range should be confirmed according to the machine model,material,wall thickness,pipe length,and required end shape.

For manufacturers processing multiple tube sizes,the machine can be configured with interchangeable dies or tooling sets where supported. This allows the same basic equipment to be adapted for different production requirements.

Carbon Steel Pipe End Sealing

Carbon steel tubes are widely used in mechanical structures,automotive components,furniture,construction products,and general fabrication.

The pipe end sealing machine can be configured for suitable carbon steel tubes within the specified diameter and wall-thickness range. End closing can help prepare tubes for subsequent welding,assembly,connection,or product finishing.

Because carbon steel has different strength and forming characteristics depending on grade and wall thickness,appropriate forming force and tooling should be selected according to the actual tube specification.

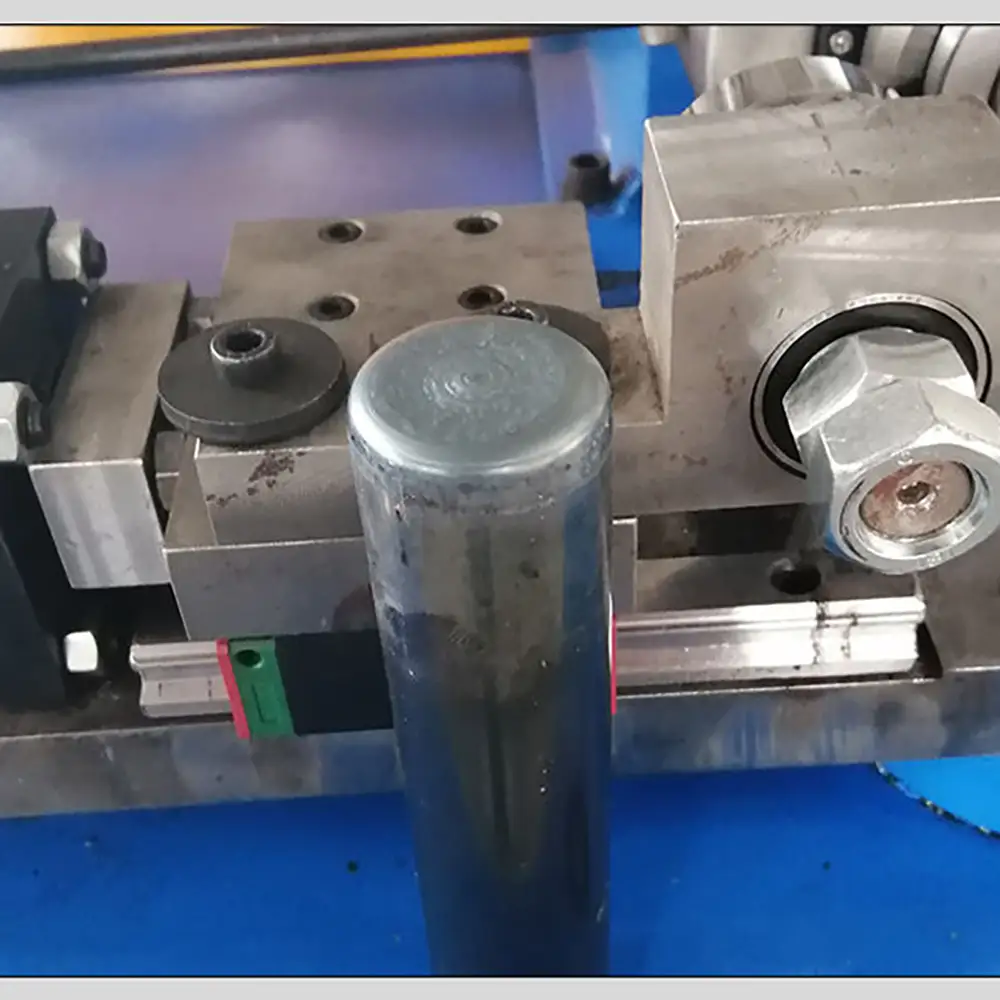

Stainless Steel Tube End Closing

Stainless steel tubing is commonly used where corrosion resistance,appearance,or hygienic properties are important.

Suitable stainless steel tubes can be processed by the machine when the forming system and tooling are selected for the material.

During stainless steel tube end forming,the condition of the tooling is particularly important because scratches or excessive deformation may affect the finished appearance.

The machine can be evaluated for applications such as stainless steel furniture,automotive exhaust components,industrial tubing,appliance parts,and other fabricated stainless steel products.

Copper Pipe End Forming

Copper tubes are widely used in refrigeration,air-conditioning,heat-transfer,plumbing,and electrical applications.

Copper is relatively ductile compared with many steels,but different tube dimensions and tempers can respond differently during end forming. Suitable dies and controlled forming force are therefore important.

The machine can be configured for appropriate copper pipe end processing within its rated range. Depending on the application,the finished end may be closed,formed,reduced,or prepared for another manufacturing operation.

Customers should provide copper tube diameter,wall thickness,material condition,and required end shape when selecting the machine.

Aluminum Tube End Sealing

Aluminum tubing is lightweight and widely used in transportation,automotive,heat-exchange,industrial,and general fabrication applications.

Because aluminum is softer than many steel materials,it requires suitable tooling and forming parameters to avoid excessive deformation or surface damage.

The machine can be evaluated for aluminum tube end processing when the material dimensions and required forming operation are compatible with the selected configuration.

Different aluminum alloys may have different forming characteristics,so testing with the actual tube material is recommended for applications requiring specific dimensional or appearance requirements.

Pipe End Sealing and Tube End Closing

The main function of this equipment is controlled processing of the tube end.

Depending on the tooling and machine design,the operation may include:

Tube End Closing

Pipe End Sealing

Tube End Forming

Pipe End Reduction

Tube End Compression

End Preparation Before Welding

End Shaping

Customized Tube-End Forming

The exact finished geometry depends on the die design and processing method. Customers should provide drawings or samples when a specific end profile is required.

Stable Tube Clamping and Alignment

Correct workpiece positioning is essential for consistent end processing.

The machine uses a suitable clamping and positioning arrangement to hold the round pipe during forming. Stable clamping can help reduce tube movement and improve repeatability between workpieces.

The clamping method should be selected according to tube diameter,wall thickness,material,and required end geometry.

For thin-wall tubing,excessive clamping or forming force may cause deformation. Proper tooling and process adjustment are therefore important.

Applications in Tube Manufacturing

This type of pipe end sealing machine can be used in many manufacturing sectors.

Potential applications include:

Automotive Components

Motorcycle Parts

Exhaust Components

Refrigeration Tubes

Air-Conditioning Tubes

Heat Exchanger Components

Furniture Tubes

Metal Frames

Hydraulic Tubing

Industrial Equipment

Appliance Components

General Metal Fabrication

The machine is especially useful where repeated tube-end processing is required as part of a production workflow.

Production Efficiency

Compared with completely manual tube-end forming,mechanized processing can provide more consistent positioning and forming force.

For batch production,the machine can help reduce repetitive manual operations and support a more standardized workflow.

Actual production efficiency depends on pipe diameter,wall thickness,material,required end shape,tooling,forming method,loading and unloading procedure,and operator workflow.

For higher-volume applications,the machine can potentially be integrated with tube cutting,feeding,welding,inspection,and other downstream processes depending on the overall production line.

Tooling and Customization

Tooling is one of the most important components of a pipe end sealing machine.

Different pipe diameters and end geometries require different dies or forming tools. For customers processing several sizes from 8mm to 40mm,an appropriate tooling package can be selected according to the production requirements.

Customized tooling can also be considered for special tube-end shapes.

For OEM and ODM projects,customers can provide tube drawings,finished product dimensions,material specifications,and samples. This information can be used to evaluate the appropriate machine configuration and tooling design.

Quality Control and Finished Tube Ends

Finished tube quality depends on material properties,wall thickness,tooling accuracy,clamping stability,forming force,and machine adjustment.

For production requiring tight dimensional tolerances,operators should inspect the first processed pieces and periodically verify dimensions throughout production.

Visual inspection can also identify excessive deformation,cracks,surface marks,or incomplete end forming.

Where the tube end will later be welded,brazed,connected,or sealed,the required downstream dimensions should be considered when designing the forming process.

Maintenance and Safety

Pipe end forming machines involve mechanical movement and forming force,and operators should follow appropriate machine safety procedures.

Depending on the machine configuration,safety features may include guards,emergency stops,electrical protection,and controlled operating functions. Actual safety equipment depends on the model and applicable requirements.

Routine maintenance may include cleaning metal chips,checking tooling condition,inspecting clamping components,lubricating moving parts where required,and checking hydraulic,pneumatic,or electrical systems according to the machine configuration.

Worn tooling should be inspected and replaced or serviced when necessary to maintain consistent forming results.

OEM and B2B Manufacturing Support

The 8mm–40mm Round Pipe End Sealing Machine can be supplied for manufacturers,metal fabrication companies,automotive component producers,refrigeration equipment manufacturers,furniture factories,and industrial machinery suppliers.

OEM and ODM solutions can be considered for different pipe materials,diameters,wall thicknesses,end shapes,production volumes,and automation requirements.

For an accurate quotation,customers should provide the pipe material,outer diameter,wall thickness,pipe length,required end shape,production volume,and available power supply. Drawings or samples are especially useful when customized tooling is required.

Why Choose Us

8mm–40mm Round Pipe Range
Designed for suitable round tubes within the specified 8mm–40mm diameter range,subject to machine configuration and tooling.

Multi-Material Processing
Suitable configurations can be evaluated for carbon steel,stainless steel,copper,and aluminum tubes.

Controlled Tube-End Forming
Designed to provide consistent mechanical processing of tube ends for sealing,closing,or forming applications.

Flexible Tooling Options
Tooling can be selected or customized for different pipe diameters and finished end shapes.

Wide Industrial Applications
Suitable for automotive,refrigeration,furniture,heat-transfer,industrial equipment,and general metal fabrication.

Production-Friendly Design
Mechanical tube-end processing can reduce repetitive manual forming work and support consistent production.

Customized Machine Solutions
Machine configuration,clamping,tooling,and operating methods can be adapted to specific production requirements.

OEM & ODM Support
Manufacturers,distributors,and B2B buyers can provide drawings,samples,and technical specifications for customized solutions.

FAQs

1. What pipe sizes can this machine process?

The specified range is approximately 8mm to 40mm round pipe. The actual usable diameter range depends on the machine model and available tooling.

2. What materials can be processed?

The machine can be configured for suitable carbon steel,stainless steel,copper,and aluminum tubes.

3. Can it seal the end of a round pipe?

Yes. With suitable tooling,the machine can perform tube-end closing or sealing operations according to the required product design.

4. Is this machine suitable for stainless steel?

Yes,provided that the selected tooling and forming parameters are appropriate for the stainless steel grade,tube diameter,and wall thickness.

5. Can it process copper tubes?

Yes. Suitable copper tubes can be processed when the machine and tooling are configured for the required tube specifications.

6. Can aluminum pipes be formed?

Yes. Aluminum tubes can be evaluated for end forming when the alloy,dimensions,and required end geometry are compatible with the machine configuration.

7. What is the difference between pipe end sealing and pipe end forming?

End sealing generally refers to closing or sealing the tube opening,while end forming is a broader term covering different processes used to change the shape or dimensions of a tube end.

8. Does every pipe diameter require different tooling?

Usually,appropriate tooling is required for different pipe diameters and end shapes. The exact tooling arrangement depends on the machine design.

9. Can the machine handle thin-wall tubes?

Potentially,depending on the material,diameter,wall thickness,and required end shape. Thin-wall tubing requires suitable clamping and forming parameters to avoid excessive deformation.

10. Can customized tube-end shapes be produced?

Yes,custom tooling can be considered for special end profiles. Customers should provide drawings or samples for evaluation.

11. Can this machine be integrated into a production line?

Depending on the configuration,it can potentially be combined with tube cutting,feeding,welding,inspection,and other tube-processing equipment.

12. What information is needed for a quotation?

Please provide pipe material,outer diameter,wall thickness,pipe length,required end shape,production volume,and power supply requirements. Drawings or samples are recommended for customized applications.
