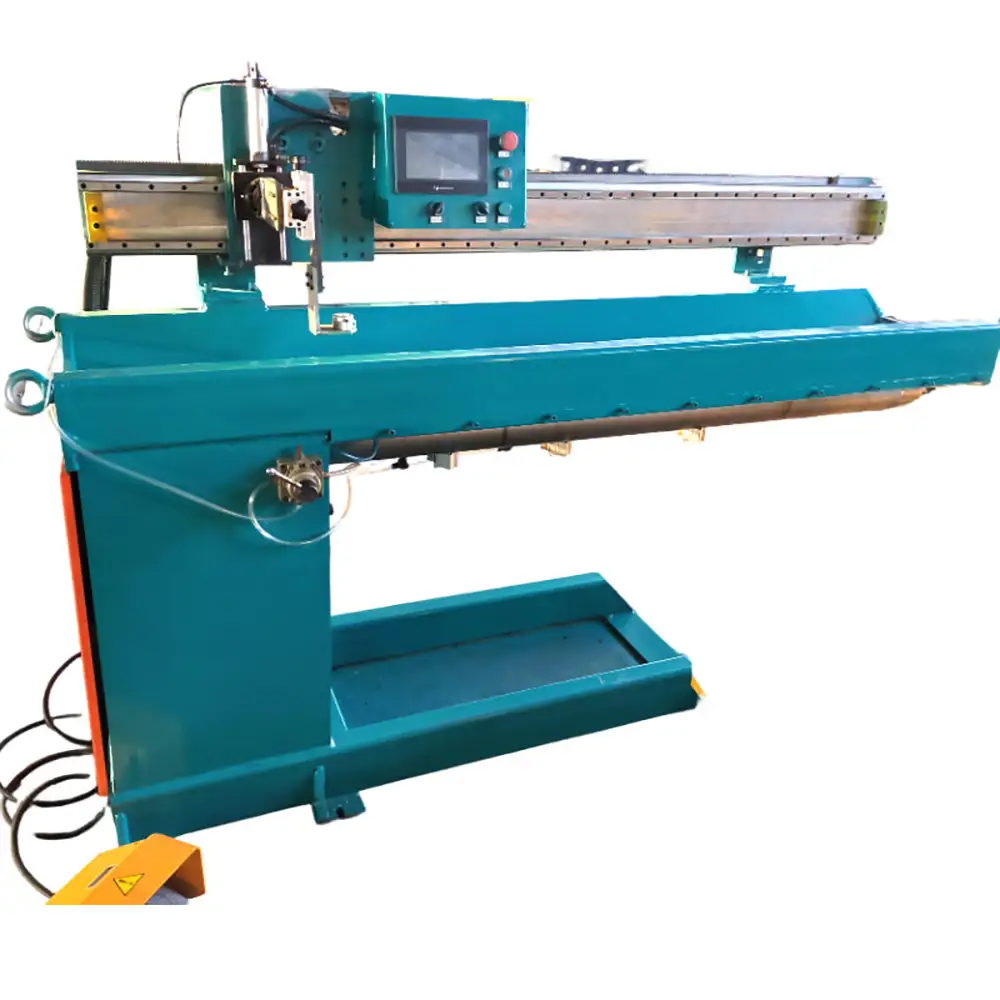

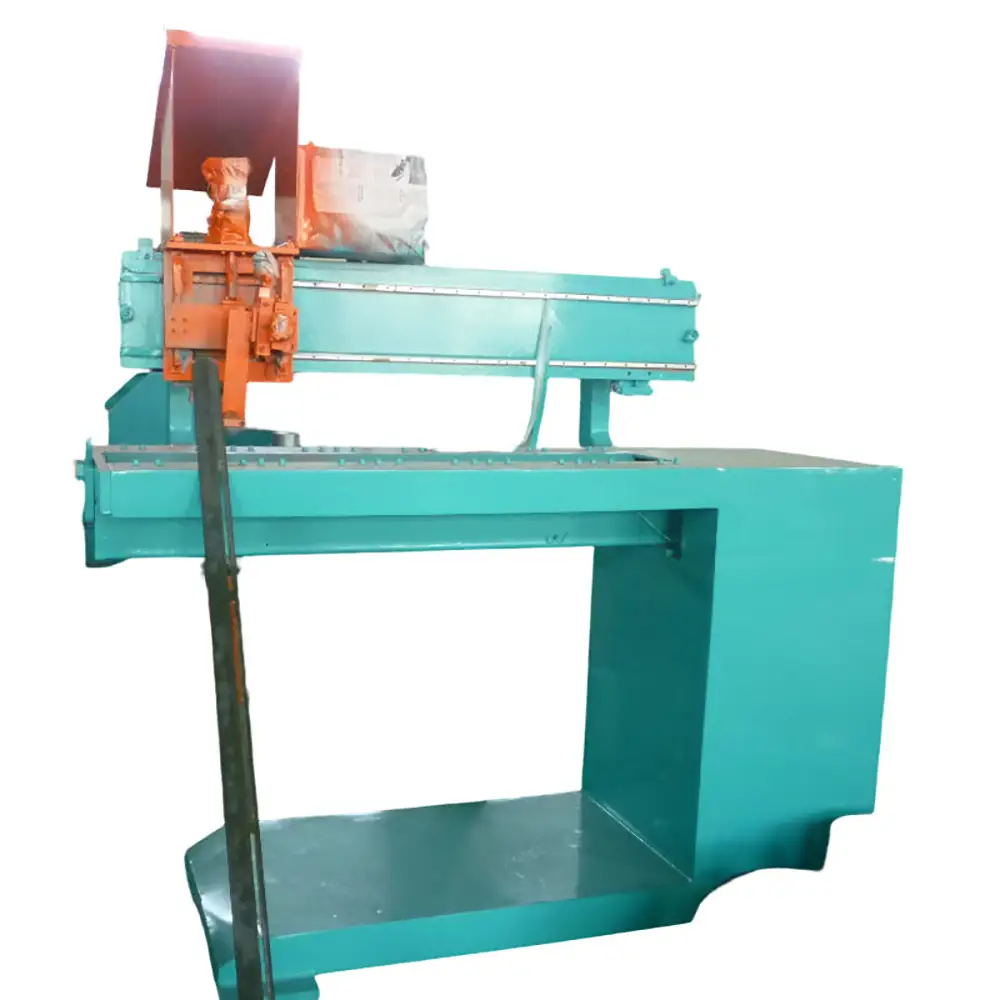

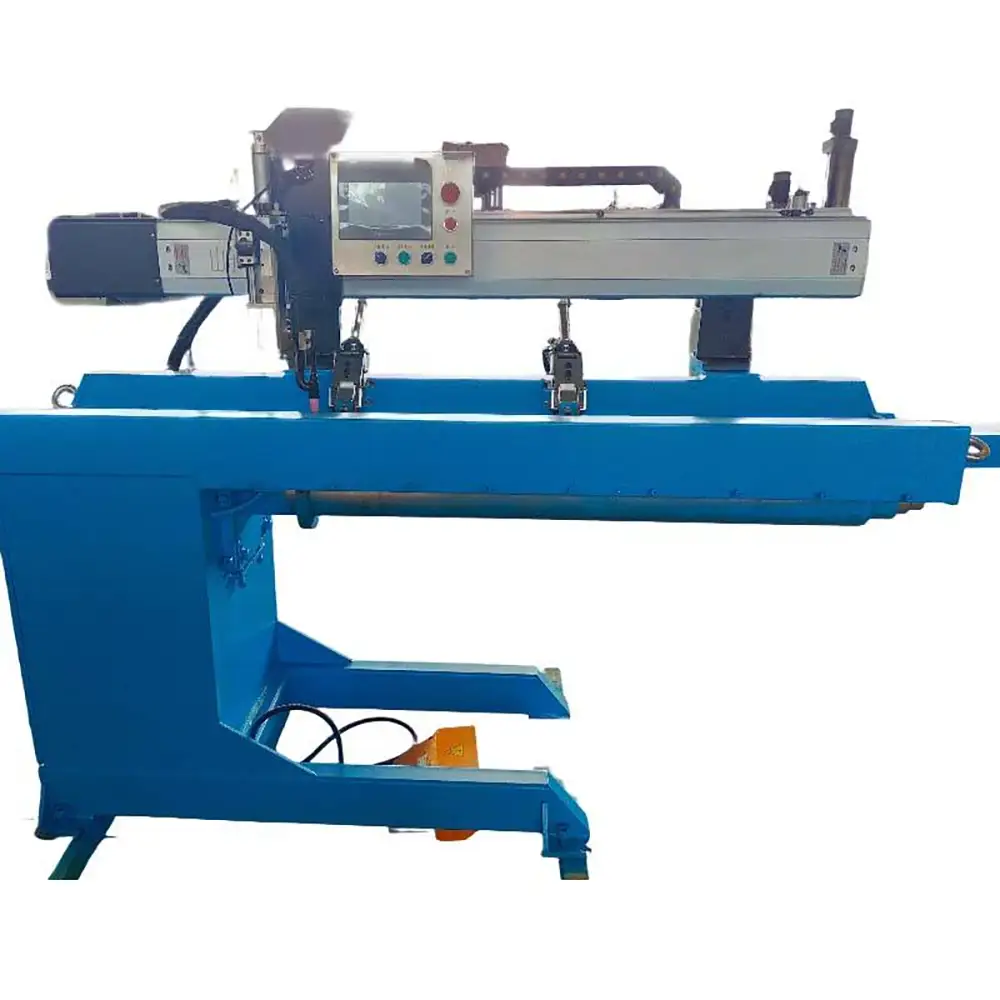

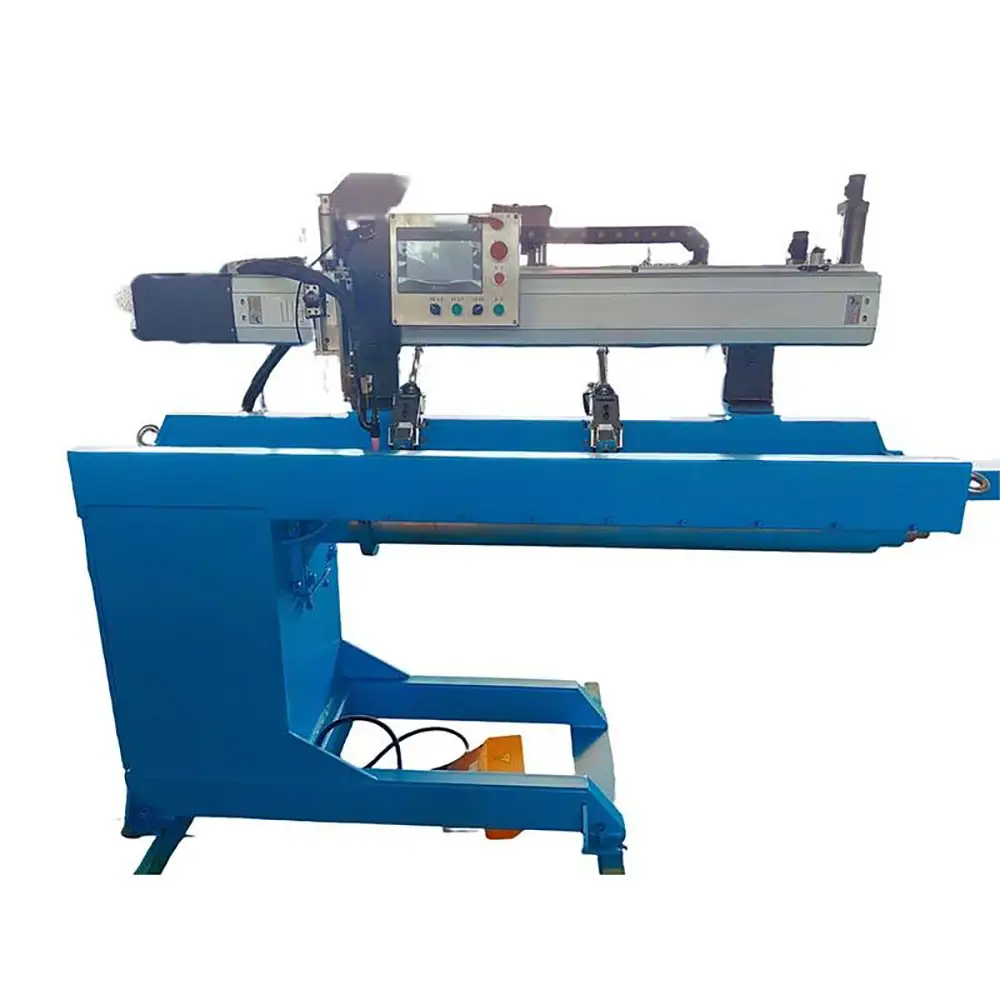

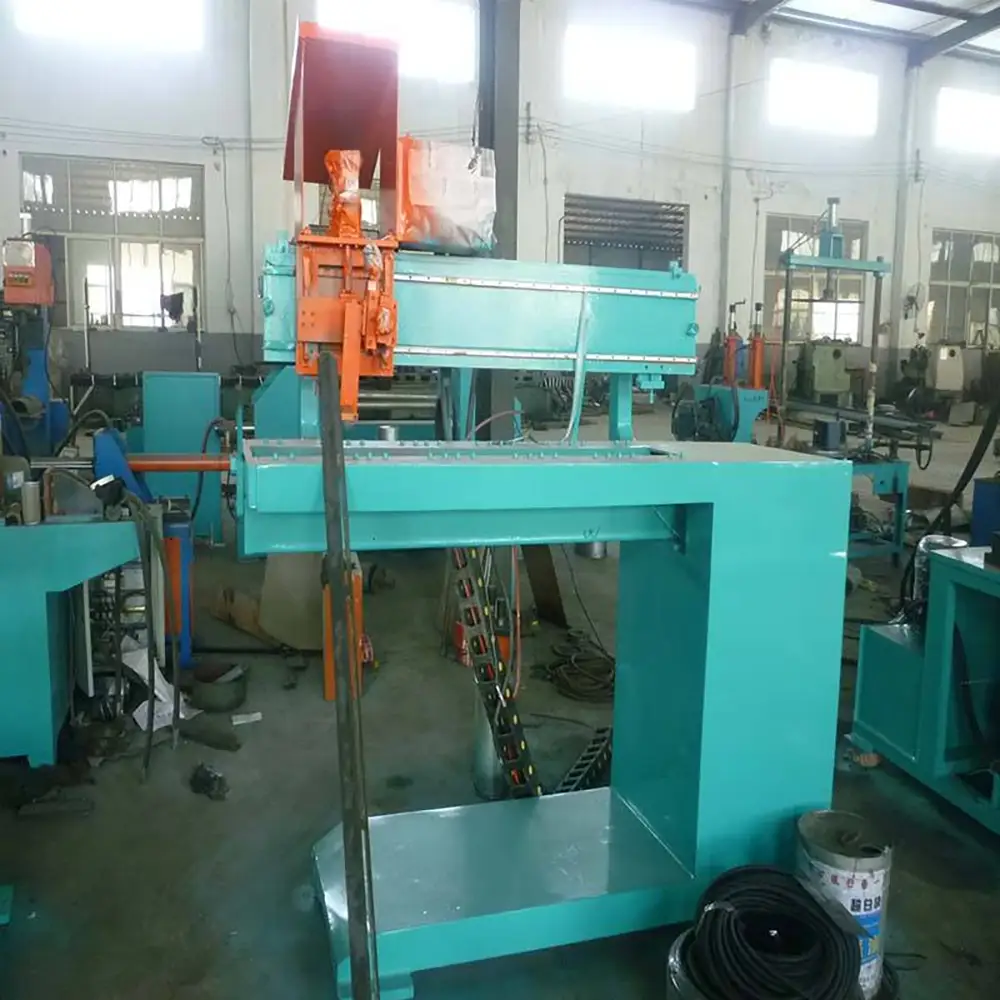

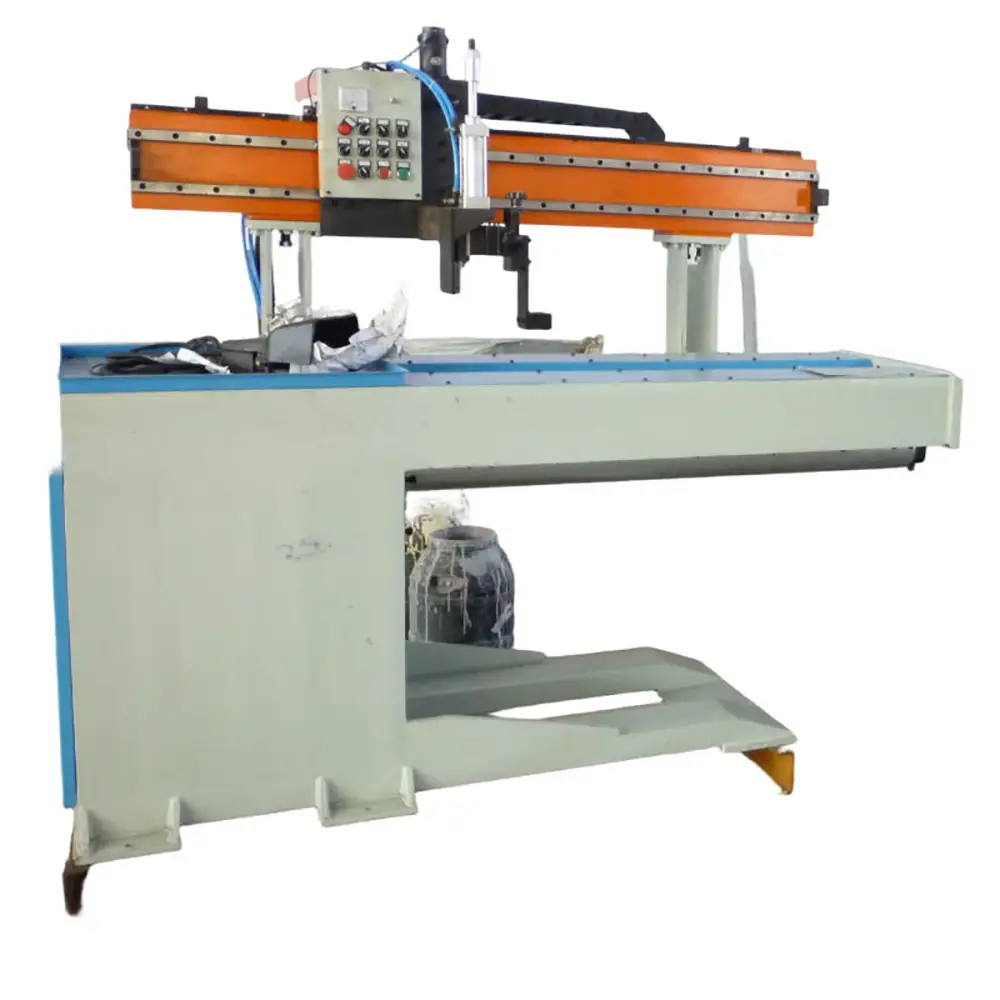

Fully Automatic Steel Pipe Longitudinal Seam Welding Machine Customizable for Various Pipe Sizes

Fully Automatic Steel Pipe Longitudinal Seam Welding Machine for Various Pipe Sizes

The Fully Automatic Steel Pipe Longitudinal Seam Welding Machine is designed for efficient and consistent welding of longitudinal seams on steel pipes,tubes,and cylindrical metal workpieces. It provides an automated welding solution for manufacturers that need repeatable seam welding across different pipe sizes and production requirements.

Longitudinal seam welding is commonly used when a flat metal sheet or plate is formed into a cylindrical or tubular shape and the open longitudinal joint needs to be welded. A dedicated seam welding machine can help control workpiece positioning,clamping,welding-head movement,and other production steps to achieve a more consistent welding process.

The machine can be customized for various pipe sizes according to the required workpiece diameter,length,wall thickness,material,and welding process. This makes it suitable for manufacturers producing different steel pipe specifications rather than a single fixed-size product.

Depending on the machine configuration,the welding system may be integrated with automatic feeding,clamping,alignment,welding-head travel,and control functions. The exact automation level and welding method should be selected according to the customer's production requirements.

Longitudinal Seam Welding Process

The longitudinal seam is located along the length of a formed pipe or tube. Before welding,the metal sheet or strip is formed into the required tubular shape and the edges are aligned along the longitudinal joint.

The welding head then travels along the seam while applying the selected welding process. Proper edge alignment and controlled welding parameters are important because variations in the joint gap,material thickness,or workpiece position can affect weld quality.

A dedicated longitudinal seam welding machine can provide a more controlled welding path than completely manual welding. This is particularly useful for repetitive production where multiple pipes require similar longitudinal seams.

The appropriate welding method may vary according to the material and application. Depending on the machine design,it may be configured for TIG,MIG/MAG,laser welding,or another suitable welding process. Customers should confirm the intended welding technology before ordering.

Fully Automatic Pipe Welding Operation

The fully automatic configuration is intended to reduce repetitive manual operations during the welding cycle. Depending on the machine design,automatic functions may include workpiece positioning,clamping,seam alignment,welding-head movement,and programmed welding parameters.

Automation can help improve consistency between workpieces by reducing variations caused by manual torch movement and repeated positioning.

However,the actual degree of automation depends on the selected machine configuration. Some production lines may still require an operator to load and unload pipes,inspect welds,adjust parameters,or perform quality checks.

For high-volume manufacturing,the machine can be integrated into a broader pipe production workflow that includes sheet forming,cutting,end forming,inspection,and finishing.

Customizable for Various Pipe Sizes

One of the main advantages of this machine is its ability to accommodate different pipe sizes through appropriate machine configuration and tooling.

Pipe diameter,length,and wall thickness can vary significantly between industries. A machine intended for small-diameter tubing may require a different clamping and welding arrangement from equipment designed for larger steel pipes.

Customization may involve:

Workpiece diameter range

Pipe length

Material thickness

Welding torch arrangement

Clamping fixtures

Seam positioning system

Welding-head travel

Welding power source

Control system

Cooling system

Loading and unloading arrangement

The actual available range should be confirmed according to the specific machine model. Customers should provide detailed pipe dimensions when requesting a quotation.

Steel Pipe and Tube Applications

The longitudinal seam welding machine can process suitable steel pipes and tubes used in many industrial applications.

Potential applications include:

Carbon steel pipes

Stainless steel tubes

Mild steel tubing

Structural steel tubes

Industrial pipe sections

HVAC duct components

Furniture tubing

Automotive tube components

Agricultural machinery parts

Machinery frames

Metal cylinders

Custom fabricated tubular products

The suitable material range depends on the selected welding system. Carbon steel and stainless steel may require different welding parameters,shielding gases,wire or electrode selection,and heat control.

For specialized alloys or unusual materials,production testing is recommended before large-scale manufacturing.

Welding Quality and Seam Consistency

Consistent seam welding requires accurate workpiece preparation and stable welding conditions. The machine structure,clamping system,edge alignment,welding-head movement,and parameter control can all influence the final weld.

Important welding parameters may include welding current,voltage,travel speed,shielding gas flow,wire feed speed,torch position,and heat input,depending on the selected welding technology.

Material cleanliness is also important. Oil,rust,scale,paint,and contamination around the welding joint can affect arc stability and weld quality.

For applications with strict requirements,manufacturers should establish appropriate welding procedures and inspect finished seams using suitable quality-control methods.

Automatic Clamping and Seam Alignment

Workpiece positioning is an important part of longitudinal seam welding. Before welding,the pipe or formed sheet must be correctly positioned so that the longitudinal edges remain aligned during the welding cycle.

A suitable clamping system can help maintain the workpiece position and reduce movement caused by welding heat or mechanical vibration.

The machine may be configured with adjustable fixtures or tooling to accommodate different pipe sizes. For multiple-product manufacturing,this flexibility can reduce setup limitations when changing between workpiece specifications.

Actual fixture design depends on the pipe dimensions and production process.

Production Efficiency

Automated longitudinal seam welding can improve production efficiency by providing repeatable welding-head movement and reducing manual torch guidance.

For repeated pipe production,the machine can maintain programmed welding parameters and motion settings after the correct setup has been established.

Production output depends on pipe dimensions,welding length,material thickness,welding speed,loading method,setup time,and inspection requirements.

For this reason,customers should evaluate the complete production cycle rather than relying only on nominal welding speed.

CNC,PLC,and Control Options

Depending on the configuration,the machine may use PLC,CNC,or another industrial control system to coordinate welding and machine movement.

A programmable control system can allow operators to store different welding programs for different pipe sizes or materials. This can be useful for factories producing multiple pipe specifications.

The control interface may also coordinate automatic clamping,welding-head travel,and other machine functions.

Available software and control functions vary by manufacturer. Customers should confirm the controller type,interface language,program storage,and compatible welding equipment before placing an order.

Industrial Pipe Manufacturing Applications

Longitudinal seam welding is used in many industries where formed sheet metal or strip must be converted into tubular products.

The machine may be suitable for:

Steel pipe manufacturing

Stainless steel tube production

HVAC and ventilation components

Automotive components

Machinery manufacturing

Steel furniture

Agricultural equipment

Construction components

Industrial fabrication

Custom tube production

Its customizable configuration makes it possible to adapt the equipment to different production environments and product specifications.

Maintenance and Welding Safety

Welding equipment should be operated by trained personnel following appropriate safety procedures. Welding can generate intense light,heat,fumes,electrical hazards,and hot metal.

Operators should use suitable welding helmets,protective clothing,gloves,eye protection,and ventilation or fume extraction appropriate for the welding process.

Routine maintenance may include inspection of cables,hoses,clamps,guides,welding torches,cooling systems,and electrical connections. Welding consumables should be replaced or maintained according to operating conditions.

The machine's emergency-stop devices,protective systems,and other safety features depend on the specific configuration and should be checked regularly.

OEM and Custom Pipe Welding Solutions

The machine can be developed or configured for specific pipe manufacturing requirements. OEM and ODM projects may involve customized workholding,welding-head arrangements,pipe size ranges,control systems,loading systems,and production-line integration.

For an accurate quotation,customers should provide:

Pipe material

Pipe diameter

Pipe length

Wall thickness

Longitudinal seam length

Required welding process

Production volume

Weld quality requirements

Loading and unloading method

Available power supply

Drawings,samples,and photographs of existing pipe products can also help determine the appropriate configuration.

For manufacturers,distributors,and industrial buyers seeking a fully automatic steel pipe longitudinal seam welding machine,this equipment provides a flexible platform for controlled and repeatable tubular product welding.

Why Choose Us

Fully Automatic Welding Configuration
Automated workpiece positioning,clamping,and welding-head movement can reduce repetitive manual operations according to the selected configuration.

Longitudinal Seam Welding
Designed specifically for welding longitudinal joints on suitable steel pipes,tubes,and formed cylindrical workpieces.

Various Pipe Sizes
Machine fixtures and tooling can be configured according to different pipe diameters,lengths,and wall thicknesses.

Flexible Welding Process Options
The equipment can be configured around suitable TIG,MIG/MAG,laser,or other welding technologies according to application requirements.

Consistent Welding Movement
Controlled welding-head travel can help improve repeatability compared with completely manual torch guidance.

Industrial B2B Applications
Suitable for steel pipe manufacturing,metal fabrication,automotive components,HVAC products,furniture tubing,and machinery production.

Customizable Machine Design
Clamping fixtures,welding systems,controls,and workpiece handling arrangements can be selected according to customer requirements.

OEM and ODM Support
We can evaluate customized pipe welding solutions based on product drawings,samples,material specifications,and production requirements.

FAQs

1. What is a longitudinal seam welding machine?

A longitudinal seam welding machine is equipment designed to weld a joint running along the length of a formed pipe,tube,or cylindrical metal workpiece.

2. Can this machine weld different pipe sizes?

Yes. The machine can be configured with suitable fixtures,clamping systems,and welding arrangements for different pipe sizes. The actual diameter and length range depends on the machine configuration.

3. Is the machine fully automatic?

The machine is designed around a fully automatic configuration,but the exact automation functions depend on the selected model. Loading,unloading,inspection,and certain setup tasks may still require operator involvement.

4. What materials can it weld?

Suitable configurations may process carbon steel,mild steel,and stainless steel. Other materials should be evaluated according to their welding characteristics and the selected welding process.

5. What welding processes can be used?

Depending on the machine configuration,it may support TIG,MIG/MAG,laser,or other suitable welding processes. The appropriate process depends on material,thickness,weld requirements,and production conditions.

6. Can it weld stainless steel pipe?

Yes. With an appropriate welding system,fixture,and process parameters,the machine can be configured for stainless steel tube and pipe applications.

7. Can it weld thick-wall steel pipe?

Potentially,depending on the welding power source,material thickness,joint design,and required weld penetration. The specific wall thickness should be provided when selecting the machine.

8. What affects longitudinal seam weld quality?

Workpiece alignment,edge preparation,material cleanliness,welding parameters,travel speed,shielding gas,torch position,and machine stability can all affect weld quality.

9. Can the machine be customized?

Yes. Customization may include pipe size range,fixtures,welding system,control method,welding-head travel,cooling,and material handling arrangements.

10. Is CNC or PLC control available?

Depending on the configuration,the machine may use PLC,CNC,or another industrial control system. The available control functions should be confirmed for the selected model.

11. What industries use longitudinal seam welding?

Applications can include steel pipe production,stainless steel tube manufacturing,HVAC,automotive,agricultural machinery,steel furniture,construction,and general metal fabrication.

12. What information is needed for a quotation?

Provide the pipe material,diameter,length,wall thickness,seam length,welding process,production volume,and required automation level. Product drawings or samples are also recommended.
