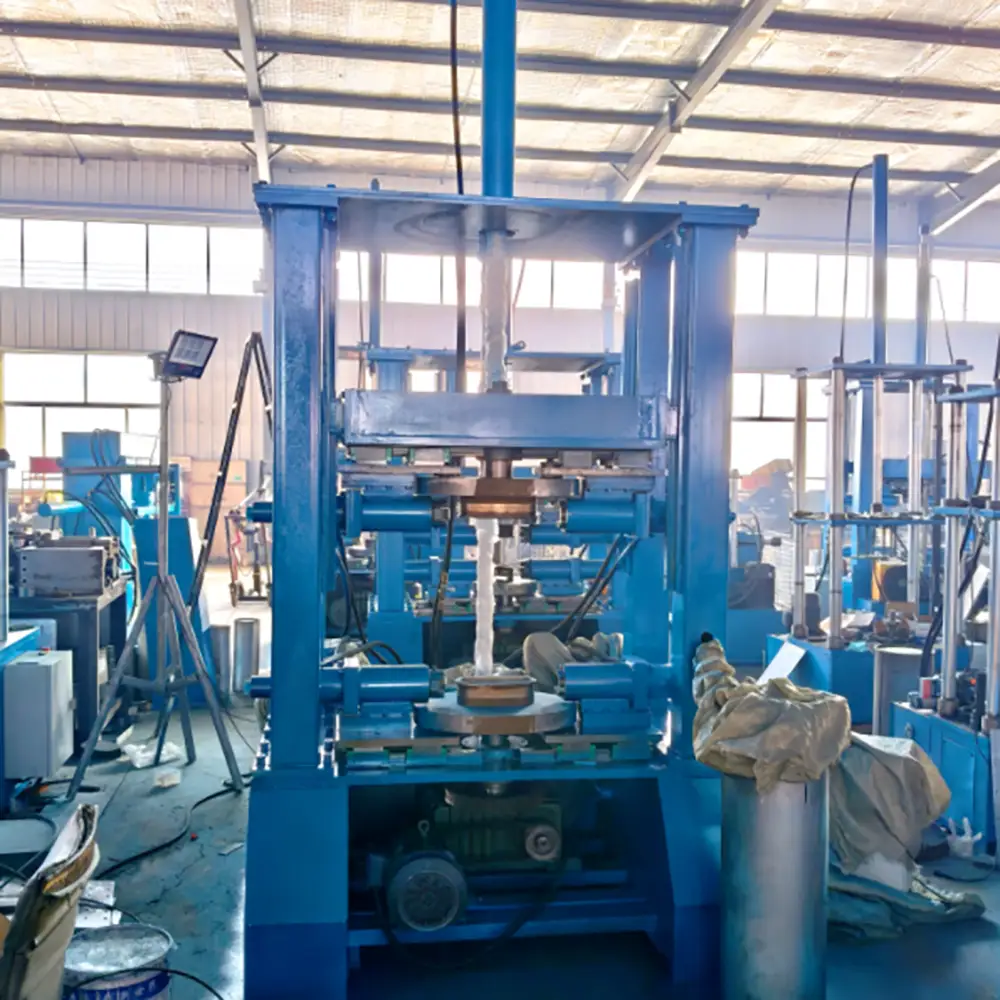

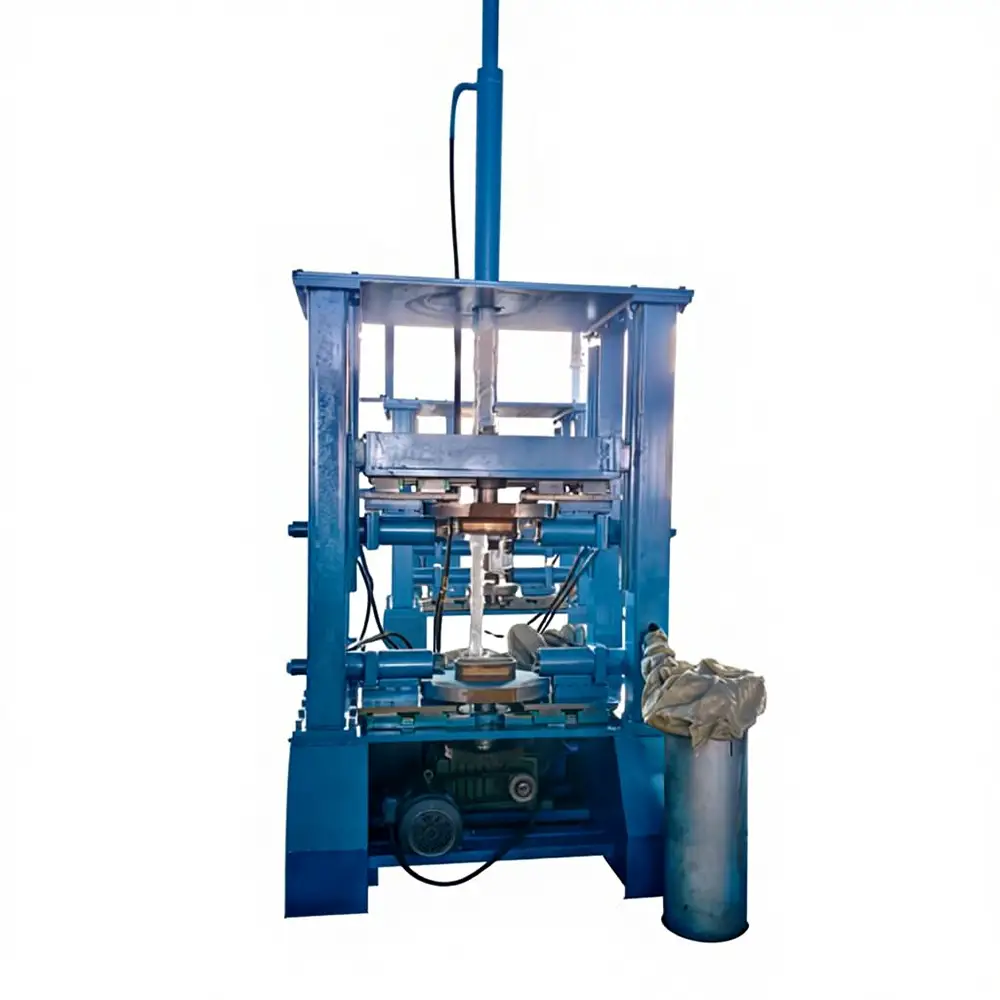

Hydraulic Double-Head Muffler Sealing Machine for Muffler Shell Manufacture

The Hydraulic Double-Head Muffler Sealing Machine is designed for manufacturers involved in automotive exhaust and muffler component production. It provides a hydraulic forming and sealing solution for suitable muffler shells,tubes,and cylindrical exhaust components.

Muffler manufacturing often requires controlled processing of cylindrical shells and tube ends to create the required geometry for assembly and sealing. A dedicated hydraulic sealing machine can apply controlled forming force to the workpiece while supporting repeatable production.

The double-head design provides two forming or processing positions according to the machine configuration. This can support efficient processing of muffler components and may reduce handling between production steps.

The machine can be configured according to muffler shell dimensions,material,wall thickness,end geometry,and required production process. Actual forming capacity and operating method depend on the selected machine model and tooling.

Hydraulic Muffler Shell Sealing Process

The hydraulic system provides controlled forming force for processing the muffler shell or tube end. The workpiece is positioned in a suitable fixture and supported while the hydraulic mechanism drives the forming tools toward the required position.

Depending on the tooling,the machine may perform end closing,reducing,pressing,flanging,or other forming operations used during muffler manufacturing.

The exact operation depends on the muffler design. Different shell diameters and end profiles may require different dies or forming tools.

For manufacturers producing multiple muffler models,the tooling system can be designed around specific workpiece dimensions. Tool changes or adjustments may be required when switching between different products.

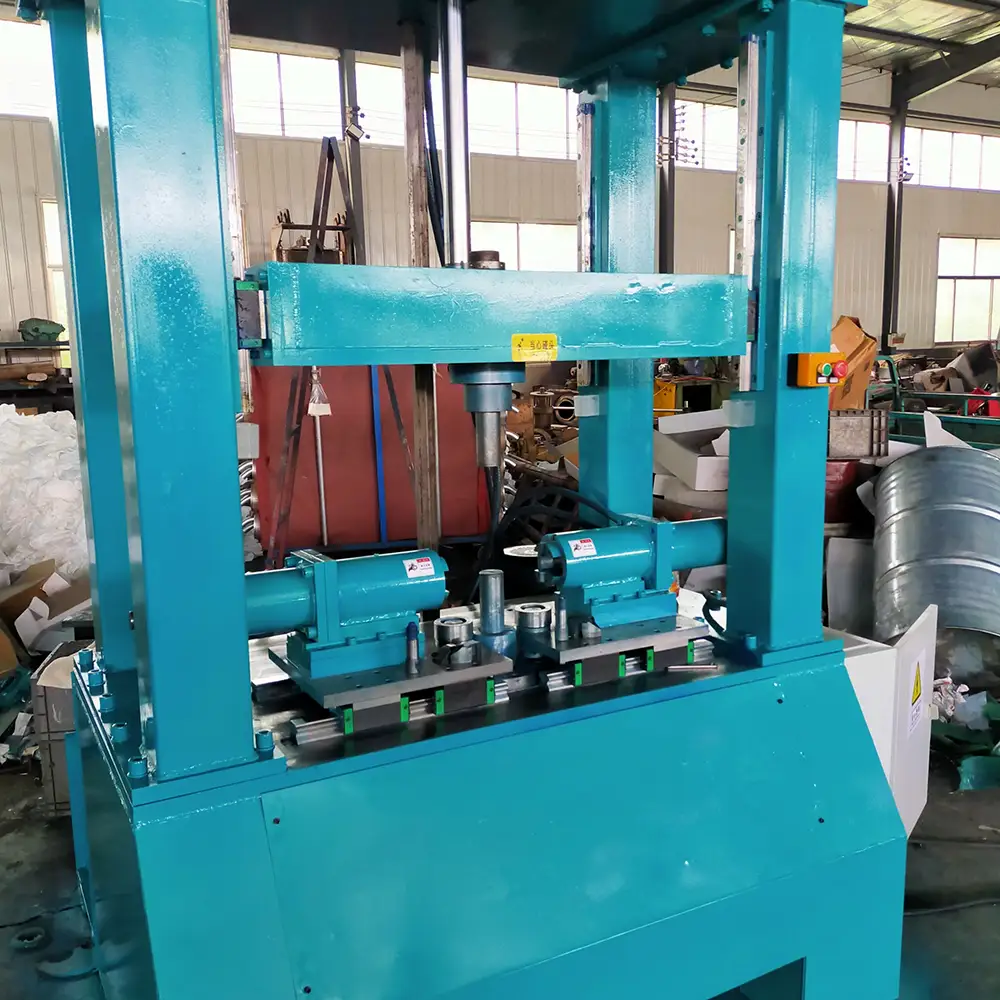

Double-Head Muffler Processing Design

The double-head configuration is intended to improve production flexibility and processing efficiency. Depending on the machine design,the two heads may process different ends,perform related forming operations,or provide two working positions for production.

The exact function of each head depends on the machine's hydraulic circuit,tooling,and control system.

A double-head system can be particularly useful for production environments where muffler components require repeated end processing. It may help reduce manual repositioning and handling compared with a single processing station.

The actual cycle sequence should be evaluated according to the customer's muffler design and production workflow.

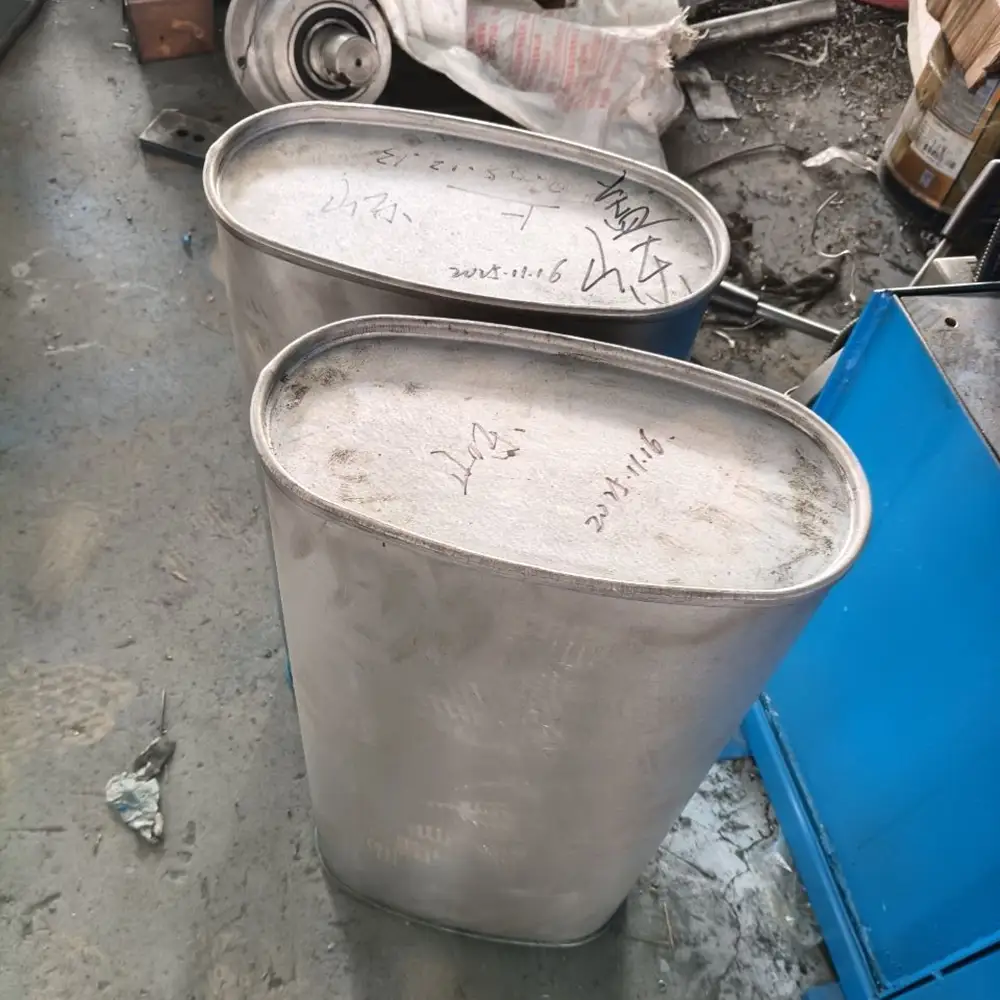

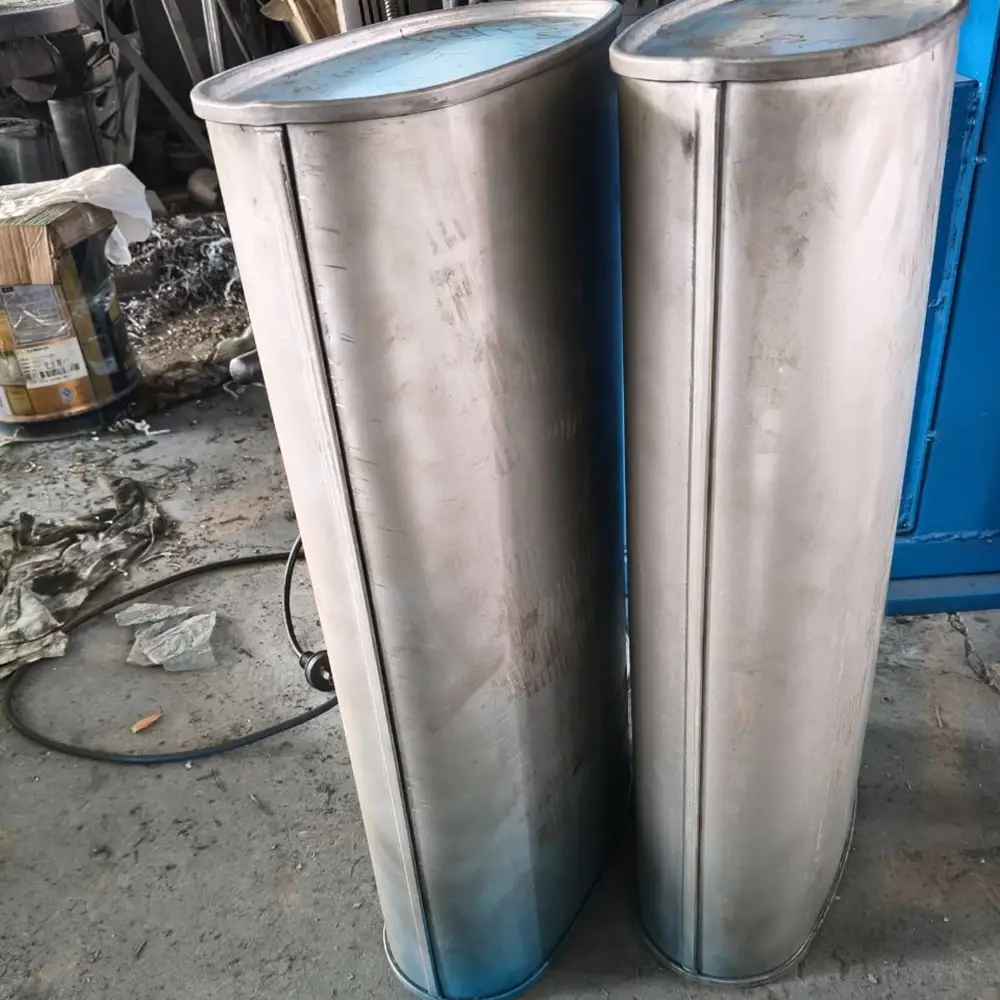

Muffler Shell Manufacturing Applications

Muffler shells are commonly manufactured from formed metal sheets or tubes and subsequently processed into complete exhaust components.

This machine can be suitable for processing components such as:

Automotive muffler shells

Exhaust muffler bodies

Motorcycle muffler components

Exhaust resonator shells

Cylindrical exhaust housings

Metal exhaust tubes

Silencer components

Exhaust system parts

Custom fabricated muffler shells

Material selection depends on the exhaust system design. Stainless steel is commonly used in applications where corrosion resistance and heat resistance are important,while suitable carbon or mild steel may be used in other exhaust component applications.

The machine configuration should be selected according to the actual material grade and forming characteristics.

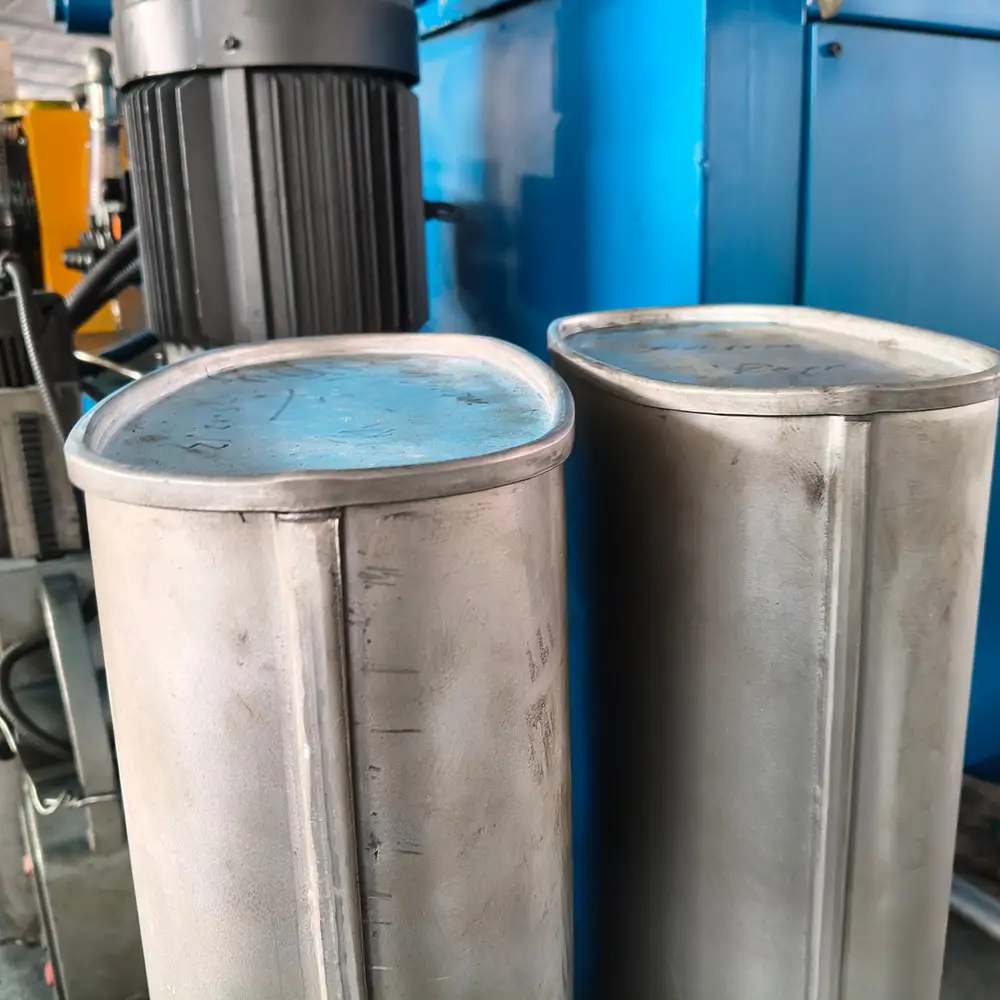

Tube and Shell End Forming

Muffler production may involve several tube and shell forming operations. These can include reducing,expanding,necking,flattening,flanging,and closing depending on the component design.

Hydraulic forming provides a controlled force for reshaping the metal without relying entirely on manual tools.

The final geometry is determined by the forming die. For example,a reducing die can decrease the end diameter,while a flanging or closing tool can create a specific edge profile.

Because muffler designs vary significantly,custom tooling is often important for production applications.

Customers should provide drawings or samples of the muffler shell when requesting customized dies.

Stainless Steel Muffler Manufacturing

Stainless steel is widely used for exhaust components because of its corrosion resistance and suitability for demanding thermal environments.

However,stainless steel grades can have different forming characteristics and may require appropriate tooling and forming parameters.

The hydraulic muffler sealing machine can be evaluated for suitable stainless steel shell and tube applications based on material grade,diameter,wall thickness,and required end shape.

Proper workpiece support is important because excessive or uneven forming force can cause unwanted deformation.

For production requiring consistent appearance,operators should also pay attention to tooling condition and surface contact.

Hydraulic Forming Force and Control

Hydraulic operation provides controlled forming force and can be suitable for muffler shells requiring substantial deformation.

The hydraulic cylinder,pressure system,tooling,and control method should be matched to the actual workpiece requirements.

A hydraulic system can provide repeatable movement during the forming cycle when correctly configured.

The required forming force depends on several factors,including material strength,wall thickness,diameter,forming depth,die geometry,and deformation amount.

Therefore,the required hydraulic capacity should be determined from actual product specifications rather than estimated only from shell diameter.

Workpiece Clamping and Positioning

Correct positioning is essential for muffler shell sealing and end forming. The workpiece must remain stable during the application of hydraulic force.

A suitable fixture can help maintain alignment and prevent unwanted movement during forming.

For muffler production,the fixture may be designed around the cylindrical shell diameter and overall length. Interchangeable fixtures can provide greater flexibility when manufacturers produce multiple exhaust component models.

The actual clamping arrangement depends on the machine configuration and workpiece design.

Production Efficiency

A hydraulic double-head machine can help improve manufacturing efficiency by combining controlled forming force with a dedicated multi-position design.

For repetitive muffler shell production,the machine can provide a consistent forming cycle after the correct tooling and parameters have been established.

Production output depends on workpiece dimensions,forming depth,material thickness,tooling,cycle time,loading method,and operator workflow.

For higher-volume manufacturing,the machine can be integrated with other exhaust production equipment,including tube cutting,bending,expanding,shrinking,perforating,welding,and polishing systems.

Exhaust Muffler Production Line Integration

Muffler manufacturing normally involves multiple production stages. Depending on the product,the process may include material cutting,shell forming,seam welding,tube bending,perforation,end forming,assembly,welding,and surface finishing.

The hydraulic double-head muffler sealing machine can function as one stage within this broader manufacturing process.

Integration with upstream and downstream machinery should consider workpiece dimensions,cycle times,material flow,and operator access.

For automated factories,additional feeding or unloading systems may also be evaluated according to production volume.

Tooling and Mold Customization

Tooling is one of the most important factors in muffler shell sealing and forming.

Custom dies can be designed according to the required shell diameter,end profile,and forming operation.

Depending on the product,the tooling may support:

End closing

End reducing

Necking

Expanding

Flattening

Flanging

Beading

Profile forming

Different muffler models may require dedicated dies.

Customers should provide detailed drawings showing shell diameter,wall thickness,end geometry,and dimensional tolerances so the appropriate tooling can be evaluated.

Quality Control

Muffler shell forming quality depends on material properties,tooling accuracy,workpiece alignment,hydraulic force,and forming parameters.

Important quality characteristics may include:

End diameter

Shell roundness

Forming depth

End profile

Concentricity

Wall deformation

Surface condition

Overall component dimensions

For production with tight dimensional requirements,first-piece inspection and regular process checks are recommended.

If the muffler must meet specific sealing or pressure requirements,the finished component should also be tested using the appropriate downstream inspection method.

Maintenance and Safety

Hydraulic muffler sealing machines use significant mechanical force. Operators should keep hands away from the forming area and use the machine's designated controls and protective systems.

Depending on the configuration,safety features may include emergency stops,protective guards,and hydraulic or electrical protection systems.

Routine maintenance should include inspection of hydraulic hoses,fittings,cylinders,oil condition,fixtures,and forming dies.

Tooling should be checked for wear or damage because worn dies can affect the final muffler shell geometry.

Operators should follow the manufacturer's operating and maintenance instructions and applicable workplace safety requirements.

OEM and Custom Muffler Manufacturing Solutions

The machine can be customized for different muffler shell manufacturing requirements.

OEM and ODM options may include customized forming dies,double-head arrangements,hydraulic systems,fixtures,controls,and production handling systems.

For an accurate quotation,customers should provide:

Muffler shell material

Material grade

Shell diameter

Wall thickness

Component length

Required end shape

Forming depth

Production volume

Required cycle time

Drawings or samples

This information allows the machine and tooling configuration to be evaluated according to the actual production process.

For automotive exhaust manufacturers,metal fabrication companies,distributors,and industrial buyers,the Hydraulic Double-Head Muffler Sealing Machine offers a flexible solution for controlled muffler shell end forming and production.

Why Choose Us

Hydraulic Muffler Shell Forming
Controlled hydraulic force is suitable for repeated muffler shell and exhaust component end forming operations.

Double-Head Configuration
Two processing heads provide flexible production arrangements according to the machine and tooling design.

Muffler Manufacturing Applications
Designed for suitable automotive,motorcycle,and industrial exhaust component production.

Multiple End Forming Operations
Tooling can be configured for closing,reducing,necking,flattening,flanging,and other muffler end-forming processes.

Customizable Dies and Fixtures
Forming molds and workholding systems can be developed around specific muffler shell dimensions.

Stainless Steel and Steel Applications
Suitable configurations can be evaluated for stainless steel,carbon steel,and other compatible exhaust materials.

Production Line Integration
The machine can be incorporated into broader muffler and exhaust component manufacturing workflows.

OEM and ODM Support
Customized machinery and tooling solutions can be evaluated according to drawings,samples,materials,and production requirements.

FAQs

1. What is a muffler sealing machine?

A muffler sealing machine is equipment used to close,form,reduce,or otherwise process the ends of muffler shells and related exhaust components.

2. What does the double-head design mean?

The double-head design provides two processing heads or working positions according to the machine configuration. The exact functions depend on the hydraulic system and tooling.

3. Can it process stainless steel muffler shells?

Yes. Suitable stainless steel grades can be processed when the machine,tooling,and forming parameters are correctly configured.

4. Can it process carbon steel?

Yes. Compatible carbon steel and mild steel muffler components can be processed according to the machine's forming capacity.

5. What muffler operations can the machine perform?

Depending on the tooling,it may perform end closing,reducing,necking,flattening,flanging,beading,or other forming operations.

6. Can the tooling be customized?

Yes. Custom dies and fixtures can be developed according to muffler shell diameter,end profile,wall thickness,and required forming geometry.

7. What affects the required hydraulic forming force?

Material strength,wall thickness,shell diameter,forming depth,die geometry,and the amount of deformation all affect the required forming force.

8. Can it process different muffler sizes?

Yes. Different fixtures and tooling configurations can be used for different muffler dimensions,subject to the machine's designed operating range.

9. Is the machine fully automatic?

Automation depends on the specific configuration. Automatic or semi-automatic clamping,forming,and material handling functions may be available.

10. Can this machine be integrated into a muffler production line?

Yes. It can be evaluated for integration with exhaust tube cutting,bending,expanding,shrinking,perforating,welding,and finishing equipment.

11. What affects muffler shell forming quality?

Material properties,tooling geometry,workpiece alignment,hydraulic pressure,forming speed,and fixture stability can all affect the finished component.

12. What information is needed for a quotation?

Provide the muffler material,shell diameter,wall thickness,length,end shape,forming depth,production volume,and required automation level. Product drawings or samples are highly recommended.
