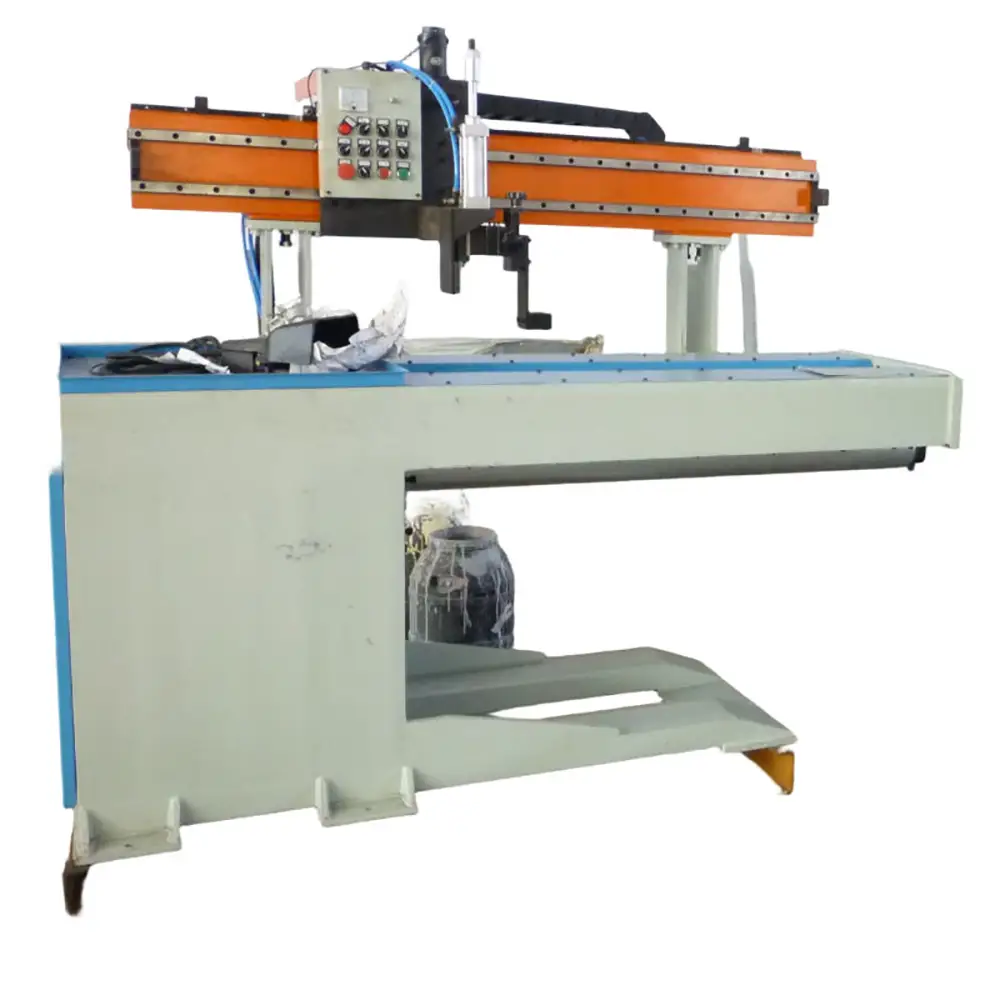

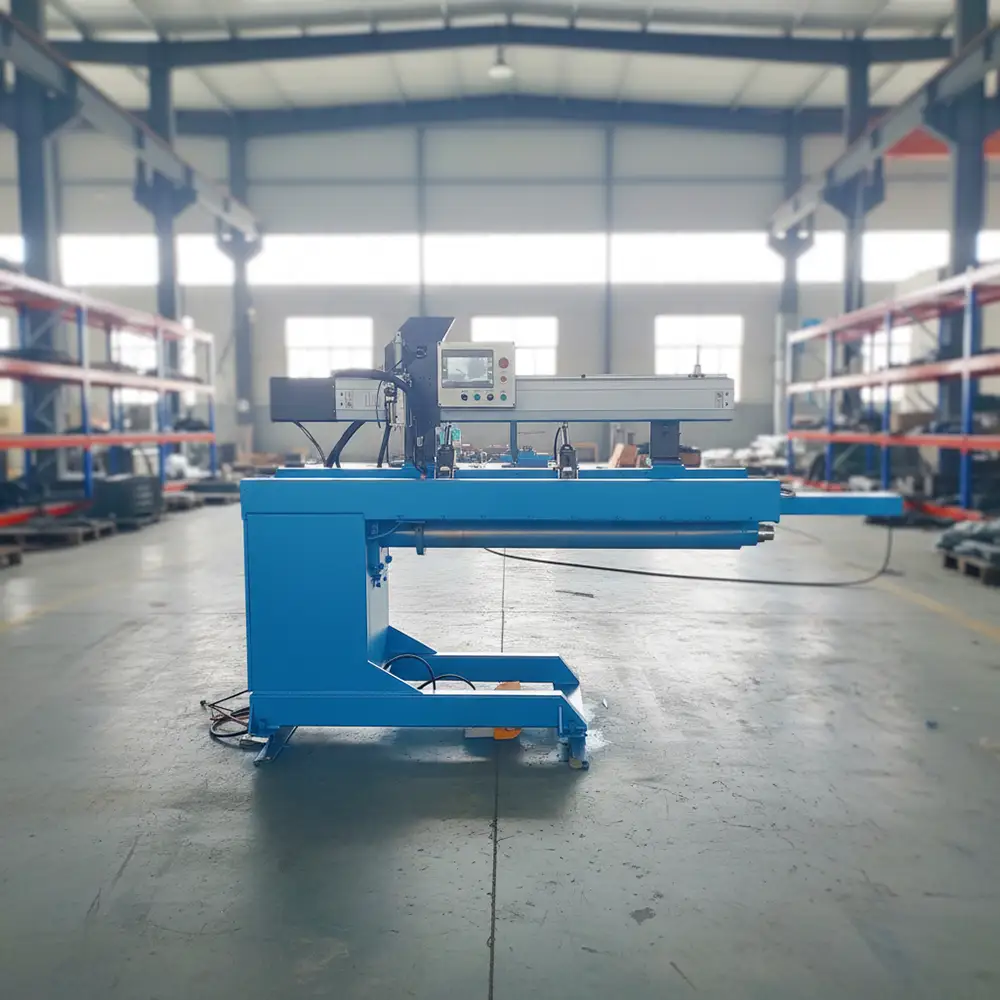

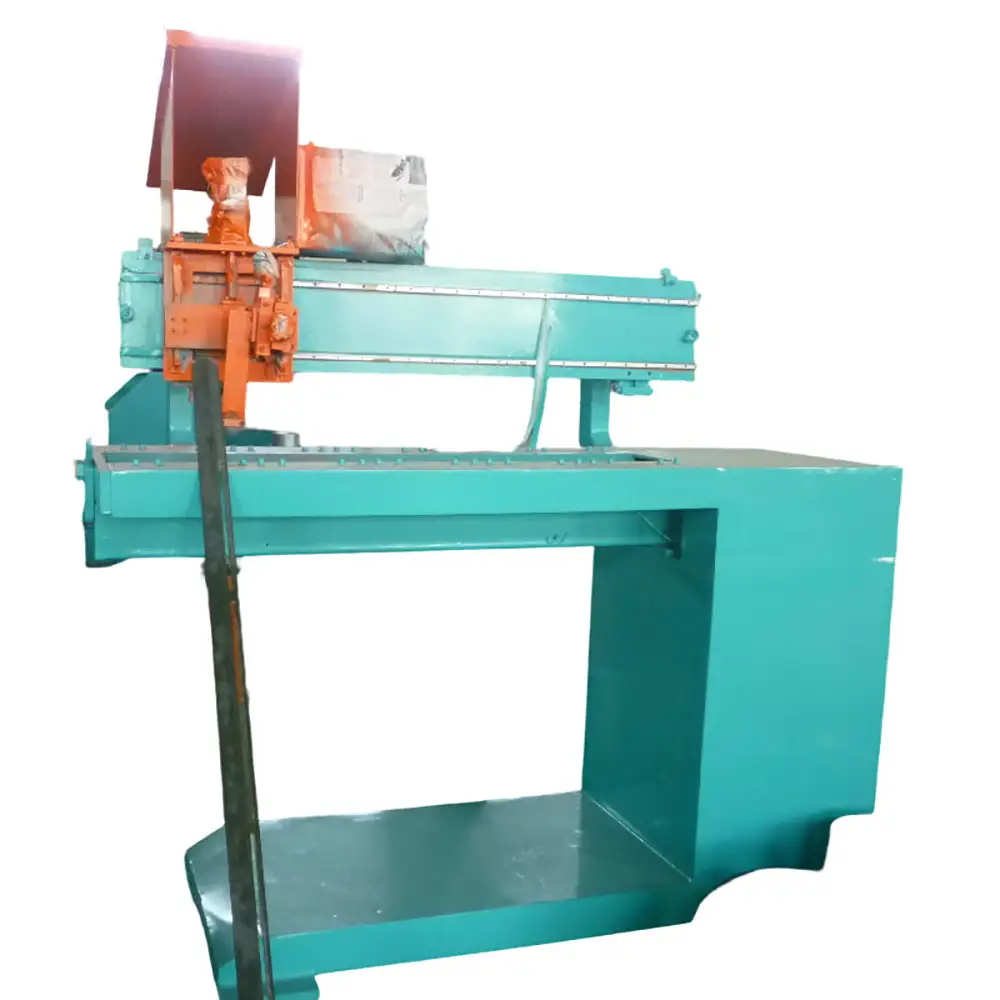

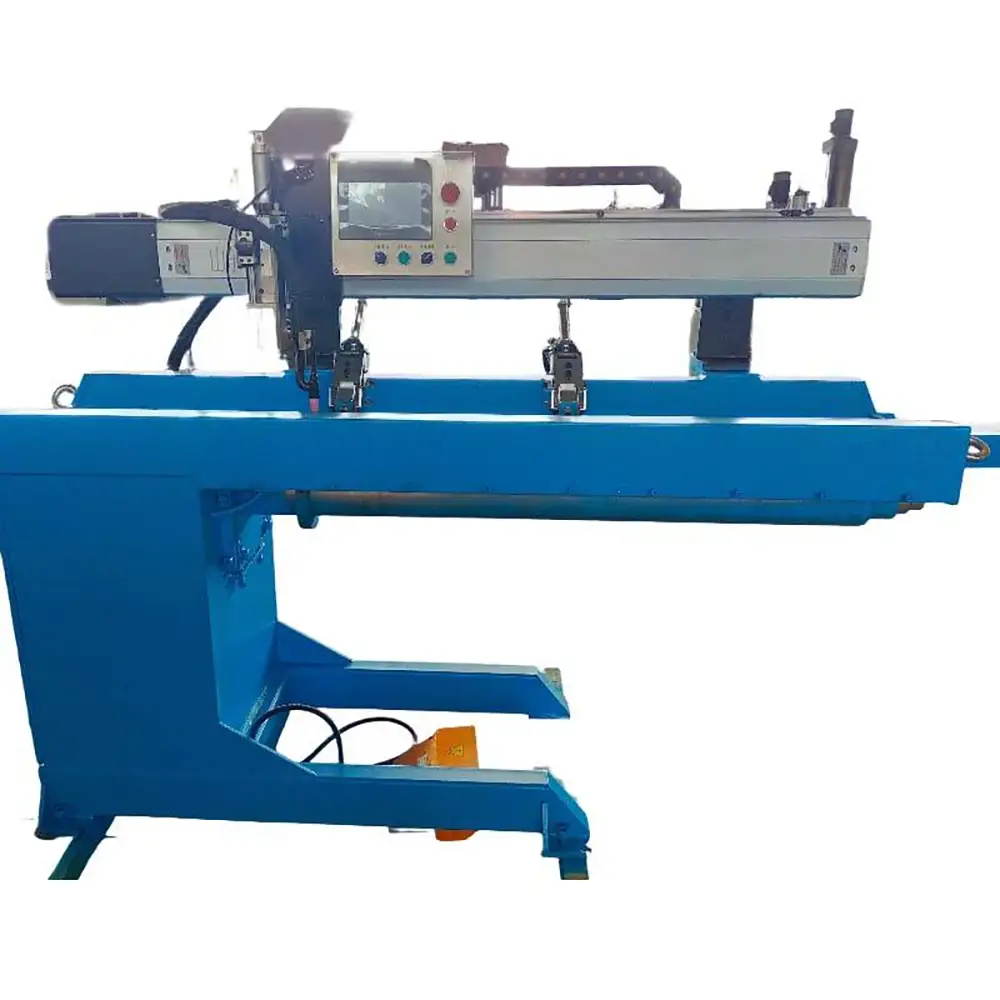

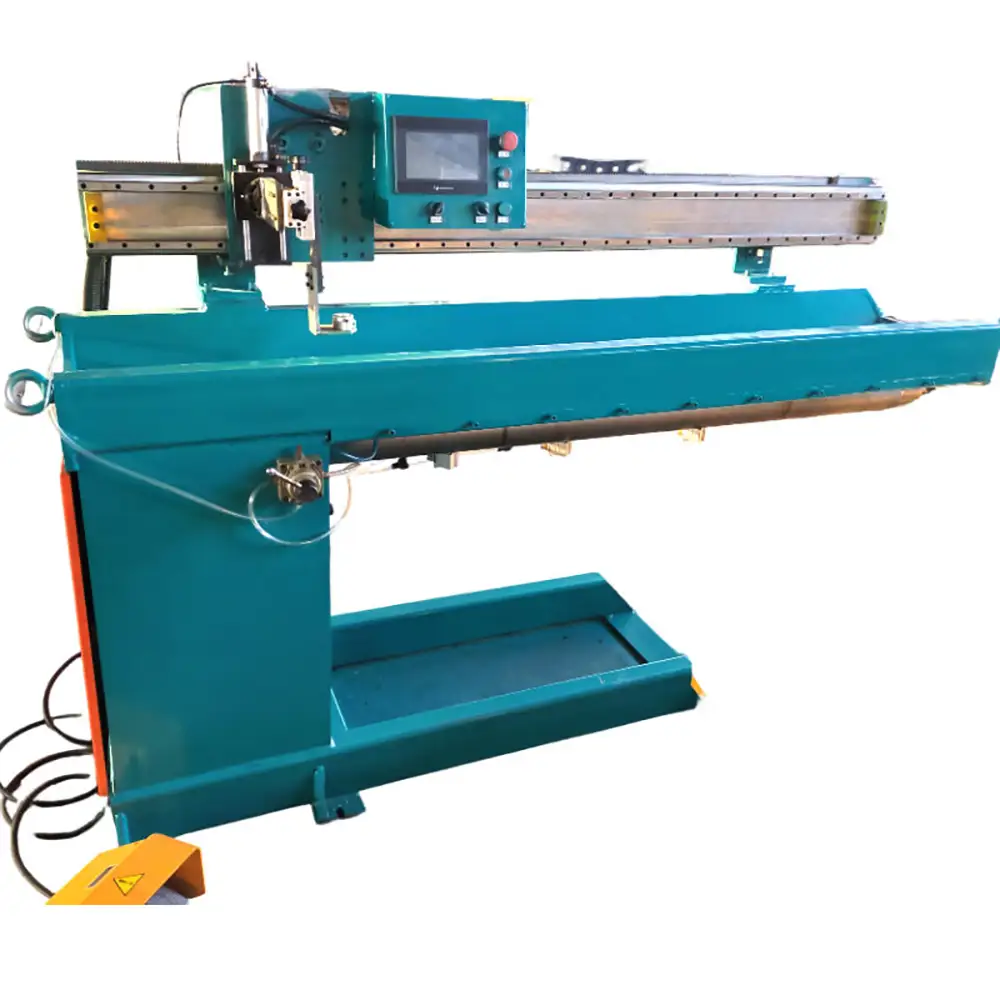

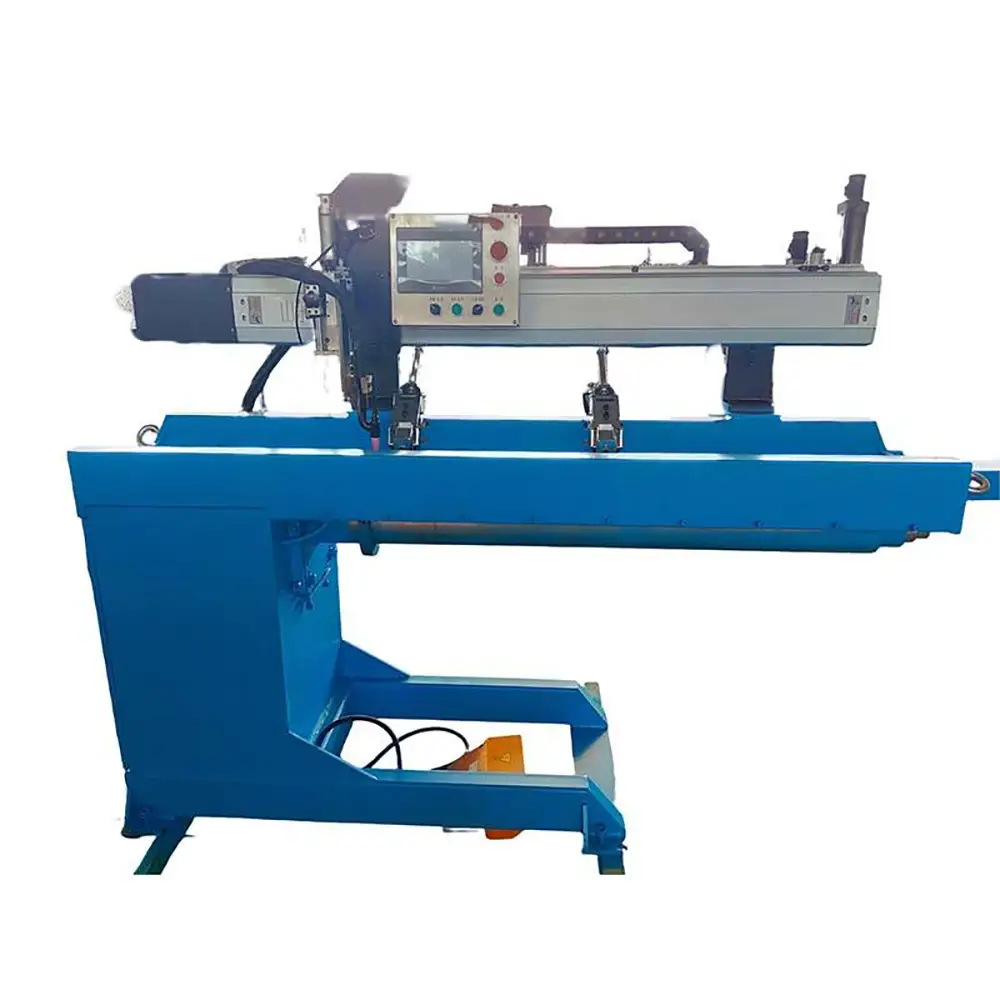

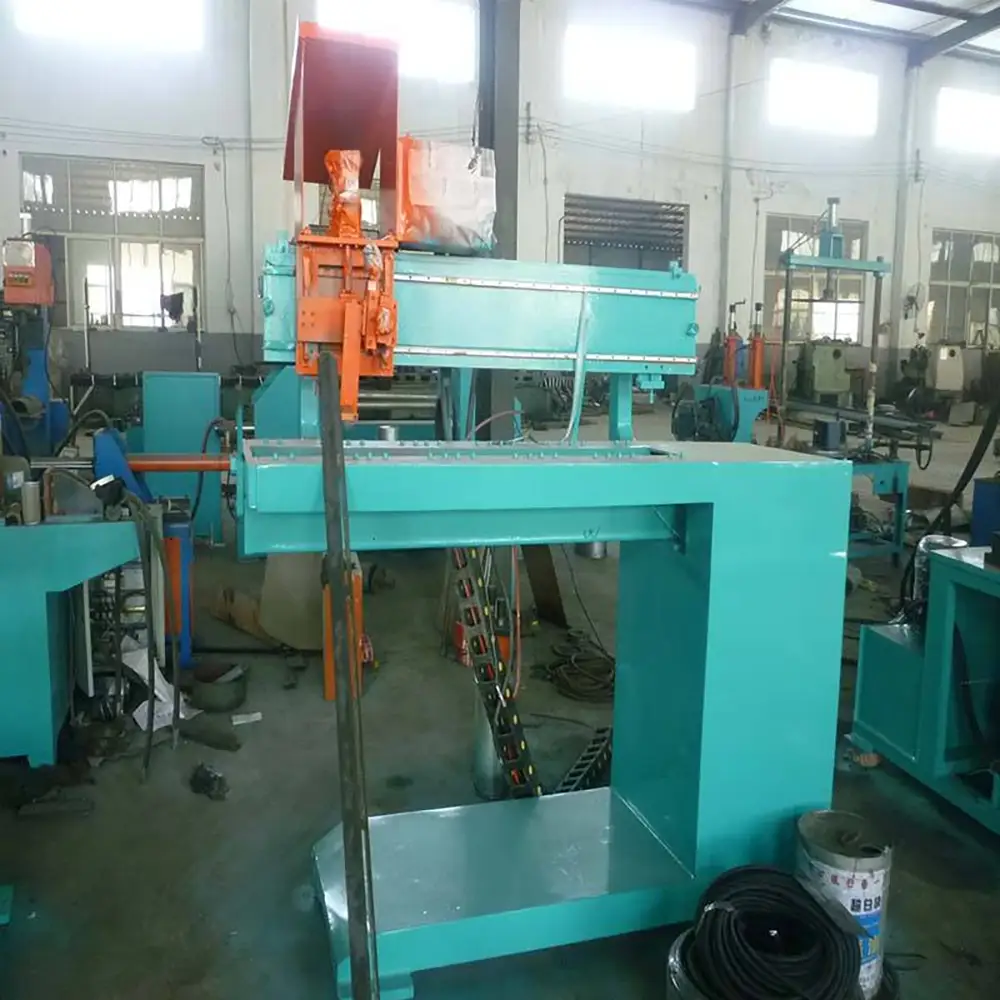

Fully Automatic Steel Pipe Seam Welding Machine Longitudinal Seam Pipe Welding Machine

Fully Automatic Steel Pipe Seam Welding Machine for Longitudinal Seam Welding

The Fully Automatic Steel Pipe Seam Welding Machine is designed for efficient and repeatable welding of longitudinal seams on steel pipes,metal tubes,and formed cylindrical workpieces. It provides a dedicated welding solution for manufacturers that need controlled seam welding across repeated pipe and tube production.

Longitudinal seam welding is commonly used when flat steel sheet,strip,or plate is formed into a tubular or cylindrical shape. Once the edges are brought together,the longitudinal joint is welded along the length of the workpiece.

A dedicated longitudinal seam welding machine can coordinate workpiece positioning,clamping,seam alignment,and welding-head movement to provide a more consistent production process than completely manual welding.

The machine can be configured according to pipe material,diameter,length,wall thickness,and required welding process. Depending on the production application,the system may incorporate automatic clamping,welding-head travel,programmed welding parameters,and other production functions.

The actual pipe size range,welding capacity,and automation functions depend on the specific machine configuration.

Longitudinal Seam Pipe Welding Process

The longitudinal welding process begins with preparing the metal sheet or strip and forming it into the desired pipe or tube shape. The two longitudinal edges are positioned together to create the welding joint.

The workpiece is then secured in the machine fixture while the welding system follows the seam along the length of the pipe.

Consistent edge alignment is important because variations in joint position or gap can affect weld penetration,appearance,and overall quality.

Depending on the material and application,the machine may be configured with TIG,MIG/MAG,laser,or another appropriate welding technology.

Each welding process has different characteristics. TIG welding may be selected for applications requiring controlled arc welding and clean seams,while MIG/MAG can be useful for higher deposition rates in suitable production environments. Laser welding may be considered for applications requiring a concentrated heat source and specific production characteristics.

The appropriate process should always be selected according to material thickness,weld design,production speed,and required weld quality.

Fully Automatic Steel Pipe Welding Operation

The fully automatic configuration is designed to reduce repetitive manual welding operations. Depending on the machine design,automatic functions may include workpiece clamping,seam positioning,welding-head movement,and programmed welding parameters.

Automation can help improve repeatability because the welding head follows a controlled path rather than relying entirely on manual torch guidance.

For repeated production,the operator may load the formed tube,position the seam,secure the workpiece,and initiate the programmed welding cycle. Depending on the production line,the operator may still be responsible for loading,unloading,visual inspection,parameter adjustment,and quality control.

Therefore,the term “fully automatic” should be understood according to the actual machine configuration and production workflow.

Steel Pipe and Tube Applications

The machine is suitable for a wide range of steel pipe and tube manufacturing applications.

Potential workpieces include:

Carbon steel pipes

Mild steel tubes

Stainless steel pipes

Stainless steel tubes

Structural steel tubes

Industrial pipe sections

HVAC components

Metal furniture tubing

Automotive tube components

Agricultural machinery tubing

Machinery frames

Cylindrical metal components

Different materials require different welding parameters and consumables.

Carbon steel may require different shielding gas,wire,and heat input settings from stainless steel. Material thickness and joint design also affect the appropriate welding procedure.

Customers should provide the material grade and wall thickness when selecting the welding system.

Welding Different Pipe Sizes

Manufacturers often need to produce pipes and tubes in multiple sizes. The machine can be configured with suitable fixtures,clamps,and welding arrangements according to the required production range.

Pipe diameter,length,and wall thickness are important factors when determining the machine structure.

A machine designed for small-diameter tubing may use a different support and clamping arrangement from a system intended for larger industrial pipes.

Customization may include:

Pipe diameter range

Pipe length

Wall thickness

Welding seam length

Clamping fixtures

Seam alignment system

Welding-head travel

Welding power source

Control system

Cooling system

Material handling

The actual size range should be confirmed before purchase based on technical drawings and samples.

Automatic Clamping and Seam Alignment

Proper positioning is essential for longitudinal seam welding. If the two edges are not correctly aligned,the resulting weld can have inconsistent penetration or an uneven appearance.

The machine can use dedicated clamping fixtures to hold the formed pipe in position during welding.

A suitable seam alignment system can help maintain the welding joint relative to the welding torch.

For manufacturers processing several pipe sizes,adjustable or interchangeable fixtures can provide additional production flexibility.

The exact fixture arrangement depends on the workpiece dimensions and machine structure.

Welding Quality and Process Stability

Welding quality depends on several interconnected factors. Machine rigidity,workpiece alignment,clamping pressure,welding-head movement,and parameter stability all contribute to the final seam.

Depending on the welding process,important parameters may include welding current,voltage,travel speed,wire feed speed,shielding gas flow,torch position,and heat input.

The surface condition of the workpiece is also important. Oil,rust,paint,scale,and other contamination can interfere with the welding process.

For stainless steel,the material should be handled carefully to avoid contamination that could affect the finished weld or surrounding surface.

Production testing and appropriate welding inspection methods should be used when the finished product has specific structural or leak-tightness requirements.

Controlled Welding-Head Movement

A dedicated longitudinal seam welding machine controls the movement of the welding torch along the pipe seam.

Controlled movement can provide a more repeatable welding path and reduce operator fatigue during repetitive production.

The welding-head travel system should be matched to the pipe length and welding process.

Depending on the machine design,the welding head may travel along a linear guide or another controlled mechanical structure.

The actual travel speed and welding cycle depend on material,wall thickness,welding method,seam length,and process parameters.

CNC and PLC Control

Depending on the machine configuration,the control system may use PLC,CNC,or another industrial control platform.

Programmable controls can allow different welding recipes or production parameters to be stored for different pipe specifications.

The control system may coordinate clamping,welding-head travel,welding start and stop,and other machine functions.

For factories producing multiple pipe models,this can simplify production changeovers and improve process repeatability.

Available control functions vary by manufacturer,so customers should confirm the controller type,program storage,file compatibility,and interface requirements before ordering.

Production Efficiency

Automatic longitudinal seam welding can improve manufacturing efficiency by reducing repetitive manual operations and providing a controlled welding cycle.

For batch production,the same welding path and process parameters can be repeated after the machine has been properly set up.

Production output depends on seam length,material thickness,welding speed,loading method,setup time,and inspection requirements.

The complete production cycle should therefore be considered when estimating factory capacity.

For higher-volume production,the welding machine can potentially be integrated with upstream pipe forming and downstream inspection or finishing equipment.

Industrial Applications

Longitudinal seam welding is used across many metalworking industries.

Typical applications include:

Steel pipe manufacturing

Stainless steel tube production

HVAC duct production

Automotive component manufacturing

Steel furniture production

Agricultural machinery

Construction components

Industrial equipment

Metal fabrication

Custom tubular products

The machine can be used as an independent welding station or as part of a larger tube manufacturing process.

Maintenance and Welding Safety

Welding operations involve intense light,heat,electrical energy,metal fumes,and hot workpieces. Operators should use appropriate welding helmets,protective clothing,gloves,and eye protection.

Adequate ventilation and fume extraction should be provided according to the welding process and local workplace requirements.

Routine maintenance should include inspection of welding cables,hoses,torch components,clamps,guides,cooling systems,and electrical connections.

Welding consumables should be maintained and replaced according to operating conditions.

Emergency-stop controls,guards,and other protective functions depend on the specific machine configuration and should be inspected regularly.

OEM and ODM Pipe Welding Solutions

The machine can be customized for different steel pipe and tube production requirements.

OEM and ODM options may include customized fixtures,pipe size ranges,welding-head arrangements,control systems,cooling systems,and loading or unloading solutions.

For an accurate quotation,customers should provide:

Pipe material

Material grade

Pipe diameter

Pipe length

Wall thickness

Longitudinal seam length

Welding process

Required weld quality

Production volume

Available power supply

Product drawings or physical samples are particularly useful for evaluating custom machine configurations.

For manufacturers,distributors,and industrial buyers,the Fully Automatic Steel Pipe Seam Welding Machine provides a flexible solution for repeatable longitudinal seam welding and customized pipe fabrication.

Why Choose Us

Fully Automatic Welding Solution
Automated welding movement and configurable production functions can reduce repetitive manual operations.

Longitudinal Seam Welding
Designed for controlled welding of longitudinal joints on formed steel pipes,tubes,and cylindrical workpieces.

Steel Pipe and Tube Compatibility
Suitable configurations are available for carbon steel,mild steel,stainless steel,and other compatible materials.

Flexible Pipe Size Configuration
Fixtures and machine structures can be selected according to pipe diameter,length,and wall thickness.

Controlled Welding Movement
Mechanical welding-head travel provides a repeatable welding path for batch production.

Multiple Industrial Applications
Suitable for steel pipe manufacturing,HVAC,automotive,furniture,construction,agricultural machinery,and general fabrication.

Customizable Production Configuration
Clamping systems,welding processes,controls,cooling,and material handling can be evaluated according to customer requirements.

OEM and ODM Support
We provide customized machinery solutions based on product drawings,samples,materials,and production requirements.

FAQs

1. What is a longitudinal seam welding machine?

A longitudinal seam welding machine is designed to weld a joint running along the length of a formed metal pipe,tube,or cylindrical workpiece.

2. Can this machine weld steel pipes?

Yes. Suitable configurations can be used for carbon steel,mild steel,and other compatible steel pipe materials.

3. Can it weld stainless steel tubes?

Yes. With an appropriate welding system,tooling,and process parameters,the machine can be configured for stainless steel tube and pipe applications.

4. Is the machine fully automatic?

The machine is designed for fully automatic operation,although the exact automated functions depend on the selected configuration. Loading,unloading,inspection,and certain setup tasks may still require operators.

5. What welding methods can be used?

Depending on the machine configuration,the system may be equipped for TIG,MIG/MAG,laser,or another suitable welding process.

6. Can it weld different pipe sizes?

Yes. Machine fixtures and tooling can be customized or adjusted for different pipe diameters,lengths,and wall thicknesses within the designed operating range.

7. What affects longitudinal seam welding quality?

Material type,edge alignment,joint gap,welding parameters,travel speed,shielding gas,torch position,consumables,and machine stability can all affect the final weld.

8. Can the machine weld thick-wall steel pipe?

The suitable wall thickness depends on the selected welding process,power source,material,and joint design. Customers should provide the actual wall thickness for evaluation.

9. Can the machine use CNC or PLC control?

Depending on the configuration,it may use PLC,CNC,or another industrial control system. Available functions should be confirmed before ordering.

10. What industries use this machine?

It can be used in steel pipe manufacturing,stainless steel tube production,HVAC,automotive,steel furniture,agricultural machinery,construction,and general metal fabrication.

11. Can the machine be customized?

Yes. Customization may include fixtures,welding-head arrangements,pipe size range,control systems,cooling,and material handling systems.

12. What information should I provide for a quotation?

Provide the pipe material,grade,diameter,length,wall thickness,seam length,welding process,production volume,and required automation level. Drawings or samples are recommended.
