Stainless Steel & Aluminum Tube End Closing Machine with Pipe Sealing & Forming

High Productivity Gear-Driven: Efficiently seals and forms metal tubes.
Stainless Steel & Aluminum Compatibility: Versatile for various material types.
Manual Operation: Offers precision control for optimal results.
Robust Construction: Durable build ensures long-lasting performance.
Detailed Documentation: Includes factory inspection videos and test reports.

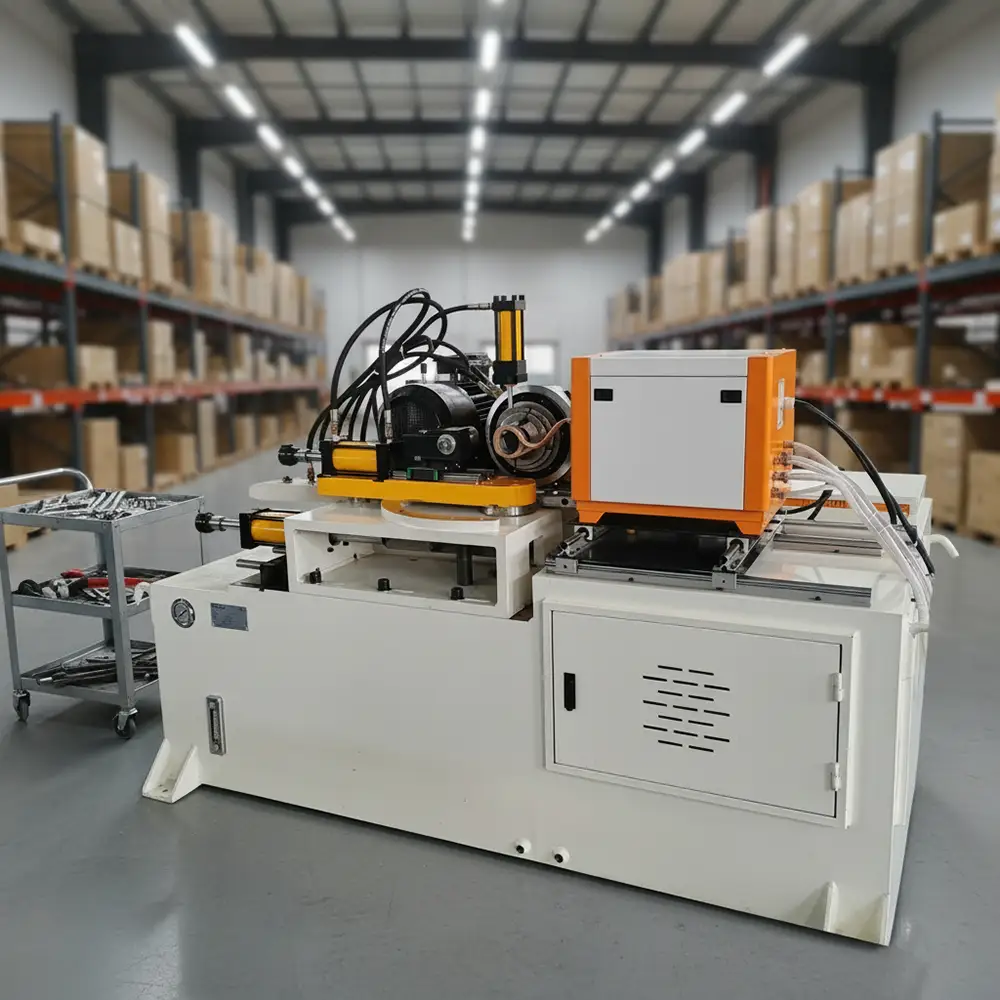

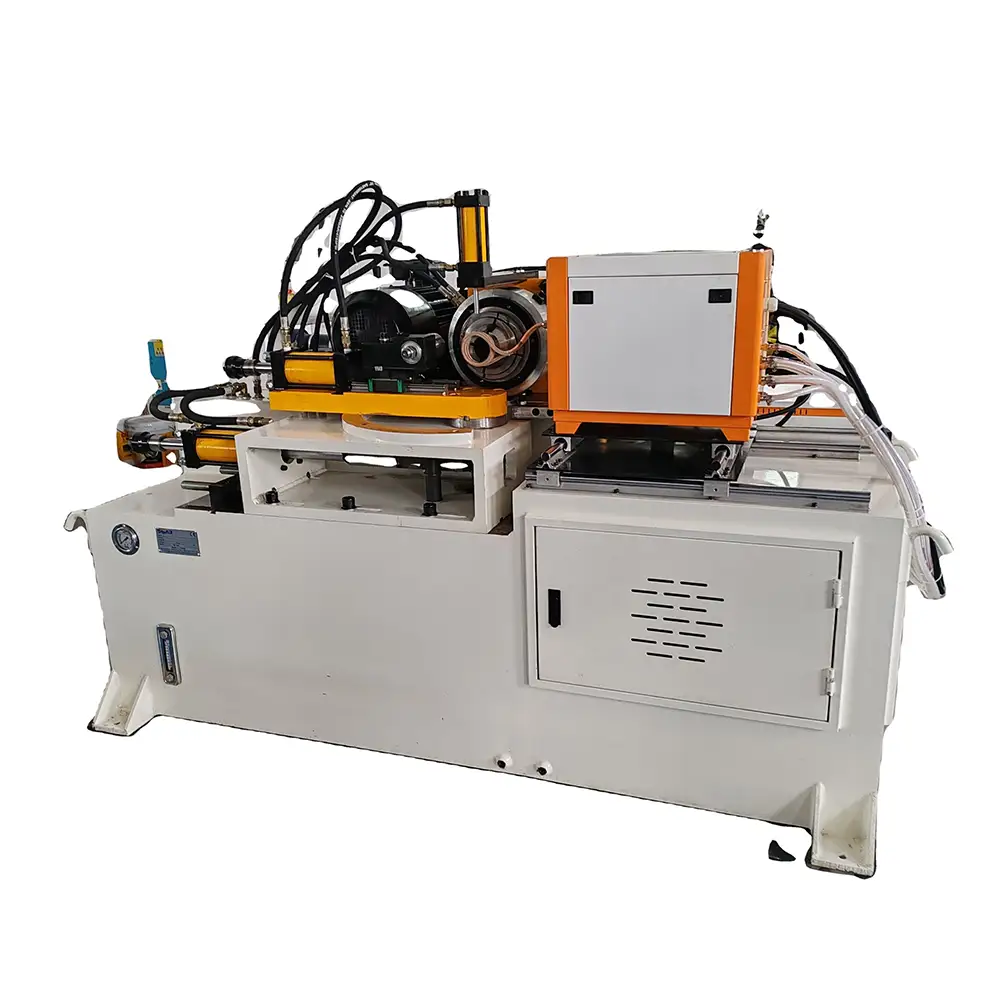

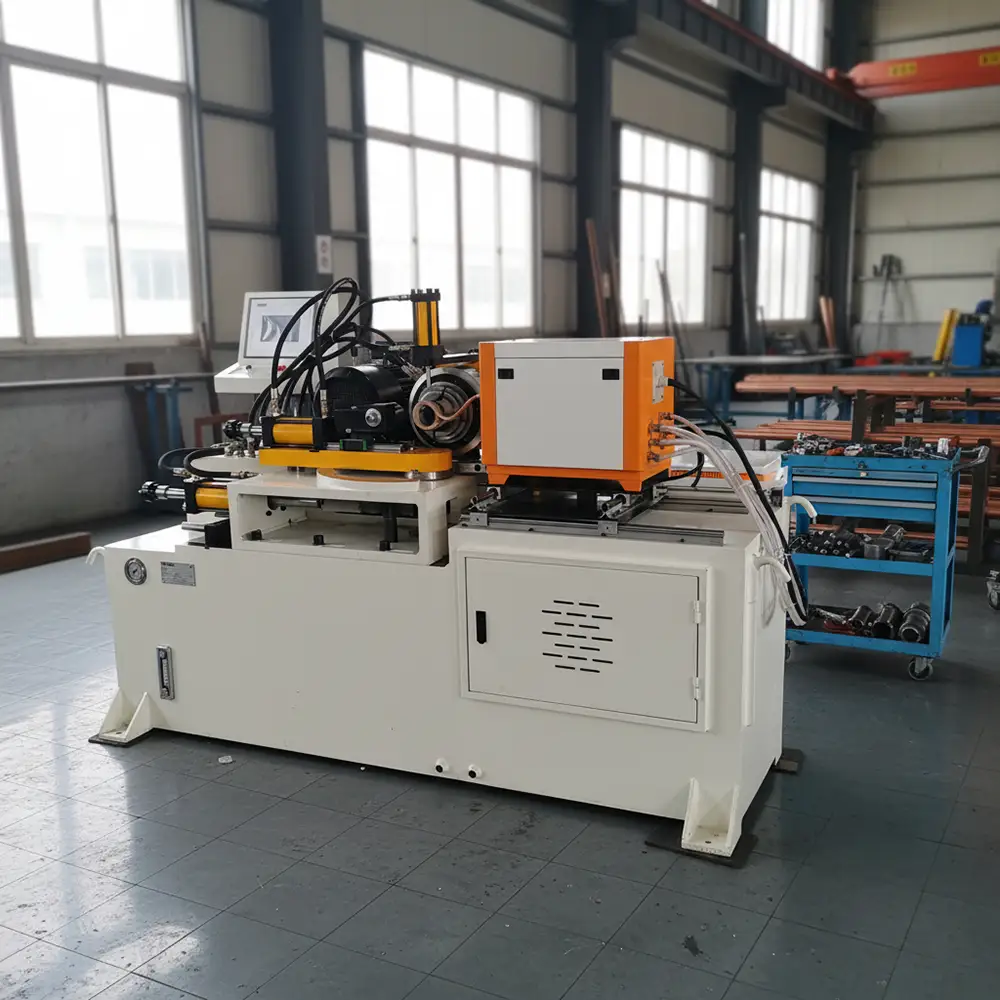

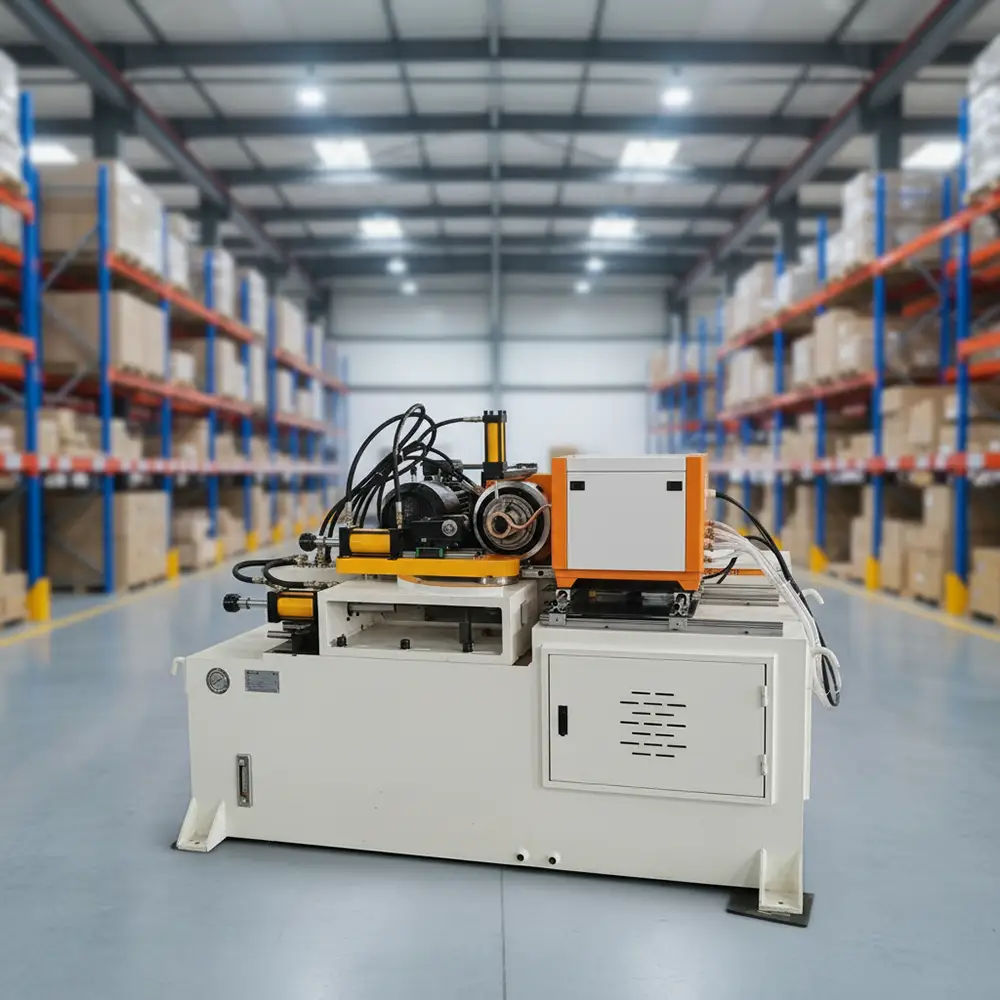

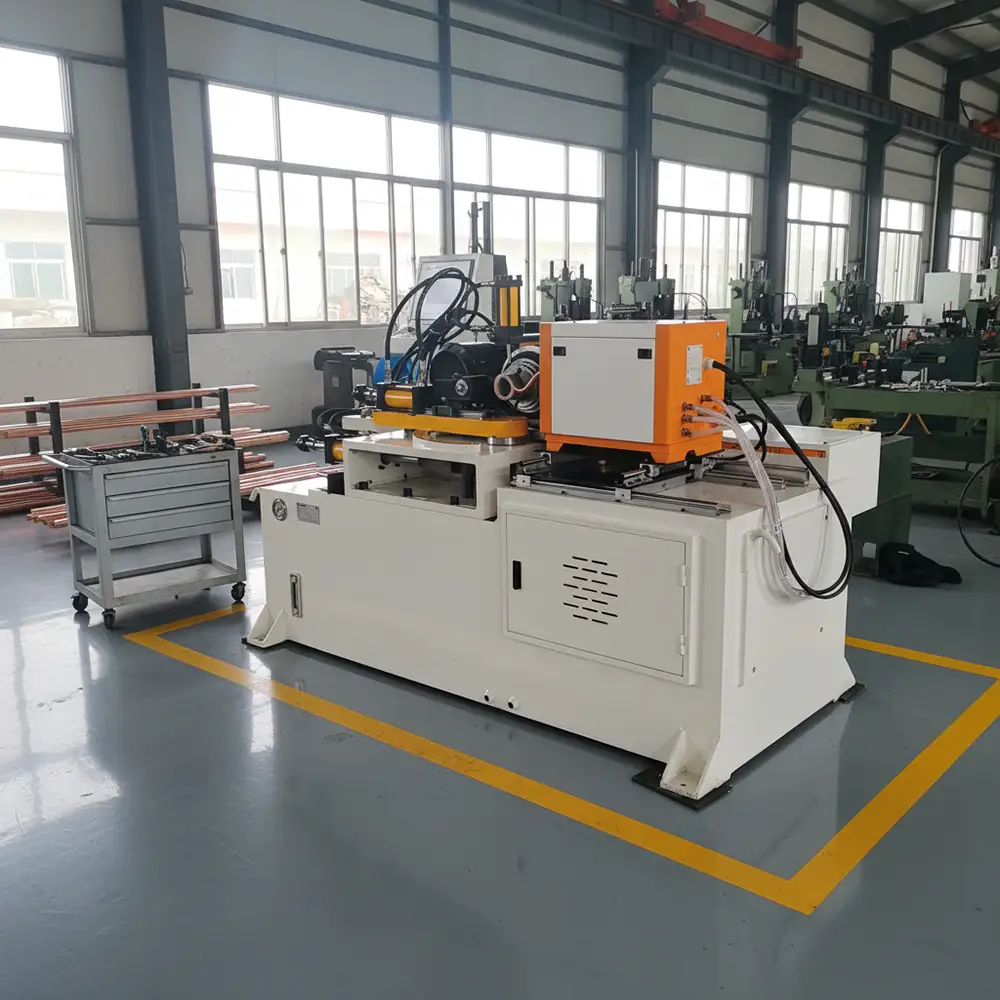

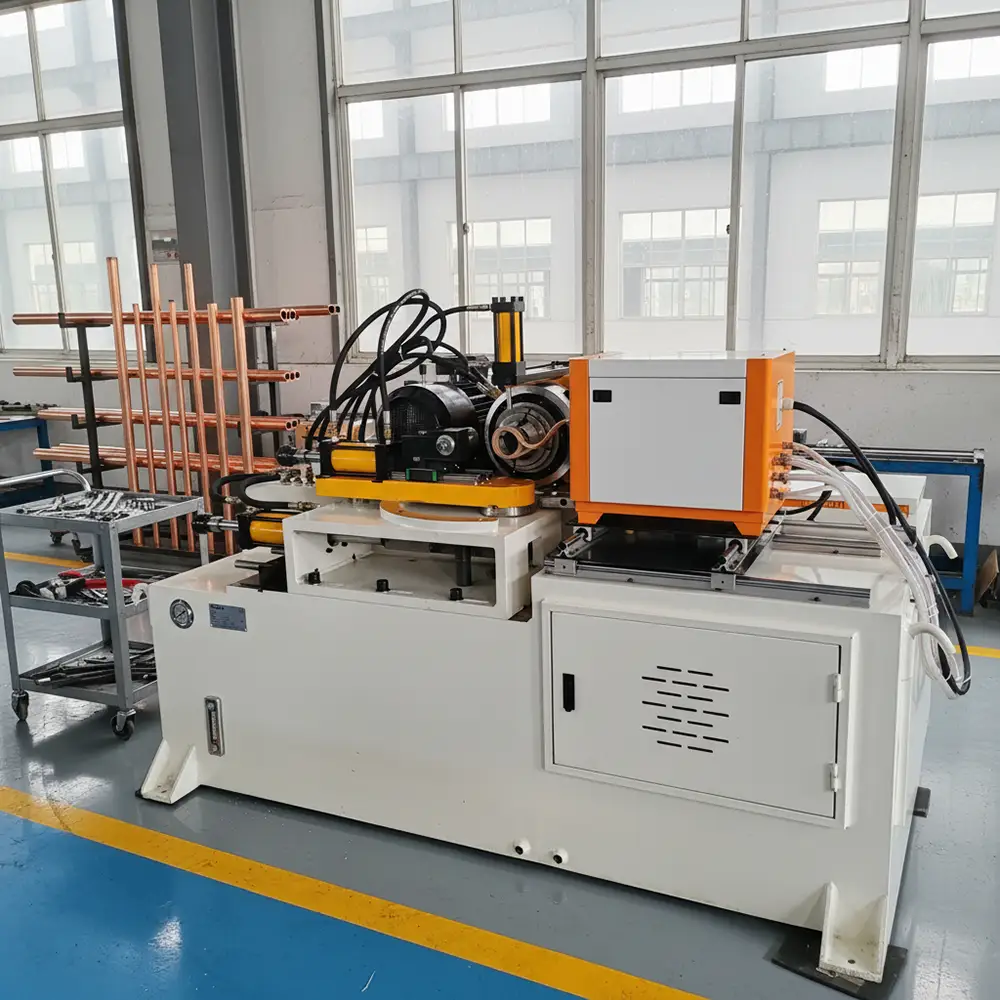

Stainless Steel & Aluminum Tube End Closing Machine for Pipe Sealing and Forming

The Stainless Steel & Aluminum Tube End Closing Machine is designed for controlled processing of metal tube and pipe ends,including end closing,sealing,reducing,flattening,and other forming operations. It provides a practical solution for manufacturers that need to create consistent tube-end shapes for subsequent sealing,welding,assembly,or finished-product applications.

The machine can be configured for suitable stainless steel and aluminum tubes,as well as other compatible metal tubing depending on the machine structure,forming method,and tooling. By applying controlled mechanical or hydraulic forming force,the open end of a tube can be reshaped according to the required product design.

Tube end closing is widely used when a pipe needs to be partially closed or reduced at one end. Depending on the tooling,the process may also include necking,flattening,beading,flaring,reducing,or other tube-end forming operations.

The actual processing capability depends on tube material,outer diameter,wall thickness,length,required end shape,and selected tooling.

Tube End Closing and Sealing Process

Tube end closing is a forming process used to change the geometry of an open tube end. The tube is positioned in a dedicated fixture and supported while a forming tool applies controlled pressure to reshape the end.

For applications requiring a closed or partially closed end,the tooling geometry determines the final shape. Depending on the product,the operation may prepare the tube for later welding,crimping,brazing,mechanical sealing,or another assembly process.

A dedicated end closing machine can provide more repeatable positioning and forming than completely manual tube processing. This is particularly useful for manufacturers producing repeated components with similar dimensions.

The final sealing method depends on the product design. Mechanical end forming does not automatically mean hermetic sealing,so customers requiring pressure-tight or leak-resistant products should specify the required downstream sealing and testing process.

Stainless Steel Tube End Forming

Stainless steel tubing is commonly used in applications requiring corrosion resistance,clean appearance,or specific mechanical properties. However,stainless steel can require carefully controlled forming conditions because different grades have different work-hardening and deformation characteristics.

The machine can be configured with suitable tooling and clamping arrangements for compatible stainless steel tubes. Proper die geometry,forming force,and process sequence can help reduce deformation outside the intended area.

Applications may include stainless steel furniture components,exhaust parts,industrial tubing,heat exchanger components,architectural products,and fabricated metal assemblies.

Customers should provide the stainless steel grade,outer diameter,wall thickness,and required end shape when selecting the machine.

Aluminum Tube End Closing

Aluminum tubing is lightweight and widely used in transportation,furniture,HVAC,construction,automotive,and general fabrication applications.

Because aluminum has different forming characteristics from stainless steel,the tooling and forming parameters should be selected accordingly. Excessive forming force or unsuitable tooling can cause cracking,wrinkling,or unwanted deformation.

The machine can be evaluated for aluminum tube end closing based on the alloy,tube diameter,wall thickness,and required finished shape.

For manufacturers processing both stainless steel and aluminum,the tooling system may need to be changed or adjusted between different materials and product specifications.

Pipe Sealing and End Reduction

Pipe end closing can be used to reduce the diameter of a tube end or create a partially closed geometry. Depending on the tooling,the operation may produce a tapered,necked,flattened,or otherwise shaped end.

Typical applications include preparing tubes for:

Welding

Brazing

Mechanical assembly

Threading

Crimping

Sealing

Fitting installation

End caps

Component assembly

The machine should not be assumed to perform every type of end forming operation with one standard die. Different shapes generally require different tooling or forming sequences.

For customized production,the required end profile should be supplied through a technical drawing or physical sample.

Customizable Tube Forming Tooling

Tooling is one of the most important components of a tube end closing machine. The die and forming tool determine how the tube material is supported and reshaped.

Custom tooling can be developed for different tube diameters,end shapes,and forming requirements. Depending on the machine configuration,tooling may support operations such as:

Tube end closing

Tube end reducing

Tube necking

Tube flattening

Tube beading

Tube flaring

Tube expanding

End shaping

The exact available functions depend on the machine design and tooling arrangement.

For multiple tube sizes,manufacturers may require interchangeable dies or dedicated tooling sets. Providing detailed product drawings helps determine the appropriate tooling structure.

Hydraulic or Mechanical Forming

Tube end closing machines can use different forming mechanisms depending on the required force and production design. Hydraulic systems can provide controlled forming force and are suitable for applications requiring substantial deformation capacity.

Mechanical forming systems may also be used for suitable production applications. The appropriate machine structure depends on tube dimensions,material properties,production volume,and required end geometry.

If hydraulic operation is selected,the hydraulic cylinder,pressure system,and control method should be matched to the actual forming requirements.

Customers should confirm the machine's rated capacity rather than selecting equipment based only on tube diameter.

Applications for Metal Tube Manufacturing

The machine can serve a variety of tube processing applications across different industries.

Potential applications include:

Stainless steel furniture

Aluminum furniture

Automotive components

Exhaust tubing

HVAC tubing

Refrigeration components

Heat exchanger tubes

Bicycle components

Motorcycle parts

Construction tubing

Agricultural machinery

Industrial equipment

Metal frames

Handrails and architectural components

The final application determines the required tube material,dimensions,end shape,and forming process.

Production Efficiency and Repeatability

A dedicated tube end closing machine can help improve production efficiency by providing controlled workpiece positioning and repeatable forming cycles.

For batch production,the operator can load the tube into the fixture,secure it,and initiate the forming cycle according to the machine's operating method. Automated or semi-automatic functions can reduce repetitive manual forming work.

Production output depends on tube dimensions,forming depth,material,tooling,cycle sequence,loading method,and operator workflow.

For high-volume production,the machine can also be integrated with automatic feeding or unloading systems where appropriate.

Workpiece Clamping and Alignment

Correct tube positioning is essential for consistent end forming. If the tube is not properly aligned,the finished end may have dimensional variation or uneven deformation.

A suitable clamping system helps maintain the workpiece during forming and reduces movement caused by forming forces.

Different tube diameters may require different fixture settings or tooling. When a factory processes multiple products,the setup procedure should be established for each tube specification.

For demanding applications,first-piece inspection and periodic dimensional checks are recommended.

End Forming Quality Control

Tube end forming quality depends on material properties,tooling condition,forming force,alignment,and process parameters.

Important quality characteristics may include:

End diameter

Overall tube length

Wall deformation

Concentricity

Roundness

Forming depth

Surface condition

End profile

Stainless steel and aluminum may behave differently during forming,so separate process parameters may be required.

If the finished component must meet tight dimensional requirements,the customer should provide drawings with dimensional tolerances for machine and tooling evaluation.

Maintenance and Safety

Tube end forming involves significant mechanical or hydraulic force. Operators should keep hands away from the forming area and use appropriate guarding and safety procedures.

Depending on the machine configuration,safety features may include emergency-stop controls,protective guards,and electrical or hydraulic protection systems.

Routine maintenance should include checking hydraulic components where applicable,inspecting tooling,cleaning metal debris,and verifying that clamps and guides operate correctly.

Forming dies should be inspected for wear because damaged or worn tooling can affect the finished tube profile.

OEM and ODM Tube End Forming Solutions

The machine can be customized for manufacturers with specialized tube-end requirements. OEM and ODM solutions may include customized dies,fixtures,hydraulic systems,control methods,feeding arrangements,and multiple tooling sets.

For an accurate quotation,customers should provide:

Tube material

Material grade

Outside diameter

Wall thickness

Tube length

Required end shape

Forming depth

Production volume

Required cycle time

Sealing or assembly requirements

Technical drawings or samples are especially useful when the required tube-end geometry is complex.

For B2B manufacturers,distributors,and industrial buyers,the machine can be supplied as an individual tube processing machine or evaluated as part of a larger metal tube fabrication line.

Why Choose Us

Stainless Steel and Aluminum Tube Applications
Designed for suitable stainless steel,aluminum,and other compatible metal tube processing requirements.

Tube End Closing and Forming
Supports controlled end closing,reducing,flattening,necking,and other forming operations according to tooling.

Customizable Tooling
Dies and fixtures can be developed around specific tube diameters,wall thicknesses,and end profiles.

Flexible Pipe Sealing Preparation
Tube ends can be prepared for subsequent welding,brazing,crimping,mechanical sealing,or assembly processes.

Stable Workpiece Clamping
Appropriate fixtures help maintain tube alignment and reduce movement during the forming cycle.

Suitable for Multiple Industries
Applications include automotive,exhaust,HVAC,furniture,bicycle,construction,agricultural,and general metal fabrication.

Production-Oriented Design
Controlled forming cycles can improve repeatability for batch manufacturing and repeated tube processing.

OEM and ODM Support
We can evaluate customized machines and tooling based on tube drawings,samples,materials,and production requirements.

FAQs

1. What is a tube end closing machine?

A tube end closing machine is equipment designed to reshape or partially close an open metal tube end using controlled mechanical or hydraulic forming force.

2. Can it process stainless steel tubes?

Yes. With suitable tooling and machine configuration,it can be used for compatible stainless steel tube end forming applications.

3. Can it process aluminum tubes?

Yes. Aluminum tubes can be processed when the tooling and forming parameters are appropriate for the selected aluminum alloy and tube dimensions.

4. Can the machine completely seal a pipe end?

The machine can form or close a tube end,but the actual sealing performance depends on the final geometry and any subsequent welding,brazing,crimping,or sealing process.

5. What tube sizes can it process?

The available tube diameter,length,and wall thickness range depends on the specific machine and tooling. Customers should provide exact dimensions for confirmation.

6. What end forming operations are possible?

Depending on the tooling,the machine may support end closing,reducing,necking,flattening,beading,flaring,expanding,and other tube-end forming operations.

7. Does each tube size require different tooling?

Not necessarily,but different tube diameters or end profiles may require different dies,fixtures,or tooling adjustments.

8. Can stainless steel and aluminum use the same tooling?

Not always. Different materials have different forming characteristics,and tooling or process parameters may need to be adjusted for each material.

9. Is the machine automatic?

The automation level depends on the selected configuration. Automatic or semi-automatic operation may be available for loading,clamping,forming,and other production steps.

10. What affects tube end forming quality?

Material properties,tube diameter,wall thickness,tooling geometry,forming force,alignment,and process parameters all affect the final result.

11. Can the machine be customized?

Yes. Customization can include dies,fixtures,forming mechanisms,controls,feeding systems,and other components according to the application.

12. What information is needed for a quotation?

Provide tube material,grade,outer diameter,wall thickness,length,required end shape,forming depth,production volume,and sealing requirements. Drawings or samples are recommended.
