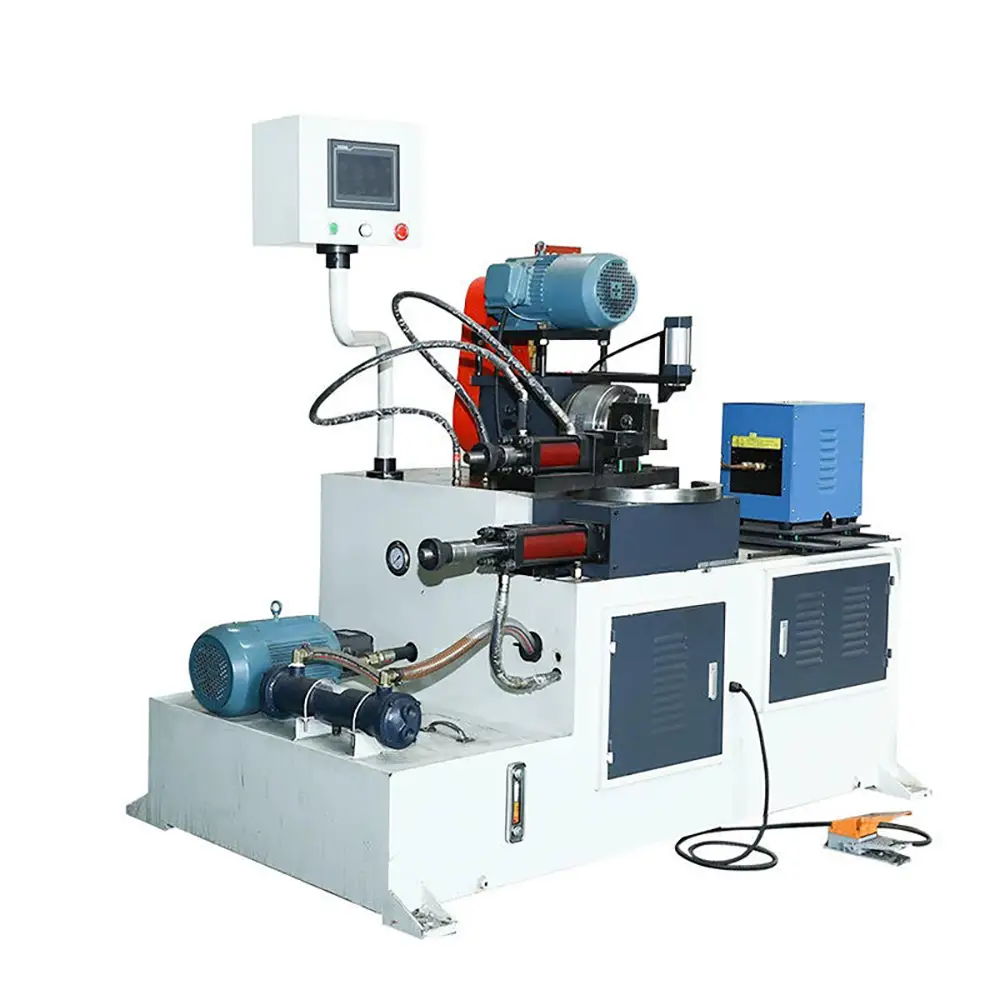

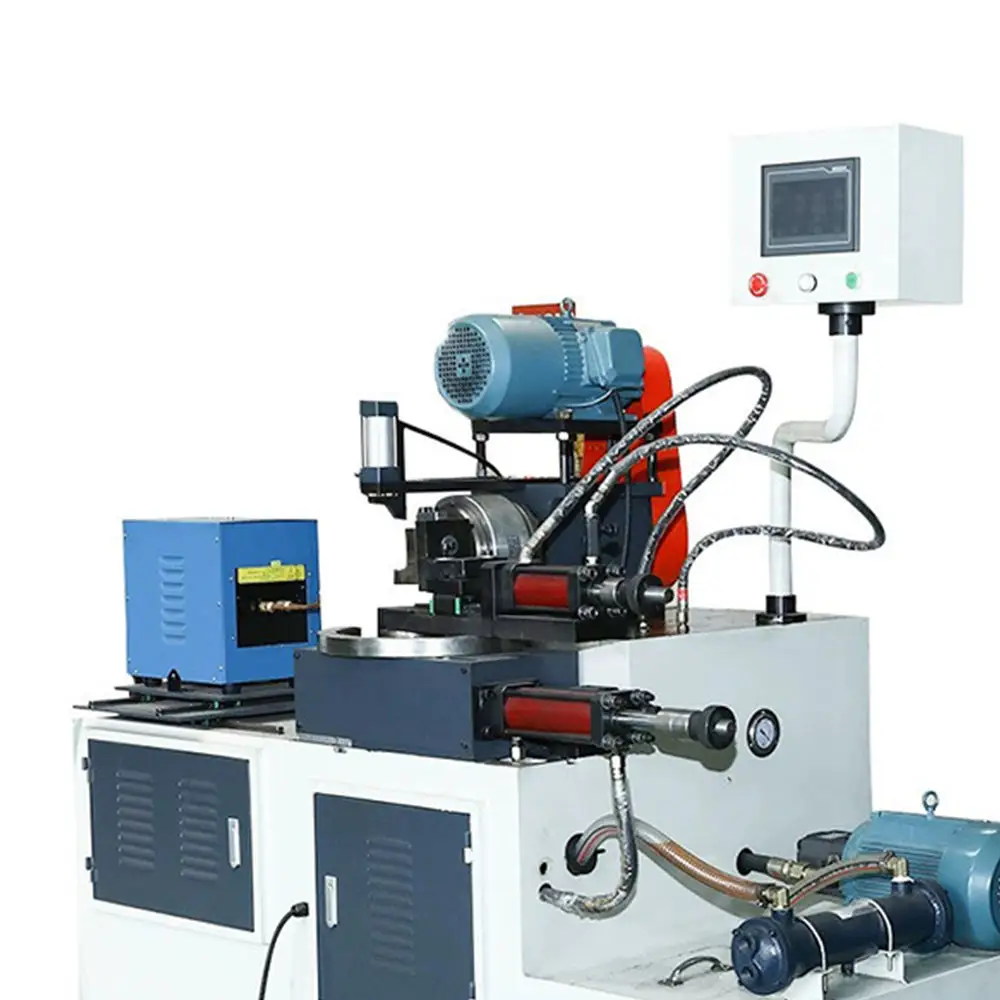

Tube Pipe End Closing Machine Steel Pipe Sealing Machine

Tube Pipe End Closing Machine for Steel Pipe Sealing

The Tube Pipe End Closing Machine Steel Pipe Sealing Machine is a specialized metal tube processing solution designed for steel pipe end closing,sealing,reducing,necking,and end forming applications. The machine applies controlled forming force to a suitable pipe or tube end,helping manufacturers create a consistent finished profile for connection,assembly,sealing,or subsequent fabrication.

Tube and pipe end processing is widely used in automotive components,exhaust systems,steel furniture,construction products,HVAC equipment,heat exchangers,industrial machinery,and general metal fabrication. Instead of manually shaping each pipe end,the machine uses dedicated tooling and controlled movement to provide a more repeatable production process.

The actual forming capacity depends on the steel grade,pipe outside diameter,wall thickness,length,required end profile,tooling,and machine configuration. Customers should provide detailed workpiece information when selecting the equipment.

Steel Pipe End Closing Process

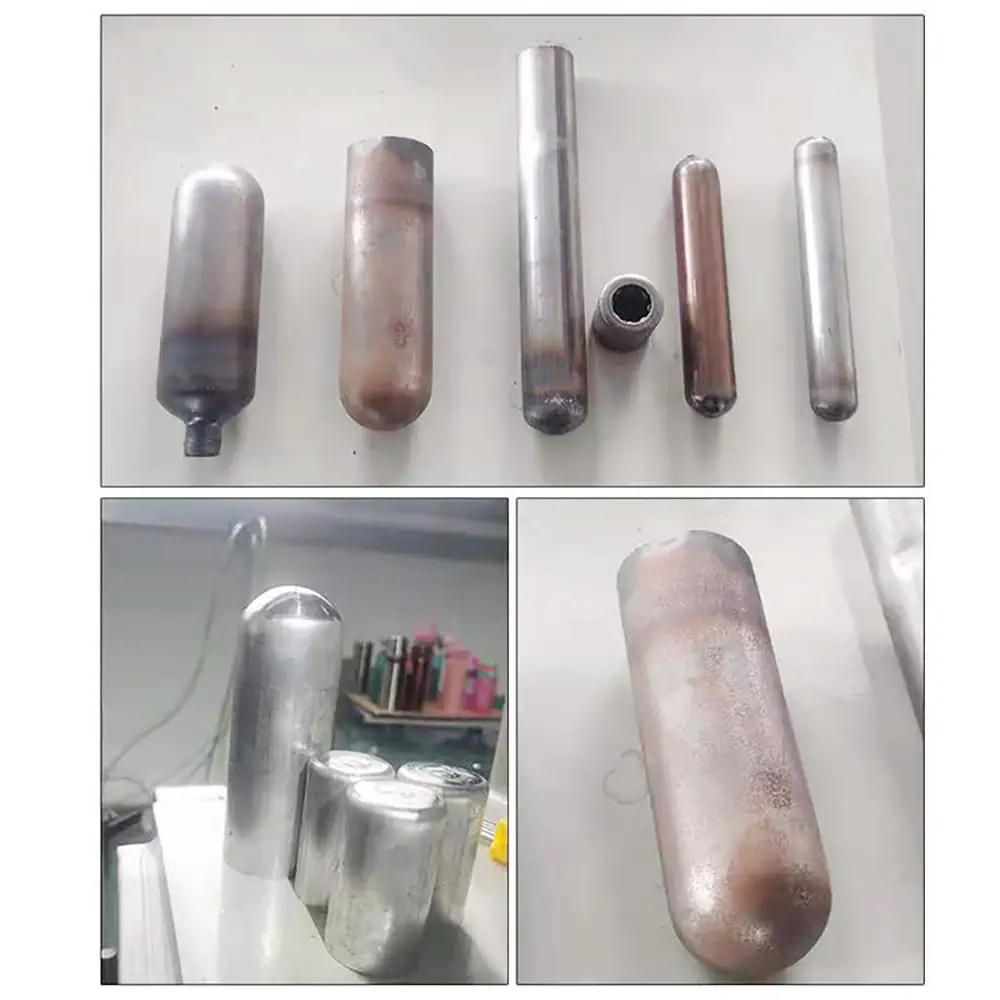

Steel pipe end closing reduces or reshapes the open end of a pipe to create a specified geometry. Depending on the tooling,the process can produce a partially reduced end,a necked section,or a substantially closed profile.

The workpiece is positioned and securely clamped before the forming tool applies controlled force to the pipe end. The tooling determines the final shape and dimensions.

Typical applications include:

Steel pipe end closing

Tube end reducing

Pipe end shrinking

Steel tube necking

Pipe end sealing preparation

Tube end shaping

Diameter reduction

Formed pipe transitions

Different pipe materials and wall thicknesses may require different forming methods. Proper tooling selection is important for minimizing cracks,wrinkles,and excessive deformation.

Steel Pipe Sealing Applications

The term steel pipe sealing machine can describe equipment used to close or form the end of a steel pipe before a subsequent sealing or joining operation.

Mechanical end closing can create a formed end that may later be welded,brazed,plugged,or otherwise sealed according to the product design.

It is important to distinguish mechanical end closing from a complete pressure-tight seal. Whether the finished pipe is actually sealed depends on the final forming method and any additional welding,joining,or sealing process required by the application.

For pressure-containing or fluid-handling products,the finished component should be tested according to the applicable engineering and production requirements.

Tube End Reducing and Necking

Tube end reducing is used when the end diameter needs to be smaller than the original tube diameter. Necking creates a controlled transition between the original tube section and the reduced end.

These processes are common in components that must connect with another pipe,fit into a smaller opening,or accommodate a specific assembly design.

The amount of reduction depends on material ductility,wall thickness,diameter,forming force,and tooling geometry. Large reductions may require multiple forming steps depending on the material and product design.

Proper forming parameters can help reduce excessive thinning,wrinkles,and cracking.

Suitable Steel Pipe Materials

The machine is primarily suitable for metal pipes and tubes that can be formed with the selected tooling.

Potential materials include:

Carbon steel

Mild steel

Stainless steel

Alloy steel

Galvanized steel where appropriate

Other compatible metal tubes

Carbon steel and mild steel are commonly used in general pipe forming applications. Stainless steel may require different tooling and forming parameters because of its material characteristics.

Material hardness and mechanical properties should be considered when determining the required forming force.

Customers should provide the actual material grade whenever possible so the appropriate machine configuration can be evaluated.

Automotive and Exhaust Pipe Manufacturing

Automotive and exhaust manufacturing is an important application for pipe end forming.

Exhaust pipes may require end reduction,necking,closing,or shaping to connect with mufflers,catalytic components,flanges,or other exhaust sections.

A dedicated pipe end closing machine can provide more consistent forming than completely manual methods when processing repeated tube sizes.

The finished tube end can then move to subsequent welding,flanging,assembly,or inspection operations.

Actual suitability depends on the exhaust tube diameter,wall thickness,material,and required end geometry.

Steel Furniture and Frame Applications

Steel tube end forming is also useful in furniture and metal frame production.

Chair legs,table frames,display racks,fitness equipment,guardrails,and other tubular structures may require shaped or reduced ends for assembly.

End closing can help prepare a tube to receive connectors,fasteners,plugs,feet,or other components.

For visible furniture components,the quality of the formed surface is particularly important. Tooling should therefore be selected to minimize unwanted marks and deformation.

HVAC,Heat Exchanger and Industrial Applications

Metal tube end forming is used in HVAC,heat exchanger,refrigeration,and industrial equipment manufacturing.

Tube ends may need to be reduced,closed,shaped,or prepared for joining before the component is assembled.

Depending on the application,the processed tubes may be made from steel,stainless steel,copper,aluminum,or other suitable materials.

For heat exchanger and fluid-system applications,dimensional consistency and final connection geometry can be important. Customers should provide the required tolerances and joining method when evaluating the machine.

Forming Dies and Tooling

Tooling determines the final shape of the processed pipe end.

Depending on the machine design,forming components may include closing dies,reducing dies,mandrels,clamping fixtures,rollers,or other dedicated tools.

A correctly designed tool supports controlled material deformation and helps maintain repeatable dimensions.

For different tube diameters or end profiles,different tooling sets may be required. Customers producing multiple products should consider tooling changeover requirements when planning production.

For customized projects,drawings and physical samples can be used to develop the appropriate forming tooling.

Production Efficiency and Repeatability

A dedicated tube pipe end closing machine can reduce repetitive manual forming work and provide a more controlled production sequence.

Depending on the configuration,the machine may support automatic positioning,clamping,forming,and unloading. The exact automation level varies according to the selected model.

Production efficiency depends on tube dimensions,material,forming complexity,tooling,loading method,and cycle sequence.

For larger production volumes,the machine can potentially be integrated with tube cutting,bending,welding,flanging,assembly,and inspection equipment.

Quality Control

Quality control is important for pipe-end forming applications.

Manufacturers may inspect:

Finished end diameter

Formed length

Wall thickness

End profile

Concentricity

Surface condition

Cracks or wrinkles

Dimensional repeatability

The first workpieces should be inspected after tooling setup. Process parameters can then be adjusted if required.

For applications with strict tolerances,customers should provide technical drawings and inspection standards before machine selection.

Maintenance and Safe Operation

Regular maintenance helps maintain forming quality and machine reliability.

Operators should inspect dies,clamps,mechanical components,hydraulic systems where applicable,electrical connections,and lubrication points.

Forming tools should be kept clean and checked for wear. Damaged tooling can influence pipe dimensions and surface quality.

The machine contains moving mechanical components and should be operated with appropriate protective measures. Guards and emergency-stop functions may be included depending on the configuration. Operators should follow the manufacturer's operating instructions and applicable local safety requirements.

OEM and Custom Steel Pipe Forming Solutions

Different industries require different pipe-end shapes. The machine can therefore be configured with application-specific tooling and components.

Customization may include forming dies,mandrels,clamping systems,automatic feeding,positioning systems,hydraulic components,and control systems.

For OEM and ODM projects,customers should provide:

Pipe material

Outside diameter

Wall thickness

Pipe length

Finished end dimensions

Required closing profile

Production volume

Automation requirements

Product drawings or physical samples are recommended for special end profiles.

The equipment is suitable for steel pipe manufacturers,automotive suppliers,exhaust factories,metal furniture producers,HVAC manufacturers,industrial component manufacturers,machinery distributors,and B2B industrial buyers.

Why Choose Us

Steel Pipe End Closing – Designed for controlled closing,reducing,and shaping of suitable steel pipes and metal tubes.

Sealing Preparation – Forms pipe ends for subsequent welding,brazing,plugging,or other sealing processes where required.

Multiple End Forming Functions – Supports reducing,necking,shrinking,closing,and shaping with suitable tooling.

Flexible Material Applications – Suitable configurations can be developed for carbon steel,stainless steel,alloy steel,and other compatible metals.

Application-Specific Tooling – Dies,mandrels,clamps,and forming tools can be selected according to the finished pipe profile.

Repeatable Production – Controlled positioning and forming help support consistent results across repeated workpieces.

Wide Industrial Applications – Suitable for automotive,exhaust,furniture,HVAC,heat exchanger,and general metal fabrication.

OEM & ODM Support – Machine configuration and tooling can be adapted to customer tube dimensions,material,production volume,and forming requirements.

FAQs

1. What is a tube pipe end closing machine?

It is a machine designed to reduce,close,shape,or form the end of a suitable metal tube or pipe using dedicated mechanical tooling.

2. What is a steel pipe sealing machine used for?

It is used to form or close steel pipe ends in preparation for sealing,joining,assembly,or other downstream manufacturing operations.

3. Does mechanical end closing create a pressure-tight seal?

Not necessarily. A mechanically closed pipe may still require welding,brazing,plugging,or another sealing process depending on the application.

4. What materials can the machine process?

Depending on the machine configuration,it can process carbon steel,mild steel,stainless steel,alloy steel,and other suitable metal tubes.

5. Can it reduce the pipe diameter?

Yes. Appropriate reducing or necking tooling can reduce the diameter of a pipe end according to the required finished profile.

6. Can it completely close a steel pipe?

The machine can be configured for partial or substantial end closing depending on pipe dimensions,material,forming force,and tooling.

7. Can stainless steel pipe be processed?

Yes. Stainless steel can be processed when suitable tooling and forming parameters are selected for the specific grade and dimensions.

8. Can it be used for exhaust pipes?

Yes. Suitable automotive and exhaust tubes can be processed for end reduction,closing,necking,and other end-forming applications.

9. Is the machine automatic?

Automation depends on the selected configuration. Automatic clamping,positioning,forming,and material handling may be available on certain models.

10. What affects pipe end forming quality?

Material properties,pipe diameter,wall thickness,tooling design,forming force,clamping stability,and machine setup all affect the finished result.

11. Can custom tooling be supplied?

Yes. Custom forming dies,mandrels,clamping fixtures,and other tooling can be developed according to tube drawings or samples.

12. What information should I provide for a quotation?

Provide the pipe material,outside diameter,wall thickness,length,finished end profile,required reduction or closing dimensions,production volume,and automation requirements. Drawings or samples are recommended.
