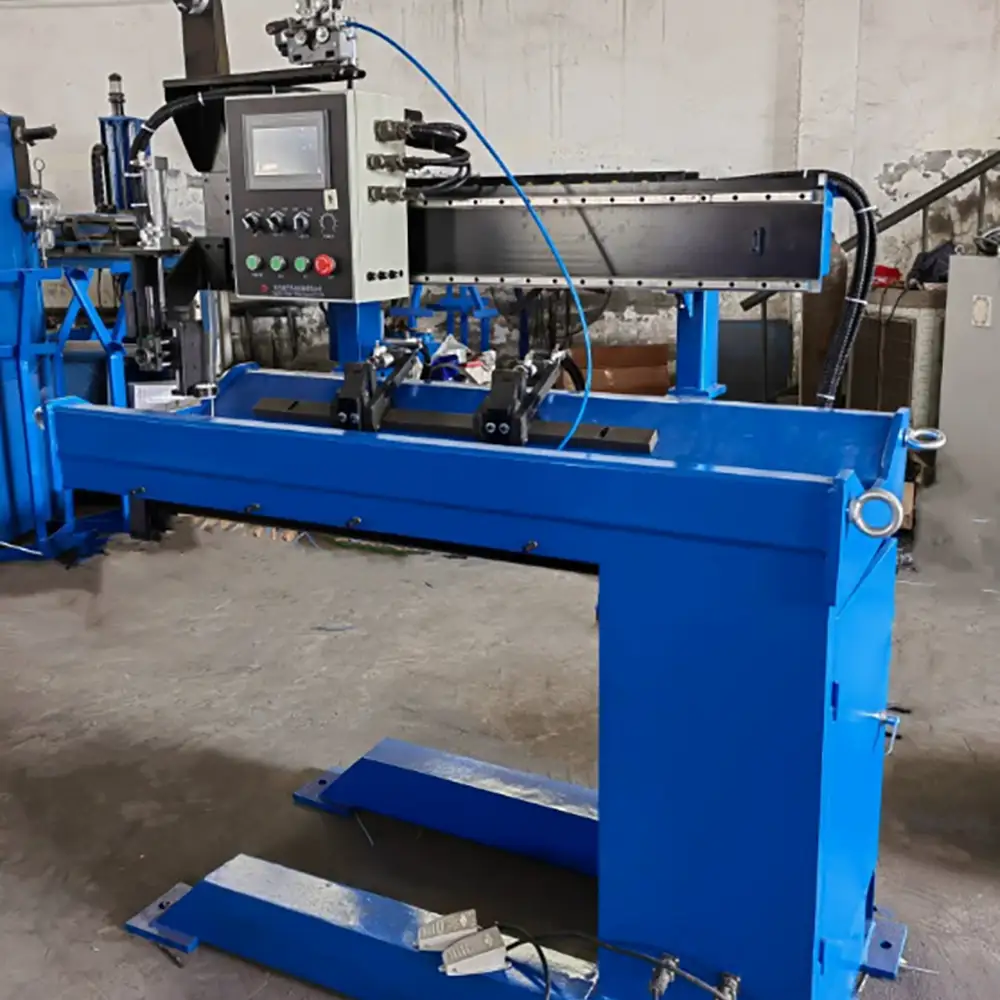

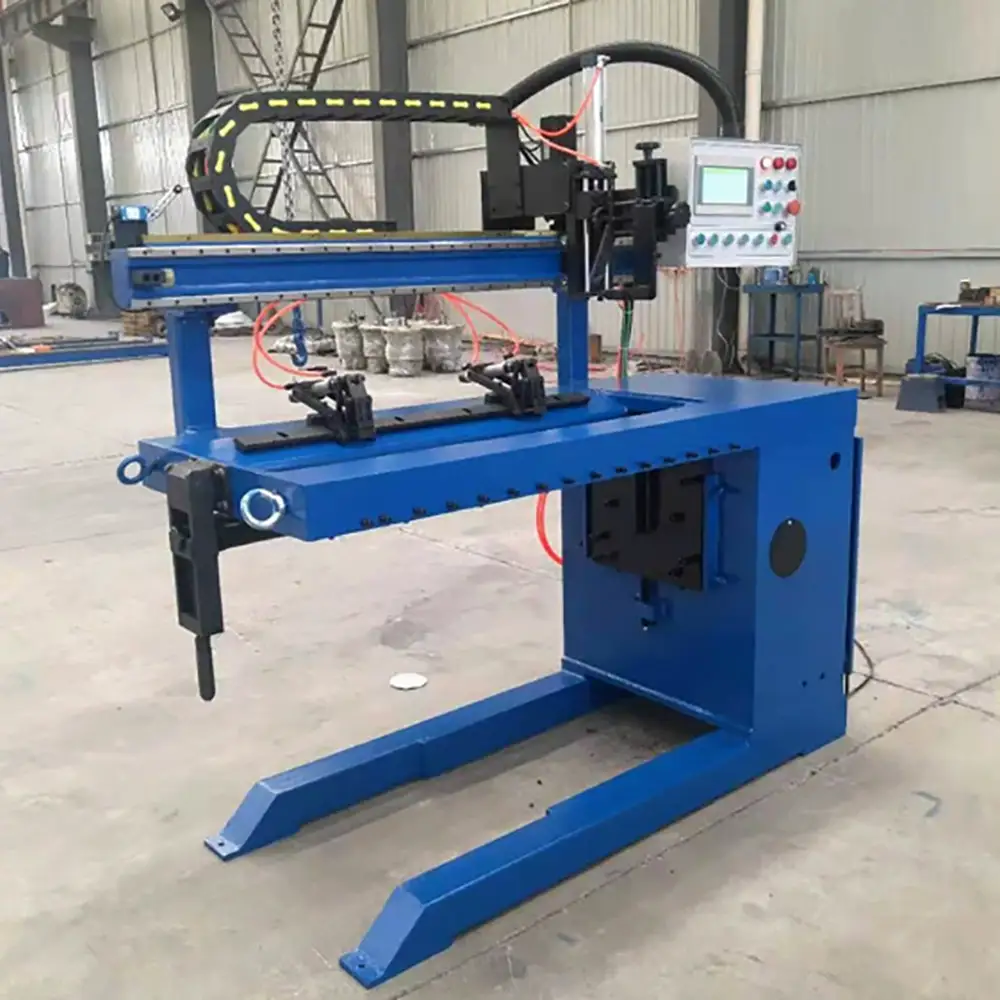

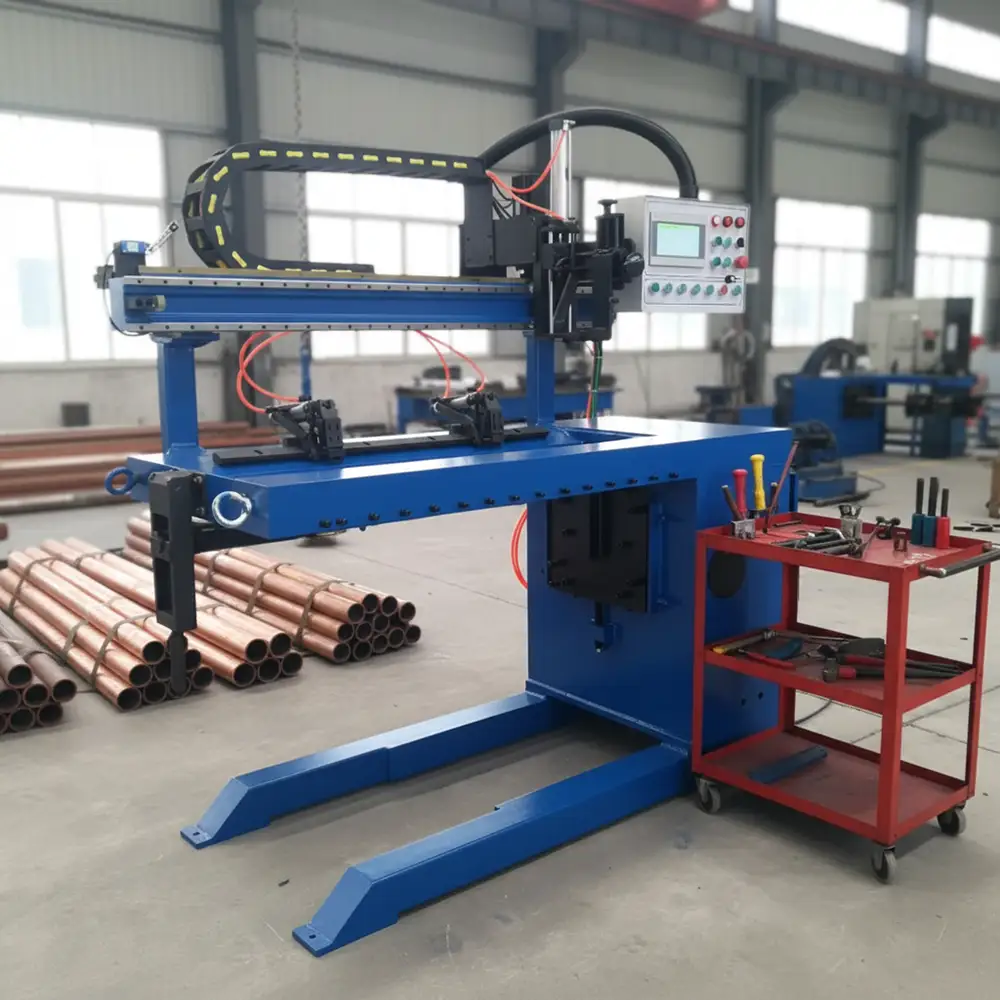

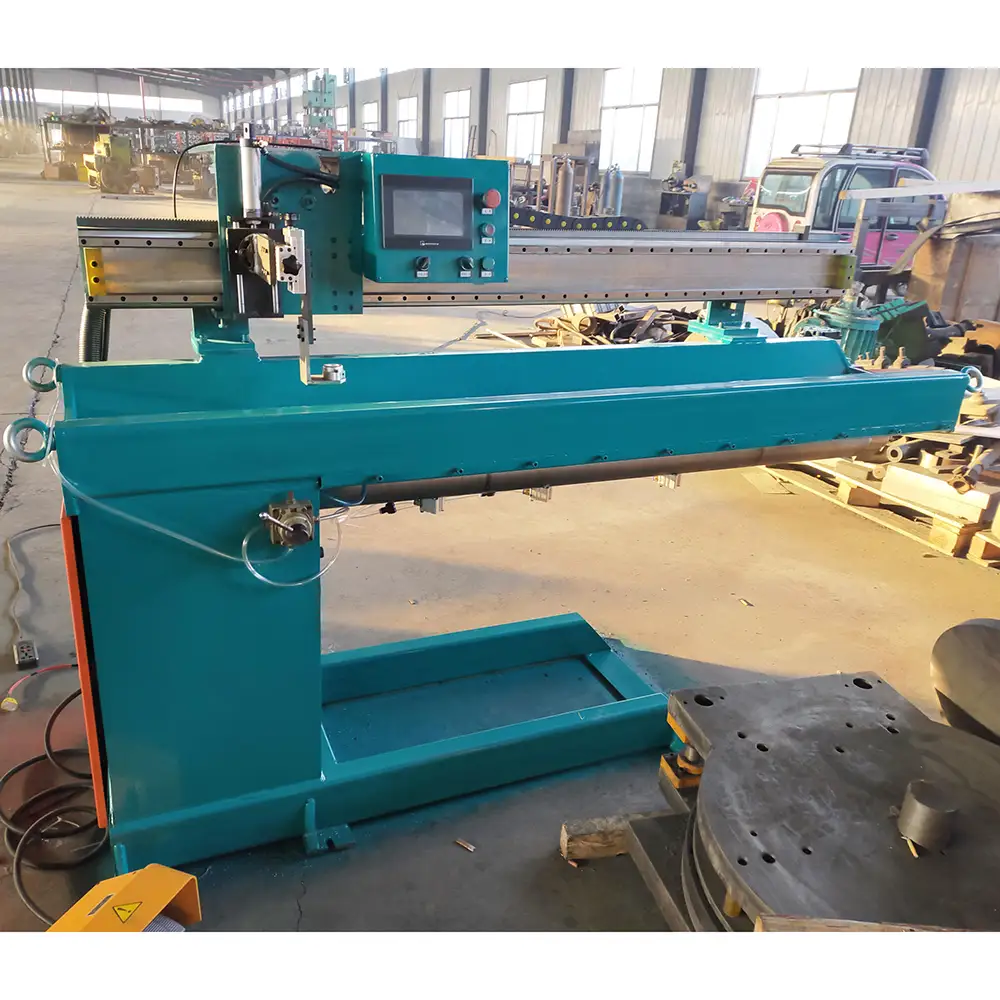

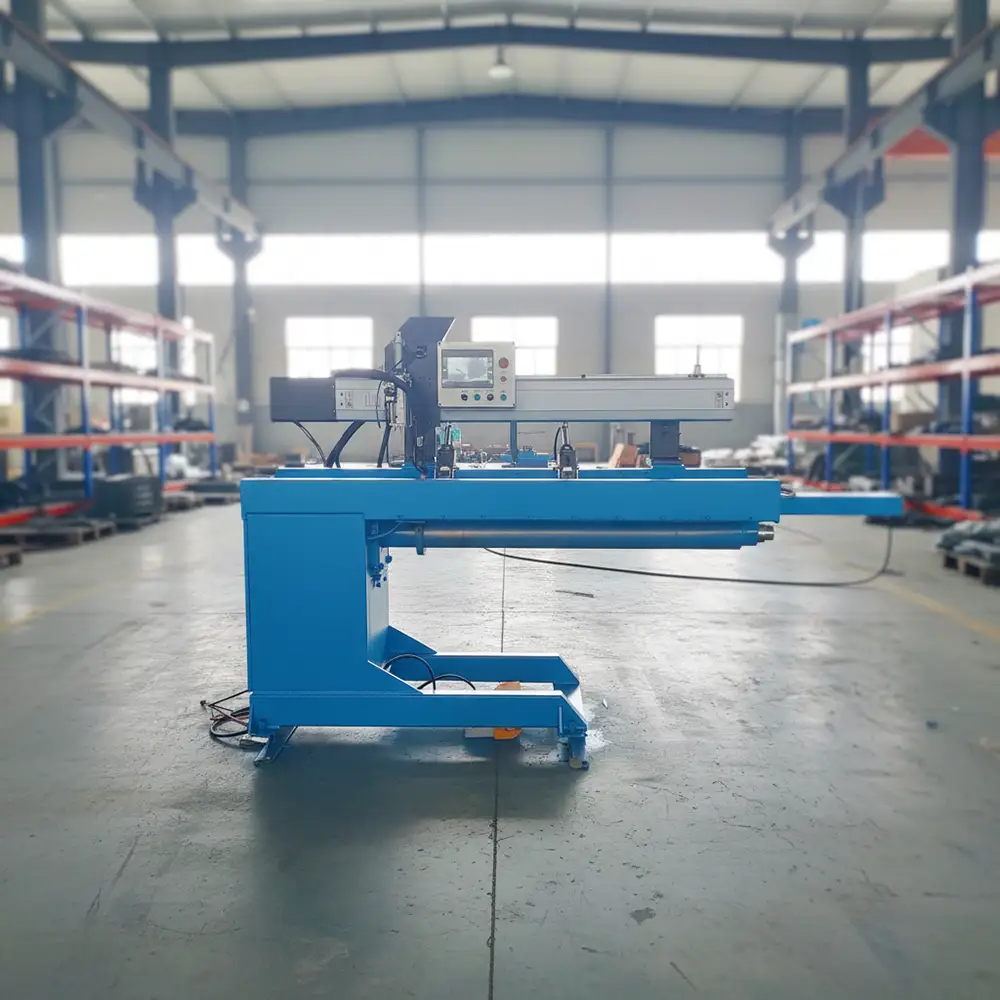

Longitudinal Seam Pipe Welding Machine Fully Automatic Steel Pipe Seam Welding Machine

Suitable for welding cylindrical longitudinal seams, long straight seams, stable welding, beautiful welds, simple and fool-proof operation. Long service life, multiple programs can be preset.PLC system integration, can connect TIG welder, MIG welder, laser welder
The machine is equipped with drag chains, linear guides, foot switches and other parts, with exquisite workmanship and high intelligence. The operation panel can be set to English, Russian, etc.The conventional models are 500mm to 2000mm, and the machine length and height can be customized according to the customer's specific workpiece

Longitudinal Seam Pipe Welding Machine for Steel Pipe and Tube Production

The Longitudinal Seam Pipe Welding Machine is an automated welding solution designed for producing longitudinal seam welds on steel pipes,tubes,and cylindrical metal products. The machine is developed for applications where a flat metal sheet or formed tube section must be joined along its longitudinal seam to create a continuous pipe or tubular workpiece.

Also known as a steel pipe seam welding machine,longitudinal welding machine,pipe longitudinal welding machine,or automatic tube seam welding machine,this equipment can help manufacturers improve welding consistency,production efficiency,and process repeatability compared with completely manual welding.

The machine can be configured for different welding processes,workpiece dimensions,and production requirements. Depending on the specific design,it may support processes such as TIG,MIG/MAG,or other suitable automated welding technologies.

Actual welding performance depends on the welding process,material grade,wall thickness,joint preparation,wire or electrode specifications,shielding gas,and machine configuration.

Longitudinal Seam Welding Process

Longitudinal seam welding joins the edges of a formed metal section along its length. The metal sheet is first prepared and formed into a tubular or cylindrical shape. The longitudinal edges are then aligned and welded together.

This process is widely used in the production of:

Steel Pipes

Stainless Steel Tubes

Carbon Steel Tubes

Structural Tubes

Industrial Cylinders

Metal Ducts

Exhaust Components

Heat Exchanger Tubes

Pressure-Related Components

Custom Tubular Products

The welding head travels along the longitudinal joint while the workpiece is held in a suitable fixture. Controlled movement helps maintain a consistent welding path.

For automated production,the machine can coordinate workpiece clamping,welding travel,and other process functions according to the machine configuration.

Fully Automatic Steel Pipe Seam Welding

The Fully Automatic Steel Pipe Seam Welding Machine is designed to reduce repetitive manual operations during longitudinal seam welding.

Depending on the machine configuration,automatic functions may include workpiece positioning,clamping,welding-head travel,welding parameter control,and programmed welding sequences.

Automation can help reduce operator involvement in repetitive welding tasks and improve production consistency. However,the exact level of automation varies by model. Buyers should confirm whether loading,unloading,clamping,and welding are all automated or whether some steps require operator assistance.

For high-volume pipe production,automatic welding can be integrated into a larger manufacturing line that includes sheet cutting,forming,edge preparation,inspection,and finishing.

Steel Pipe and Tube Applications

The machine can be used for different steel pipe and tube manufacturing applications.

Common workpieces include:

Carbon Steel Pipes

Stainless Steel Pipes

Mild Steel Tubes

Square Tubes

Rectangular Tubes

Round Tubes

Structural Steel Tubes

Industrial Ducts

Exhaust Tubes

Fabricated Cylinders

The actual compatible workpiece dimensions depend on the machine's fixture,welding head,travel system,and forming arrangement.

For stainless steel production,the welding system should be selected according to the material grade and required weld appearance. Carbon steel and stainless steel may require different welding parameters,shielding gas,and consumables.

Longitudinal Welding for Cylindrical Workpieces

Longitudinal seam welding is particularly useful for cylindrical products because the seam extends continuously along the length of the workpiece.

A stable fixture helps maintain the alignment of the two edges before and during welding. Proper edge preparation is also important because excessive gaps,misalignment,or inconsistent joint geometry can affect welding quality.

The machine can be configured for different pipe lengths and diameters depending on production requirements.

For manufacturers producing several pipe sizes,interchangeable fixtures or adjustable workholding systems may provide additional flexibility.

Automated Welding Head Movement

Controlled welding-head travel is a key feature of an automated longitudinal seam welding machine.

The welding head can move along a predetermined path while maintaining the required welding position. Depending on the system,it may be possible to adjust travel speed,welding current,voltage,wire feed,and other process parameters.

Stable movement can help reduce variations caused by manual torch guidance.

However,automated travel does not automatically guarantee a perfect weld. Joint preparation,material condition,shielding gas,consumable condition,welding parameters,and machine setup all influence the final weld.

TIG,MIG and Other Welding Options

Different pipe applications may require different welding processes.

TIG welding can be suitable when manufacturers require controlled heat input and a clean weld appearance,particularly for stainless steel and thinner materials.

MIG/MAG welding can provide higher deposition rates and may be appropriate for production applications involving suitable carbon steel and other compatible materials.

The appropriate welding process depends on material type,wall thickness,production speed,weld appearance,and required mechanical properties.

Customers should provide material and welding requirements so the machine can be configured with a suitable welding power source,torch,and consumables.

Weld Quality and Process Stability

Consistent longitudinal seam welding requires stable joint positioning and appropriate welding parameters.

Important factors include:

Welding Current

Arc Voltage

Travel Speed

Wire Feed Speed

Shielding Gas

Torch Position

Joint Gap

Edge Alignment

Material Thickness

Welding Consumables

Automatic control can help maintain repeatable process conditions,but operators should still inspect welds and establish appropriate welding procedures.

For demanding applications,weld inspection may include visual inspection,dimensional checks,penetration evaluation,or other testing methods appropriate to the product and applicable standards.

Production Efficiency

An automatic pipe seam welding machine can improve production efficiency by reducing repetitive manual welding operations.

For manufacturers producing long tubular products,the controlled welding travel can help create consistent longitudinal seams over repeated workpieces.

Production output depends on pipe length,wall thickness,welding process,travel speed,loading and unloading time,and the number of production steps handled automatically.

For high-volume applications,the machine can be combined with automatic forming and material handling equipment to create a more integrated pipe production workflow.

Pipe Forming and Seam Alignment

Before welding,the sheet or strip must be formed into the desired tubular shape. Accurate forming is important because the longitudinal edges need to meet correctly at the welding station.

Depending on the product,forming may be performed with rollers,presses,or other dedicated equipment.

The seam welding machine itself may include specialized fixtures or alignment systems to support the formed pipe during welding.

Correct alignment can help reduce weld defects associated with excessive joint gaps or edge mismatch.

Flexible Industrial Applications

Longitudinal seam welding equipment is useful in many industrial sectors,including:

Steel Pipe Manufacturing

Stainless Steel Tube Production

HVAC Duct Manufacturing

Automotive Exhaust Production

Industrial Equipment Manufacturing

Heat Exchanger Manufacturing

Metal Furniture Production

Structural Tube Fabrication

Agricultural Equipment

Custom Metal Fabrication

The machine can be used for both specialized pipe production and general tubular product manufacturing when the workpiece and welding process are compatible.

Custom and OEM Pipe Welding Solutions

Different manufacturers have different requirements for pipe diameter,length,wall thickness,material,and production volume.

When requesting a quotation,customers should provide:

Material Type

Material Grade

Pipe Diameter

Pipe Length

Wall Thickness

Seam Type

Welding Process

Required Welding Speed

Production Volume

Automation Requirements

Drawings,samples,and existing production information can help determine the appropriate machine configuration.

OEM and ODM options may include customized fixtures,welding heads,travel systems,automatic loading and unloading,control systems,and integration with upstream or downstream equipment.

Maintenance and Welding Safety

Automated welding equipment should be operated by trained personnel. Welding produces intense heat,bright arc radiation,fumes,and sparks,so suitable protective equipment and ventilation are required.

The welding torch,consumables,cables,gas lines,and electrical connections should be inspected regularly. Mechanical travel components and fixtures should also be kept clean and properly maintained.

For automatic operation,the emergency-stop system and protective features should be checked according to the manufacturer's maintenance procedures.

Welding fumes should be controlled through appropriate ventilation or extraction systems according to the material and welding process.

Why Choose Us

Longitudinal Seam Welding Design
Specialized for welding continuous longitudinal seams on suitable steel pipes,tubes,and cylindrical workpieces.

Automatic Welding Operation
Automated welding-head travel and process control can reduce repetitive manual welding work.

Flexible Welding Processes
The machine can be configured for suitable TIG,MIG/MAG,or other welding processes according to application requirements.

Steel Pipe Production
Suitable for carbon steel,stainless steel,and other compatible tubular metal products.

Consistent Welding Travel
Controlled movement helps improve repeatability along the longitudinal seam.

Industrial Production Applications
Suitable for pipe,tube,duct,exhaust,cylinder,and custom tubular product manufacturing.

Customized Fixtures and Controls
Workholding,welding heads,travel systems,and control functions can be adapted to specific production requirements.

OEM And B2B Support
Suitable for manufacturers,distributors,pipe producers,and international industrial equipment buyers seeking customized welding solutions.

FAQs

1. What is a longitudinal seam pipe welding machine?

It is a welding machine designed to join the longitudinal edges of a formed pipe,tube,or cylindrical metal workpiece along its length.

2. What materials can it weld?

Depending on the configuration,it can weld suitable carbon steel,mild steel,stainless steel,and other compatible metals.

3. Can it weld stainless steel pipe?

Yes. The machine can be configured for stainless steel longitudinal seam welding when the welding power source,torch,shielding gas,and consumables are appropriate.

4. What welding processes can be used?

Depending on the machine configuration,it may support TIG,MIG/MAG,or other suitable automated welding processes.

5. Is the machine fully automatic?

The automation level depends on the specific configuration. Welding-head travel and welding control may be automated,while loading,unloading,or workpiece preparation may require operator assistance.

6. What types of products can it weld?

It can be used for suitable round pipes,tubes,ducts,cylinders,exhaust components,structural tubes,and other longitudinal-seam products.

7. Why is seam alignment important?

Correct edge alignment and joint gap help provide stable welding conditions and reduce the risk of inconsistent penetration,undercut,or other weld defects.

8. Can different pipe sizes be processed?

Depending on the machine design,adjustable fixtures or interchangeable tooling may allow different pipe sizes to be processed within the rated range.

9. What affects longitudinal weld quality?

Material type,wall thickness,joint preparation,welding current,voltage,travel speed,wire feed,shielding gas,and torch alignment all affect weld quality.

10. Can the machine be integrated into a production line?

Yes. Depending on the configuration,it can be integrated with pipe forming,material handling,inspection,cutting,and other upstream or downstream equipment.

11. Does the machine require special maintenance?

Routine inspection of the welding torch,consumables,cables,gas system,fixtures,travel mechanism,and electrical components is recommended according to the manufacturer's instructions.

12. What information should I provide for a quotation?

Provide the material,pipe diameter,length,wall thickness,welding process,required seam type,production volume,and automation requirements. Drawings or samples are also helpful.
