Portable Intelligent Electric CNC Expander for Condenser Tubes

 Portable Intelligent Electric CNC Tube Expander for Condenser Tubes

The Portable Intelligent Electric CNC Tube Expander for Condenser Tubes is designed for controlled tube expansion in condensers,heat exchangers,boilers,and other tubular heat-transfer equipment. Combining an electric drive system with intelligent CNC-assisted control and a portable machine design,it provides a practical solution for manufacturers and maintenance teams that require repeatable tube-to-tubesheet expansion.

Tube expansion is an important process in heat exchanger and condenser manufacturing. Proper expansion helps establish a secure mechanical connection between the tube and tubesheet while reducing the risk of leakage during subsequent operation. The required expansion parameters depend on tube material,tube diameter,wall thickness,tubesheet material,desired joint strength,and equipment configuration.

The portable design allows the tube expander to be moved between work areas or positioned directly near the equipment being processed. This can be useful for both factory production and maintenance applications where large heat exchangers or condenser assemblies are difficult to transport.

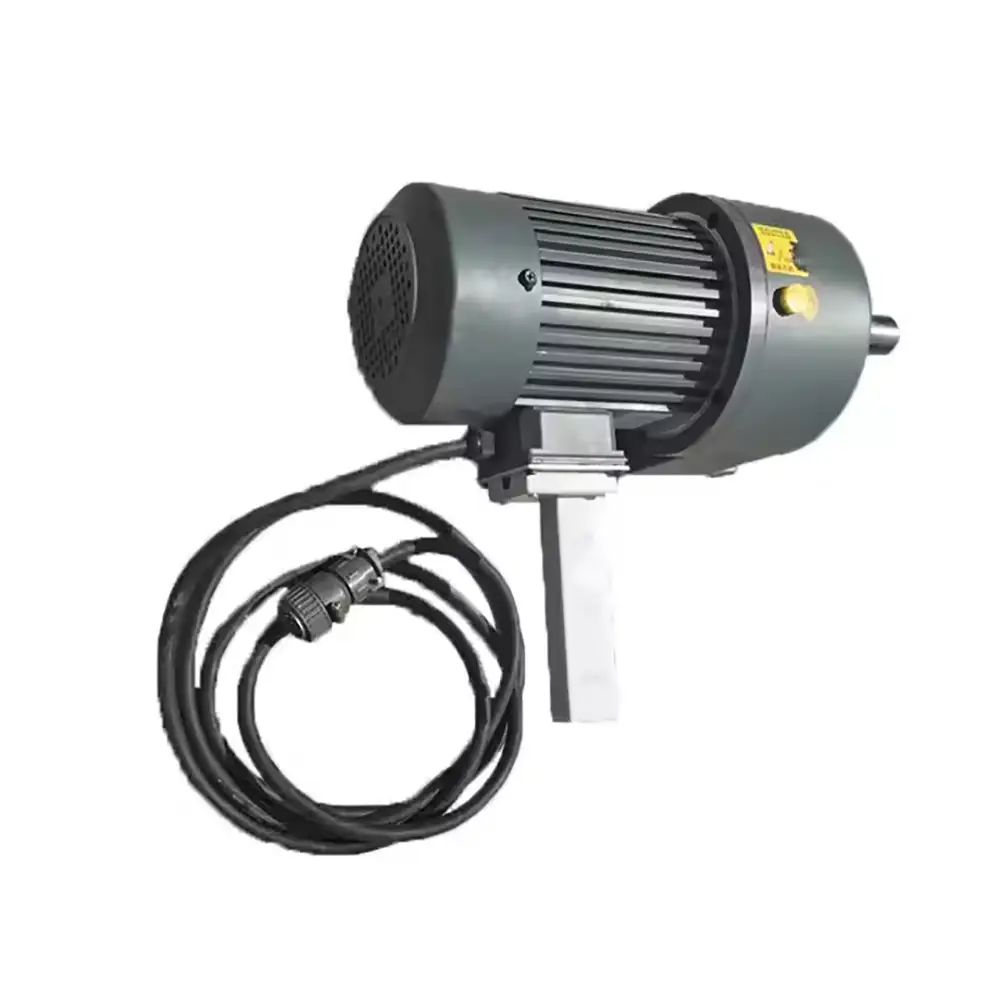

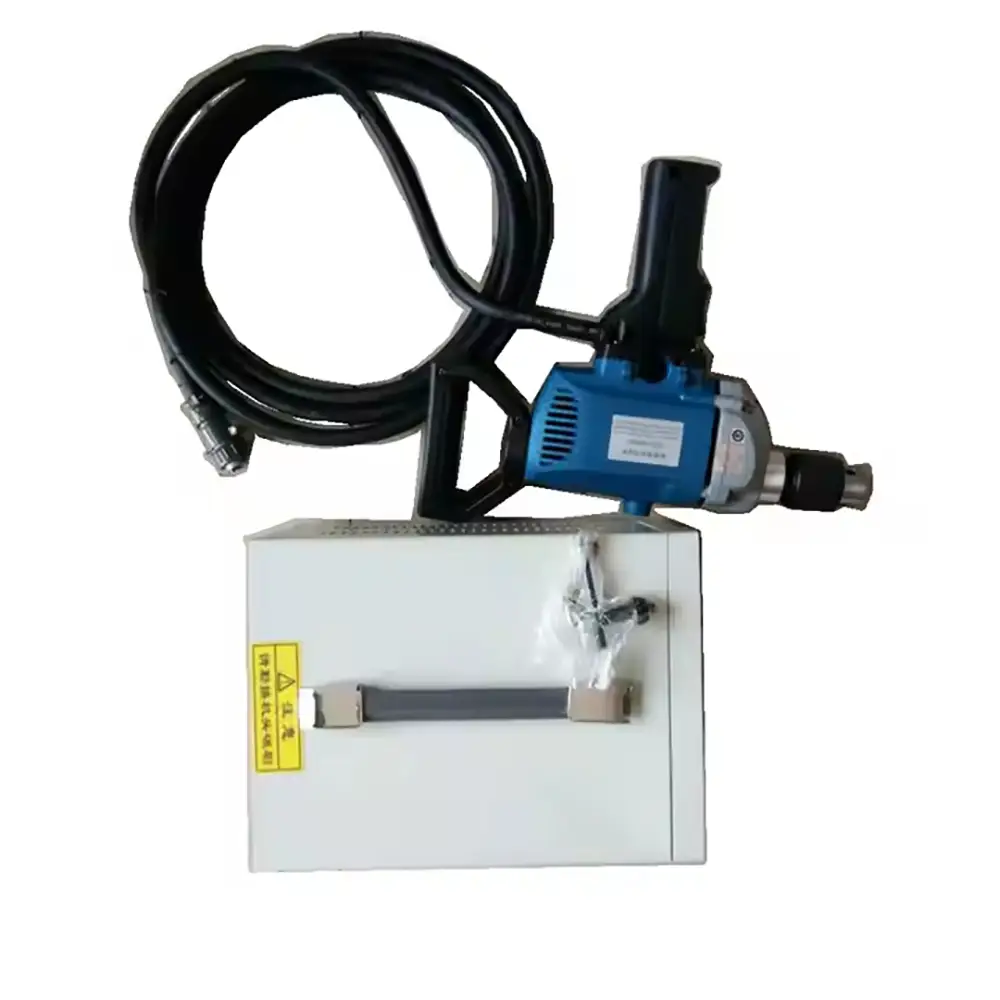

Electric CNC Tube Expansion Technology

The machine uses an electric drive system to provide controlled tube expansion according to the selected configuration. Compared with completely manual expansion tools,electric operation can help standardize the expansion process and reduce the physical effort required from operators.

CNC or intelligent control functions can assist with parameter management and repeatable processing. Depending on the actual control system,the operator may be able to set or monitor expansion parameters,processing sequences,and other operating conditions.

The exact functions depend on the machine configuration. Buyers should confirm the available control functions,programming method,display system,and expansion parameter range before ordering.

For production environments where many tubes require similar processing,repeatable machine-assisted expansion can help reduce variation caused by manual operation.

Condenser Tube Expansion

Condenser tubes are commonly expanded into tubesheets to create mechanical joints that support heat-transfer performance and fluid containment.

The tube expansion process generally involves inserting a suitable expansion tool into the tube end and applying controlled radial expansion. The tube wall is expanded against the tubesheet hole to establish the required contact.

The correct expansion amount is critical. Insufficient expansion may result in an inadequate joint,while excessive expansion can deform the tube unnecessarily or affect tube integrity.

The appropriate expansion procedure should therefore be determined according to tube material,tube dimensions,tubesheet specifications,and the equipment manufacturer's process requirements.

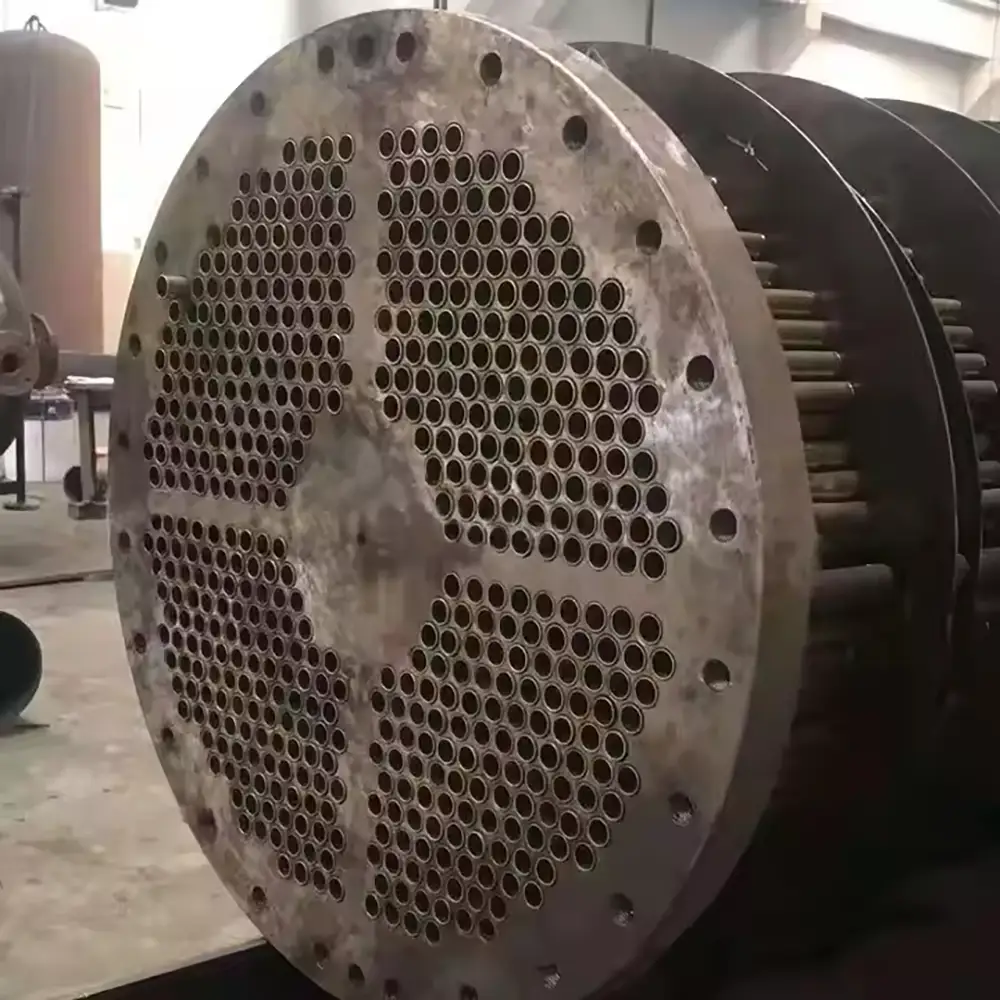

Heat Exchanger Tube-to-Tubesheet Expansion

Heat exchangers often contain a large number of tubes,which makes production consistency particularly important. A portable electric CNC tube expander can provide a controlled method for processing individual tube connections.

Typical applications include shell-and-tube heat exchangers,condenser assemblies,boiler components,coolers,evaporators,and other tubular heat-transfer equipment.

The machine can be used during original equipment manufacturing or for tube replacement and maintenance operations,depending on the application and tooling configuration.

For critical heat-transfer equipment,customers should provide tube and tubesheet drawings so the correct expansion tooling and process parameters can be evaluated.

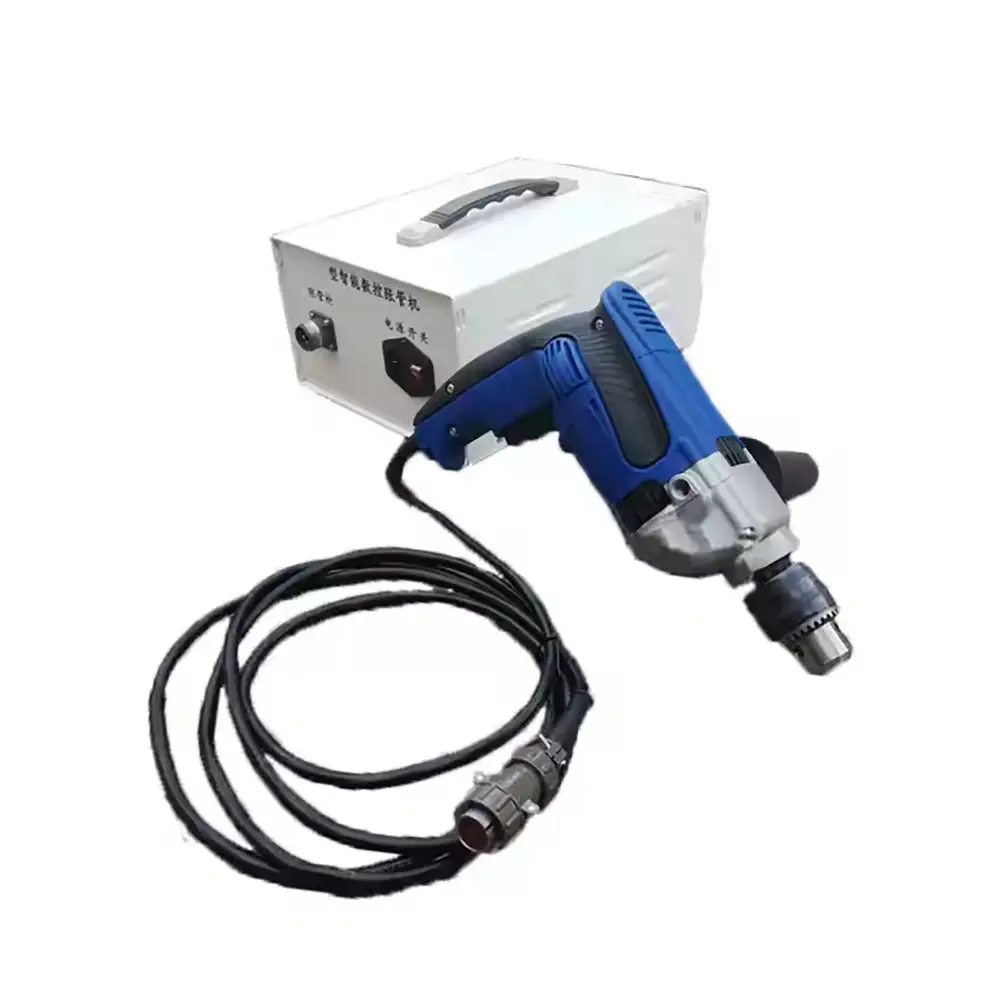

Portable Tube Expander Design

Portability is one of the important characteristics of this type of tube expansion equipment. Large heat exchangers and condenser assemblies may be difficult to move through a production facility or maintenance area.

A portable expander can instead be positioned close to the workpiece. This can simplify tube expansion operations and reduce unnecessary handling of large equipment.

Portable operation can be especially useful for:

Heat exchanger manufacturing

Condenser production

Boiler maintenance

Power plant equipment service

Industrial heat-transfer equipment repair

HVAC heat exchanger production

Petrochemical equipment maintenance

Chemical processing equipment service

The actual machine weight,dimensions,and portability depend on the specific configuration.

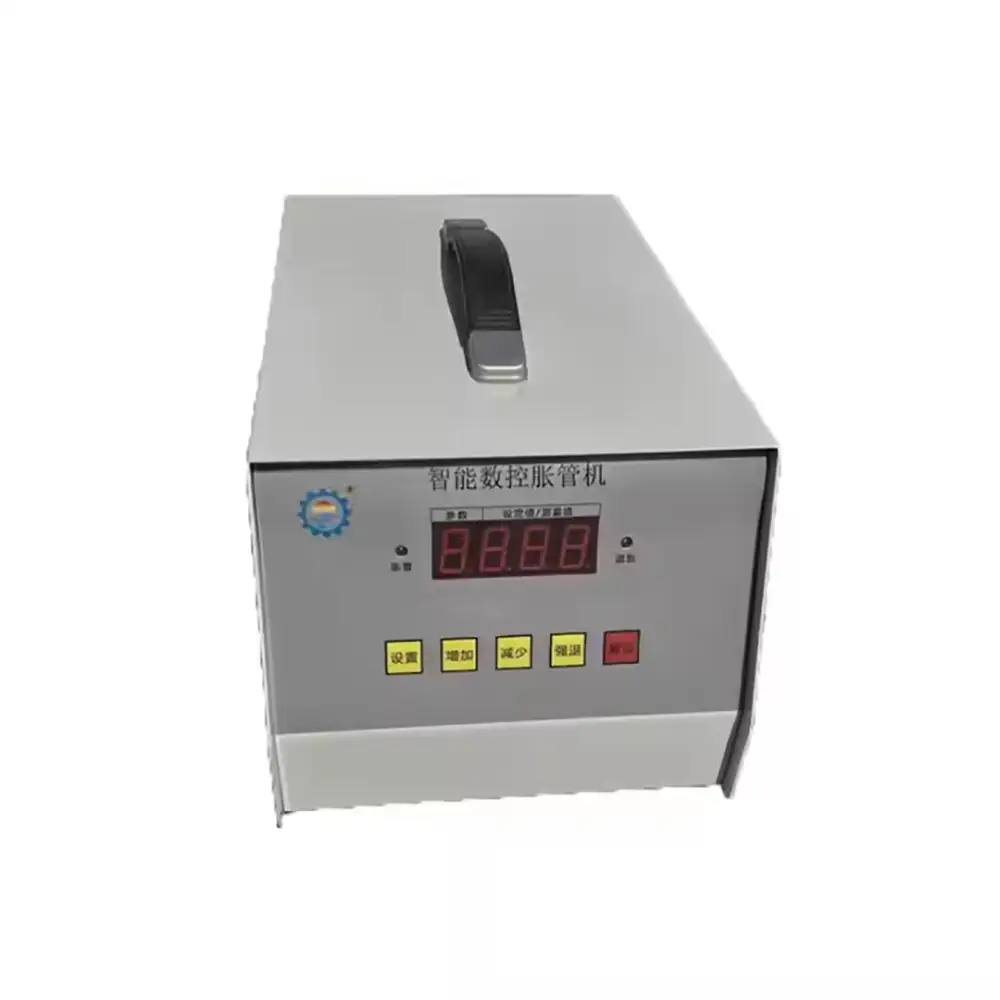

Intelligent Expansion Control

Intelligent control can help operators manage the tube expansion process more consistently. Depending on the CNC system,the machine may provide adjustable operating parameters and process monitoring functions.

Controlled expansion is important because different tubes require different processing conditions. Copper,stainless steel,carbon steel,titanium,aluminum,and other tube materials have different mechanical characteristics.

Tube wall thickness and tubesheet properties also influence the required expansion conditions.

For production applications,operators can establish suitable parameters through testing and then apply the approved settings to similar workpieces.

Actual control capabilities should be confirmed according to the selected model.

Suitable Tube Materials

The machine can be configured for expansion of various tube materials used in heat-transfer equipment. Potential materials include:

Copper tubes

Stainless steel tubes

Carbon steel tubes

Low-alloy steel tubes

Aluminum tubes

Titanium tubes

Other compatible heat exchanger tubing

The actual material range depends on the expansion tooling and machine configuration.

Different materials require different expansion behavior. Softer materials may require different expansion settings from harder stainless steel or alloy tubes.

Customers should provide tube material,outer diameter,wall thickness,and required joint specifications when selecting the appropriate machine.

Applications in Condenser and Heat Exchanger Manufacturing

The Portable Intelligent Electric CNC Tube Expander can support various industrial applications.

Typical equipment includes:

Shell-and-tube heat exchangers

Steam condensers

Water condensers

Industrial coolers

Oil coolers

Boiler heat exchangers

Evaporators

HVAC heat exchangers

Chemical processing equipment

Power generation equipment

Refrigeration equipment

Industrial heat-transfer systems

For new equipment manufacturing,the machine can be integrated into a tube assembly workflow. For maintenance applications,it can provide a portable method for expanding replacement tubes.

Production Efficiency and Repeatability

Tube expansion can involve hundreds or thousands of tube joints on a single heat exchanger. A controlled electric expansion system can help reduce operator fatigue and improve process consistency.

CNC-assisted operation can also reduce the need to manually control every expansion cycle. Once appropriate parameters have been established,the operator can repeat the process for similar tubes.

Actual production efficiency depends on tube quantity,tube dimensions,expansion parameters,operator workflow,tool changes,and equipment configuration.

For high-volume manufacturing,customers can evaluate the complete production cycle rather than considering machine speed alone.

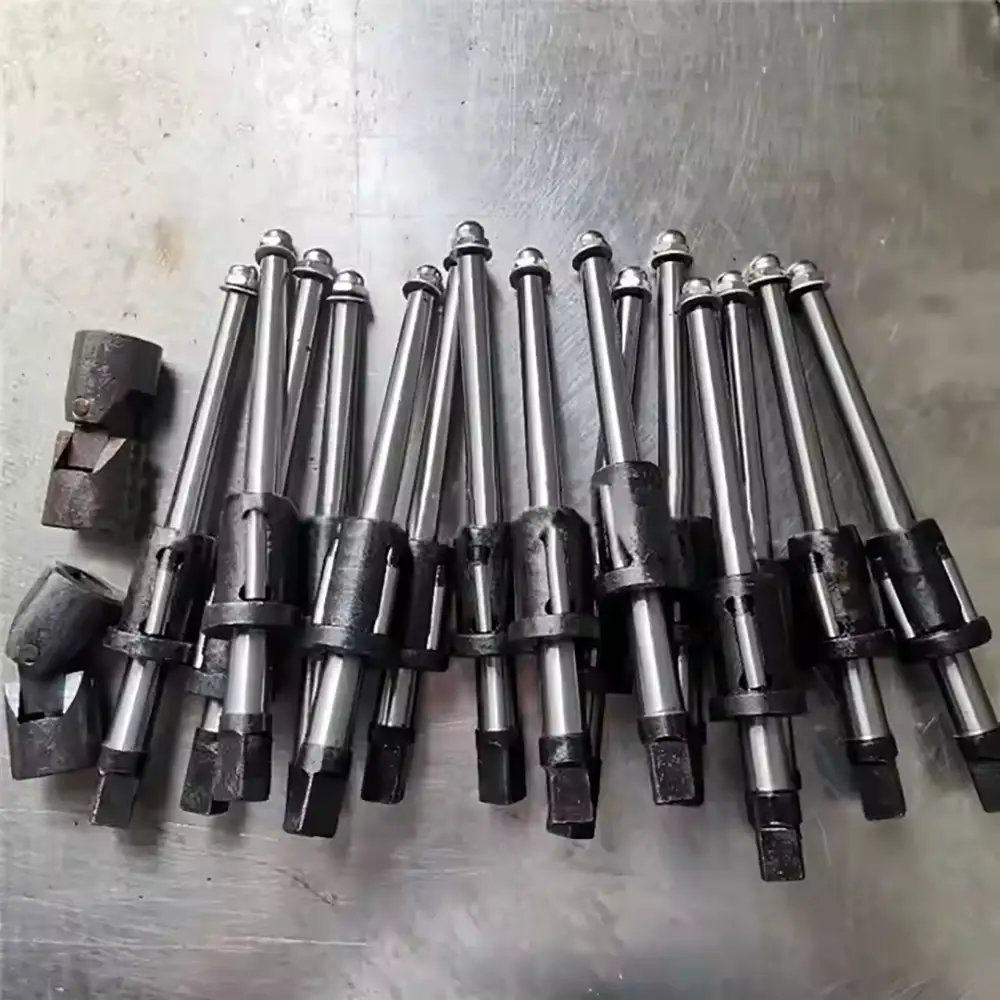

Tube Expansion Tooling

Expansion tooling is a critical part of the tube expanding process. The expander must be matched to the tube diameter,wall thickness,material,and required expansion method.

Different applications may require different mandrels,rollers,expansion heads,drive components,and accessories.

Interchangeable tooling can make one machine suitable for multiple tube sizes when the machine design supports such configurations.

For customized projects,customers can provide tube drawings,samples,or technical specifications so the appropriate tooling can be selected.

Quality Control

Proper quality control is essential when producing condenser and heat exchanger tube joints.

Inspection may include checking tube expansion dimensions,joint condition,tube position,leak-tightness requirements,and overall assembly quality.

Depending on the application,additional testing such as pressure testing or leak testing may be required after tube expansion.

The expansion process should be validated according to the applicable equipment design standards and the customer's quality requirements.

For critical industrial applications,sample testing before mass production is recommended.

Maintenance and Safety

Routine maintenance helps keep the electric tube expander operating consistently. Operators should inspect the expansion head,mandrel,rollers,drive components,electrical connections,and control system according to the manufacturer's recommendations.

Expansion tools should be kept clean and inspected for wear. Worn tooling can affect expansion quality and may increase variation between tube joints.

Operators should also follow appropriate electrical and mechanical safety procedures. Emergency-stop functions,protective features,and other safety provisions depend on the actual machine configuration.

OEM and Custom Tube Expansion Solutions

Different heat exchanger manufacturers have different tube specifications and production requirements. The machine can therefore be configured according to tube diameter,wall thickness,material,expansion method,production volume,and operating environment.

OEM and ODM solutions may include customized expansion tooling,control functions,fixtures,tool holders,and other accessories.

For a quotation,customers should provide tube material,tube outside diameter,wall thickness,tubesheet thickness,number of tubes,and intended application.

This information allows the manufacturer to evaluate the appropriate machine and tooling configuration.

Why Choose Us

Portable Tube Expansion Design — Allows the machine to be positioned near condenser and heat exchanger assemblies.

Electric Expansion System — Provides controlled mechanical power for repeatable tube expansion operations.

CNC-Assisted Control — Supports parameter management and repeatable processing according to the selected control configuration.

Condenser Tube Application — Designed for tube-to-tubesheet expansion in condensers,heat exchangers,and related equipment.

Multiple Tube Materials — Can be configured for suitable copper,stainless steel,carbon steel,aluminum,titanium,and other tubing.

Interchangeable Tooling — Expansion tools can be selected according to tube dimensions and application requirements.

Manufacturing and Maintenance Use — Suitable for both new equipment production and selected tube replacement applications.

OEM & ODM Support — Machine configuration and expansion tooling can be customized according to customer drawings,samples,and technical requirements.

FAQs

1. What is a condenser tube expander?

A condenser tube expander is a machine or tool used to expand tubes against tubesheet holes to create mechanical tube-to-tubesheet joints in condenser equipment.

2. What does CNC control do on a tube expander?

Depending on the configuration,CNC or intelligent control can help manage expansion parameters,processing sequences,and repeatable operating conditions.

3. Can this machine be used for heat exchangers?

Yes. It can be configured for suitable tube expansion applications in shell-and-tube heat exchangers and other tubular heat-transfer equipment.

4. Is the machine portable?

Yes. The machine is designed around a portable operating concept so it can be positioned near the condenser,heat exchanger,or other tube assembly.

5. What tube materials can it expand?

Depending on the tooling and machine configuration,it can be suitable for copper,stainless steel,carbon steel,aluminum,titanium,and other compatible tubing.

6. Can it expand stainless steel condenser tubes?

Yes,provided the machine and expansion tooling are correctly matched to the stainless steel grade,tube dimensions,and required joint specifications.

7. Can one machine handle different tube sizes?

Potentially. If the machine supports interchangeable tooling,different expansion heads or tools can be selected for different tube dimensions.

8. Is it suitable for tube replacement and maintenance?

It can be suitable for selected maintenance and tube replacement applications,particularly when large heat exchanger assemblies cannot be easily moved.

9. What affects tube expansion quality?

Tube material,outer diameter,wall thickness,tubesheet material,hole dimensions,expansion amount,tooling condition,and machine parameters can all affect joint quality.

10. Does tube expansion require leak testing?

For many heat exchanger and condenser applications,leak or pressure testing may be required after assembly. The appropriate testing procedure depends on the equipment design and applicable requirements.

11. Can the machine be customized?

Yes. Expansion tooling,control functions,fixtures,and other machine components can be customized according to the tube specifications and production requirements.

12. What information is needed for a quotation?

Provide tube material,outside diameter,wall thickness,tubesheet thickness,tube quantity,application,and required expansion method. Drawings or samples are also helpful.
