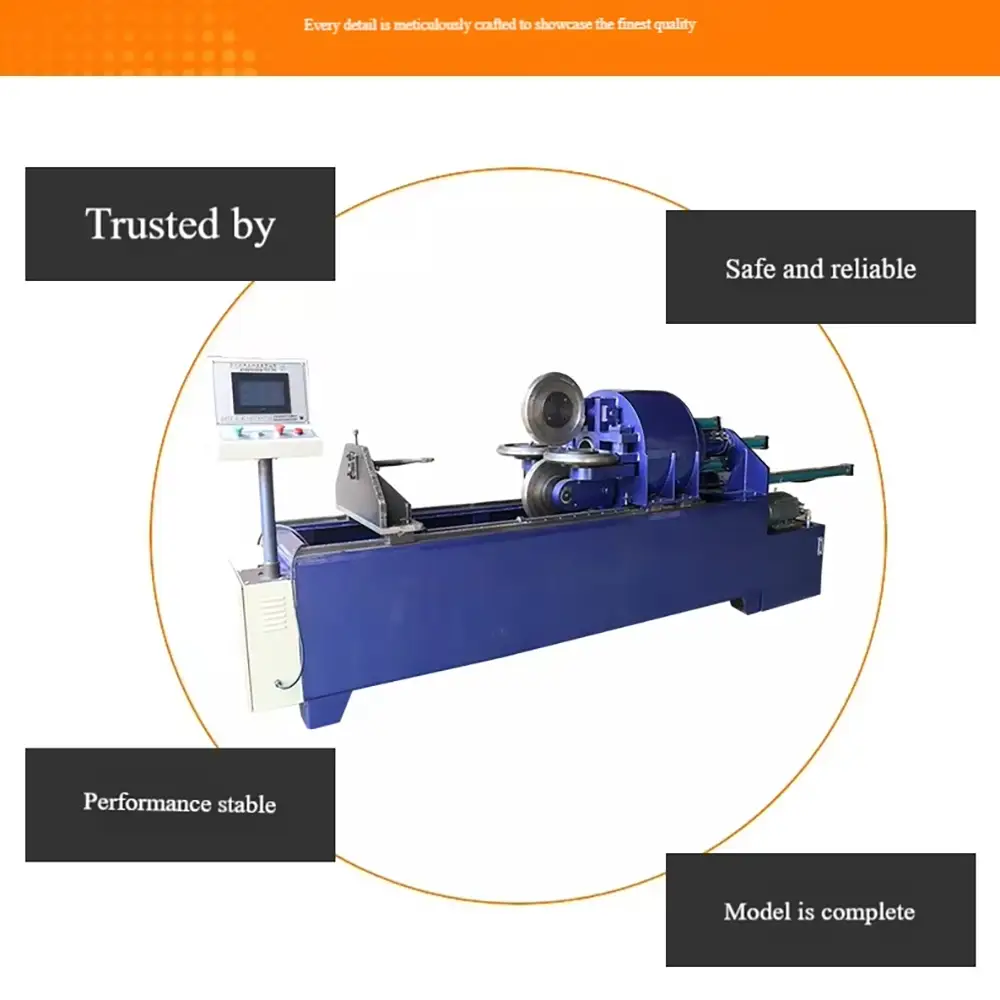

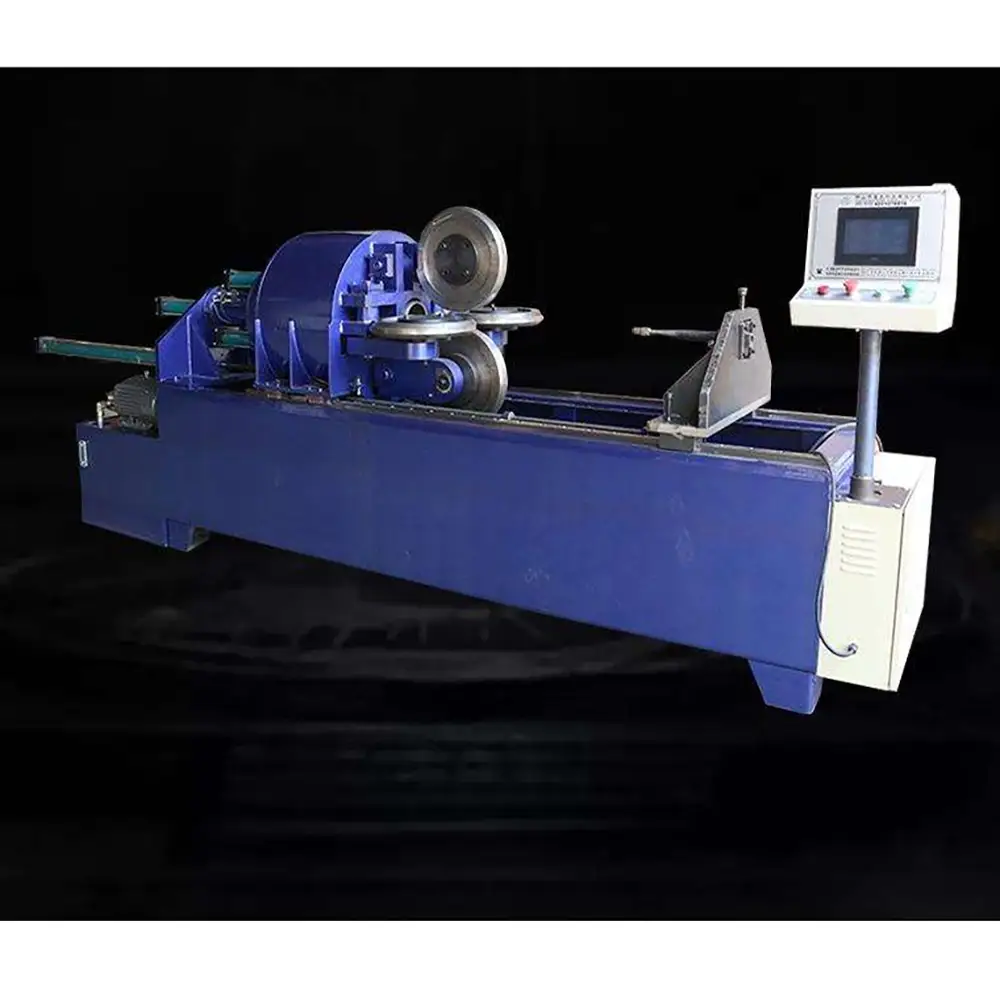

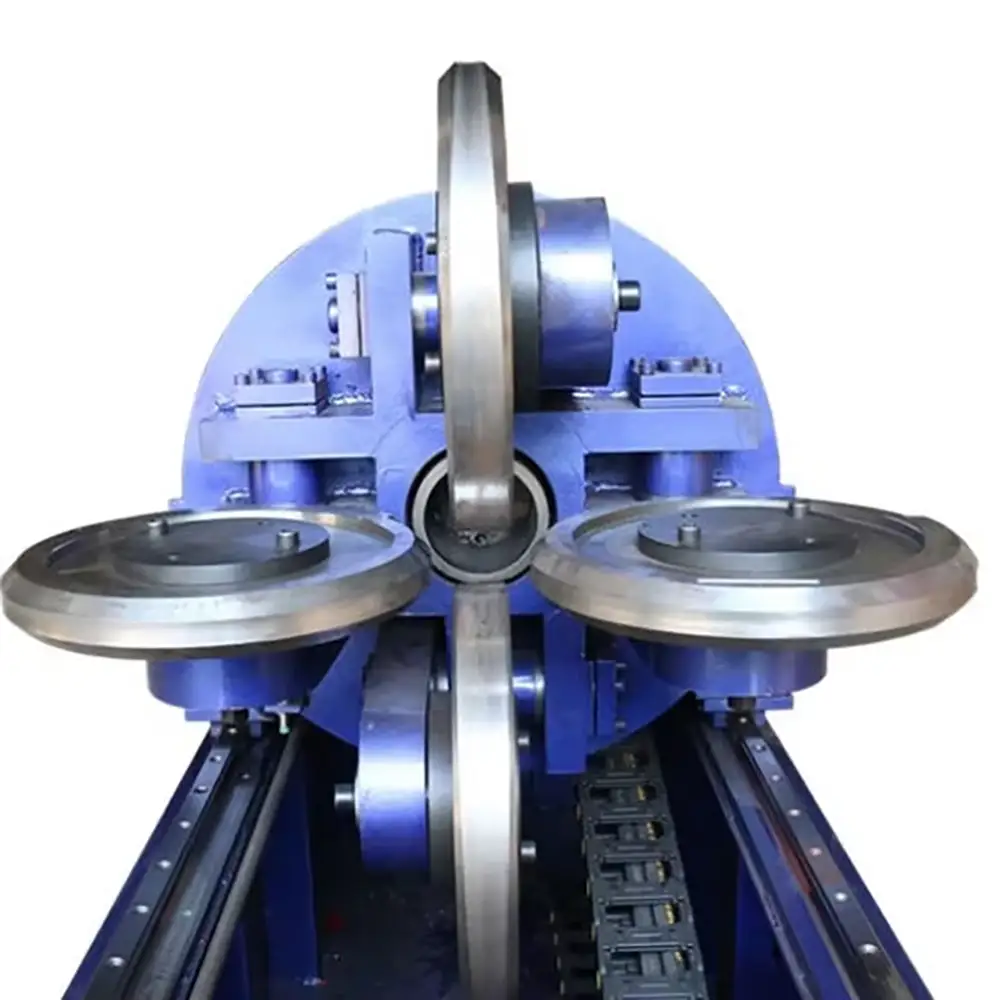

Rectangular Metal Tube Forming Machine Used for Decoration Like Fence,gate,window and Stair Handrail

1.servo motor and a power motor
2.no noise,no disturbance to the people
3.highly efficient,at lease 300 piece 6-meter tubes a day(2 times faster than others)
4.numerical control electric box,different specifications,intelligently recorddata.
5.the heat transfer wood grain paint does not damage the surface.
6.one shape forming ,no notch.

item	value
Raw material	PIPE
Core components	Engine, Bearing, motor
Max. tube contracting length (mm)	1000
Power (kw)	2.2
Warranty	1 Year
Brand name	SOAR
Speed(r/min)	400
Molding time(s/second)	10
Workpiece thickness(mm)	0.5-2
Processing range(mm)	12-80

Rectangular Metal Tube Forming Machine for Decorative Metal Fabrication

The Rectangular Metal Tube Forming Machine is designed for shaping and forming rectangular metal tubes used in decorative and structural fabrication. It can be applied to the production of fences,gates,windows,stair handrails,railings,frames,and other customized metal products.

Rectangular steel and aluminum tubes are widely used in architectural and decorative metalwork because they provide a combination of structural strength,clean appearance,and flexible design possibilities. However,forming rectangular tubing requires controlled pressure and appropriate tooling to achieve the desired shape while minimizing deformation.

This tube forming machine provides a dedicated processing solution for manufacturers that need to shape rectangular tubes into repeatable profiles or formed components. Depending on the machine configuration,it can support different forming,shaping,bending,or end-processing requirements through suitable dies,fixtures,and tooling.

The actual forming method and capacity depend on the machine design,material,wall thickness,tube dimensions,tooling,and required finished shape.

Rectangular Tube Forming Technology

Rectangular tube forming involves applying controlled mechanical force to change the geometry of a metal tube. Depending on the production requirement,the forming process may include bending,press forming,profile shaping,end forming,or other deformation operations.

Rectangular tubing behaves differently from round tubing during forming. The flat sides and corners can be more sensitive to deformation,wrinkling,flattening,and surface marks.

Proper tooling design is therefore important. The forming die should match the tube dimensions and desired geometry to provide stable support during processing.

For decorative products,the appearance of the finished tube is also important. Proper machine setup and tooling can help maintain a consistent profile and reduce unwanted deformation.

Fence Manufacturing Applications

Rectangular metal tubes are frequently used in residential,commercial,and industrial fencing systems.

The machine can support production of components for:

Decorative steel fences

Garden fences

Security fencing

Residential railings

Commercial fencing

Metal fence frames

Decorative fence panels

Custom architectural barriers

Formed rectangular tubing can be combined with posts,rails,panels,and decorative components to create different fence designs.

For repeated fence production,consistent tube forming can help manufacturers standardize components and reduce variation between finished products.

Gate Tube Forming

Metal gates often require strong rectangular tube frames combined with decorative elements. A tube forming machine can help prepare formed rails,frames,and other gate components.

Applications may include:

Sliding gates

Swing gates

Garden gates

Driveway gates

Decorative entrance gates

Security gates

Architectural metal gates

The required forming shape depends on the gate design. Customers can provide drawings or samples so suitable dies and forming methods can be evaluated.

For large or heavy gate structures,the machine configuration should be selected according to the tube size,wall thickness,and required forming force.

Window and Door Frame Applications

Rectangular metal tubing can also be used in window frames,door frames,architectural partitions,and other building components.

The forming machine can help manufacturers create consistent components for customized window and door structures.

Depending on the material and profile,the machine may be used with suitable steel,stainless steel,or aluminum rectangular tubing.

For applications requiring visible finished surfaces,the tooling should be selected to minimize scratches and deformation.

Stair Handrail and Railing Production

Stair handrails and metal railings require both structural stability and an attractive appearance. Rectangular tubes can provide a modern and clean profile for indoor and outdoor railing systems.

Potential applications include:

Stair handrails

Stair railings

Balcony railings

Platform railings

Walkway handrails

Commercial building railings

Industrial safety railings

Architectural guardrails

The machine can be configured for suitable forming operations according to the required handrail geometry.

For curved or specially shaped handrails,the bending or forming tooling should be selected according to the tube section and desired radius.

Suitable Metal Tube Materials

Depending on the machine configuration,rectangular tube forming can be applied to several metal materials,including:

Carbon steel

Mild steel

Stainless steel

Aluminum

Galvanized steel

Other compatible metal profiles

Material properties have a direct effect on forming behavior. High-strength steel may require greater forming force,while aluminum and thin-wall tubing may require different tooling and forming parameters.

Before production,the material grade,tube dimensions,and wall thickness should be confirmed to determine the appropriate machine configuration.

Tube Size and Tooling Selection

Rectangular tubes are available in many different widths,heights,and wall thicknesses. A forming machine should therefore be selected according to the actual tube dimensions rather than a general product category.

Tooling can be designed around the required tube profile and finished shape.

For manufacturers processing multiple tube sizes,interchangeable tooling can provide greater flexibility when supported by the machine design.

Custom dies may also be developed for special decorative profiles,curves,forming shapes,and production requirements.

Customers should provide tube width,height,wall thickness,material,and finished shape when requesting a quotation.

Decorative Metal Fabrication

One of the major applications of rectangular tube forming is architectural and decorative metal fabrication.

Manufacturers can use formed tubes to create customized designs for residential buildings,commercial properties,hotels,restaurants,parks,and public facilities.

The machine can support production of components used in:

Decorative fencing

Garden gates

Window grilles

Stair railings

Balcony railings

Architectural partitions

Metal furniture

Decorative frames

Building ornaments

The finished product can subsequently be welded,ground,polished,painted,powder coated,or otherwise finished according to the customer's requirements.

Production Efficiency

For manufacturers producing repeated fence,gate,window,or railing components,a dedicated tube forming machine can reduce manual forming work and improve production consistency.

A controlled machine process allows operators to use repeatable forming positions and tooling setups. This can be particularly useful when producing batches of similar components.

Actual productivity depends on tube size,material,forming geometry,machine cycle,loading method,tool changes,and operator workflow.

For high-volume production,customers should evaluate the complete production cycle,including loading,forming,unloading,and secondary finishing.

Quality and Forming Accuracy

Finished tube quality depends on machine rigidity,tooling design,material characteristics,forming force,and operating parameters.

For rectangular tubing,quality inspection may include checking:

Overall dimensions

Tube straightness

Forming radius

Corner condition

Surface appearance

Wall deformation

Finished length

Repeatability between parts

For decorative applications,surface quality can be especially important because scratches or excessive deformation may remain visible after painting or powder coating.

Sample testing can help determine suitable tooling and forming parameters before mass production.

Integration with Metal Fabrication

The rectangular tube forming machine can be integrated into a broader fabrication workflow.

A typical production process may include tube cutting,forming,bending,drilling,punching,welding,grinding,surface treatment,and final assembly.

The forming machine can therefore serve as one processing station within a complete fence,gate,window,or railing manufacturing line.

Depending on the application,the machine may be combined with tube cutting equipment,drilling machines,laser cutters,welding equipment,and other metal fabrication machinery.

Maintenance and Safety

Routine maintenance helps maintain stable forming performance. Operators should inspect hydraulic or mechanical components,forming dies,fixtures,fasteners,and other wear parts according to the manufacturer's maintenance recommendations.

Tooling should be kept clean and checked regularly for damage or excessive wear.

During operation,operators should keep hands away from moving tooling and follow appropriate machine safety procedures. Emergency-stop devices,guards,and other protective features depend on the actual machine configuration.

Operators should receive appropriate training before using the equipment.

Custom and OEM Tube Forming Solutions

Different fence,gate,window,and handrail manufacturers may require different tube dimensions and forming shapes. The machine can therefore be customized around specific production requirements.

OEM and ODM options may include:

Custom forming dies

Interchangeable tooling

Special fixtures

Tube positioning systems

Hydraulic or mechanical forming systems

Customized control systems

Material support systems

Special forming stations

Customers can provide CAD drawings,samples,tube specifications,and finished-product requirements for evaluation.

This allows the manufacturer to develop a tube forming solution suitable for specific decorative metal fabrication applications.

Why Choose Us

Rectangular Tube Forming — Designed specifically for processing suitable rectangular metal tubing and profiles.

Wide Decorative Applications — Suitable for fence,gate,window,stair handrail,railing,and architectural metal fabrication.

Flexible Tooling Options — Forming dies and fixtures can be selected according to tube dimensions and finished geometry.

Multiple Metal Materials — Can be configured for suitable carbon steel,stainless steel,aluminum,galvanized steel,and other metal tubing.

Repeatable Production — Controlled forming helps improve consistency when manufacturing repeated components.

Custom Forming Solutions — Special tooling and forming configurations can be developed for customized tube shapes.

B2B Manufacturing Support — Suitable for metal fabrication companies,fence manufacturers,gate manufacturers,and architectural metalwork suppliers.

OEM & ODM Service — Machine configurations can be developed according to drawings,samples,materials,and production requirements.

FAQs

1. What is a rectangular metal tube forming machine?

It is a machine designed to shape or form rectangular metal tubing using controlled mechanical force and suitable forming dies or tooling.

2. What products can be made with this machine?

Typical applications include fences,gates,windows,stair handrails,railings,frames,architectural components,and decorative metal structures.

3. Can it form rectangular steel tubes?

Yes. Suitable carbon steel and mild steel rectangular tubes can be processed when their dimensions are within the machine's rated capacity.

4. Can stainless steel rectangular tubes be formed?

Yes,depending on the machine configuration and tooling. Stainless steel generally requires appropriate forming parameters because of its material properties.

5. Can it process aluminum tubes?

Depending on the machine and tooling configuration,aluminum rectangular tubes can be formed using suitable parameters.

6. Can the machine be used for fence manufacturing?

Yes. Rectangular tubes can be formed for decorative fence rails,frames,posts,and other components.

7. Can it form tubes for gates?

Yes. It can be used for suitable gate frames,rails,and decorative structural components.

8. Is it suitable for stair handrails?

Yes. Rectangular tubes can be processed for stair handrails,balcony railings,platform railings,and other architectural applications.

9. Can custom forming dies be supplied?

Yes. Custom dies and fixtures can be developed according to the tube dimensions and required finished shape.

10. What affects forming quality?

Material type,tube dimensions,wall thickness,tooling design,forming force,machine rigidity,and operating parameters all affect the finished result.

11. Can one machine process different tube sizes?

Potentially. Machines equipped with interchangeable tooling can process multiple tube sizes within their design range.

12. What information is needed for a quotation?

Provide the tube material,width,height,wall thickness,required forming shape,finished dimensions,production volume,and application. Drawings or samples are also helpful.
