Tertiary Filtration Polishing Air Flotation Machine | Reclaimed Water Reuse Dissolved Air Flotation Equipment

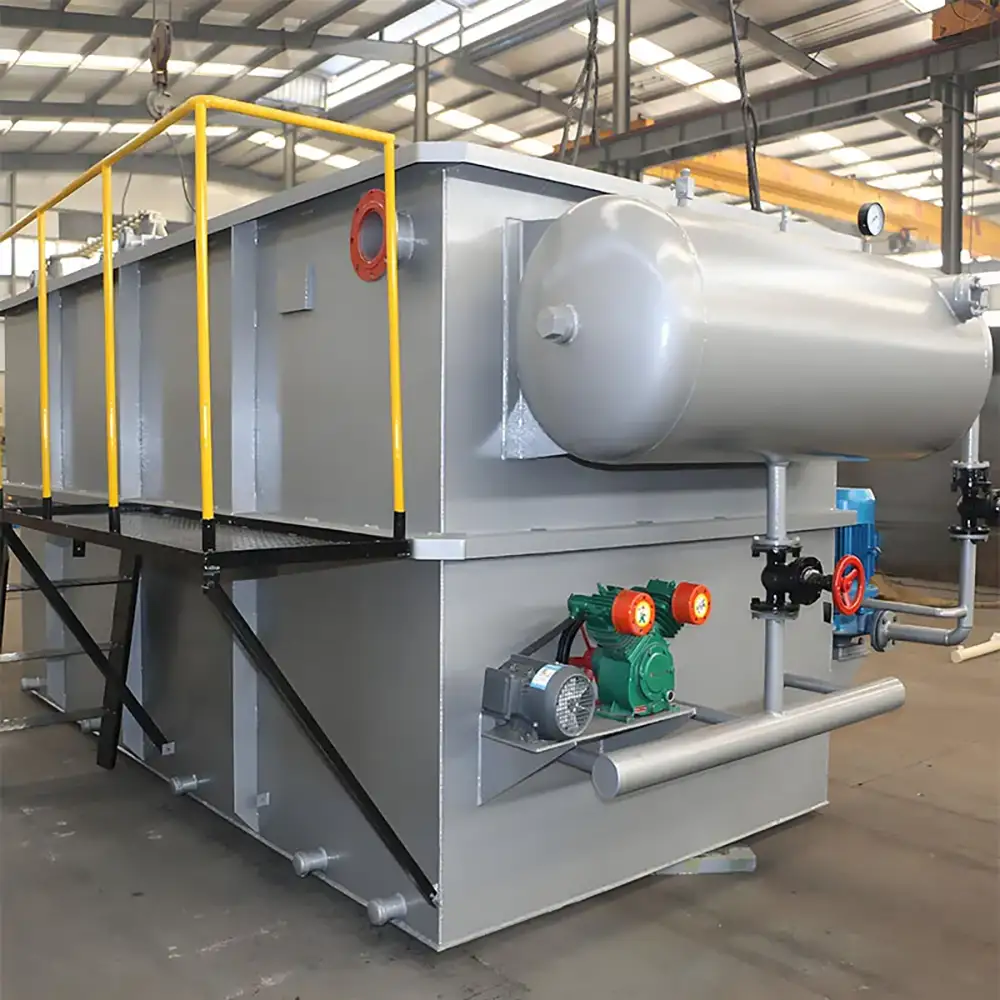

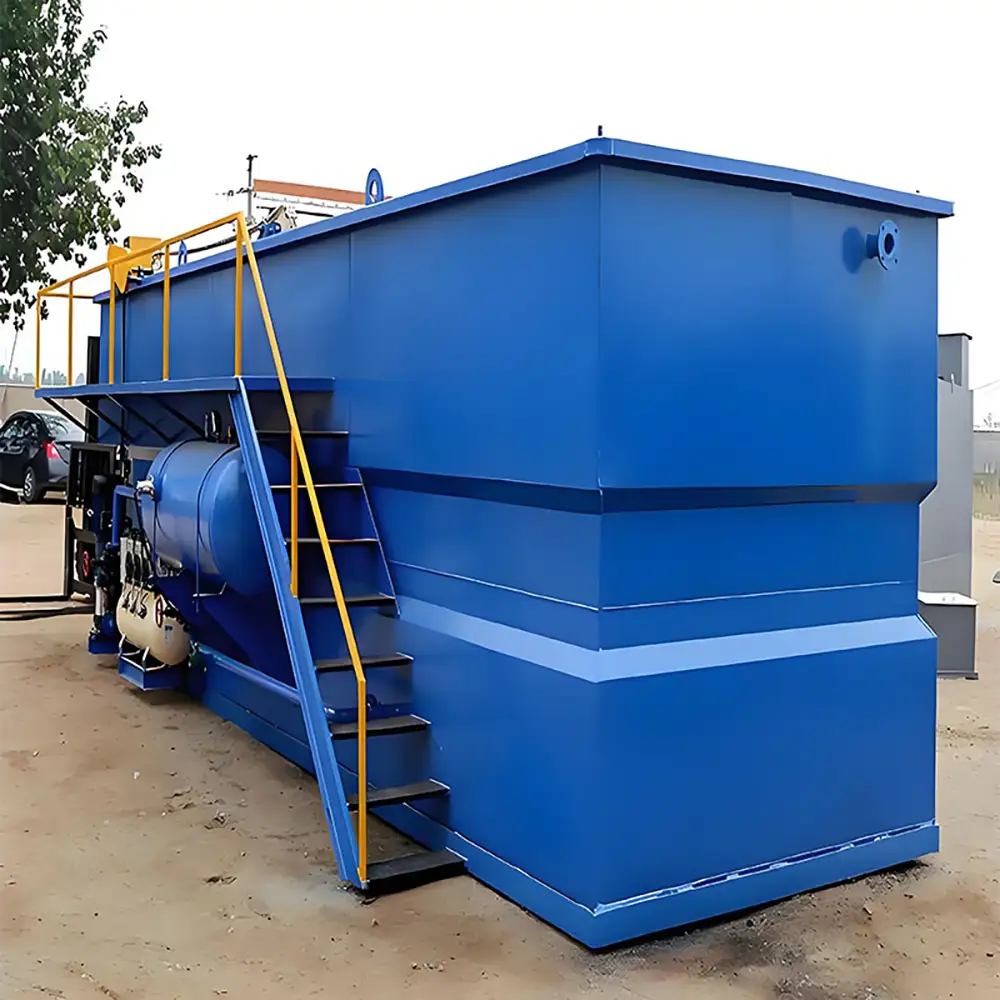

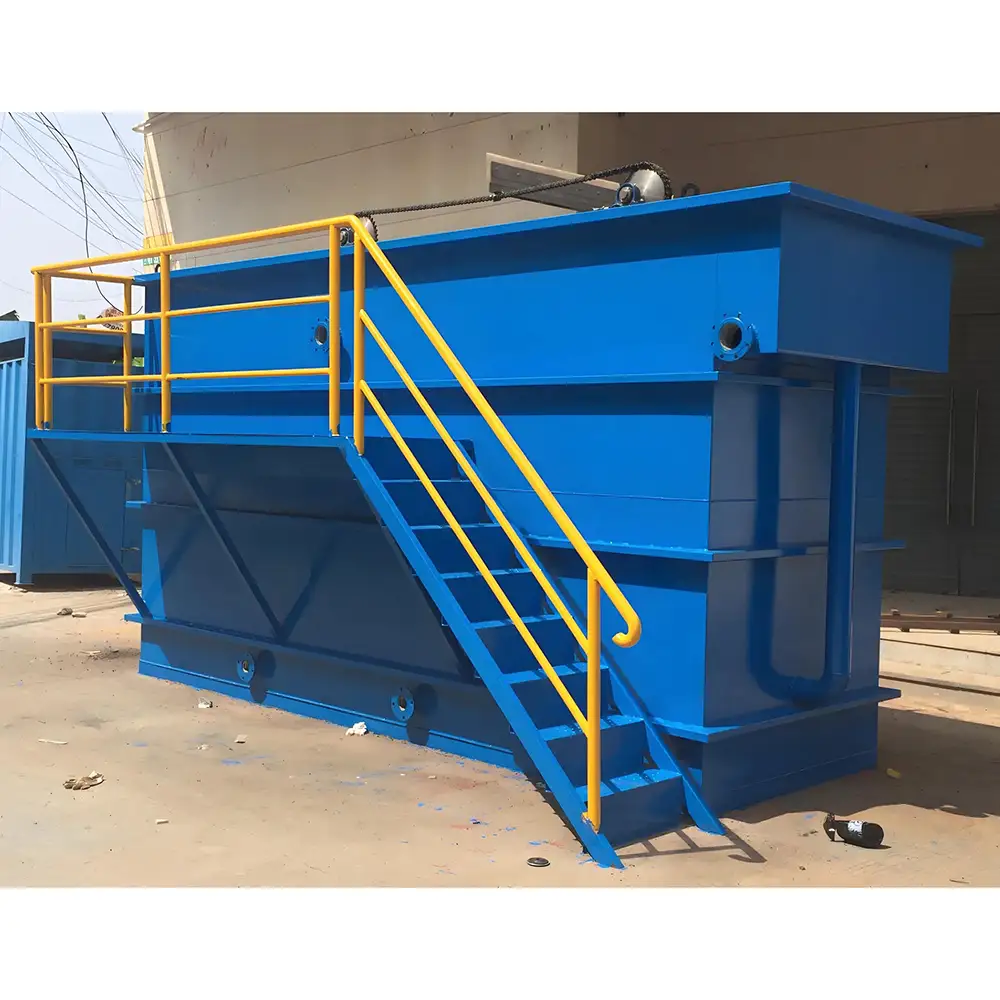

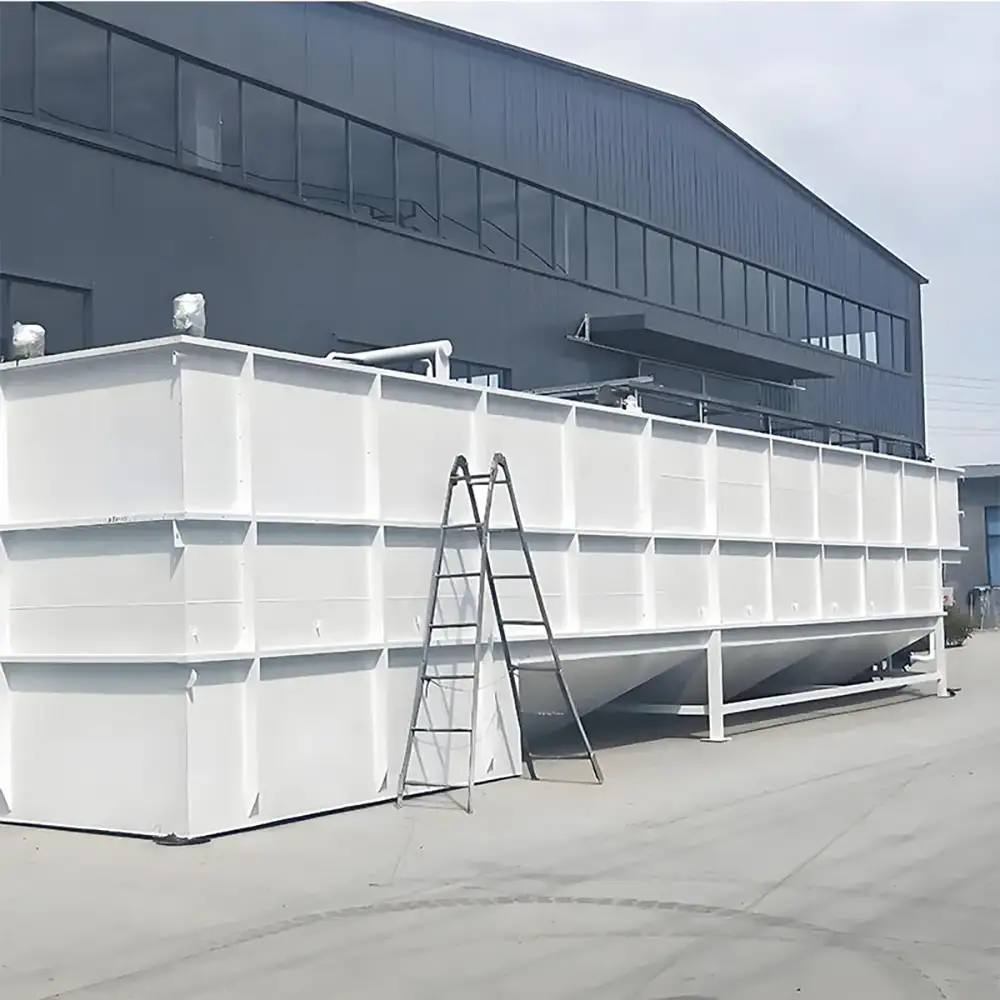

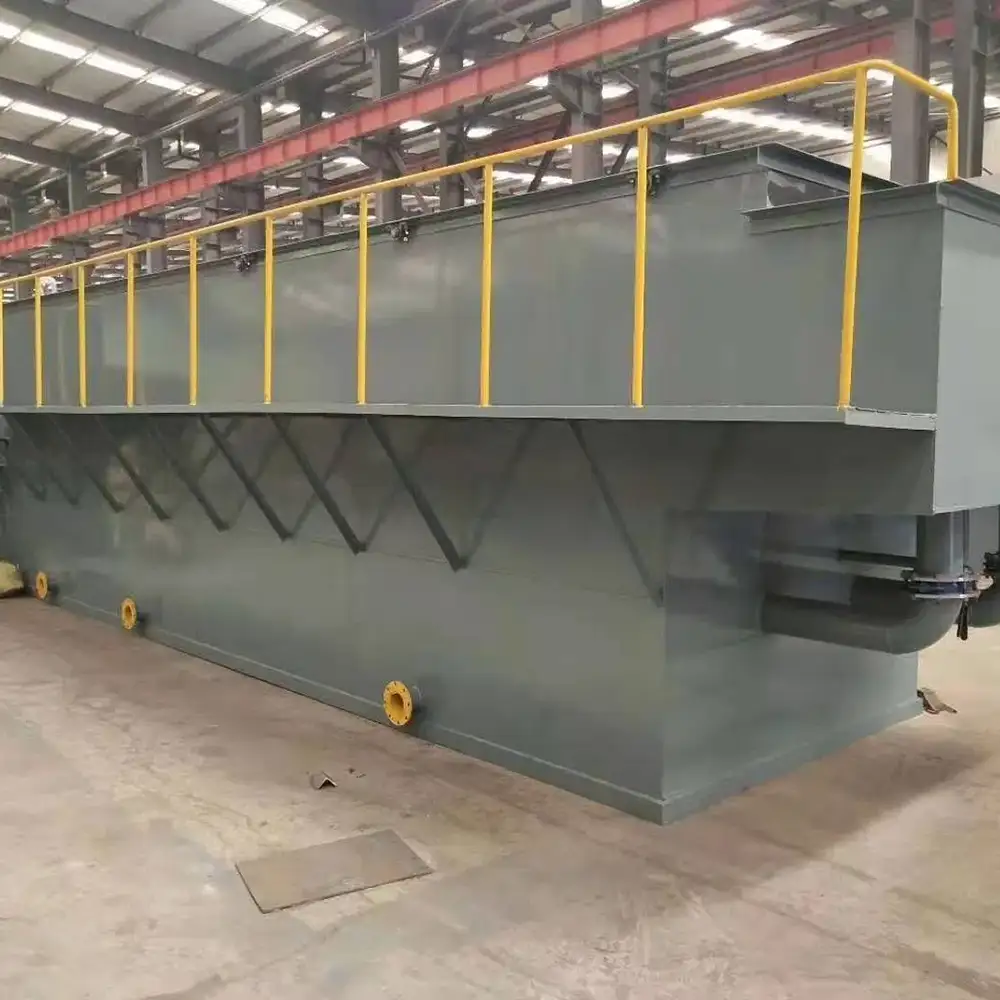

The Tertiary Filtration Polishing Air Flotation Machine is a dissolved air flotation system designed for advanced wastewater clarification, tertiary treatment, polishing, and reclaimed water reuse applications. It uses controlled dissolved air flotation to separate fine suspended solids, flocs, floating particles, oil, grease, and other contaminants before downstream filtration, membrane treatment, disinfection, or water reuse.

In a reclaimed water treatment system, achieving stable feedwater quality is important because downstream filters and membranes can be sensitive to suspended solids and other fouling materials. DAF can therefore serve as a polishing or clarification stage when the wastewater characteristics are suitable.

The basic DAF process pressurizes a portion of the water with air and then releases the pressure inside the flotation tank. The dissolved air forms fine bubbles that attach to particles and flocs, causing them to rise to the water surface. The floated material is removed by a skimmer, while clarified water leaves the flotation chamber for the next treatment stage. EPA technical guidance describes this pressure-release and bubble-particle separation mechanism as a fundamental DAF operating principle.

DAF for Tertiary Filtration and Polishing

Tertiary treatment is generally used after primary and secondary treatment to further improve effluent quality before discharge or beneficial reuse.

A DAF polishing unit can be integrated when the treated water still contains suspended solids, fine flocs, residual oil and grease, or other floatable material that needs to be separated before advanced filtration.

A typical process may be:

Primary Treatment → Biological Treatment → Secondary Clarification → DAF Polishing → Sand Filtration or MF → RO or Other Advanced Treatment → Disinfection → Reclaimed Water Storage

The actual configuration depends on the intended end use and applicable water quality requirements.

DAF should not be considered a complete reclaimed-water treatment system by itself. For higher-grade reuse, additional treatment such as membrane filtration, reverse osmosis, advanced oxidation, or disinfection may be required.

EPA documentation provides examples where DAF clarification has been integrated with microfiltration and reverse osmosis in reclaimed-water treatment processes.

How the Air Flotation Machine Works

The DAF machine normally receives wastewater or treated effluent after upstream treatment.

A recycle stream is pressurized and saturated with air. When the pressurized water enters the flotation chamber and pressure is reduced, the excess dissolved air comes out of solution as numerous fine bubbles.

These bubbles attach to suspended particles, flocs, oil droplets, and other suitable contaminants. The resulting aggregates have greater buoyancy and rise toward the surface.

The accumulated float forms a concentrated layer that is removed by a mechanical scraper or skimming mechanism. Clarified water is collected separately and directed toward the next treatment stage.

EPA guidance describes DAF recycle systems in which a side stream is saturated with air under pressure and then injected into the flotation tank; the resulting bubbles attach to floc particles and form a surface sludge layer.

Reclaimed Water Reuse Applications

The DAF polishing air flotation machine can be incorporated into reclaimed water systems for a variety of non-potable reuse applications.

Potential applications include:

Landscape Irrigation
Agricultural Irrigation
Industrial Process Water
Cooling Water
Equipment Washing
Vehicle Washing
Toilet And Urinal Flushing
Dust Control
Construction Water
Fire Protection
Municipal Non-Potable Reuse

EPA identifies centralized non-potable reuse as an important application of appropriately treated recycled water, including uses such as fire protection, vehicle washing, street cleaning, dust control, and other beneficial purposes.

The required treatment level varies according to the intended end use and local regulations.

Tertiary Polishing Performance

The main purpose of DAF in a polishing configuration is to improve the quality of the water entering downstream treatment equipment.

Potential target contaminants include:

Suspended Solids
Fine Flocs
Floating Particles
Oil And Grease
Colloidal Material
Biological Solids
Precipitated Materials

When coagulation and flocculation are used upstream, very fine particles can be destabilized and converted into larger flocs that are easier to capture through flotation.

Chemical selection and dosage should be established through wastewater testing or jar testing rather than using a universal chemical program.

EPA documentation shows that chemical conditioning can enhance DAF performance and that coagulants or polymers may be incorporated depending on the treatment objective.

DAF Before Membrane Filtration

One important application is using DAF as a pretreatment or polishing stage before microfiltration, ultrafiltration, or reverse osmosis.

Reducing suspended solids and other particulate loading before membrane treatment can help create a more stable feed stream.

An EPA potable reuse case study describes a treatment configuration incorporating DAF clarification with a microfiltration recovery system, while the overall advanced treatment process also included reverse osmosis and UV-AOP.

The DAF system therefore can function as one component within a multi-barrier water reuse process rather than as a standalone final purification technology.

Main Equipment Components

A complete DAF polishing system may include:

DAF Flotation Tank
Recycle Water Pump
Air Saturation System
Air Compressor
Pressure Control System
Pressure Release Device
Coagulation Tank
Flocculation Tank
Chemical Dosing System
Surface Skimmer
Float Sludge Collection System
Clarified Water Outlet
Electrical Control Cabinet
Piping And Valves

Equipment configuration should be selected according to flow rate, suspended solids loading, water quality, treatment objectives, and downstream equipment requirements.

Automatic Process Control

Modern DAF systems can incorporate PLC-based automatic controls for improved operating convenience.

Depending on the project, the control system can monitor or operate:

Recycle Pump
Air Compressor
Pressure
Water Level
Chemical Dosing
Skimmer
Sludge Discharge
Flow Rate
Equipment Alarms
Automatic Start And Stop

Automatic operation is particularly useful for reclaimed water systems where consistent feedwater quality is important for downstream filtration or membrane treatment.

Compact Polishing Configuration

DAF can provide a relatively compact flotation-based separation process compared with some conventional clarification arrangements.

This can be useful for wastewater treatment plants that need to add a polishing stage without making major changes to the existing plant layout.

The equipment can be installed as a standalone tertiary-treatment unit or integrated with coagulation, filtration, membrane, and disinfection systems.

Operation and Maintenance

Stable operation requires regular monitoring of flow, recycle ratio, air pressure, bubble formation, chemical dosage, float thickness, sludge removal, and treated-water quality.

Operators should inspect pumps, valves, air compressors, pressure components, skimmer mechanisms, and chemical dosing equipment.

The flotation surface should remain free of excessive accumulated sludge. Float sludge should be removed at an appropriate frequency to prevent re-entrainment into the treated water.

Where DAF is used before membrane filtration, monitoring turbidity and suspended solids in the DAF effluent is especially useful for assessing pretreatment performance.

Why Choose Us?

Our DAF tertiary filtration and polishing solutions are designed to integrate efficiently into advanced wastewater treatment and reclaimed water reuse processes.

Key advantages include:

Tertiary DAF Polishing Technology
Efficient Suspended Solids Separation
Fine Floc And Floating Matter Removal
Oil And Grease Separation Capability
Integration With Coagulation And Flocculation
Suitable For Downstream Filtration
Suitable For Membrane Pretreatment
Automatic PLC Control Options
Compact Equipment Configuration
Flexible Water Reuse System Integration
Support For Industrial And Municipal Applications

The system can be configured according to the required treatment capacity, incoming water quality, downstream filtration requirements, and intended reclaimed-water application.

FAQs
1. What is a DAF polishing system?

A DAF polishing system uses dissolved air flotation to remove remaining suspended solids, flocs, oil, grease, and other floatable contaminants from treated wastewater before further filtration or reuse.

2. Can DAF be used for tertiary wastewater treatment?

Yes. DAF can be integrated into tertiary or polishing treatment when flotation is appropriate for the remaining contaminants.

3. Can DAF produce reclaimed water by itself?

Generally, no. DAF is normally one stage in a larger treatment process. Additional filtration, membrane treatment, and disinfection may be required depending on the reuse application.

4. Can DAF be used before RO?

Yes. DAF can be used as a pretreatment or polishing stage before membrane processes such as microfiltration, ultrafiltration, or RO when appropriate. EPA reclaimed-water examples demonstrate DAF used in treatment trains that also include MF and RO.

5. What contaminants can DAF remove?

DAF can separate suspended solids, fine flocs, floating particles, oil, grease, and other contaminants that can be captured through flotation.

6. Does DAF require chemical dosing?

Not always. Coagulants and polymers may be used when fine suspended or colloidal particles require conditioning for improved flotation.

7. What is the difference between DAF and sand filtration?

DAF is primarily a flotation-based solid-liquid separation process, while sand filtration physically filters water through a granular media bed. The two technologies can be combined.

8. Can DAF be used for industrial water reuse?

Yes. DAF can be integrated into industrial wastewater recovery and reuse systems when the wastewater characteristics are suitable.

9. What determines DAF capacity?

Flow rate, peak flow, suspended solids, particle characteristics, oil and grease loading, chemical conditioning, recycle flow, and required effluent quality all influence system sizing.

10. Can the DAF machine operate automatically?

Yes. PLC-based controls can automate pumps, air systems, skimmers, chemical dosing, alarms, and other operating functions.

11. What should be considered for reclaimed water reuse?

The intended end use, local regulations, microbiological requirements, turbidity, suspended solids, dissolved contaminants, nutrients, and required treatment barriers should all be evaluated before selecting the complete reuse treatment train.

Prev：High Efficiency Dissolved Air Flotation Daf Wastewater Treatment Plant Water Clarifier

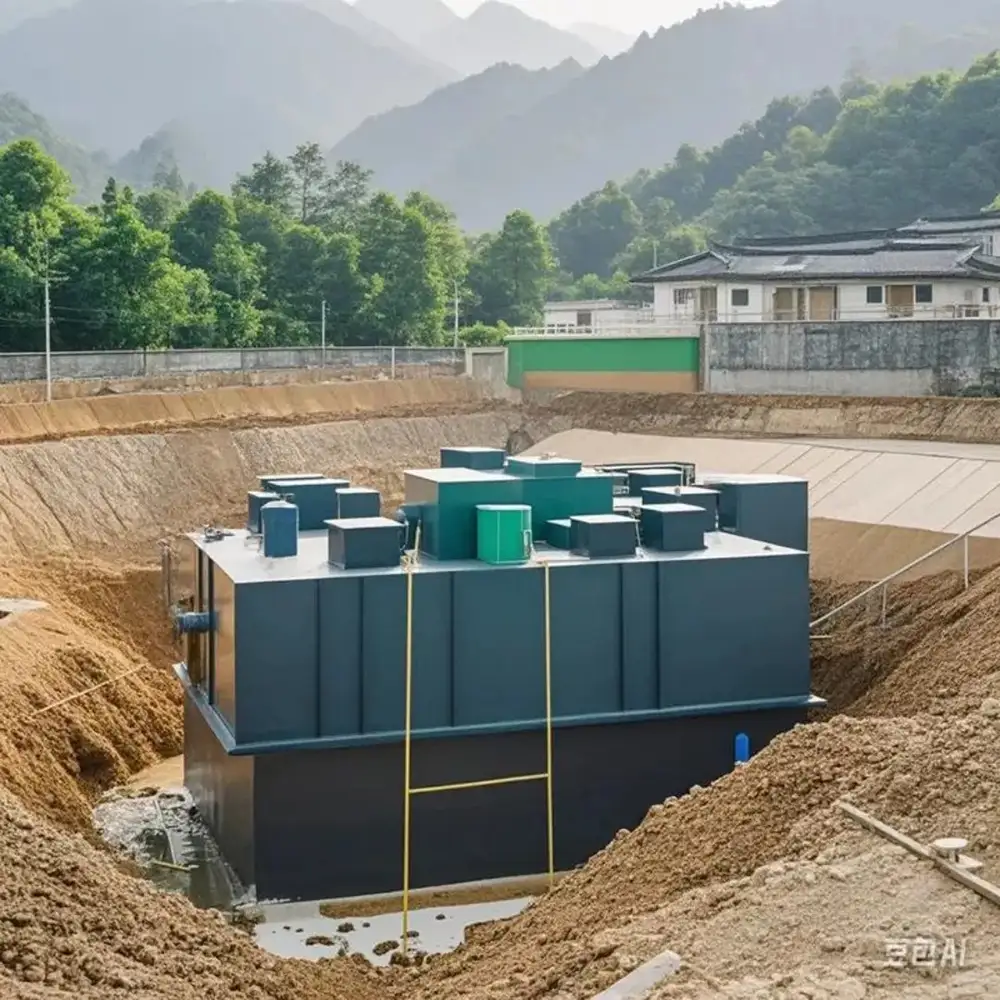

Next：Above-Ground Domestic Sewage Treatment Equipment
