 Taper Tube End Forming Machine for Furniture Chair,Table and Sofa Legs

The Taper Tube End Forming Machine for Furniture Chair,Table and Sofa Legs is designed for controlled reducing,tapering,and end forming of metal tubes used in furniture manufacturing and general metal fabrication. The machine can create reduced or tapered tube ends that are suitable for furniture legs,frames,connections,and other tubular components.

Metal chair legs,table legs,and sofa legs often require a specific tube-end profile for structural connection,assembly,or decorative appearance. A controlled taper can reduce the tube diameter at one end while creating a gradual transition from the original tube size to the required smaller section.

This type of tube end forming machine can help manufacturers replace repetitive manual tube shaping with a more consistent mechanical forming process. Depending on the machine configuration and tooling,it may support reducing,swaging,tapering,shrinking,necking,and other tube-end forming operations.

The actual processing capacity depends on tube material,outer diameter,wall thickness,forming length,tooling,and machine configuration.

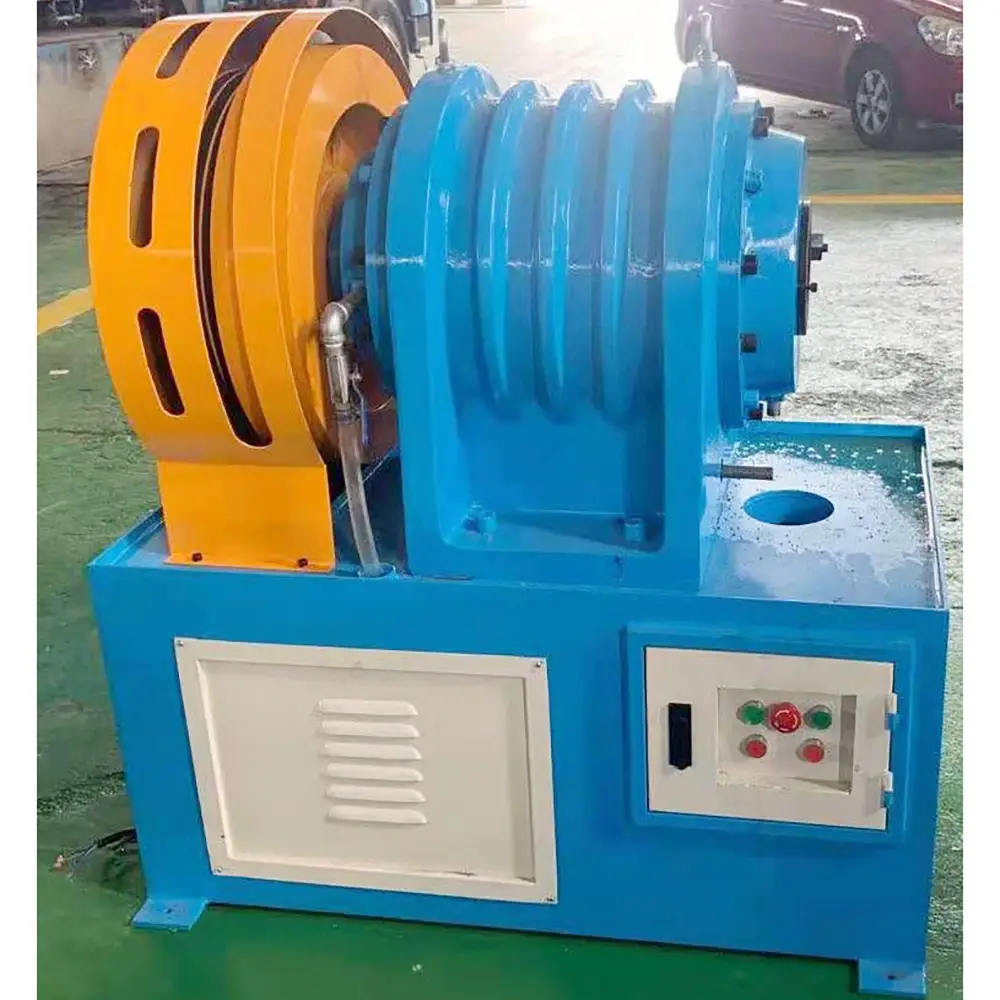

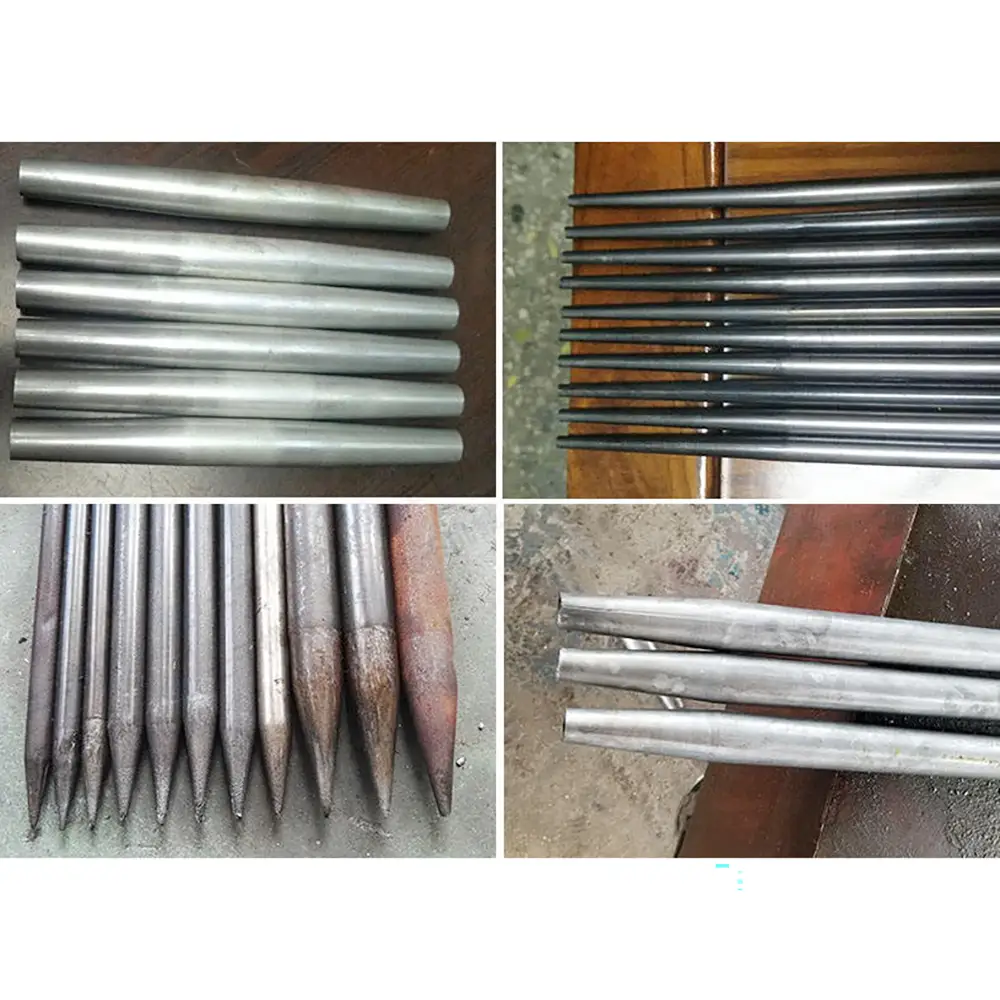

Tube End Reducing and Taper Forming

Tube end reducing is a forming process that decreases the diameter of a selected section of a tube. Taper forming creates a controlled transition between the original tube diameter and the reduced end.

This combination is particularly useful for furniture legs because the finished tube can have both a functional connection area and a visually tapered profile.

The forming process may use dedicated dies or other forming tools to compress and shape the tube. Tool geometry determines the final taper angle,transition length,and reduced diameter.

For accurate production,the customer should provide the original tube diameter,wall thickness,required end diameter,and taper length when selecting the machine.

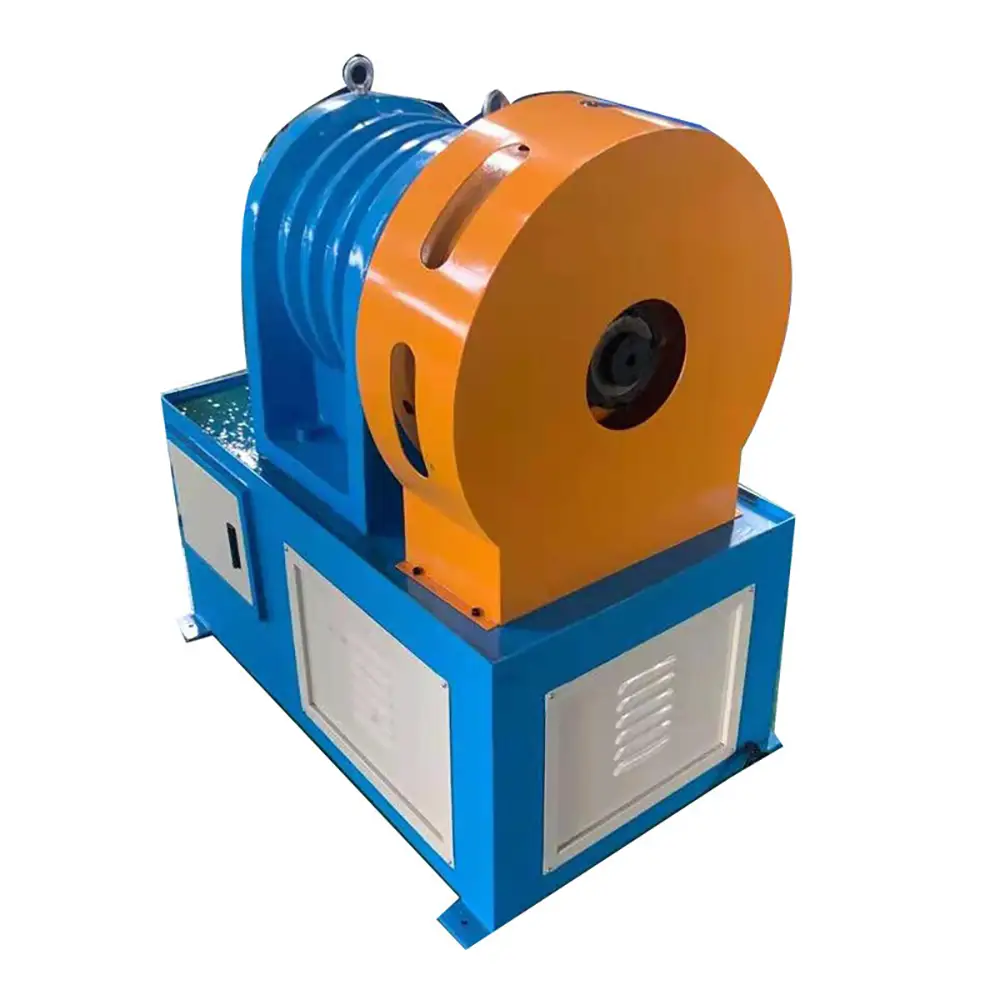

Furniture Chair Leg Tube Forming

Metal chair legs are one of the common applications for tapered tube forming. Depending on the furniture design,the tube may need a smaller end for connection to a frame,foot,bracket,or other component.

A dedicated tube end forming machine can process repeated chair-leg tubes using suitable forming dies and fixtures.

For manufacturers producing different chair models,the machine can be equipped with interchangeable tooling where supported by the machine design.

The finished tube may undergo additional operations such as drilling,punching,threading,welding,or surface finishing after taper forming.

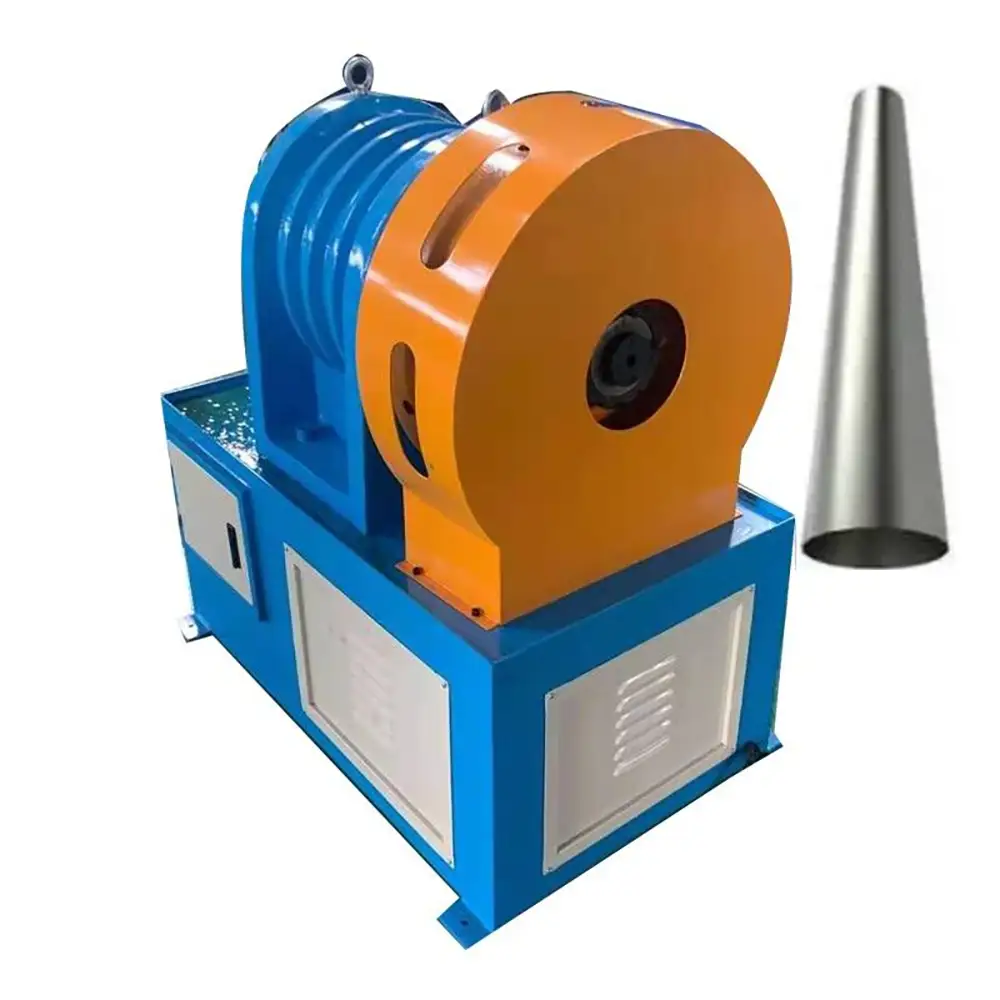

Table Leg Tube Forming

Table legs can also require tapered or reduced tube ends. The reduced section may be used to connect the leg with a frame,base,bracket,or other structural component.

For metal furniture production,the taper profile can also contribute to the visual design of the finished table leg.

The machine can be configured around different tube diameters and taper dimensions according to the production requirements. Custom dies can be developed for specialized table-leg shapes.

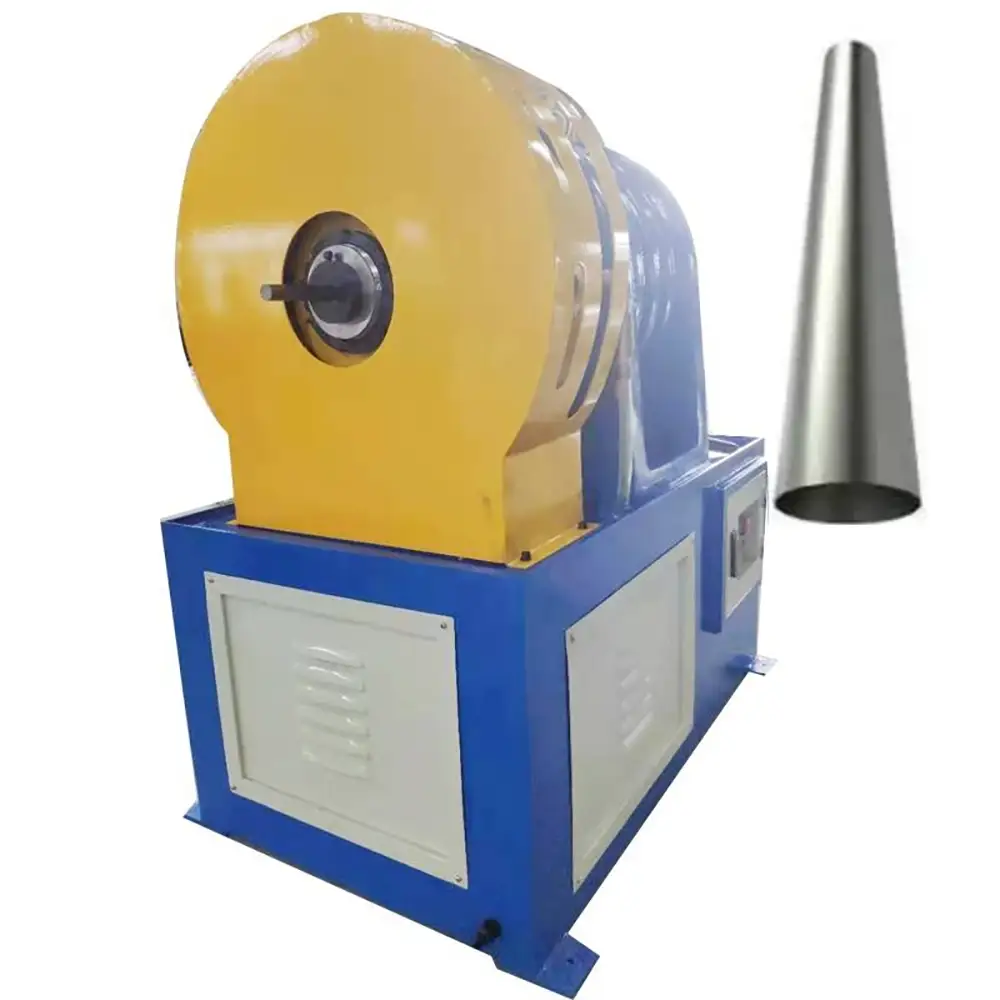

Sofa Leg Tube Forming

Metal sofa legs may use round tubes or other compatible tubular components that require reducing or tapering at one end.

The tube end forming process can create a narrower section for assembly or produce a specific decorative profile.

For sofa manufacturers and furniture component suppliers,the ability to process different tube dimensions can provide flexibility for multiple product designs.

The actual forming method should be selected according to the tube material,wall thickness,and final geometry.

Tube Swaging and Tapering

Tube tapering is closely related to swaging. Swaging changes the diameter or profile of a tube through controlled forming,while tapering creates a gradual reduction toward the tube end.

Depending on the tooling,the machine may perform tube swaging or other reducing operations.

Typical forming processes may include:

Tube End Reducing

Tube Tapering

Tube Swaging

Tube Shrinking

Tube Necking

Cone Forming

Tube End Shaping

Customized Tube Forming

The available functions depend on the specific machine design and tooling.

Suitable Metal Tubes

The machine can be configured for suitable metal tubes such as:

Carbon Steel Tubes

Mild Steel Tubes

Stainless Steel Tubes

Aluminum Tubes

Galvanized Steel Tubes

Alloy Steel Tubes

Other Compatible Metal Tubing

Material strength,ductility,and wall thickness influence the forming process. Stainless steel and high-strength steel may require different tooling and forming parameters from mild steel.

Thin-wall tubes also require careful control to reduce the risk of wrinkles,cracks,or unwanted deformation.

Before production,the material specification and tube dimensions should be confirmed.

Furniture Manufacturing Applications

The machine can support a wide range of furniture tube processing applications,including:

Metal Chair Legs

Metal Table Legs

Sofa Legs

Bed Frames

Furniture Frames

Office Furniture

Outdoor Furniture

Restaurant Furniture

Display Stands

Shelving Frames

Handrails

Tubular Supports

For manufacturers producing large quantities of furniture components,dedicated forming dies can help standardize tube-end dimensions.

Production Efficiency

A dedicated tube end forming machine can help reduce manual forming operations and simplify the production process.

For batch manufacturing,the operator can install the appropriate tooling and establish suitable forming parameters for the selected tube.

Similar workpieces can then be processed using a repeatable workflow.

Actual production output depends on tube dimensions,material,forming depth,number of forming stages,loading method,tool changes,and operator workflow.

For high-volume production,the complete cycle should be evaluated,including loading,forming,inspection,and unloading.

Tooling and Custom Dies

Tooling plays an important role in determining the finished tube profile. The die should match the required reduced diameter,taper angle,forming length,and tube material.

Custom tooling can be developed for:

Chair Leg Tapering

Table Leg Tapering

Sofa Leg Tapering

Furniture Frame Tubes

Reduced Tube Ends

Conical Tube Ends

Swaged Tube Ends

Custom Tube Profiles

Customers can provide CAD drawings,technical specifications,finished samples,or tube samples for tooling evaluation.

For manufacturers with multiple product models,interchangeable dies can provide additional production flexibility when supported by the machine.

Quality Control

Quality inspection should include the finished tube diameter,taper angle,forming length,surface condition,and overall dimensions.

For furniture components,appearance is also important because uneven tapering,wrinkles,or surface marks can affect the final product.

First-piece inspection is recommended when changing tube dimensions or tooling.

Tool wear should be monitored because worn dies can affect dimensional consistency and surface quality.

Material springback should also be considered when establishing forming parameters.

Maintenance and Safety

Regular maintenance helps maintain stable forming performance. Forming dies,fixtures,mechanical components,hydraulic or electric drive systems,and electrical components should be inspected according to the manufacturer's recommendations.

The forming area should be kept clean and free of unnecessary materials.

Operators should receive appropriate training and keep hands away from moving forming components. Guards,emergency stops,and other protective features depend on the actual machine configuration and applicable local requirements.

Custom & OEM Furniture Tube Forming Solutions

Furniture manufacturers often have different requirements for tube diameter,taper length,reduced diameter,and finished appearance. The machine can therefore be customized around specific product requirements.

OEM and ODM options may include custom forming dies,fixtures,feeding systems,hydraulic or electric drive systems,control configurations,and multi-stage forming solutions.

For an accurate quotation,customers should provide tube material,outer diameter,wall thickness,tube length,required end diameter,taper angle,forming length,and expected production volume.

This information allows the manufacturer to evaluate the appropriate taper tube end forming machine for furniture chair,table,and sofa legs.

Why Choose Us

Precision Tube End Forming — Designed for controlled tube reducing,tapering,and end shaping.

Furniture Leg Applications — Suitable for metal chair legs,table legs,sofa legs,and other tubular furniture components.

Tube Diameter Reduction — Creates reduced tube ends for connection,assembly,or decorative applications.

Taper and Swaging Functions — Suitable tooling can support tapering,swaging,shrinking,and other end-forming processes.

Flexible Material Options — Configurations can be developed for suitable steel,stainless steel,aluminum,and other metal tubes.

Custom Tooling — Forming dies can be designed according to tube dimensions and finished-part geometry.

OEM & ODM Support — Machine configurations can be developed according to customer drawings,samples,and production requirements.

B2B Manufacturing Solution — Suitable for furniture manufacturers,component suppliers,metal fabricators,distributors,and industrial buyers.

FAQs

1. What is a taper tube end forming machine?

It is a machine used to reduce and shape a selected section of a metal tube to create a tapered or otherwise formed tube end.

2. Can it make chair legs?

Yes. The machine can be configured for suitable metal chair-leg tubes requiring reducing or taper forming.

3. Can it process table legs?

Yes. Suitable metal table-leg tubes can be reduced or tapered according to the required finished profile.

4. Can it process sofa legs?

Yes. The machine can form suitable sofa-leg tubes into reduced,tapered,or customized end profiles.

5. What is tube end reducing?

Tube end reducing decreases the diameter of a selected tube section,usually near the end.

6. What is taper forming?

Taper forming creates a gradual transition from a larger tube diameter to a smaller diameter or another specified profile.

7. Can the machine perform swaging?

Depending on the tooling and machine configuration,it can support suitable tube swaging and diameter-reducing operations.

8. What materials can be processed?

Depending on the configuration,the machine can process suitable carbon steel,mild steel,stainless steel,aluminum,galvanized steel,and other metal tubes.

9. Can custom dies be supplied?

Yes. Custom forming dies can be developed according to tube diameter,wall thickness,taper angle,reduced diameter,and forming length.

10. Is the machine automatic?

The operating method depends on the machine model. Configurations may be manual,semi-automatic,or automatic.

11. What affects forming quality?

Material properties,tube diameter,wall thickness,tooling design,forming force,forming sequence,and machine setup all affect the final tube profile.
