Multifunction Cone square Taper Pipe Tube End Swaging Forming Machine

Cone Taper Tube Forming

Cone taper forming creates a gradually reduced or conical section at the end of a metal tube. This type of forming is useful when a tube needs to transition from one diameter to another or when a tapered appearance is required.

Typical applications may include:

Furniture legs

Decorative metal tubes

Lighting components

Structural tube components

Automotive tubing

Machinery components

Architectural metalwork

The taper angle and finished dimensions are determined by the forming die and machine setup. For customized cone profiles,customers should provide drawings or samples so the appropriate tooling can be evaluated.

Square Tube Tapering and Swaging

In addition to round tubes,the machine can be configured for suitable square or rectangular tubing applications. Square tube end forming may be used to create tapered ends,reduced sections,or specially shaped tube connections.

Square and rectangular tubing can behave differently from round tubing during forming because the corners and flat surfaces require appropriate tooling support.

The forming die should be designed according to the outside dimensions,wall thickness,material strength,and required end geometry.

Potential applications include:

Square furniture legs

Metal table frames

Chair components

Fence posts

Handrail components

Construction tubing

Architectural frames

Industrial structural components

Actual square tube forming capacity depends on the machine model and tooling configuration.

Tube End Swaging

Swaging is a mechanical forming process used to reduce or reshape the end of a tube. It can create a smaller diameter,conical profile,or specially shaped connection area.

For tube manufacturing,swaging can provide a controlled alternative to cutting and welding separate tube sections for certain designs.

The machine applies forming force through dedicated tooling to gradually reshape the selected section of the tube.

The final swaged profile depends on material properties,forming pressure,die geometry,number of forming stages,and machine rigidity.

For harder or thicker materials,additional forming force or specialized tooling may be required.

Pipe End Reducing

Pipe end reducing decreases the diameter of a selected section of the pipe or tube. This can be used to create connection ends,transition sections,or tapered profiles.

Reducing applications may include:

Metal furniture tubes

Exhaust components

Structural tubing

Machinery parts

Decorative pipes

Automotive components

Construction tubes

The required reduction ratio should be established according to the original tube diameter,wall thickness,material properties,and finished dimensions.

Excessive reduction in a single forming operation may cause deformation or surface defects,so multi-stage forming may be appropriate for certain applications.

Multifunction Tube End Forming

The main advantage of a multifunction machine is its ability to support different forming operations using appropriate tooling.

Depending on the machine configuration,it may support operations such as:

Tapering

Swaging

Reducing

Shrinking

Cone forming

Necking

End shaping

Custom profile forming

The available functions depend on the machine structure and tooling package.

For manufacturers producing several different tube products,this flexibility can reduce the need to purchase separate machines for every forming process.

Furniture Tube Applications

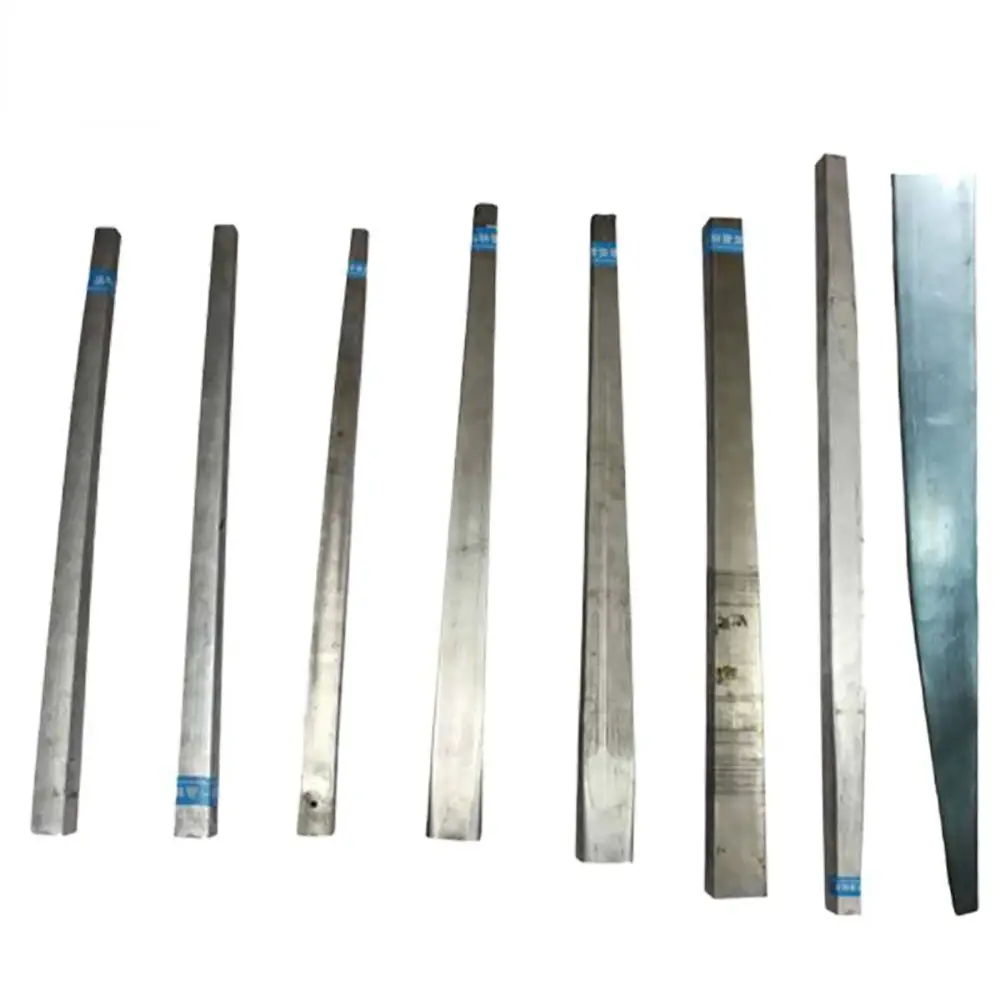

Furniture manufacturing is one of the common applications for tube end forming. Metal furniture frequently uses tapered or shaped tube legs and frame components.

The machine can be used for suitable:

Table legs

Chair legs

Sofa frame components

Bed frame tubes

Cabinet components

Decorative furniture tubes

Metal shelving components

Cone and taper forming can create both functional connection sections and decorative shapes.

For furniture manufacturers,custom dies can be developed to achieve specific tube profiles and visual designs.

Automotive and Exhaust Applications

Tube end forming is also widely used in automotive and exhaust-related components. Depending on the material and machine configuration,the equipment may process suitable exhaust tubes,connectors,and structural tubing.

Possible applications include:

Exhaust pipe ends

Muffler tubes

Automotive tubing

Motorcycle exhaust components

Connecting pipes

Vehicle frame components

The machine should be selected according to the tube diameter,wall thickness,material,and required finished shape.

Material Compatibility

The machine can be configured for different metal tube materials depending on forming capacity and tooling.

Potential materials include:

Carbon steel

Mild steel

Stainless steel

Aluminum

Galvanized steel

Other compatible metal tubes

Material strength and ductility have a direct effect on forming requirements. Stainless steel and high-strength steel may require different tooling and forming parameters than mild steel.

Aluminum can generally require different forming pressure and tooling considerations because of its material characteristics.

Customers should provide material grade and tube dimensions before selecting the appropriate machine configuration.

Tooling and Custom Dies

Tooling determines the final geometry of the formed tube end. A properly designed die can help produce consistent taper angles,diameter reductions,and surface profiles.

Tooling options may include:

Cone forming dies

Square tube taper dies

Round tube swaging dies

Reducing dies

Necking dies

Custom profile dies

Multi-stage forming dies

For OEM projects,customers can provide technical drawings,3D models,samples,or finished-part dimensions.

Custom dies can then be developed around the actual production requirements.

Production Efficiency

A multifunction tube end forming machine can help simplify production by combining multiple forming processes into one equipment platform.

For repetitive production,once the tooling and machine parameters are properly established,operators can process similar workpieces using a standardized procedure.

Production efficiency depends on tube dimensions,forming stages,material,tooling changes,loading method,and operator workflow.

For high-volume production,additional feeding or automation functions may be evaluated depending on the machine design.

Forming Quality and Inspection

Quality control is important for tube end forming applications. Finished components should be checked for:

End diameter

Taper angle

Forming length

Wall deformation

Concentricity

Surface condition

Overall dimensional consistency

Tool alignment and forming pressure should remain stable during production.

First-piece inspection can help establish suitable machine parameters before a production batch is processed.

For critical components requiring tight tolerances,customers should provide dimensional requirements before machine selection and conduct sample testing.

Maintenance and Safety

Regular maintenance helps maintain stable forming performance. Operators should inspect dies,clamps,hydraulic components,drive systems,bearings,and other machine components according to the manufacturer's recommendations.

Forming dies should be cleaned and inspected regularly. Excessive wear can change the finished tube profile.

The machine contains moving tooling and forming forces that can create pinch points. Operators should keep hands away from the forming area during operation and use appropriate protective equipment.

Emergency stops,guards,electrical protection,and other safety functions depend on the machine configuration. Operators should follow the manufacturer's operating instructions and applicable workplace requirements.

OEM and ODM Tube Forming Solutions

The Multifunction Cone & Square Taper Pipe Tube End Swaging Forming Machine can be customized for different production applications.

Possible customization may include:

Round tube tooling

Square tube tooling

Cone forming dies

Swaging dies

Reduction dies

Custom fixtures

Hydraulic capacity

Pneumatic assistance

Feeding systems

PLC or CNC controls

Customers should provide tube material,shape,outside dimensions,wall thickness,finished end dimensions,forming length,production volume,and drawings or samples.

This information helps determine the appropriate machine and tooling configuration.

Why Choose Us

Multifunction Tube End Forming — Supports suitable tapering,swaging,reducing,shrinking,and custom tube-end forming operations.

Round & Square Tube Capability — Can be configured for suitable round,square,and other compatible tubular profiles.

Cone & Taper Forming — Designed for producing tapered and conical tube ends according to the selected tooling.

Flexible Swaging Applications — Suitable for reducing or reshaping tube ends for connection and assembly requirements.

Multiple Material Options — Configurations can be developed for carbon steel,mild steel,stainless steel,aluminum,and other compatible tubing.

Custom Tooling Support — Cone,square tube,reducing,swaging,and special-profile dies can be customized.

Production-Oriented Design — Suitable for furniture,automotive,construction,architectural,and general metal fabrication.

OEM & ODM B2B Service — Machine configuration,tooling,fixtures,and automation can be developed around customer drawings and production requirements.

FAQs

1. What is a tube end swaging machine?

A tube end swaging machine reshapes or reduces a selected section of a metal tube using mechanical forming force and dedicated tooling.

2. Can this machine form cone-shaped tube ends?

Yes. With suitable cone-forming dies,the machine can produce tapered or conical tube ends.

3. Can it process square tubes?

Depending on the machine configuration,it can be equipped with suitable tooling for square or rectangular tube end forming.

4. What is the difference between tapering and swaging?

Tapering creates a gradual change in tube geometry,while swaging generally reshapes or reduces the tube through controlled mechanical forming. The exact process depends on tooling and application.

5. Can it reduce pipe diameter?

Yes. Suitable reducing dies can reduce the diameter of a tube or pipe end to create a connection or transition section.

6. What materials can be processed?

Depending on machine capacity,it may process carbon steel,mild steel,stainless steel,aluminum,galvanized steel,and other compatible metal tubes.

7. Is it suitable for furniture tube processing?

Yes. Furniture legs,chair frames,table legs,bed frames,and other tubular furniture components can be suitable applications.

8. Can stainless steel tubes be tapered?

Yes,provided the machine capacity and tooling are suitable for the stainless steel grade,diameter,and wall thickness.

9. Can custom forming dies be supplied?

Yes. Custom cone,square tube,reducing,swaging,and special-profile dies can be developed according to drawings or samples.

10. What affects tube forming quality?

Material type,tube dimensions,wall thickness,die geometry,forming force,machine rigidity,alignment,and forming stages all affect the finished result.

11. Is the machine fully automatic?

Not necessarily. The exact operating method depends on the model. Manual,semi-automatic,and automated configurations may be available.
