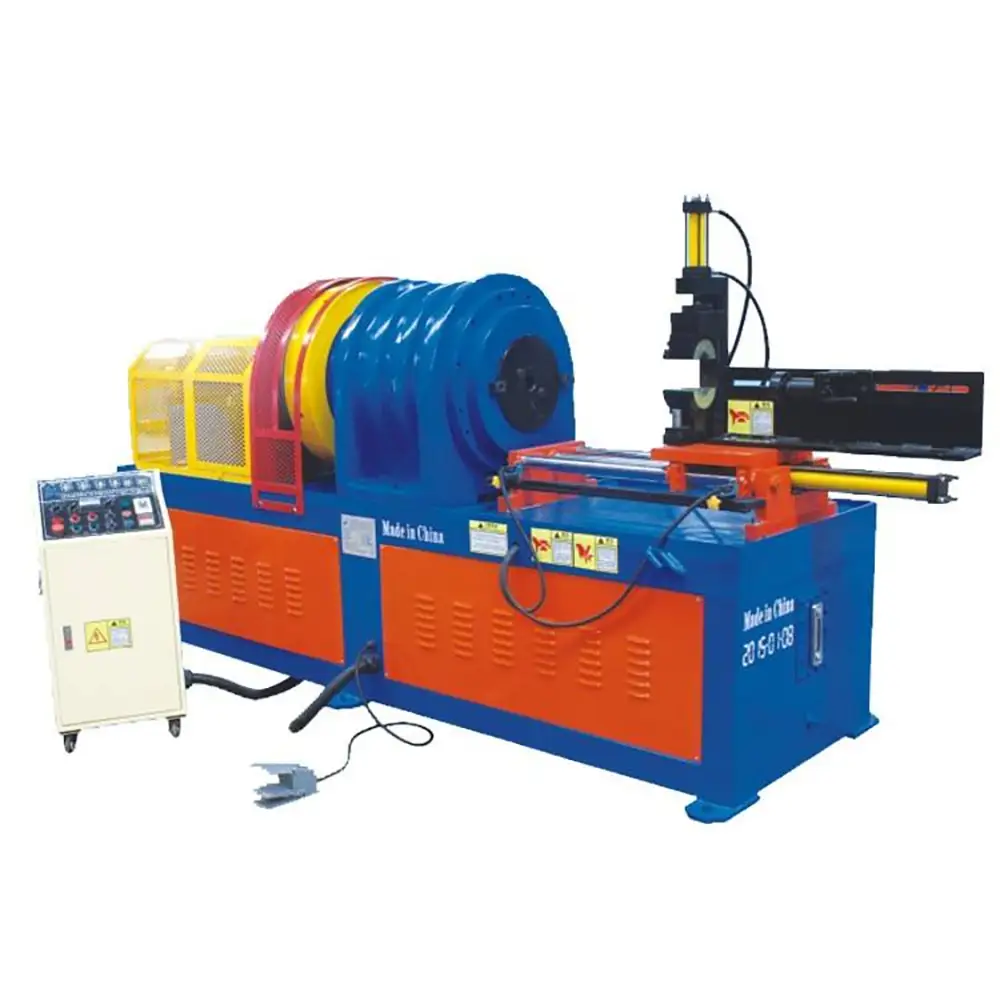

Semi- Automatic Handrail Embossing Machine Iron Pipe Embossing Machine

 Semi-Automatic Handrail Embossing Machine for Iron Pipe

The Semi-Automatic Handrail Embossing Machine is designed for forming decorative and functional embossed patterns on iron pipes,steel tubes,metal handrails,and other suitable tubular workpieces. By applying controlled forming pressure through specially designed embossing rollers or dies,the machine can create repeated surface patterns,grooves,ribs,and decorative profiles on metal tubes.

This type of equipment is commonly used in handrail manufacturing,stair railing production,furniture fabrication,metal fencing,gate manufacturing,architectural metalwork,and general tube processing. The semi-automatic operating concept provides a balance between operator flexibility and machine-assisted forming,which can be useful for small-batch and repetitive production.

Unlike cutting or engraving processes,embossing forms the surface of the tube through mechanical pressure. This can produce a raised or recessed pattern while maintaining the overall tubular structure of the workpiece.

The actual embossing depth,pattern,size,tube diameter,and compatible material thickness depend on the machine configuration and tooling.

Handrail Embossing Application

Metal handrails are often designed with decorative details to improve their visual appearance while maintaining structural functionality. Embossing provides a practical method for adding repeated patterns to round tubes and handrail components.

The machine can be used for suitable handrail products such as:

Stair handrails

Balcony railings

Decorative railings

Garden fences

Metal gates

Architectural handrails

Furniture frames

Decorative metal tubes

Interior metal components

Embossed patterns can be positioned along selected sections of a tube according to the tooling and machine setup.

For production requiring multiple designs,the machine can use different embossing dies or roller profiles to create different surface effects.

Iron Pipe Embossing Machine

The Iron Pipe Embossing Machine uses mechanical forming force to reshape the surface of a metal tube. The workpiece is positioned within the forming area,and the embossing tool applies controlled pressure to produce the required pattern.

Iron and steel tubes are commonly used for handrails,furniture structures,fences,and architectural components. Depending on the machine capacity,the equipment can be configured for different tube diameters and wall thicknesses.

Because different tube materials have different forming characteristics,the correct tooling and forming pressure should be selected according to the actual workpiece.

Thin-wall tubing may require controlled pressure to prevent excessive deformation,while thicker or higher-strength tubing may require greater forming force.

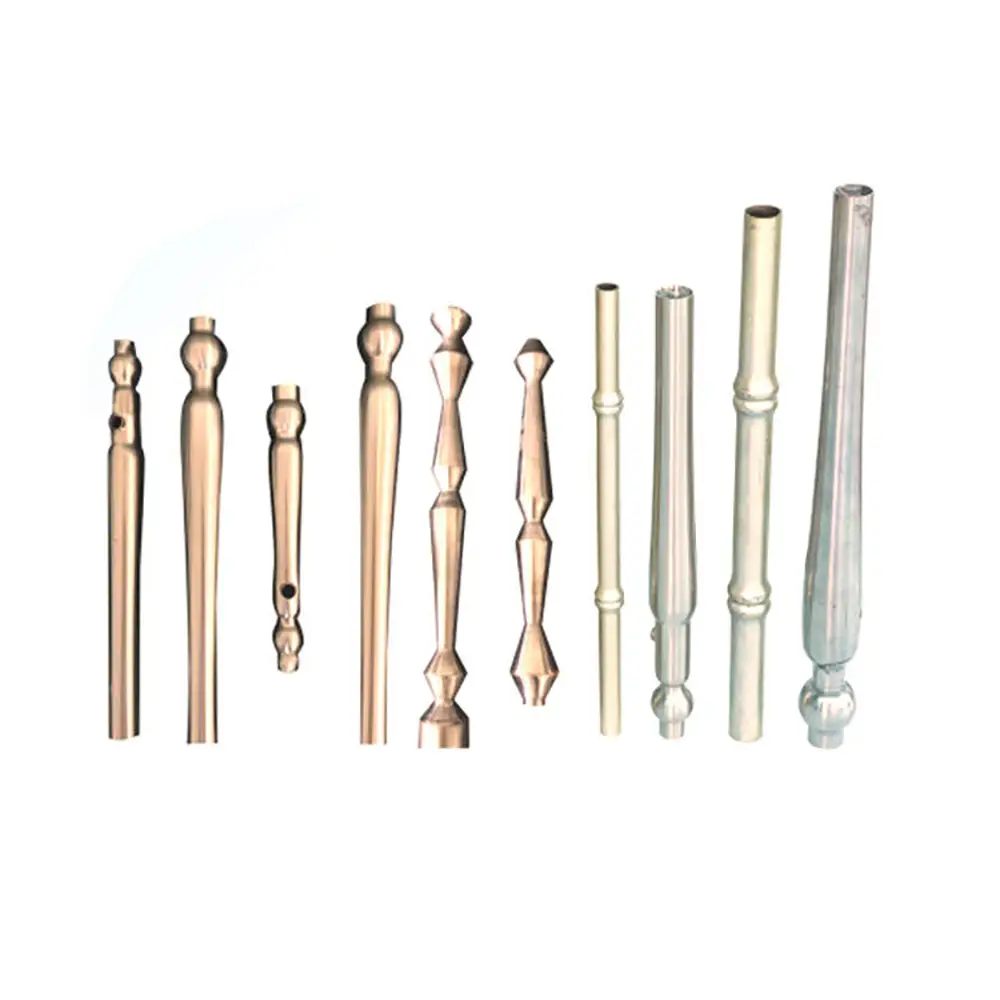

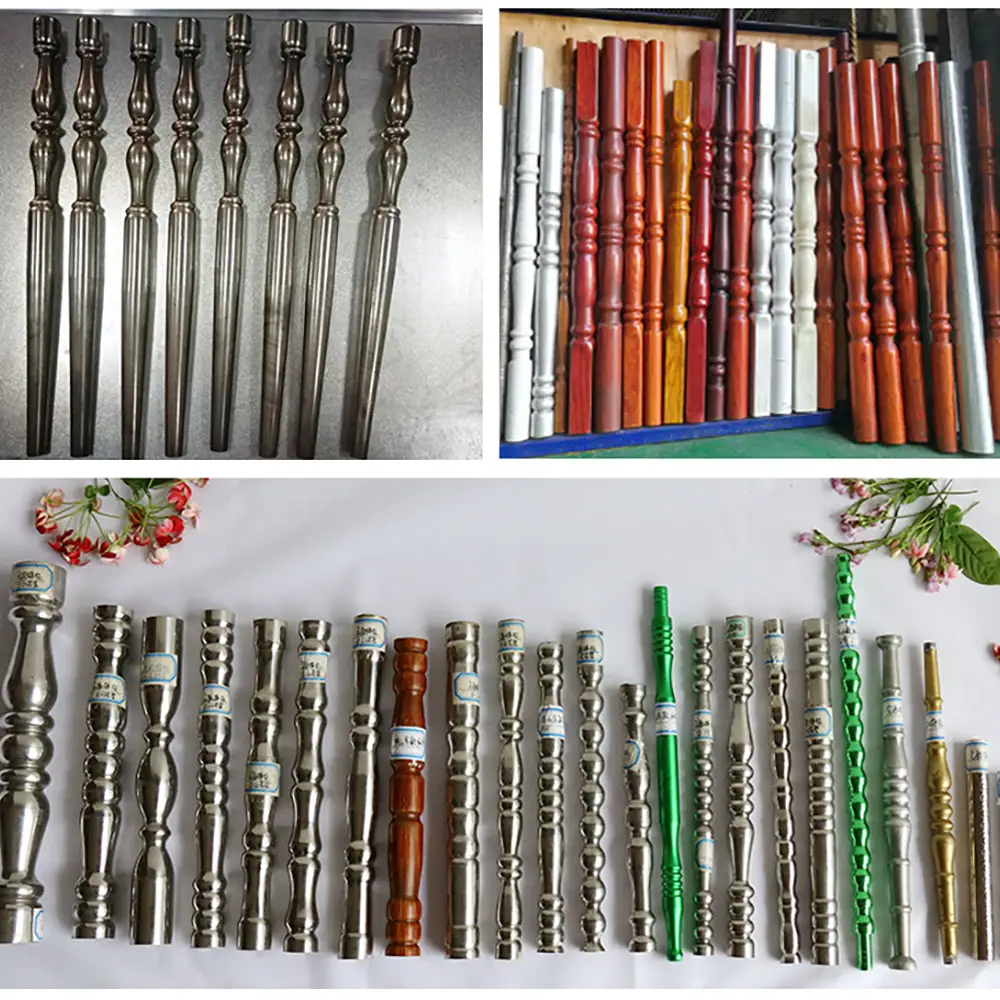

Decorative Tube Embossing

Decorative embossing is useful when manufacturers want to add visual detail without attaching separate decorative components.

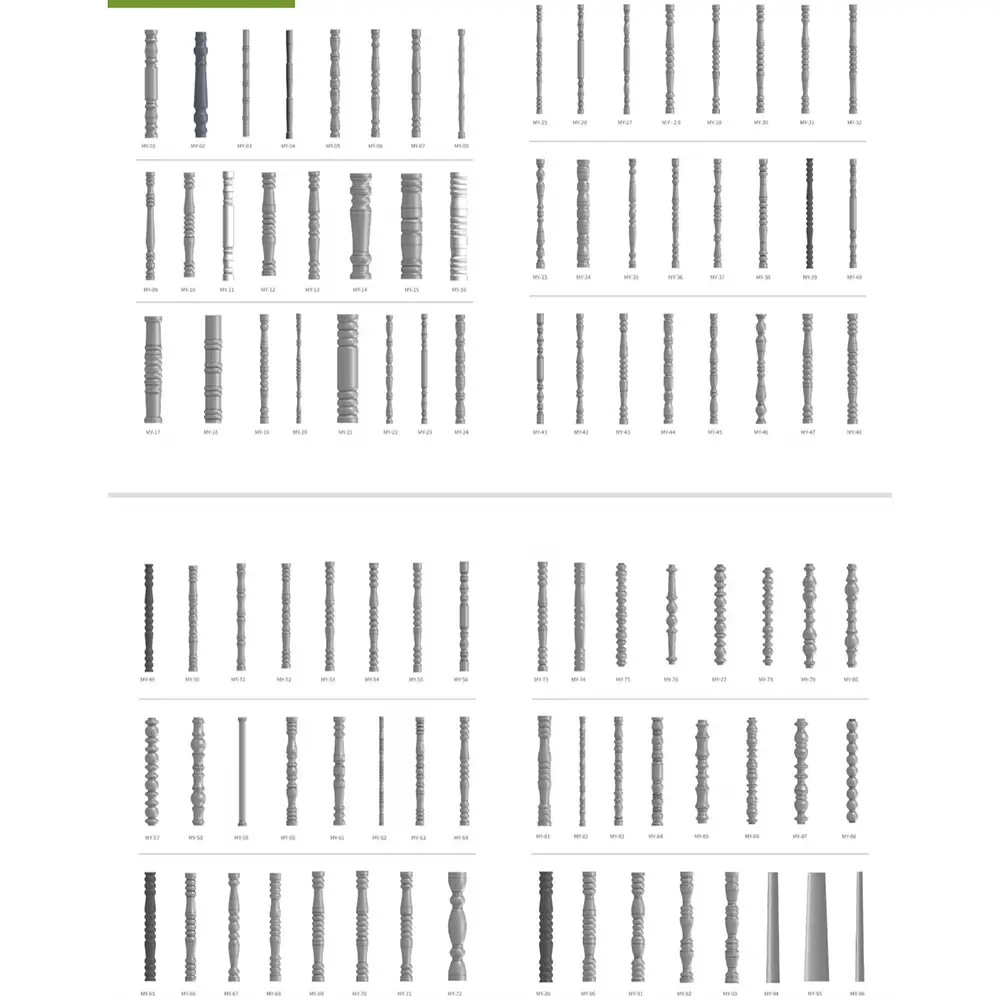

Possible embossed designs include:

Ring patterns

Linear grooves

Raised ribs

Repeated geometric patterns

Decorative bands

Textured profiles

Custom surface designs

The final pattern is determined primarily by the embossing die or roller design.

For custom products,customers can provide drawings,samples,or pattern references. Custom tooling can then be evaluated according to the required tube diameter,material,and pattern geometry.

Semi-Automatic Operation

The semi-automatic design allows the machine to perform the forming operation while the operator remains involved in loading,positioning,and unloading the workpiece.

A typical operating process may include placing the tube into the workholding area,adjusting the forming position,securing the workpiece,starting the embossing cycle,and removing the finished component.

Depending on the specific machine configuration,feeding,rotation,clamping,or forming movements may be mechanically assisted.

This operating concept is useful for manufacturers that need repeatable production but still want flexibility when changing tube sizes,patterns,or product designs.

Tube Positioning and Forming

Accurate positioning is important for producing consistent embossed patterns. The tube must remain properly aligned during the forming process to prevent unwanted movement or pattern deviation.

Depending on the machine design,the workpiece may be supported by fixtures,rollers,clamps,or other positioning components.

For long handrails or tubes,additional support may be useful to prevent the workpiece from moving excessively during forming.

The required positioning method depends on the tube diameter,length,wall thickness,and embossing pattern.

Embossing Tooling and Dies

Tooling is one of the most important factors affecting embossing quality. The shape of the die determines the pattern transferred to the tube surface.

Different tooling can be developed for different applications,including:

Decorative handrail patterns

Ring embossing

Straight-line grooves

Raised ribs

Furniture tube patterns

Fence and gate patterns

Custom decorative profiles

For manufacturers producing several products,the ability to change tooling can make the machine more flexible.

Custom embossing rollers or dies can also be considered for OEM production where a customer requires a proprietary pattern.

Materials and Tube Applications

The machine can be configured for different metal tube materials,depending on its forming capacity and tooling.

Potential materials include:

Iron pipe

Carbon steel tube

Mild steel tube

Stainless steel tube

Galvanized steel tube

Other compatible metal tubing

Stainless steel and high-strength steel generally have different forming characteristics from mild steel. The material grade,wall thickness,and tube diameter should therefore be provided before selecting the machine.

For coated or finished tubes,customers should also evaluate whether the embossing process may affect the surface coating.

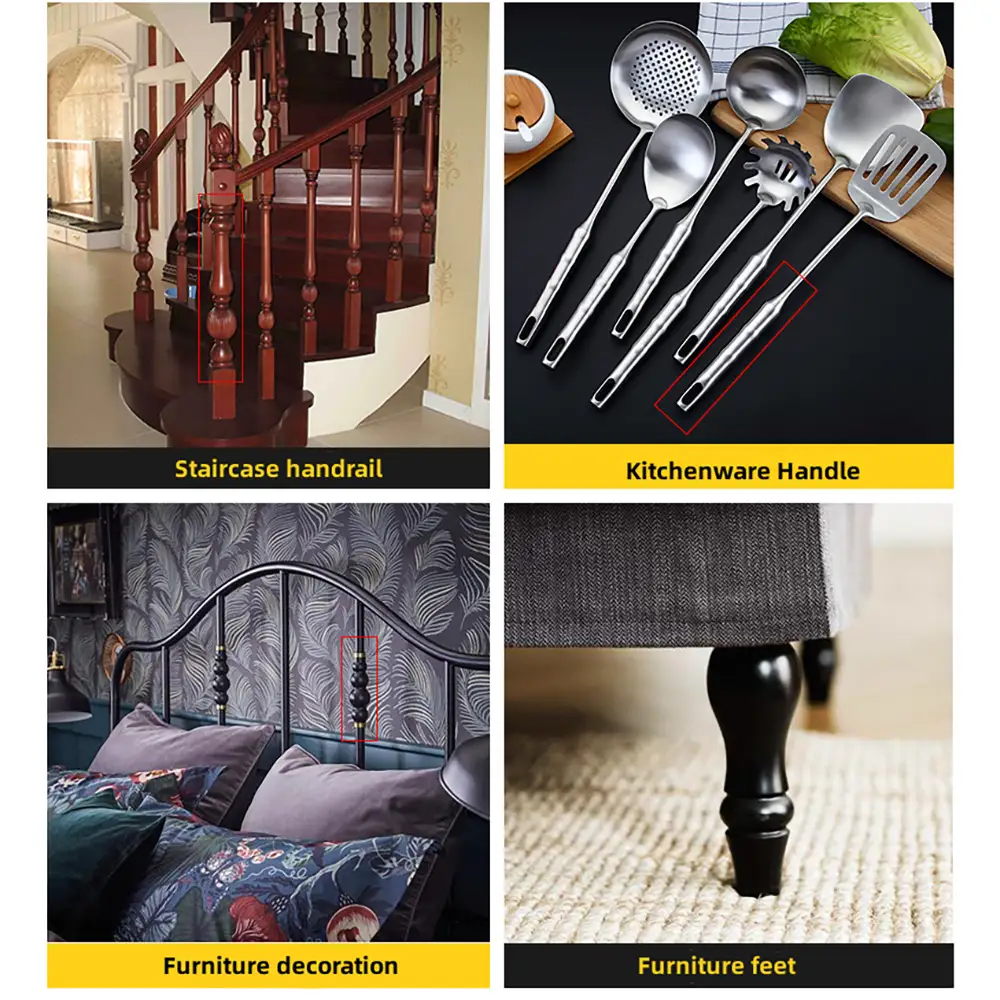

Furniture and Architectural Applications

In addition to handrails,the machine can be used for decorative metal tubes used in furniture and architectural products.

Potential applications include:

Furniture legs

Chair frames

Table frames

Bed frames

Stair railings

Balcony railings

Decorative fences

Metal gates

Window and door components

Architectural metalwork

Embossed tubing can add visual differentiation to products while allowing manufacturers to use standardized metal tube materials.

Production Efficiency

A semi-automatic embossing machine can improve production efficiency compared with completely manual forming methods. Once the tube position and forming parameters have been established,the operator can repeat similar forming cycles across multiple workpieces.

Production output depends on tube size,pattern length,forming depth,tooling design,loading method,and operator workflow.

For small and medium production batches,the semi-automatic format can provide a practical balance between flexibility and repeatability.

For higher-volume production,additional automation such as automatic feeding,rotation,or unloading may be evaluated depending on the machine design.

Quality Control

Embossing quality should be checked throughout production. Important inspection points may include pattern depth,pattern position,tube diameter,workpiece straightness,and surface condition.

The embossing tool should remain properly aligned to produce a uniform pattern. Excessive tool pressure can cause unwanted deformation,while insufficient pressure may result in an incomplete pattern.

For production orders with strict dimensional requirements,first-piece inspection and periodic quality checks are recommended.

Sample testing can also help determine suitable forming pressure and tooling before large-scale production.

Maintenance and Safety

Regular maintenance helps maintain consistent embossing performance. Operators should inspect forming rollers,dies,shafts,bearings,clamping components,and adjustment mechanisms according to the manufacturer's recommendations.

Forming surfaces should be kept clean to prevent debris from affecting the finished tube.

The machine contains moving mechanical components and forming pressure that can create pinch points. Operators should keep hands away from the forming area during operation and use appropriate protective equipment.

Guards,emergency stops,electrical protection,and other safety features depend on the machine configuration. Operators should follow the manufacturer's instructions and applicable workplace safety requirements.

Custom OEM and ODM Solutions

The machine can be customized for different tube embossing applications. OEM and ODM solutions may include customized embossing dies,roller profiles,fixtures,clamping systems,feeding mechanisms,and control configurations.

Customers should provide:

Tube material

Tube outside diameter

Wall thickness

Tube length

Embossing pattern

Embossing depth

Required pattern position

Production volume

Drawings or samples

These details help determine the appropriate machine configuration and tooling.

For manufacturers,distributors,and wholesalers,the machine can also be developed as part of a complete handrail or decorative tube production solution.

Why Choose Us

Semi-Automatic Embossing Operation — Provides machine-assisted forming while maintaining operator flexibility for different tube products.

Handrail Production Applications — Suitable for decorative stair handrails,railings,fences,gates,and architectural metalwork.

Iron & Steel Tube Processing — Designed for suitable iron,carbon steel,mild steel,and other compatible metal tubes.

Decorative Surface Forming — Creates raised,recessed,grooved,and patterned profiles through controlled mechanical forming.

Flexible Tooling — Different embossing dies and roller profiles can be selected for different decorative patterns.

Multiple Industrial Applications — Suitable for furniture,construction,architectural,metalworking,and general tube fabrication.

Custom OEM Tooling — Custom patterns,fixtures,and forming tools can be developed according to customer drawings or samples.

B2B Manufacturing Support — Suitable for manufacturers,distributors,wholesalers,and international buyers sourcing metal tube embossing equipment.

FAQs

1. What is a handrail embossing machine?

A handrail embossing machine is equipment designed to form decorative or functional patterns on suitable metal handrails,tubes,and pipes using mechanical forming tools.

2. Can this machine emboss iron pipes?

Yes. The machine can be configured for suitable iron and steel pipes,depending on tube diameter,wall thickness,material properties,and tooling.

3. What is the purpose of tube embossing?

Tube embossing can add decorative patterns,grooves,ribs,or other formed profiles to the tube surface for aesthetic or functional purposes.

4. Can it process stainless steel tubes?

It can,provided the machine and tooling are suitable for the stainless steel grade,diameter,and wall thickness.

5. What products can be made with this machine?

Typical applications include handrails,stair railings,fences,gates,furniture tubes,decorative pipes,and architectural metal components.

6. Can the embossing pattern be customized?

Yes. Custom embossing rollers or dies can be developed according to the required pattern,dimensions,and tube specifications.

7. Is this machine fully automatic?

The described machine is semi-automatic. The operator may still be responsible for loading,positioning,and unloading depending on the machine configuration.

8. Can different tube diameters be processed?

Depending on the machine design,different tube diameters may be processed using suitable adjustments or tooling. The specific diameter range should be confirmed before purchase.

9. Does embossing damage the tube?

When the correct tooling and forming parameters are used,the tube can be formed in a controlled manner. Excessive pressure or unsuitable tooling may cause unwanted deformation.

10. What affects embossing quality?

Material type,tube diameter,wall thickness,tooling design,forming pressure,alignment,and workpiece positioning all affect the final embossed pattern.

11. Can the machine be used for furniture tubes?

Yes. Embossed metal tubes can be used for furniture legs,chair frames,table frames,bed frames,and other decorative furniture components.
