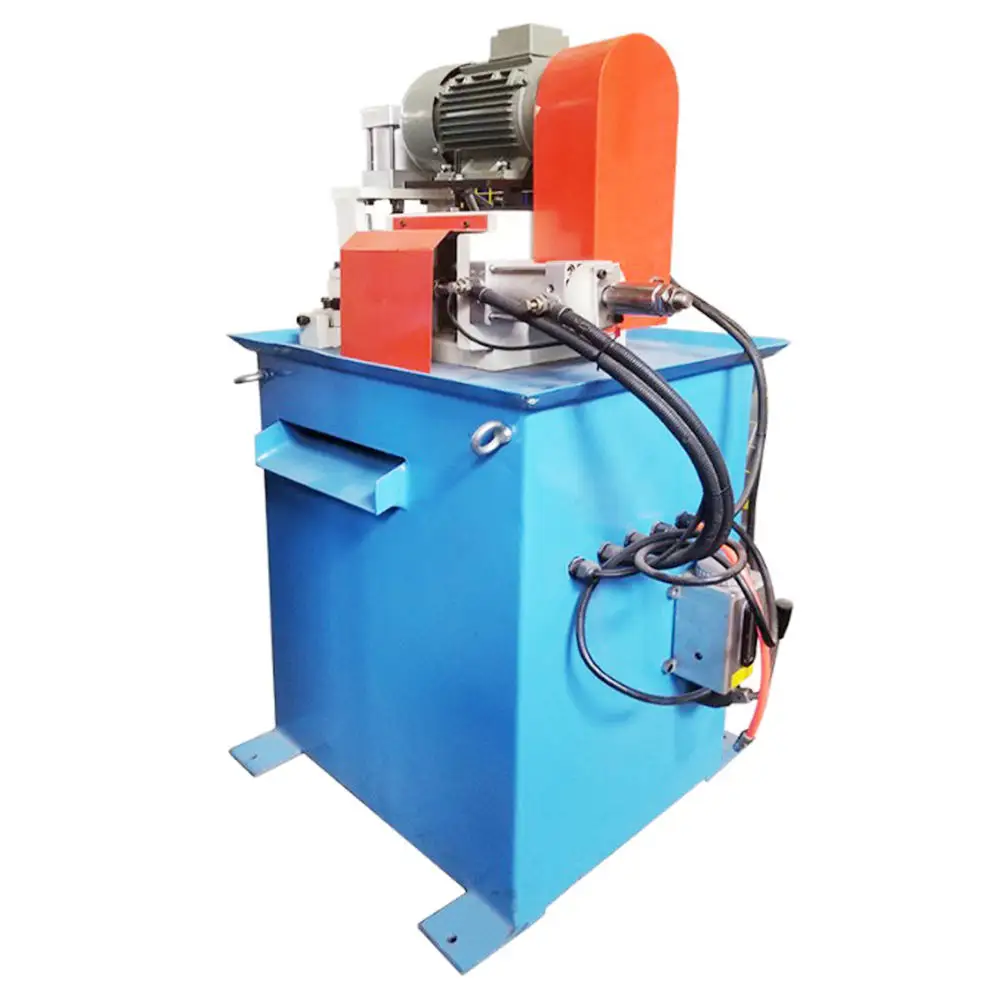

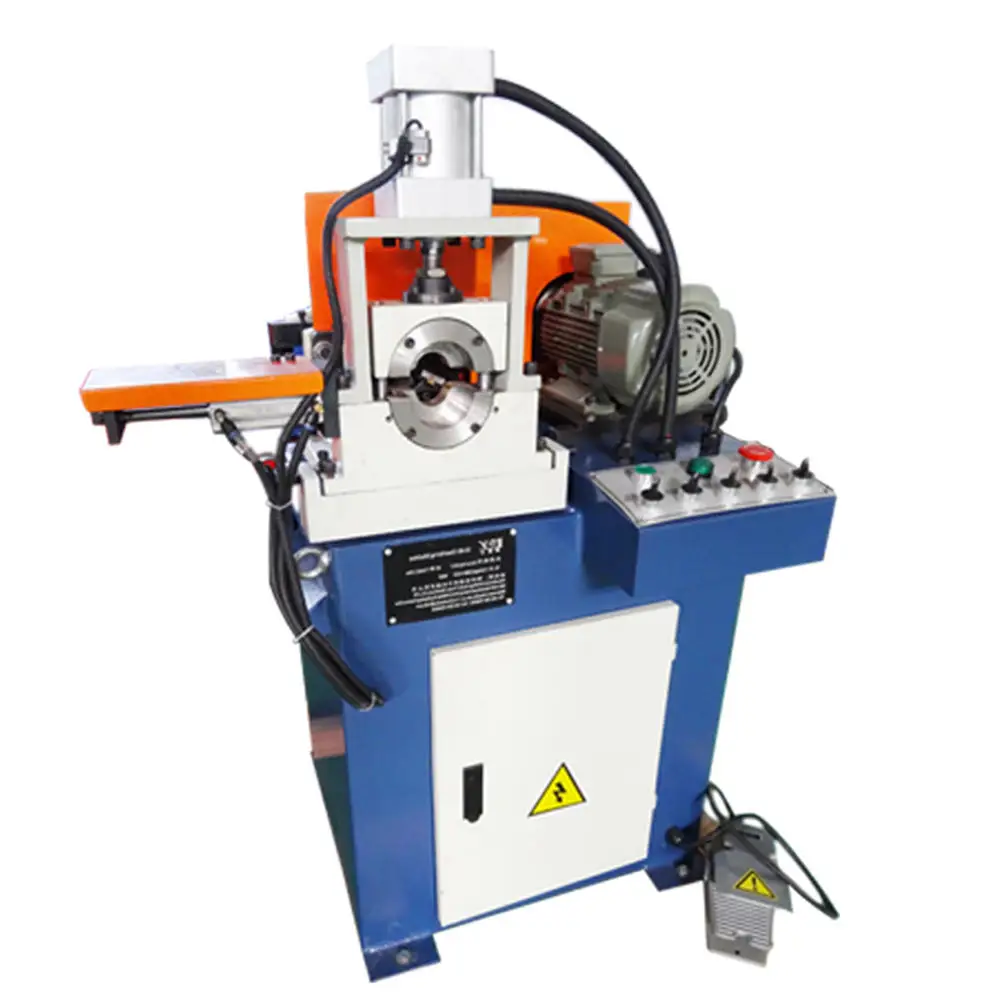

Precision Stainless Steel Metal Pipe bar Material Pneumatic Single Head Chamfering Machine

Single Head Chamfering Design

The single head configuration means that the machine is arranged around one primary chamfering processing head. This design can provide a relatively straightforward setup for processing individual workpieces.

Single-head machines can be practical for manufacturers that do not require simultaneous processing of both ends of a pipe. They can also be useful for flexible production where workpiece sizes or chamfer specifications change between batches.

The operator can load and secure the workpiece,position it against the appropriate reference point,and activate the chamfering cycle according to the machine configuration.

For high-volume applications requiring simultaneous double-end processing,a double-head or double-end machine may be considered instead.

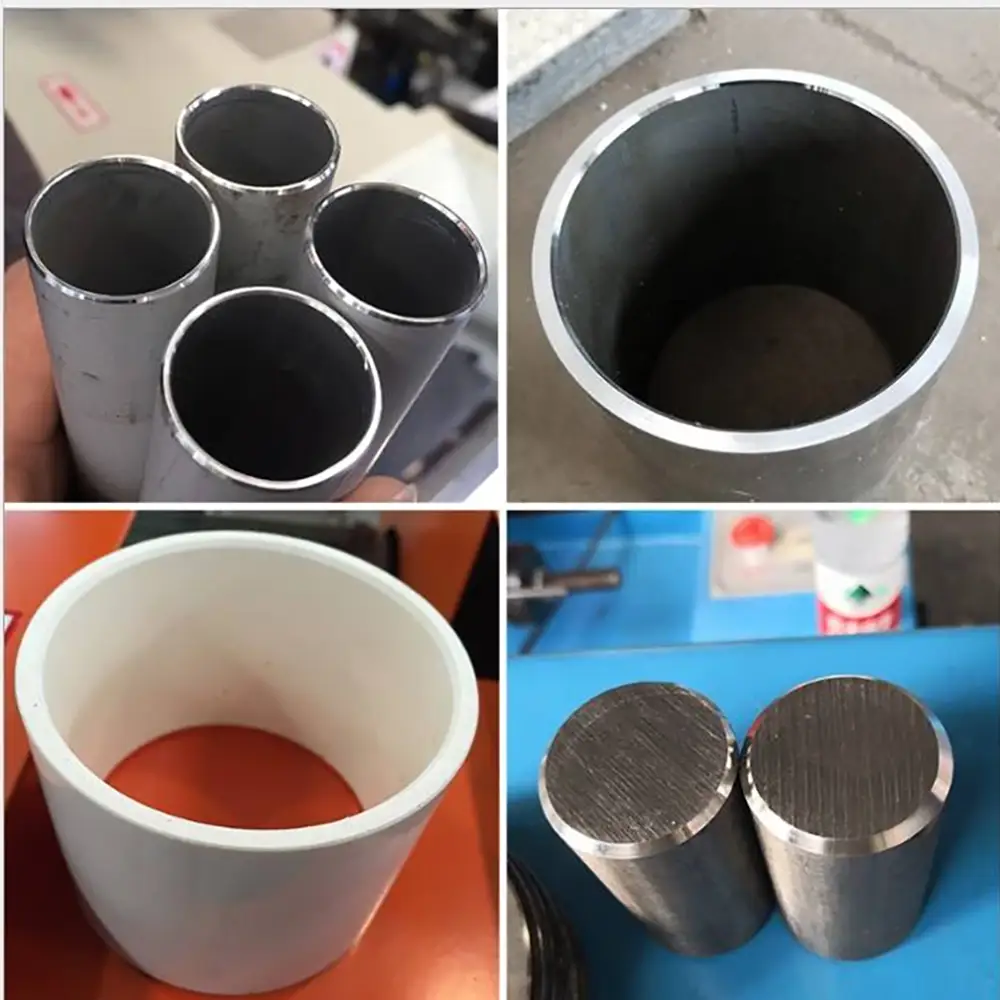

Stainless Steel Pipe Chamfering

Stainless steel pipes and tubes are widely used in food equipment,chemical equipment,medical equipment,construction,automotive applications,industrial machinery,and general fabrication.

Stainless steel can present different machining characteristics from mild steel. Certain stainless steel grades can generate heat or work harden when cutting parameters are not properly selected.

For this reason,the cutting tool,feed rate,cutting speed,and workpiece clamping method should be matched to the specific stainless steel grade.

Suitable workpieces may include:

Stainless Steel Pipes

Stainless Steel Tubes

Stainless Steel Bars

Stainless Steel Rods

Stainless Steel Components

Stainless Steel Fabricated Parts

The actual material and size range should always be confirmed according to the machine specification.

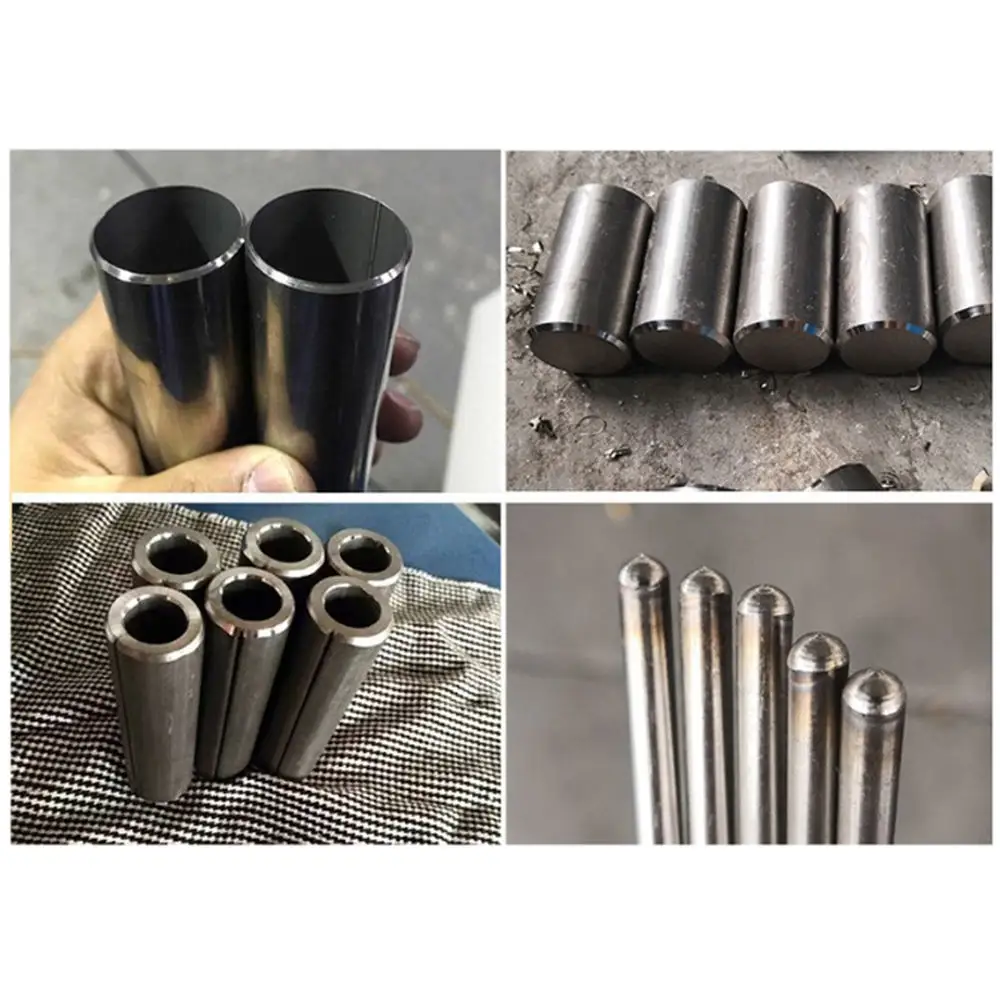

Metal Pipe and Tube Chamfering

In addition to stainless steel,the machine can be configured for suitable carbon steel,mild steel,alloy steel,aluminum,and other compatible metal pipes or tubes.

After cutting,metal pipes may have burrs or sharp edges that need to be removed before the next production process.

Chamfering can create a more controlled pipe-end profile while helping remove unwanted sharp edges. This can be especially useful before welding,threading,assembly,coating,or machining.

The final chamfer quality depends on tool condition,workpiece alignment,clamping stability,cutting parameters,and material characteristics.

Bar Material Chamfering

The machine can also be suitable for processing compatible solid bar materials. Bar end chamfering is commonly used before turning,threading,drilling,assembly,or other machining operations.

A controlled chamfer can help remove sharp corners and provide a more consistent starting profile for downstream processing.

For solid bars,the cutting load can be higher than for thin-wall tubing because the cutting tool engages with a larger material cross-section. Tool geometry and machine capacity should therefore be evaluated according to bar diameter,material grade,and chamfer dimensions.

Possible bar materials include carbon steel,mild steel,stainless steel,and suitable alloy steel.

Precision End Finishing

Precision chamfering requires stable workpiece positioning and consistent cutting conditions. Even when the machine is designed for repeatable processing,the final result depends on the complete machine setup.

Important factors include:

Workpiece Alignment

Clamping Stability

Tool Condition

Cutting Speed

Feed Rate

Chamfer Tool Geometry

Material Hardness

Workpiece Dimensions

For critical applications,customers should define the required chamfer angle,chamfer width,tolerance,and surface condition before selecting the machine.

Sample testing can help confirm whether the proposed tooling and process parameters are appropriate.

Pipe Deburring

Deburring is often performed after sawing,cutting,or other pipe-processing operations. Burrs can interfere with assembly and may create sharp edges that are undesirable during handling.

The chamfering process can combine edge removal with controlled end finishing. This can reduce the need for separate manual grinding operations for suitable workpieces.

However,the ability to remove burrs depends on the original cutting condition and the selected chamfer tool. Severe or irregular burrs may require additional finishing operations.

Workpiece Clamping

Stable clamping is essential for accurate chamfering. Round pipes can rotate during machining if they are not properly secured.

The machine can use a suitable fixture,clamp,chuck,or workholding arrangement according to the machine design. Proper alignment between the workpiece centerline and cutting head also helps maintain consistent chamfer geometry.

When changing to a different pipe or bar diameter,the clamping arrangement may need to be adjusted.

For production involving many different workpiece sizes,interchangeable fixtures or application-specific tooling can be considered.

Production Efficiency

A pneumatic single-head chamfering machine can help improve production efficiency by providing a dedicated and repeatable processing station.

Compared with manual grinding or handheld chamfering,the machine can provide more controlled workpiece positioning and processing conditions.

Actual cycle time depends on workpiece size,material,chamfer dimensions,loading and unloading time,clamping method,tool condition,and operator workflow.

For larger production volumes,automatic feeding or material handling can be evaluated if supported by the machine configuration.

Industrial Applications

The machine can be used across a variety of metalworking industries,including:

Stainless Steel Pipe Manufacturing

Metal Tube Production

Steel Bar Processing

Machinery Manufacturing

Automotive Parts

Hydraulic Components

Construction Equipment

Agricultural Machinery

Furniture Components

Steel Fabrication

General Metalworking

Custom Metal Fabrication

Its single-head structure can be particularly useful for manufacturers requiring flexible processing of individual workpieces or moderate production batches.

Tooling and Customization

Chamfering performance depends heavily on the selected cutting tools. Different materials and dimensions may require different cutter geometries.

Tooling can be selected according to pipe diameter,bar diameter,wall thickness,material grade,and required chamfer profile.

For special applications,custom fixtures,clamps,cutters,and positioning systems may be developed.

Customers should provide technical drawings,samples,material specifications,and production requirements when requesting a customized solution.

Quality Control

Quality control can include checking chamfer angle,chamfer width,workpiece length,pipe-end condition,and overall dimensional consistency.

For repeated production,the first workpiece should be inspected before continuing with a larger batch. Periodic checks can help identify tool wear,alignment problems,or changes in processing conditions.

Cutting tools should be inspected regularly because wear can influence chamfer size,surface finish,and repeatability.

Maintenance and Safety

Routine maintenance should include inspection of cutting tools,pneumatic hoses,fittings,clamps,fixtures,drive components,and electrical systems according to the manufacturer's instructions.

The work area should be kept clean and free of accumulated metal chips.

Operators should receive appropriate training and use suitable protective equipment. Guards,emergency stops,and other protective features depend on the actual machine configuration and applicable local requirements.

The compressed-air system should also be maintained properly to reduce moisture and contamination that could affect pneumatic components.

Custom & OEM Solutions

Different manufacturers may require different pipe sizes,bar diameters,materials,chamfer angles,and production volumes.

OEM and ODM solutions can be developed around these requirements. Possible customization areas include pneumatic systems,fixtures,clamping devices,cutting tools,feeding arrangements,control functions,and workpiece supports.

For an accurate machine proposal,customers should provide material type,pipe or bar diameter,wall thickness,workpiece length,required chamfer geometry,production quantity,and desired automation level.

Why Choose Us

Precision End Chamfering — Designed for controlled chamfering and deburring of suitable metal pipes,bars,and tubes.

Pneumatic Operation — Uses pneumatic actuation for a practical industrial processing workflow.

Single Head Configuration — Provides a focused chamfering station for individual workpiece processing.

Stainless Steel Applications — Suitable configurations can be developed for stainless steel pipes,tubes,and bars.

Multi-Material Capability — Can be configured for carbon steel,mild steel,alloy steel,and other compatible metals.

Efficient Deburring — Helps remove sharp edges and burrs after suitable pipe and bar cutting operations.

Flexible Tooling — Cutting tools,fixtures,and clamping systems can be selected according to workpiece requirements.

OEM & ODM Support — Machine configurations can be adapted to customer drawings,samples,materials,and production requirements.

FAQs

1. What is a pneumatic single-head chamfering machine?

It is a metal end-processing machine that uses pneumatic actuation and a single chamfering head to process suitable pipes,tubes,bars,and other metal workpieces.

2. Can it chamfer stainless steel pipes?

Yes. Stainless steel pipes can be processed when suitable cutting tools and machining parameters are selected for the specific stainless steel grade.

3. Can it process solid steel bars?

Yes. Compatible solid steel and stainless steel bars can be chamfered when their dimensions are within the machine's rated capacity.

4. What is the advantage of pneumatic operation?

Pneumatic actuation can provide relatively fast and simple machine movement and can be practical for workshops with an existing compressed-air system.

5. What does single head mean?

Single head means the machine uses one primary chamfering processing head. The operator processes the workpiece through that single station rather than processing both ends simultaneously.

6. Can it process carbon steel?

Yes. With suitable tooling,the machine can process compatible carbon steel and mild steel pipes,bars,and tubes.

7. Can it remove burrs?

Yes. The chamfering operation can remove many sharp edges and burrs from suitable workpieces. Severe burrs may require additional finishing.

8. What affects chamfering accuracy?

Workpiece alignment,clamping stability,tool condition,cutting parameters,material properties,and chamfer-tool geometry all affect the final result.

9. Can the chamfer angle be customized?

The available chamfer angle depends on the machine and tooling configuration. Custom tooling can be considered for special requirements.

10. Can it process aluminum or copper?

Depending on the machine and tooling configuration,suitable aluminum or copper workpieces may be processed. The cutting tools and parameters should be selected specifically for these softer metals.

11. Is automatic feeding available?

Automatic feeding may be available depending on the machine configuration. Customers should specify their required production volume and automation level.

12. What information is needed for a quotation?

Provide material type,pipe or bar diameter,wall thickness,workpiece length,required chamfer angle and size,production volume,and desired automation level. Drawings or samples are recommended for special applications.
