Automatic Small Bar Metal Copper Pipe Tube Deburring Chamfering Machine Tools

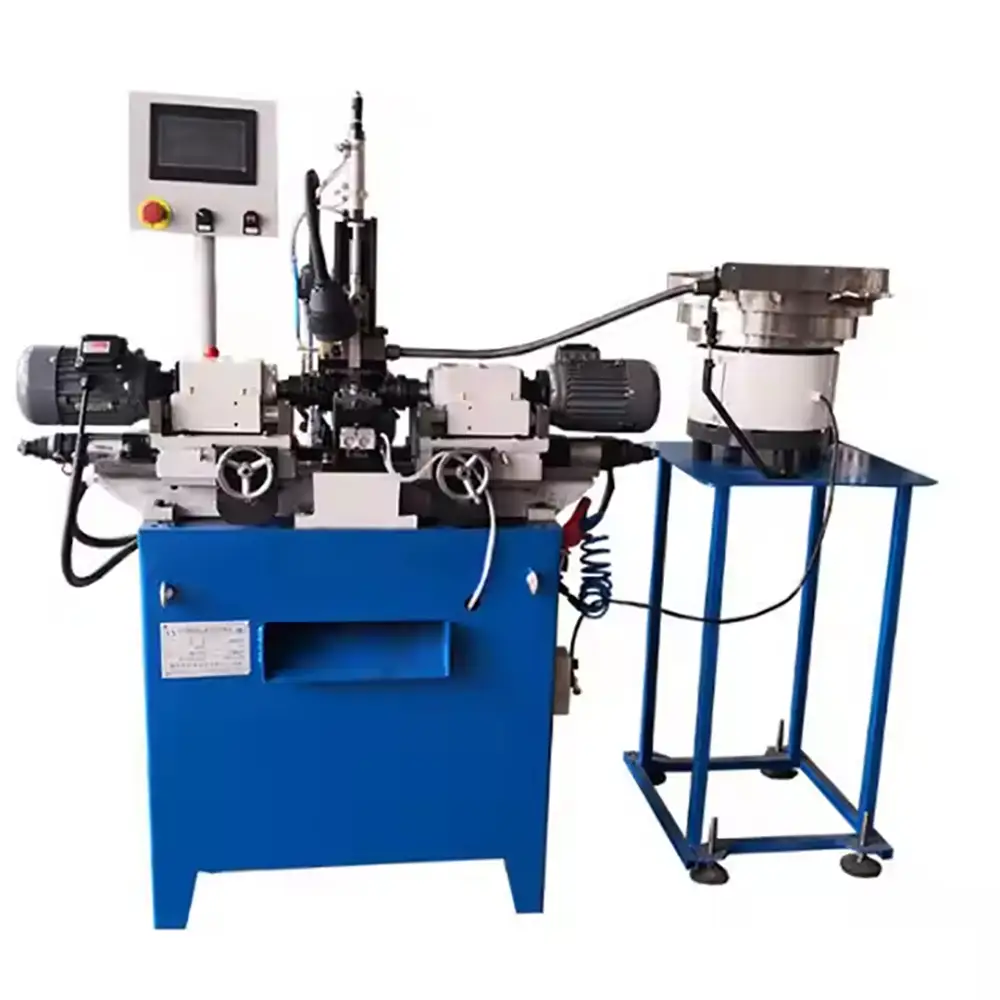

Automatic Metal Bar and Copper Pipe Deburring Chamfering Machine

The Automatic Small Bar Metal Copper Pipe Tube Deburring Chamfering Machine is designed for efficient edge finishing of small metal bars,copper pipes,tubes,and other suitable metal workpieces. By combining deburring and chamfering functions,the machine can help manufacturers remove sharp edges,improve end appearance,and prepare components for assembly,welding,machining,or other downstream processes.

Small metal bars and tubes are widely used in machinery,automotive components,electrical equipment,plumbing products,furniture,hardware,appliances,and general metal fabrication. After cutting,the workpiece end may contain burrs or sharp edges that require additional finishing.

An automatic deburring and chamfering machine provides a more consistent alternative to repetitive manual filing,grinding,or edge finishing.

The actual workpiece range,processing speed,and chamfer dimensions depend on the machine configuration,tooling,material,and workpiece geometry.

Automatic Deburring and Chamfering

Deburring and chamfering are closely related but serve different purposes.

Deburring removes unwanted sharp edges and burrs left after cutting,drilling,turning,or other machining operations.

Chamfering creates a controlled bevel or angled edge on the end or edge of the workpiece.

Combining these functions in one machine can simplify the finishing process and reduce manual handling.

Depending on the machine design,the workpiece may be automatically positioned,clamped,and processed by a rotating or cutting tool. The exact operating sequence depends on the machine configuration.

For repetitive production,the automatic cycle can help standardize the finishing process across multiple workpieces.

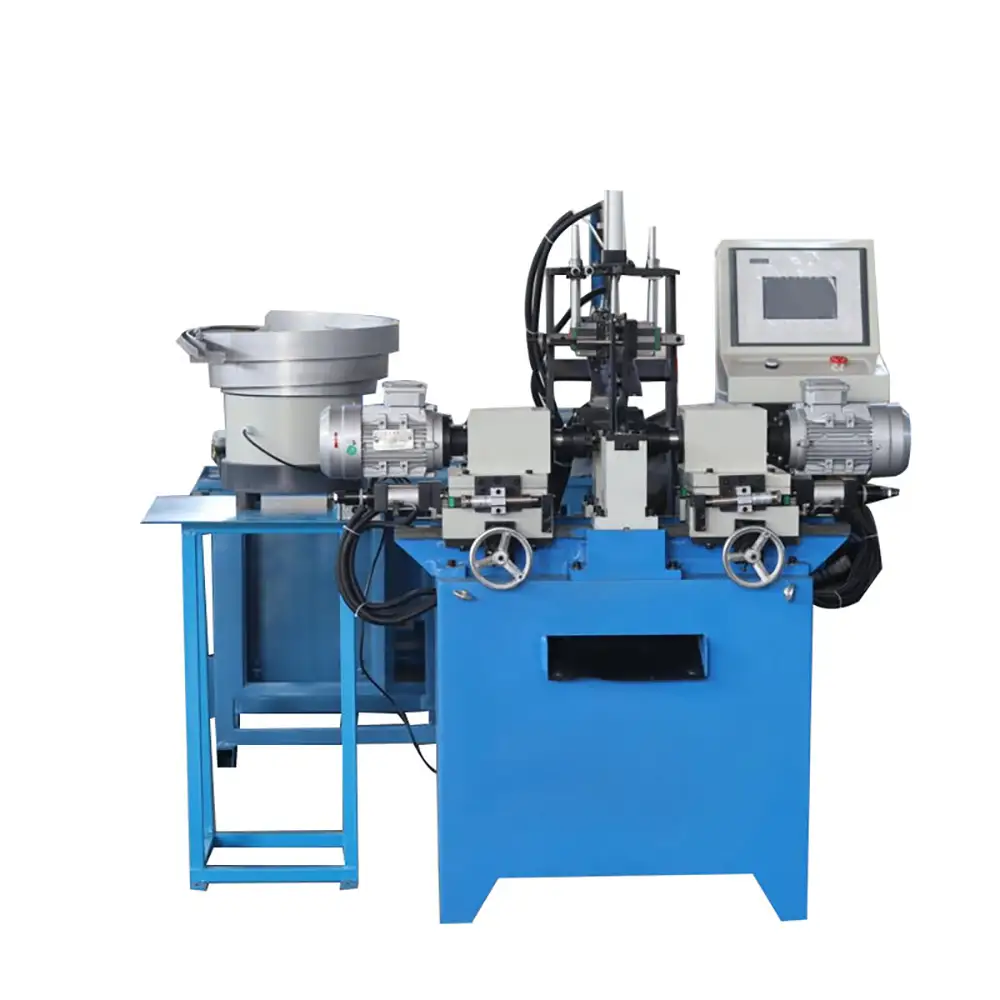

Small Metal Bar Processing

Small metal bars can be processed when their dimensions are within the machine's applicable range.

Suitable applications may include:

Steel Bars

Copper Bars

Brass Bars

Aluminum Bars

Stainless Steel Bars

Small Metal Rods

Machined Metal Blanks

Cut-To-Length Metal Stock

After bar cutting,the ends may require chamfering to remove sharp edges and make the component easier to handle or assemble.

A consistent chamfer can also help prepare the bar for threading,press fitting,turning,or other secondary operations.

The appropriate cutting tool should be selected according to the material diameter and required end geometry.

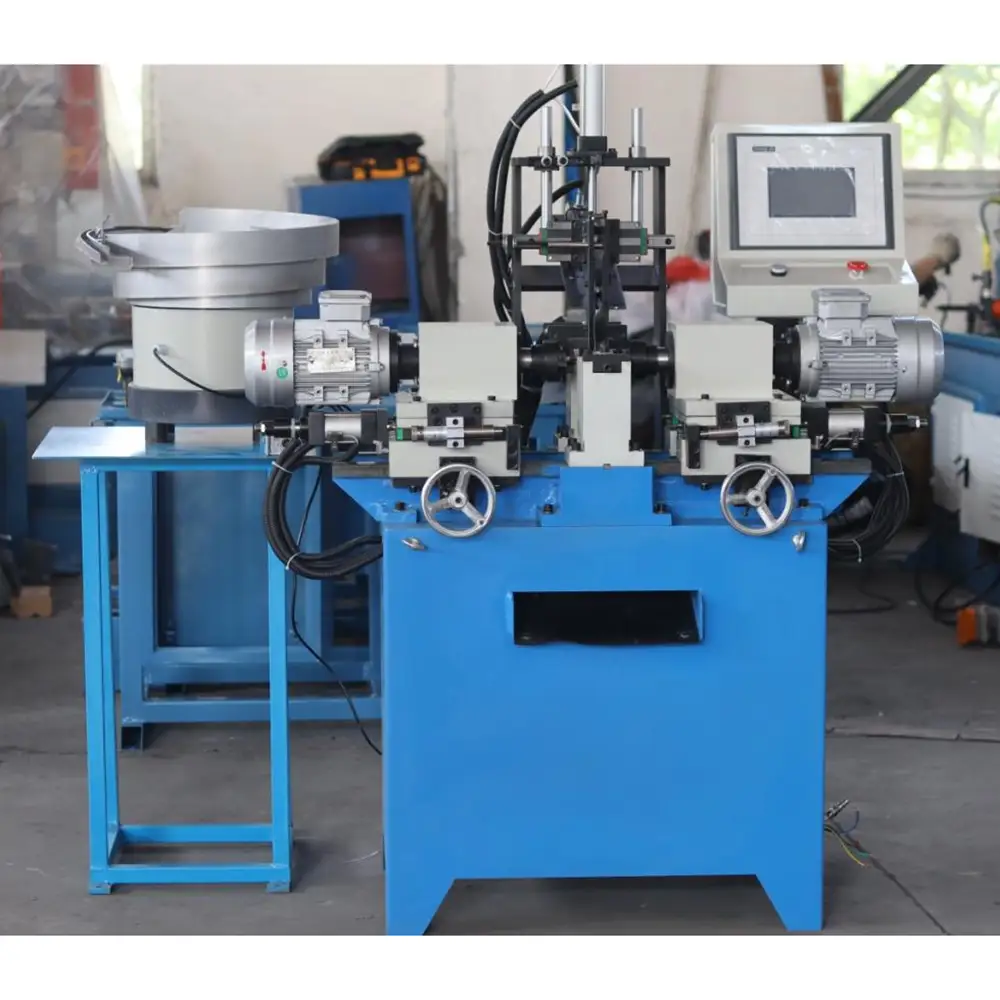

Copper Pipe and Tube Deburring

Copper pipes and tubes are commonly used in refrigeration,HVAC,plumbing,heat-transfer,and industrial fluid-handling applications.

Cutting copper tubing can leave a sharp edge or internal and external burr. Removing these burrs can improve the condition of the tube end before joining or assembly.

The machine can be configured for suitable copper tube deburring and chamfering applications.

Copper is relatively soft compared with many steel materials,so cutting-tool geometry and processing parameters should be selected carefully to avoid excessive deformation or unwanted surface marks.

For thin-wall copper tubing,stable workholding is particularly important.

Metal Tube Chamfering

Metal tubes may require chamfering for assembly,connection,welding,or appearance.

The machine can process suitable round tubes and other compatible tubular workpieces depending on the tooling and workholding system.

A controlled chamfer can provide a smoother tube entrance and reduce sharp edges after cutting.

Tube chamfering can be useful before:

Welding

Brazing

Soldering

Threading

Fitting Installation

Press Fitting

Assembly

Coating

Further Machining

The required chamfer size should be specified according to the product drawing or assembly requirement.

End Finishing for Cut Metal Parts

Automatic end finishing is particularly useful when manufacturers process large quantities of cut-to-length components.

Manual deburring can require significant repetitive labor and may produce inconsistent results between operators. Dedicated machinery can help establish a more standardized process.

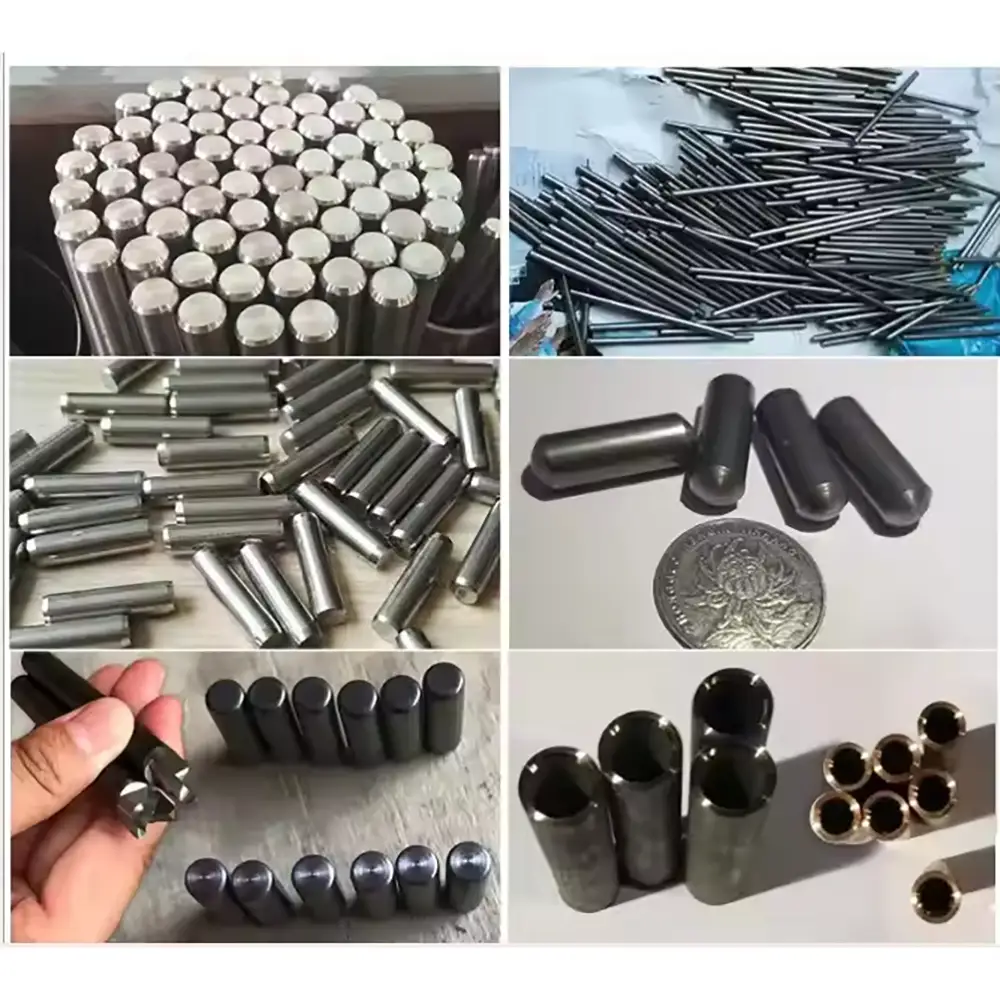

Typical finished components may include:

Metal Tubes

Copper Pipes

Steel Rods

Aluminum Bars

Stainless Steel Tubes

Brass Components

Small Shafts

Metal Sleeves

Cut Pipe Sections

Machined Blanks

The machine can be integrated into a production workflow after cutting or before assembly.

Suitable Metal Materials

Depending on the machine configuration,the equipment may process a variety of metals,including:

Carbon Steel

Mild Steel

Stainless Steel

Copper

Brass

Aluminum

Alloy Steel

Galvanized Steel

Other Compatible Metals

Each material has different cutting and finishing characteristics.

Copper and aluminum are relatively soft and may require appropriate cutting tools to reduce material buildup. Stainless steel can require suitable tool materials and controlled cutting parameters because of its strength and work-hardening characteristics.

Tool selection should therefore be based on the actual workpiece material,diameter,wall thickness,and desired finishing result.

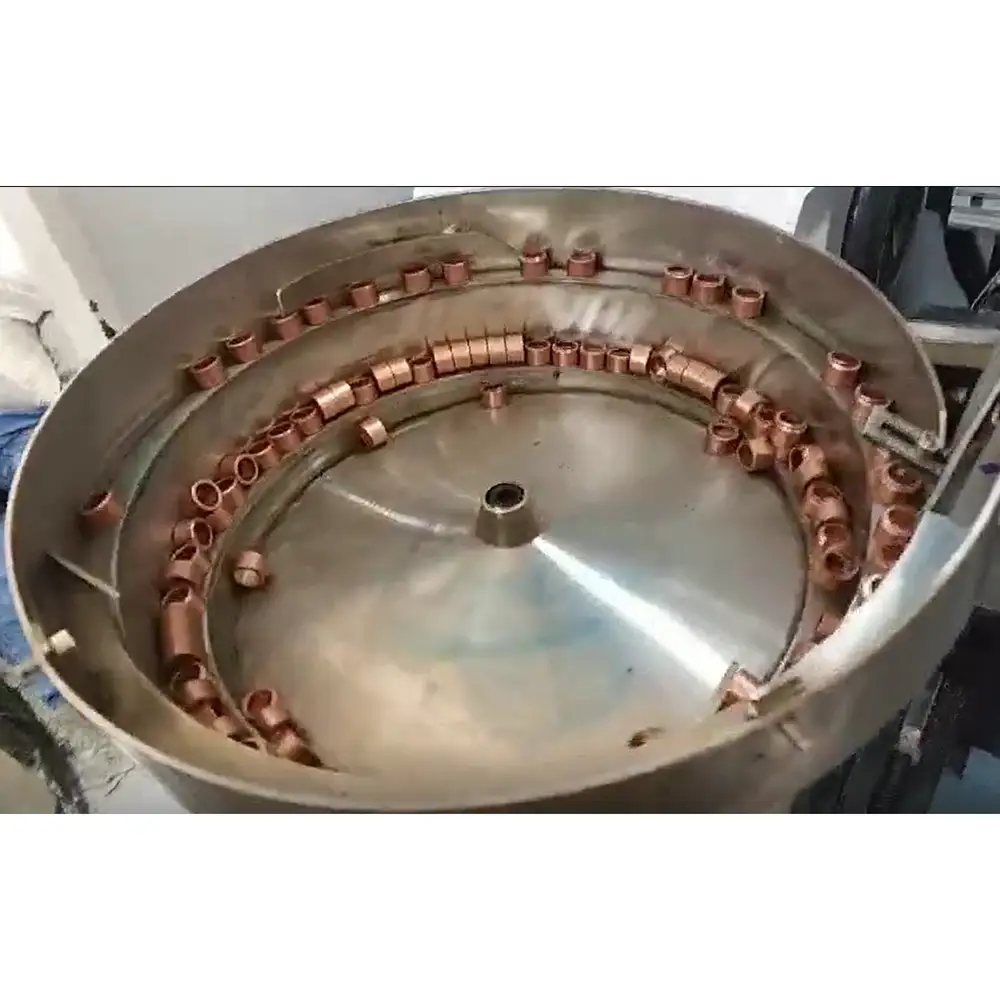

Automatic Workpiece Feeding

Depending on the machine configuration,automatic feeding can be incorporated into the production process.

A typical cycle may include loading the raw workpiece,feeding it into the processing position,clamping it,performing deburring or chamfering,and releasing the finished component.

Automatic feeding can reduce manual handling and make the machine suitable for repetitive production.

The actual feeding method may vary according to workpiece length,diameter,shape,and production volume.

For higher-volume applications,customers can discuss customized feeding and collection systems.

Consistent Chamfer Quality

Consistent chamfering is important when components need to fit with other parts.

Important quality parameters may include:

Chamfer Diameter

Chamfer Angle

Chamfer Depth

End Flatness

Burr Removal

Surface Condition

Workpiece Length

Dimensional Consistency

Machine rigidity,tool condition,clamping,and workpiece positioning can all influence the finished result.

For precision applications,first-piece inspection should be performed before continuous production. Periodic inspection can also help identify tool wear or process changes.

Production Efficiency

Automatic deburring and chamfering can help manufacturers reduce repetitive manual finishing operations.

The machine is suitable for production environments where many similar bars,tubes,or pipes need to be processed.

Potential applications include:

Automotive Manufacturing

Copper Tube Processing

HVAC Components

Plumbing Products

Electrical Components

Hardware Manufacturing

Furniture Components

Machinery Manufacturing

Metal Fabrication

Appliance Components

Industrial Equipment

Actual productivity depends on workpiece dimensions,material,processing method,tooling,feeding system,and operator workflow.

Tooling and Maintenance

The cutting tool is a key component of the deburring and chamfering process. Tool selection should match the material and required finishing geometry.

Regular tool inspection can help prevent excessive burrs,uneven chamfers,and poor surface quality.

Maintenance may include removing metal chips,checking workholding components,inspecting cutting tools,lubricating moving components where required,and checking electrical and mechanical systems.

Worn tooling should be replaced according to actual operating conditions.

Following the manufacturer's maintenance recommendations can help maintain stable production performance.

Safety and Operation

Deburring and chamfering machines contain moving cutting tools and mechanical components. Operators should receive appropriate training before using the equipment.

Hands should remain away from the cutting and feeding area while the machine is operating. Suitable personal protective equipment should be used according to workplace requirements.

Depending on the machine configuration,protective guards,emergency stops,and other safety-oriented features may be provided.

The actual safety configuration should be confirmed for the selected machine before installation and operation.

OEM and Custom Metal Finishing Solutions

Different customers require different workpiece dimensions,materials,and finishing specifications.

The machine can be customized with suitable:

Cutting Tools

Chamfering Tools

Deburring Tools

Feeding Systems

Clamping Fixtures

Workpiece Supports

Collection Systems

Control Configurations

For an accurate quotation,customers should provide workpiece material,outer diameter or bar size,wall thickness,length,required chamfer dimensions,production volume,and drawings or samples.

OEM and ODM solutions can be developed for manufacturers,distributors,wholesalers,and industrial purchasing agents.

Why Choose Us

Automatic Deburring & Chamfering – Combines two important metal edge-finishing operations in one production-oriented machine.

Small Bar Processing – Suitable for configured applications involving small metal bars,rods,and cut-to-length components.

Copper Pipe Compatibility – Can be configured for suitable copper pipe and tube deburring and chamfering applications.

Clean Tube Ends – Helps remove burrs and sharp edges while creating a controlled chamfer.

Multiple Metal Materials – Suitable configurations are available for steel,stainless steel,copper,brass,aluminum,and other compatible metals.

Automatic Production Options – Feeding,clamping,and processing functions can be configured according to production requirements.

Wide Industrial Applications – Suitable for automotive,HVAC,plumbing,electrical,hardware,furniture,and general metal fabrication.

OEM & ODM Support – Tooling,fixtures,feeding systems,and machine configurations can be developed according to customer drawings,samples,and production requirements.

FAQs

1. What is an automatic deburring and chamfering machine?

It is a machine designed to remove burrs and create controlled chamfers on suitable metal bars,pipes,tubes,and other workpieces.

2. Can it process small metal bars?

Yes. Suitable small metal bars and rods can be processed when their dimensions are within the machine's rated range.

3. Can it process copper pipes?

Yes. Suitable copper pipes and tubes can be deburred and chamfered with appropriate tooling and processing parameters.

4. What materials can be processed?

Depending on the configuration,the machine can process carbon steel,stainless steel,copper,brass,aluminum,alloy steel,and other compatible metals.

5. What is the difference between deburring and chamfering?

Deburring removes unwanted sharp edges or burrs,while chamfering creates a controlled angled edge.

6. Can it process round tubes?

Yes. Suitable round metal tubes and pipes can be processed according to the machine's workpiece capacity and tooling configuration.

7. Can it process square tubes?

Depending on the machine design and tooling,square or other profiles may be processed. The workpiece shape and dimensions should be confirmed before purchase.

8. Can the machine process stainless steel?

Yes,provided that suitable cutting tools and processing parameters are selected for the stainless steel grade and workpiece dimensions.

9. Is the machine fully automatic?

The machine is designed for automatic processing,but the actual automation level depends on the feeding,clamping,control,and machine configuration.

10. Can automatic feeding be added?

Depending on the model,automatic feeding or customized material handling systems can be evaluated for repetitive production.

11. What affects chamfer quality?

Tool condition,workpiece material,clamping,positioning,cutting parameters,machine rigidity,and tooling geometry all affect the finished chamfer.

12. What information is needed for a quotation?

Please provide workpiece material,bar or tube diameter,wall thickness,length,shape,required chamfer dimensions,production volume,and product drawings or samples.
