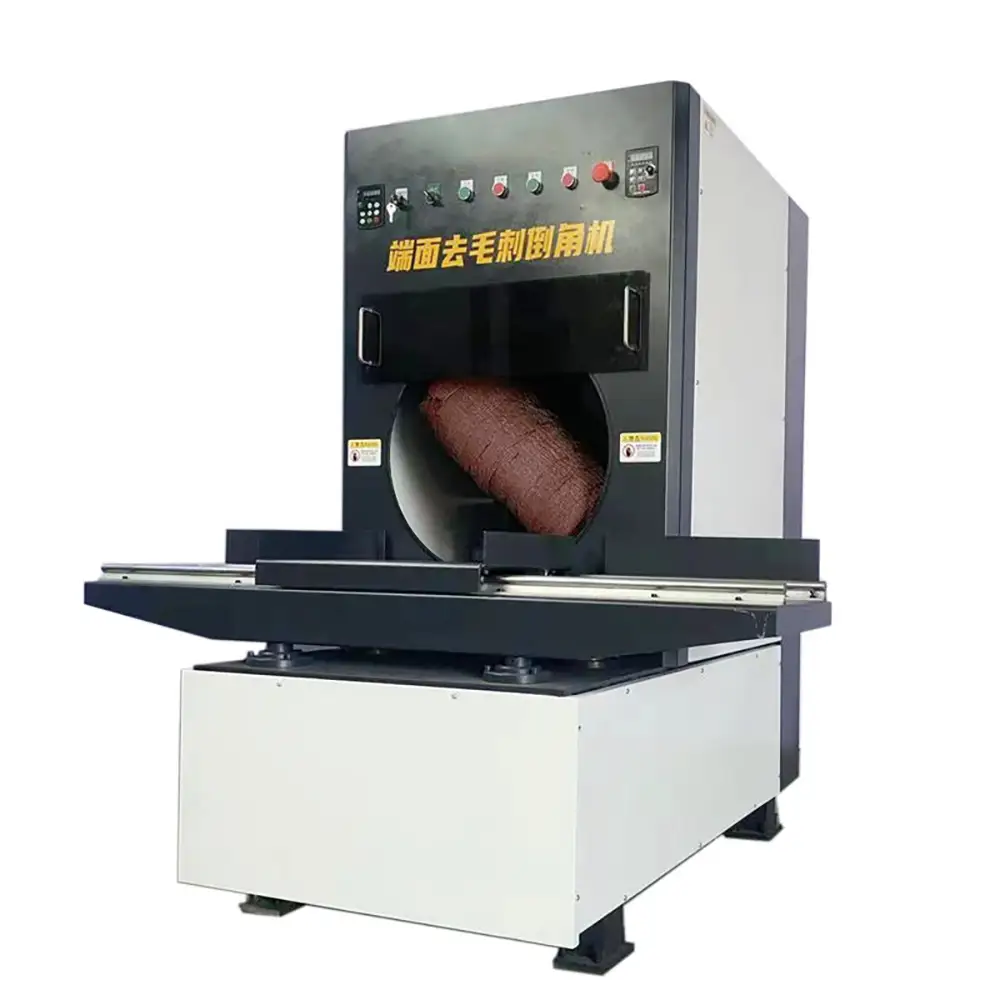

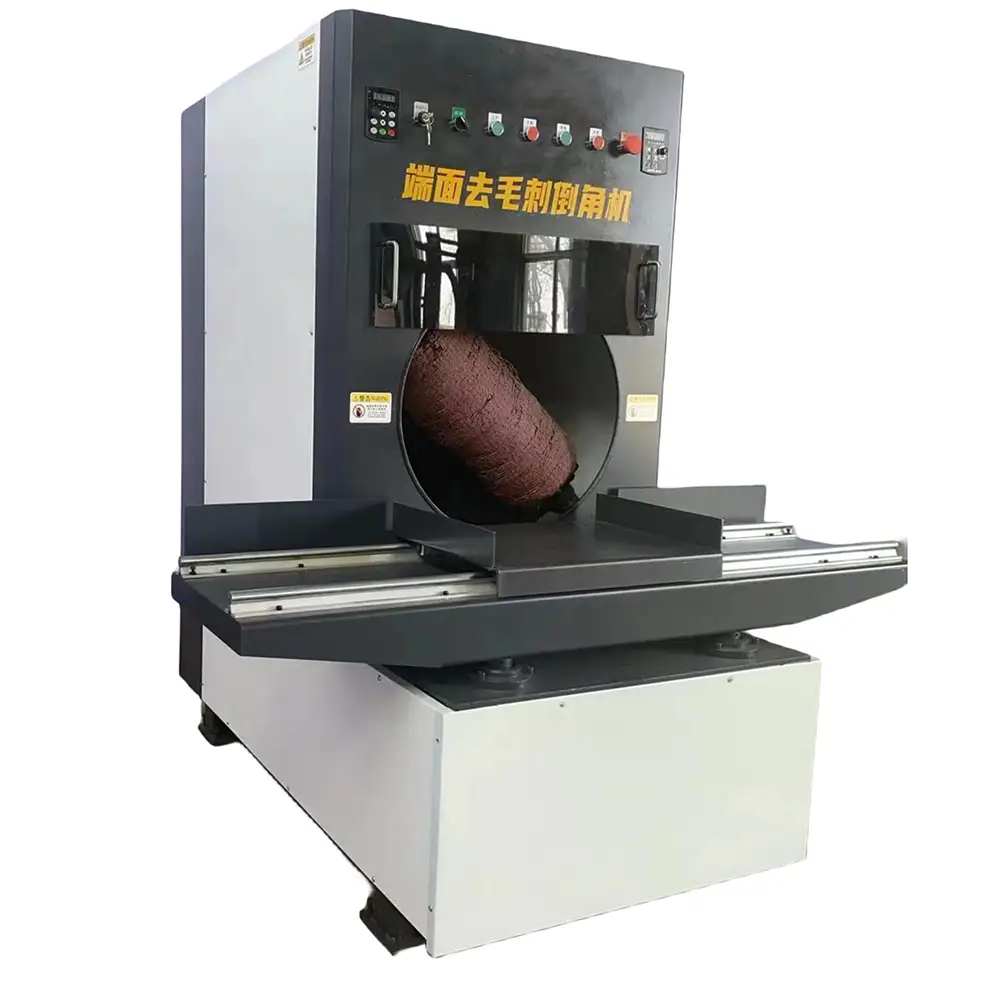

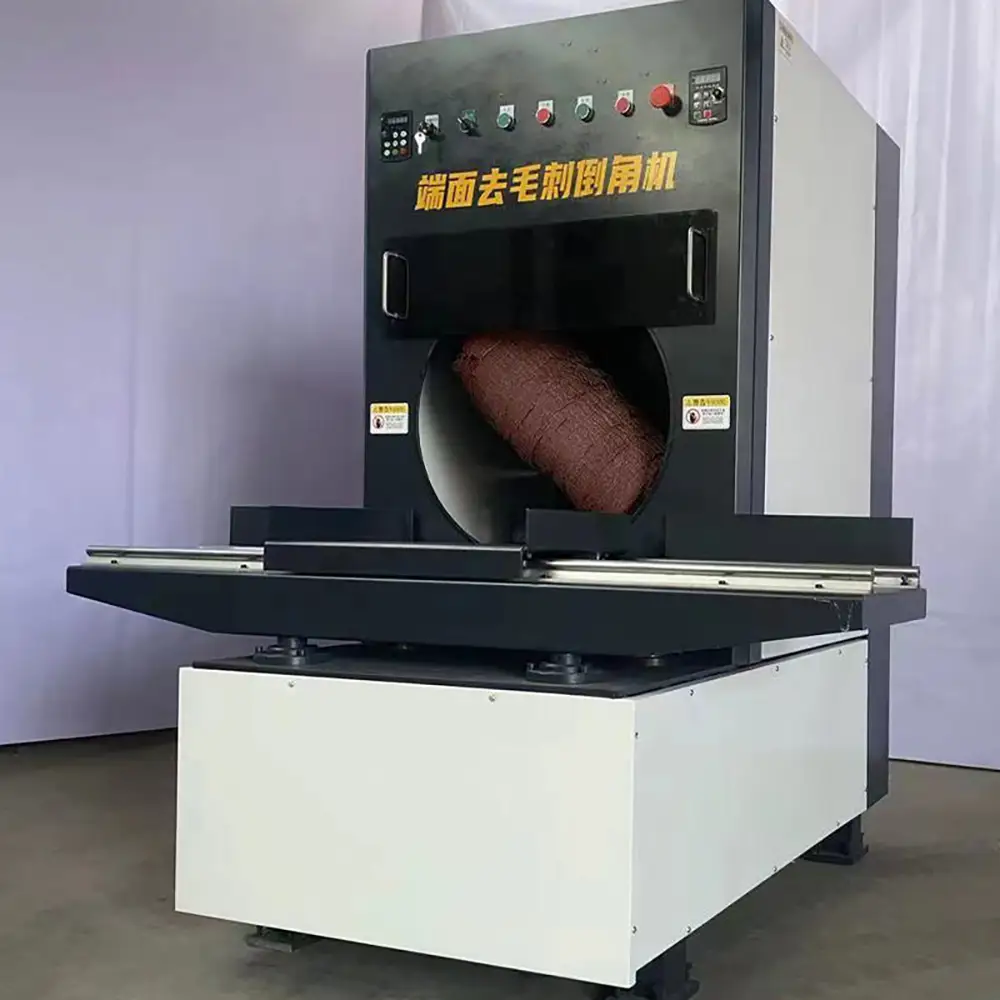

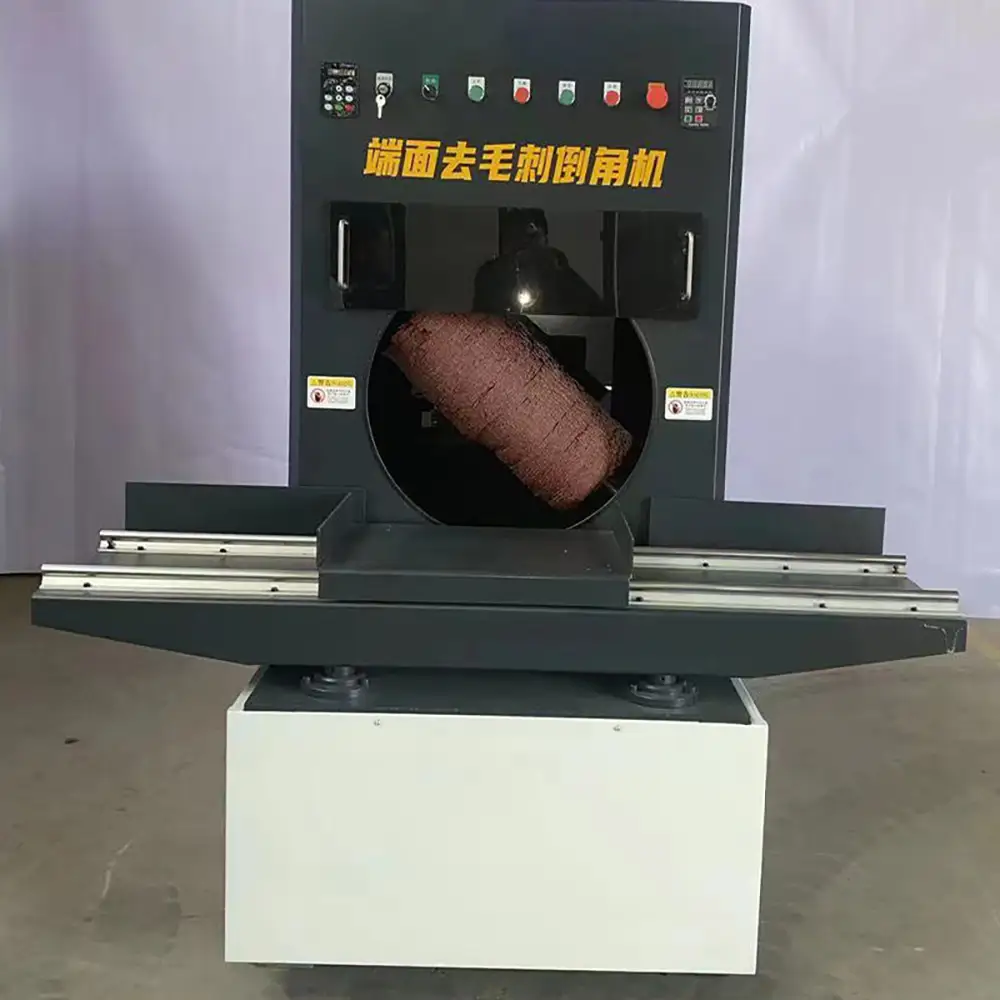

Multifunction Metal End Face Deburring Chamfering Polishing Machine

Processing size	500x500mm
Up and down stroke	200mm
Left and right stroke	1000mm
Spindle stroke	150mm
Roller brush size	300x500mm
Roller brush speed	0-1000r/min
Alternate speed	0-80r/min
Voltage	380V 50H
Total power	3.5KW
Overall Dimension	1730x1560x1510mm

Multifunction Metal End Face Deburring Chamfering and Polishing Machine

The Multifunction Metal End Face Deburring Chamfering Polishing Machine is designed for efficient end-face processing and finishing of metal pipes,tubes,bars,rods,and other compatible cylindrical workpieces. By combining deburring,chamfering,and polishing functions within one machine,the equipment provides a practical solution for manufacturers that require multiple end-finishing operations in a controlled production process.

After cutting,sawing,turning,or other machining operations,metal workpieces may have burrs,sharp edges,uneven end faces,or rough surface conditions. These imperfections can affect handling,assembly,welding,coating,and the appearance of finished components.

This multifunction machine is designed to help remove unwanted burrs,create controlled chamfered edges,and improve the surface condition of selected end faces.

Depending on the configuration,the machine can be adapted for suitable steel,stainless steel,aluminum,copper,and other compatible metal materials. Actual workpiece dimensions,processing depth,polishing finish,and production capacity depend on the machine model,tooling,abrasive system,and material characteristics.

Multifunction End Processing

The main advantage of a multifunction end-finishing machine is the ability to combine several processing functions within one production system.

Typical operations may include:

End face deburring

Edge deburring

Chamfering

End face polishing

Edge finishing

Burr removal

Surface preparation

Combining these processes can reduce the need to move workpieces between multiple machines.

For manufacturers processing large quantities of similar metal components,the integrated workflow can help simplify material handling and reduce repetitive manual finishing.

The exact combination of functions depends on the machine configuration and selected tooling.

Metal End Face Deburring

Metal cutting processes frequently produce burrs along the outer or inner edge of a workpiece. These burrs can be sharp and may interfere with subsequent manufacturing operations.

End face deburring removes unwanted sharp edges and residual material from the processed workpiece.

The machine can be configured with suitable deburring tools according to workpiece material,diameter,and end geometry.

For pipes and tubes,deburring can be performed around the tube end to prepare the component for assembly or connection. For solid bars and rods,the process can remove sharp edges left after sawing or cutting.

The final result depends on tool condition,material properties,cutting parameters,and workpiece positioning.

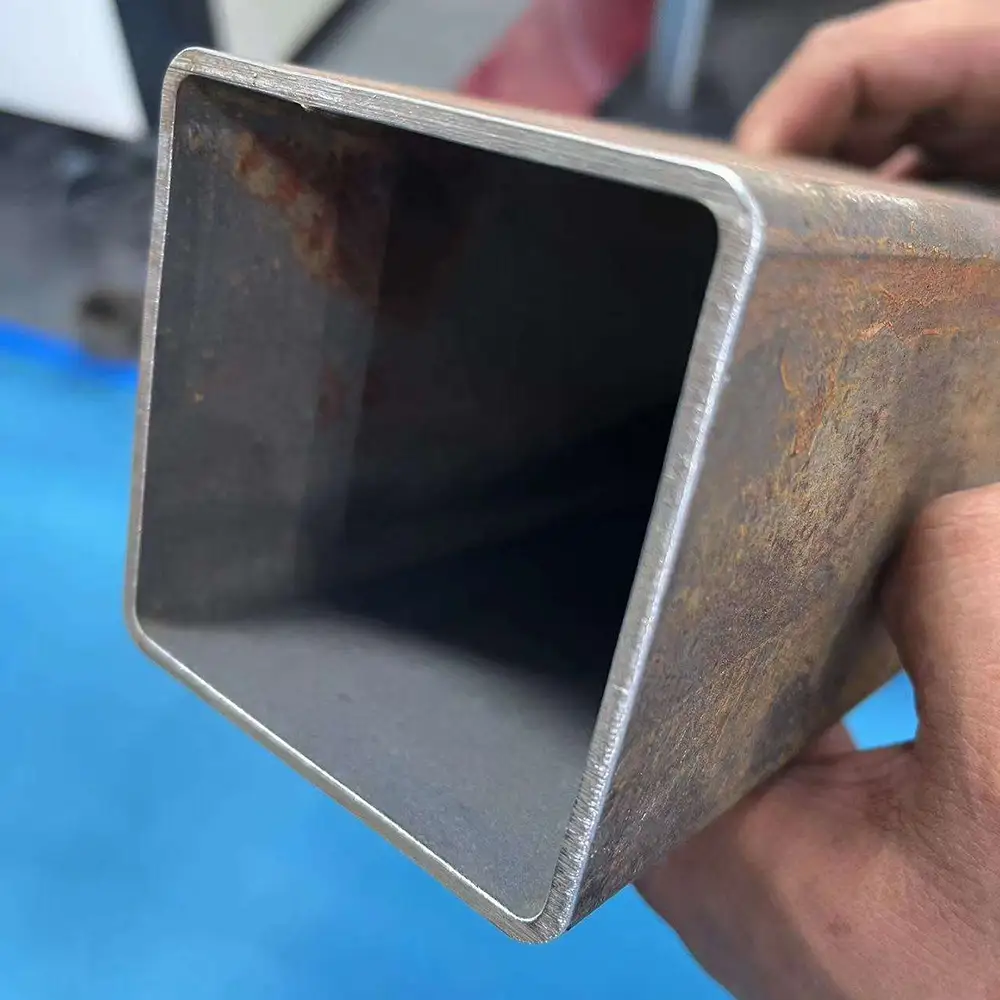

Chamfering Function

Chamfering creates an angled edge along the end of a metal workpiece. A controlled chamfer can improve handling and facilitate subsequent assembly or machining.

Chamfering is commonly used for:

Pipe ends

Tube ends

Round bars

Metal rods

Shafts

Machined components

Metal fittings

Fabricated parts

The required chamfer angle and depth depend on the application.

For welding preparation,the required edge geometry may differ from a chamfer used simply to remove sharp edges. Customers should provide drawings or specifications when a particular chamfer profile is required.

End Face Polishing

Polishing can improve the appearance and surface condition of a metal end face.

Depending on the abrasive system and machine configuration,the equipment can perform suitable end-face polishing on compatible metal workpieces.

Polishing requirements vary considerably between applications. Some manufacturers may require simple removal of machining marks,while others may require a smoother decorative finish.

Stainless steel,aluminum,copper,and other metals may require different abrasive materials and processing parameters.

The final surface finish depends on the material,abrasive type,tool condition,processing pressure,and polishing parameters.

Stainless Steel End Finishing

Stainless steel components are widely used in food equipment,medical equipment,architectural products,furniture,automotive components,and industrial machinery.

After cutting or machining,stainless steel tube and bar ends may require deburring,chamfering,or polishing.

The multifunction machine can be configured with suitable tooling for compatible stainless steel workpieces.

For applications requiring a visible polished surface,abrasive selection and process control are particularly important.

Customers should provide the stainless steel grade,workpiece dimensions,and desired surface finish when selecting the machine.

Aluminum and Copper End Processing

Aluminum and copper are relatively soft and ductile metals that require suitable tooling and controlled processing conditions.

Aluminum tubes,profiles,and bars are widely used in automotive,HVAC,electrical,construction,and general fabrication applications.

Copper tubes and bars are commonly used in refrigeration,plumbing,heat exchangers,and electrical applications.

The machine can be configured for suitable aluminum and copper workpieces. Proper tooling and clamping can help reduce deformation and maintain consistent end geometry.

Different materials should not automatically use identical polishing or chamfering parameters.

Pipe and Tube End Finishing

Pipe and tube manufacturers often require end preparation after cutting.

A typical workflow may include:

Cutting the pipe or tube

Positioning the workpiece

Removing burrs

Creating the required chamfer

Polishing or smoothing the end face

Inspecting the finished end

Combining several of these operations into one machine can help reduce workpiece handling.

The equipment may be used for round tubes,pipes,and other cylindrical components within its rated processing range.

For thin-wall tubes,appropriate clamping pressure is important to avoid deformation during end processing.

Round Bar and Rod Processing

The machine can also be suitable for compatible solid round bars and rods.

Round bars are commonly used in shafts,pins,automotive components,machinery parts,construction products,and general metal fabrication.

After sawing or cutting,the bar ends may have sharp edges or burrs. Deburring and chamfering can prepare the ends for machining,assembly,or handling.

For solid bars,the processing force may differ significantly from that required for thin-wall tubes. Tooling and machine settings should therefore be selected according to bar diameter and material hardness.

Production Efficiency

A multifunction end-processing machine can help improve workflow efficiency by combining several finishing operations.

Instead of manually transferring a workpiece between separate deburring,chamfering,and polishing stations,the manufacturer may be able to perform multiple operations in a coordinated sequence.

Actual production capacity depends on workpiece size,material,required finish,processing depth,tooling,feeding method,and machine cycle time.

For high-volume production,the machine can be evaluated as part of an automated tube or bar processing line.

Tooling and Abrasive Selection

Tooling is critical to the final processing quality.

Deburring and chamfering tools should be selected according to workpiece material and required geometry. Polishing requires appropriate abrasive wheels,belts,brushes,or other finishing media depending on the machine design.

Stainless steel,aluminum,copper,and carbon steel have different surface and cutting characteristics.

Tool wear should be monitored during production. Worn tools or abrasive media can reduce finishing quality and increase processing time.

For customized applications,customers should provide drawings,samples,material specifications,and desired surface finish so appropriate tooling can be evaluated.

Workpiece Clamping and Alignment

Stable workpiece positioning is important for consistent end-face processing.

The clamping system should hold the workpiece securely without causing unnecessary deformation.

For small-diameter or thin-wall tubes,controlled clamping force is particularly important.

Proper alignment between the workpiece and processing tool also helps maintain consistent chamfer dimensions and end-face results.

The machine can be configured with suitable fixtures or workholding systems according to the intended workpiece range.

Applications

The multifunction metal end-face deburring,chamfering,and polishing machine can be used in:

Stainless steel tube processing

Aluminum tube processing

Copper tube processing

Steel pipe manufacturing

Round bar processing

Metal rod production

Automotive components

Motorcycle components

HVAC equipment

Refrigeration systems

Heat exchanger components

Furniture manufacturing

Electrical equipment

Machinery manufacturing

General metal fabrication

The actual application range depends on machine configuration,tooling,and workpiece specifications.

Maintenance and Safety

Routine maintenance is important for stable machine operation. Operators should inspect processing tools,abrasive components,clamping fixtures,motors,guide systems,electrical connections,and other machine components according to the manufacturer's recommendations.

Metal dust,chips,and abrasive particles should be cleaned from the working area regularly.

Polishing and grinding operations can generate dust and particles,so suitable ventilation,dust collection,and personal protective equipment should be used according to the application and local requirements.

Operators should receive proper training and keep hands away from moving tools and automatic mechanisms during operation.

Custom & OEM Solutions

Different manufacturers require different end-processing results. The machine can therefore be customized around specific workpieces and production requirements.

Possible customization may include processing heads,deburring tools,chamfering cutters,polishing systems,clamping fixtures,feeding mechanisms,workpiece supports,and control systems.

For OEM and ODM projects,customers can provide workpiece material,diameter,length,wall thickness,end geometry,chamfer dimensions,required surface finish,and production volume.

Drawings or samples can help determine the appropriate machine configuration and finishing tooling.

Why Choose Us

Multifunction End Processing – Combines deburring,chamfering,and polishing functions for streamlined metal end finishing.

Efficient Burr Removal – Helps remove sharp edges and unwanted burrs after cutting or machining.

Controlled Chamfering – Suitable tooling can create consistent chamfered edges on compatible metal workpieces.

End Face Polishing – Supports surface finishing requirements for selected steel,stainless steel,aluminum,and copper components.

Multiple Workpiece Applications – Suitable for pipes,tubes,round bars,rods,and other compatible cylindrical metal parts.

Flexible Material Compatibility – Can be configured for suitable carbon steel,stainless steel,aluminum,copper,and other metals.

Custom Tooling & Fixtures – Processing heads,abrasives,cutters,clamps,and workholding systems can be customized.

OEM & ODM B2B Support – Suitable for manufacturers,distributors,wholesalers,and industrial buyers seeking customized metal finishing equipment.

FAQs

1. What is a multifunction metal end-face finishing machine?

It is a metal processing machine that can combine end-face deburring,chamfering,polishing,and other finishing operations according to the machine configuration.

2. What materials can it process?

Depending on the configuration,it can process suitable carbon steel,stainless steel,aluminum,copper,and other compatible metals.

3. Can it deburr steel pipes?

Yes. Suitable tooling can remove burrs and sharp edges from compatible steel pipe and tube ends.

4. Can it chamfer round bars?

Yes. Compatible solid round bars and metal rods can be chamfered within the machine's rated processing range.

5. Can it polish stainless steel?

Yes. With appropriate abrasive tooling and processing parameters,the machine can perform suitable polishing or end-face finishing on stainless steel.

6. Can it process aluminum and copper?

Yes. Aluminum and copper workpieces can be processed when suitable tooling,clamping,and finishing parameters are selected.

7. What is the difference between deburring and chamfering?

Deburring removes unwanted sharp edges and burrs,while chamfering creates a defined angled edge on the workpiece.

8. What is the purpose of end-face polishing?

End-face polishing can improve surface smoothness and appearance and may help prepare a component for a subsequent assembly or finishing process.

9. Can the machine process thin-wall tubes?

Potentially yes,provided that the machine and clamping system are suitable. Controlled clamping is important to avoid tube deformation.

10. What affects the polishing quality?

Material type,abrasive selection,tool condition,processing pressure,speed,workpiece alignment,and required surface finish can all affect the result.

11. Can the machine be customized?

Yes. Processing heads,tooling,abrasives,fixtures,clamps,feeding systems,and other machine components can be customized according to the application.

12. What information should I provide for a quotation?

Provide material type,outer diameter,wall thickness or bar diameter,workpiece length,end geometry,chamfer requirements,polishing requirements,production volume,and desired automation level. Drawings or samples are also helpful.
