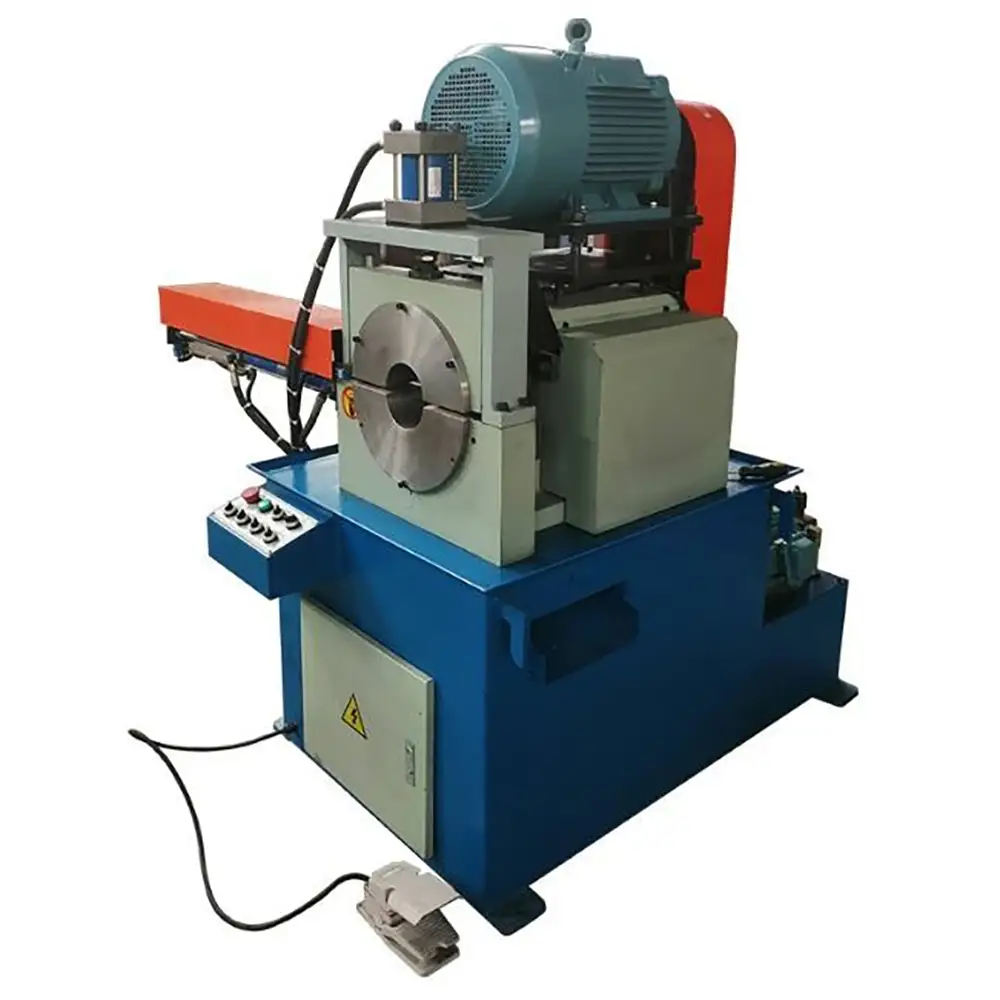

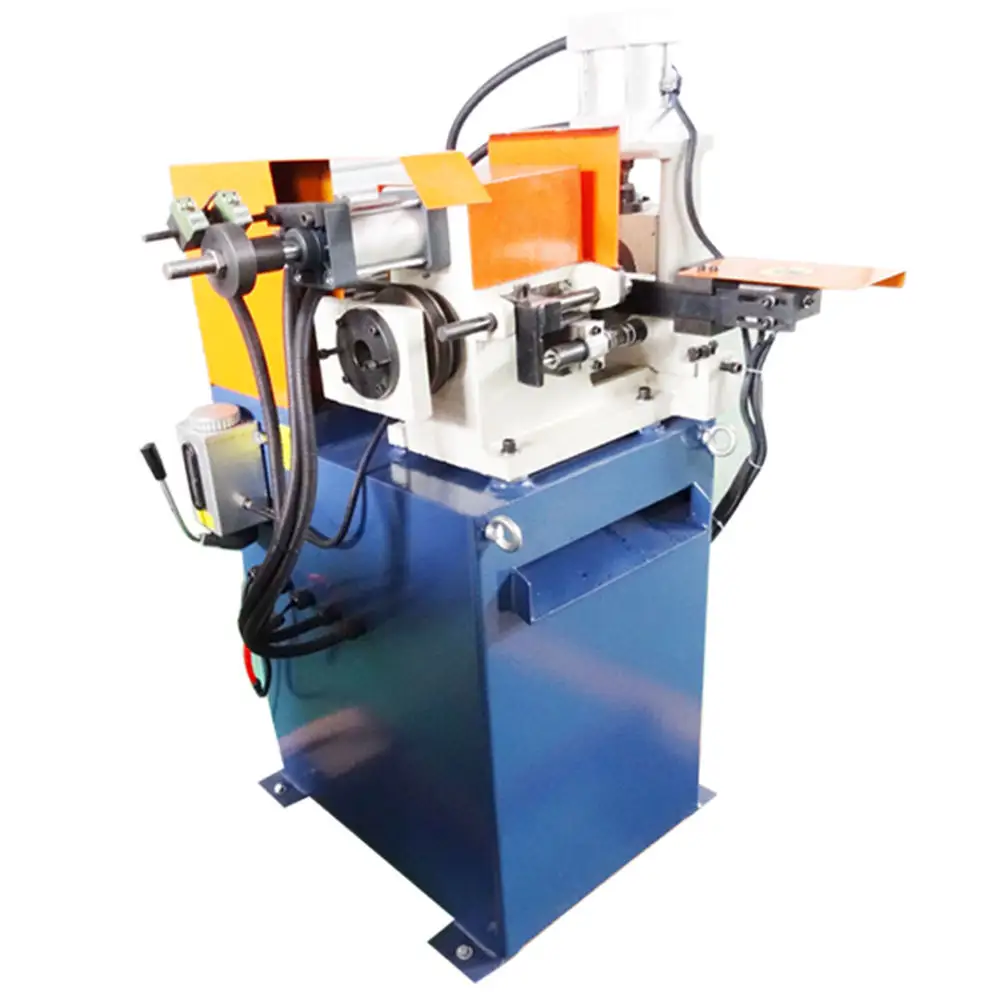

Steel Pipe CNC Chamfering Machine Bar Material Stainless Steel Pipe Chamfering Machine

 Steel Pipe CNC Chamfering Machine for Stainless Steel Pipe and Bar Materials

The Steel Pipe CNC Chamfering Machine is an industrial metal end-processing solution designed for chamfering,beveling,and deburring steel pipes,stainless steel pipes,metal tubes,and suitable bar materials. By combining CNC-assisted control with dedicated chamfering tooling,the machine provides a repeatable method for preparing metal workpiece ends for welding,assembly,machining,and other downstream manufacturing processes.

Pipe and bar end finishing is an important operation in many metalworking applications. Rough,square,or sharp edges can make subsequent assembly more difficult and may interfere with welding,threading,connection,and component fitting. A controlled chamfer can create a defined edge while removing unwanted burrs from the workpiece.

The machine is suitable for manufacturers that process carbon steel,mild steel,stainless steel,and other compatible metal materials. Actual workpiece diameter,length,wall thickness,material hardness,and chamfer dimensions depend on the machine configuration,tooling,and CNC system.

CNC-Controlled Chamfering Process

CNC control allows the machine to manage programmed processing parameters and positioning functions according to the selected configuration. This can help standardize the chamfering process when a production line handles repeated batches of similar pipes,bars,or tubes.

Instead of relying entirely on manual grinding or hand-held deburring tools,the workpiece can be positioned and processed using a dedicated machine structure. CNC-assisted operation can reduce repetitive manual adjustments and help maintain more consistent processing conditions.

The exact CNC functions vary according to the machine model. Depending on configuration,the control system may manage workpiece positioning,feeding,tool movement,processing sequences,and other machine functions.

For applications requiring tight dimensional tolerances,the actual positioning and chamfering accuracy should be confirmed from the manufacturer's technical specifications and verified through sample testing.

Steel Pipe End Chamfering

Steel pipes are commonly used in construction,industrial equipment,automotive components,fluid systems,steel structures,and machinery manufacturing. Before welding,assembly,threading,or other processing,pipe ends may require chamfering or deburring.

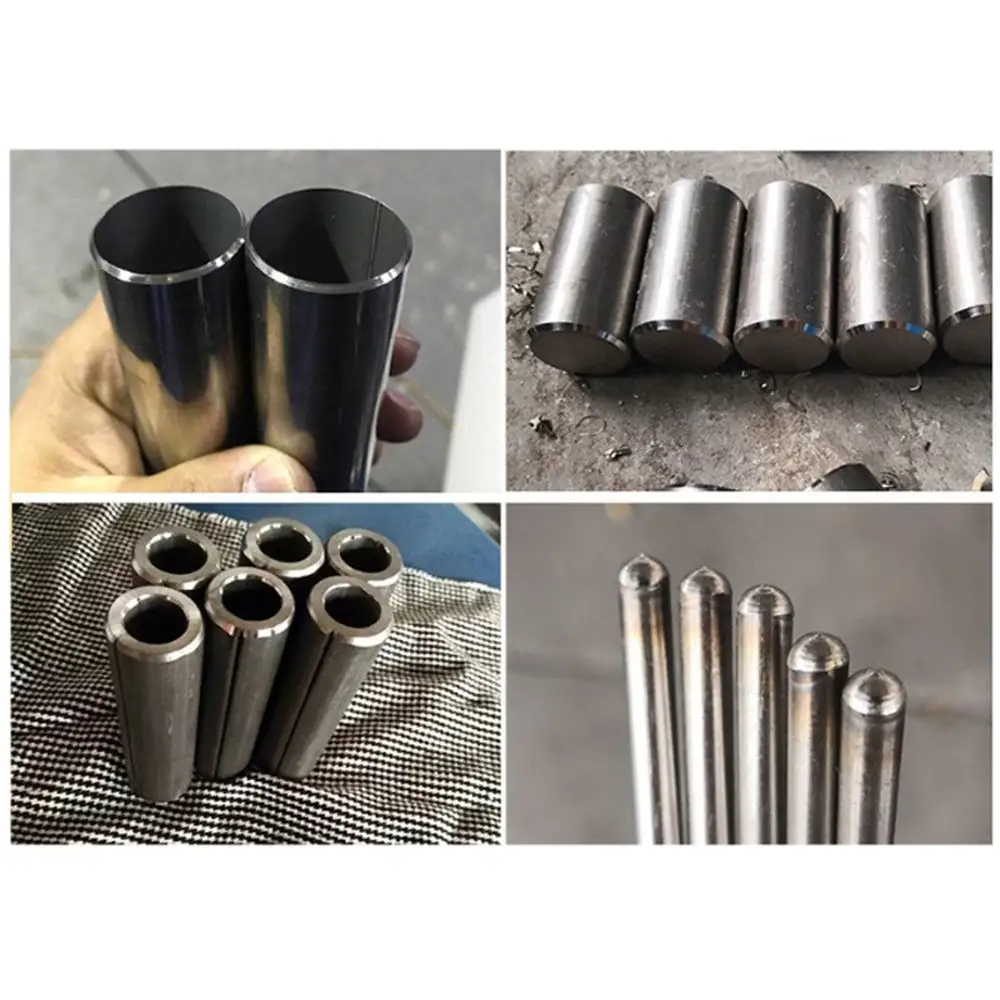

The Steel Pipe CNC Chamfering Machine can be configured for suitable round steel pipes and tubes. The chamfering operation can remove sharp edges and create a more controlled pipe-end profile.

For welding applications,the appropriate bevel geometry depends on the welding process,pipe wall thickness,joint design,and engineering requirements. The machine should therefore be equipped with suitable cutters and tooling for the intended pipe-end geometry.

Stainless Steel Pipe Chamfering

Stainless steel requires careful tool selection and machining parameters because it can generate heat and work harden during cutting. A suitable chamfering tool,cutting speed,feed rate,and clamping method can help achieve a cleaner finished edge.

The machine can be used for suitable stainless steel pipes and tubes when the tooling and processing parameters are matched to the specific stainless steel grade.

Common stainless steel workpieces may include:

Stainless Steel Pipes

Stainless Steel Tubes

Stainless Steel Bars

Stainless Steel Rods

Stainless Steel Structural Components

Stainless Steel Fabricated Parts

The actual processing capability depends on the machine's rated specifications and selected tooling.

Bar Material Chamfering

In addition to pipe processing,the machine can be configured for suitable solid bar materials. Bar end chamfering is commonly used before turning,machining,threading,assembly,or other manufacturing operations.

Chamfering the end of a steel bar can help remove sharp corners and provide a more controlled starting geometry for subsequent machining.

Suitable materials may include carbon steel,mild steel,stainless steel,alloy steel,and other compatible metal bars.

For solid bar processing,the cutting load may differ significantly from hollow pipe processing because the tool engages with a larger cross-sectional area. Tool selection and machine capacity should therefore be evaluated according to bar diameter,material hardness,and required chamfer dimensions.

Pipe Deburring and Edge Finishing

Chamfering and deburring are closely related metal finishing operations. During pipe cutting,sawing,laser cutting,plasma cutting,or other manufacturing processes,the workpiece may develop sharp edges or burrs.

A dedicated chamfering machine can combine edge removal with controlled end finishing. This can be useful for improving the condition of pipe ends before welding,assembly,coating,threading,or machining.

The final surface condition depends on cutting-tool geometry,material characteristics,tool condition,cutting parameters,and workpiece clamping.

For applications where surface appearance or dimensional accuracy is critical,production samples should be evaluated before full-scale manufacturing.

Workpiece Clamping and Alignment

Stable workpiece clamping is essential for consistent chamfering. The pipe or bar should remain securely positioned during cutting to prevent vibration,tool deflection,and dimensional variation.

Different workpiece diameters may require different clamping arrangements. For production involving multiple sizes,the machine can be configured with suitable fixtures,chucks,clamps,or interchangeable tooling according to the machine design.

Proper alignment between the workpiece and cutting tool also affects the chamfer angle and finished edge. Operators should verify alignment when changing workpiece sizes or tooling.

Production Efficiency

CNC pipe chamfering can improve workflow efficiency for manufacturers processing repeated batches of metal pipes,bars,and tubes. Once the appropriate setup and processing parameters have been established,similar workpieces can be processed using repeatable machine settings.

The actual production rate depends on workpiece size,material,required chamfer dimensions,feeding method,clamping time,tool changes,and operator workflow.

For high-volume production,the machine can be integrated with automatic feeding,material handling,or other production equipment where supported by the machine design.

Applications

The Steel Pipe CNC Chamfering Machine can be used across many industries and metal fabrication applications,including:

Steel Pipe Manufacturing

Stainless Steel Pipe Processing

Metal Tube Production

Steel Bar Processing

Machinery Manufacturing

Automotive Components

Construction Equipment

Steel Structure Fabrication

Industrial Equipment

Hydraulic Components

Furniture Manufacturing

Agricultural Machinery

General Metal Fabrication

The exact application range depends on workpiece dimensions,material properties,tooling,and machine configuration.

Tooling and Chamfer Dimensions

The quality and geometry of the finished chamfer depend heavily on the selected cutting tools. Different pipe sizes,materials,and chamfer requirements may require different cutters or tool configurations.

Customers should provide the desired chamfer angle,depth,pipe diameter,bar diameter,wall thickness,and material type when selecting the machine.

For special applications,custom tooling can be developed according to drawings or sample parts. This can be particularly useful when manufacturers need a specific end profile or repeated production geometry.

Quality Control

Quality inspection can include checking chamfer angle,chamfer width,pipe-end diameter,edge condition,workpiece length,and overall dimensional consistency.

For production batches,the first processed workpiece should be inspected before continuing with larger quantities. Periodic inspection can also help identify tool wear or changes in processing conditions.

Tool wear should be monitored because a worn cutting tool may influence chamfer dimensions,surface finish,and production consistency.

Maintenance and Safety

Routine maintenance is important for reliable CNC chamfering performance. Operators should inspect cutting tools,clamping components,guide systems,electrical connections,lubrication points,and other machine components according to the manufacturer's recommendations.

Metal chips should be removed regularly from the working area. Cutting tools should be replaced or maintained when they show excessive wear or damage.

Operators should receive appropriate machine training and use suitable personal protective equipment. Guards,emergency-stop systems,electrical protection,and other safety features depend on the actual machine configuration and applicable local requirements.

Custom & OEM CNC Chamfering Solutions

Different manufacturers may require different pipe diameters,bar sizes,materials,chamfer profiles,feeding methods,and production speeds. The machine can therefore be evaluated and configured according to the customer's application.

OEM and ODM options may include CNC control systems,automatic feeding,custom fixtures,clamping systems,cutting tools,material handling,and specialized chamfering configurations.

For quotation and machine selection,customers should provide material type,pipe or bar dimensions,wall thickness,required chamfer geometry,production volume,and preferred automation level.

Why Choose Us

CNC-Controlled Chamfering — Supports repeatable processing of suitable steel pipes,stainless steel pipes,tubes,and bar materials.

Multi-Material Processing — Suitable configurations can be developed for carbon steel,stainless steel,alloy steel,and other compatible metals.

Pipe and Bar Applications — Designed for both hollow metal tubes and suitable solid bar materials.

Efficient End Finishing — Combines chamfering and edge deburring in a dedicated metalworking process.

Repeatable Production — CNC-assisted operation can help maintain consistent processing for repeated workpieces.

Custom Tooling Support — Cutting tools,fixtures,and clamping systems can be selected according to workpiece requirements.

Industrial Applications — Suitable for pipe manufacturing,machinery,automotive,construction,steel fabrication,and general metalworking.

OEM & ODM Support — Machine configuration can be adapted according to customer drawings,samples,materials,and production requirements.

FAQs

1. What is a Steel Pipe CNC Chamfering Machine?

It is a CNC-assisted metalworking machine designed to chamfer,bevel,and deburr the ends of suitable steel pipes,tubes,and bar materials.

2. Can it chamfer stainless steel pipes?

Yes. Stainless steel pipes can be processed when suitable cutting tools and machining parameters are selected for the specific material grade and dimensions.

3. Can the machine process solid steel bars?

Yes. Suitable solid steel bars and stainless steel bars can be processed when their diameter and material properties are within the machine's rated capacity.

4. What is the purpose of pipe end chamfering?

Chamfering removes sharp edges and creates a controlled angled edge that can facilitate welding,assembly,threading,machining,and other downstream processes.

5. Can it perform deburring?

Yes. End chamfering can remove many burrs and sharp edges created during pipe or bar cutting. The final result depends on the tooling and workpiece condition.

6. Is CNC control necessary for pipe chamfering?

CNC control can be useful for repeatable production and programmable positioning. The actual functions depend on the machine configuration and control system.

7. What materials can be processed?

Depending on the machine and tooling,the equipment can process carbon steel,mild steel,stainless steel,alloy steel,and other compatible metal materials.

8. Can it process both pipe and bar materials?

Yes. With suitable tooling and clamping,the machine can be configured for hollow pipes,tubes,and solid bar materials.

9. What affects chamfering quality?

Material type,workpiece dimensions,tool condition,cutting speed,feed rate,clamping stability,tool alignment,and chamfer geometry can all affect the finished result.

10. Can the chamfer angle be customized?

The chamfer angle and profile depend on the cutting tool,machine structure,and configuration. Custom tooling can be considered for special requirements.

11. Is automatic feeding available?

Automatic feeding may be available depending on the machine configuration. Customers should confirm the required automation level when ordering.

12. What information should I provide for a quotation?

Provide the material type,pipe or bar diameter,wall thickness,workpiece length,required chamfer angle and size,production volume,and desired automation level. Drawings or samples are also helpful.
