Double Head End Steel Pipe Deburring Machine Round bar Chamfering Machine

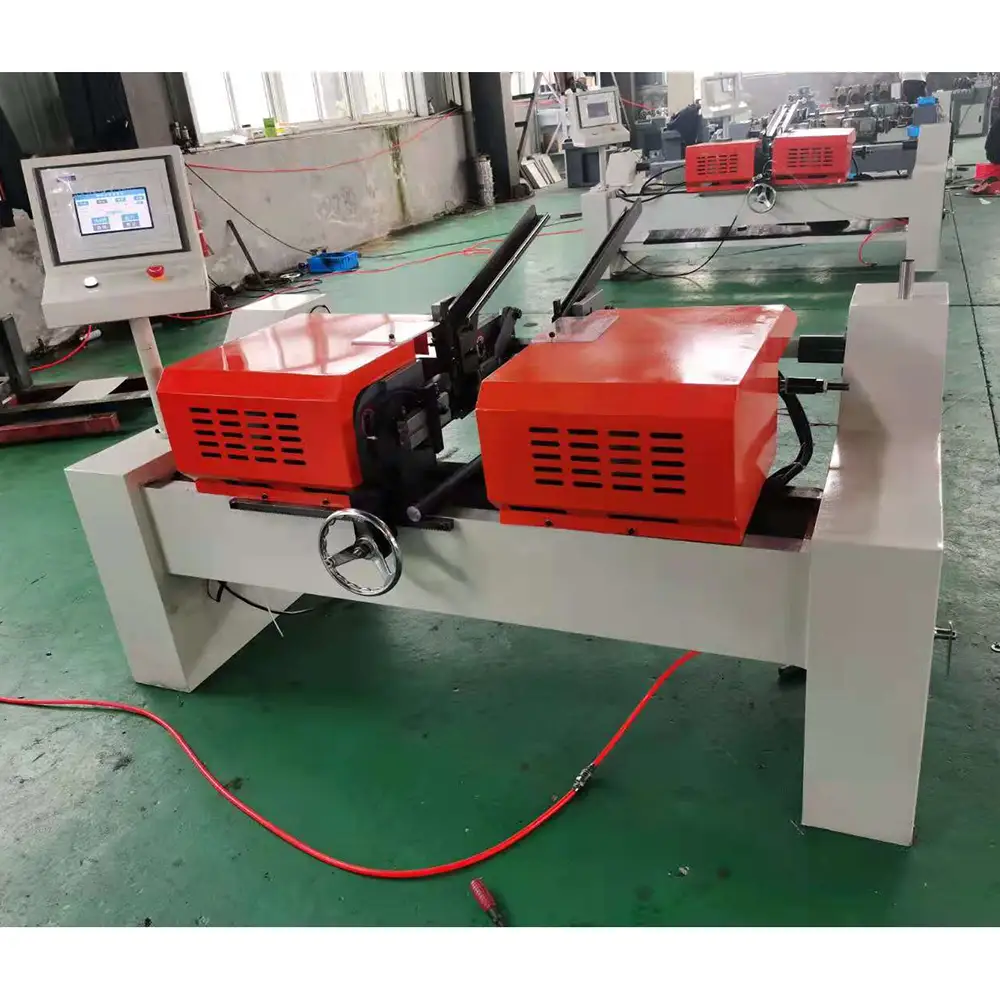

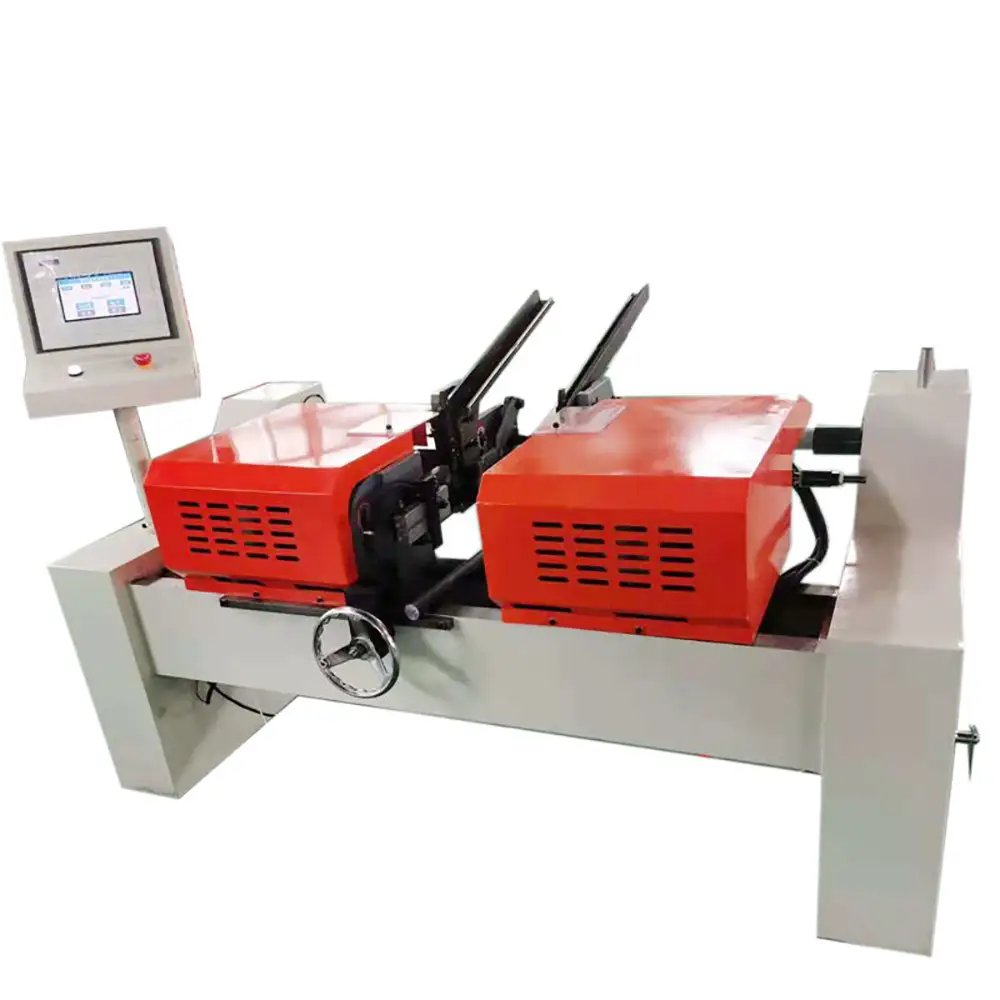

Double Head Steel Pipe Deburring and Round Bar Chamfering Machine

The Double Head Steel Pipe Deburring Machine and Round Bar Chamfering Machine is designed for efficient end processing of steel pipes,metal tubes,round bars,and other compatible cylindrical workpieces. By combining deburring and chamfering functions with a double-head processing structure,the machine provides a practical solution for manufacturers that require consistent metal end finishing in repetitive production.

After cutting,steel pipes and round bars can have sharp edges,burrs,and uneven end surfaces. These conditions may affect handling,assembly,welding,threading,or subsequent machining operations. Deburring removes unwanted sharp edges and cutting burrs,while chamfering creates a controlled angled edge on the workpiece end.

The double-head configuration can support processing of two ends or two processing positions according to the specific machine design. This can reduce manual repositioning and help improve production workflow for manufacturers processing large quantities of similar workpieces.

The machine can be configured for suitable carbon steel,mild steel,stainless steel,and other compatible metal materials. Actual workpiece diameter,length,wall thickness,bar size,chamfer dimensions,and processing capacity depend on the machine model and tooling configuration.

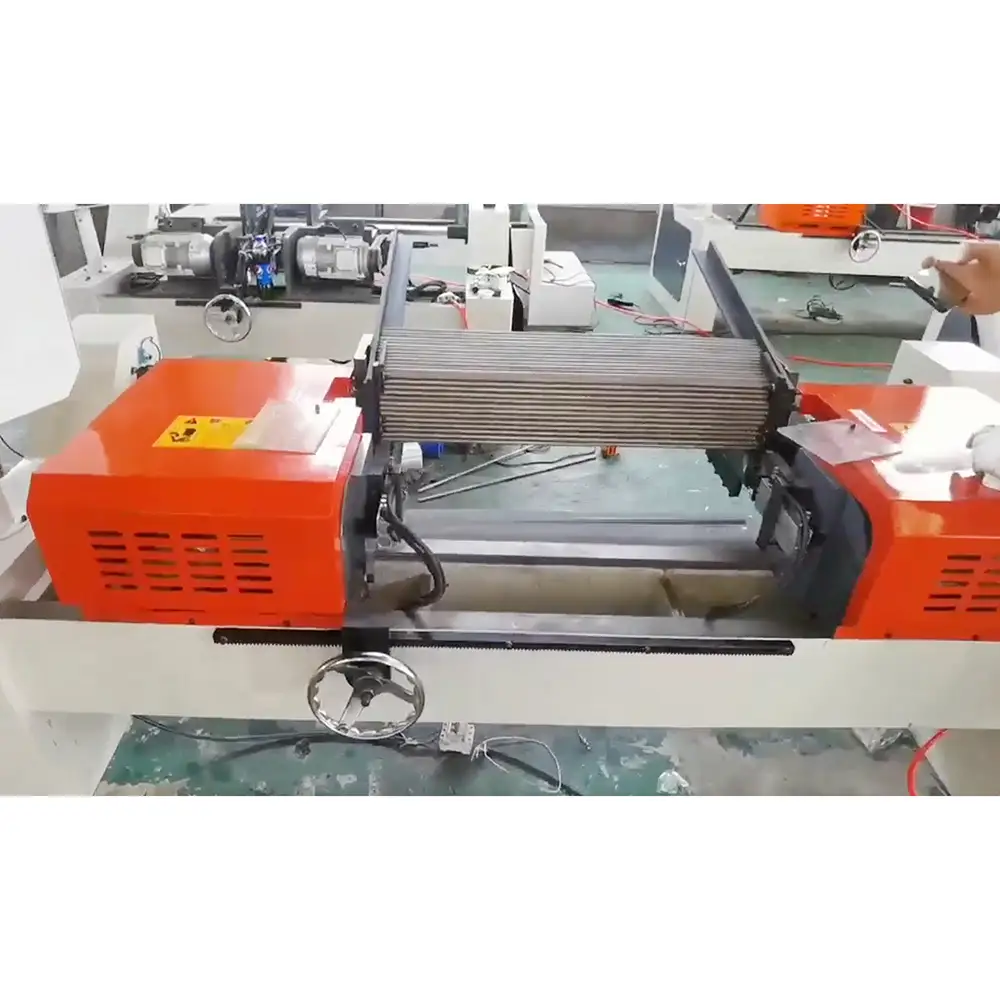

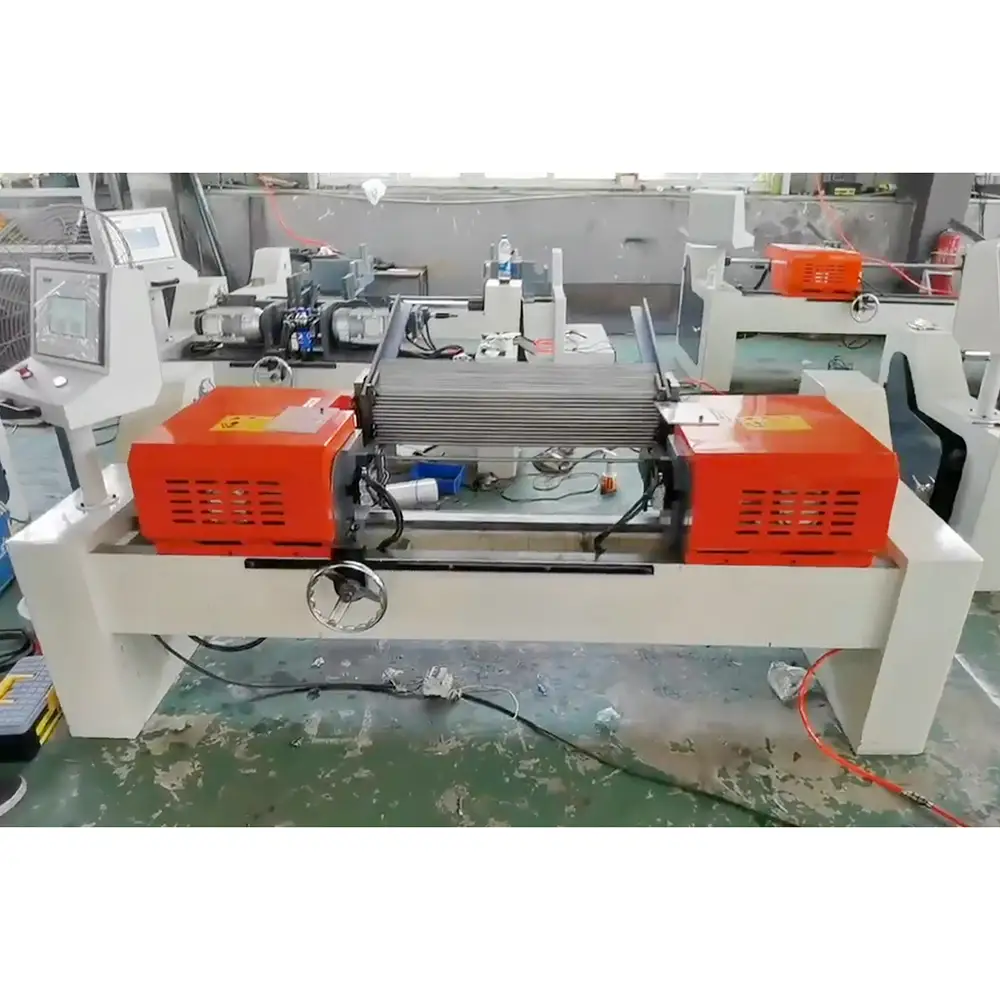

Double Head Processing Design

The double-head design is one of the main features of this metal end processing machine. Two processing heads can be arranged to work on opposite ends of a suitable workpiece or perform coordinated processing operations according to the machine configuration.

For applications where both ends of a pipe or round bar require processing,a double-head system can reduce the need to manually turn and reposition each workpiece.

This can be particularly useful for batch production of steel tubes,round bars,shafts,metal rods,and other cylindrical components.

The actual processing sequence may include automatic or manual loading,clamping,tool engagement,end processing,and unloading depending on the machine configuration.

Manufacturers should select the double-head arrangement according to workpiece size,required chamfer geometry,production volume,and desired level of automation.

Steel Pipe Deburring

Steel pipe deburring is an important finishing operation after tube or pipe cutting. Cutting processes can leave sharp burrs around the outside edge or inside edge of the pipe.

These burrs may create handling hazards or interfere with downstream assembly and fabrication.

The machine can be equipped with suitable deburring tools to remove unwanted edges from compatible steel pipes. The actual deburring method depends on pipe diameter,wall thickness,material,cutting condition,and tool configuration.

For steel pipe production,the machine can be positioned after cutting and before subsequent operations such as welding,threading,coating,assembly,or packaging.

Consistent deburring can help standardize the condition of pipe ends throughout a production batch.

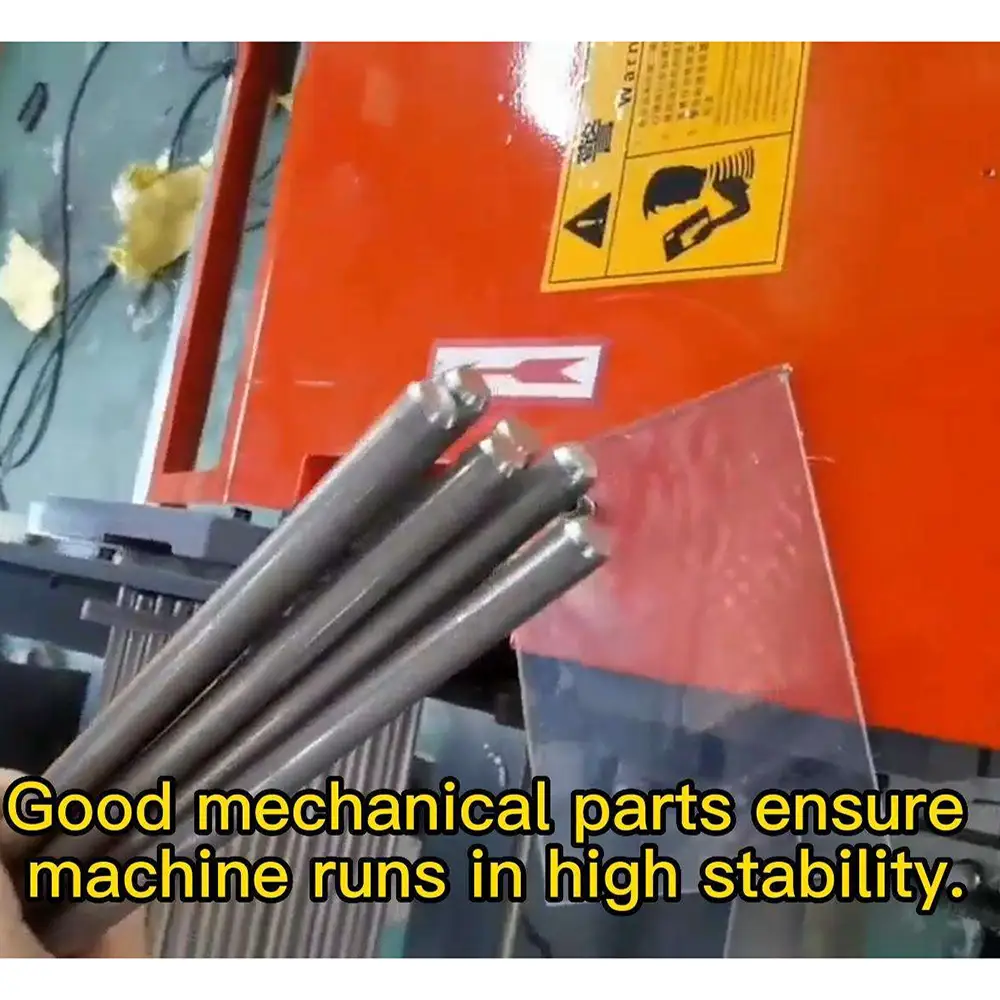

Round Bar Chamfering

Round bar chamfering creates an angled edge at the end of a solid cylindrical bar. Chamfering can make the bar easier to insert into a hole or mating component and can provide a defined edge for subsequent machining or assembly.

Round bars are commonly used in shafts,pins,fasteners,machinery components,automotive parts,construction components,and general metal fabrication.

The machine can process suitable round bars according to its rated workpiece range and tooling configuration.

For solid steel bars,the required cutting force can be higher than for thin-wall tubes because the tool removes material from a larger cross-sectional area. Tool selection and processing parameters should therefore be matched to the bar diameter and material.

Pipe End Chamfering

Chamfering a pipe or tube end can provide a defined edge profile for downstream operations.

Typical applications include:

Welding preparation

Threading preparation

Assembly

Fitting installation

Pipe joining

Tube insertion

Mechanical connections

Fabrication

Component preparation

The desired chamfer angle and depth depend on the customer's application.

For welding applications,the required edge preparation may be different from that used for simple burr removal or assembly. Customers should provide drawings or technical requirements when a specific chamfer geometry is required.

Metal Bar Deburring

Round bars and rods may develop burrs during sawing,cutting,drilling,or other machining processes. Removing these burrs can improve handling and prepare the workpiece for later processing.

The double-head machine can be configured for suitable metal bars and rods when the diameter and material are within the machine's operating range.

For different bar materials,such as carbon steel,stainless steel,or alloy steel,appropriate tooling and processing parameters should be selected.

The final result depends on tool condition,cutting speed,feed rate,material hardness,and workpiece stability.

Efficient End Finishing

Combining deburring and chamfering within a dedicated machine can simplify the end-finishing process.

Instead of manually grinding or finishing each pipe or bar end,the machine provides controlled tooling and workholding for repeatable processing.

For high-volume production,the machine can reduce repetitive manual finishing operations and help create a more standardized production workflow.

Actual production efficiency depends on workpiece dimensions,material,required chamfer,loading method,tooling changes,and machine cycle time.

Manufacturers should evaluate the complete process from loading to unloading when calculating production capacity.

Workpiece Clamping and Stability

Stable clamping is essential for accurate end processing.

Steel pipes can have different diameters and wall thicknesses,while round bars are solid and may require stronger workholding. The clamping system should therefore be selected according to the workpiece type.

Proper positioning helps prevent workpiece movement,vibration,and tool misalignment during chamfering.

For thin-wall pipes,excessive clamping force can deform the tube. For heavy solid bars,secure clamping is important to resist cutting forces.

The machine can be equipped with suitable fixtures and clamping arrangements for the intended workpiece range.

Tooling and Chamfer Quality

Tooling has a direct effect on the quality of the finished pipe or bar end.

Different materials and dimensions may require different cutter geometries,tool materials,and processing parameters.

A sharp and properly aligned tool can help produce a more consistent chamfer and reduce unnecessary cutting resistance.

Tool wear should be monitored during production. Excessive wear can increase burr formation,affect chamfer dimensions,and reduce surface quality.

For applications requiring precise chamfer angles or dimensions,customers should provide technical drawings so suitable tooling can be selected.

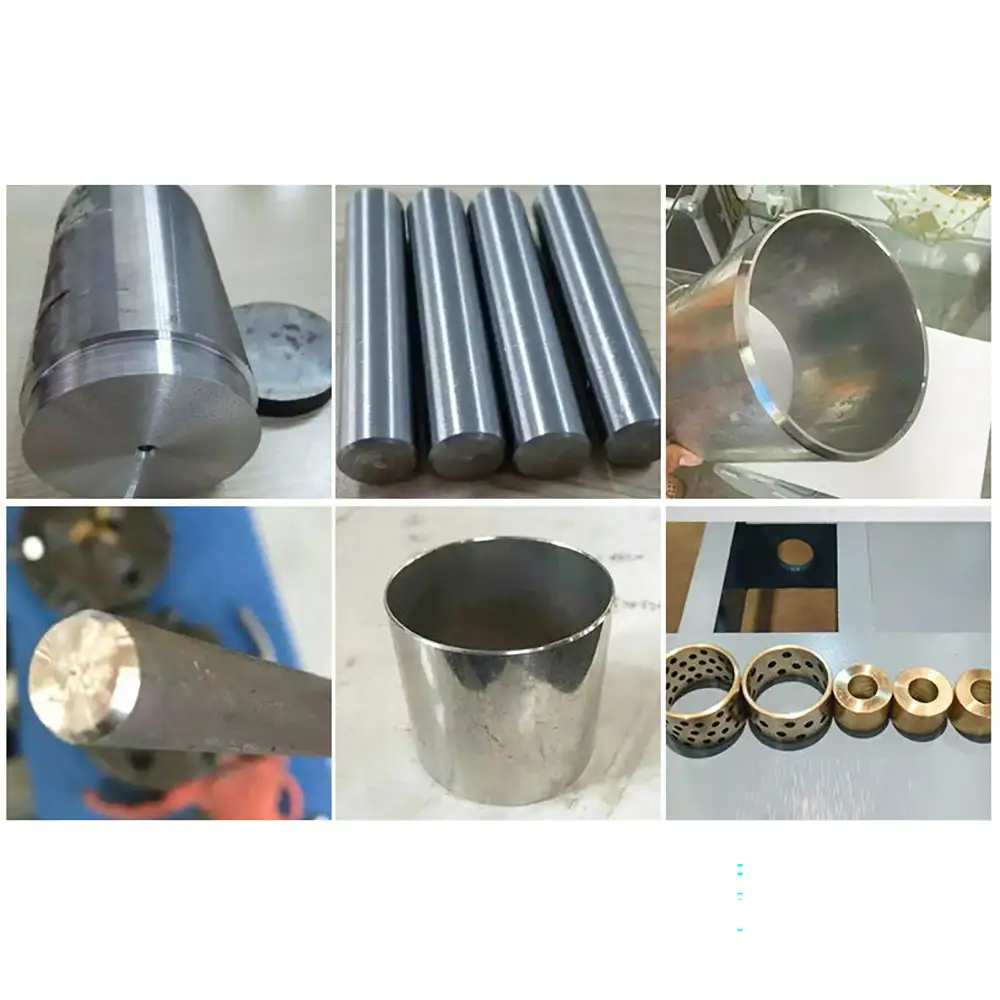

Suitable Materials

Depending on the machine configuration,the equipment can process compatible:

Carbon steel pipes

Mild steel tubes

Stainless steel pipes

Alloy steel bars

Steel round bars

Metal rods

Structural steel tubes

Other compatible cylindrical workpieces

Different materials have different hardness and cutting characteristics. Stainless steel and hardened materials may require specialized tooling and different processing parameters.

The actual material range should be confirmed according to the machine specification.

Applications

The double-head pipe deburring and round bar chamfering machine can be used in a variety of industries,including:

Steel pipe manufacturing

Metal tube processing

Round bar production

Automotive components

Motorcycle components

Machinery manufacturing

Agricultural machinery

Construction equipment

Steel structure fabrication

Furniture manufacturing

Hydraulic components

Pneumatic components

Shaft and rod production

General metal fabrication

For manufacturers producing repetitive cylindrical components,the machine can become part of an integrated cutting and end-finishing workflow.

Maintenance and Safety

Regular inspection and maintenance are important for reliable machine operation. Operators should check cutting tools,clamping systems,guide components,motors,electrical connections,and other moving parts according to the manufacturer's recommendations.

Metal chips should be removed regularly to maintain a clean working environment and prevent interference with machine movement.

Cutting tools should be inspected for wear and replaced when they no longer provide the required processing quality.

Because the machine contains rotating and cutting components,operators should keep hands away from the processing area during operation. Guards,emergency stops,and electrical protection depend on the actual machine configuration and applicable local requirements.

Custom & OEM Solutions

Different production applications require different workpiece dimensions and end geometries. The machine can therefore be configured according to specific customer requirements.

Customization may include double-head arrangements,clamping fixtures,cutting tools,feeding systems,workpiece supports,control systems,and other machine components.

For OEM and ODM projects,customers can provide pipe diameter,wall thickness,round bar diameter,workpiece length,material grade,chamfer angle,deburring requirements,and production volume.

Technical drawings or samples can also help determine the appropriate tooling and machine configuration.

Why Choose Us

Double Head Processing – Supports efficient end processing of suitable pipes,tubes,and round bars with two processing heads or positions.

Steel Pipe Deburring – Designed for removing sharp edges and burrs from compatible steel pipe and tube ends.

Round Bar Chamfering – Suitable for controlled end chamfering of compatible solid round bars and metal rods.

Efficient End Finishing – Combines dedicated deburring and chamfering processes for streamlined metal end preparation.

Flexible Material Compatibility – Can be configured for suitable carbon steel,mild steel,stainless steel,and other compatible metals.

Stable Workholding – Appropriate clamping and fixtures help maintain workpiece stability during processing.

Custom Tooling Options – Cutting tools,fixtures,clamps,and processing configurations can be selected according to customer requirements.

OEM & ODM B2B Support – Suitable for manufacturers,distributors,wholesalers,and industrial buyers seeking customized metal tube and bar processing equipment.

FAQs

1. What is a double-head pipe deburring machine?

It is a metal end-processing machine equipped with two processing heads or positions for deburring,chamfering,or other end-finishing operations on suitable cylindrical workpieces.

2. Can it deburr steel pipes?

Yes. With suitable tooling,the machine can remove burrs and sharp edges from compatible steel pipes and tubes.

3. Can it chamfer round bars?

Yes. Suitable solid round bars can be chamfered when their diameter and material are within the machine's rated processing range.

4. What is the difference between deburring and chamfering?

Deburring removes unwanted sharp edges and burrs,while chamfering creates a defined angled edge on the workpiece.

5. Can both ends be processed?

The double-head configuration can support processing of two ends or two processing positions,depending on the specific machine design.

6. What materials can be processed?

Depending on the configuration,the machine can process suitable carbon steel,mild steel,stainless steel,alloy steel,and other compatible metal pipes and bars.

7. Can it process stainless steel pipes?

Yes,provided that the machine and tooling are properly configured for the stainless steel grade,diameter,and wall thickness.

8. Can it process thin-wall steel pipes?

Potentially yes. The machine must be properly configured for the tube dimensions,and controlled clamping is important to prevent deformation.

9. What affects chamfering quality?

Material hardness,workpiece diameter,tool geometry,tool condition,cutting speed,feed rate,clamping,and machine alignment all affect chamfer quality.

10. Can the chamfer angle be customized?

The chamfer angle and geometry can generally be selected through suitable tooling and machine configuration. Exact ranges should be confirmed for the specific model.

11. Can the machine be integrated into an automatic production line?

Depending on the configuration,it can be integrated with suitable feeding,cutting,sorting,or other tube-processing equipment.

12. What information should I provide for a quotation?

Provide the workpiece material,pipe diameter,wall thickness,round bar diameter,length,chamfer dimensions,deburring requirements,production volume,and desired automation level. Drawings or samples are also recommended.
