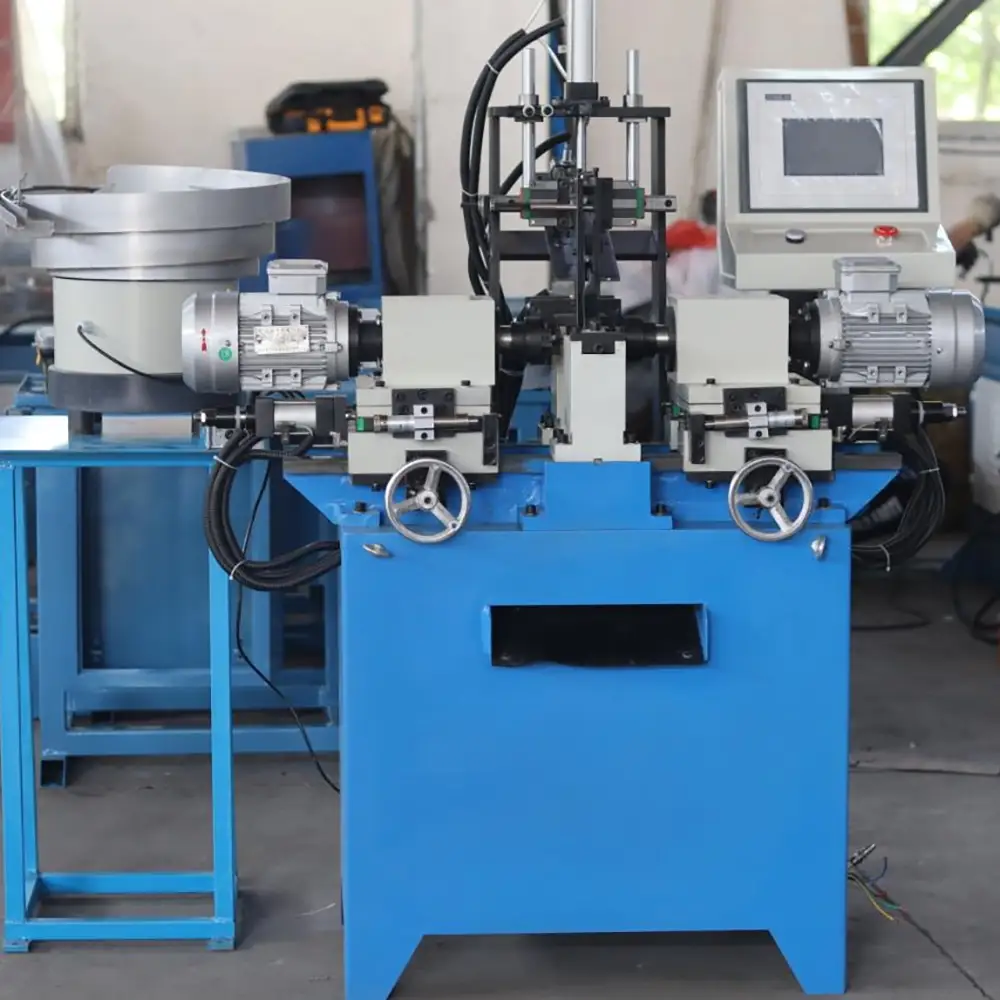

Automatic Feeding Double Head Small Aluminium Copper Tube Pipe End Chamfering Machine

  Automatic Feeding Double Head Aluminum and Copper Tube End Chamfering Machine

The Automatic Feeding Double Head Small Aluminum Copper Tube Pipe End Chamfering Machine is designed for efficient end processing of small metal tubes and pipes. Combining an automatic feeding system with a double-head chamfering structure,the machine provides a practical solution for manufacturers that require repeatable tube end chamfering,deburring,and finishing.

The equipment is particularly suitable for aluminum tubes,copper tubes,small metal pipes,and other compatible tubular workpieces. These materials are widely used in HVAC,refrigeration,automotive,electrical,plumbing,heat exchanger,furniture,and general metal fabrication applications.

Chamfering creates a controlled angled edge at the end of a tube,while deburring removes sharp edges and unwanted machining burrs. These processes can improve workpiece handling and prepare tube ends for subsequent assembly,welding,flaring,expansion,threading,or other manufacturing operations.

The double-head configuration can support efficient processing of two tube ends or two processing positions,depending on the specific machine design. Combined with automatic feeding,it can reduce repetitive manual handling and help manufacturers establish a more consistent production workflow.

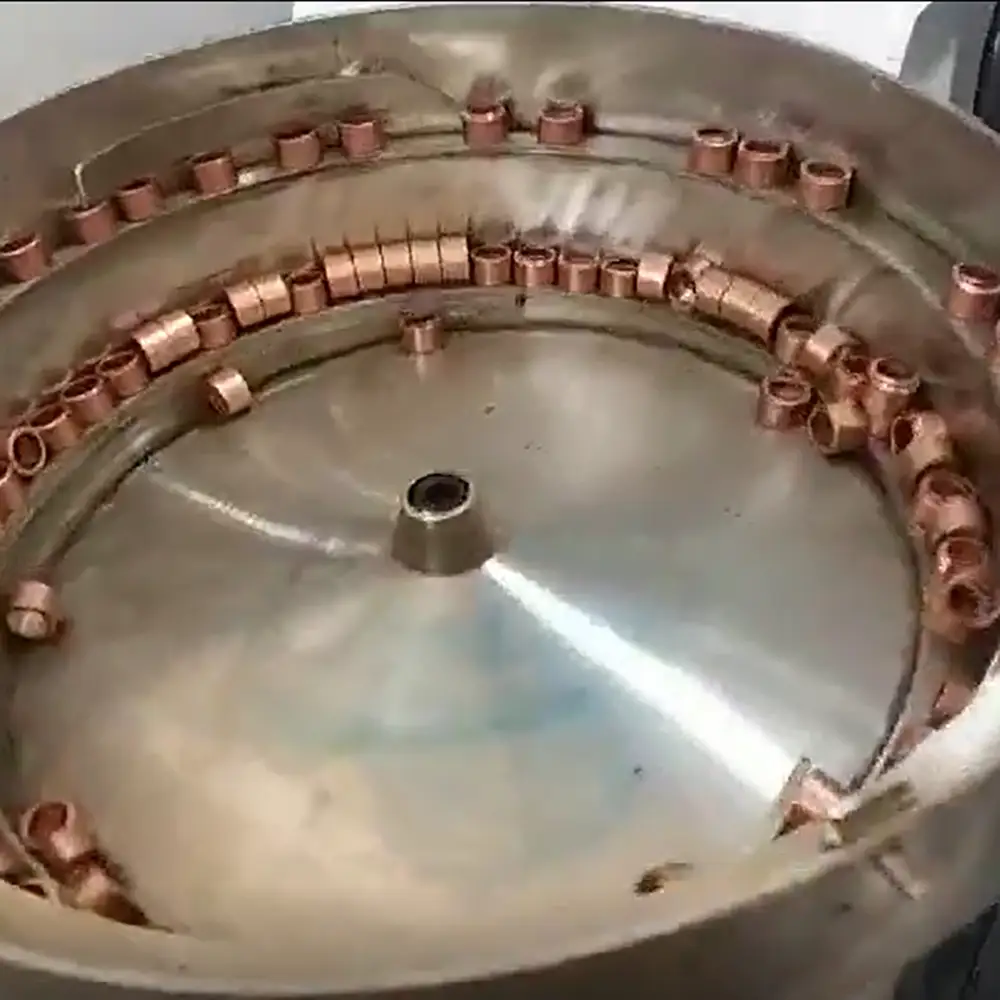

Automatic Feeding System

The automatic feeding system is designed to reduce repetitive manual loading of small tubes and pipes. Suitable workpieces can be supplied to the processing station according to the machine's feeding mechanism.

Automatic feeding is especially useful for manufacturers producing large quantities of similar aluminum or copper tubes. Instead of manually positioning every workpiece,the machine can automate part of the material handling process and maintain a more consistent production sequence.

Depending on the configuration,the feeding system may include a material rack,guide rail,pusher,feeding channel,clamping mechanism,or other automated components.

The actual feeding capacity depends on tube diameter,length,material,workpiece shape,and machine configuration. Customers should provide detailed workpiece information when selecting the feeding system.

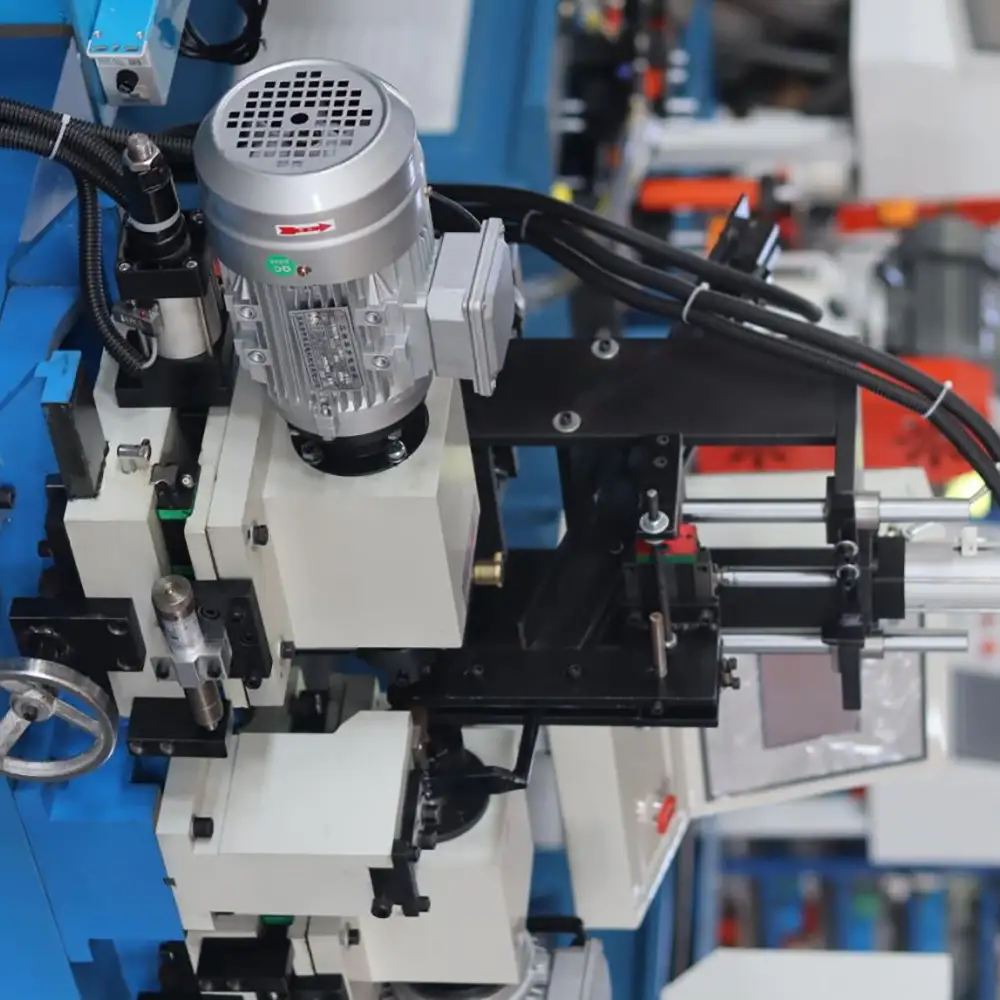

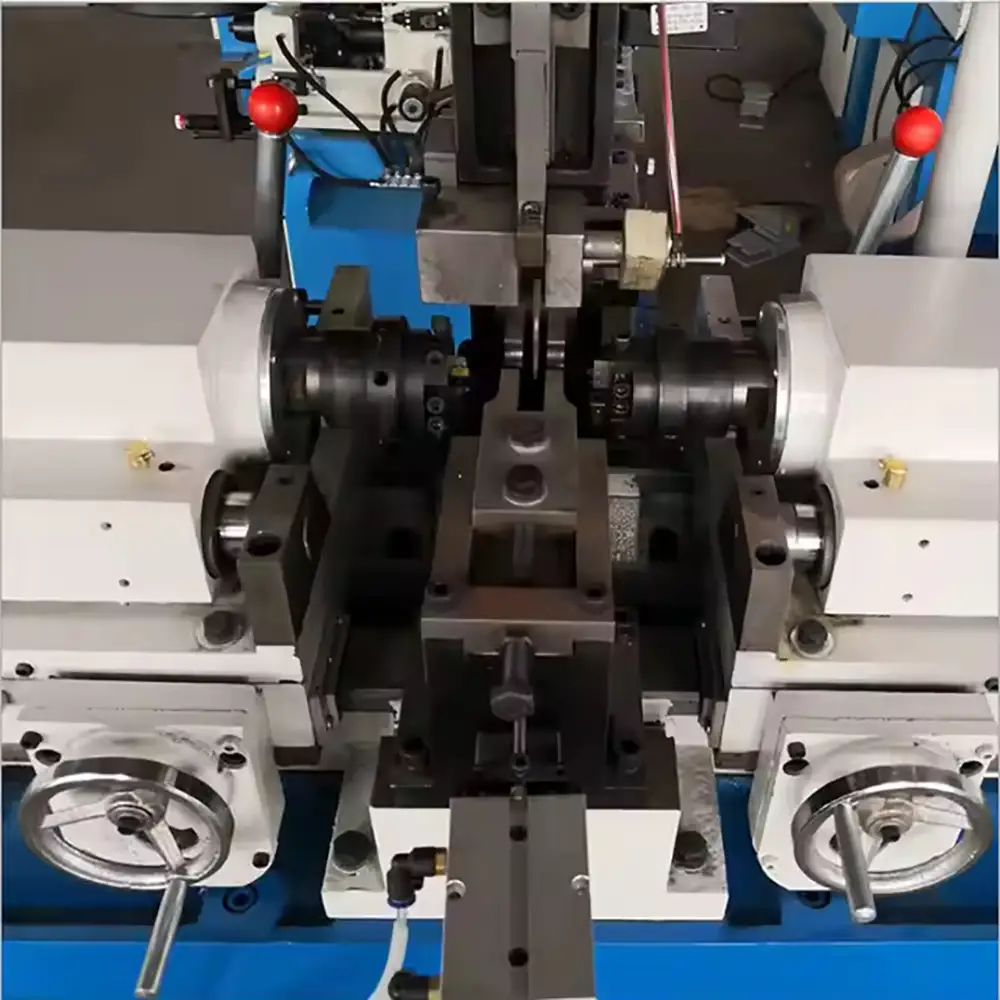

Double Head Chamfering Design

The double head chamfering structure is designed to improve processing efficiency by providing two chamfering heads or coordinated processing positions.

For suitable applications,the machine can process both ends of a tube within a coordinated production cycle. This can reduce the need to manually turn the workpiece around and reposition it for a second chamfering operation.

Double-head processing can be particularly useful for small aluminum and copper tubes that require consistent end preparation on both sides.

The exact sequence of clamping,feeding,and chamfering depends on the machine design. For high-volume production,the double-head structure can help simplify repetitive tube processing.

Aluminum Tube Chamfering

Aluminum is widely used because of its relatively low weight,corrosion resistance,and good machinability. Aluminum tubes are common in HVAC systems,heat exchangers,automotive components,air-conditioning systems,and industrial equipment.

Because aluminum is softer than many steel materials,tool selection and cutting parameters should be appropriately matched to the workpiece.

The machine can be configured with suitable cutting tools for aluminum tube end chamfering. Proper tool geometry can help reduce excessive material deformation and produce a cleaner finished edge.

The actual aluminum tube diameter,wall thickness,and chamfer dimensions should be confirmed before selecting the machine and tooling.

Copper Tube Chamfering

Copper tubes are commonly used in refrigeration,air conditioning,plumbing,heat transfer,and electrical applications. Copper is relatively soft and ductile,so the processing system should provide suitable clamping and tooling.

Chamfering the end of a copper tube can help remove sharp edges and prepare the workpiece for subsequent joining or assembly processes.

For HVAC and refrigeration applications,the tube end may need to be prepared before flaring,brazing,expansion,or connection.

The automatic feeding and double-head configuration can be useful when large numbers of identical copper tubes require consistent end finishing.

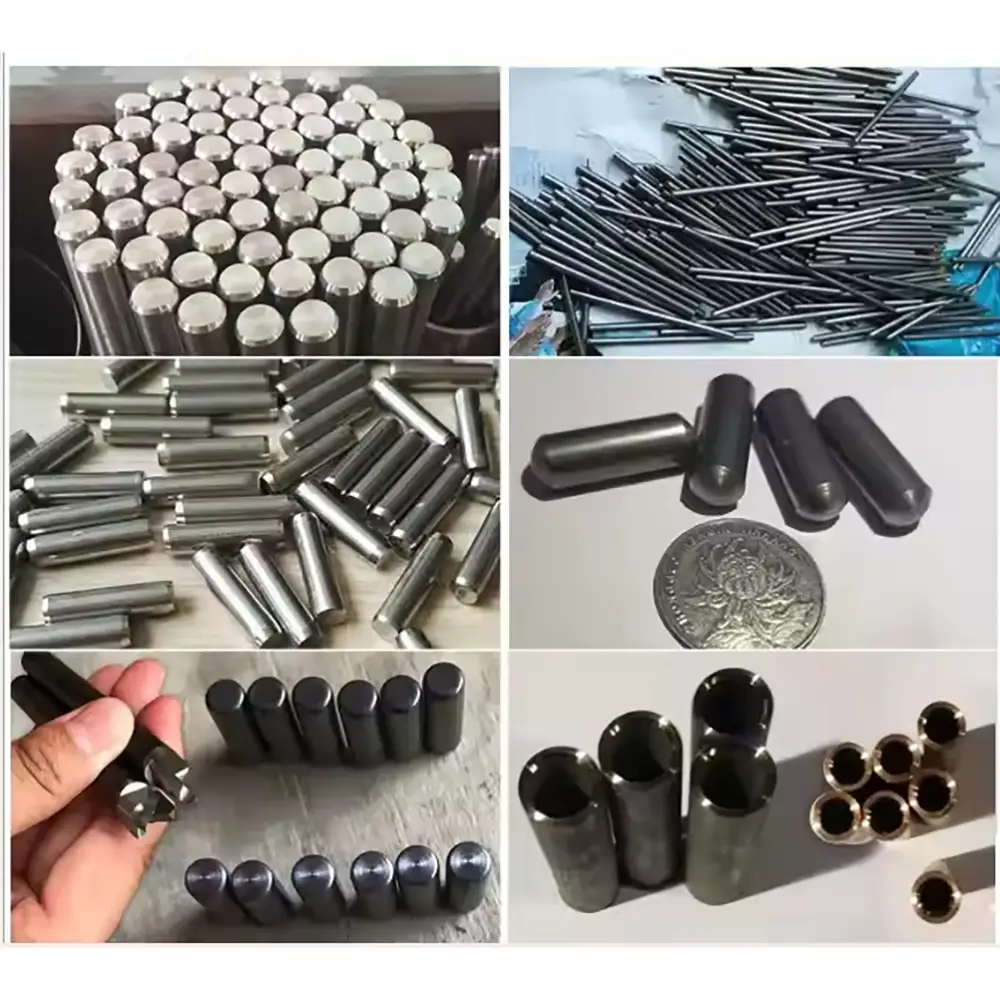

Small Tube and Pipe Processing

The machine is designed around small or relatively compact tubular workpieces. Suitable applications can include short tube sections,small-diameter pipes,metal rods with tubular profiles,and other compatible workpieces.

Small tubes can be more difficult to handle manually when production quantities are high. Automated feeding and controlled clamping can help reduce repetitive operator movements.

For thin-wall tubes,clamping pressure must be carefully controlled to prevent deformation. Tube support and tool alignment are also important for maintaining consistent chamfer dimensions.

Actual tube size and processing range depend on the machine model and tooling configuration.

Pipe End Chamfering and Deburring

Tube end chamfering creates a defined angled edge,while deburring removes sharp burrs left by cutting or previous machining processes.

A clean tube end can be important for downstream operations such as:

Tube assembly

Brazing

Welding

Flaring

Expansion

Threading

Press fitting

Mechanical connection

Heat exchanger assembly

HVAC component production

For manufacturers that cut tubes before assembly,the chamfering machine can be positioned after the tube cutting process as part of a complete tube-processing workflow.

Efficient Production for Repetitive Work

The combination of automatic feeding and double-head processing is designed for repetitive production environments.

When processing large quantities of similar aluminum or copper tubes,the machine can reduce manual loading and tube repositioning. This can help improve workflow consistency and reduce unnecessary handling.

Actual productivity depends on tube dimensions,material,cutting condition,chamfer geometry,feeding method,tooling,and machine cycle time.

Manufacturers should evaluate complete cycle time,including feeding,clamping,chamfering,unloading,and tooling changes,when estimating production capacity.

Workpiece Clamping and Positioning

Stable workpiece positioning is important for achieving consistent tube end chamfering.

Small aluminum and copper tubes can be relatively lightweight and may move or deform if they are not properly supported. The clamping system should therefore match the tube diameter,wall thickness,and material characteristics.

For thin-wall copper or aluminum tubing,excessive clamping force can cause deformation. Controlled workholding can help maintain the original tube shape during processing.

Accurate alignment between the tube axis and cutting tool is also important for producing a consistent chamfer around the tube circumference.

Tooling and Chamfer Quality

Chamfer quality depends heavily on cutting tool condition and geometry.

Different tube materials require different processing approaches. Aluminum and copper generally require tooling that can handle softer and more ductile materials without producing excessive burrs or deformation.

Tool wear should be monitored during production. A worn cutting tool can increase cutting resistance,affect surface quality,and change the resulting chamfer dimensions.

For applications requiring a specific chamfer angle or dimensional tolerance,customers should provide technical drawings or samples so suitable tooling can be evaluated.

Industrial Applications

The automatic double-head tube chamfering machine can be used across a wide range of industries,including:

HVAC manufacturing

Refrigeration equipment

Copper tube processing

Aluminum tube manufacturing

Heat exchanger production

Automotive components

Motorcycle components

Plumbing equipment

Electrical equipment

Air-conditioning systems

Furniture manufacturing

Fitness equipment

General metal fabrication

Machinery components

The actual application range depends on the machine's processing capacity,tooling,and workpiece dimensions.

Maintenance and Safety

Regular maintenance is important for maintaining stable tube processing performance. Operators should inspect cutting tools,clamps,feeding mechanisms,guide components,motors,electrical systems,and other moving parts according to the manufacturer's recommendations.

Metal chips should be removed regularly from the machine and working area. Cutting tools should be inspected for wear and replaced when necessary.

Because the machine includes automatic feeding and rotating or cutting components,operators should keep hands away from moving mechanisms during operation.

Guards,emergency stops,electrical protection,and other safety features depend on the actual machine configuration and applicable local requirements. Operators should receive appropriate training before using the equipment.

Custom & OEM Solutions

Different customers may require different tube diameters,lengths,wall thicknesses,and chamfer dimensions. The machine can therefore be configured according to specific production requirements.

Customization options may include automatic feeding systems,double-head arrangements,clamping fixtures,cutting tools,material racks,control systems,and tube positioning mechanisms.

For OEM and ODM projects,customers can provide tube drawings,material grades,outer diameter,wall thickness,tube length,chamfer angle,production volume,and required automation level.

These details allow the machine configuration and tooling to be matched to the intended application.

Why Choose Us

Automatic Feeding System – Reduces repetitive manual tube loading and supports efficient batch production.

Double Head Chamfering Design – Supports efficient processing of two tube ends or two coordinated processing positions.

Designed for Aluminum and Copper Tubes – Suitable tooling can be selected for compatible aluminum,copper,and other small metal tubes.

Efficient End Finishing – Supports tube end chamfering and deburring for downstream assembly and fabrication processes.

Stable Tube Clamping – Appropriate fixtures can help maintain workpiece alignment and reduce movement during processing.

Wide Industrial Applications – Suitable for HVAC,refrigeration,automotive,heat exchanger,plumbing,electrical,and general manufacturing.

Custom Tooling Support – Feeding systems,clamps,processing heads,and cutting tools can be configured according to customer requirements.

OEM & ODM B2B Service – Suitable for manufacturers,distributors,wholesalers,and industrial buyers seeking customized tube-processing equipment.

FAQs

1. What is an automatic double-head tube chamfering machine?

It is a tube end processing machine that combines automatic feeding with two chamfering heads or processing positions for efficient end finishing of suitable metal tubes.

2. Can it process aluminum tubes?

Yes. With suitable tooling and machine configuration,it can process compatible aluminum tubes and pipes.

3. Can it process copper tubes?

Yes. The machine can be configured for suitable copper tubes,including applications in HVAC,refrigeration,plumbing,and heat exchanger manufacturing.

4. What is the purpose of tube end chamfering?

Chamfering creates an angled edge at the tube end. It can remove sharp edges and prepare the tube for welding,brazing,flaring,expansion,assembly,or other downstream processes.

5. Can the machine process both ends of a tube?

The double-head configuration can support processing of two tube ends or two processing positions,depending on the specific machine design.

6. What does automatic feeding mean?

Automatic feeding means the machine can transfer suitable tubes into the processing position through a configured feeding mechanism,helping reduce repetitive manual loading.

7. Is it suitable for small diameter tubes?

It can be configured for suitable small tubes,but the actual diameter range depends on the machine model,clamping system,tooling,and feeding mechanism.

8. Can it remove burrs?

Yes. With suitable tooling,the machine can perform tube end deburring together with chamfering for compatible workpieces.

9. Can thin-wall copper or aluminum tubes be processed?

Potentially yes. The machine must be properly configured for the tube dimensions,and controlled clamping is important to avoid deformation.

10. What affects chamfering quality?

Material,outer diameter,wall thickness,tool geometry,tool wear,cutting speed,feed rate,clamping,and tube alignment can all affect the finished chamfer.

11. Can the feeding system be customized?

Yes. Feeding racks,guide systems,pushers,clamping fixtures,and other material-handling components can be designed around the customer's workpieces.

12. What information should I provide for a quotation?

Provide the tube material,outer diameter,wall thickness,length,chamfer angle,end geometry,production volume,and desired automation level. Drawings or physical samples are also helpful.
