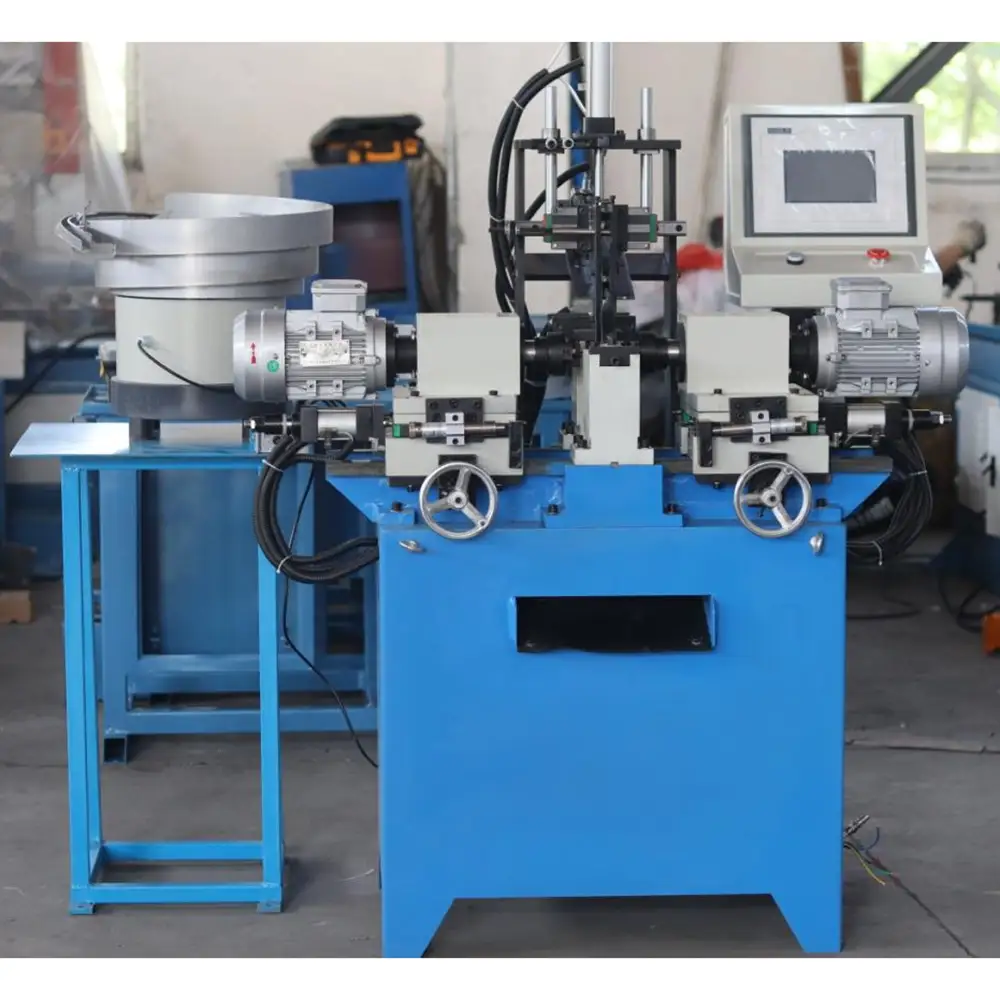

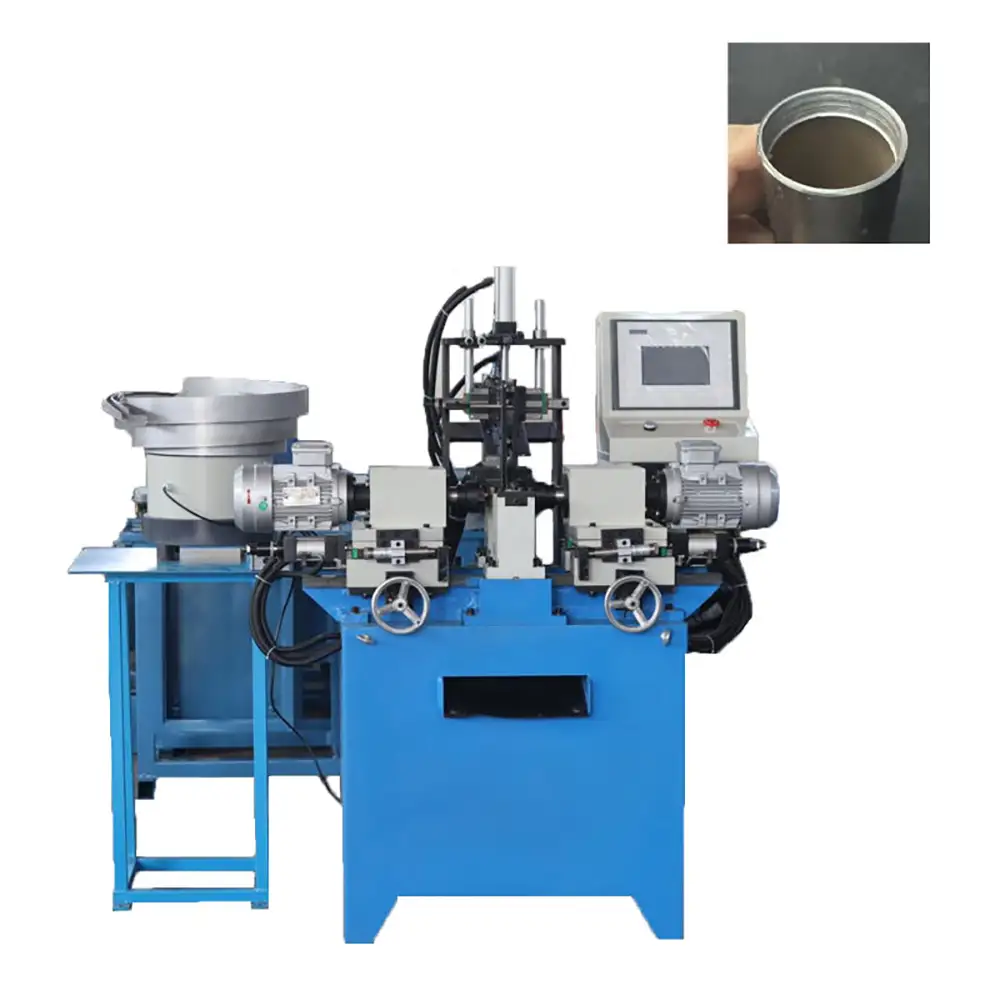

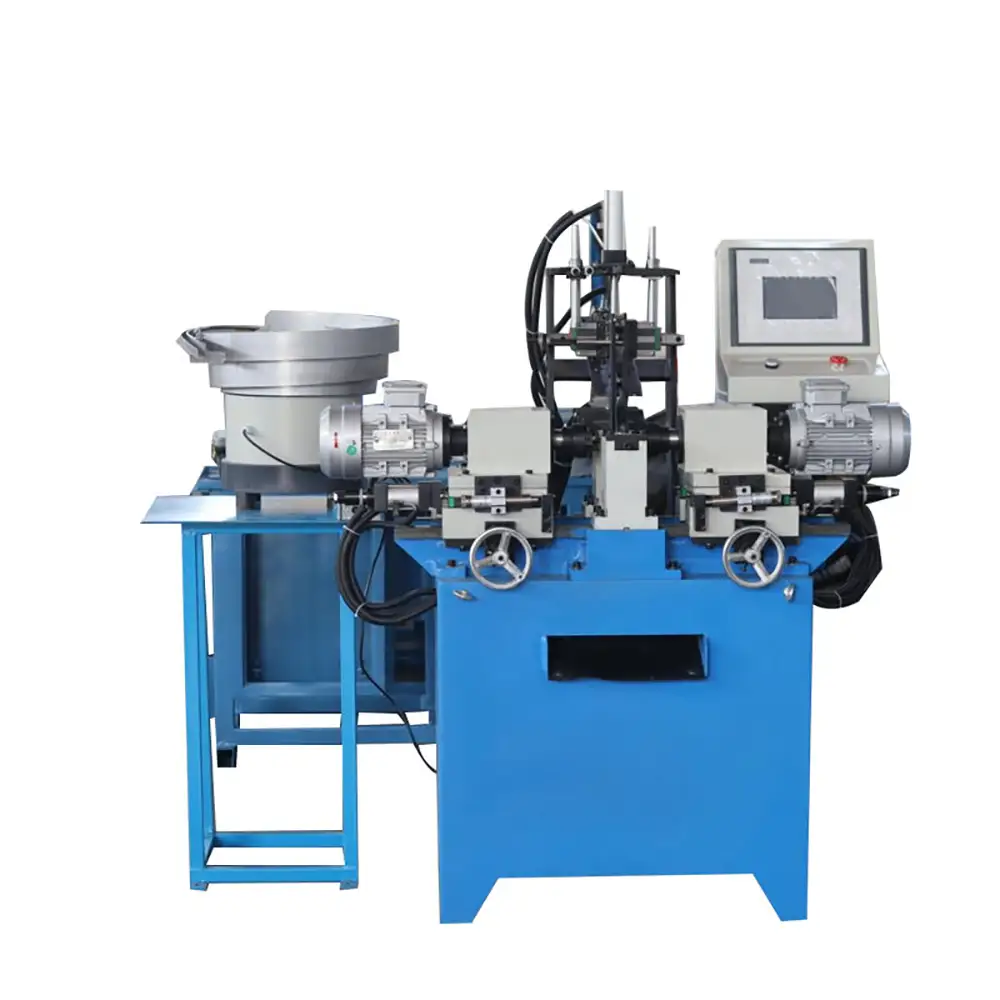

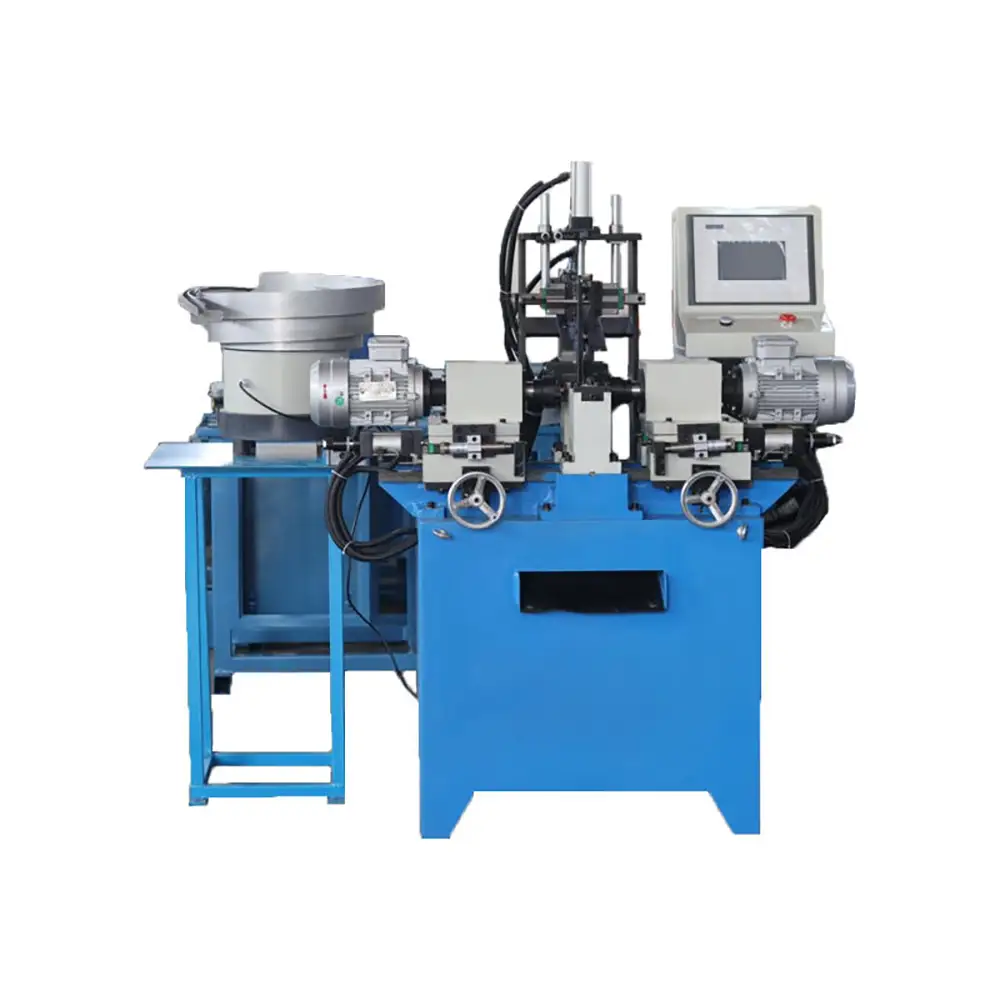

Automatic Feeding Double-head Chamfering Machine for Small Workpieces

 Automatic Feeding Double-Head Chamfering Machine for Small Workpieces

The Automatic Feeding Double-Head Chamfering Machine for Small Workpieces is designed for efficient and repeatable end processing of small metal components,tubes,rods,and other suitable workpieces. By combining an automatic feeding system with two chamfering heads,the machine can help streamline production where large quantities of similar parts require consistent edge preparation.

Chamfering is commonly used to remove sharp edges,create a controlled angled edge,and prepare metal parts for subsequent assembly,welding,threading,or machining. For small workpieces,manual chamfering can become time-consuming and may result in variations between parts. An automated feeding and machining process can reduce repetitive manual handling and provide a more organized production workflow.

The exact workpiece dimensions,material range,chamfer angle,tooling configuration,and production capacity depend on the specific machine model and processing requirements.

Automatic Feeding System

The automatic feeding system is an important part of the machine's production workflow. Instead of requiring an operator to manually position every small workpiece,the feeder can deliver suitable parts into the machining area according to the machine configuration.

Automatic feeding can help reduce repetitive loading tasks and improve the continuity of production. It is particularly useful when the same or similar small workpieces need to be processed in batches.

Feeding systems can vary depending on the shape and size of the workpiece. Round bars,tubes,pins,shafts,and other components may require different feeding and positioning arrangements.

For reliable operation,the workpiece dimensions should be consistent enough for the selected feeding system. Customers should provide sample parts or drawings when evaluating a customized automatic feeding solution.

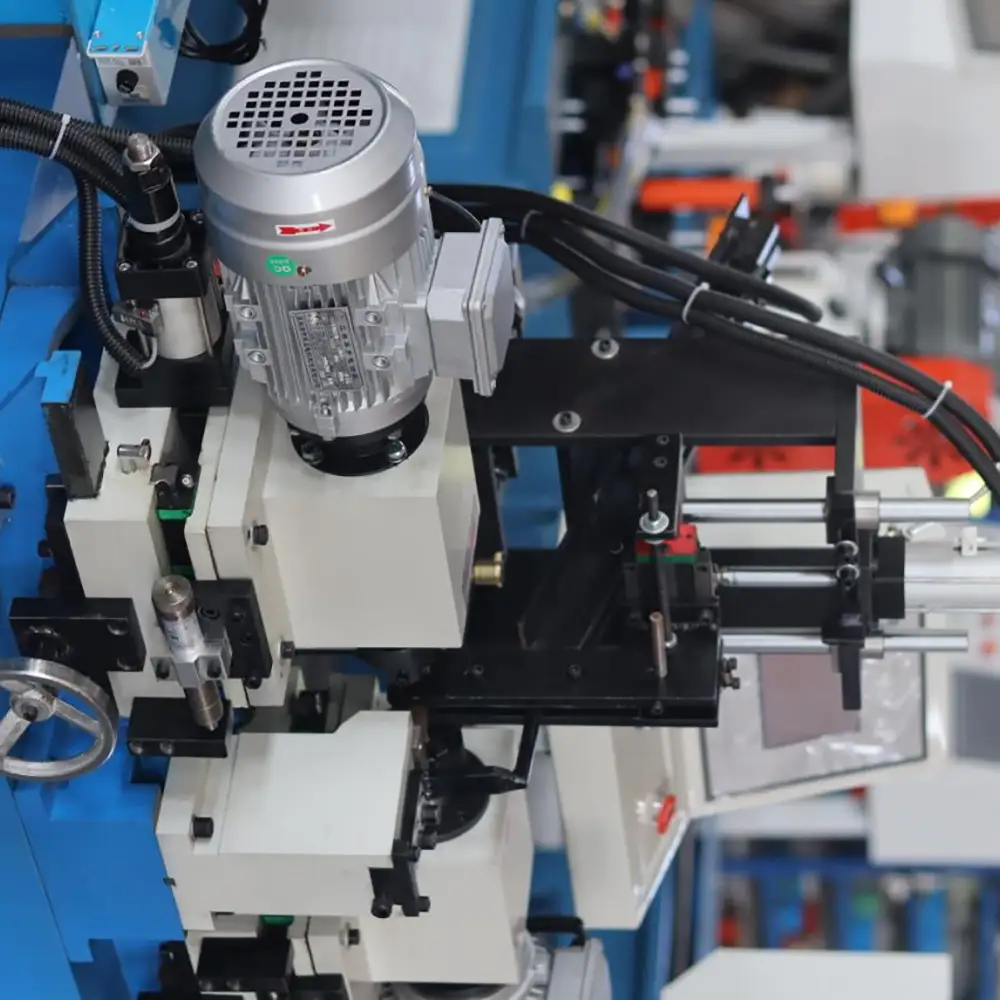

Double-Head Chamfering Design

The double-head configuration provides two machining positions or chamfering operations within the same processing system,depending on the machine design.

For suitable workpieces,this configuration can allow both ends to be processed within a coordinated production cycle. This can reduce the need to manually reverse the component and transfer it between separate machining operations.

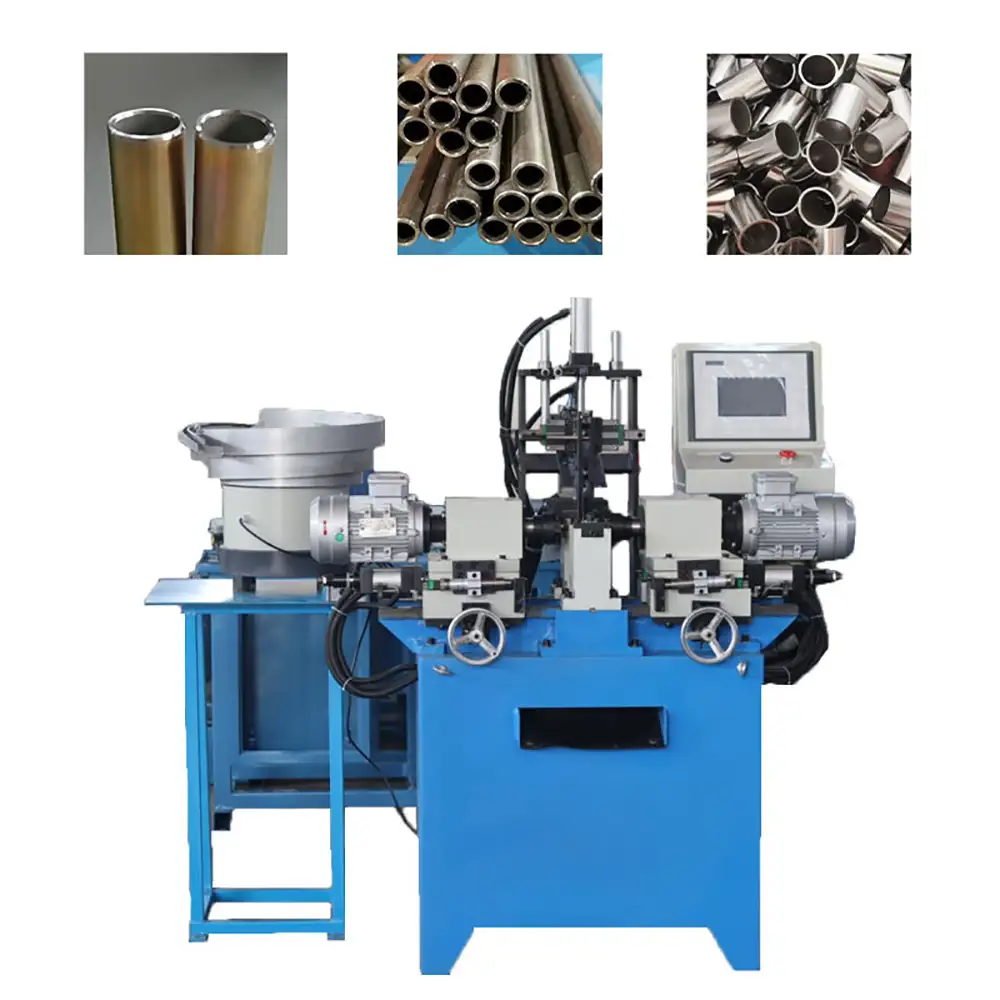

Double-head processing can be especially useful for small cylindrical parts,metal tubes,rods,and similar components that require consistent chamfering at both ends.

The exact operation of the two heads depends on the machine configuration. Customers should confirm whether the selected model is designed for simultaneous,two-stage,or sequential end processing according to the required workpiece geometry.

Small Workpiece Chamfering

Small metal components often require careful positioning because their compact dimensions leave less room for manual handling.

The machine can be configured to process suitable small workpieces such as:

Small Metal Tubes

Steel Rods

Metal Pins

Bushings

Shafts

Short Pipe Sections

Small Cylindrical Components

Hardware Components

Machined Metal Blanks

Other Compatible Parts

The actual workpiece range depends on the machine's chuck,fixture,feeding mechanism,and cutting tools.

For high-volume production of small components,automatic feeding can help improve handling efficiency while double-head processing can simplify end-finishing operations.

Precision Chamfering and Edge Finishing

A consistent chamfer can improve the functional and visual quality of a finished metal component.

Chamfering may be required to remove sharp edges,facilitate assembly,improve insertion,prepare a component for threading,or create a defined edge geometry.

The final chamfer quality depends on several factors,including tooling condition,workpiece positioning,clamping stability,machine rigidity,cutting parameters,and material properties.

For precision applications,the required chamfer width,angle,tolerance,and surface condition should be specified before selecting the machine and tooling.

When tight dimensional requirements are involved,first-piece inspection and periodic quality checks can help maintain consistent production.

Automatic Deburring

Small workpieces produced by sawing,cutting,turning,or other machining processes can have burrs around their edges.

Chamfering can combine edge removal with controlled material removal to improve the finished condition of the workpiece.

Depending on the tooling and machine configuration,the equipment can support processes that reduce sharp edges and unwanted burrs at the workpiece ends.

The degree of deburring required depends on the original cutting process and the desired finished product. A sample test is recommended when the application requires a specific surface finish or edge condition.

Suitable Materials

The machine can be configured for various compatible metal materials,depending on the cutting tool and machine structure.

Typical materials may include:

Carbon Steel

Mild Steel

Stainless Steel

Aluminum

Copper

Brass

Alloy Steel

Other Compatible Metal Materials

Different metals require different cutting conditions. Stainless steel may require suitable wear-resistant tooling,while aluminum and copper may require cutting parameters designed to minimize material buildup on the tool.

Material hardness,diameter,wall thickness,and workpiece geometry should be considered when selecting the appropriate tooling and machine configuration.

Efficient Small-Part Production

The combination of automatic feeding and double-head machining can be useful for batch production.

A typical workflow may include loading raw material or pre-cut workpieces into the feeding system,automatic positioning,clamping,chamfering,part transfer,and finished-part collection.

Reducing manual handling can help operators focus on machine monitoring,quality inspection,and material replenishment.

Actual production speed depends on workpiece dimensions,chamfer requirements,feeding method,tooling,material,cycle time,and machine configuration. Small components with simple geometries may be suitable for higher-volume repetitive processing,while complex parts may require additional setup or handling.

Applications

The automatic double-head chamfering machine can be used across various manufacturing industries.

Typical applications include:

Automotive Components

Motorcycle Parts

Bicycle Components

Hydraulic Components

Pneumatic Components

Fastener Manufacturing

Furniture Hardware

Machinery Components

Metal Tubes And Rods

Electrical Components

Agricultural Machinery

General Hardware

Precision Metal Parts

The machine can be integrated into production lines where consistent end preparation is required before assembly,coating,threading,welding,or further machining.

Tooling and Workholding

Tooling and workholding are critical to chamfering quality.

The cutting tool must be matched to the workpiece material and required chamfer geometry. Fixtures or clamps should hold the component securely while allowing efficient loading and unloading.

For small workpieces,the relationship between feeding accuracy,clamping position,and cutting tool location is particularly important.

Custom tooling can be developed for specialized components. Customers can provide part drawings,material information,dimensions,chamfer requirements,and production quantities to help determine the appropriate tooling concept.

Production Consistency and Quality Control

Automated feeding and controlled machining can help standardize the processing sequence for repeated workpieces.

Quality inspection may include checking chamfer diameter,width,angle,concentricity,edge condition,and overall part dimensions.

Operators should periodically inspect cutting tools because tool wear can affect chamfer geometry and surface finish.

When changing to a different workpiece,feeding parameters,clamping arrangements,tool position,and cutting settings should be verified before full production.

Maintenance and Safety

Regular maintenance is important for reliable operation. Operators should inspect cutting tools,feeding mechanisms,fixtures,guide systems,drive components,and electrical or pneumatic systems according to the machine configuration.

Metal chips and debris should be removed from the working area regularly to prevent interference with feeding and clamping.

Because the machine contains moving components and cutting tools,operators should receive appropriate training and follow the manufacturer's operating procedures.

Depending on the machine configuration,guards,emergency stops,and other protective devices may be provided. Applicable workplace safety requirements should always be followed.

Custom & OEM Solutions

Different industries require different workpiece sizes,materials,chamfer geometries,and production volumes.

The machine can be customized around the intended application. Possible configuration options may include automatic feeding systems,double-head tooling,custom fixtures,cutting tools,part collection systems,and control functions.

For OEM and ODM projects,customers can provide drawings,sample workpieces,material specifications,required chamfer dimensions,and expected production volume.

This allows the machine configuration to be matched more closely to the actual manufacturing process.

Why Choose Us

Automatic Feeding System — Helps reduce repetitive manual loading and supports continuous small-part processing.

Double-Head Chamfering Design — Supports coordinated end-processing operations for suitable small tubes,rods,and components.

Small Workpiece Processing — Designed for efficient handling of suitable small metal parts and components.

Consistent Edge Finishing — Controlled tooling and workholding help produce neat and repeatable chamfered edges.

Deburring Capability — Chamfering operations can also help remove sharp edges and burrs from suitable workpieces.

Flexible Material Compatibility — Can be configured for suitable steel,stainless steel,aluminum,copper,brass,and other metals.

Production-Oriented Configuration — Suitable for repetitive batch processing and integration into broader manufacturing workflows.

OEM & ODM Support — Feeding systems,fixtures,tooling,and machine configurations can be customized according to customer requirements.

FAQs

1. What is an automatic feeding double-head chamfering machine?

It is a metal-processing machine that combines automatic workpiece feeding with two chamfering heads or processing positions for efficient end finishing.

2. What types of workpieces can it process?

Depending on the machine configuration,it can process suitable small tubes,rods,pins,shafts,bushings,and other metal components.

3. Can both ends of a workpiece be chamfered?

Yes. The double-head design can be configured for processing both ends of suitable workpieces. The exact operating sequence depends on the machine design.

4. What is the advantage of automatic feeding?

Automatic feeding reduces repetitive manual loading and can help improve production continuity and handling efficiency.

5. What materials can the machine process?

Depending on the tooling,it can process suitable carbon steel,mild steel,stainless steel,aluminum,copper,brass,alloy steel,and other compatible metals.

6. Can it remove burrs?

Yes. Chamfering can help remove sharp edges and certain burrs from suitable workpieces. The actual deburring result depends on the original edge condition and tooling.

7. Is the machine suitable for high-volume production?

It can be suitable for repetitive batch production. Actual output depends on workpiece dimensions,feeding method,chamfer requirements,tooling,and machine configuration.

8. Can the feeding system be customized?

Yes. Feeding and positioning systems can be customized for different workpiece shapes,sizes,and production requirements.

9. Can square workpieces be processed?

Some configurations may support square or specially shaped workpieces,but the feeding and tooling requirements depend on the exact geometry. Sample testing is recommended.

10. What affects chamfering accuracy?

Tool condition,workpiece positioning,clamping stability,machine rigidity,material properties,cutting parameters,and feeding accuracy all affect the finished chamfer.

11. Can custom tooling be supplied?

Yes. Custom chamfering tools,fixtures,clamps,and feeding components can be developed according to the workpiece requirements.

12. What information is needed for a quotation?

Provide workpiece drawings,material,outer diameter or dimensions,length,wall thickness if applicable,chamfer size and angle,production quantity,and preferred feeding method.
